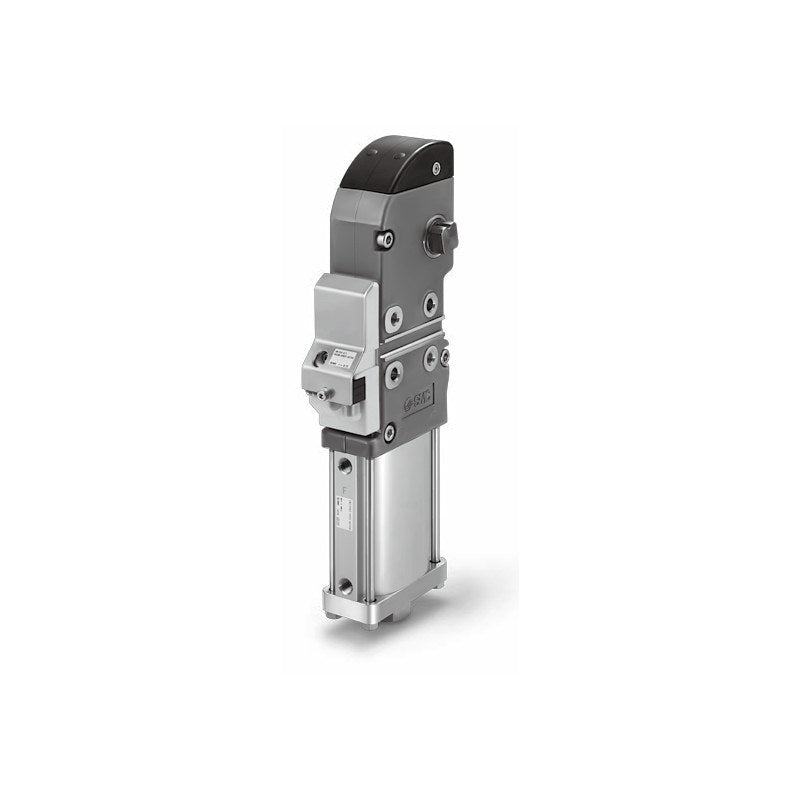

SMC CKZ3T Power Clamp Cylinder (ø50, ø63, -X2734 / -X2568)

SMC CKZ3T Power Clamp Cylinder (ø50, ø63, -X2734 / -X2568)

SMC CKZ3T series lightweight power clamp cylinder for welding fixtures, ø50 and ø63 bore, base type (-X2734) or with manual handle (-X2568L/R).

Key features

  • Aluminum body up to 39% lighter than CKZT; suited to robot material handling
  • Clamp force up to 4000 N (ø63, arm length 100 mm, 0.5 MPa); toggle lock mechanism
  • Easy switch adjustment via switch cassette when arm opening is changed; metal switch cassette cover protects against impact
  • Arm opening 15° to 135° (manual handle type up to 120°); manual handle mounted left (L) or right (R)
  • Top cover in rubber (flame-retardant UL94 V0 equivalent) or metal (M); TURCK or P&F switch, or no switch
  • Port thread Rc (TP) listed; G (no symbol) and NPT (TN) available; clamp arms CKZT50/63-A015/A045 ordered separately

Specifications

Action Double acting
Fluid Air
Proof pressure 1.2 MPa
Max. operating pressure 0.8 MPa
Min. operating pressure 0.3 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Cushion Clamp side none, unclamp side rubber cushion
Operating time Clamp 1 s or more, unclamp 1 s or more
Max. holding moment ø50 800 N·m, ø63 1500 N·m
Port size Rc1/4
Switch Proximity switch TURCK or P&F: DC10-30V, N.O. PNP, M12 connector
Source SMC Korea catalog CKZ3T (SMCKR_CKZ3T.pdf), p. 53-54 (PDF p. 2-3)
CKZ3T50TP-15T-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-15TM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-15P-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-15PM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-15W-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-15WM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-30T-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-30TM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-30P-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-30PM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-30W-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-30WM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-45T-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-45TM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-45P-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-45PM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-45W-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-45WM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-60T-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-60TM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-60P-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-60PM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-60W-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-60WM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-75T-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-75TM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-75P-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-75PM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-75W-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-75WM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-90T-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-90TM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-90P-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-90PM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-90W-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-90WM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-105T-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-105TM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-105P-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-105PM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-105W-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-105WM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-120T-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-120TM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-120P-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-120PM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-120W-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-120WM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-135T-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-135TM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-135P-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-135PM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-135W-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-135WM-X2734 Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-15T-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-15T-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-15TM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-15TM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-15P-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-15P-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-15PM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-15PM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-15W-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-15W-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-15WM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-15WM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-30T-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-30T-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-30TM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-30TM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-30P-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-30P-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-30PM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-30PM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-30W-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-30W-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-30WM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-30WM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-45T-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-45T-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-45TM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-45TM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-45P-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-45P-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-45PM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-45PM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-45W-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-45W-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-45WM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-45WM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-60T-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-60T-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-60TM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-60TM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-60P-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-60P-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-60PM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-60PM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-60W-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-60W-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-60WM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-60WM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-75T-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-75T-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-75TM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-75TM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-75P-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-75P-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-75PM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-75PM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-75W-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-75W-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-75WM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-75WM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-90T-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-90T-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-90TM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-90TM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-90P-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-90P-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-90PM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-90PM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-90W-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-90W-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-90WM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-90WM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-105T-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-105T-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-105TM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-105TM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-105P-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-105P-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-105PM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-105PM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-105W-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-105W-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-105WM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-105WM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-120T-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-120T-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-120TM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-120TM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-120P-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-120P-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-120PM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-120PM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-120W-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-120W-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-120WM-X2568L Type: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-120WM-X2568R Type: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-15T-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-15TM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-15P-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-15PM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-15W-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-15WM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-30T-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-30TM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-30P-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-30PM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-30W-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-30WM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-45T-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-45TM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-45P-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-45PM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-45W-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-45WM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-60T-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-60TM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-60P-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-60PM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-60W-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-60WM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-75T-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-75TM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-75P-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-75PM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-75W-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-75WM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-90T-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-90TM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-90P-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-90PM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-90W-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-90WM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-105T-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-105TM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-105P-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-105PM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-105W-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-105WM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-120T-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-120TM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-120P-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-120PM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-120W-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-120WM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-135T-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-135TM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-135P-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-135PM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-135W-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-135WM-X2734 Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-15T-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-15T-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-15TM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-15TM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-15P-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-15P-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-15PM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-15PM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-15W-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-15W-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-15WM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-15WM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-30T-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-30T-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-30TM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-30TM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-30P-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-30P-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-30PM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-30PM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-30W-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-30W-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-30WM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-30WM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-45T-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-45T-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-45TM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-45TM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-45P-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-45P-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-45PM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-45PM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-45W-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-45W-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-45WM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-45WM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-60T-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-60T-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-60TM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-60TM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-60P-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-60P-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-60PM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-60PM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-60W-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-60W-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-60WM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-60WM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-75T-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-75T-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-75TM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-75TM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-75P-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-75P-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-75PM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-75PM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-75W-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-75W-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-75WM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-75WM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-90T-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-90T-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-90TM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-90TM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-90P-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-90P-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-90PM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-90PM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-90W-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-90W-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-90WM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-90WM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-105T-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-105T-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-105TM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-105TM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-105P-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-105P-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-105PM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-105PM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-105W-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-105W-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-105WM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-105WM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-120T-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-120T-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-120TM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-120TM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-120P-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-120P-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-120PM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-120PM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-120W-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-120W-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-120WM-X2568L Type: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-120WM-X2568R Type: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Metal
Clamp CylindersSMC
300 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CKZ3T Power Clamp Cylinder (ø50, ø63, -X2734 / -X2568)

Brand SMC·Clamp Cylinders

Available part numbers (300)

CKZ3T50TP-15T-X2734, CKZ3T50TP-15TM-X2734, CKZ3T50TP-15P-X2734, CKZ3T50TP-15PM-X2734, CKZ3T50TP-15W-X2734, CKZ3T50TP-15WM-X2734, CKZ3T50TP-30T-X2734, CKZ3T50TP-30TM-X2734, CKZ3T50TP-30P-X2734, CKZ3T50TP-30PM-X2734 + 290 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CKZ3T50TP-15T-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-15TM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-15P-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-15PM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-15W-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-15WM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-30T-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-30TM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-30P-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-30PM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-30W-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-30WM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-45T-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-45TM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-45P-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-45PM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-45W-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-45WM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-60T-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-60TM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-60P-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-60PM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-60W-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-60WM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-75T-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-75TM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-75P-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-75PM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-75W-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-75WM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-90T-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-90TM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-90P-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-90PM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-90W-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-90WM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-105T-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-105TM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-105P-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-105PM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-105W-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-105WM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-120T-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-120TM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-120P-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-120PM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-120W-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-120WM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-135T-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-135TM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-135P-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-135PM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-135W-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-135WM-X2734Type: Base (-X2734) | Bore: ø50 | Arm opening: 135° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-15T-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-15T-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-15TM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-15TM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-15P-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-15P-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-15PM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-15PM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-15W-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-15W-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-15WM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-15WM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-30T-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-30T-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-30TM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-30TM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-30P-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-30P-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-30PM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-30PM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-30W-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-30W-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-30WM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-30WM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-45T-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-45T-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-45TM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-45TM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-45P-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-45P-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-45PM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-45PM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-45W-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-45W-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-45WM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-45WM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-60T-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-60T-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-60TM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-60TM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-60P-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-60P-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-60PM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-60PM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-60W-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-60W-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-60WM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-60WM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-75T-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-75T-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-75TM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-75TM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-75P-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-75P-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-75PM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-75PM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-75W-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-75W-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-75WM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-75WM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-90T-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-90T-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-90TM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-90TM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-90P-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-90P-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-90PM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-90PM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-90W-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-90W-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-90WM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-90WM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-105T-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-105T-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-105TM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-105TM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-105P-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-105P-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-105PM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-105PM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-105W-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-105W-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-105WM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-105WM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-120T-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-120T-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T50TP-120TM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-120TM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T50TP-120P-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-120P-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T50TP-120PM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-120PM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T50TP-120W-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-120W-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T50TP-120WM-X2568LType: Manual handle, left side | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Metal
CKZ3T50TP-120WM-X2568RType: Manual handle, right side | Bore: ø50 | Arm opening: 120° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-15T-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-15TM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-15P-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-15PM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-15W-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-15WM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-30T-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-30TM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-30P-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-30PM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-30W-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-30WM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-45T-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-45TM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-45P-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-45PM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-45W-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-45WM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-60T-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-60TM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-60P-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-60PM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-60W-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-60WM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-75T-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-75TM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-75P-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-75PM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-75W-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-75WM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-90T-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-90TM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-90P-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-90PM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-90W-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-90WM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-105T-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-105TM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-105P-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-105PM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-105W-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-105WM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-120T-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-120TM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-120P-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-120PM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-120W-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-120WM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-135T-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-135TM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-135P-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-135PM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-135W-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-135WM-X2734Type: Base (-X2734) | Bore: ø63 | Arm opening: 135° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-15T-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-15T-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-15TM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-15TM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-15P-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-15P-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-15PM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-15PM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-15W-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-15W-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-15WM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-15WM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 15° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-30T-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-30T-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-30TM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-30TM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-30P-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-30P-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-30PM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-30PM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-30W-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-30W-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-30WM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-30WM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 30° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-45T-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-45T-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-45TM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-45TM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-45P-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-45P-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-45PM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-45PM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-45W-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-45W-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-45WM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-45WM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 45° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-60T-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-60T-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-60TM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-60TM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-60P-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-60P-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-60PM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-60PM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-60W-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-60W-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-60WM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-60WM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 60° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-75T-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-75T-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-75TM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-75TM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-75P-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-75P-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-75PM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-75PM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-75W-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-75W-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-75WM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-75WM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 75° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-90T-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-90T-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-90TM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-90TM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-90P-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-90P-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-90PM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-90PM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-90W-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-90W-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-90WM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-90WM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 90° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-105T-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-105T-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-105TM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-105TM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-105P-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-105P-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-105PM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-105PM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-105W-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-105W-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-105WM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-105WM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 105° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-120T-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-120T-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Rubber
CKZ3T63TP-120TM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-120TM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: TURCK proximity | Top cover: Metal
CKZ3T63TP-120P-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-120P-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Rubber
CKZ3T63TP-120PM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-120PM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: P&F proximity | Top cover: Metal
CKZ3T63TP-120W-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-120W-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Rubber
CKZ3T63TP-120WM-X2568LType: Manual handle, left side | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Metal
CKZ3T63TP-120WM-X2568RType: Manual handle, right side | Bore: ø63 | Arm opening: 120° | Switch: Without switch | Top cover: Metal

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
