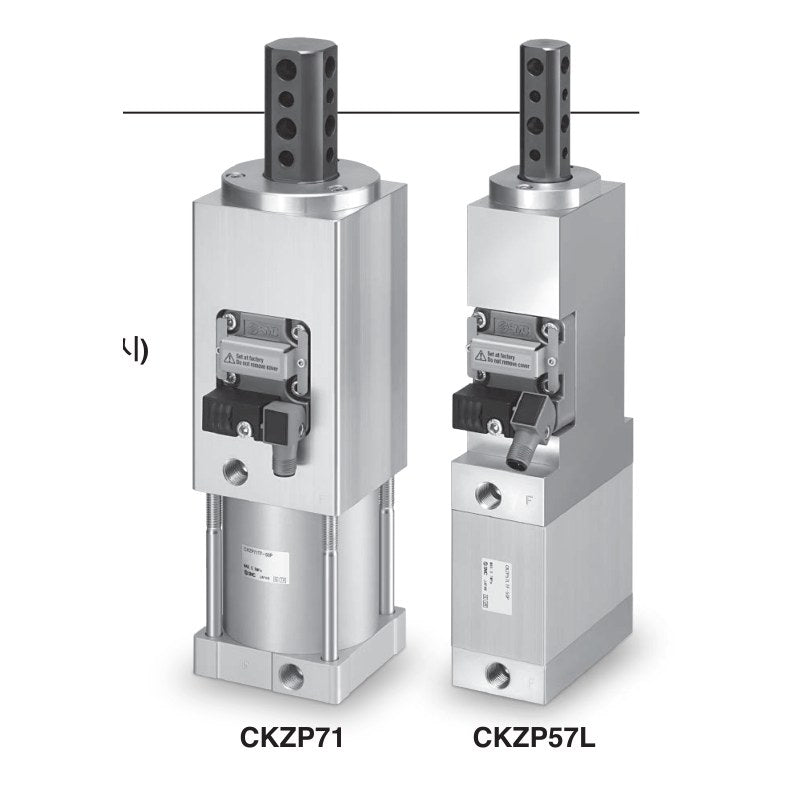

SMC CKZP Short Pin Cylinder (ø57, ø71, NAAMS)

SMC CKZP series short pin (locating pin) cylinder for workpiece positioning in welding lines, ø57 equivalent and ø71 bore, 25 or 50 mm stroke.

Key features

High accuracy: rod play ±0.1 mm or less at extension, non-rotating accuracy ±0.1 mm or less (ø71)
Position repeatability ±0.05 mm, distance accuracy ±0.1 mm
High output: 1764 N retract / 2362 N extend (ø71, 0.6 MPa); mounting complies with NAAMS (ø71)
Built-in coil scraper and lube-retainer; connector angle selectable (CKZP57L 45°/90°, CKZP71 0°/45°/90°)
TURCK or P&F proximity switch (PNP); switch output LED colour standard or reversed (-R)

Specifications

Fluid	Air
Operating pressure range	0.3 to 0.7 MPa
Ambient and fluid temperature	-10 to 60°C (no freezing)
Mass	ø57: 3.1 kg (25 st), 3.4 kg (50 st); ø71: 4.8 kg / 5.1 kg
Allowable lateral load	ø57 340 N, ø71 450 N (play ±0.1 mm)
Theoretical output at 0.5 MPa	ø57 IN 1029 / OUT 1264 N; ø71 IN 1470 / OUT 1970 N
Switch	TURCK (200 mA) or P&F (100 mA): 10-30VDC, N.O. PNP
Source	SMC Korea leaflet CKZP ('15-K669, SMCKR_CKZP.pdf), p. 1-2 (PDF p. 2-3)

CKZP57LTF-25T		Bore: ø57 \| Port thread: G1/4 \| Stroke: 25 mm \| Switch: TURCK proximity \| LED display: Std (retract yellow)
CKZP57LTF-25T-R		Bore: ø57 \| Port thread: G1/4 \| Stroke: 25 mm \| Switch: TURCK proximity \| LED display: R (retract red)
CKZP57LTF-25P		Bore: ø57 \| Port thread: G1/4 \| Stroke: 25 mm \| Switch: P&F proximity \| LED display: Std (retract yellow)
CKZP57LTF-25P-R		Bore: ø57 \| Port thread: G1/4 \| Stroke: 25 mm \| Switch: P&F proximity \| LED display: R (retract red)
CKZP57LTF-50T		Bore: ø57 \| Port thread: G1/4 \| Stroke: 50 mm \| Switch: TURCK proximity \| LED display: Std (retract yellow)
CKZP57LTF-50T-R		Bore: ø57 \| Port thread: G1/4 \| Stroke: 50 mm \| Switch: TURCK proximity \| LED display: R (retract red)
CKZP57LTF-50P		Bore: ø57 \| Port thread: G1/4 \| Stroke: 50 mm \| Switch: P&F proximity \| LED display: Std (retract yellow)
CKZP57LTF-50P-R		Bore: ø57 \| Port thread: G1/4 \| Stroke: 50 mm \| Switch: P&F proximity \| LED display: R (retract red)
CKZP57LTN-25T		Bore: ø57 \| Port thread: NPT1/4 \| Stroke: 25 mm \| Switch: TURCK proximity \| LED display: Std (retract yellow)
CKZP57LTN-25T-R		Bore: ø57 \| Port thread: NPT1/4 \| Stroke: 25 mm \| Switch: TURCK proximity \| LED display: R (retract red)
CKZP57LTN-25P		Bore: ø57 \| Port thread: NPT1/4 \| Stroke: 25 mm \| Switch: P&F proximity \| LED display: Std (retract yellow)
CKZP57LTN-25P-R		Bore: ø57 \| Port thread: NPT1/4 \| Stroke: 25 mm \| Switch: P&F proximity \| LED display: R (retract red)
CKZP57LTN-50T		Bore: ø57 \| Port thread: NPT1/4 \| Stroke: 50 mm \| Switch: TURCK proximity \| LED display: Std (retract yellow)
CKZP57LTN-50T-R		Bore: ø57 \| Port thread: NPT1/4 \| Stroke: 50 mm \| Switch: TURCK proximity \| LED display: R (retract red)
CKZP57LTN-50P		Bore: ø57 \| Port thread: NPT1/4 \| Stroke: 50 mm \| Switch: P&F proximity \| LED display: Std (retract yellow)
CKZP57LTN-50P-R		Bore: ø57 \| Port thread: NPT1/4 \| Stroke: 50 mm \| Switch: P&F proximity \| LED display: R (retract red)
CKZP71TF-25T		Bore: ø71 \| Port thread: G1/4 \| Stroke: 25 mm \| Switch: TURCK proximity \| LED display: Std (retract yellow)
CKZP71TF-25T-R		Bore: ø71 \| Port thread: G1/4 \| Stroke: 25 mm \| Switch: TURCK proximity \| LED display: R (retract red)
CKZP71TF-25P		Bore: ø71 \| Port thread: G1/4 \| Stroke: 25 mm \| Switch: P&F proximity \| LED display: Std (retract yellow)
CKZP71TF-25P-R		Bore: ø71 \| Port thread: G1/4 \| Stroke: 25 mm \| Switch: P&F proximity \| LED display: R (retract red)
CKZP71TF-50T		Bore: ø71 \| Port thread: G1/4 \| Stroke: 50 mm \| Switch: TURCK proximity \| LED display: Std (retract yellow)
CKZP71TF-50T-R		Bore: ø71 \| Port thread: G1/4 \| Stroke: 50 mm \| Switch: TURCK proximity \| LED display: R (retract red)
CKZP71TF-50P		Bore: ø71 \| Port thread: G1/4 \| Stroke: 50 mm \| Switch: P&F proximity \| LED display: Std (retract yellow)
CKZP71TF-50P-R		Bore: ø71 \| Port thread: G1/4 \| Stroke: 50 mm \| Switch: P&F proximity \| LED display: R (retract red)
CKZP71TN-25T		Bore: ø71 \| Port thread: NPT1/4 \| Stroke: 25 mm \| Switch: TURCK proximity \| LED display: Std (retract yellow)
CKZP71TN-25T-R		Bore: ø71 \| Port thread: NPT1/4 \| Stroke: 25 mm \| Switch: TURCK proximity \| LED display: R (retract red)
CKZP71TN-25P		Bore: ø71 \| Port thread: NPT1/4 \| Stroke: 25 mm \| Switch: P&F proximity \| LED display: Std (retract yellow)
CKZP71TN-25P-R		Bore: ø71 \| Port thread: NPT1/4 \| Stroke: 25 mm \| Switch: P&F proximity \| LED display: R (retract red)
CKZP71TN-50T		Bore: ø71 \| Port thread: NPT1/4 \| Stroke: 50 mm \| Switch: TURCK proximity \| LED display: Std (retract yellow)
CKZP71TN-50T-R		Bore: ø71 \| Port thread: NPT1/4 \| Stroke: 50 mm \| Switch: TURCK proximity \| LED display: R (retract red)
CKZP71TN-50P		Bore: ø71 \| Port thread: NPT1/4 \| Stroke: 50 mm \| Switch: P&F proximity \| LED display: Std (retract yellow)
CKZP71TN-50P-R		Bore: ø71 \| Port thread: NPT1/4 \| Stroke: 50 mm \| Switch: P&F proximity \| LED display: R (retract red)

Clamp CylindersSMC

32 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CKZP Short Pin Cylinder (ø57, ø71, NAAMS)

Brand SMC·Clamp Cylinders

Available part numbers (32)

CKZP57LTF-25T, CKZP57LTF-25T-R, CKZP57LTF-25P, CKZP57LTF-25P-R, CKZP57LTF-50T, CKZP57LTF-50T-R, CKZP57LTF-50P, CKZP57LTF-50P-R, CKZP57LTN-25T, CKZP57LTN-25T-R + 22 more — see full table ↓
