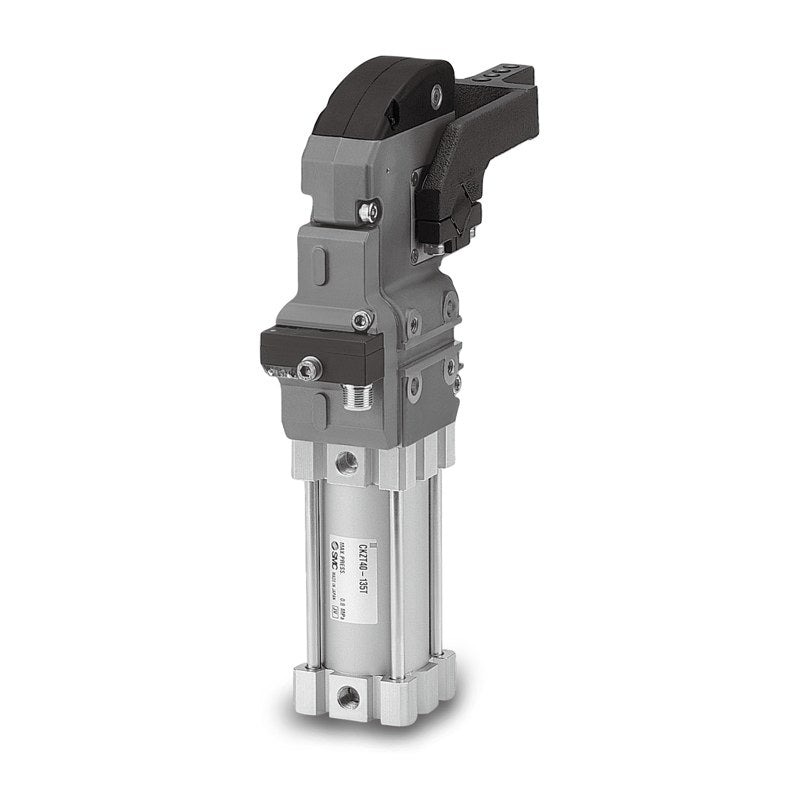

SMC CKZT40 Power Clamp Cylinder (ø40, Toggle Lock)

SMC CKZT40 Power Clamp Cylinder (ø40, Toggle Lock)

SMC CKZT40 ø40 power clamp cylinder with toggle mechanism for force boosting and locking, spatter-proof enclosure and built-in proximity switches.

Key features

  • Toggle mechanism boosts force and locks: clamp held on supply pressure drop or exhaust (1200 N at arm 100 mm, 0.5 MPa)
  • Lightweight and compact: 1.6 kg, 54 mm wide, 265.9 mm high
  • Fully covered spatter-proof structure; metal or rubber top cover
  • Proximity switch cassette (TURCK or P&F, PNP, M12) usable in welding magnetic fields
  • Manual handle type and manual handle lock type for manual work setting; handle on left or right side
  • Clamp arms ordered separately: CKZT40-A015CS/RS/LS and CKZT40-A045CS/RS/LS/CB/RB/LB

Specifications

Action Double acting
Bore size ø40 mm
Fluid Air
Proof pressure 1.2 MPa
Max. operating pressure 0.8 MPa
Min. operating pressure 0.3 MPa
Ambient and fluid temperature -10 to 60°C
Cushion Rubber cushion on unclamp side
Max. allowable holding moment 380 N·m
Port thread G (NPT with TN)
Proximity switch DC10 to 30 V, N.O. PNP, M12 connector
Source SMC Korea catalog CKZT40 (SMCKR_CKZT40.pdf), p. 24-30 (PDF p. 1-7)
CKZT40-30T Type: Base | Arm opening: 30° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-30T-X3064 Type: Base | Arm opening: 30° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-30P Type: Base | Arm opening: 30° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-30P-X3064 Type: Base | Arm opening: 30° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-45T Type: Base | Arm opening: 45° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-45T-X3064 Type: Base | Arm opening: 45° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-45P Type: Base | Arm opening: 45° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-45P-X3064 Type: Base | Arm opening: 45° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-60T Type: Base | Arm opening: 60° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-60T-X3064 Type: Base | Arm opening: 60° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-60P Type: Base | Arm opening: 60° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-60P-X3064 Type: Base | Arm opening: 60° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-75T Type: Base | Arm opening: 75° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-75T-X3064 Type: Base | Arm opening: 75° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-75P Type: Base | Arm opening: 75° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-75P-X3064 Type: Base | Arm opening: 75° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-90T Type: Base | Arm opening: 90° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-90T-X3064 Type: Base | Arm opening: 90° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-90P Type: Base | Arm opening: 90° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-90P-X3064 Type: Base | Arm opening: 90° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-105T Type: Base | Arm opening: 105° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-105T-X3064 Type: Base | Arm opening: 105° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-105P Type: Base | Arm opening: 105° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-105P-X3064 Type: Base | Arm opening: 105° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-120T Type: Base | Arm opening: 120° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-120T-X3064 Type: Base | Arm opening: 120° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-120P Type: Base | Arm opening: 120° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-120P-X3064 Type: Base | Arm opening: 120° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-135T Type: Base | Arm opening: 135° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-135T-X3064 Type: Base | Arm opening: 135° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-135P Type: Base | Arm opening: 135° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-135P-X3064 Type: Base | Arm opening: 135° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-30T-X2798L Type: Manual handle | Arm opening: 30° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-30T-X2798R Type: Manual handle | Arm opening: 30° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-30T-X3174L Type: Manual handle | Arm opening: 30° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-30T-X3174R Type: Manual handle | Arm opening: 30° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-30P-X2798L Type: Manual handle | Arm opening: 30° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-30P-X2798R Type: Manual handle | Arm opening: 30° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-30P-X3174L Type: Manual handle | Arm opening: 30° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-30P-X3174R Type: Manual handle | Arm opening: 30° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-45T-X2798L Type: Manual handle | Arm opening: 45° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-45T-X2798R Type: Manual handle | Arm opening: 45° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-45T-X3174L Type: Manual handle | Arm opening: 45° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-45T-X3174R Type: Manual handle | Arm opening: 45° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-45P-X2798L Type: Manual handle | Arm opening: 45° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-45P-X2798R Type: Manual handle | Arm opening: 45° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-45P-X3174L Type: Manual handle | Arm opening: 45° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-45P-X3174R Type: Manual handle | Arm opening: 45° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-60T-X2798L Type: Manual handle | Arm opening: 60° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-60T-X2798R Type: Manual handle | Arm opening: 60° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-60T-X3174L Type: Manual handle | Arm opening: 60° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-60T-X3174R Type: Manual handle | Arm opening: 60° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-60P-X2798L Type: Manual handle | Arm opening: 60° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-60P-X2798R Type: Manual handle | Arm opening: 60° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-60P-X3174L Type: Manual handle | Arm opening: 60° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-60P-X3174R Type: Manual handle | Arm opening: 60° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-75T-X2798L Type: Manual handle | Arm opening: 75° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-75T-X2798R Type: Manual handle | Arm opening: 75° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-75T-X3174L Type: Manual handle | Arm opening: 75° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-75T-X3174R Type: Manual handle | Arm opening: 75° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-75P-X2798L Type: Manual handle | Arm opening: 75° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-75P-X2798R Type: Manual handle | Arm opening: 75° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-75P-X3174L Type: Manual handle | Arm opening: 75° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-75P-X3174R Type: Manual handle | Arm opening: 75° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-90T-X2798L Type: Manual handle | Arm opening: 90° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-90T-X2798R Type: Manual handle | Arm opening: 90° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-90T-X3174L Type: Manual handle | Arm opening: 90° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-90T-X3174R Type: Manual handle | Arm opening: 90° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-90P-X2798L Type: Manual handle | Arm opening: 90° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-90P-X2798R Type: Manual handle | Arm opening: 90° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-90P-X3174L Type: Manual handle | Arm opening: 90° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-90P-X3174R Type: Manual handle | Arm opening: 90° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-105T-X2798L Type: Manual handle | Arm opening: 105° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-105T-X2798R Type: Manual handle | Arm opening: 105° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-105T-X3174L Type: Manual handle | Arm opening: 105° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-105T-X3174R Type: Manual handle | Arm opening: 105° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-105P-X2798L Type: Manual handle | Arm opening: 105° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-105P-X2798R Type: Manual handle | Arm opening: 105° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-105P-X3174L Type: Manual handle | Arm opening: 105° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-105P-X3174R Type: Manual handle | Arm opening: 105° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-120T-X2798L Type: Manual handle | Arm opening: 120° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-120T-X2798R Type: Manual handle | Arm opening: 120° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-120T-X3174L Type: Manual handle | Arm opening: 120° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-120T-X3174R Type: Manual handle | Arm opening: 120° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-120P-X2798L Type: Manual handle | Arm opening: 120° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-120P-X2798R Type: Manual handle | Arm opening: 120° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-120P-X3174L Type: Manual handle | Arm opening: 120° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-120P-X3174R Type: Manual handle | Arm opening: 120° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-30T-X3232L Type: Manual handle with lock | Arm opening: 30° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-30T-X3232R Type: Manual handle with lock | Arm opening: 30° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-30T-X3229L Type: Manual handle with lock | Arm opening: 30° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-30T-X3229R Type: Manual handle with lock | Arm opening: 30° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-30P-X3232L Type: Manual handle with lock | Arm opening: 30° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-30P-X3232R Type: Manual handle with lock | Arm opening: 30° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-30P-X3229L Type: Manual handle with lock | Arm opening: 30° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-30P-X3229R Type: Manual handle with lock | Arm opening: 30° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-45T-X3232L Type: Manual handle with lock | Arm opening: 45° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-45T-X3232R Type: Manual handle with lock | Arm opening: 45° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-45T-X3229L Type: Manual handle with lock | Arm opening: 45° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-45T-X3229R Type: Manual handle with lock | Arm opening: 45° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-45P-X3232L Type: Manual handle with lock | Arm opening: 45° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-45P-X3232R Type: Manual handle with lock | Arm opening: 45° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-45P-X3229L Type: Manual handle with lock | Arm opening: 45° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-45P-X3229R Type: Manual handle with lock | Arm opening: 45° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-60T-X3232L Type: Manual handle with lock | Arm opening: 60° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-60T-X3232R Type: Manual handle with lock | Arm opening: 60° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-60T-X3229L Type: Manual handle with lock | Arm opening: 60° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-60T-X3229R Type: Manual handle with lock | Arm opening: 60° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-60P-X3232L Type: Manual handle with lock | Arm opening: 60° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-60P-X3232R Type: Manual handle with lock | Arm opening: 60° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-60P-X3229L Type: Manual handle with lock | Arm opening: 60° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-60P-X3229R Type: Manual handle with lock | Arm opening: 60° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-75T-X3232L Type: Manual handle with lock | Arm opening: 75° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-75T-X3232R Type: Manual handle with lock | Arm opening: 75° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-75T-X3229L Type: Manual handle with lock | Arm opening: 75° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-75T-X3229R Type: Manual handle with lock | Arm opening: 75° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-75P-X3232L Type: Manual handle with lock | Arm opening: 75° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-75P-X3232R Type: Manual handle with lock | Arm opening: 75° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-75P-X3229L Type: Manual handle with lock | Arm opening: 75° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-75P-X3229R Type: Manual handle with lock | Arm opening: 75° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-90T-X3232L Type: Manual handle with lock | Arm opening: 90° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-90T-X3232R Type: Manual handle with lock | Arm opening: 90° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-90T-X3229L Type: Manual handle with lock | Arm opening: 90° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-90T-X3229R Type: Manual handle with lock | Arm opening: 90° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-90P-X3232L Type: Manual handle with lock | Arm opening: 90° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-90P-X3232R Type: Manual handle with lock | Arm opening: 90° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-90P-X3229L Type: Manual handle with lock | Arm opening: 90° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-90P-X3229R Type: Manual handle with lock | Arm opening: 90° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-105T-X3232L Type: Manual handle with lock | Arm opening: 105° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-105T-X3232R Type: Manual handle with lock | Arm opening: 105° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-105T-X3229L Type: Manual handle with lock | Arm opening: 105° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-105T-X3229R Type: Manual handle with lock | Arm opening: 105° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-105P-X3232L Type: Manual handle with lock | Arm opening: 105° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-105P-X3232R Type: Manual handle with lock | Arm opening: 105° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-105P-X3229L Type: Manual handle with lock | Arm opening: 105° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-105P-X3229R Type: Manual handle with lock | Arm opening: 105° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-120T-X3232L Type: Manual handle with lock | Arm opening: 120° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-120T-X3232R Type: Manual handle with lock | Arm opening: 120° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-120T-X3229L Type: Manual handle with lock | Arm opening: 120° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-120T-X3229R Type: Manual handle with lock | Arm opening: 120° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-120P-X3232L Type: Manual handle with lock | Arm opening: 120° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-120P-X3232R Type: Manual handle with lock | Arm opening: 120° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-120P-X3229L Type: Manual handle with lock | Arm opening: 120° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-120P-X3229R Type: Manual handle with lock | Arm opening: 120° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
Clamp CylindersSMC
144 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CKZT40 Power Clamp Cylinder (ø40, Toggle Lock)

Brand SMC·Clamp Cylinders

Available part numbers (144)

CKZT40-30T, CKZT40-30T-X3064, CKZT40-30P, CKZT40-30P-X3064, CKZT40-45T, CKZT40-45T-X3064, CKZT40-45P, CKZT40-45P-X3064, CKZT40-60T, CKZT40-60T-X3064 + 134 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CKZT40-30TType: Base | Arm opening: 30° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-30T-X3064Type: Base | Arm opening: 30° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-30PType: Base | Arm opening: 30° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-30P-X3064Type: Base | Arm opening: 30° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-45TType: Base | Arm opening: 45° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-45T-X3064Type: Base | Arm opening: 45° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-45PType: Base | Arm opening: 45° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-45P-X3064Type: Base | Arm opening: 45° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-60TType: Base | Arm opening: 60° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-60T-X3064Type: Base | Arm opening: 60° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-60PType: Base | Arm opening: 60° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-60P-X3064Type: Base | Arm opening: 60° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-75TType: Base | Arm opening: 75° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-75T-X3064Type: Base | Arm opening: 75° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-75PType: Base | Arm opening: 75° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-75P-X3064Type: Base | Arm opening: 75° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-90TType: Base | Arm opening: 90° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-90T-X3064Type: Base | Arm opening: 90° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-90PType: Base | Arm opening: 90° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-90P-X3064Type: Base | Arm opening: 90° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-105TType: Base | Arm opening: 105° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-105T-X3064Type: Base | Arm opening: 105° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-105PType: Base | Arm opening: 105° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-105P-X3064Type: Base | Arm opening: 105° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-120TType: Base | Arm opening: 120° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-120T-X3064Type: Base | Arm opening: 120° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-120PType: Base | Arm opening: 120° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-120P-X3064Type: Base | Arm opening: 120° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-135TType: Base | Arm opening: 135° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: None
CKZT40-135T-X3064Type: Base | Arm opening: 135° | Proximity switch: TURCK | Top cover: Metal | Manual handle: None
CKZT40-135PType: Base | Arm opening: 135° | Proximity switch: P&F | Top cover: Rubber | Manual handle: None
CKZT40-135P-X3064Type: Base | Arm opening: 135° | Proximity switch: P&F | Top cover: Metal | Manual handle: None
CKZT40-30T-X2798LType: Manual handle | Arm opening: 30° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-30T-X2798RType: Manual handle | Arm opening: 30° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-30T-X3174LType: Manual handle | Arm opening: 30° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-30T-X3174RType: Manual handle | Arm opening: 30° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-30P-X2798LType: Manual handle | Arm opening: 30° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-30P-X2798RType: Manual handle | Arm opening: 30° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-30P-X3174LType: Manual handle | Arm opening: 30° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-30P-X3174RType: Manual handle | Arm opening: 30° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-45T-X2798LType: Manual handle | Arm opening: 45° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-45T-X2798RType: Manual handle | Arm opening: 45° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-45T-X3174LType: Manual handle | Arm opening: 45° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-45T-X3174RType: Manual handle | Arm opening: 45° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-45P-X2798LType: Manual handle | Arm opening: 45° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-45P-X2798RType: Manual handle | Arm opening: 45° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-45P-X3174LType: Manual handle | Arm opening: 45° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-45P-X3174RType: Manual handle | Arm opening: 45° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-60T-X2798LType: Manual handle | Arm opening: 60° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-60T-X2798RType: Manual handle | Arm opening: 60° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-60T-X3174LType: Manual handle | Arm opening: 60° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-60T-X3174RType: Manual handle | Arm opening: 60° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-60P-X2798LType: Manual handle | Arm opening: 60° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-60P-X2798RType: Manual handle | Arm opening: 60° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-60P-X3174LType: Manual handle | Arm opening: 60° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-60P-X3174RType: Manual handle | Arm opening: 60° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-75T-X2798LType: Manual handle | Arm opening: 75° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-75T-X2798RType: Manual handle | Arm opening: 75° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-75T-X3174LType: Manual handle | Arm opening: 75° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-75T-X3174RType: Manual handle | Arm opening: 75° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-75P-X2798LType: Manual handle | Arm opening: 75° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-75P-X2798RType: Manual handle | Arm opening: 75° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-75P-X3174LType: Manual handle | Arm opening: 75° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-75P-X3174RType: Manual handle | Arm opening: 75° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-90T-X2798LType: Manual handle | Arm opening: 90° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-90T-X2798RType: Manual handle | Arm opening: 90° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-90T-X3174LType: Manual handle | Arm opening: 90° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-90T-X3174RType: Manual handle | Arm opening: 90° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-90P-X2798LType: Manual handle | Arm opening: 90° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-90P-X2798RType: Manual handle | Arm opening: 90° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-90P-X3174LType: Manual handle | Arm opening: 90° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-90P-X3174RType: Manual handle | Arm opening: 90° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-105T-X2798LType: Manual handle | Arm opening: 105° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-105T-X2798RType: Manual handle | Arm opening: 105° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-105T-X3174LType: Manual handle | Arm opening: 105° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-105T-X3174RType: Manual handle | Arm opening: 105° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-105P-X2798LType: Manual handle | Arm opening: 105° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-105P-X2798RType: Manual handle | Arm opening: 105° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-105P-X3174LType: Manual handle | Arm opening: 105° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-105P-X3174RType: Manual handle | Arm opening: 105° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-120T-X2798LType: Manual handle | Arm opening: 120° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-120T-X2798RType: Manual handle | Arm opening: 120° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-120T-X3174LType: Manual handle | Arm opening: 120° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-120T-X3174RType: Manual handle | Arm opening: 120° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-120P-X2798LType: Manual handle | Arm opening: 120° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-120P-X2798RType: Manual handle | Arm opening: 120° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-120P-X3174LType: Manual handle | Arm opening: 120° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-120P-X3174RType: Manual handle | Arm opening: 120° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-30T-X3232LType: Manual handle with lock | Arm opening: 30° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-30T-X3232RType: Manual handle with lock | Arm opening: 30° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-30T-X3229LType: Manual handle with lock | Arm opening: 30° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-30T-X3229RType: Manual handle with lock | Arm opening: 30° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-30P-X3232LType: Manual handle with lock | Arm opening: 30° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-30P-X3232RType: Manual handle with lock | Arm opening: 30° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-30P-X3229LType: Manual handle with lock | Arm opening: 30° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-30P-X3229RType: Manual handle with lock | Arm opening: 30° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-45T-X3232LType: Manual handle with lock | Arm opening: 45° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-45T-X3232RType: Manual handle with lock | Arm opening: 45° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-45T-X3229LType: Manual handle with lock | Arm opening: 45° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-45T-X3229RType: Manual handle with lock | Arm opening: 45° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-45P-X3232LType: Manual handle with lock | Arm opening: 45° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-45P-X3232RType: Manual handle with lock | Arm opening: 45° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-45P-X3229LType: Manual handle with lock | Arm opening: 45° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-45P-X3229RType: Manual handle with lock | Arm opening: 45° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-60T-X3232LType: Manual handle with lock | Arm opening: 60° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-60T-X3232RType: Manual handle with lock | Arm opening: 60° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-60T-X3229LType: Manual handle with lock | Arm opening: 60° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-60T-X3229RType: Manual handle with lock | Arm opening: 60° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-60P-X3232LType: Manual handle with lock | Arm opening: 60° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-60P-X3232RType: Manual handle with lock | Arm opening: 60° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-60P-X3229LType: Manual handle with lock | Arm opening: 60° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-60P-X3229RType: Manual handle with lock | Arm opening: 60° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-75T-X3232LType: Manual handle with lock | Arm opening: 75° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-75T-X3232RType: Manual handle with lock | Arm opening: 75° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-75T-X3229LType: Manual handle with lock | Arm opening: 75° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-75T-X3229RType: Manual handle with lock | Arm opening: 75° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-75P-X3232LType: Manual handle with lock | Arm opening: 75° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-75P-X3232RType: Manual handle with lock | Arm opening: 75° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-75P-X3229LType: Manual handle with lock | Arm opening: 75° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-75P-X3229RType: Manual handle with lock | Arm opening: 75° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-90T-X3232LType: Manual handle with lock | Arm opening: 90° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-90T-X3232RType: Manual handle with lock | Arm opening: 90° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-90T-X3229LType: Manual handle with lock | Arm opening: 90° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-90T-X3229RType: Manual handle with lock | Arm opening: 90° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-90P-X3232LType: Manual handle with lock | Arm opening: 90° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-90P-X3232RType: Manual handle with lock | Arm opening: 90° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-90P-X3229LType: Manual handle with lock | Arm opening: 90° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-90P-X3229RType: Manual handle with lock | Arm opening: 90° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-105T-X3232LType: Manual handle with lock | Arm opening: 105° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-105T-X3232RType: Manual handle with lock | Arm opening: 105° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-105T-X3229LType: Manual handle with lock | Arm opening: 105° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-105T-X3229RType: Manual handle with lock | Arm opening: 105° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-105P-X3232LType: Manual handle with lock | Arm opening: 105° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-105P-X3232RType: Manual handle with lock | Arm opening: 105° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-105P-X3229LType: Manual handle with lock | Arm opening: 105° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-105P-X3229RType: Manual handle with lock | Arm opening: 105° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side
CKZT40-120T-X3232LType: Manual handle with lock | Arm opening: 120° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Left side
CKZT40-120T-X3232RType: Manual handle with lock | Arm opening: 120° | Proximity switch: TURCK | Top cover: Rubber | Manual handle: Right side
CKZT40-120T-X3229LType: Manual handle with lock | Arm opening: 120° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Left side
CKZT40-120T-X3229RType: Manual handle with lock | Arm opening: 120° | Proximity switch: TURCK | Top cover: Metal | Manual handle: Right side
CKZT40-120P-X3232LType: Manual handle with lock | Arm opening: 120° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Left side
CKZT40-120P-X3232RType: Manual handle with lock | Arm opening: 120° | Proximity switch: P&F | Top cover: Rubber | Manual handle: Right side
CKZT40-120P-X3229LType: Manual handle with lock | Arm opening: 120° | Proximity switch: P&F | Top cover: Metal | Manual handle: Left side
CKZT40-120P-X3229RType: Manual handle with lock | Arm opening: 120° | Proximity switch: P&F | Top cover: Metal | Manual handle: Right side

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
