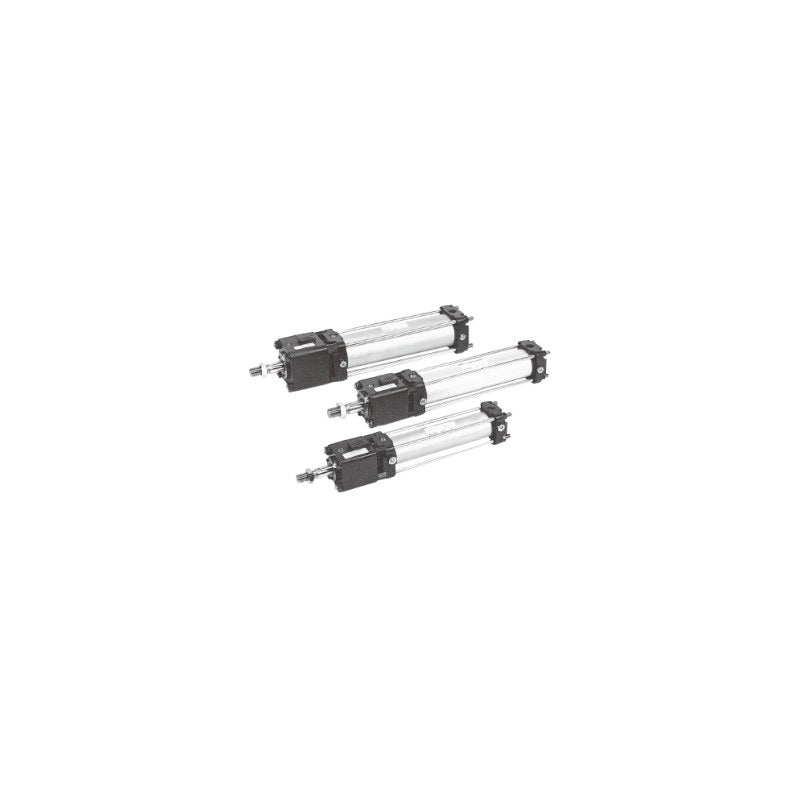

SMC CL1 Lock-up Cylinder (Bore 40 to 63 mm)

SMC CL1 series lock-up cylinder (bore 40 to 63 mm), a double-acting tie-rod cylinder with a self-locking spring lock unit for intermediate stops, emergency stops and drop prevention.

Key features

Self-locking lock-up cylinder: a spring tilts the brake ring to clamp the piston rod, holding more firmly as load increases
Spring lock: the lock engages when lock-release air is exhausted; one locking direction (changeable)
Seven mounting styles; aluminum tube standard, steel tube (F, without magnet) on order
Cushion symbols (N none, R rod end, H head end; blank both ends), bellows (J/K), NPT/G ports and auto switches ordered as suffixes
Bores 125, 140 and 160 mm and bidirectional lock (-X51) available as other codes

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.08 MPa
Piston speed	50 to 200 mm/s (locking from standstill up to 500 mm/s)
Cushion	Air cushion
Lock-up release pressure	0.2 MPa min. (no load)
Lock-up start pressure	0.05 MPa max.
Lubrication	Not required (non-lube)
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Source	SMC Korea catalog CL series (SMCKR_CLJ2_CLM2_CLG1_CL1.pdf), p. 1019-1022 (PDF p. 47-50)

CL1B40-25F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1B40-25B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1B40-50F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1B40-50B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1B40-75F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1B40-75B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1B40-100F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1B40-100B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1B40-125F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1B40-125B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1B40-150F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1B40-150B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1B40-175F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1B40-175B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1B40-200F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1B40-200B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1B40-250F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1B40-250B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1B40-300F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1B40-300B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1B40-350F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1B40-350B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1B40-400F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1B40-400B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1B40-450F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1B40-450B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1B40-500F		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1B40-500B		Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1B50-25F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1B50-25B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1B50-50F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1B50-50B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1B50-75F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1B50-75B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1B50-100F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1B50-100B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1B50-125F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1B50-125B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1B50-150F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1B50-150B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1B50-175F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1B50-175B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1B50-200F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1B50-200B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1B50-250F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1B50-250B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1B50-300F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1B50-300B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1B50-350F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1B50-350B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1B50-400F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1B50-400B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1B50-450F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1B50-450B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1B50-500F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1B50-500B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1B50-600F		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1B50-600B		Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1B63-25F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1B63-25B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1B63-50F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1B63-50B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1B63-75F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1B63-75B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1B63-100F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1B63-100B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1B63-125F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1B63-125B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1B63-150F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1B63-150B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1B63-175F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1B63-175B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1B63-200F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1B63-200B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1B63-250F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1B63-250B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1B63-300F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1B63-300B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1B63-350F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1B63-350B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1B63-400F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1B63-400B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1B63-450F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1B63-450B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1B63-500F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1B63-500B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1B63-600F		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1B63-600B		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1L40-25F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1L40-25B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1L40-50F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1L40-50B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1L40-75F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1L40-75B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1L40-100F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1L40-100B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1L40-125F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1L40-125B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1L40-150F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1L40-150B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1L40-175F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1L40-175B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1L40-200F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1L40-200B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1L40-250F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1L40-250B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1L40-300F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1L40-300B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1L40-350F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1L40-350B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1L40-400F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1L40-400B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1L40-450F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1L40-450B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1L40-500F		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1L40-500B		Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1L50-25F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1L50-25B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1L50-50F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1L50-50B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1L50-75F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1L50-75B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1L50-100F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1L50-100B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1L50-125F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1L50-125B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1L50-150F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1L50-150B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1L50-175F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1L50-175B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1L50-200F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1L50-200B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1L50-250F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1L50-250B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1L50-300F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1L50-300B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1L50-350F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1L50-350B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1L50-400F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1L50-400B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1L50-450F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1L50-450B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1L50-500F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1L50-500B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1L50-600F		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1L50-600B		Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1L63-25F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1L63-25B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1L63-50F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1L63-50B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1L63-75F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1L63-75B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1L63-100F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1L63-100B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1L63-125F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1L63-125B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1L63-150F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1L63-150B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1L63-175F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1L63-175B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1L63-200F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1L63-200B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1L63-250F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1L63-250B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1L63-300F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1L63-300B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1L63-350F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1L63-350B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1L63-400F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1L63-400B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1L63-450F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1L63-450B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1L63-500F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1L63-500B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1L63-600F		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1L63-600B		Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1F40-25F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1F40-25B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1F40-50F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1F40-50B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1F40-75F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1F40-75B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1F40-100F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1F40-100B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1F40-125F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1F40-125B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1F40-150F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1F40-150B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1F40-175F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1F40-175B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1F40-200F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1F40-200B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1F40-250F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1F40-250B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1F40-300F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1F40-300B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1F40-350F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1F40-350B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1F40-400F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1F40-400B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1F40-450F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1F40-450B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1F40-500F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1F40-500B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1F50-25F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1F50-25B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1F50-50F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1F50-50B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1F50-75F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1F50-75B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1F50-100F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1F50-100B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1F50-125F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1F50-125B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1F50-150F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1F50-150B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1F50-175F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1F50-175B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1F50-200F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1F50-200B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1F50-250F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1F50-250B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1F50-300F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1F50-300B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1F50-350F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1F50-350B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1F50-400F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1F50-400B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1F50-450F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1F50-450B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1F50-500F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1F50-500B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1F50-600F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1F50-600B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1F63-25F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1F63-25B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1F63-50F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1F63-50B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1F63-75F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1F63-75B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1F63-100F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1F63-100B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1F63-125F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1F63-125B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1F63-150F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1F63-150B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1F63-175F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1F63-175B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1F63-200F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1F63-200B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1F63-250F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1F63-250B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1F63-300F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1F63-300B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1F63-350F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1F63-350B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1F63-400F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1F63-400B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1F63-450F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1F63-450B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1F63-500F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1F63-500B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1F63-600F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1F63-600B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1G40-25F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1G40-25B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1G40-50F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1G40-50B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1G40-75F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1G40-75B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1G40-100F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1G40-100B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1G40-125F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1G40-125B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1G40-150F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1G40-150B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1G40-175F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1G40-175B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1G40-200F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1G40-200B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1G40-250F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1G40-250B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1G40-300F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1G40-300B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1G40-350F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1G40-350B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1G40-400F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1G40-400B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1G40-450F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1G40-450B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1G40-500F		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1G40-500B		Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1G50-25F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1G50-25B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1G50-50F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1G50-50B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1G50-75F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1G50-75B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1G50-100F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1G50-100B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1G50-125F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1G50-125B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1G50-150F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1G50-150B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1G50-175F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1G50-175B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1G50-200F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1G50-200B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1G50-250F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1G50-250B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1G50-300F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1G50-300B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1G50-350F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1G50-350B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1G50-400F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1G50-400B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1G50-450F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1G50-450B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1G50-500F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1G50-500B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1G50-600F		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1G50-600B		Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1G63-25F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1G63-25B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1G63-50F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1G63-50B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1G63-75F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1G63-75B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1G63-100F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1G63-100B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1G63-125F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1G63-125B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1G63-150F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1G63-150B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1G63-175F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1G63-175B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1G63-200F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1G63-200B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1G63-250F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1G63-250B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1G63-300F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1G63-300B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1G63-350F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1G63-350B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1G63-400F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1G63-400B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1G63-450F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1G63-450B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1G63-500F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1G63-500B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1G63-600F		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1G63-600B		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1C40-25F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1C40-25B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1C40-50F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1C40-50B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1C40-75F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1C40-75B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1C40-100F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1C40-100B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1C40-125F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1C40-125B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1C40-150F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1C40-150B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1C40-175F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1C40-175B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1C40-200F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1C40-200B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1C40-250F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1C40-250B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1C40-300F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1C40-300B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1C40-350F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1C40-350B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1C40-400F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1C40-400B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1C40-450F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1C40-450B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1C40-500F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1C40-500B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1C50-25F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1C50-25B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1C50-50F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1C50-50B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1C50-75F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1C50-75B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1C50-100F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1C50-100B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1C50-125F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1C50-125B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1C50-150F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1C50-150B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1C50-175F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1C50-175B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1C50-200F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1C50-200B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1C50-250F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1C50-250B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1C50-300F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1C50-300B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1C50-350F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1C50-350B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1C50-400F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1C50-400B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1C50-450F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1C50-450B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1C50-500F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1C50-500B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1C50-600F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1C50-600B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1C63-25F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1C63-25B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1C63-50F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1C63-50B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1C63-75F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1C63-75B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1C63-100F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1C63-100B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1C63-125F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1C63-125B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1C63-150F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1C63-150B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1C63-175F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1C63-175B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1C63-200F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1C63-200B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1C63-250F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1C63-250B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1C63-300F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1C63-300B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1C63-350F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1C63-350B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1C63-400F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1C63-400B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1C63-450F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1C63-450B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1C63-500F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1C63-500B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1C63-600F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1C63-600B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1D40-25F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1D40-25B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1D40-50F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1D40-50B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1D40-75F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1D40-75B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1D40-100F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1D40-100B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1D40-125F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1D40-125B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1D40-150F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1D40-150B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1D40-175F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1D40-175B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1D40-200F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1D40-200B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1D40-250F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1D40-250B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1D40-300F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1D40-300B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1D40-350F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1D40-350B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1D40-400F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1D40-400B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1D40-450F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1D40-450B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1D40-500F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1D40-500B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1D50-25F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1D50-25B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1D50-50F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1D50-50B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1D50-75F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1D50-75B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1D50-100F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1D50-100B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1D50-125F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1D50-125B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1D50-150F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1D50-150B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1D50-175F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1D50-175B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1D50-200F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1D50-200B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1D50-250F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1D50-250B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1D50-300F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1D50-300B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1D50-350F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1D50-350B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1D50-400F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1D50-400B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1D50-450F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1D50-450B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1D50-500F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1D50-500B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1D50-600F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1D50-600B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1D63-25F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1D63-25B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1D63-50F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1D63-50B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1D63-75F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1D63-75B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1D63-100F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1D63-100B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1D63-125F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1D63-125B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1D63-150F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1D63-150B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1D63-175F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1D63-175B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1D63-200F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1D63-200B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1D63-250F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1D63-250B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1D63-300F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1D63-300B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1D63-350F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1D63-350B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1D63-400F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1D63-400B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1D63-450F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1D63-450B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1D63-500F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1D63-500B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1D63-600F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1D63-600B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1T40-25F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1T40-25B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1T40-50F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1T40-50B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1T40-75F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1T40-75B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1T40-100F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1T40-100B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1T40-125F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1T40-125B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1T40-150F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1T40-150B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1T40-175F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1T40-175B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1T40-200F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1T40-200B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1T40-250F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1T40-250B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1T40-300F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1T40-300B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1T40-350F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1T40-350B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1T40-400F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1T40-400B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1T40-450F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1T40-450B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1T40-500F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1T40-500B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1T50-25F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1T50-25B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1T50-50F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1T50-50B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1T50-75F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1T50-75B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1T50-100F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1T50-100B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1T50-125F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1T50-125B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1T50-150F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1T50-150B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1T50-175F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1T50-175B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1T50-200F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1T50-200B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1T50-250F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1T50-250B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1T50-300F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1T50-300B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1T50-350F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1T50-350B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1T50-400F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1T50-400B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1T50-450F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1T50-450B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1T50-500F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1T50-500B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1T50-600F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1T50-600B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1T63-25F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1T63-25B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1T63-50F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1T63-50B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1T63-75F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1T63-75B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1T63-100F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1T63-100B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1T63-125F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1T63-125B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1T63-150F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1T63-150B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1T63-175F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1T63-175B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1T63-200F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1T63-200B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1T63-250F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1T63-250B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1T63-300F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1T63-300B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1T63-350F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1T63-350B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1T63-400F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1T63-400B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1T63-450F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1T63-450B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1T63-500F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1T63-500B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1T63-600F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1T63-600B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1B40-25F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1B40-25B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1B40-50F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1B40-50B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1B40-75F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1B40-75B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1B40-100F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1B40-100B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1B40-125F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1B40-125B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1B40-150F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1B40-150B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1B40-175F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1B40-175B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1B40-200F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1B40-200B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1B40-250F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1B40-250B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1B40-300F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1B40-300B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1B40-350F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1B40-350B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1B40-400F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1B40-400B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1B40-450F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1B40-450B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1B40-500F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1B40-500B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1B50-25F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1B50-25B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1B50-50F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1B50-50B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1B50-75F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1B50-75B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1B50-100F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1B50-100B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1B50-125F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1B50-125B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1B50-150F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1B50-150B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1B50-175F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1B50-175B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1B50-200F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1B50-200B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1B50-250F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1B50-250B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1B50-300F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1B50-300B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1B50-350F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1B50-350B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1B50-400F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1B50-400B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1B50-450F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1B50-450B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1B50-500F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1B50-500B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1B50-600F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1B50-600B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1B63-25F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1B63-25B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1B63-50F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1B63-50B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1B63-75F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1B63-75B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1B63-100F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1B63-100B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1B63-125F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1B63-125B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1B63-150F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1B63-150B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1B63-175F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1B63-175B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1B63-200F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1B63-200B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1B63-250F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1B63-250B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1B63-300F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1B63-300B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1B63-350F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1B63-350B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1B63-400F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1B63-400B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1B63-450F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1B63-450B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1B63-500F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1B63-500B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1B63-600F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1B63-600B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1L40-25F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1L40-25B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1L40-50F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1L40-50B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1L40-75F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1L40-75B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1L40-100F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1L40-100B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1L40-125F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1L40-125B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1L40-150F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1L40-150B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1L40-175F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1L40-175B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1L40-200F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1L40-200B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1L40-250F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1L40-250B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1L40-300F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1L40-300B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1L40-350F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1L40-350B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1L40-400F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1L40-400B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1L40-450F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1L40-450B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1L40-500F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1L40-500B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1L50-25F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1L50-25B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1L50-50F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1L50-50B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1L50-75F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1L50-75B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1L50-100F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1L50-100B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1L50-125F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1L50-125B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1L50-150F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1L50-150B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1L50-175F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1L50-175B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1L50-200F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1L50-200B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1L50-250F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1L50-250B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1L50-300F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1L50-300B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1L50-350F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1L50-350B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1L50-400F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1L50-400B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1L50-450F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1L50-450B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1L50-500F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1L50-500B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1L50-600F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1L50-600B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1L63-25F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1L63-25B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1L63-50F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1L63-50B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1L63-75F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1L63-75B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1L63-100F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1L63-100B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1L63-125F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1L63-125B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1L63-150F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1L63-150B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1L63-175F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1L63-175B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1L63-200F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1L63-200B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1L63-250F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1L63-250B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1L63-300F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1L63-300B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1L63-350F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1L63-350B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1L63-400F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1L63-400B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1L63-450F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1L63-450B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1L63-500F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1L63-500B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1L63-600F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1L63-600B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1F40-25F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1F40-25B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1F40-50F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1F40-50B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1F40-75F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1F40-75B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1F40-100F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1F40-100B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1F40-125F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1F40-125B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1F40-150F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1F40-150B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1F40-175F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1F40-175B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1F40-200F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1F40-200B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1F40-250F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1F40-250B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1F40-300F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1F40-300B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1F40-350F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1F40-350B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1F40-400F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1F40-400B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1F40-450F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1F40-450B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1F40-500F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1F40-500B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1F50-25F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1F50-25B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1F50-50F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1F50-50B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1F50-75F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1F50-75B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1F50-100F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1F50-100B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1F50-125F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1F50-125B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1F50-150F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1F50-150B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1F50-175F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1F50-175B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1F50-200F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1F50-200B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1F50-250F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1F50-250B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1F50-300F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1F50-300B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1F50-350F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1F50-350B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1F50-400F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1F50-400B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1F50-450F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1F50-450B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1F50-500F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1F50-500B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1F50-600F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1F50-600B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1F63-25F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1F63-25B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1F63-50F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1F63-50B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1F63-75F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1F63-75B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1F63-100F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1F63-100B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1F63-125F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1F63-125B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1F63-150F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1F63-150B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1F63-175F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1F63-175B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1F63-200F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1F63-200B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1F63-250F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1F63-250B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1F63-300F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1F63-300B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1F63-350F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1F63-350B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1F63-400F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1F63-400B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1F63-450F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1F63-450B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1F63-500F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1F63-500B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1F63-600F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1F63-600B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1G40-25F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1G40-25B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1G40-50F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1G40-50B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1G40-75F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1G40-75B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1G40-100F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1G40-100B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1G40-125F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1G40-125B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1G40-150F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1G40-150B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1G40-175F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1G40-175B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1G40-200F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1G40-200B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1G40-250F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1G40-250B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1G40-300F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1G40-300B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1G40-350F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1G40-350B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1G40-400F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1G40-400B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1G40-450F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1G40-450B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1G40-500F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1G40-500B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1G50-25F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1G50-25B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1G50-50F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1G50-50B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1G50-75F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1G50-75B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1G50-100F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1G50-100B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1G50-125F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1G50-125B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1G50-150F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1G50-150B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1G50-175F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1G50-175B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1G50-200F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1G50-200B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1G50-250F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1G50-250B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1G50-300F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1G50-300B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1G50-350F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1G50-350B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1G50-400F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1G50-400B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1G50-450F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1G50-450B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1G50-500F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1G50-500B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1G50-600F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1G50-600B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1G63-25F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1G63-25B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1G63-50F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1G63-50B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1G63-75F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1G63-75B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1G63-100F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1G63-100B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1G63-125F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1G63-125B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1G63-150F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1G63-150B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1G63-175F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1G63-175B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1G63-200F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1G63-200B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1G63-250F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1G63-250B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1G63-300F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1G63-300B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1G63-350F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1G63-350B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1G63-400F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1G63-400B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1G63-450F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1G63-450B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1G63-500F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1G63-500B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1G63-600F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1G63-600B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1C40-25F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1C40-25B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1C40-50F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1C40-50B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1C40-75F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1C40-75B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1C40-100F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1C40-100B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1C40-125F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1C40-125B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1C40-150F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1C40-150B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1C40-175F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1C40-175B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1C40-200F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1C40-200B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1C40-250F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1C40-250B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1C40-300F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1C40-300B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1C40-350F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1C40-350B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1C40-400F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1C40-400B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1C40-450F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1C40-450B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1C40-500F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1C40-500B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1C50-25F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1C50-25B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1C50-50F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1C50-50B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1C50-75F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1C50-75B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1C50-100F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1C50-100B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1C50-125F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1C50-125B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1C50-150F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1C50-150B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1C50-175F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1C50-175B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1C50-200F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1C50-200B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1C50-250F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1C50-250B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1C50-300F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1C50-300B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1C50-350F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1C50-350B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1C50-400F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1C50-400B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1C50-450F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1C50-450B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1C50-500F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1C50-500B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1C50-600F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1C50-600B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1C63-25F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1C63-25B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1C63-50F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1C63-50B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1C63-75F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1C63-75B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1C63-100F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1C63-100B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1C63-125F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1C63-125B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1C63-150F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1C63-150B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1C63-175F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1C63-175B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1C63-200F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1C63-200B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1C63-250F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1C63-250B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1C63-300F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1C63-300B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1C63-350F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1C63-350B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1C63-400F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1C63-400B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1C63-450F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1C63-450B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1C63-500F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1C63-500B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1C63-600F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1C63-600B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1D40-25F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1D40-25B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1D40-50F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1D40-50B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1D40-75F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1D40-75B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1D40-100F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1D40-100B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1D40-125F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1D40-125B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1D40-150F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1D40-150B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1D40-175F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1D40-175B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1D40-200F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1D40-200B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1D40-250F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1D40-250B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1D40-300F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1D40-300B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1D40-350F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1D40-350B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1D40-400F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1D40-400B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1D40-450F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1D40-450B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1D40-500F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1D40-500B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1D50-25F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1D50-25B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1D50-50F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1D50-50B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1D50-75F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1D50-75B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1D50-100F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1D50-100B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1D50-125F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1D50-125B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1D50-150F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1D50-150B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1D50-175F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1D50-175B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1D50-200F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1D50-200B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1D50-250F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1D50-250B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1D50-300F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1D50-300B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1D50-350F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1D50-350B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1D50-400F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1D50-400B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1D50-450F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1D50-450B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1D50-500F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1D50-500B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1D50-600F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1D50-600B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1D63-25F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1D63-25B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1D63-50F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1D63-50B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1D63-75F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1D63-75B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1D63-100F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1D63-100B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1D63-125F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1D63-125B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1D63-150F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1D63-150B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1D63-175F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1D63-175B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1D63-200F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1D63-200B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1D63-250F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1D63-250B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1D63-300F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1D63-300B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1D63-350F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1D63-350B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1D63-400F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1D63-400B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1D63-450F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1D63-450B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1D63-500F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1D63-500B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1D63-600F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1D63-600B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1T40-25F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1T40-25B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1T40-50F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1T40-50B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1T40-75F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1T40-75B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1T40-100F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1T40-100B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1T40-125F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1T40-125B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1T40-150F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1T40-150B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1T40-175F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1T40-175B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1T40-200F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1T40-200B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1T40-250F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1T40-250B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1T40-300F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1T40-300B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1T40-350F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1T40-350B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1T40-400F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1T40-400B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1T40-450F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1T40-450B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1T40-500F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1T40-500B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1T50-25F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1T50-25B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1T50-50F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1T50-50B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1T50-75F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1T50-75B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1T50-100F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1T50-100B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1T50-125F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1T50-125B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1T50-150F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1T50-150B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1T50-175F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1T50-175B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1T50-200F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1T50-200B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1T50-250F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1T50-250B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1T50-300F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1T50-300B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1T50-350F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1T50-350B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1T50-400F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1T50-400B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1T50-450F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1T50-450B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1T50-500F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1T50-500B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1T50-600F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1T50-600B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1T63-25F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1T63-25B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1T63-50F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1T63-50B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1T63-75F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1T63-75B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1T63-100F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1T63-100B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1T63-125F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1T63-125B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1T63-150F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1T63-150B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1T63-175F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1T63-175B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1T63-200F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1T63-200B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1T63-250F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1T63-250B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1T63-300F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1T63-300B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1T63-350F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1T63-350B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1T63-400F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1T63-400B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1T63-450F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1T63-450B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1T63-500F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1T63-500B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1T63-600F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1T63-600B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction

Round Body CylindersSMC

1232 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CL1 Lock-up Cylinder (Bore 40 to 63 mm)

Brand SMC·Round Body Cylinders

Available part numbers (1232)

CL1B40-25F, CL1B40-25B, CL1B40-50F, CL1B40-50B, CL1B40-75F, CL1B40-75B, CL1B40-100F, CL1B40-100B, CL1B40-125F, CL1B40-125B + 1222 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CL1B40-25F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1B40-25B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1B40-50F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1B40-50B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1B40-75F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1B40-75B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1B40-100F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1B40-100B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1B40-125F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1B40-125B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1B40-150F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1B40-150B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1B40-175F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1B40-175B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1B40-200F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1B40-200B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1B40-250F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1B40-250B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1B40-300F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1B40-300B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1B40-350F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1B40-350B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1B40-400F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1B40-400B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1B40-450F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1B40-450B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1B40-500F	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1B40-500B	Magnet: No magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1B50-25F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1B50-25B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1B50-50F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1B50-50B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1B50-75F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1B50-75B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1B50-100F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1B50-100B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1B50-125F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1B50-125B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1B50-150F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1B50-150B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1B50-175F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1B50-175B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1B50-200F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1B50-200B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1B50-250F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1B50-250B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1B50-300F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1B50-300B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1B50-350F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1B50-350B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1B50-400F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1B50-400B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1B50-450F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1B50-450B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1B50-500F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1B50-500B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1B50-600F	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1B50-600B	Magnet: No magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1B63-25F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1B63-25B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1B63-50F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1B63-50B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1B63-75F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1B63-75B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1B63-100F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1B63-100B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1B63-125F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1B63-125B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1B63-150F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1B63-150B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1B63-175F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1B63-175B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1B63-200F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1B63-200B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1B63-250F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1B63-250B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1B63-300F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1B63-300B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1B63-350F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1B63-350B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1B63-400F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1B63-400B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1B63-450F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1B63-450B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1B63-500F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1B63-500B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1B63-600F	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1B63-600B	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1L40-25F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1L40-25B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1L40-50F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1L40-50B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1L40-75F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1L40-75B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1L40-100F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1L40-100B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1L40-125F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1L40-125B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1L40-150F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1L40-150B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1L40-175F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1L40-175B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1L40-200F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1L40-200B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1L40-250F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1L40-250B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1L40-300F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1L40-300B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1L40-350F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1L40-350B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1L40-400F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1L40-400B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1L40-450F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1L40-450B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1L40-500F	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1L40-500B	Magnet: No magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1L50-25F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1L50-25B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1L50-50F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1L50-50B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1L50-75F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1L50-75B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1L50-100F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1L50-100B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1L50-125F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1L50-125B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1L50-150F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1L50-150B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1L50-175F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1L50-175B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1L50-200F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1L50-200B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1L50-250F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1L50-250B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1L50-300F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1L50-300B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1L50-350F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1L50-350B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1L50-400F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1L50-400B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1L50-450F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1L50-450B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1L50-500F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1L50-500B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1L50-600F	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1L50-600B	Magnet: No magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1L63-25F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1L63-25B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1L63-50F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1L63-50B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1L63-75F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1L63-75B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1L63-100F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1L63-100B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1L63-125F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1L63-125B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1L63-150F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1L63-150B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1L63-175F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1L63-175B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1L63-200F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1L63-200B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1L63-250F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1L63-250B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1L63-300F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1L63-300B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1L63-350F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1L63-350B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1L63-400F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1L63-400B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1L63-450F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1L63-450B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1L63-500F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1L63-500B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1L63-600F	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1L63-600B	Magnet: No magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1F40-25F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1F40-25B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1F40-50F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1F40-50B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1F40-75F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1F40-75B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1F40-100F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1F40-100B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1F40-125F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1F40-125B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1F40-150F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1F40-150B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1F40-175F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1F40-175B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1F40-200F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1F40-200B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1F40-250F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1F40-250B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1F40-300F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1F40-300B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1F40-350F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1F40-350B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1F40-400F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1F40-400B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1F40-450F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1F40-450B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1F40-500F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1F40-500B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1F50-25F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1F50-25B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1F50-50F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1F50-50B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1F50-75F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1F50-75B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1F50-100F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1F50-100B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1F50-125F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1F50-125B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1F50-150F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1F50-150B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1F50-175F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1F50-175B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1F50-200F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1F50-200B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1F50-250F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1F50-250B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1F50-300F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1F50-300B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1F50-350F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1F50-350B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1F50-400F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1F50-400B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1F50-450F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1F50-450B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1F50-500F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1F50-500B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1F50-600F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1F50-600B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1F63-25F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1F63-25B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1F63-50F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1F63-50B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1F63-75F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1F63-75B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1F63-100F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1F63-100B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1F63-125F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1F63-125B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1F63-150F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1F63-150B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1F63-175F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1F63-175B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1F63-200F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1F63-200B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1F63-250F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1F63-250B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1F63-300F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1F63-300B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1F63-350F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1F63-350B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1F63-400F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1F63-400B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1F63-450F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1F63-450B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1F63-500F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1F63-500B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1F63-600F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1F63-600B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1G40-25F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1G40-25B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1G40-50F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1G40-50B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1G40-75F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1G40-75B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1G40-100F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1G40-100B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1G40-125F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1G40-125B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1G40-150F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1G40-150B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1G40-175F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1G40-175B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1G40-200F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1G40-200B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1G40-250F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1G40-250B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1G40-300F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1G40-300B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1G40-350F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1G40-350B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1G40-400F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1G40-400B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1G40-450F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1G40-450B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1G40-500F	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1G40-500B	Magnet: No magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1G50-25F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1G50-25B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1G50-50F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1G50-50B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1G50-75F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1G50-75B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1G50-100F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1G50-100B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1G50-125F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1G50-125B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1G50-150F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1G50-150B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1G50-175F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1G50-175B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1G50-200F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1G50-200B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1G50-250F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1G50-250B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1G50-300F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1G50-300B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1G50-350F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1G50-350B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1G50-400F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1G50-400B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1G50-450F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1G50-450B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1G50-500F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1G50-500B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1G50-600F	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1G50-600B	Magnet: No magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1G63-25F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1G63-25B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1G63-50F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1G63-50B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1G63-75F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1G63-75B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1G63-100F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1G63-100B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1G63-125F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1G63-125B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1G63-150F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1G63-150B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1G63-175F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1G63-175B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1G63-200F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1G63-200B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1G63-250F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1G63-250B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1G63-300F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1G63-300B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1G63-350F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1G63-350B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1G63-400F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1G63-400B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1G63-450F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1G63-450B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1G63-500F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1G63-500B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1G63-600F	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1G63-600B	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1C40-25F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1C40-25B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1C40-50F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1C40-50B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1C40-75F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1C40-75B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1C40-100F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1C40-100B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1C40-125F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1C40-125B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1C40-150F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1C40-150B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1C40-175F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1C40-175B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1C40-200F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1C40-200B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1C40-250F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1C40-250B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1C40-300F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1C40-300B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1C40-350F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1C40-350B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1C40-400F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1C40-400B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1C40-450F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1C40-450B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1C40-500F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1C40-500B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1C50-25F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1C50-25B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1C50-50F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1C50-50B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1C50-75F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1C50-75B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1C50-100F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1C50-100B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1C50-125F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1C50-125B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1C50-150F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1C50-150B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1C50-175F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1C50-175B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1C50-200F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1C50-200B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1C50-250F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1C50-250B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1C50-300F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1C50-300B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1C50-350F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1C50-350B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1C50-400F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1C50-400B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1C50-450F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1C50-450B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1C50-500F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1C50-500B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1C50-600F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1C50-600B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1C63-25F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1C63-25B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1C63-50F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1C63-50B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1C63-75F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1C63-75B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1C63-100F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1C63-100B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1C63-125F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1C63-125B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1C63-150F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1C63-150B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1C63-175F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1C63-175B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1C63-200F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1C63-200B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1C63-250F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1C63-250B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1C63-300F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1C63-300B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1C63-350F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1C63-350B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1C63-400F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1C63-400B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1C63-450F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1C63-450B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1C63-500F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1C63-500B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1C63-600F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1C63-600B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1D40-25F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1D40-25B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1D40-50F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1D40-50B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1D40-75F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1D40-75B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1D40-100F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1D40-100B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1D40-125F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1D40-125B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1D40-150F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1D40-150B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1D40-175F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1D40-175B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1D40-200F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1D40-200B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1D40-250F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1D40-250B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1D40-300F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1D40-300B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1D40-350F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1D40-350B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1D40-400F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1D40-400B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1D40-450F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1D40-450B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1D40-500F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1D40-500B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1D50-25F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1D50-25B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1D50-50F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1D50-50B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1D50-75F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1D50-75B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1D50-100F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1D50-100B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1D50-125F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1D50-125B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1D50-150F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1D50-150B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1D50-175F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1D50-175B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1D50-200F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1D50-200B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1D50-250F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1D50-250B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1D50-300F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1D50-300B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1D50-350F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1D50-350B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1D50-400F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1D50-400B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1D50-450F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1D50-450B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1D50-500F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1D50-500B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1D50-600F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1D50-600B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1D63-25F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1D63-25B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1D63-50F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1D63-50B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1D63-75F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1D63-75B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1D63-100F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1D63-100B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1D63-125F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1D63-125B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1D63-150F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1D63-150B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1D63-175F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1D63-175B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1D63-200F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1D63-200B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1D63-250F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1D63-250B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1D63-300F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1D63-300B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1D63-350F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1D63-350B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1D63-400F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1D63-400B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1D63-450F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1D63-450B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1D63-500F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1D63-500B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1D63-600F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1D63-600B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1T40-25F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1T40-25B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1T40-50F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1T40-50B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1T40-75F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1T40-75B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1T40-100F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1T40-100B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1T40-125F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1T40-125B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1T40-150F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1T40-150B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1T40-175F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1T40-175B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1T40-200F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1T40-200B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1T40-250F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1T40-250B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1T40-300F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1T40-300B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1T40-350F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1T40-350B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1T40-400F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1T40-400B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1T40-450F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1T40-450B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1T40-500F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1T40-500B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1T50-25F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1T50-25B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1T50-50F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1T50-50B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1T50-75F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1T50-75B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1T50-100F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1T50-100B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1T50-125F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1T50-125B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1T50-150F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1T50-150B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1T50-175F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1T50-175B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1T50-200F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1T50-200B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1T50-250F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1T50-250B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1T50-300F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1T50-300B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1T50-350F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1T50-350B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1T50-400F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1T50-400B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1T50-450F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1T50-450B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1T50-500F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1T50-500B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1T50-600F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1T50-600B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1T63-25F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1T63-25B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1T63-50F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1T63-50B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1T63-75F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1T63-75B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1T63-100F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1T63-100B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1T63-125F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1T63-125B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1T63-150F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1T63-150B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1T63-175F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1T63-175B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1T63-200F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1T63-200B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1T63-250F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1T63-250B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1T63-300F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1T63-300B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1T63-350F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1T63-350B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1T63-400F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1T63-400B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1T63-450F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1T63-450B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1T63-500F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1T63-500B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1T63-600F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1T63-600B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1B40-25F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1B40-25B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1B40-50F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1B40-50B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1B40-75F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1B40-75B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1B40-100F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1B40-100B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1B40-125F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1B40-125B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1B40-150F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1B40-150B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1B40-175F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1B40-175B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1B40-200F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1B40-200B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1B40-250F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1B40-250B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1B40-300F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1B40-300B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1B40-350F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1B40-350B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1B40-400F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1B40-400B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1B40-450F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1B40-450B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1B40-500F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1B40-500B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1B50-25F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1B50-25B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1B50-50F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1B50-50B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1B50-75F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1B50-75B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1B50-100F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1B50-100B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1B50-125F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1B50-125B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1B50-150F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1B50-150B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1B50-175F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1B50-175B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1B50-200F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1B50-200B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1B50-250F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1B50-250B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1B50-300F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1B50-300B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1B50-350F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1B50-350B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1B50-400F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1B50-400B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1B50-450F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1B50-450B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1B50-500F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1B50-500B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1B50-600F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1B50-600B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1B63-25F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1B63-25B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1B63-50F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1B63-50B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1B63-75F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1B63-75B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1B63-100F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1B63-100B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1B63-125F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1B63-125B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1B63-150F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1B63-150B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1B63-175F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1B63-175B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1B63-200F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1B63-200B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1B63-250F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1B63-250B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1B63-300F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1B63-300B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1B63-350F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1B63-350B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1B63-400F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1B63-400B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1B63-450F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1B63-450B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1B63-500F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1B63-500B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1B63-600F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1B63-600B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1L40-25F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1L40-25B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1L40-50F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1L40-50B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1L40-75F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1L40-75B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1L40-100F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1L40-100B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1L40-125F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1L40-125B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1L40-150F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1L40-150B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1L40-175F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1L40-175B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1L40-200F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1L40-200B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1L40-250F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1L40-250B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1L40-300F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1L40-300B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1L40-350F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1L40-350B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1L40-400F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1L40-400B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1L40-450F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1L40-450B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1L40-500F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1L40-500B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1L50-25F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1L50-25B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1L50-50F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1L50-50B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1L50-75F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1L50-75B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1L50-100F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1L50-100B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1L50-125F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1L50-125B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1L50-150F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1L50-150B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1L50-175F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1L50-175B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1L50-200F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1L50-200B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1L50-250F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1L50-250B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1L50-300F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1L50-300B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1L50-350F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1L50-350B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1L50-400F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1L50-400B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1L50-450F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1L50-450B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1L50-500F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1L50-500B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1L50-600F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1L50-600B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1L63-25F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1L63-25B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1L63-50F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1L63-50B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1L63-75F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1L63-75B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1L63-100F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1L63-100B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1L63-125F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1L63-125B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1L63-150F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1L63-150B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1L63-175F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1L63-175B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1L63-200F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1L63-200B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1L63-250F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1L63-250B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1L63-300F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1L63-300B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1L63-350F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1L63-350B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1L63-400F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1L63-400B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1L63-450F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1L63-450B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1L63-500F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1L63-500B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1L63-600F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1L63-600B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1F40-25F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1F40-25B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1F40-50F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1F40-50B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1F40-75F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1F40-75B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1F40-100F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1F40-100B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1F40-125F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1F40-125B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1F40-150F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1F40-150B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1F40-175F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1F40-175B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1F40-200F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1F40-200B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1F40-250F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1F40-250B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1F40-300F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1F40-300B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1F40-350F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1F40-350B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1F40-400F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1F40-400B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1F40-450F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1F40-450B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1F40-500F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1F40-500B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1F50-25F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1F50-25B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1F50-50F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1F50-50B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1F50-75F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1F50-75B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1F50-100F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1F50-100B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1F50-125F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1F50-125B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1F50-150F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1F50-150B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1F50-175F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1F50-175B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1F50-200F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1F50-200B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1F50-250F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1F50-250B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1F50-300F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1F50-300B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1F50-350F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1F50-350B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1F50-400F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1F50-400B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1F50-450F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1F50-450B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1F50-500F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1F50-500B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1F50-600F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1F50-600B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1F63-25F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1F63-25B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1F63-50F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1F63-50B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1F63-75F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1F63-75B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1F63-100F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1F63-100B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1F63-125F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1F63-125B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1F63-150F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1F63-150B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1F63-175F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1F63-175B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1F63-200F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1F63-200B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1F63-250F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1F63-250B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1F63-300F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1F63-300B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1F63-350F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1F63-350B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1F63-400F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1F63-400B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1F63-450F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1F63-450B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1F63-500F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1F63-500B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1F63-600F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1F63-600B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1G40-25F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1G40-25B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1G40-50F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1G40-50B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1G40-75F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1G40-75B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1G40-100F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1G40-100B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1G40-125F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1G40-125B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1G40-150F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1G40-150B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1G40-175F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1G40-175B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1G40-200F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1G40-200B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1G40-250F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1G40-250B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1G40-300F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1G40-300B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1G40-350F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1G40-350B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1G40-400F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1G40-400B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1G40-450F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1G40-450B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1G40-500F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1G40-500B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1G50-25F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1G50-25B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1G50-50F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1G50-50B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1G50-75F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1G50-75B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1G50-100F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1G50-100B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1G50-125F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1G50-125B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1G50-150F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1G50-150B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1G50-175F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1G50-175B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1G50-200F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1G50-200B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1G50-250F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1G50-250B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1G50-300F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1G50-300B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1G50-350F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1G50-350B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1G50-400F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1G50-400B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1G50-450F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1G50-450B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1G50-500F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1G50-500B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1G50-600F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1G50-600B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1G63-25F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1G63-25B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1G63-50F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1G63-50B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1G63-75F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1G63-75B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1G63-100F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1G63-100B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1G63-125F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1G63-125B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1G63-150F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1G63-150B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1G63-175F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1G63-175B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1G63-200F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1G63-200B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1G63-250F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1G63-250B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1G63-300F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1G63-300B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1G63-350F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1G63-350B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1G63-400F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1G63-400B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1G63-450F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1G63-450B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1G63-500F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1G63-500B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1G63-600F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1G63-600B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1C40-25F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1C40-25B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1C40-50F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1C40-50B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1C40-75F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1C40-75B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1C40-100F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1C40-100B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1C40-125F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1C40-125B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1C40-150F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1C40-150B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1C40-175F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1C40-175B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1C40-200F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1C40-200B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1C40-250F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1C40-250B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1C40-300F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1C40-300B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1C40-350F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1C40-350B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1C40-400F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1C40-400B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1C40-450F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1C40-450B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1C40-500F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1C40-500B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1C50-25F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1C50-25B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1C50-50F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1C50-50B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1C50-75F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1C50-75B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1C50-100F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1C50-100B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1C50-125F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1C50-125B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1C50-150F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1C50-150B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1C50-175F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1C50-175B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1C50-200F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1C50-200B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1C50-250F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1C50-250B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1C50-300F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1C50-300B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1C50-350F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1C50-350B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1C50-400F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1C50-400B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1C50-450F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1C50-450B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1C50-500F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1C50-500B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1C50-600F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1C50-600B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1C63-25F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1C63-25B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1C63-50F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1C63-50B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1C63-75F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1C63-75B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1C63-100F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1C63-100B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1C63-125F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1C63-125B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1C63-150F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1C63-150B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1C63-175F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1C63-175B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1C63-200F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1C63-200B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1C63-250F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1C63-250B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1C63-300F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1C63-300B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1C63-350F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1C63-350B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1C63-400F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1C63-400B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1C63-450F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1C63-450B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1C63-500F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1C63-500B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1C63-600F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1C63-600B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1D40-25F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1D40-25B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1D40-50F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1D40-50B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1D40-75F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1D40-75B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1D40-100F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1D40-100B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1D40-125F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1D40-125B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1D40-150F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1D40-150B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1D40-175F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1D40-175B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1D40-200F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1D40-200B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1D40-250F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1D40-250B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1D40-300F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1D40-300B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1D40-350F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1D40-350B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1D40-400F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1D40-400B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1D40-450F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1D40-450B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1D40-500F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1D40-500B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1D50-25F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1D50-25B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1D50-50F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1D50-50B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1D50-75F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1D50-75B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1D50-100F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1D50-100B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1D50-125F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1D50-125B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1D50-150F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1D50-150B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1D50-175F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1D50-175B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1D50-200F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1D50-200B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1D50-250F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1D50-250B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1D50-300F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1D50-300B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1D50-350F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1D50-350B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1D50-400F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1D50-400B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1D50-450F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1D50-450B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1D50-500F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1D50-500B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1D50-600F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1D50-600B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1D63-25F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1D63-25B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1D63-50F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1D63-50B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1D63-75F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1D63-75B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1D63-100F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1D63-100B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1D63-125F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1D63-125B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1D63-150F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1D63-150B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1D63-175F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1D63-175B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1D63-200F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1D63-200B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1D63-250F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1D63-250B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1D63-300F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1D63-300B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1D63-350F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1D63-350B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1D63-400F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1D63-400B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1D63-450F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1D63-450B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1D63-500F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1D63-500B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1D63-600F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1D63-600B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1T40-25F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1T40-25B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1T40-50F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1T40-50B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1T40-75F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1T40-75B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1T40-100F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1T40-100B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1T40-125F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1T40-125B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1T40-150F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1T40-150B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1T40-175F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1T40-175B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1T40-200F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1T40-200B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1T40-250F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1T40-250B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1T40-300F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1T40-300B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1T40-350F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1T40-350B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1T40-400F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1T40-400B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1T40-450F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1T40-450B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1T40-500F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1T40-500B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1T50-25F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1T50-25B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1T50-50F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1T50-50B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1T50-75F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1T50-75B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1T50-100F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1T50-100B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1T50-125F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1T50-125B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1T50-150F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1T50-150B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1T50-175F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1T50-175B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1T50-200F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1T50-200B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1T50-250F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1T50-250B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1T50-300F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1T50-300B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1T50-350F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1T50-350B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1T50-400F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1T50-400B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1T50-450F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1T50-450B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1T50-500F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1T50-500B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1T50-600F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1T50-600B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1T63-25F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1T63-25B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1T63-50F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1T63-50B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1T63-75F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1T63-75B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1T63-100F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1T63-100B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1T63-125F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1T63-125B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1T63-150F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1T63-150B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1T63-175F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1T63-175B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1T63-200F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1T63-200B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1T63-250F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1T63-250B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1T63-300F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1T63-300B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1T63-350F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1T63-350B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1T63-400F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1T63-400B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1T63-450F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1T63-450B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1T63-500F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1T63-500B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1T63-600F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1T63-600B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CL1 Lock-up Cylinder (Bore 40 to 63 mm)
