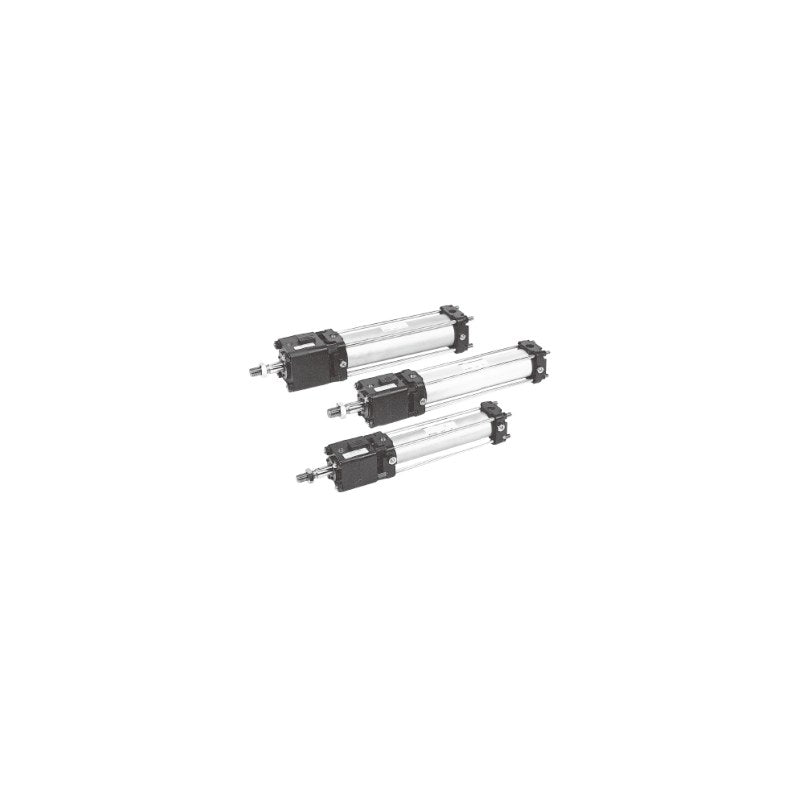

SMC CL1 Lock-up Cylinder (Bore 80/100 mm)

SMC CL1 series lock-up cylinder (bore 80/100 mm), a double-acting tie-rod cylinder with a self-locking spring lock unit for intermediate stops, emergency stops and drop prevention.

Key features

Self-locking lock-up cylinder: a spring tilts the brake ring to clamp the piston rod, holding more firmly as load increases
Spring lock: the lock engages when lock-release air is exhausted; one locking direction (changeable)
Seven mounting styles; aluminum tube standard, steel tube (F, without magnet) on order
Cushion symbols (N none, R rod end, H head end; blank both ends), bellows (J/K), NPT/G ports and auto switches ordered as suffixes
Bores 125, 140 and 160 mm and bidirectional lock (-X51) available as other codes

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.08 MPa
Piston speed	50 to 200 mm/s (locking from standstill up to 500 mm/s)
Cushion	Air cushion
Lock-up release pressure	0.2 MPa min. (no load)
Lock-up start pressure	0.05 MPa max.
Lubrication	Not required (non-lube)
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Source	SMC Korea catalog CL series (SMCKR_CLJ2_CLM2_CLG1_CL1.pdf), p. 1019-1022 (PDF p. 47-50)

CL1B80-25F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1B80-25B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1B80-50F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1B80-50B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1B80-75F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1B80-75B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1B80-100F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1B80-100B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1B80-125F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1B80-125B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1B80-150F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1B80-150B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1B80-175F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1B80-175B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1B80-200F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1B80-200B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1B80-250F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1B80-250B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1B80-300F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1B80-300B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1B80-350F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1B80-350B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1B80-400F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1B80-400B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1B80-450F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1B80-450B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1B80-500F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1B80-500B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1B80-600F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1B80-600B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1B80-700F		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1B80-700B		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1B100-25F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1B100-25B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1B100-50F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1B100-50B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1B100-75F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1B100-75B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1B100-100F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1B100-100B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1B100-125F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1B100-125B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1B100-150F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1B100-150B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1B100-175F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1B100-175B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1B100-200F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1B100-200B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1B100-250F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1B100-250B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1B100-300F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1B100-300B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1B100-350F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1B100-350B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1B100-400F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1B100-400B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1B100-450F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1B100-450B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1B100-500F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1B100-500B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1B100-600F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1B100-600B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1B100-700F		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1B100-700B		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1L80-25F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1L80-25B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1L80-50F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1L80-50B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1L80-75F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1L80-75B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1L80-100F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1L80-100B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1L80-125F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1L80-125B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1L80-150F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1L80-150B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1L80-175F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1L80-175B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1L80-200F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1L80-200B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1L80-250F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1L80-250B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1L80-300F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1L80-300B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1L80-350F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1L80-350B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1L80-400F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1L80-400B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1L80-450F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1L80-450B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1L80-500F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1L80-500B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1L80-600F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1L80-600B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1L80-700F		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1L80-700B		Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1L100-25F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1L100-25B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1L100-50F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1L100-50B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1L100-75F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1L100-75B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1L100-100F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1L100-100B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1L100-125F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1L100-125B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1L100-150F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1L100-150B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1L100-175F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1L100-175B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1L100-200F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1L100-200B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1L100-250F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1L100-250B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1L100-300F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1L100-300B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1L100-350F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1L100-350B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1L100-400F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1L100-400B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1L100-450F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1L100-450B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1L100-500F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1L100-500B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1L100-600F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1L100-600B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1L100-700F		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1L100-700B		Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1F80-25F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1F80-25B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1F80-50F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1F80-50B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1F80-75F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1F80-75B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1F80-100F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1F80-100B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1F80-125F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1F80-125B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1F80-150F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1F80-150B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1F80-175F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1F80-175B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1F80-200F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1F80-200B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1F80-250F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1F80-250B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1F80-300F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1F80-300B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1F80-350F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1F80-350B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1F80-400F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1F80-400B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1F80-450F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1F80-450B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1F80-500F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1F80-500B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1F80-600F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1F80-600B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1F80-700F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1F80-700B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1F100-25F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1F100-25B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1F100-50F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1F100-50B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1F100-75F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1F100-75B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1F100-100F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1F100-100B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1F100-125F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1F100-125B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1F100-150F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1F100-150B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1F100-175F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1F100-175B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1F100-200F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1F100-200B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1F100-250F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1F100-250B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1F100-300F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1F100-300B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1F100-350F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1F100-350B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1F100-400F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1F100-400B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1F100-450F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1F100-450B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1F100-500F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1F100-500B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1F100-600F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1F100-600B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1F100-700F		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1F100-700B		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1G80-25F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1G80-25B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1G80-50F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1G80-50B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1G80-75F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1G80-75B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1G80-100F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1G80-100B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1G80-125F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1G80-125B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1G80-150F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1G80-150B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1G80-175F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1G80-175B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1G80-200F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1G80-200B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1G80-250F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1G80-250B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1G80-300F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1G80-300B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1G80-350F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1G80-350B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1G80-400F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1G80-400B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1G80-450F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1G80-450B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1G80-500F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1G80-500B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1G80-600F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1G80-600B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1G80-700F		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1G80-700B		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1G100-25F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1G100-25B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1G100-50F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1G100-50B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1G100-75F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1G100-75B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1G100-100F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1G100-100B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1G100-125F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1G100-125B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1G100-150F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1G100-150B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1G100-175F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1G100-175B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1G100-200F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1G100-200B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1G100-250F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1G100-250B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1G100-300F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1G100-300B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1G100-350F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1G100-350B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1G100-400F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1G100-400B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1G100-450F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1G100-450B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1G100-500F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1G100-500B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1G100-600F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1G100-600B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1G100-700F		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1G100-700B		Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1C80-25F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1C80-25B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1C80-50F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1C80-50B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1C80-75F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1C80-75B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1C80-100F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1C80-100B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1C80-125F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1C80-125B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1C80-150F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1C80-150B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1C80-175F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1C80-175B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1C80-200F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1C80-200B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1C80-250F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1C80-250B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1C80-300F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1C80-300B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1C80-350F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1C80-350B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1C80-400F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1C80-400B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1C80-450F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1C80-450B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1C80-500F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1C80-500B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1C80-600F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1C80-600B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1C80-700F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1C80-700B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1C100-25F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1C100-25B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1C100-50F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1C100-50B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1C100-75F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1C100-75B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1C100-100F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1C100-100B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1C100-125F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1C100-125B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1C100-150F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1C100-150B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1C100-175F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1C100-175B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1C100-200F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1C100-200B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1C100-250F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1C100-250B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1C100-300F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1C100-300B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1C100-350F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1C100-350B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1C100-400F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1C100-400B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1C100-450F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1C100-450B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1C100-500F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1C100-500B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1C100-600F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1C100-600B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1C100-700F		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1C100-700B		Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1D80-25F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1D80-25B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1D80-50F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1D80-50B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1D80-75F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1D80-75B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1D80-100F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1D80-100B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1D80-125F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1D80-125B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1D80-150F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1D80-150B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1D80-175F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1D80-175B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1D80-200F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1D80-200B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1D80-250F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1D80-250B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1D80-300F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1D80-300B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1D80-350F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1D80-350B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1D80-400F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1D80-400B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1D80-450F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1D80-450B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1D80-500F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1D80-500B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1D80-600F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1D80-600B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1D80-700F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1D80-700B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1D100-25F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1D100-25B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1D100-50F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1D100-50B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1D100-75F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1D100-75B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1D100-100F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1D100-100B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1D100-125F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1D100-125B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1D100-150F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1D100-150B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1D100-175F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1D100-175B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1D100-200F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1D100-200B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1D100-250F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1D100-250B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1D100-300F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1D100-300B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1D100-350F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1D100-350B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1D100-400F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1D100-400B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1D100-450F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1D100-450B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1D100-500F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1D100-500B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1D100-600F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1D100-600B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1D100-700F		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1D100-700B		Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1T80-25F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1T80-25B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1T80-50F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1T80-50B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1T80-75F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1T80-75B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1T80-100F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1T80-100B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1T80-125F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1T80-125B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1T80-150F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1T80-150B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1T80-175F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1T80-175B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1T80-200F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1T80-200B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1T80-250F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1T80-250B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1T80-300F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1T80-300B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1T80-350F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1T80-350B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1T80-400F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1T80-400B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1T80-450F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1T80-450B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1T80-500F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1T80-500B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1T80-600F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1T80-600B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1T80-700F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1T80-700B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CL1T100-25F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CL1T100-25B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CL1T100-50F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CL1T100-50B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CL1T100-75F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CL1T100-75B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CL1T100-100F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CL1T100-100B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CL1T100-125F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CL1T100-125B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CL1T100-150F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CL1T100-150B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CL1T100-175F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CL1T100-175B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CL1T100-200F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CL1T100-200B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CL1T100-250F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CL1T100-250B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CL1T100-300F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CL1T100-300B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CL1T100-350F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CL1T100-350B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CL1T100-400F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CL1T100-400B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CL1T100-450F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CL1T100-450B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CL1T100-500F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CL1T100-500B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CL1T100-600F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CL1T100-600B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CL1T100-700F		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CL1T100-700B		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1B80-25F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1B80-25B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1B80-50F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1B80-50B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1B80-75F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1B80-75B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1B80-100F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1B80-100B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1B80-125F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1B80-125B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1B80-150F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1B80-150B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1B80-175F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1B80-175B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1B80-200F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1B80-200B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1B80-250F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1B80-250B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1B80-300F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1B80-300B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1B80-350F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1B80-350B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1B80-400F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1B80-400B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1B80-450F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1B80-450B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1B80-500F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1B80-500B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1B80-600F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1B80-600B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1B80-700F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1B80-700B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1B100-25F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1B100-25B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1B100-50F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1B100-50B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1B100-75F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1B100-75B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1B100-100F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1B100-100B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1B100-125F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1B100-125B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1B100-150F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1B100-150B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1B100-175F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1B100-175B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1B100-200F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1B100-200B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1B100-250F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1B100-250B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1B100-300F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1B100-300B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1B100-350F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1B100-350B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1B100-400F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1B100-400B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1B100-450F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1B100-450B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1B100-500F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1B100-500B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1B100-600F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1B100-600B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1B100-700F		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1B100-700B		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1L80-25F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1L80-25B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1L80-50F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1L80-50B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1L80-75F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1L80-75B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1L80-100F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1L80-100B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1L80-125F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1L80-125B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1L80-150F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1L80-150B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1L80-175F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1L80-175B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1L80-200F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1L80-200B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1L80-250F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1L80-250B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1L80-300F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1L80-300B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1L80-350F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1L80-350B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1L80-400F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1L80-400B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1L80-450F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1L80-450B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1L80-500F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1L80-500B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1L80-600F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1L80-600B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1L80-700F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1L80-700B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1L100-25F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1L100-25B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1L100-50F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1L100-50B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1L100-75F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1L100-75B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1L100-100F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1L100-100B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1L100-125F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1L100-125B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1L100-150F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1L100-150B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1L100-175F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1L100-175B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1L100-200F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1L100-200B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1L100-250F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1L100-250B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1L100-300F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1L100-300B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1L100-350F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1L100-350B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1L100-400F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1L100-400B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1L100-450F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1L100-450B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1L100-500F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1L100-500B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1L100-600F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1L100-600B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1L100-700F		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1L100-700B		Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1F80-25F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1F80-25B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1F80-50F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1F80-50B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1F80-75F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1F80-75B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1F80-100F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1F80-100B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1F80-125F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1F80-125B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1F80-150F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1F80-150B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1F80-175F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1F80-175B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1F80-200F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1F80-200B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1F80-250F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1F80-250B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1F80-300F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1F80-300B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1F80-350F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1F80-350B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1F80-400F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1F80-400B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1F80-450F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1F80-450B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1F80-500F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1F80-500B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1F80-600F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1F80-600B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1F80-700F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1F80-700B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1F100-25F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1F100-25B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1F100-50F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1F100-50B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1F100-75F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1F100-75B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1F100-100F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1F100-100B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1F100-125F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1F100-125B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1F100-150F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1F100-150B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1F100-175F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1F100-175B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1F100-200F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1F100-200B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1F100-250F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1F100-250B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1F100-300F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1F100-300B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1F100-350F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1F100-350B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1F100-400F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1F100-400B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1F100-450F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1F100-450B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1F100-500F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1F100-500B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1F100-600F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1F100-600B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1F100-700F		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1F100-700B		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1G80-25F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1G80-25B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1G80-50F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1G80-50B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1G80-75F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1G80-75B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1G80-100F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1G80-100B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1G80-125F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1G80-125B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1G80-150F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1G80-150B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1G80-175F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1G80-175B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1G80-200F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1G80-200B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1G80-250F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1G80-250B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1G80-300F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1G80-300B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1G80-350F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1G80-350B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1G80-400F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1G80-400B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1G80-450F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1G80-450B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1G80-500F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1G80-500B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1G80-600F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1G80-600B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1G80-700F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1G80-700B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1G100-25F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1G100-25B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1G100-50F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1G100-50B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1G100-75F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1G100-75B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1G100-100F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1G100-100B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1G100-125F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1G100-125B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1G100-150F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1G100-150B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1G100-175F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1G100-175B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1G100-200F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1G100-200B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1G100-250F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1G100-250B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1G100-300F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1G100-300B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1G100-350F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1G100-350B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1G100-400F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1G100-400B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1G100-450F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1G100-450B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1G100-500F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1G100-500B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1G100-600F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1G100-600B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1G100-700F		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1G100-700B		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1C80-25F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1C80-25B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1C80-50F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1C80-50B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1C80-75F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1C80-75B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1C80-100F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1C80-100B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1C80-125F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1C80-125B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1C80-150F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1C80-150B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1C80-175F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1C80-175B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1C80-200F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1C80-200B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1C80-250F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1C80-250B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1C80-300F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1C80-300B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1C80-350F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1C80-350B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1C80-400F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1C80-400B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1C80-450F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1C80-450B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1C80-500F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1C80-500B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1C80-600F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1C80-600B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1C80-700F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1C80-700B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1C100-25F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1C100-25B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1C100-50F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1C100-50B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1C100-75F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1C100-75B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1C100-100F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1C100-100B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1C100-125F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1C100-125B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1C100-150F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1C100-150B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1C100-175F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1C100-175B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1C100-200F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1C100-200B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1C100-250F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1C100-250B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1C100-300F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1C100-300B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1C100-350F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1C100-350B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1C100-400F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1C100-400B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1C100-450F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1C100-450B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1C100-500F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1C100-500B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1C100-600F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1C100-600B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1C100-700F		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1C100-700B		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1D80-25F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1D80-25B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1D80-50F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1D80-50B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1D80-75F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1D80-75B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1D80-100F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1D80-100B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1D80-125F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1D80-125B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1D80-150F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1D80-150B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1D80-175F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1D80-175B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1D80-200F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1D80-200B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1D80-250F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1D80-250B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1D80-300F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1D80-300B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1D80-350F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1D80-350B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1D80-400F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1D80-400B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1D80-450F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1D80-450B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1D80-500F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1D80-500B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1D80-600F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1D80-600B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1D80-700F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1D80-700B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1D100-25F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1D100-25B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1D100-50F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1D100-50B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1D100-75F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1D100-75B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1D100-100F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1D100-100B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1D100-125F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1D100-125B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1D100-150F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1D100-150B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1D100-175F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1D100-175B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1D100-200F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1D100-200B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1D100-250F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1D100-250B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1D100-300F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1D100-300B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1D100-350F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1D100-350B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1D100-400F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1D100-400B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1D100-450F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1D100-450B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1D100-500F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1D100-500B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1D100-600F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1D100-600B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1D100-700F		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1D100-700B		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1T80-25F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1T80-25B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1T80-50F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1T80-50B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1T80-75F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1T80-75B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1T80-100F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1T80-100B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1T80-125F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1T80-125B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1T80-150F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1T80-150B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1T80-175F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1T80-175B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1T80-200F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1T80-200B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1T80-250F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1T80-250B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1T80-300F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1T80-300B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1T80-350F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1T80-350B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1T80-400F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1T80-400B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1T80-450F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1T80-450B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1T80-500F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1T80-500B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1T80-600F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1T80-600B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1T80-700F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1T80-700B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
CDL1T100-25F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
CDL1T100-25B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
CDL1T100-50F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
CDL1T100-50B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
CDL1T100-75F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
CDL1T100-75B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
CDL1T100-100F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
CDL1T100-100B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
CDL1T100-125F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
CDL1T100-125B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
CDL1T100-150F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
CDL1T100-150B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
CDL1T100-175F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
CDL1T100-175B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
CDL1T100-200F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
CDL1T100-200B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
CDL1T100-250F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
CDL1T100-250B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
CDL1T100-300F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
CDL1T100-300B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
CDL1T100-350F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
CDL1T100-350B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
CDL1T100-400F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
CDL1T100-400B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
CDL1T100-450F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
CDL1T100-450B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
CDL1T100-500F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
CDL1T100-500B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
CDL1T100-600F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
CDL1T100-600B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
CDL1T100-700F		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
CDL1T100-700B		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction

Round Body CylindersSMC

896 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CL1 Lock-up Cylinder (Bore 80/100 mm)

Brand SMC·Round Body Cylinders

Available part numbers (896)

CL1B80-25F, CL1B80-25B, CL1B80-50F, CL1B80-50B, CL1B80-75F, CL1B80-75B, CL1B80-100F, CL1B80-100B, CL1B80-125F, CL1B80-125B + 886 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CL1B80-25F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1B80-25B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1B80-50F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1B80-50B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1B80-75F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1B80-75B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1B80-100F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1B80-100B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1B80-125F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1B80-125B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1B80-150F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1B80-150B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1B80-175F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1B80-175B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1B80-200F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1B80-200B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1B80-250F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1B80-250B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1B80-300F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1B80-300B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1B80-350F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1B80-350B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1B80-400F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1B80-400B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1B80-450F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1B80-450B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1B80-500F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1B80-500B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1B80-600F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1B80-600B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1B80-700F	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1B80-700B	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1B100-25F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1B100-25B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1B100-50F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1B100-50B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1B100-75F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1B100-75B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1B100-100F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1B100-100B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1B100-125F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1B100-125B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1B100-150F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1B100-150B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1B100-175F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1B100-175B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1B100-200F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1B100-200B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1B100-250F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1B100-250B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1B100-300F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1B100-300B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1B100-350F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1B100-350B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1B100-400F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1B100-400B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1B100-450F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1B100-450B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1B100-500F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1B100-500B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1B100-600F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1B100-600B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1B100-700F	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1B100-700B	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1L80-25F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1L80-25B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1L80-50F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1L80-50B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1L80-75F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1L80-75B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1L80-100F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1L80-100B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1L80-125F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1L80-125B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1L80-150F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1L80-150B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1L80-175F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1L80-175B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1L80-200F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1L80-200B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1L80-250F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1L80-250B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1L80-300F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1L80-300B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1L80-350F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1L80-350B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1L80-400F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1L80-400B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1L80-450F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1L80-450B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1L80-500F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1L80-500B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1L80-600F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1L80-600B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1L80-700F	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1L80-700B	Magnet: No magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1L100-25F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1L100-25B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1L100-50F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1L100-50B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1L100-75F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1L100-75B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1L100-100F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1L100-100B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1L100-125F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1L100-125B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1L100-150F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1L100-150B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1L100-175F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1L100-175B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1L100-200F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1L100-200B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1L100-250F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1L100-250B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1L100-300F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1L100-300B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1L100-350F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1L100-350B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1L100-400F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1L100-400B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1L100-450F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1L100-450B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1L100-500F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1L100-500B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1L100-600F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1L100-600B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1L100-700F	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1L100-700B	Magnet: No magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1F80-25F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1F80-25B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1F80-50F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1F80-50B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1F80-75F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1F80-75B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1F80-100F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1F80-100B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1F80-125F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1F80-125B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1F80-150F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1F80-150B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1F80-175F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1F80-175B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1F80-200F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1F80-200B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1F80-250F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1F80-250B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1F80-300F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1F80-300B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1F80-350F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1F80-350B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1F80-400F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1F80-400B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1F80-450F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1F80-450B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1F80-500F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1F80-500B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1F80-600F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1F80-600B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1F80-700F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1F80-700B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1F100-25F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1F100-25B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1F100-50F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1F100-50B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1F100-75F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1F100-75B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1F100-100F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1F100-100B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1F100-125F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1F100-125B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1F100-150F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1F100-150B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1F100-175F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1F100-175B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1F100-200F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1F100-200B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1F100-250F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1F100-250B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1F100-300F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1F100-300B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1F100-350F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1F100-350B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1F100-400F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1F100-400B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1F100-450F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1F100-450B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1F100-500F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1F100-500B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1F100-600F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1F100-600B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1F100-700F	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1F100-700B	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1G80-25F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1G80-25B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1G80-50F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1G80-50B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1G80-75F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1G80-75B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1G80-100F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1G80-100B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1G80-125F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1G80-125B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1G80-150F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1G80-150B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1G80-175F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1G80-175B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1G80-200F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1G80-200B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1G80-250F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1G80-250B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1G80-300F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1G80-300B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1G80-350F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1G80-350B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1G80-400F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1G80-400B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1G80-450F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1G80-450B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1G80-500F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1G80-500B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1G80-600F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1G80-600B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1G80-700F	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1G80-700B	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1G100-25F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1G100-25B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1G100-50F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1G100-50B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1G100-75F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1G100-75B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1G100-100F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1G100-100B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1G100-125F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1G100-125B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1G100-150F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1G100-150B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1G100-175F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1G100-175B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1G100-200F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1G100-200B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1G100-250F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1G100-250B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1G100-300F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1G100-300B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1G100-350F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1G100-350B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1G100-400F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1G100-400B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1G100-450F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1G100-450B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1G100-500F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1G100-500B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1G100-600F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1G100-600B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1G100-700F	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1G100-700B	Magnet: No magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1C80-25F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1C80-25B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1C80-50F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1C80-50B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1C80-75F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1C80-75B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1C80-100F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1C80-100B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1C80-125F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1C80-125B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1C80-150F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1C80-150B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1C80-175F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1C80-175B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1C80-200F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1C80-200B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1C80-250F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1C80-250B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1C80-300F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1C80-300B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1C80-350F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1C80-350B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1C80-400F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1C80-400B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1C80-450F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1C80-450B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1C80-500F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1C80-500B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1C80-600F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1C80-600B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1C80-700F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1C80-700B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1C100-25F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1C100-25B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1C100-50F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1C100-50B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1C100-75F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1C100-75B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1C100-100F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1C100-100B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1C100-125F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1C100-125B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1C100-150F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1C100-150B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1C100-175F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1C100-175B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1C100-200F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1C100-200B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1C100-250F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1C100-250B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1C100-300F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1C100-300B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1C100-350F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1C100-350B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1C100-400F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1C100-400B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1C100-450F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1C100-450B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1C100-500F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1C100-500B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1C100-600F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1C100-600B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1C100-700F	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1C100-700B	Magnet: No magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1D80-25F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1D80-25B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1D80-50F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1D80-50B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1D80-75F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1D80-75B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1D80-100F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1D80-100B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1D80-125F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1D80-125B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1D80-150F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1D80-150B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1D80-175F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1D80-175B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1D80-200F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1D80-200B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1D80-250F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1D80-250B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1D80-300F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1D80-300B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1D80-350F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1D80-350B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1D80-400F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1D80-400B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1D80-450F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1D80-450B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1D80-500F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1D80-500B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1D80-600F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1D80-600B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1D80-700F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1D80-700B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1D100-25F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1D100-25B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1D100-50F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1D100-50B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1D100-75F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1D100-75B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1D100-100F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1D100-100B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1D100-125F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1D100-125B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1D100-150F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1D100-150B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1D100-175F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1D100-175B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1D100-200F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1D100-200B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1D100-250F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1D100-250B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1D100-300F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1D100-300B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1D100-350F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1D100-350B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1D100-400F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1D100-400B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1D100-450F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1D100-450B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1D100-500F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1D100-500B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1D100-600F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1D100-600B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1D100-700F	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1D100-700B	Magnet: No magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1T80-25F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1T80-25B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1T80-50F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1T80-50B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1T80-75F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1T80-75B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1T80-100F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1T80-100B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1T80-125F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1T80-125B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1T80-150F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1T80-150B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1T80-175F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1T80-175B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1T80-200F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1T80-200B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1T80-250F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1T80-250B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1T80-300F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1T80-300B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1T80-350F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1T80-350B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1T80-400F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1T80-400B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1T80-450F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1T80-450B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1T80-500F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1T80-500B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1T80-600F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1T80-600B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1T80-700F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1T80-700B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CL1T100-25F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CL1T100-25B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CL1T100-50F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CL1T100-50B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CL1T100-75F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CL1T100-75B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CL1T100-100F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CL1T100-100B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CL1T100-125F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CL1T100-125B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CL1T100-150F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CL1T100-150B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CL1T100-175F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CL1T100-175B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CL1T100-200F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CL1T100-200B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CL1T100-250F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CL1T100-250B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CL1T100-300F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CL1T100-300B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CL1T100-350F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CL1T100-350B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CL1T100-400F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CL1T100-400B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CL1T100-450F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CL1T100-450B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CL1T100-500F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CL1T100-500B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CL1T100-600F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CL1T100-600B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CL1T100-700F	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CL1T100-700B	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1B80-25F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1B80-25B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1B80-50F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1B80-50B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1B80-75F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1B80-75B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1B80-100F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1B80-100B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1B80-125F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1B80-125B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1B80-150F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1B80-150B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1B80-175F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1B80-175B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1B80-200F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1B80-200B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1B80-250F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1B80-250B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1B80-300F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1B80-300B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1B80-350F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1B80-350B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1B80-400F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1B80-400B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1B80-450F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1B80-450B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1B80-500F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1B80-500B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1B80-600F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1B80-600B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1B80-700F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1B80-700B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1B100-25F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1B100-25B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1B100-50F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1B100-50B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1B100-75F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1B100-75B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1B100-100F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1B100-100B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1B100-125F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1B100-125B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1B100-150F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1B100-150B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1B100-175F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1B100-175B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1B100-200F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1B100-200B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1B100-250F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1B100-250B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1B100-300F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1B100-300B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1B100-350F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1B100-350B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1B100-400F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1B100-400B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1B100-450F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1B100-450B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1B100-500F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1B100-500B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1B100-600F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1B100-600B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1B100-700F	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1B100-700B	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1L80-25F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1L80-25B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1L80-50F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1L80-50B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1L80-75F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1L80-75B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1L80-100F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1L80-100B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1L80-125F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1L80-125B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1L80-150F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1L80-150B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1L80-175F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1L80-175B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1L80-200F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1L80-200B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1L80-250F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1L80-250B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1L80-300F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1L80-300B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1L80-350F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1L80-350B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1L80-400F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1L80-400B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1L80-450F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1L80-450B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1L80-500F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1L80-500B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1L80-600F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1L80-600B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1L80-700F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1L80-700B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1L100-25F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1L100-25B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1L100-50F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1L100-50B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1L100-75F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1L100-75B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1L100-100F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1L100-100B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1L100-125F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1L100-125B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1L100-150F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1L100-150B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1L100-175F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1L100-175B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1L100-200F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1L100-200B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1L100-250F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1L100-250B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1L100-300F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1L100-300B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1L100-350F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1L100-350B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1L100-400F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1L100-400B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1L100-450F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1L100-450B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1L100-500F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1L100-500B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1L100-600F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1L100-600B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1L100-700F	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1L100-700B	Magnet: Built-in magnet \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1F80-25F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1F80-25B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1F80-50F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1F80-50B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1F80-75F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1F80-75B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1F80-100F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1F80-100B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1F80-125F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1F80-125B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1F80-150F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1F80-150B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1F80-175F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1F80-175B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1F80-200F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1F80-200B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1F80-250F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1F80-250B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1F80-300F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1F80-300B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1F80-350F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1F80-350B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1F80-400F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1F80-400B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1F80-450F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1F80-450B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1F80-500F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1F80-500B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1F80-600F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1F80-600B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1F80-700F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1F80-700B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1F100-25F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1F100-25B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1F100-50F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1F100-50B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1F100-75F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1F100-75B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1F100-100F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1F100-100B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1F100-125F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1F100-125B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1F100-150F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1F100-150B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1F100-175F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1F100-175B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1F100-200F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1F100-200B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1F100-250F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1F100-250B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1F100-300F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1F100-300B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1F100-350F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1F100-350B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1F100-400F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1F100-400B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1F100-450F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1F100-450B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1F100-500F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1F100-500B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1F100-600F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1F100-600B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1F100-700F	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1F100-700B	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1G80-25F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1G80-25B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1G80-50F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1G80-50B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1G80-75F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1G80-75B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1G80-100F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1G80-100B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1G80-125F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1G80-125B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1G80-150F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1G80-150B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1G80-175F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1G80-175B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1G80-200F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1G80-200B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1G80-250F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1G80-250B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1G80-300F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1G80-300B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1G80-350F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1G80-350B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1G80-400F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1G80-400B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1G80-450F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1G80-450B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1G80-500F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1G80-500B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1G80-600F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1G80-600B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1G80-700F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1G80-700B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1G100-25F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1G100-25B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1G100-50F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1G100-50B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1G100-75F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1G100-75B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1G100-100F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1G100-100B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1G100-125F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1G100-125B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1G100-150F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1G100-150B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1G100-175F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1G100-175B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1G100-200F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1G100-200B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1G100-250F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1G100-250B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1G100-300F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1G100-300B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1G100-350F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1G100-350B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1G100-400F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1G100-400B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1G100-450F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1G100-450B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1G100-500F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1G100-500B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1G100-600F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1G100-600B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1G100-700F	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1G100-700B	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1C80-25F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1C80-25B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1C80-50F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1C80-50B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1C80-75F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1C80-75B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1C80-100F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1C80-100B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1C80-125F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1C80-125B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1C80-150F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1C80-150B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1C80-175F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1C80-175B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1C80-200F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1C80-200B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1C80-250F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1C80-250B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1C80-300F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1C80-300B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1C80-350F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1C80-350B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1C80-400F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1C80-400B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1C80-450F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1C80-450B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1C80-500F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1C80-500B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1C80-600F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1C80-600B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1C80-700F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1C80-700B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1C100-25F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1C100-25B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1C100-50F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1C100-50B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1C100-75F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1C100-75B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1C100-100F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1C100-100B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1C100-125F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1C100-125B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1C100-150F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1C100-150B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1C100-175F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1C100-175B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1C100-200F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1C100-200B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1C100-250F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1C100-250B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1C100-300F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1C100-300B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1C100-350F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1C100-350B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1C100-400F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1C100-400B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1C100-450F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1C100-450B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1C100-500F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1C100-500B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1C100-600F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1C100-600B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1C100-700F	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1C100-700B	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1D80-25F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1D80-25B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1D80-50F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1D80-50B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1D80-75F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1D80-75B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1D80-100F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1D80-100B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1D80-125F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1D80-125B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1D80-150F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1D80-150B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1D80-175F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1D80-175B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1D80-200F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1D80-200B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1D80-250F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1D80-250B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1D80-300F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1D80-300B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1D80-350F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1D80-350B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1D80-400F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1D80-400B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1D80-450F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1D80-450B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1D80-500F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1D80-500B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1D80-600F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1D80-600B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1D80-700F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1D80-700B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1D100-25F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1D100-25B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1D100-50F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1D100-50B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1D100-75F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1D100-75B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1D100-100F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1D100-100B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1D100-125F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1D100-125B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1D100-150F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1D100-150B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1D100-175F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1D100-175B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1D100-200F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1D100-200B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1D100-250F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1D100-250B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1D100-300F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1D100-300B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1D100-350F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1D100-350B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1D100-400F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1D100-400B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1D100-450F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1D100-450B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1D100-500F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1D100-500B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1D100-600F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1D100-600B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1D100-700F	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1D100-700B	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1T80-25F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1T80-25B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1T80-50F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1T80-50B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1T80-75F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1T80-75B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1T80-100F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1T80-100B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1T80-125F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1T80-125B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1T80-150F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1T80-150B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1T80-175F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1T80-175B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1T80-200F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1T80-200B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1T80-250F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1T80-250B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1T80-300F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1T80-300B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1T80-350F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1T80-350B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1T80-400F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1T80-400B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1T80-450F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1T80-450B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1T80-500F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1T80-500B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1T80-600F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1T80-600B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1T80-700F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1T80-700B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction
	CDL1T100-25F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston extending direction
	CDL1T100-25B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock direction: Piston retracting direction
	CDL1T100-50F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston extending direction
	CDL1T100-50B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock direction: Piston retracting direction
	CDL1T100-75F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston extending direction
	CDL1T100-75B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock direction: Piston retracting direction
	CDL1T100-100F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston extending direction
	CDL1T100-100B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock direction: Piston retracting direction
	CDL1T100-125F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston extending direction
	CDL1T100-125B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock direction: Piston retracting direction
	CDL1T100-150F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston extending direction
	CDL1T100-150B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock direction: Piston retracting direction
	CDL1T100-175F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston extending direction
	CDL1T100-175B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock direction: Piston retracting direction
	CDL1T100-200F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston extending direction
	CDL1T100-200B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock direction: Piston retracting direction
	CDL1T100-250F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston extending direction
	CDL1T100-250B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock direction: Piston retracting direction
	CDL1T100-300F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston extending direction
	CDL1T100-300B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock direction: Piston retracting direction
	CDL1T100-350F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston extending direction
	CDL1T100-350B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock direction: Piston retracting direction
	CDL1T100-400F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston extending direction
	CDL1T100-400B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock direction: Piston retracting direction
	CDL1T100-450F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston extending direction
	CDL1T100-450B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock direction: Piston retracting direction
	CDL1T100-500F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston extending direction
	CDL1T100-500B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock direction: Piston retracting direction
	CDL1T100-600F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston extending direction
	CDL1T100-600B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock direction: Piston retracting direction
	CDL1T100-700F	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston extending direction
	CDL1T100-700B	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock direction: Piston retracting direction

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CL1 Lock-up Cylinder (Bore 80/100 mm)
