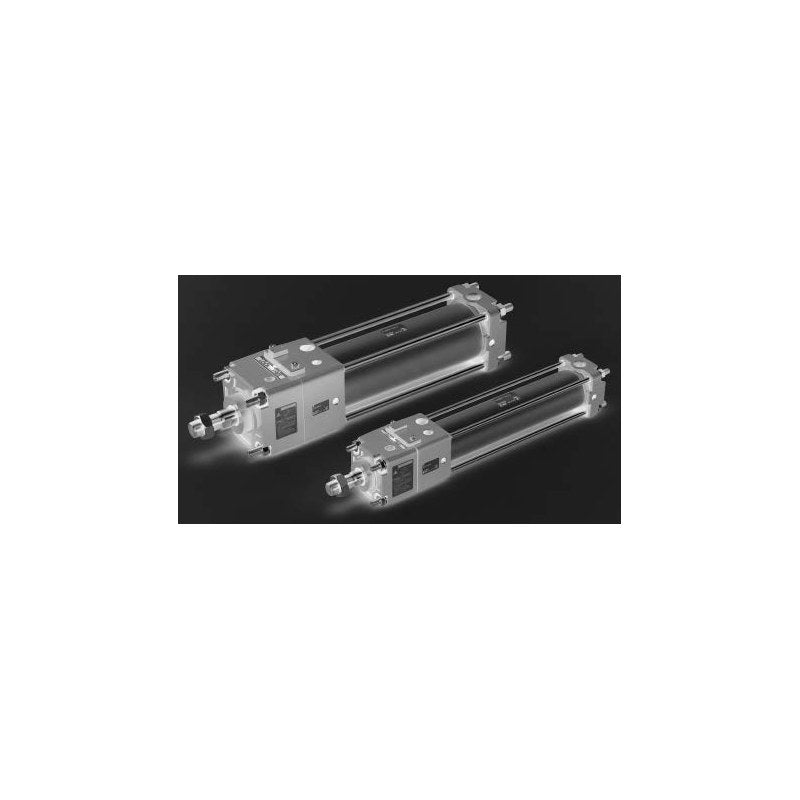

SMC CLA2 Fine Lock Cylinder (Bore 63/80 mm)

SMC CLA2 series fine lock cylinder (bore 63/80 mm), a double-acting single-rod tie-rod cylinder with a compact built-in bidirectional lock.

Key features

Fine lock built into a CA2 tie-rod cylinder for intermediate stops, emergency stops and drop prevention
Locks in both directions; spring lock, pneumatic lock or combined spring/pneumatic lock
Seven mounting styles; aluminum tube standard, steel tube (F) and air-hydro type (H) available as other codes
Air cushion on both ends standard; cushionless (N), bellows (J/K), NPT ports (TN) and auto switches ordered as suffixes
Long strokes up to 800 (40), 1200 (50, 63), 1400 (80) and 1500 mm (100) for foot and rod flange types

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.08 MPa
Piston speed	50 to 500 mm/s
Cushion	Air cushion
Lubrication	Not required (non-lube)
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Lock direction	Both directions
Source	SMC Korea catalog CLA2 (SMCKR_CLA2.pdf), p. 1-2

CLA2B63-25-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-25-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-25-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2B63-50-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-50-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-50-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2B63-75-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-75-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-75-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2B63-100-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-100-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-100-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2B63-125-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-125-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-125-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2B63-150-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-150-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-150-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2B63-175-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-175-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-175-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2B63-200-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-200-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-200-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2B63-250-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-250-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-250-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2B63-300-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-300-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-300-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2B63-350-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-350-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-350-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2B63-400-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-400-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-400-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2B63-450-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-450-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-450-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2B63-500-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-500-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-500-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2B63-600-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2B63-600-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B63-600-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2B80-25-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-25-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-25-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2B80-50-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-50-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-50-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2B80-75-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-75-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-75-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2B80-100-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-100-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-100-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2B80-125-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-125-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-125-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2B80-150-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-150-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-150-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2B80-175-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-175-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-175-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2B80-200-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-200-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-200-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2B80-250-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-250-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-250-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2B80-300-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-300-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-300-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2B80-350-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-350-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-350-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2B80-400-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-400-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-400-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2B80-450-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-450-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-450-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2B80-500-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-500-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-500-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2B80-600-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-600-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-600-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2B80-700-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2B80-700-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2B80-700-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2L63-25-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-25-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-25-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2L63-50-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-50-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-50-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2L63-75-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-75-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-75-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2L63-100-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-100-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-100-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2L63-125-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-125-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-125-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2L63-150-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-150-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-150-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2L63-175-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-175-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-175-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2L63-200-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-200-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-200-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2L63-250-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-250-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-250-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2L63-300-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-300-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-300-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2L63-350-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-350-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-350-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2L63-400-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-400-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-400-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2L63-450-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-450-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-450-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2L63-500-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-500-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-500-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2L63-600-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2L63-600-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L63-600-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2L80-25-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-25-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-25-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2L80-50-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-50-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-50-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2L80-75-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-75-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-75-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2L80-100-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-100-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-100-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2L80-125-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-125-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-125-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2L80-150-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-150-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-150-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2L80-175-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-175-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-175-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2L80-200-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-200-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-200-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2L80-250-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-250-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-250-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2L80-300-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-300-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-300-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2L80-350-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-350-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-350-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2L80-400-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-400-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-400-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2L80-450-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-450-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-450-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2L80-500-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-500-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-500-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2L80-600-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-600-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-600-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2L80-700-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2L80-700-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2L80-700-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2F63-25-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-25-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-25-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2F63-50-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-50-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-50-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2F63-75-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-75-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-75-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2F63-100-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-100-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-100-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2F63-125-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-125-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-125-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2F63-150-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-150-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-150-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2F63-175-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-175-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-175-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2F63-200-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-200-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-200-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2F63-250-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-250-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-250-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2F63-300-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-300-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-300-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2F63-350-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-350-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-350-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2F63-400-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-400-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-400-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2F63-450-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-450-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-450-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2F63-500-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-500-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-500-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2F63-600-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2F63-600-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F63-600-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2F80-25-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-25-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-25-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2F80-50-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-50-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-50-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2F80-75-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-75-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-75-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2F80-100-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-100-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-100-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2F80-125-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-125-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-125-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2F80-150-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-150-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-150-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2F80-175-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-175-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-175-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2F80-200-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-200-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-200-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2F80-250-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-250-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-250-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2F80-300-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-300-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-300-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2F80-350-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-350-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-350-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2F80-400-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-400-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-400-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2F80-450-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-450-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-450-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2F80-500-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-500-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-500-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2F80-600-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-600-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-600-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2F80-700-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2F80-700-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2F80-700-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2G63-25-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-25-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-25-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2G63-50-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-50-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-50-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2G63-75-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-75-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-75-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2G63-100-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-100-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-100-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2G63-125-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-125-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-125-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2G63-150-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-150-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-150-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2G63-175-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-175-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-175-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2G63-200-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-200-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-200-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2G63-250-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-250-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-250-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2G63-300-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-300-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-300-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2G63-350-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-350-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-350-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2G63-400-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-400-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-400-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2G63-450-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-450-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-450-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2G63-500-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-500-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-500-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2G63-600-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2G63-600-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G63-600-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2G80-25-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-25-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-25-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2G80-50-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-50-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-50-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2G80-75-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-75-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-75-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2G80-100-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-100-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-100-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2G80-125-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-125-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-125-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2G80-150-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-150-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-150-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2G80-175-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-175-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-175-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2G80-200-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-200-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-200-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2G80-250-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-250-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-250-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2G80-300-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-300-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-300-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2G80-350-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-350-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-350-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2G80-400-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-400-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-400-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2G80-450-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-450-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-450-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2G80-500-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-500-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-500-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2G80-600-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-600-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-600-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2G80-700-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2G80-700-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2G80-700-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2C63-25-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-25-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-25-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2C63-50-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-50-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-50-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2C63-75-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-75-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-75-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2C63-100-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-100-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-100-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2C63-125-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-125-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-125-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2C63-150-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-150-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-150-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2C63-175-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-175-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-175-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2C63-200-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-200-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-200-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2C63-250-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-250-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-250-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2C63-300-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-300-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-300-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2C63-350-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-350-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-350-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2C63-400-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-400-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-400-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2C63-450-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-450-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-450-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2C63-500-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-500-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-500-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2C63-600-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2C63-600-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C63-600-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2C80-25-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-25-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-25-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2C80-50-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-50-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-50-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2C80-75-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-75-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-75-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2C80-100-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-100-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-100-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2C80-125-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-125-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-125-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2C80-150-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-150-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-150-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2C80-175-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-175-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-175-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2C80-200-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-200-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-200-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2C80-250-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-250-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-250-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2C80-300-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-300-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-300-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2C80-350-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-350-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-350-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2C80-400-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-400-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-400-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2C80-450-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-450-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-450-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2C80-500-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-500-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-500-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2C80-600-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-600-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-600-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2C80-700-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2C80-700-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2C80-700-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2D63-25-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-25-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-25-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2D63-50-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-50-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-50-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2D63-75-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-75-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-75-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2D63-100-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-100-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-100-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2D63-125-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-125-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-125-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2D63-150-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-150-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-150-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2D63-175-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-175-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-175-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2D63-200-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-200-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-200-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2D63-250-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-250-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-250-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2D63-300-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-300-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-300-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2D63-350-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-350-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-350-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2D63-400-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-400-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-400-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2D63-450-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-450-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-450-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2D63-500-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-500-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-500-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2D63-600-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2D63-600-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D63-600-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2D80-25-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-25-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-25-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2D80-50-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-50-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-50-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2D80-75-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-75-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-75-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2D80-100-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-100-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-100-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2D80-125-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-125-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-125-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2D80-150-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-150-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-150-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2D80-175-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-175-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-175-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2D80-200-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-200-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-200-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2D80-250-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-250-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-250-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2D80-300-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-300-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-300-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2D80-350-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-350-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-350-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2D80-400-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-400-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-400-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2D80-450-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-450-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-450-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2D80-500-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-500-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-500-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2D80-600-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-600-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-600-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2D80-700-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2D80-700-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2D80-700-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2T63-25-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-25-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-25-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2T63-50-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-50-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-50-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2T63-75-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-75-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-75-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2T63-100-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-100-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-100-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2T63-125-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-125-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-125-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2T63-150-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-150-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-150-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2T63-175-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-175-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-175-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2T63-200-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-200-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-200-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2T63-250-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-250-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-250-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2T63-300-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-300-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-300-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2T63-350-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-350-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-350-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2T63-400-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-400-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-400-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2T63-450-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-450-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-450-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2T63-500-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-500-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-500-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2T63-600-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2T63-600-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T63-600-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2T80-25-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-25-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-25-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2T80-50-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-50-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-50-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2T80-75-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-75-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-75-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2T80-100-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-100-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-100-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2T80-125-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-125-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-125-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2T80-150-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-150-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-150-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2T80-175-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-175-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-175-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2T80-200-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-200-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-200-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2T80-250-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-250-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-250-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2T80-300-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-300-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-300-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2T80-350-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-350-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-350-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2T80-400-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-400-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-400-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2T80-450-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-450-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-450-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2T80-500-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-500-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-500-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2T80-600-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-600-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-600-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2T80-700-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2T80-700-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2T80-700-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2B63-25-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-25-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-25-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2B63-50-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-50-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-50-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2B63-75-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-75-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-75-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2B63-100-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-100-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-100-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2B63-125-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-125-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-125-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2B63-150-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-150-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-150-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2B63-175-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-175-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-175-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2B63-200-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-200-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-200-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2B63-250-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-250-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-250-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2B63-300-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-300-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-300-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2B63-350-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-350-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-350-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2B63-400-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-400-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-400-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2B63-450-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-450-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-450-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2B63-500-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-500-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-500-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2B63-600-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2B63-600-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B63-600-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2B80-25-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-25-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-25-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2B80-50-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-50-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-50-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2B80-75-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-75-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-75-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2B80-100-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-100-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-100-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2B80-125-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-125-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-125-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2B80-150-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-150-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-150-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2B80-175-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-175-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-175-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2B80-200-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-200-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-200-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2B80-250-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-250-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-250-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2B80-300-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-300-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-300-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2B80-350-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-350-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-350-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2B80-400-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-400-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-400-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2B80-450-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-450-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-450-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2B80-500-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-500-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-500-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2B80-600-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-600-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-600-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2B80-700-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2B80-700-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2B80-700-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2L63-25-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-25-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-25-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2L63-50-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-50-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-50-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2L63-75-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-75-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-75-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2L63-100-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-100-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-100-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2L63-125-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-125-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-125-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2L63-150-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-150-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-150-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2L63-175-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-175-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-175-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2L63-200-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-200-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-200-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2L63-250-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-250-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-250-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2L63-300-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-300-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-300-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2L63-350-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-350-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-350-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2L63-400-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-400-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-400-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2L63-450-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-450-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-450-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2L63-500-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-500-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-500-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2L63-600-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2L63-600-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L63-600-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2L80-25-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-25-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-25-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2L80-50-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-50-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-50-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2L80-75-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-75-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-75-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2L80-100-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-100-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-100-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2L80-125-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-125-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-125-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2L80-150-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-150-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-150-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2L80-175-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-175-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-175-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2L80-200-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-200-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-200-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2L80-250-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-250-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-250-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2L80-300-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-300-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-300-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2L80-350-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-350-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-350-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2L80-400-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-400-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-400-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2L80-450-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-450-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-450-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2L80-500-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-500-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-500-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2L80-600-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-600-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-600-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2L80-700-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2L80-700-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2L80-700-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2F63-25-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-25-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-25-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2F63-50-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-50-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-50-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2F63-75-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-75-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-75-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2F63-100-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-100-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-100-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2F63-125-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-125-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-125-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2F63-150-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-150-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-150-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2F63-175-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-175-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-175-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2F63-200-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-200-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-200-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2F63-250-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-250-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-250-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2F63-300-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-300-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-300-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2F63-350-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-350-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-350-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2F63-400-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-400-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-400-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2F63-450-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-450-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-450-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2F63-500-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-500-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-500-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2F63-600-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2F63-600-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F63-600-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2F80-25-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-25-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-25-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2F80-50-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-50-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-50-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2F80-75-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-75-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-75-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2F80-100-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-100-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-100-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2F80-125-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-125-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-125-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2F80-150-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-150-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-150-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2F80-175-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-175-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-175-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2F80-200-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-200-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-200-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2F80-250-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-250-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-250-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2F80-300-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-300-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-300-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2F80-350-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-350-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-350-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2F80-400-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-400-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-400-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2F80-450-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-450-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-450-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2F80-500-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-500-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-500-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2F80-600-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-600-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-600-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2F80-700-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2F80-700-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2F80-700-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2G63-25-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-25-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-25-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2G63-50-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-50-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-50-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2G63-75-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-75-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-75-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2G63-100-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-100-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-100-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2G63-125-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-125-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-125-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2G63-150-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-150-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-150-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2G63-175-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-175-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-175-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2G63-200-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-200-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-200-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2G63-250-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-250-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-250-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2G63-300-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-300-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-300-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2G63-350-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-350-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-350-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2G63-400-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-400-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-400-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2G63-450-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-450-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-450-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2G63-500-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-500-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-500-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2G63-600-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2G63-600-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G63-600-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2G80-25-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-25-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-25-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2G80-50-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-50-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-50-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2G80-75-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-75-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-75-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2G80-100-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-100-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-100-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2G80-125-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-125-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-125-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2G80-150-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-150-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-150-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2G80-175-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-175-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-175-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2G80-200-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-200-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-200-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2G80-250-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-250-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-250-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2G80-300-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-300-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-300-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2G80-350-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-350-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-350-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2G80-400-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-400-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-400-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2G80-450-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-450-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-450-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2G80-500-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-500-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-500-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2G80-600-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-600-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-600-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2G80-700-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2G80-700-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2G80-700-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2C63-25-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-25-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-25-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2C63-50-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-50-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-50-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2C63-75-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-75-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-75-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2C63-100-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-100-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-100-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2C63-125-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-125-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-125-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2C63-150-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-150-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-150-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2C63-175-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-175-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-175-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2C63-200-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-200-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-200-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2C63-250-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-250-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-250-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2C63-300-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-300-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-300-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2C63-350-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-350-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-350-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2C63-400-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-400-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-400-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2C63-450-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-450-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-450-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2C63-500-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-500-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-500-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2C63-600-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2C63-600-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C63-600-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2C80-25-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-25-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-25-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2C80-50-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-50-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-50-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2C80-75-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-75-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-75-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2C80-100-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-100-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-100-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2C80-125-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-125-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-125-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2C80-150-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-150-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-150-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2C80-175-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-175-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-175-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2C80-200-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-200-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-200-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2C80-250-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-250-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-250-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2C80-300-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-300-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-300-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2C80-350-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-350-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-350-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2C80-400-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-400-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-400-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2C80-450-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-450-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-450-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2C80-500-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-500-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-500-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2C80-600-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-600-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-600-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2C80-700-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2C80-700-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2C80-700-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2D63-25-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-25-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-25-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2D63-50-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-50-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-50-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2D63-75-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-75-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-75-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2D63-100-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-100-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-100-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2D63-125-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-125-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-125-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2D63-150-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-150-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-150-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2D63-175-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-175-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-175-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2D63-200-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-200-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-200-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2D63-250-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-250-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-250-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2D63-300-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-300-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-300-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2D63-350-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-350-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-350-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2D63-400-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-400-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-400-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2D63-450-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-450-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-450-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2D63-500-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-500-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-500-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2D63-600-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2D63-600-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D63-600-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2D80-25-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-25-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-25-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2D80-50-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-50-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-50-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2D80-75-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-75-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-75-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2D80-100-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-100-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-100-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2D80-125-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-125-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-125-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2D80-150-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-150-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-150-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2D80-175-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-175-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-175-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2D80-200-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-200-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-200-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2D80-250-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-250-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-250-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2D80-300-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-300-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-300-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2D80-350-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-350-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-350-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2D80-400-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-400-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-400-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2D80-450-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-450-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-450-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2D80-500-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-500-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-500-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2D80-600-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-600-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-600-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2D80-700-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2D80-700-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2D80-700-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2T63-25-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-25-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-25-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2T63-50-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-50-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-50-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2T63-75-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-75-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-75-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2T63-100-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-100-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-100-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2T63-125-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-125-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-125-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2T63-150-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-150-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-150-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2T63-175-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-175-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-175-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2T63-200-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-200-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-200-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2T63-250-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-250-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-250-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2T63-300-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-300-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-300-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2T63-350-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-350-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-350-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2T63-400-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-400-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-400-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2T63-450-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-450-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-450-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2T63-500-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-500-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-500-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2T63-600-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2T63-600-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T63-600-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2T80-25-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-25-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-25-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2T80-50-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-50-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-50-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2T80-75-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-75-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-75-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2T80-100-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-100-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-100-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2T80-125-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-125-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-125-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2T80-150-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-150-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-150-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2T80-175-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-175-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-175-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2T80-200-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-200-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-200-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2T80-250-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-250-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-250-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2T80-300-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-300-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-300-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2T80-350-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-350-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-350-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2T80-400-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-400-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-400-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2T80-450-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-450-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-450-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2T80-500-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-500-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-500-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2T80-600-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-600-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-600-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2T80-700-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2T80-700-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2T80-700-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock

Round Body CylindersSMC

1302 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CLA2 Fine Lock Cylinder (Bore 63/80 mm)

Brand SMC·Round Body Cylinders

Available part numbers (1302)

CLA2B63-25-E, CLA2B63-25-P, CLA2B63-25-D, CLA2B63-50-E, CLA2B63-50-P, CLA2B63-50-D, CLA2B63-75-E, CLA2B63-75-P, CLA2B63-75-D, CLA2B63-100-E + 1292 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CLA2B63-25-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-25-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-25-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2B63-50-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-50-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-50-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2B63-75-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-75-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-75-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2B63-100-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-100-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-100-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2B63-125-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-125-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-125-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2B63-150-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-150-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-150-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2B63-175-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-175-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-175-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2B63-200-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-200-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-200-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2B63-250-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-250-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-250-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2B63-300-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-300-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-300-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2B63-350-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-350-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-350-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2B63-400-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-400-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-400-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2B63-450-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-450-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-450-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2B63-500-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-500-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-500-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2B63-600-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2B63-600-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B63-600-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2B80-25-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-25-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-25-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2B80-50-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-50-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-50-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2B80-75-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-75-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-75-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2B80-100-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-100-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-100-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2B80-125-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-125-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-125-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2B80-150-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-150-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-150-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2B80-175-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-175-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-175-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2B80-200-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-200-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-200-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2B80-250-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-250-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-250-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2B80-300-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-300-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-300-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2B80-350-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-350-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-350-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2B80-400-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-400-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-400-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2B80-450-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-450-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-450-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2B80-500-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-500-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-500-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2B80-600-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-600-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-600-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2B80-700-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2B80-700-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2B80-700-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2L63-25-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-25-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-25-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2L63-50-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-50-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-50-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2L63-75-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-75-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-75-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2L63-100-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-100-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-100-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2L63-125-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-125-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-125-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2L63-150-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-150-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-150-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2L63-175-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-175-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-175-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2L63-200-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-200-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-200-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2L63-250-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-250-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-250-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2L63-300-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-300-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-300-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2L63-350-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-350-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-350-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2L63-400-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-400-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-400-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2L63-450-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-450-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-450-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2L63-500-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-500-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-500-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2L63-600-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2L63-600-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L63-600-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2L80-25-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-25-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-25-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2L80-50-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-50-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-50-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2L80-75-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-75-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-75-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2L80-100-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-100-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-100-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2L80-125-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-125-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-125-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2L80-150-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-150-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-150-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2L80-175-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-175-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-175-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2L80-200-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-200-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-200-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2L80-250-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-250-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-250-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2L80-300-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-300-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-300-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2L80-350-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-350-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-350-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2L80-400-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-400-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-400-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2L80-450-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-450-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-450-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2L80-500-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-500-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-500-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2L80-600-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-600-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-600-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2L80-700-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2L80-700-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2L80-700-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2F63-25-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-25-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-25-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2F63-50-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-50-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-50-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2F63-75-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-75-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-75-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2F63-100-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-100-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-100-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2F63-125-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-125-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-125-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2F63-150-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-150-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-150-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2F63-175-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-175-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-175-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2F63-200-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-200-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-200-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2F63-250-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-250-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-250-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2F63-300-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-300-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-300-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2F63-350-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-350-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-350-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2F63-400-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-400-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-400-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2F63-450-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-450-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-450-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2F63-500-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-500-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-500-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2F63-600-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2F63-600-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F63-600-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2F80-25-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-25-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-25-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2F80-50-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-50-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-50-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2F80-75-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-75-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-75-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2F80-100-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-100-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-100-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2F80-125-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-125-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-125-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2F80-150-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-150-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-150-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2F80-175-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-175-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-175-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2F80-200-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-200-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-200-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2F80-250-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-250-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-250-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2F80-300-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-300-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-300-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2F80-350-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-350-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-350-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2F80-400-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-400-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-400-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2F80-450-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-450-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-450-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2F80-500-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-500-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-500-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2F80-600-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-600-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-600-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2F80-700-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2F80-700-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2F80-700-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2G63-25-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-25-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-25-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2G63-50-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-50-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-50-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2G63-75-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-75-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-75-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2G63-100-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-100-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-100-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2G63-125-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-125-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-125-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2G63-150-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-150-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-150-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2G63-175-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-175-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-175-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2G63-200-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-200-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-200-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2G63-250-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-250-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-250-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2G63-300-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-300-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-300-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2G63-350-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-350-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-350-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2G63-400-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-400-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-400-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2G63-450-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-450-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-450-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2G63-500-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-500-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-500-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2G63-600-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2G63-600-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G63-600-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2G80-25-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-25-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-25-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2G80-50-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-50-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-50-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2G80-75-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-75-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-75-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2G80-100-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-100-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-100-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2G80-125-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-125-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-125-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2G80-150-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-150-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-150-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2G80-175-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-175-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-175-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2G80-200-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-200-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-200-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2G80-250-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-250-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-250-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2G80-300-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-300-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-300-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2G80-350-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-350-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-350-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2G80-400-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-400-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-400-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2G80-450-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-450-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-450-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2G80-500-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-500-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-500-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2G80-600-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-600-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-600-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2G80-700-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2G80-700-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2G80-700-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2C63-25-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-25-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-25-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2C63-50-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-50-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-50-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2C63-75-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-75-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-75-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2C63-100-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-100-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-100-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2C63-125-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-125-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-125-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2C63-150-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-150-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-150-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2C63-175-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-175-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-175-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2C63-200-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-200-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-200-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2C63-250-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-250-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-250-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2C63-300-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-300-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-300-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2C63-350-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-350-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-350-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2C63-400-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-400-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-400-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2C63-450-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-450-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-450-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2C63-500-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-500-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-500-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2C63-600-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2C63-600-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C63-600-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2C80-25-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-25-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-25-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2C80-50-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-50-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-50-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2C80-75-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-75-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-75-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2C80-100-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-100-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-100-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2C80-125-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-125-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-125-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2C80-150-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-150-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-150-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2C80-175-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-175-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-175-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2C80-200-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-200-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-200-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2C80-250-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-250-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-250-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2C80-300-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-300-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-300-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2C80-350-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-350-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-350-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2C80-400-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-400-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-400-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2C80-450-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-450-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-450-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2C80-500-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-500-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-500-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2C80-600-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-600-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-600-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2C80-700-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2C80-700-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2C80-700-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2D63-25-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-25-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-25-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2D63-50-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-50-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-50-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2D63-75-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-75-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-75-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2D63-100-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-100-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-100-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2D63-125-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-125-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-125-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2D63-150-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-150-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-150-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2D63-175-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-175-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-175-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2D63-200-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-200-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-200-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2D63-250-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-250-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-250-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2D63-300-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-300-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-300-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2D63-350-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-350-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-350-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2D63-400-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-400-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-400-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2D63-450-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-450-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-450-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2D63-500-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-500-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-500-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2D63-600-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2D63-600-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D63-600-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2D80-25-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-25-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-25-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2D80-50-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-50-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-50-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2D80-75-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-75-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-75-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2D80-100-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-100-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-100-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2D80-125-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-125-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-125-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2D80-150-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-150-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-150-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2D80-175-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-175-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-175-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2D80-200-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-200-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-200-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2D80-250-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-250-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-250-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2D80-300-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-300-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-300-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2D80-350-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-350-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-350-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2D80-400-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-400-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-400-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2D80-450-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-450-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-450-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2D80-500-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-500-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-500-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2D80-600-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-600-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-600-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2D80-700-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2D80-700-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2D80-700-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2T63-25-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-25-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-25-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2T63-50-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-50-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-50-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2T63-75-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-75-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-75-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2T63-100-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-100-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-100-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2T63-125-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-125-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-125-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2T63-150-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-150-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-150-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2T63-175-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-175-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-175-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2T63-200-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-200-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-200-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2T63-250-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-250-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-250-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2T63-300-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-300-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-300-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2T63-350-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-350-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-350-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2T63-400-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-400-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-400-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2T63-450-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-450-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-450-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2T63-500-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-500-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-500-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2T63-600-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2T63-600-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T63-600-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2T80-25-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-25-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-25-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2T80-50-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-50-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-50-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2T80-75-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-75-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-75-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2T80-100-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-100-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-100-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2T80-125-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-125-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-125-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2T80-150-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-150-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-150-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2T80-175-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-175-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-175-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2T80-200-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-200-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-200-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2T80-250-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-250-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-250-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2T80-300-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-300-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-300-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2T80-350-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-350-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-350-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2T80-400-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-400-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-400-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2T80-450-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-450-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-450-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2T80-500-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-500-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-500-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2T80-600-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-600-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-600-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2T80-700-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2T80-700-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2T80-700-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-25-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-25-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-25-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-50-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-50-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-50-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-75-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-75-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-75-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-100-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-100-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-100-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-125-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-125-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-125-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-150-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-150-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-150-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-175-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-175-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-175-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-200-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-200-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-200-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-250-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-250-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-250-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-300-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-300-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-300-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-350-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-350-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-350-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-400-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-400-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-400-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-450-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-450-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-450-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-500-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-500-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-500-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2B63-600-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B63-600-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B63-600-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-25-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-25-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-25-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-50-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-50-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-50-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-75-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-75-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-75-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-100-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-100-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-100-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-125-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-125-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-125-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-150-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-150-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-150-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-175-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-175-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-175-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-200-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-200-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-200-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-250-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-250-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-250-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-300-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-300-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-300-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-350-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-350-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-350-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-400-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-400-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-400-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-450-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-450-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-450-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-500-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-500-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-500-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-600-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-600-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-600-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2B80-700-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2B80-700-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2B80-700-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-25-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-25-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-25-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-50-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-50-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-50-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-75-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-75-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-75-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-100-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-100-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-100-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-125-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-125-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-125-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-150-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-150-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-150-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-175-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-175-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-175-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-200-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-200-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-200-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-250-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-250-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-250-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-300-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-300-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-300-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-350-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-350-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-350-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-400-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-400-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-400-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-450-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-450-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-450-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-500-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-500-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-500-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2L63-600-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L63-600-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L63-600-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-25-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-25-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-25-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-50-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-50-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-50-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-75-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-75-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-75-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-100-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-100-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-100-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-125-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-125-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-125-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-150-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-150-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-150-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-175-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-175-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-175-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-200-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-200-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-200-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-250-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-250-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-250-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-300-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-300-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-300-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-350-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-350-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-350-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-400-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-400-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-400-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-450-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-450-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-450-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-500-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-500-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-500-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-600-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-600-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-600-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2L80-700-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2L80-700-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2L80-700-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-25-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-25-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-25-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-50-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-50-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-50-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-75-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-75-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-75-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-100-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-100-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-100-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-125-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-125-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-125-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-150-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-150-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-150-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-175-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-175-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-175-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-200-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-200-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-200-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-250-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-250-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-250-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-300-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-300-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-300-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-350-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-350-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-350-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-400-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-400-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-400-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-450-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-450-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-450-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-500-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-500-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-500-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2F63-600-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F63-600-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F63-600-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-25-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-25-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-25-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-50-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-50-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-50-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-75-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-75-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-75-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-100-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-100-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-100-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-125-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-125-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-125-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-150-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-150-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-150-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-175-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-175-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-175-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-200-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-200-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-200-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-250-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-250-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-250-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-300-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-300-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-300-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-350-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-350-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-350-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-400-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-400-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-400-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-450-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-450-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-450-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-500-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-500-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-500-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-600-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-600-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-600-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2F80-700-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2F80-700-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2F80-700-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-25-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-25-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-25-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-50-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-50-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-50-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-75-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-75-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-75-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-100-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-100-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-100-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-125-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-125-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-125-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-150-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-150-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-150-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-175-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-175-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-175-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-200-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-200-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-200-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-250-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-250-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-250-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-300-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-300-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-300-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-350-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-350-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-350-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-400-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-400-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-400-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-450-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-450-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-450-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-500-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-500-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-500-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2G63-600-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G63-600-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G63-600-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-25-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-25-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-25-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-50-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-50-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-50-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-75-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-75-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-75-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-100-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-100-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-100-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-125-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-125-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-125-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-150-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-150-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-150-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-175-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-175-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-175-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-200-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-200-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-200-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-250-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-250-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-250-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-300-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-300-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-300-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-350-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-350-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-350-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-400-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-400-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-400-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-450-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-450-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-450-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-500-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-500-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-500-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-600-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-600-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-600-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2G80-700-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2G80-700-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2G80-700-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-25-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-25-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-25-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-50-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-50-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-50-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-75-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-75-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-75-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-100-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-100-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-100-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-125-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-125-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-125-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-150-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-150-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-150-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-175-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-175-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-175-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-200-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-200-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-200-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-250-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-250-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-250-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-300-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-300-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-300-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-350-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-350-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-350-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-400-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-400-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-400-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-450-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-450-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-450-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-500-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-500-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-500-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2C63-600-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C63-600-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C63-600-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-25-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-25-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-25-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-50-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-50-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-50-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-75-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-75-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-75-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-100-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-100-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-100-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-125-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-125-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-125-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-150-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-150-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-150-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-175-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-175-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-175-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-200-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-200-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-200-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-250-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-250-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-250-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-300-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-300-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-300-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-350-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-350-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-350-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-400-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-400-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-400-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-450-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-450-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-450-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-500-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-500-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-500-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-600-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-600-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-600-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2C80-700-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2C80-700-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2C80-700-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-25-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-25-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-25-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-50-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-50-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-50-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-75-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-75-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-75-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-100-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-100-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-100-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-125-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-125-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-125-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-150-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-150-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-150-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-175-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-175-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-175-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-200-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-200-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-200-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-250-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-250-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-250-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-300-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-300-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-300-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-350-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-350-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-350-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-400-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-400-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-400-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-450-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-450-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-450-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-500-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-500-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-500-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2D63-600-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D63-600-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D63-600-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-25-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-25-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-25-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-50-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-50-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-50-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-75-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-75-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-75-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-100-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-100-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-100-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-125-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-125-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-125-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-150-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-150-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-150-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-175-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-175-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-175-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-200-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-200-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-200-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-250-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-250-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-250-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-300-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-300-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-300-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-350-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-350-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-350-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-400-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-400-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-400-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-450-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-450-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-450-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-500-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-500-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-500-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-600-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-600-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-600-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2D80-700-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2D80-700-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2D80-700-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-25-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-25-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-25-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-50-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-50-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-50-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-75-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-75-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-75-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-100-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-100-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-100-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-125-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-125-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-125-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-150-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-150-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-150-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-175-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-175-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-175-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-200-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-200-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-200-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-250-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-250-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-250-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-300-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-300-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-300-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-350-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-350-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-350-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-400-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-400-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-400-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-450-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-450-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-450-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-500-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-500-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-500-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2T63-600-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T63-600-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T63-600-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-25-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-25-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-25-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-50-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-50-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-50-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-75-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-75-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-75-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-100-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-100-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-100-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-125-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-125-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-125-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-150-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-150-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-150-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-175-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-175-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-175-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-200-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-200-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-200-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-250-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-250-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-250-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-300-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-300-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-300-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-350-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-350-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-350-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-400-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-400-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-400-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-450-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-450-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-450-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-500-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-500-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-500-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-600-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-600-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-600-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2T80-700-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2T80-700-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2T80-700-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CLA2 Fine Lock Cylinder (Bore 63/80 mm)
