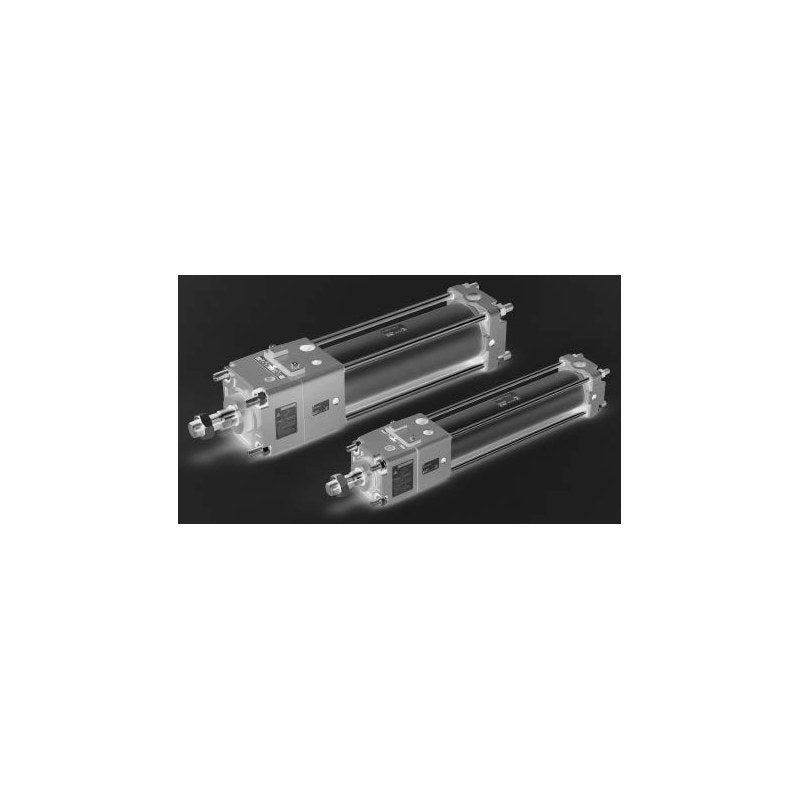

SMC CLA2W Fine Lock Cylinder (Double Rod, Bore 63 to 100 mm)

SMC CLA2W series fine lock cylinder (bore 63 to 100 mm), a double-acting double-rod tie-rod cylinder with a compact built-in bidirectional lock.

Key features

Double-rod (through-rod) version of the CLA2 fine lock cylinder for intermediate stops and drop prevention
Locks in both directions; spring lock, pneumatic lock or combined spring/pneumatic lock
Mounting: basic, axial foot, rod flange or center trunnion; aluminum tube standard, steel tube (F) on order
Air cushion on both ends standard; cushionless (N), bellows one side (J/K, lock side) or both sides (JJ/KK) as suffixes
NPT ports (TN), auto switches, trunnion position change (-XC14) and tie-rod extension (-XC15) on order

Specifications

Action	Double acting, double rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.1 MPa
Piston speed	50 to 500 mm/s
Cushion	Air cushion
Lubrication	Not required (non-lube)
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Lock direction	Both directions
Source	SMC Korea catalog CLA2 (SMCKR_CLA2.pdf), p. 12-13 (PDF p. 13-14)

CLA2WB63-25-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-25-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-25-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WB63-50-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-50-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-50-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WB63-75-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-75-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-75-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WB63-100-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-100-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-100-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WB63-125-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-125-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-125-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WB63-150-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-150-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-150-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WB63-175-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-175-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-175-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WB63-200-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-200-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-200-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WB63-250-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-250-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-250-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WB63-300-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-300-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-300-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WB63-350-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-350-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-350-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WB63-400-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-400-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-400-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WB63-450-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-450-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-450-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WB63-500-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-500-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-500-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WB63-600-E		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WB63-600-P		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB63-600-D		Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WB80-25-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-25-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-25-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WB80-50-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-50-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-50-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WB80-75-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-75-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-75-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WB80-100-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-100-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-100-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WB80-125-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-125-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-125-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WB80-150-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-150-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-150-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WB80-175-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-175-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-175-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WB80-200-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-200-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-200-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WB80-250-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-250-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-250-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WB80-300-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-300-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-300-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WB80-350-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-350-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-350-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WB80-400-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-400-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-400-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WB80-450-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-450-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-450-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WB80-500-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-500-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-500-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WB80-600-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-600-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-600-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WB80-700-E		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2WB80-700-P		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB80-700-D		Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2WB100-25-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-25-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-25-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WB100-50-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-50-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-50-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WB100-75-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-75-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-75-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WB100-100-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-100-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-100-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WB100-125-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-125-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-125-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WB100-150-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-150-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-150-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WB100-175-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-175-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-175-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WB100-200-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-200-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-200-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WB100-250-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-250-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-250-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WB100-300-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-300-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-300-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WB100-350-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-350-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-350-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WB100-400-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-400-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-400-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WB100-450-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-450-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-450-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WB100-500-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-500-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-500-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WB100-600-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-600-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-600-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WB100-700-E		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2WB100-700-P		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WB100-700-D		Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2WL63-25-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-25-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-25-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WL63-50-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-50-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-50-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WL63-75-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-75-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-75-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WL63-100-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-100-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-100-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WL63-125-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-125-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-125-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WL63-150-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-150-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-150-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WL63-175-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-175-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-175-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WL63-200-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-200-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-200-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WL63-250-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-250-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-250-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WL63-300-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-300-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-300-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WL63-350-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-350-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-350-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WL63-400-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-400-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-400-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WL63-450-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-450-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-450-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WL63-500-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-500-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-500-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WL63-600-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WL63-600-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL63-600-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WL80-25-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-25-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-25-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WL80-50-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-50-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-50-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WL80-75-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-75-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-75-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WL80-100-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-100-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-100-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WL80-125-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-125-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-125-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WL80-150-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-150-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-150-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WL80-175-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-175-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-175-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WL80-200-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-200-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-200-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WL80-250-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-250-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-250-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WL80-300-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-300-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-300-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WL80-350-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-350-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-350-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WL80-400-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-400-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-400-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WL80-450-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-450-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-450-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WL80-500-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-500-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-500-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WL80-600-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-600-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-600-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WL80-700-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2WL80-700-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL80-700-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2WL100-25-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-25-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-25-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WL100-50-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-50-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-50-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WL100-75-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-75-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-75-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WL100-100-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-100-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-100-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WL100-125-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-125-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-125-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WL100-150-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-150-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-150-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WL100-175-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-175-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-175-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WL100-200-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-200-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-200-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WL100-250-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-250-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-250-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WL100-300-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-300-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-300-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WL100-350-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-350-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-350-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WL100-400-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-400-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-400-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WL100-450-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-450-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-450-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WL100-500-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-500-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-500-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WL100-600-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-600-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-600-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WL100-700-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2WL100-700-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WL100-700-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2WF63-25-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-25-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-25-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WF63-50-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-50-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-50-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WF63-75-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-75-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-75-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WF63-100-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-100-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-100-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WF63-125-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-125-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-125-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WF63-150-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-150-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-150-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WF63-175-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-175-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-175-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WF63-200-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-200-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-200-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WF63-250-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-250-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-250-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WF63-300-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-300-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-300-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WF63-350-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-350-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-350-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WF63-400-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-400-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-400-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WF63-450-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-450-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-450-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WF63-500-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-500-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-500-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WF63-600-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WF63-600-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF63-600-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WF80-25-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-25-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-25-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WF80-50-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-50-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-50-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WF80-75-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-75-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-75-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WF80-100-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-100-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-100-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WF80-125-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-125-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-125-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WF80-150-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-150-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-150-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WF80-175-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-175-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-175-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WF80-200-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-200-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-200-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WF80-250-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-250-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-250-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WF80-300-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-300-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-300-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WF80-350-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-350-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-350-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WF80-400-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-400-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-400-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WF80-450-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-450-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-450-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WF80-500-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-500-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-500-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WF80-600-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-600-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-600-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WF80-700-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2WF80-700-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF80-700-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2WF100-25-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-25-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-25-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WF100-50-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-50-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-50-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WF100-75-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-75-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-75-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WF100-100-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-100-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-100-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WF100-125-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-125-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-125-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WF100-150-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-150-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-150-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WF100-175-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-175-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-175-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WF100-200-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-200-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-200-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WF100-250-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-250-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-250-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WF100-300-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-300-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-300-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WF100-350-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-350-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-350-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WF100-400-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-400-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-400-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WF100-450-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-450-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-450-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WF100-500-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-500-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-500-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WF100-600-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-600-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-600-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WF100-700-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2WF100-700-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WF100-700-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2WT63-25-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-25-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-25-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WT63-50-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-50-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-50-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WT63-75-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-75-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-75-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WT63-100-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-100-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-100-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WT63-125-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-125-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-125-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WT63-150-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-150-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-150-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WT63-175-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-175-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-175-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WT63-200-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-200-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-200-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WT63-250-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-250-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-250-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WT63-300-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-300-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-300-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WT63-350-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-350-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-350-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WT63-400-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-400-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-400-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WT63-450-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-450-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-450-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WT63-500-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-500-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-500-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WT63-600-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WT63-600-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT63-600-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WT80-25-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-25-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-25-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WT80-50-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-50-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-50-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WT80-75-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-75-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-75-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WT80-100-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-100-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-100-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WT80-125-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-125-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-125-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WT80-150-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-150-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-150-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WT80-175-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-175-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-175-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WT80-200-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-200-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-200-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WT80-250-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-250-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-250-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WT80-300-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-300-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-300-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WT80-350-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-350-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-350-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WT80-400-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-400-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-400-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WT80-450-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-450-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-450-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WT80-500-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-500-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-500-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WT80-600-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-600-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-600-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WT80-700-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2WT80-700-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT80-700-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CLA2WT100-25-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-25-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-25-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLA2WT100-50-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-50-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-50-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLA2WT100-75-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-75-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-75-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLA2WT100-100-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-100-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-100-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLA2WT100-125-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-125-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-125-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLA2WT100-150-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-150-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-150-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLA2WT100-175-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-175-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-175-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CLA2WT100-200-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-200-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-200-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLA2WT100-250-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-250-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-250-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLA2WT100-300-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-300-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-300-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLA2WT100-350-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-350-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-350-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CLA2WT100-400-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-400-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-400-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CLA2WT100-450-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-450-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-450-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CLA2WT100-500-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-500-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-500-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CLA2WT100-600-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-600-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-600-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CLA2WT100-700-E		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CLA2WT100-700-P		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CLA2WT100-700-D		Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-25-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-25-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-25-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-50-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-50-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-50-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-75-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-75-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-75-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-100-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-100-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-100-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-125-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-125-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-125-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-150-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-150-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-150-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-175-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-175-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-175-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-200-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-200-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-200-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-250-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-250-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-250-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-300-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-300-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-300-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-350-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-350-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-350-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-400-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-400-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-400-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-450-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-450-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-450-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-500-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-500-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-500-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WB63-600-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB63-600-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB63-600-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-25-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-25-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-25-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-50-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-50-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-50-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-75-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-75-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-75-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-100-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-100-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-100-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-125-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-125-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-125-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-150-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-150-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-150-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-175-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-175-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-175-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-200-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-200-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-200-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-250-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-250-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-250-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-300-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-300-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-300-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-350-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-350-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-350-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-400-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-400-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-400-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-450-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-450-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-450-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-500-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-500-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-500-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-600-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-600-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-600-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WB80-700-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB80-700-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB80-700-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-25-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-25-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-25-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-50-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-50-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-50-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-75-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-75-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-75-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-100-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-100-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-100-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-125-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-125-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-125-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-150-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-150-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-150-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-175-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-175-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-175-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-200-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-200-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-200-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-250-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-250-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-250-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-300-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-300-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-300-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-350-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-350-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-350-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-400-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-400-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-400-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-450-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-450-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-450-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-500-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-500-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-500-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-600-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-600-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-600-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WB100-700-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2WB100-700-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WB100-700-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-25-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-25-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-25-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-50-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-50-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-50-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-75-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-75-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-75-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-100-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-100-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-100-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-125-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-125-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-125-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-150-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-150-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-150-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-175-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-175-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-175-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-200-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-200-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-200-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-250-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-250-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-250-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-300-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-300-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-300-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-350-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-350-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-350-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-400-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-400-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-400-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-450-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-450-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-450-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-500-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-500-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-500-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WL63-600-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL63-600-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL63-600-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-25-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-25-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-25-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-50-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-50-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-50-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-75-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-75-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-75-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-100-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-100-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-100-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-125-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-125-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-125-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-150-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-150-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-150-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-175-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-175-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-175-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-200-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-200-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-200-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-250-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-250-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-250-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-300-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-300-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-300-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-350-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-350-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-350-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-400-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-400-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-400-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-450-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-450-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-450-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-500-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-500-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-500-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-600-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-600-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-600-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WL80-700-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL80-700-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL80-700-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-25-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-25-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-25-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-50-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-50-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-50-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-75-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-75-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-75-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-100-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-100-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-100-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-125-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-125-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-125-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-150-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-150-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-150-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-175-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-175-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-175-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-200-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-200-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-200-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-250-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-250-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-250-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-300-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-300-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-300-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-350-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-350-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-350-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-400-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-400-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-400-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-450-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-450-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-450-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-500-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-500-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-500-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-600-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-600-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-600-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WL100-700-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2WL100-700-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WL100-700-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-25-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-25-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-25-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-50-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-50-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-50-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-75-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-75-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-75-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-100-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-100-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-100-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-125-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-125-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-125-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-150-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-150-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-150-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-175-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-175-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-175-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-200-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-200-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-200-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-250-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-250-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-250-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-300-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-300-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-300-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-350-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-350-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-350-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-400-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-400-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-400-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-450-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-450-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-450-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-500-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-500-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-500-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WF63-600-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF63-600-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF63-600-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-25-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-25-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-25-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-50-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-50-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-50-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-75-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-75-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-75-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-100-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-100-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-100-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-125-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-125-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-125-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-150-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-150-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-150-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-175-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-175-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-175-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-200-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-200-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-200-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-250-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-250-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-250-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-300-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-300-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-300-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-350-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-350-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-350-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-400-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-400-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-400-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-450-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-450-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-450-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-500-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-500-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-500-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-600-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-600-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-600-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WF80-700-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF80-700-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF80-700-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-25-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-25-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-25-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-50-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-50-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-50-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-75-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-75-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-75-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-100-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-100-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-100-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-125-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-125-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-125-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-150-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-150-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-150-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-175-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-175-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-175-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-200-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-200-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-200-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-250-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-250-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-250-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-300-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-300-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-300-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-350-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-350-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-350-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-400-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-400-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-400-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-450-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-450-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-450-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-500-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-500-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-500-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-600-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-600-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-600-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WF100-700-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2WF100-700-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WF100-700-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-25-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-25-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-25-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-50-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-50-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-50-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-75-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-75-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-75-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-100-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-100-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-100-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-125-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-125-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-125-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-150-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-150-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-150-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-175-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-175-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-175-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-200-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-200-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-200-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-250-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-250-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-250-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-300-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-300-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-300-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-350-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-350-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-350-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-400-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-400-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-400-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-450-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-450-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-450-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-500-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-500-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-500-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WT63-600-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT63-600-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT63-600-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-25-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-25-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-25-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-50-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-50-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-50-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-75-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-75-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-75-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-100-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-100-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-100-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-125-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-125-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-125-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-150-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-150-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-150-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-175-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-175-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-175-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-200-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-200-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-200-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-250-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-250-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-250-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-300-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-300-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-300-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-350-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-350-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-350-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-400-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-400-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-400-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-450-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-450-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-450-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-500-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-500-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-500-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-600-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-600-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-600-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WT80-700-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT80-700-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT80-700-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-25-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-25-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-25-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-50-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-50-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-50-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-75-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-75-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-75-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-100-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-100-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-100-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-125-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-125-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-125-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-150-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-150-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-150-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-175-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-175-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-175-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-200-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-200-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-200-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-250-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-250-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-250-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-300-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-300-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-300-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-350-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-350-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-350-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-400-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-400-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-400-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-450-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-450-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-450-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-500-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-500-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-500-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-600-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-600-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-600-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
CDLA2WT100-700-E		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
CDLA2WT100-700-P		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
CDLA2WT100-700-D		Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock

Round Body CylindersSMC

1128 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CLA2W Fine Lock Cylinder (Double Rod, Bore 63 to 100 mm)

Brand SMC·Round Body Cylinders

Available part numbers (1128)

CLA2WB63-25-E, CLA2WB63-25-P, CLA2WB63-25-D, CLA2WB63-50-E, CLA2WB63-50-P, CLA2WB63-50-D, CLA2WB63-75-E, CLA2WB63-75-P, CLA2WB63-75-D, CLA2WB63-100-E + 1118 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CLA2WB63-25-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-25-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-25-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-50-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-50-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-50-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-75-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-75-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-75-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-100-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-100-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-100-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-125-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-125-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-125-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-150-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-150-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-150-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-175-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-175-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-175-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-200-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-200-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-200-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-250-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-250-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-250-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-300-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-300-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-300-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-350-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-350-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-350-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-400-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-400-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-400-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-450-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-450-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-450-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-500-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-500-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-500-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WB63-600-E	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB63-600-P	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB63-600-D	Magnet: No magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-25-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-25-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-25-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-50-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-50-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-50-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-75-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-75-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-75-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-100-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-100-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-100-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-125-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-125-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-125-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-150-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-150-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-150-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-175-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-175-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-175-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-200-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-200-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-200-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-250-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-250-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-250-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-300-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-300-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-300-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-350-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-350-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-350-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-400-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-400-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-400-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-450-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-450-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-450-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-500-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-500-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-500-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-600-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-600-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-600-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WB80-700-E	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB80-700-P	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB80-700-D	Magnet: No magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-25-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-25-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-25-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-50-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-50-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-50-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-75-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-75-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-75-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-100-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-100-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-100-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-125-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-125-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-125-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-150-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-150-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-150-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-175-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-175-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-175-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-200-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-200-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-200-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-250-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-250-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-250-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-300-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-300-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-300-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-350-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-350-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-350-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-400-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-400-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-400-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-450-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-450-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-450-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-500-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-500-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-500-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-600-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-600-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-600-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WB100-700-E	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2WB100-700-P	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WB100-700-D	Magnet: No magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-25-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-25-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-25-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-50-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-50-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-50-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-75-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-75-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-75-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-100-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-100-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-100-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-125-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-125-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-125-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-150-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-150-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-150-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-175-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-175-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-175-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-200-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-200-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-200-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-250-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-250-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-250-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-300-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-300-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-300-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-350-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-350-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-350-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-400-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-400-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-400-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-450-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-450-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-450-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-500-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-500-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-500-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WL63-600-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL63-600-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL63-600-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-25-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-25-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-25-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-50-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-50-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-50-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-75-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-75-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-75-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-100-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-100-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-100-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-125-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-125-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-125-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-150-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-150-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-150-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-175-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-175-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-175-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-200-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-200-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-200-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-250-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-250-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-250-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-300-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-300-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-300-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-350-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-350-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-350-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-400-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-400-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-400-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-450-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-450-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-450-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-500-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-500-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-500-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-600-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-600-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-600-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WL80-700-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL80-700-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL80-700-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-25-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-25-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-25-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-50-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-50-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-50-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-75-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-75-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-75-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-100-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-100-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-100-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-125-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-125-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-125-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-150-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-150-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-150-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-175-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-175-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-175-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-200-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-200-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-200-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-250-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-250-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-250-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-300-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-300-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-300-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-350-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-350-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-350-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-400-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-400-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-400-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-450-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-450-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-450-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-500-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-500-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-500-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-600-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-600-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-600-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WL100-700-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2WL100-700-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WL100-700-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-25-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-25-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-25-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-50-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-50-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-50-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-75-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-75-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-75-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-100-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-100-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-100-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-125-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-125-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-125-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-150-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-150-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-150-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-175-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-175-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-175-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-200-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-200-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-200-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-250-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-250-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-250-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-300-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-300-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-300-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-350-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-350-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-350-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-400-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-400-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-400-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-450-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-450-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-450-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-500-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-500-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-500-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WF63-600-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF63-600-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF63-600-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-25-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-25-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-25-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-50-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-50-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-50-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-75-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-75-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-75-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-100-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-100-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-100-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-125-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-125-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-125-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-150-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-150-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-150-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-175-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-175-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-175-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-200-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-200-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-200-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-250-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-250-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-250-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-300-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-300-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-300-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-350-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-350-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-350-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-400-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-400-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-400-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-450-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-450-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-450-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-500-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-500-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-500-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-600-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-600-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-600-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WF80-700-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF80-700-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF80-700-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-25-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-25-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-25-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-50-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-50-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-50-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-75-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-75-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-75-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-100-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-100-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-100-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-125-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-125-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-125-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-150-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-150-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-150-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-175-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-175-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-175-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-200-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-200-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-200-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-250-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-250-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-250-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-300-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-300-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-300-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-350-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-350-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-350-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-400-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-400-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-400-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-450-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-450-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-450-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-500-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-500-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-500-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-600-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-600-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-600-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WF100-700-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2WF100-700-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WF100-700-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-25-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-25-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-25-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-50-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-50-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-50-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-75-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-75-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-75-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-100-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-100-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-100-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-125-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-125-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-125-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-150-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-150-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-150-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-175-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-175-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-175-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-200-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-200-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-200-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-250-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-250-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-250-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-300-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-300-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-300-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-350-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-350-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-350-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-400-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-400-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-400-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-450-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-450-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-450-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-500-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-500-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-500-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WT63-600-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT63-600-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT63-600-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-25-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-25-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-25-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-50-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-50-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-50-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-75-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-75-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-75-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-100-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-100-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-100-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-125-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-125-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-125-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-150-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-150-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-150-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-175-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-175-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-175-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-200-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-200-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-200-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-250-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-250-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-250-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-300-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-300-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-300-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-350-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-350-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-350-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-400-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-400-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-400-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-450-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-450-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-450-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-500-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-500-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-500-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-600-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-600-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-600-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WT80-700-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT80-700-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT80-700-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-25-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-25-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-25-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-50-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-50-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-50-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-75-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-75-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-75-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-100-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-100-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-100-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-125-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-125-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-125-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-150-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-150-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-150-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-175-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-175-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-175-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-200-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-200-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-200-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-250-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-250-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-250-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-300-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-300-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-300-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-350-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-350-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-350-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-400-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-400-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-400-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-450-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-450-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-450-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-500-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-500-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-500-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-600-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-600-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-600-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CLA2WT100-700-E	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CLA2WT100-700-P	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CLA2WT100-700-D	Magnet: No magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-25-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-25-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-25-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-50-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-50-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-50-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-75-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-75-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-75-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-100-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-100-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-100-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-125-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-125-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-125-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-150-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-150-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-150-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-175-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-175-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-175-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-200-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-200-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-200-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-250-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-250-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-250-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-300-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-300-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-300-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-350-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-350-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-350-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-400-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-400-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-400-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-450-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-450-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-450-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-500-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-500-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-500-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WB63-600-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB63-600-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB63-600-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-25-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-25-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-25-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-50-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-50-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-50-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-75-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-75-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-75-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-100-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-100-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-100-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-125-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-125-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-125-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-150-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-150-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-150-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-175-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-175-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-175-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-200-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-200-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-200-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-250-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-250-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-250-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-300-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-300-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-300-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-350-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-350-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-350-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-400-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-400-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-400-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-450-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-450-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-450-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-500-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-500-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-500-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-600-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-600-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-600-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WB80-700-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB80-700-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB80-700-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-25-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-25-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-25-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-50-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-50-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-50-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-75-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-75-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-75-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-100-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-100-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-100-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-125-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-125-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-125-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-150-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-150-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-150-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-175-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-175-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-175-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-200-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-200-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-200-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-250-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-250-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-250-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-300-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-300-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-300-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-350-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-350-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-350-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-400-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-400-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-400-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-450-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-450-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-450-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-500-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-500-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-500-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-600-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-600-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-600-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WB100-700-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WB100-700-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WB100-700-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-25-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-25-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-25-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-50-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-50-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-50-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-75-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-75-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-75-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-100-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-100-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-100-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-125-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-125-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-125-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-150-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-150-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-150-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-175-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-175-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-175-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-200-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-200-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-200-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-250-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-250-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-250-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-300-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-300-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-300-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-350-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-350-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-350-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-400-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-400-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-400-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-450-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-450-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-450-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-500-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-500-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-500-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WL63-600-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL63-600-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL63-600-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-25-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-25-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-25-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-50-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-50-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-50-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-75-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-75-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-75-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-100-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-100-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-100-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-125-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-125-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-125-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-150-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-150-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-150-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-175-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-175-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-175-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-200-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-200-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-200-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-250-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-250-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-250-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-300-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-300-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-300-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-350-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-350-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-350-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-400-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-400-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-400-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-450-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-450-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-450-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-500-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-500-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-500-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-600-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-600-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-600-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WL80-700-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL80-700-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL80-700-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-25-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-25-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-25-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-50-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-50-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-50-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-75-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-75-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-75-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-100-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-100-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-100-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-125-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-125-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-125-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-150-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-150-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-150-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-175-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-175-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-175-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-200-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-200-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-200-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-250-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-250-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-250-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-300-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-300-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-300-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-350-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-350-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-350-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-400-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-400-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-400-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-450-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-450-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-450-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-500-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-500-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-500-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-600-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-600-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-600-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WL100-700-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WL100-700-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WL100-700-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-25-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-25-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-25-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-50-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-50-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-50-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-75-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-75-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-75-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-100-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-100-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-100-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-125-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-125-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-125-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-150-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-150-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-150-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-175-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-175-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-175-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-200-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-200-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-200-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-250-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-250-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-250-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-300-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-300-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-300-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-350-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-350-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-350-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-400-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-400-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-400-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-450-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-450-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-450-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-500-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-500-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-500-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WF63-600-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF63-600-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF63-600-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-25-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-25-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-25-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-50-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-50-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-50-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-75-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-75-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-75-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-100-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-100-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-100-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-125-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-125-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-125-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-150-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-150-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-150-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-175-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-175-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-175-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-200-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-200-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-200-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-250-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-250-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-250-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-300-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-300-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-300-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-350-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-350-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-350-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-400-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-400-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-400-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-450-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-450-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-450-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-500-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-500-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-500-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-600-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-600-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-600-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WF80-700-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF80-700-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF80-700-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-25-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-25-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-25-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-50-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-50-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-50-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-75-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-75-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-75-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-100-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-100-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-100-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-125-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-125-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-125-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-150-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-150-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-150-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-175-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-175-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-175-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-200-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-200-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-200-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-250-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-250-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-250-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-300-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-300-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-300-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-350-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-350-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-350-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-400-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-400-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-400-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-450-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-450-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-450-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-500-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-500-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-500-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-600-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-600-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-600-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WF100-700-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WF100-700-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WF100-700-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-25-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-25-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-25-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-50-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-50-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-50-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-75-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-75-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-75-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-100-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-100-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-100-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-125-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-125-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-125-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-150-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-150-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-150-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-175-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-175-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-175-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-200-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-200-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-200-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-250-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-250-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-250-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-300-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-300-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-300-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-350-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-350-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-350-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-400-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-400-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-400-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-450-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-450-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-450-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-500-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-500-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-500-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WT63-600-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT63-600-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT63-600-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-25-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-25-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-25-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-50-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-50-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-50-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-75-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-75-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-75-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-100-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-100-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-100-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-125-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-125-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-125-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-150-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-150-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-150-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-175-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-175-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-175-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-200-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-200-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-200-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-250-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-250-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-250-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-300-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-300-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-300-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-350-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-350-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-350-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-400-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-400-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-400-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-450-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-450-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-450-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-500-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-500-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-500-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-600-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-600-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-600-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WT80-700-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT80-700-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT80-700-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-25-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-25-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-25-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-50-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-50-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-50-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-75-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-75-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-75-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-100-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-100-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-100-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-125-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-125-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-125-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-150-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-150-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-150-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-175-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-175-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-175-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-200-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-200-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-200-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-250-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-250-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-250-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-300-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-300-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-300-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-350-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-350-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-350-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-400-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-400-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-400-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-450-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-450-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-450-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-500-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-500-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-500-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-600-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-600-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-600-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Lock: Spring and pneumatic lock
	CDLA2WT100-700-E	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring lock (exhaust lock)
	CDLA2WT100-700-P	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Pneumatic lock (pressure lock)
	CDLA2WT100-700-D	Magnet: Built-in magnet \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Lock: Spring and pneumatic lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CLA2W Fine Lock Cylinder (Double Rod, Bore 63 to 100 mm)
