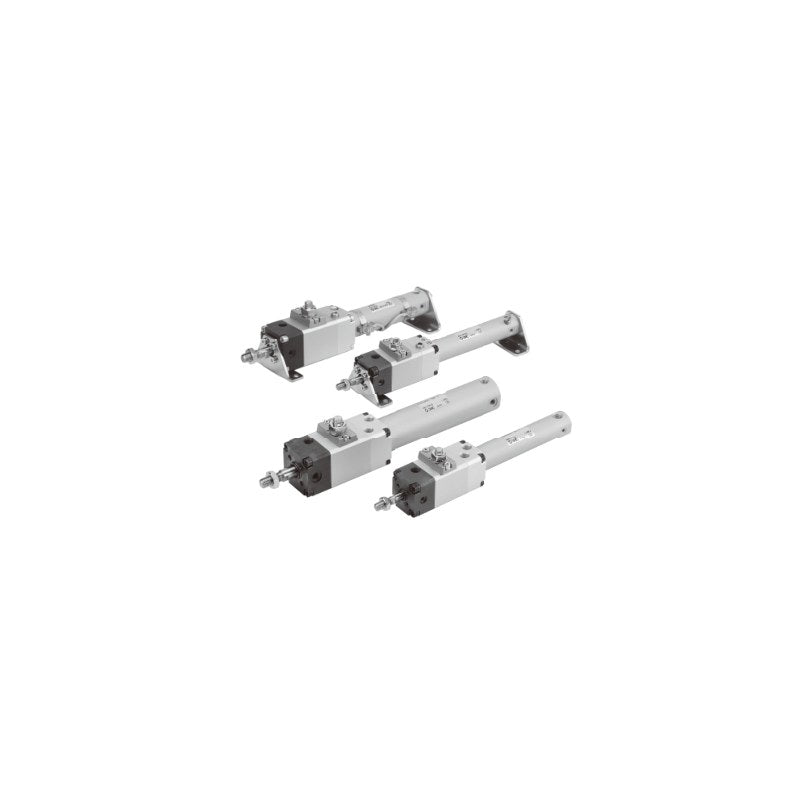

SMC CLG1 Fine Lock Cylinder (Bore 32/40 mm)

SMC CLG1 series fine lock cylinder, a double-acting single-rod cylinder (bore 32/40 mm) with built-in bidirectional lock and rubber bumper or air cushion.

Key features

Fine lock built into a CG1-based aluminum cylinder for intermediate stops, emergency stops and drop prevention
Locks in both directions; spring lock, pneumatic lock or combined spring/pneumatic lock
Rubber bumper (N) or air cushion (A) type; seven mounting styles including rod and head trunnion
Piston speed 50 to 500 mm/s; up to 1000 mm/s when locking from standstill
NPT port (TN), bellows (J/K), auto switches and rod-end change (-XA) ordered as suffixes; strokes 1 to 1500 mm on order

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.08 MPa
Piston speed	50 to 500 mm/s
Lubrication	Not required (non-lube)
Port thread	Rc (standard)
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Lock direction	Both directions
Source	SMC Korea catalog CL series (SMCKR_CLJ2_CLM2_CLG1_CL1.pdf), p. 992-993 (PDF p. 30-31)

CLG1BN32-25-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1BN32-25-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN32-25-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1BN32-50-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1BN32-50-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN32-50-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1BN32-75-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1BN32-75-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN32-75-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1BN32-100-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1BN32-100-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN32-100-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1BN32-125-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1BN32-125-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN32-125-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1BN32-150-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1BN32-150-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN32-150-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1BN32-200-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1BN32-200-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN32-200-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1BN32-250-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1BN32-250-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN32-250-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1BN32-300-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1BN32-300-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN32-300-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1BN40-25-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1BN40-25-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN40-25-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1BN40-50-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1BN40-50-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN40-50-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1BN40-75-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1BN40-75-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN40-75-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1BN40-100-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1BN40-100-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN40-100-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1BN40-125-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1BN40-125-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN40-125-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1BN40-150-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1BN40-150-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN40-150-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1BN40-200-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1BN40-200-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN40-200-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1BN40-250-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1BN40-250-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN40-250-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1BN40-300-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1BN40-300-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BN40-300-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1BA32-25-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1BA32-25-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA32-25-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1BA32-50-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1BA32-50-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA32-50-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1BA32-75-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1BA32-75-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA32-75-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1BA32-100-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1BA32-100-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA32-100-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1BA32-125-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1BA32-125-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA32-125-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1BA32-150-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1BA32-150-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA32-150-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1BA32-200-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1BA32-200-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA32-200-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1BA32-250-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1BA32-250-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA32-250-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1BA32-300-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1BA32-300-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA32-300-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1BA40-25-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1BA40-25-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA40-25-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1BA40-50-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1BA40-50-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA40-50-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1BA40-75-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1BA40-75-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA40-75-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1BA40-100-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1BA40-100-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA40-100-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1BA40-125-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1BA40-125-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA40-125-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1BA40-150-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1BA40-150-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA40-150-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1BA40-200-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1BA40-200-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA40-200-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1BA40-250-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1BA40-250-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA40-250-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1BA40-300-E		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1BA40-300-P		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1BA40-300-D		Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1LN32-25-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1LN32-25-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN32-25-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1LN32-50-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1LN32-50-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN32-50-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1LN32-75-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1LN32-75-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN32-75-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1LN32-100-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1LN32-100-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN32-100-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1LN32-125-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1LN32-125-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN32-125-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1LN32-150-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1LN32-150-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN32-150-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1LN32-200-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1LN32-200-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN32-200-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1LN32-250-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1LN32-250-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN32-250-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1LN32-300-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1LN32-300-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN32-300-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1LN40-25-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1LN40-25-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN40-25-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1LN40-50-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1LN40-50-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN40-50-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1LN40-75-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1LN40-75-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN40-75-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1LN40-100-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1LN40-100-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN40-100-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1LN40-125-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1LN40-125-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN40-125-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1LN40-150-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1LN40-150-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN40-150-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1LN40-200-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1LN40-200-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN40-200-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1LN40-250-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1LN40-250-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN40-250-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1LN40-300-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1LN40-300-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LN40-300-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1LA32-25-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1LA32-25-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA32-25-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1LA32-50-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1LA32-50-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA32-50-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1LA32-75-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1LA32-75-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA32-75-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1LA32-100-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1LA32-100-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA32-100-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1LA32-125-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1LA32-125-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA32-125-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1LA32-150-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1LA32-150-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA32-150-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1LA32-200-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1LA32-200-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA32-200-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1LA32-250-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1LA32-250-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA32-250-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1LA32-300-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1LA32-300-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA32-300-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1LA40-25-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1LA40-25-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA40-25-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1LA40-50-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1LA40-50-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA40-50-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1LA40-75-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1LA40-75-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA40-75-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1LA40-100-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1LA40-100-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA40-100-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1LA40-125-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1LA40-125-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA40-125-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1LA40-150-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1LA40-150-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA40-150-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1LA40-200-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1LA40-200-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA40-200-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1LA40-250-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1LA40-250-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA40-250-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1LA40-300-E		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1LA40-300-P		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1LA40-300-D		Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1FN32-25-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1FN32-25-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN32-25-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1FN32-50-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1FN32-50-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN32-50-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1FN32-75-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1FN32-75-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN32-75-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1FN32-100-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1FN32-100-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN32-100-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1FN32-125-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1FN32-125-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN32-125-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1FN32-150-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1FN32-150-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN32-150-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1FN32-200-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1FN32-200-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN32-200-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1FN32-250-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1FN32-250-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN32-250-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1FN32-300-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1FN32-300-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN32-300-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1FN40-25-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1FN40-25-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN40-25-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1FN40-50-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1FN40-50-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN40-50-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1FN40-75-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1FN40-75-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN40-75-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1FN40-100-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1FN40-100-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN40-100-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1FN40-125-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1FN40-125-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN40-125-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1FN40-150-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1FN40-150-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN40-150-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1FN40-200-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1FN40-200-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN40-200-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1FN40-250-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1FN40-250-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN40-250-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1FN40-300-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1FN40-300-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FN40-300-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1FA32-25-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1FA32-25-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA32-25-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1FA32-50-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1FA32-50-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA32-50-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1FA32-75-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1FA32-75-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA32-75-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1FA32-100-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1FA32-100-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA32-100-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1FA32-125-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1FA32-125-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA32-125-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1FA32-150-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1FA32-150-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA32-150-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1FA32-200-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1FA32-200-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA32-200-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1FA32-250-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1FA32-250-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA32-250-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1FA32-300-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1FA32-300-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA32-300-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1FA40-25-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1FA40-25-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA40-25-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1FA40-50-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1FA40-50-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA40-50-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1FA40-75-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1FA40-75-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA40-75-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1FA40-100-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1FA40-100-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA40-100-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1FA40-125-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1FA40-125-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA40-125-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1FA40-150-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1FA40-150-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA40-150-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1FA40-200-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1FA40-200-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA40-200-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1FA40-250-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1FA40-250-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA40-250-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1FA40-300-E		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1FA40-300-P		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1FA40-300-D		Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1GN32-25-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1GN32-25-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN32-25-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1GN32-50-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1GN32-50-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN32-50-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1GN32-75-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1GN32-75-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN32-75-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1GN32-100-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1GN32-100-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN32-100-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1GN32-125-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1GN32-125-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN32-125-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1GN32-150-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1GN32-150-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN32-150-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1GN32-200-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1GN32-200-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN32-200-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1GN32-250-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1GN32-250-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN32-250-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1GN32-300-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1GN32-300-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN32-300-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1GN40-25-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1GN40-25-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN40-25-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1GN40-50-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1GN40-50-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN40-50-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1GN40-75-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1GN40-75-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN40-75-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1GN40-100-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1GN40-100-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN40-100-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1GN40-125-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1GN40-125-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN40-125-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1GN40-150-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1GN40-150-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN40-150-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1GN40-200-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1GN40-200-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN40-200-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1GN40-250-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1GN40-250-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN40-250-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1GN40-300-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1GN40-300-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GN40-300-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1GA32-25-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1GA32-25-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA32-25-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1GA32-50-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1GA32-50-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA32-50-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1GA32-75-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1GA32-75-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA32-75-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1GA32-100-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1GA32-100-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA32-100-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1GA32-125-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1GA32-125-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA32-125-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1GA32-150-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1GA32-150-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA32-150-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1GA32-200-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1GA32-200-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA32-200-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1GA32-250-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1GA32-250-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA32-250-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1GA32-300-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1GA32-300-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA32-300-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1GA40-25-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1GA40-25-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA40-25-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1GA40-50-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1GA40-50-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA40-50-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1GA40-75-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1GA40-75-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA40-75-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1GA40-100-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1GA40-100-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA40-100-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1GA40-125-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1GA40-125-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA40-125-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1GA40-150-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1GA40-150-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA40-150-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1GA40-200-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1GA40-200-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA40-200-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1GA40-250-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1GA40-250-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA40-250-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1GA40-300-E		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1GA40-300-P		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1GA40-300-D		Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1UN32-25-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1UN32-25-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN32-25-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1UN32-50-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1UN32-50-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN32-50-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1UN32-75-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1UN32-75-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN32-75-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1UN32-100-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1UN32-100-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN32-100-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1UN32-125-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1UN32-125-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN32-125-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1UN32-150-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1UN32-150-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN32-150-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1UN32-200-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1UN32-200-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN32-200-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1UN32-250-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1UN32-250-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN32-250-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1UN32-300-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1UN32-300-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN32-300-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1UN40-25-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1UN40-25-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN40-25-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1UN40-50-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1UN40-50-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN40-50-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1UN40-75-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1UN40-75-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN40-75-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1UN40-100-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1UN40-100-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN40-100-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1UN40-125-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1UN40-125-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN40-125-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1UN40-150-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1UN40-150-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN40-150-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1UN40-200-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1UN40-200-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN40-200-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1UN40-250-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1UN40-250-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN40-250-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1UN40-300-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1UN40-300-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UN40-300-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1UA32-25-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1UA32-25-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA32-25-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1UA32-50-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1UA32-50-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA32-50-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1UA32-75-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1UA32-75-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA32-75-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1UA32-100-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1UA32-100-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA32-100-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1UA32-125-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1UA32-125-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA32-125-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1UA32-150-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1UA32-150-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA32-150-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1UA32-200-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1UA32-200-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA32-200-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1UA32-250-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1UA32-250-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA32-250-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1UA32-300-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1UA32-300-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA32-300-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1UA40-25-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1UA40-25-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA40-25-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1UA40-50-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1UA40-50-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA40-50-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1UA40-75-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1UA40-75-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA40-75-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1UA40-100-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1UA40-100-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA40-100-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1UA40-125-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1UA40-125-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA40-125-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1UA40-150-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1UA40-150-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA40-150-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1UA40-200-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1UA40-200-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA40-200-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1UA40-250-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1UA40-250-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA40-250-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1UA40-300-E		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1UA40-300-P		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1UA40-300-D		Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1TN32-25-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1TN32-25-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN32-25-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1TN32-50-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1TN32-50-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN32-50-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1TN32-75-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1TN32-75-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN32-75-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1TN32-100-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1TN32-100-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN32-100-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1TN32-125-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1TN32-125-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN32-125-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1TN32-150-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1TN32-150-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN32-150-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1TN32-200-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1TN32-200-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN32-200-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1TN32-250-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1TN32-250-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN32-250-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1TN32-300-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1TN32-300-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN32-300-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1TN40-25-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1TN40-25-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN40-25-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1TN40-50-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1TN40-50-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN40-50-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1TN40-75-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1TN40-75-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN40-75-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1TN40-100-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1TN40-100-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN40-100-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1TN40-125-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1TN40-125-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN40-125-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1TN40-150-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1TN40-150-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN40-150-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1TN40-200-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1TN40-200-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN40-200-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1TN40-250-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1TN40-250-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN40-250-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1TN40-300-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1TN40-300-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TN40-300-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1TA32-25-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1TA32-25-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA32-25-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1TA32-50-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1TA32-50-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA32-50-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1TA32-75-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1TA32-75-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA32-75-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1TA32-100-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1TA32-100-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA32-100-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1TA32-125-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1TA32-125-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA32-125-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1TA32-150-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1TA32-150-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA32-150-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1TA32-200-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1TA32-200-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA32-200-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1TA32-250-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1TA32-250-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA32-250-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1TA32-300-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1TA32-300-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA32-300-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1TA40-25-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1TA40-25-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA40-25-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1TA40-50-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1TA40-50-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA40-50-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1TA40-75-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1TA40-75-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA40-75-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1TA40-100-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1TA40-100-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA40-100-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1TA40-125-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1TA40-125-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA40-125-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1TA40-150-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1TA40-150-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA40-150-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1TA40-200-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1TA40-200-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA40-200-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1TA40-250-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1TA40-250-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA40-250-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1TA40-300-E		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1TA40-300-P		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1TA40-300-D		Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1DN32-25-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1DN32-25-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN32-25-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1DN32-50-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1DN32-50-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN32-50-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1DN32-75-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1DN32-75-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN32-75-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1DN32-100-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1DN32-100-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN32-100-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1DN32-125-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1DN32-125-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN32-125-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1DN32-150-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1DN32-150-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN32-150-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1DN32-200-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1DN32-200-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN32-200-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1DN32-250-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1DN32-250-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN32-250-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1DN32-300-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1DN32-300-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN32-300-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1DN40-25-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1DN40-25-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN40-25-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1DN40-50-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1DN40-50-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN40-50-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1DN40-75-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1DN40-75-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN40-75-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1DN40-100-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1DN40-100-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN40-100-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1DN40-125-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1DN40-125-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN40-125-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1DN40-150-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1DN40-150-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN40-150-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1DN40-200-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1DN40-200-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN40-200-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1DN40-250-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1DN40-250-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN40-250-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1DN40-300-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1DN40-300-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DN40-300-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1DA32-25-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1DA32-25-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA32-25-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1DA32-50-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1DA32-50-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA32-50-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1DA32-75-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1DA32-75-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA32-75-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1DA32-100-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1DA32-100-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA32-100-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1DA32-125-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1DA32-125-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA32-125-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1DA32-150-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1DA32-150-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA32-150-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1DA32-200-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1DA32-200-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA32-200-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1DA32-250-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1DA32-250-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA32-250-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1DA32-300-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1DA32-300-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA32-300-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLG1DA40-25-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLG1DA40-25-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA40-25-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLG1DA40-50-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLG1DA40-50-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA40-50-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLG1DA40-75-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLG1DA40-75-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA40-75-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLG1DA40-100-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLG1DA40-100-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA40-100-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLG1DA40-125-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLG1DA40-125-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA40-125-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLG1DA40-150-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLG1DA40-150-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA40-150-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLG1DA40-200-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLG1DA40-200-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA40-200-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLG1DA40-250-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLG1DA40-250-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA40-250-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLG1DA40-300-E		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLG1DA40-300-P		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLG1DA40-300-D		Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock

Round Body CylindersSMC

756 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CLG1 Fine Lock Cylinder (Bore 32/40 mm)

Brand SMC·Round Body Cylinders

Available part numbers (756)

CLG1BN32-25-E, CLG1BN32-25-P, CLG1BN32-25-D, CLG1BN32-50-E, CLG1BN32-50-P, CLG1BN32-50-D, CLG1BN32-75-E, CLG1BN32-75-P, CLG1BN32-75-D, CLG1BN32-100-E + 746 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CLG1BN32-25-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN32-25-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN32-25-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1BN32-50-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN32-50-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN32-50-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1BN32-75-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN32-75-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN32-75-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1BN32-100-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN32-100-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN32-100-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1BN32-125-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN32-125-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN32-125-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1BN32-150-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN32-150-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN32-150-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1BN32-200-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN32-200-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN32-200-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1BN32-250-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN32-250-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN32-250-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1BN32-300-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN32-300-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN32-300-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1BN40-25-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN40-25-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN40-25-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1BN40-50-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN40-50-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN40-50-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1BN40-75-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN40-75-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN40-75-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1BN40-100-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN40-100-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN40-100-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1BN40-125-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN40-125-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN40-125-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1BN40-150-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN40-150-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN40-150-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1BN40-200-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN40-200-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN40-200-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1BN40-250-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN40-250-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN40-250-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1BN40-300-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1BN40-300-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BN40-300-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1BA32-25-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA32-25-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA32-25-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1BA32-50-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA32-50-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA32-50-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1BA32-75-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA32-75-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA32-75-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1BA32-100-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA32-100-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA32-100-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1BA32-125-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA32-125-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA32-125-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1BA32-150-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA32-150-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA32-150-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1BA32-200-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA32-200-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA32-200-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1BA32-250-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA32-250-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA32-250-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1BA32-300-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA32-300-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA32-300-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1BA40-25-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA40-25-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA40-25-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1BA40-50-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA40-50-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA40-50-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1BA40-75-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA40-75-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA40-75-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1BA40-100-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA40-100-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA40-100-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1BA40-125-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA40-125-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA40-125-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1BA40-150-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA40-150-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA40-150-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1BA40-200-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA40-200-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA40-200-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1BA40-250-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA40-250-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA40-250-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1BA40-300-E	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1BA40-300-P	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1BA40-300-D	Magnet: No magnet \| Mounting: Basic \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1LN32-25-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN32-25-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN32-25-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1LN32-50-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN32-50-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN32-50-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1LN32-75-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN32-75-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN32-75-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1LN32-100-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN32-100-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN32-100-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1LN32-125-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN32-125-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN32-125-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1LN32-150-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN32-150-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN32-150-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1LN32-200-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN32-200-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN32-200-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1LN32-250-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN32-250-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN32-250-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1LN32-300-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN32-300-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN32-300-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1LN40-25-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN40-25-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN40-25-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1LN40-50-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN40-50-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN40-50-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1LN40-75-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN40-75-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN40-75-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1LN40-100-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN40-100-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN40-100-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1LN40-125-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN40-125-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN40-125-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1LN40-150-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN40-150-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN40-150-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1LN40-200-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN40-200-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN40-200-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1LN40-250-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN40-250-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN40-250-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1LN40-300-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1LN40-300-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LN40-300-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1LA32-25-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA32-25-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA32-25-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1LA32-50-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA32-50-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA32-50-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1LA32-75-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA32-75-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA32-75-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1LA32-100-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA32-100-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA32-100-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1LA32-125-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA32-125-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA32-125-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1LA32-150-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA32-150-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA32-150-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1LA32-200-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA32-200-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA32-200-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1LA32-250-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA32-250-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA32-250-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1LA32-300-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA32-300-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA32-300-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1LA40-25-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA40-25-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA40-25-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1LA40-50-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA40-50-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA40-50-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1LA40-75-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA40-75-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA40-75-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1LA40-100-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA40-100-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA40-100-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1LA40-125-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA40-125-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA40-125-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1LA40-150-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA40-150-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA40-150-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1LA40-200-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA40-200-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA40-200-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1LA40-250-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA40-250-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA40-250-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1LA40-300-E	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1LA40-300-P	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1LA40-300-D	Magnet: No magnet \| Mounting: Axial foot \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1FN32-25-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN32-25-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN32-25-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1FN32-50-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN32-50-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN32-50-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1FN32-75-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN32-75-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN32-75-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1FN32-100-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN32-100-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN32-100-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1FN32-125-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN32-125-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN32-125-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1FN32-150-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN32-150-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN32-150-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1FN32-200-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN32-200-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN32-200-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1FN32-250-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN32-250-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN32-250-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1FN32-300-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN32-300-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN32-300-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1FN40-25-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN40-25-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN40-25-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1FN40-50-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN40-50-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN40-50-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1FN40-75-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN40-75-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN40-75-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1FN40-100-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN40-100-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN40-100-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1FN40-125-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN40-125-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN40-125-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1FN40-150-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN40-150-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN40-150-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1FN40-200-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN40-200-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN40-200-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1FN40-250-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN40-250-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN40-250-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1FN40-300-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1FN40-300-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FN40-300-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1FA32-25-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA32-25-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA32-25-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1FA32-50-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA32-50-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA32-50-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1FA32-75-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA32-75-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA32-75-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1FA32-100-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA32-100-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA32-100-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1FA32-125-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA32-125-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA32-125-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1FA32-150-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA32-150-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA32-150-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1FA32-200-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA32-200-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA32-200-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1FA32-250-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA32-250-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA32-250-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1FA32-300-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA32-300-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA32-300-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1FA40-25-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA40-25-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA40-25-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1FA40-50-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA40-50-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA40-50-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1FA40-75-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA40-75-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA40-75-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1FA40-100-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA40-100-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA40-100-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1FA40-125-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA40-125-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA40-125-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1FA40-150-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA40-150-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA40-150-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1FA40-200-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA40-200-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA40-200-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1FA40-250-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA40-250-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA40-250-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1FA40-300-E	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1FA40-300-P	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1FA40-300-D	Magnet: No magnet \| Mounting: Rod flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1GN32-25-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN32-25-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN32-25-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1GN32-50-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN32-50-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN32-50-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1GN32-75-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN32-75-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN32-75-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1GN32-100-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN32-100-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN32-100-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1GN32-125-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN32-125-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN32-125-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1GN32-150-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN32-150-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN32-150-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1GN32-200-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN32-200-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN32-200-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1GN32-250-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN32-250-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN32-250-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1GN32-300-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN32-300-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN32-300-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1GN40-25-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN40-25-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN40-25-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1GN40-50-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN40-50-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN40-50-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1GN40-75-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN40-75-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN40-75-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1GN40-100-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN40-100-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN40-100-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1GN40-125-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN40-125-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN40-125-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1GN40-150-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN40-150-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN40-150-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1GN40-200-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN40-200-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN40-200-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1GN40-250-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN40-250-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN40-250-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1GN40-300-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1GN40-300-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GN40-300-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1GA32-25-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA32-25-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA32-25-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1GA32-50-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA32-50-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA32-50-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1GA32-75-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA32-75-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA32-75-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1GA32-100-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA32-100-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA32-100-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1GA32-125-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA32-125-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA32-125-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1GA32-150-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA32-150-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA32-150-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1GA32-200-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA32-200-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA32-200-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1GA32-250-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA32-250-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA32-250-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1GA32-300-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA32-300-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA32-300-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1GA40-25-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA40-25-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA40-25-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1GA40-50-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA40-50-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA40-50-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1GA40-75-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA40-75-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA40-75-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1GA40-100-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA40-100-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA40-100-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1GA40-125-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA40-125-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA40-125-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1GA40-150-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA40-150-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA40-150-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1GA40-200-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA40-200-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA40-200-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1GA40-250-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA40-250-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA40-250-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1GA40-300-E	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1GA40-300-P	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1GA40-300-D	Magnet: No magnet \| Mounting: Head flange \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1UN32-25-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN32-25-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN32-25-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1UN32-50-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN32-50-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN32-50-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1UN32-75-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN32-75-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN32-75-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1UN32-100-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN32-100-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN32-100-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1UN32-125-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN32-125-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN32-125-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1UN32-150-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN32-150-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN32-150-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1UN32-200-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN32-200-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN32-200-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1UN32-250-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN32-250-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN32-250-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1UN32-300-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN32-300-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN32-300-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1UN40-25-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN40-25-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN40-25-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1UN40-50-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN40-50-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN40-50-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1UN40-75-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN40-75-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN40-75-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1UN40-100-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN40-100-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN40-100-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1UN40-125-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN40-125-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN40-125-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1UN40-150-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN40-150-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN40-150-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1UN40-200-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN40-200-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN40-200-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1UN40-250-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN40-250-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN40-250-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1UN40-300-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1UN40-300-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UN40-300-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1UA32-25-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA32-25-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA32-25-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1UA32-50-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA32-50-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA32-50-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1UA32-75-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA32-75-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA32-75-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1UA32-100-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA32-100-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA32-100-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1UA32-125-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA32-125-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA32-125-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1UA32-150-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA32-150-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA32-150-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1UA32-200-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA32-200-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA32-200-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1UA32-250-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA32-250-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA32-250-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1UA32-300-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA32-300-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA32-300-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1UA40-25-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA40-25-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA40-25-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1UA40-50-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA40-50-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA40-50-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1UA40-75-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA40-75-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA40-75-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1UA40-100-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA40-100-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA40-100-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1UA40-125-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA40-125-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA40-125-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1UA40-150-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA40-150-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA40-150-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1UA40-200-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA40-200-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA40-200-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1UA40-250-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA40-250-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA40-250-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1UA40-300-E	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1UA40-300-P	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1UA40-300-D	Magnet: No magnet \| Mounting: Rod trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1TN32-25-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN32-25-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN32-25-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1TN32-50-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN32-50-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN32-50-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1TN32-75-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN32-75-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN32-75-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1TN32-100-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN32-100-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN32-100-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1TN32-125-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN32-125-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN32-125-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1TN32-150-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN32-150-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN32-150-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1TN32-200-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN32-200-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN32-200-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1TN32-250-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN32-250-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN32-250-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1TN32-300-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN32-300-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN32-300-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1TN40-25-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN40-25-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN40-25-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1TN40-50-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN40-50-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN40-50-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1TN40-75-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN40-75-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN40-75-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1TN40-100-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN40-100-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN40-100-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1TN40-125-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN40-125-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN40-125-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1TN40-150-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN40-150-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN40-150-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1TN40-200-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN40-200-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN40-200-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1TN40-250-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN40-250-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN40-250-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1TN40-300-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1TN40-300-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TN40-300-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1TA32-25-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA32-25-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA32-25-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1TA32-50-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA32-50-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA32-50-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1TA32-75-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA32-75-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA32-75-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1TA32-100-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA32-100-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA32-100-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1TA32-125-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA32-125-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA32-125-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1TA32-150-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA32-150-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA32-150-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1TA32-200-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA32-200-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA32-200-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1TA32-250-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA32-250-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA32-250-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1TA32-300-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA32-300-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA32-300-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1TA40-25-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA40-25-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA40-25-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1TA40-50-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA40-50-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA40-50-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1TA40-75-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA40-75-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA40-75-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1TA40-100-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA40-100-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA40-100-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1TA40-125-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA40-125-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA40-125-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1TA40-150-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA40-150-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA40-150-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1TA40-200-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA40-200-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA40-200-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1TA40-250-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA40-250-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA40-250-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1TA40-300-E	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1TA40-300-P	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1TA40-300-D	Magnet: No magnet \| Mounting: Head trunnion \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1DN32-25-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN32-25-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN32-25-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1DN32-50-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN32-50-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN32-50-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1DN32-75-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN32-75-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN32-75-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1DN32-100-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN32-100-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN32-100-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1DN32-125-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN32-125-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN32-125-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1DN32-150-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN32-150-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN32-150-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1DN32-200-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN32-200-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN32-200-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1DN32-250-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN32-250-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN32-250-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1DN32-300-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN32-300-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN32-300-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1DN40-25-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN40-25-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN40-25-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1DN40-50-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN40-50-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN40-50-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1DN40-75-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN40-75-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN40-75-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1DN40-100-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN40-100-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN40-100-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1DN40-125-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN40-125-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN40-125-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1DN40-150-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN40-150-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN40-150-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1DN40-200-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN40-200-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN40-200-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1DN40-250-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN40-250-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN40-250-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1DN40-300-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1DN40-300-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DN40-300-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Rubber bumper \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1DA32-25-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA32-25-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA32-25-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1DA32-50-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA32-50-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA32-50-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1DA32-75-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA32-75-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA32-75-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1DA32-100-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA32-100-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA32-100-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1DA32-125-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA32-125-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA32-125-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1DA32-150-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA32-150-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA32-150-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1DA32-200-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA32-200-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA32-200-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1DA32-250-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA32-250-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA32-250-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1DA32-300-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA32-300-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA32-300-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 32 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLG1DA40-25-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA40-25-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA40-25-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLG1DA40-50-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA40-50-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA40-50-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLG1DA40-75-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA40-75-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA40-75-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLG1DA40-100-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA40-100-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA40-100-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLG1DA40-125-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA40-125-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA40-125-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLG1DA40-150-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA40-150-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA40-150-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLG1DA40-200-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA40-200-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA40-200-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLG1DA40-250-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA40-250-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA40-250-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLG1DA40-300-E	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLG1DA40-300-P	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLG1DA40-300-D	Magnet: No magnet \| Mounting: Clevis \| Cushion: Air cushion \| Bore: 40 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CLG1 Fine Lock Cylinder (Bore 32/40 mm)
