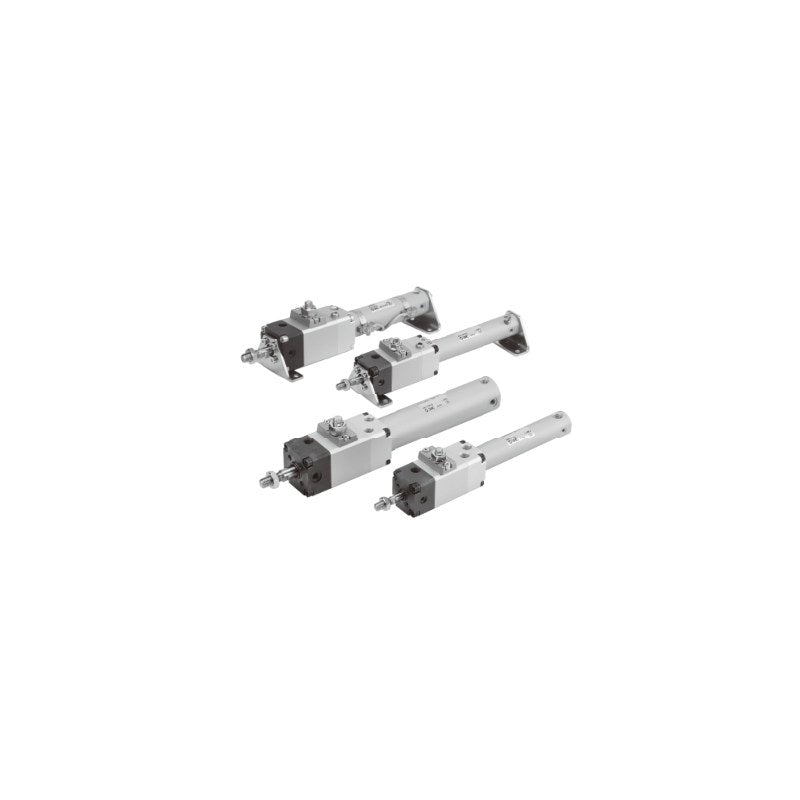

SMC CLJ2 Fine Lock Cylinder (Bore 16 mm, Double Acting)

SMC CLJ2 Fine Lock Cylinder (Bore 16 mm, Double Acting)

SMC CLJ2 series fine lock cylinder, a 16 mm bore double-acting single-rod cylinder with a compact built-in lock for intermediate stops, emergency stops and drop prevention.

Key features

  • Locks in both directions of the cylinder stroke
  • Three lock methods: spring lock (exhaust lock), pneumatic lock (pressure lock) and combined spring/pneumatic lock
  • Piston speed 50 to 500 mm/s within allowable kinetic energy; up to 750 mm/s when locking from standstill
  • Basic type available with head-cover port at 90 deg or axial (R)
  • Auto switches (D-M9, D-A9 and others), mounting brackets and rod-end shape change (-XA) ordered as suffixes; intermediate strokes in 1 mm steps on order

Specifications

Bore size 16 mm
Action Double acting, single rod
Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.08 MPa
Cushion Rubber bumper
Lubrication Not required (non-lube)
Ambient and fluid temperature -10 to 70°C (with auto switch -10 to 60°C), no freezing
Spring lock holding force 122 N
Lock direction Both directions
Source SMC Korea catalog CL series (SMCKR_CLJ2_CLM2_CLG1_CL1.pdf), p. 965-967 (PDF p. 3-5)
CLJ2B16-15-E Magnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-15-P Magnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-15-D Magnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-15R-E Magnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-15R-P Magnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-15R-D Magnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-30-E Magnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-30-P Magnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-30-D Magnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-30R-E Magnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-30R-P Magnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-30R-D Magnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-45-E Magnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-45-P Magnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-45-D Magnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-45R-E Magnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-45R-P Magnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-45R-D Magnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-60-E Magnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-60-P Magnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-60-D Magnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-60R-E Magnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-60R-P Magnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-60R-D Magnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-75-E Magnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-75-P Magnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-75-D Magnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-75R-E Magnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-75R-P Magnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-75R-D Magnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-100-E Magnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-100-P Magnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-100-D Magnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-100R-E Magnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-100R-P Magnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-100R-D Magnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-125-E Magnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-125-P Magnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-125-D Magnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-125R-E Magnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-125R-P Magnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-125R-D Magnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-150-E Magnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-150-P Magnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-150-D Magnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-150R-E Magnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-150R-P Magnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-150R-D Magnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-175-E Magnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-175-P Magnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-175-D Magnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-175R-E Magnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-175R-P Magnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-175R-D Magnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-200-E Magnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-200-P Magnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-200-D Magnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-200R-E Magnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-200R-P Magnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-200R-D Magnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2L16-15-E Magnet: No magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-15-P Magnet: No magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-15-D Magnet: No magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-30-E Magnet: No magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-30-P Magnet: No magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-30-D Magnet: No magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-45-E Magnet: No magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-45-P Magnet: No magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-45-D Magnet: No magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-60-E Magnet: No magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-60-P Magnet: No magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-60-D Magnet: No magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-75-E Magnet: No magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-75-P Magnet: No magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-75-D Magnet: No magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-100-E Magnet: No magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-100-P Magnet: No magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-100-D Magnet: No magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-125-E Magnet: No magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-125-P Magnet: No magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-125-D Magnet: No magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-150-E Magnet: No magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-150-P Magnet: No magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-150-D Magnet: No magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-175-E Magnet: No magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-175-P Magnet: No magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-175-D Magnet: No magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-200-E Magnet: No magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-200-P Magnet: No magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-200-D Magnet: No magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-15-E Magnet: No magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-15-P Magnet: No magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-15-D Magnet: No magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-30-E Magnet: No magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-30-P Magnet: No magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-30-D Magnet: No magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-45-E Magnet: No magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-45-P Magnet: No magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-45-D Magnet: No magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-60-E Magnet: No magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-60-P Magnet: No magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-60-D Magnet: No magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-75-E Magnet: No magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-75-P Magnet: No magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-75-D Magnet: No magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-100-E Magnet: No magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-100-P Magnet: No magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-100-D Magnet: No magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-125-E Magnet: No magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-125-P Magnet: No magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-125-D Magnet: No magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-150-E Magnet: No magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-150-P Magnet: No magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-150-D Magnet: No magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-175-E Magnet: No magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-175-P Magnet: No magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-175-D Magnet: No magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-200-E Magnet: No magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-200-P Magnet: No magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-200-D Magnet: No magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-15-E Magnet: No magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-15-P Magnet: No magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-15-D Magnet: No magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-30-E Magnet: No magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-30-P Magnet: No magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-30-D Magnet: No magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-45-E Magnet: No magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-45-P Magnet: No magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-45-D Magnet: No magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-60-E Magnet: No magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-60-P Magnet: No magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-60-D Magnet: No magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-75-E Magnet: No magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-75-P Magnet: No magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-75-D Magnet: No magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-100-E Magnet: No magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-100-P Magnet: No magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-100-D Magnet: No magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-125-E Magnet: No magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-125-P Magnet: No magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-125-D Magnet: No magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-150-E Magnet: No magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-150-P Magnet: No magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-150-D Magnet: No magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-175-E Magnet: No magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-175-P Magnet: No magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-175-D Magnet: No magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-200-E Magnet: No magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-200-P Magnet: No magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-200-D Magnet: No magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-15-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-15-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-15-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-15R-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-15R-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-15R-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-30-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-30-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-30-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-30R-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-30R-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-30R-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-45-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-45-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-45-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-45R-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-45R-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-45R-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-60-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-60-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-60-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-60R-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-60R-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-60R-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-75-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-75-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-75-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-75R-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-75R-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-75R-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-100-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-100-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-100-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-100R-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-100R-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-100R-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-125-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-125-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-125-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-125R-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-125R-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-125R-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-150-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-150-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-150-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-150R-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-150R-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-150R-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-175-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-175-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-175-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-175R-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-175R-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-175R-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-200-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-200-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-200-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-200R-E Magnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-200R-P Magnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-200R-D Magnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2L16-15-E Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-15-P Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-15-D Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-30-E Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-30-P Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-30-D Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-45-E Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-45-P Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-45-D Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-60-E Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-60-P Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-60-D Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-75-E Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-75-P Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-75-D Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-100-E Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-100-P Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-100-D Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-125-E Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-125-P Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-125-D Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-150-E Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-150-P Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-150-D Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-175-E Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-175-P Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-175-D Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-200-E Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-200-P Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-200-D Magnet: Built-in magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-15-E Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-15-P Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-15-D Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-30-E Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-30-P Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-30-D Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-45-E Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-45-P Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-45-D Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-60-E Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-60-P Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-60-D Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-75-E Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-75-P Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-75-D Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-100-E Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-100-P Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-100-D Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-125-E Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-125-P Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-125-D Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-150-E Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-150-P Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-150-D Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-175-E Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-175-P Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-175-D Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-200-E Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-200-P Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-200-D Magnet: Built-in magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-15-E Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-15-P Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-15-D Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-30-E Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-30-P Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-30-D Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-45-E Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-45-P Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-45-D Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-60-E Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-60-P Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-60-D Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-75-E Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-75-P Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-75-D Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-100-E Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-100-P Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-100-D Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-125-E Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-125-P Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-125-D Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-150-E Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-150-P Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-150-D Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-175-E Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-175-P Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-175-D Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-200-E Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-200-P Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-200-D Magnet: Built-in magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
Round Body CylindersSMC
300 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CLJ2 Fine Lock Cylinder (Bore 16 mm, Double Acting)

Brand SMC·Round Body Cylinders

Available part numbers (300)

CLJ2B16-15-E, CLJ2B16-15-P, CLJ2B16-15-D, CLJ2B16-15R-E, CLJ2B16-15R-P, CLJ2B16-15R-D, CLJ2B16-30-E, CLJ2B16-30-P, CLJ2B16-30-D, CLJ2B16-30R-E + 290 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CLJ2B16-15-EMagnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-15-PMagnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-15-DMagnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-15R-EMagnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-15R-PMagnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-15R-DMagnet: No magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-30-EMagnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-30-PMagnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-30-DMagnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-30R-EMagnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-30R-PMagnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-30R-DMagnet: No magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-45-EMagnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-45-PMagnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-45-DMagnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-45R-EMagnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-45R-PMagnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-45R-DMagnet: No magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-60-EMagnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-60-PMagnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-60-DMagnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-60R-EMagnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-60R-PMagnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-60R-DMagnet: No magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-75-EMagnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-75-PMagnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-75-DMagnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-75R-EMagnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-75R-PMagnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-75R-DMagnet: No magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-100-EMagnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-100-PMagnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-100-DMagnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-100R-EMagnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-100R-PMagnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-100R-DMagnet: No magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-125-EMagnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-125-PMagnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-125-DMagnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-125R-EMagnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-125R-PMagnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-125R-DMagnet: No magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-150-EMagnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-150-PMagnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-150-DMagnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-150R-EMagnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-150R-PMagnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-150R-DMagnet: No magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-175-EMagnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-175-PMagnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-175-DMagnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-175R-EMagnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-175R-PMagnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-175R-DMagnet: No magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2B16-200-EMagnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2B16-200-PMagnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2B16-200-DMagnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2B16-200R-EMagnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CLJ2B16-200R-PMagnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CLJ2B16-200R-DMagnet: No magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Spring and pneumatic lock
CLJ2L16-15-EMagnet: No magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-15-PMagnet: No magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-15-DMagnet: No magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-30-EMagnet: No magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-30-PMagnet: No magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-30-DMagnet: No magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-45-EMagnet: No magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-45-PMagnet: No magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-45-DMagnet: No magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-60-EMagnet: No magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-60-PMagnet: No magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-60-DMagnet: No magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-75-EMagnet: No magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-75-PMagnet: No magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-75-DMagnet: No magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-100-EMagnet: No magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-100-PMagnet: No magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-100-DMagnet: No magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-125-EMagnet: No magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-125-PMagnet: No magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-125-DMagnet: No magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-150-EMagnet: No magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-150-PMagnet: No magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-150-DMagnet: No magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-175-EMagnet: No magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-175-PMagnet: No magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-175-DMagnet: No magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2L16-200-EMagnet: No magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2L16-200-PMagnet: No magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2L16-200-DMagnet: No magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-15-EMagnet: No magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-15-PMagnet: No magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-15-DMagnet: No magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-30-EMagnet: No magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-30-PMagnet: No magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-30-DMagnet: No magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-45-EMagnet: No magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-45-PMagnet: No magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-45-DMagnet: No magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-60-EMagnet: No magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-60-PMagnet: No magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-60-DMagnet: No magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-75-EMagnet: No magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-75-PMagnet: No magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-75-DMagnet: No magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-100-EMagnet: No magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-100-PMagnet: No magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-100-DMagnet: No magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-125-EMagnet: No magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-125-PMagnet: No magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-125-DMagnet: No magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-150-EMagnet: No magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-150-PMagnet: No magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-150-DMagnet: No magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-175-EMagnet: No magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-175-PMagnet: No magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-175-DMagnet: No magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2F16-200-EMagnet: No magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2F16-200-PMagnet: No magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2F16-200-DMagnet: No magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-15-EMagnet: No magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-15-PMagnet: No magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-15-DMagnet: No magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-30-EMagnet: No magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-30-PMagnet: No magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-30-DMagnet: No magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-45-EMagnet: No magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-45-PMagnet: No magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-45-DMagnet: No magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-60-EMagnet: No magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-60-PMagnet: No magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-60-DMagnet: No magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-75-EMagnet: No magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-75-PMagnet: No magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-75-DMagnet: No magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-100-EMagnet: No magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-100-PMagnet: No magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-100-DMagnet: No magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-125-EMagnet: No magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-125-PMagnet: No magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-125-DMagnet: No magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-150-EMagnet: No magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-150-PMagnet: No magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-150-DMagnet: No magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-175-EMagnet: No magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-175-PMagnet: No magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-175-DMagnet: No magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CLJ2D16-200-EMagnet: No magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CLJ2D16-200-PMagnet: No magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CLJ2D16-200-DMagnet: No magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-15-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-15-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-15-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-15R-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-15R-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-15R-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 15 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-30-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-30-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-30-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-30R-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-30R-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-30R-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 30 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-45-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-45-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-45-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-45R-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-45R-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-45R-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 45 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-60-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-60-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-60-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-60R-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-60R-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-60R-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 60 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-75-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-75-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-75-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-75R-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-75R-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-75R-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 75 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-100-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-100-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-100-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-100R-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-100R-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-100R-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 100 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-125-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-125-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-125-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-125R-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-125R-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-125R-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 125 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-150-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-150-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-150-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-150R-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-150R-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-150R-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 150 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-175-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-175-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-175-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-175R-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-175R-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-175R-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 175 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2B16-200-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2B16-200-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-200-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2B16-200R-EMagnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Spring lock (exhaust lock)
CDLJ2B16-200R-PMagnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Pneumatic lock (pressure lock)
CDLJ2B16-200R-DMagnet: Built-in magnet | Mounting: Basic | Stroke: 200 mm | Head port: Axial | Lock: Spring and pneumatic lock
CDLJ2L16-15-EMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-15-PMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-15-DMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-30-EMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-30-PMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-30-DMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-45-EMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-45-PMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-45-DMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-60-EMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-60-PMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-60-DMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-75-EMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-75-PMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-75-DMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-100-EMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-100-PMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-100-DMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-125-EMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-125-PMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-125-DMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-150-EMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-150-PMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-150-DMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-175-EMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-175-PMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-175-DMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2L16-200-EMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2L16-200-PMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2L16-200-DMagnet: Built-in magnet | Mounting: Axial foot | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-15-EMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-15-PMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-15-DMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-30-EMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-30-PMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-30-DMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-45-EMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-45-PMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-45-DMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-60-EMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-60-PMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-60-DMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-75-EMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-75-PMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-75-DMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-100-EMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-100-PMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-100-DMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-125-EMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-125-PMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-125-DMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-150-EMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-150-PMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-150-DMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-175-EMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-175-PMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-175-DMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2F16-200-EMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2F16-200-PMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2F16-200-DMagnet: Built-in magnet | Mounting: Rod flange | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-15-EMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-15-PMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-15-DMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 15 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-30-EMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-30-PMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-30-DMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 30 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-45-EMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-45-PMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-45-DMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 45 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-60-EMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-60-PMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-60-DMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 60 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-75-EMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-75-PMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-75-DMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 75 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-100-EMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-100-PMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-100-DMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 100 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-125-EMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-125-PMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-125-DMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 125 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-150-EMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-150-PMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-150-DMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 150 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-175-EMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-175-PMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-175-DMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 175 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock
CDLJ2D16-200-EMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring lock (exhaust lock)
CDLJ2D16-200-PMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Pneumatic lock (pressure lock)
CDLJ2D16-200-DMagnet: Built-in magnet | Mounting: Double clevis | Stroke: 200 mm | Head port: Perpendicular (90 deg) | Lock: Spring and pneumatic lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
