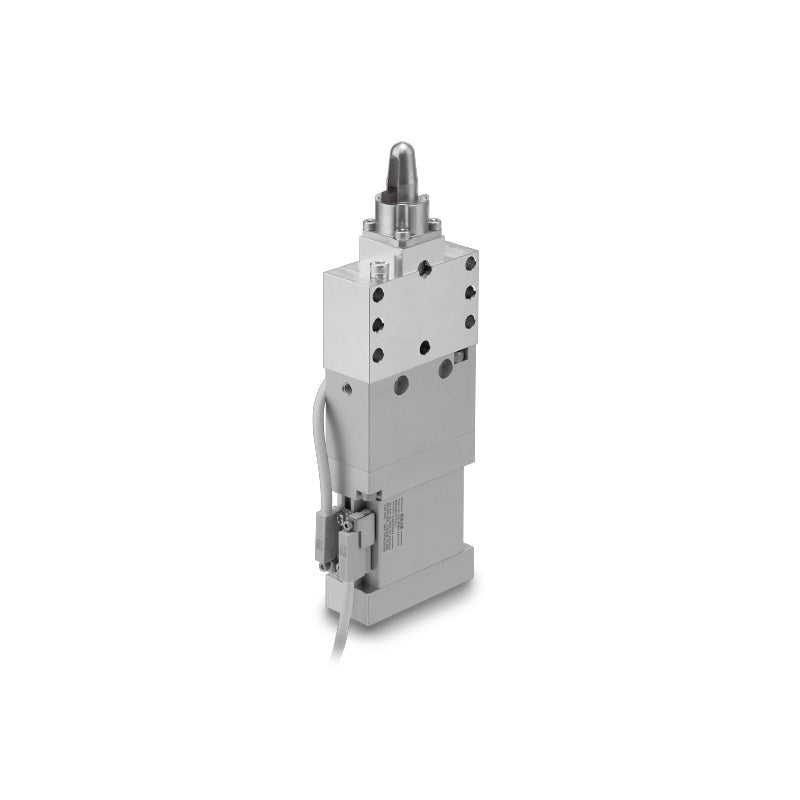

SMC CLKQG32 Pin Clamp Cylinder with Lock (ø32, Thin Cylinder)

SMC CLKQG32 compact ø32 pin clamp cylinder with spring lock, thin cylinder type, that locates and clamps sheet work on guide pins for work holes ø8 to ø20.

Key features

Compact ø32 pin clamp, body width 29 mm class for narrow work and light jigs
66 guide pins ø7.5 to ø20.0 in 0.1 mm steps; diamond shape available from ø9.5 (work hole ø10 and up)
Clamp height LOW (-X2081, 30 mm) or HIGH (-X2082, 100 mm); four selectable mounting faces A to D
Unclamp-direction spring lock holds the clamp on air exhaust (holding force 402 N)
Listed codes: clamp arm position A; arm positions B/C/D and auto switches (D-P3DWA welding-resistant, D-M9 compact, D-A9) on order

Specifications

Action	Double acting
Bore size	ø32 mm
Fluid	Air
Cylinder / clamp stroke	12.5 mm (no work) / 10 mm
Min. operating pressure	CKQ 0.1 MPa, CLKQ 0.15 MPa
Max. operating pressure	0.7 MPa (pin ø7.5-13), 1.0 MPa (pin ø13.5-20)
Ambient and fluid temperature	-10 to 60°C (no freezing)
Cushion	None
Clamp speed	50 to 150 mm/s
Port thread	Rc1/8
Clamp arm position	A (same as port face)
Source	SMC Korea catalog CKQG32/CKU32 (SMCKR_CKQG32_CKU32.pdf), p. 527-530 (PDF p. 1-4)

CLKQGA32-075RAL-X2081		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-075RAH-X2082		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-076RAL-X2081		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-076RAH-X2082		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-077RAL-X2081		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-077RAH-X2082		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-078RAL-X2081		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-078RAH-X2082		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-079RAL-X2081		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-079RAH-X2082		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-080RAL-X2081		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-080RAH-X2082		Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-085RAL-X2081		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-085RAH-X2082		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-086RAL-X2081		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-086RAH-X2082		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-087RAL-X2081		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-087RAH-X2082		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-088RAL-X2081		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-088RAH-X2082		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-089RAL-X2081		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-089RAH-X2082		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-090RAL-X2081		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-090RAH-X2082		Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-095RAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-095RAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-095DAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-095DAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-096RAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-096RAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-096DAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-096DAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-097RAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-097RAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-097DAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-097DAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-098RAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-098RAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-098DAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-098DAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-099RAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-099RAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-099DAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-099DAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-100RAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-100RAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-100DAL-X2081		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-100DAH-X2082		Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-105RAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-105RAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-105DAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-105DAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-106RAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-106RAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-106DAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-106DAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-107RAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-107RAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-107DAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-107DAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-108RAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-108RAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-108DAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-108DAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-109RAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-109RAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-109DAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-109DAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-110RAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-110RAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-110DAL-X2081		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-110DAH-X2082		Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-115RAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-115RAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-115DAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-115DAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-116RAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-116RAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-116DAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-116DAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-117RAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-117RAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-117DAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-117DAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-118RAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-118RAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-118DAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-118DAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-119RAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-119RAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-119DAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-119DAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-120RAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-120RAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-120DAL-X2081		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-120DAH-X2082		Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-125RAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-125RAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-125DAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-125DAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-126RAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-126RAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-126DAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-126DAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-127RAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-127RAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-127DAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-127DAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-128RAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-128RAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-128DAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-128DAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-129RAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-129RAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-129DAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-129DAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-130RAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-130RAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-130DAL-X2081		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-130DAH-X2082		Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-135RAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-135RAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-135DAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-135DAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-136RAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-136RAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-136DAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-136DAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-137RAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-137RAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-137DAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-137DAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-138RAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-138RAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-138DAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-138DAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-139RAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-139RAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-139DAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-139DAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-140RAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-140RAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-140DAL-X2081		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-140DAH-X2082		Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-145RAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-145RAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-145DAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-145DAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-146RAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-146RAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-146DAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-146DAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-147RAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-147RAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-147DAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-147DAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-148RAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-148RAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-148DAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-148DAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-149RAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-149RAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-149DAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-149DAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-150RAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-150RAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-150DAL-X2081		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-150DAH-X2082		Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-155RAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-155RAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-155DAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-155DAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-156RAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-156RAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-156DAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-156DAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-157RAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-157RAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-157DAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-157DAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-158RAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-158RAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-158DAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-158DAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-159RAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-159RAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-159DAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-159DAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-160RAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-160RAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-160DAL-X2081		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-160DAH-X2082		Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-175RAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-175RAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-175DAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-175DAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-176RAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-176RAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-176DAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-176DAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-177RAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-177RAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-177DAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-177DAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-178RAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-178RAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-178DAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-178DAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-179RAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-179RAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-179DAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-179DAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-180RAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-180RAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-180DAL-X2081		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-180DAH-X2082		Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-195RAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-195RAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-195DAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-195DAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-196RAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-196RAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-196DAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-196DAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-197RAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-197RAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-197DAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-197DAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-198RAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-198RAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-198DAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-198DAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-199RAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-199RAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-199DAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-199DAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-200RAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-200RAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGA32-200DAL-X2081		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGA32-200DAH-X2082		Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-075RAL-X2081		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-075RAH-X2082		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-076RAL-X2081		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-076RAH-X2082		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-077RAL-X2081		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-077RAH-X2082		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-078RAL-X2081		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-078RAH-X2082		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-079RAL-X2081		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-079RAH-X2082		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-080RAL-X2081		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-080RAH-X2082		Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-085RAL-X2081		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-085RAH-X2082		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-086RAL-X2081		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-086RAH-X2082		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-087RAL-X2081		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-087RAH-X2082		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-088RAL-X2081		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-088RAH-X2082		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-089RAL-X2081		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-089RAH-X2082		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-090RAL-X2081		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-090RAH-X2082		Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-095RAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-095RAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-095DAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-095DAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-096RAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-096RAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-096DAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-096DAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-097RAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-097RAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-097DAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-097DAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-098RAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-098RAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-098DAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-098DAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-099RAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-099RAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-099DAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-099DAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-100RAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-100RAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-100DAL-X2081		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-100DAH-X2082		Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-105RAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-105RAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-105DAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-105DAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-106RAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-106RAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-106DAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-106DAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-107RAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-107RAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-107DAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-107DAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-108RAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-108RAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-108DAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-108DAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-109RAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-109RAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-109DAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-109DAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-110RAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-110RAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-110DAL-X2081		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-110DAH-X2082		Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-115RAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-115RAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-115DAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-115DAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-116RAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-116RAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-116DAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-116DAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-117RAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-117RAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-117DAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-117DAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-118RAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-118RAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-118DAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-118DAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-119RAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-119RAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-119DAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-119DAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-120RAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-120RAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-120DAL-X2081		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-120DAH-X2082		Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-125RAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-125RAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-125DAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-125DAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-126RAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-126RAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-126DAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-126DAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-127RAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-127RAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-127DAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-127DAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-128RAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-128RAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-128DAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-128DAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-129RAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-129RAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-129DAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-129DAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-130RAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-130RAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-130DAL-X2081		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-130DAH-X2082		Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-135RAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-135RAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-135DAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-135DAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-136RAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-136RAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-136DAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-136DAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-137RAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-137RAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-137DAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-137DAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-138RAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-138RAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-138DAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-138DAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-139RAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-139RAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-139DAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-139DAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-140RAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-140RAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-140DAL-X2081		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-140DAH-X2082		Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-145RAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-145RAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-145DAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-145DAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-146RAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-146RAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-146DAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-146DAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-147RAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-147RAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-147DAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-147DAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-148RAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-148RAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-148DAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-148DAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-149RAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-149RAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-149DAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-149DAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-150RAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-150RAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-150DAL-X2081		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-150DAH-X2082		Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-155RAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-155RAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-155DAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-155DAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-156RAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-156RAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-156DAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-156DAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-157RAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-157RAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-157DAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-157DAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-158RAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-158RAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-158DAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-158DAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-159RAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-159RAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-159DAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-159DAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-160RAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-160RAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-160DAL-X2081		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-160DAH-X2082		Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-175RAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-175RAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-175DAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-175DAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-176RAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-176RAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-176DAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-176DAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-177RAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-177RAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-177DAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-177DAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-178RAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-178RAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-178DAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-178DAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-179RAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-179RAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-179DAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-179DAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-180RAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-180RAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-180DAL-X2081		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-180DAH-X2082		Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-195RAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-195RAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-195DAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-195DAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-196RAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-196RAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-196DAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-196DAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-197RAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-197RAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-197DAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-197DAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-198RAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-198RAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-198DAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-198DAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-199RAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-199RAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-199DAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-199DAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-200RAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-200RAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGB32-200DAL-X2081		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGB32-200DAH-X2082		Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-075RAL-X2081		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-075RAH-X2082		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-076RAL-X2081		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-076RAH-X2082		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-077RAL-X2081		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-077RAH-X2082		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-078RAL-X2081		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-078RAH-X2082		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-079RAL-X2081		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-079RAH-X2082		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-080RAL-X2081		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-080RAH-X2082		Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-085RAL-X2081		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-085RAH-X2082		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-086RAL-X2081		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-086RAH-X2082		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-087RAL-X2081		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-087RAH-X2082		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-088RAL-X2081		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-088RAH-X2082		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-089RAL-X2081		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-089RAH-X2082		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-090RAL-X2081		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-090RAH-X2082		Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-095RAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-095RAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-095DAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-095DAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-096RAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-096RAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-096DAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-096DAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-097RAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-097RAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-097DAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-097DAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-098RAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-098RAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-098DAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-098DAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-099RAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-099RAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-099DAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-099DAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-100RAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-100RAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-100DAL-X2081		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-100DAH-X2082		Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-105RAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-105RAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-105DAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-105DAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-106RAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-106RAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-106DAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-106DAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-107RAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-107RAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-107DAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-107DAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-108RAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-108RAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-108DAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-108DAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-109RAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-109RAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-109DAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-109DAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-110RAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-110RAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-110DAL-X2081		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-110DAH-X2082		Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-115RAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-115RAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-115DAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-115DAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-116RAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-116RAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-116DAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-116DAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-117RAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-117RAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-117DAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-117DAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-118RAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-118RAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-118DAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-118DAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-119RAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-119RAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-119DAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-119DAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-120RAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-120RAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-120DAL-X2081		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-120DAH-X2082		Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-125RAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-125RAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-125DAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-125DAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-126RAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-126RAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-126DAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-126DAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-127RAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-127RAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-127DAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-127DAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-128RAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-128RAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-128DAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-128DAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-129RAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-129RAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-129DAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-129DAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-130RAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-130RAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-130DAL-X2081		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-130DAH-X2082		Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-135RAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-135RAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-135DAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-135DAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-136RAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-136RAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-136DAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-136DAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-137RAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-137RAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-137DAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-137DAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-138RAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-138RAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-138DAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-138DAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-139RAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-139RAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-139DAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-139DAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-140RAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-140RAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-140DAL-X2081		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-140DAH-X2082		Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-145RAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-145RAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-145DAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-145DAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-146RAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-146RAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-146DAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-146DAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-147RAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-147RAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-147DAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-147DAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-148RAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-148RAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-148DAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-148DAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-149RAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-149RAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-149DAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-149DAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-150RAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-150RAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-150DAL-X2081		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-150DAH-X2082		Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-155RAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-155RAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-155DAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-155DAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-156RAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-156RAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-156DAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-156DAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-157RAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-157RAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-157DAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-157DAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-158RAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-158RAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-158DAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-158DAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-159RAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-159RAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-159DAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-159DAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-160RAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-160RAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-160DAL-X2081		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-160DAH-X2082		Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-175RAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-175RAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-175DAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-175DAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-176RAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-176RAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-176DAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-176DAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-177RAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-177RAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-177DAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-177DAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-178RAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-178RAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-178DAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-178DAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-179RAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-179RAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-179DAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-179DAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-180RAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-180RAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-180DAL-X2081		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-180DAH-X2082		Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-195RAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-195RAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-195DAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-195DAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-196RAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-196RAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-196DAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-196DAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-197RAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-197RAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-197DAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-197DAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-198RAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-198RAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-198DAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-198DAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-199RAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-199RAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-199DAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-199DAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-200RAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-200RAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGC32-200DAL-X2081		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGC32-200DAH-X2082		Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-075RAL-X2081		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-075RAH-X2082		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-076RAL-X2081		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-076RAH-X2082		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-077RAL-X2081		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-077RAH-X2082		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-078RAL-X2081		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-078RAH-X2082		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-079RAL-X2081		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-079RAH-X2082		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-080RAL-X2081		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-080RAH-X2082		Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-085RAL-X2081		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-085RAH-X2082		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-086RAL-X2081		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-086RAH-X2082		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-087RAL-X2081		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-087RAH-X2082		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-088RAL-X2081		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-088RAH-X2082		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-089RAL-X2081		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-089RAH-X2082		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-090RAL-X2081		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-090RAH-X2082		Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-095RAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-095RAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-095DAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-095DAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-096RAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-096RAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-096DAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-096DAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-097RAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-097RAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-097DAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-097DAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-098RAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-098RAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-098DAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-098DAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-099RAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-099RAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-099DAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-099DAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-100RAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-100RAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-100DAL-X2081		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-100DAH-X2082		Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-105RAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-105RAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-105DAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-105DAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-106RAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-106RAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-106DAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-106DAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-107RAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-107RAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-107DAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-107DAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-108RAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-108RAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-108DAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-108DAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-109RAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-109RAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-109DAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-109DAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-110RAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-110RAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-110DAL-X2081		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-110DAH-X2082		Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-115RAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-115RAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-115DAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-115DAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-116RAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-116RAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-116DAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-116DAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-117RAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-117RAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-117DAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-117DAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-118RAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-118RAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-118DAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-118DAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-119RAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-119RAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-119DAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-119DAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-120RAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-120RAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-120DAL-X2081		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-120DAH-X2082		Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-125RAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-125RAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-125DAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-125DAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-126RAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-126RAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-126DAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-126DAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-127RAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-127RAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-127DAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-127DAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-128RAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-128RAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-128DAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-128DAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-129RAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-129RAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-129DAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-129DAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-130RAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-130RAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-130DAL-X2081		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-130DAH-X2082		Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-135RAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-135RAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-135DAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-135DAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-136RAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-136RAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-136DAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-136DAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-137RAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-137RAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-137DAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-137DAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-138RAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-138RAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-138DAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-138DAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-139RAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-139RAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-139DAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-139DAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-140RAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-140RAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-140DAL-X2081		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-140DAH-X2082		Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-145RAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-145RAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-145DAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-145DAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-146RAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-146RAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-146DAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-146DAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-147RAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-147RAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-147DAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-147DAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-148RAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-148RAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-148DAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-148DAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-149RAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-149RAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-149DAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-149DAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-150RAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-150RAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-150DAL-X2081		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-150DAH-X2082		Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-155RAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-155RAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-155DAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-155DAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-156RAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-156RAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-156DAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-156DAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-157RAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-157RAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-157DAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-157DAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-158RAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-158RAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-158DAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-158DAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-159RAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-159RAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-159DAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-159DAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-160RAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-160RAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-160DAL-X2081		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-160DAH-X2082		Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-175RAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-175RAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-175DAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-175DAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-176RAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-176RAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-176DAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-176DAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-177RAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-177RAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-177DAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-177DAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-178RAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-178RAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-178DAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-178DAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-179RAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-179RAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-179DAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-179DAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-180RAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-180RAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-180DAL-X2081		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-180DAH-X2082		Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-195RAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-195RAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-195DAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-195DAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-196RAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-196RAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-196DAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-196DAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-197RAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-197RAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-197DAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-197DAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-198RAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-198RAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-198DAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-198DAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-199RAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-199RAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-199DAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-199DAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-200RAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-200RAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
CLKQGD32-200DAL-X2081		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
CLKQGD32-200DAH-X2082		Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)

Clamp CylindersSMC

960 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CLKQG32 Pin Clamp Cylinder with Lock (ø32, Thin Cylinder)

Brand SMC·Clamp Cylinders

Available part numbers (960)

CLKQGA32-075RAL-X2081, CLKQGA32-075RAH-X2082, CLKQGA32-076RAL-X2081, CLKQGA32-076RAH-X2082, CLKQGA32-077RAL-X2081, CLKQGA32-077RAH-X2082, CLKQGA32-078RAL-X2081, CLKQGA32-078RAH-X2082, CLKQGA32-079RAL-X2081, CLKQGA32-079RAH-X2082 + 950 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CLKQGA32-075RAL-X2081	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-075RAH-X2082	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-076RAL-X2081	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-076RAH-X2082	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-077RAL-X2081	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-077RAH-X2082	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-078RAL-X2081	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-078RAH-X2082	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-079RAL-X2081	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-079RAH-X2082	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-080RAL-X2081	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-080RAH-X2082	Mounting face: A \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-085RAL-X2081	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-085RAH-X2082	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-086RAL-X2081	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-086RAH-X2082	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-087RAL-X2081	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-087RAH-X2082	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-088RAL-X2081	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-088RAH-X2082	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-089RAL-X2081	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-089RAH-X2082	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-090RAL-X2081	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-090RAH-X2082	Mounting face: A \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-095RAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-095RAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-095DAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-095DAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-096RAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-096RAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-096DAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-096DAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-097RAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-097RAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-097DAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-097DAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-098RAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-098RAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-098DAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-098DAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-099RAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-099RAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-099DAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-099DAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-100RAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-100RAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-100DAL-X2081	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-100DAH-X2082	Mounting face: A \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-105RAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-105RAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-105DAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-105DAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-106RAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-106RAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-106DAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-106DAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-107RAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-107RAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-107DAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-107DAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-108RAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-108RAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-108DAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-108DAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-109RAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-109RAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-109DAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-109DAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-110RAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-110RAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-110DAL-X2081	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-110DAH-X2082	Mounting face: A \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-115RAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-115RAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-115DAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-115DAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-116RAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-116RAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-116DAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-116DAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-117RAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-117RAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-117DAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-117DAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-118RAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-118RAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-118DAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-118DAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-119RAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-119RAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-119DAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-119DAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-120RAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-120RAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-120DAL-X2081	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-120DAH-X2082	Mounting face: A \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-125RAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-125RAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-125DAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-125DAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-126RAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-126RAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-126DAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-126DAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-127RAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-127RAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-127DAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-127DAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-128RAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-128RAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-128DAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-128DAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-129RAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-129RAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-129DAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-129DAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-130RAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-130RAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-130DAL-X2081	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-130DAH-X2082	Mounting face: A \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-135RAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-135RAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-135DAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-135DAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-136RAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-136RAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-136DAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-136DAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-137RAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-137RAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-137DAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-137DAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-138RAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-138RAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-138DAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-138DAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-139RAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-139RAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-139DAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-139DAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-140RAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-140RAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-140DAL-X2081	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-140DAH-X2082	Mounting face: A \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-145RAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-145RAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-145DAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-145DAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-146RAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-146RAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-146DAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-146DAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-147RAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-147RAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-147DAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-147DAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-148RAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-148RAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-148DAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-148DAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-149RAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-149RAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-149DAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-149DAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-150RAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-150RAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-150DAL-X2081	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-150DAH-X2082	Mounting face: A \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-155RAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-155RAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-155DAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-155DAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-156RAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-156RAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-156DAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-156DAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-157RAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-157RAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-157DAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-157DAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-158RAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-158RAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-158DAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-158DAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-159RAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-159RAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-159DAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-159DAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-160RAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-160RAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-160DAL-X2081	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-160DAH-X2082	Mounting face: A \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-175RAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-175RAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-175DAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-175DAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-176RAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-176RAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-176DAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-176DAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-177RAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-177RAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-177DAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-177DAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-178RAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-178RAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-178DAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-178DAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-179RAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-179RAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-179DAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-179DAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-180RAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-180RAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-180DAL-X2081	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-180DAH-X2082	Mounting face: A \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-195RAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-195RAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-195DAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-195DAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-196RAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-196RAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-196DAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-196DAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-197RAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-197RAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-197DAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-197DAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-198RAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-198RAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-198DAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-198DAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-199RAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-199RAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-199DAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-199DAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-200RAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-200RAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGA32-200DAL-X2081	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGA32-200DAH-X2082	Mounting face: A \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-075RAL-X2081	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-075RAH-X2082	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-076RAL-X2081	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-076RAH-X2082	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-077RAL-X2081	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-077RAH-X2082	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-078RAL-X2081	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-078RAH-X2082	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-079RAL-X2081	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-079RAH-X2082	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-080RAL-X2081	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-080RAH-X2082	Mounting face: B \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-085RAL-X2081	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-085RAH-X2082	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-086RAL-X2081	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-086RAH-X2082	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-087RAL-X2081	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-087RAH-X2082	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-088RAL-X2081	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-088RAH-X2082	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-089RAL-X2081	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-089RAH-X2082	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-090RAL-X2081	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-090RAH-X2082	Mounting face: B \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-095RAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-095RAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-095DAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-095DAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-096RAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-096RAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-096DAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-096DAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-097RAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-097RAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-097DAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-097DAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-098RAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-098RAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-098DAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-098DAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-099RAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-099RAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-099DAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-099DAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-100RAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-100RAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-100DAL-X2081	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-100DAH-X2082	Mounting face: B \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-105RAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-105RAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-105DAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-105DAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-106RAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-106RAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-106DAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-106DAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-107RAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-107RAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-107DAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-107DAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-108RAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-108RAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-108DAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-108DAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-109RAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-109RAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-109DAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-109DAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-110RAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-110RAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-110DAL-X2081	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-110DAH-X2082	Mounting face: B \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-115RAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-115RAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-115DAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-115DAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-116RAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-116RAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-116DAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-116DAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-117RAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-117RAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-117DAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-117DAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-118RAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-118RAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-118DAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-118DAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-119RAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-119RAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-119DAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-119DAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-120RAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-120RAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-120DAL-X2081	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-120DAH-X2082	Mounting face: B \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-125RAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-125RAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-125DAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-125DAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-126RAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-126RAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-126DAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-126DAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-127RAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-127RAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-127DAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-127DAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-128RAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-128RAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-128DAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-128DAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-129RAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-129RAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-129DAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-129DAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-130RAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-130RAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-130DAL-X2081	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-130DAH-X2082	Mounting face: B \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-135RAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-135RAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-135DAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-135DAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-136RAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-136RAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-136DAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-136DAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-137RAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-137RAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-137DAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-137DAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-138RAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-138RAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-138DAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-138DAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-139RAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-139RAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-139DAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-139DAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-140RAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-140RAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-140DAL-X2081	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-140DAH-X2082	Mounting face: B \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-145RAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-145RAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-145DAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-145DAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-146RAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-146RAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-146DAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-146DAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-147RAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-147RAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-147DAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-147DAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-148RAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-148RAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-148DAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-148DAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-149RAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-149RAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-149DAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-149DAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-150RAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-150RAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-150DAL-X2081	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-150DAH-X2082	Mounting face: B \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-155RAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-155RAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-155DAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-155DAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-156RAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-156RAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-156DAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-156DAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-157RAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-157RAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-157DAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-157DAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-158RAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-158RAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-158DAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-158DAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-159RAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-159RAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-159DAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-159DAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-160RAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-160RAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-160DAL-X2081	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-160DAH-X2082	Mounting face: B \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-175RAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-175RAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-175DAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-175DAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-176RAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-176RAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-176DAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-176DAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-177RAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-177RAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-177DAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-177DAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-178RAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-178RAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-178DAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-178DAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-179RAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-179RAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-179DAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-179DAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-180RAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-180RAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-180DAL-X2081	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-180DAH-X2082	Mounting face: B \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-195RAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-195RAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-195DAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-195DAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-196RAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-196RAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-196DAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-196DAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-197RAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-197RAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-197DAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-197DAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-198RAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-198RAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-198DAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-198DAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-199RAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-199RAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-199DAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-199DAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-200RAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-200RAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGB32-200DAL-X2081	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGB32-200DAH-X2082	Mounting face: B \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-075RAL-X2081	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-075RAH-X2082	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-076RAL-X2081	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-076RAH-X2082	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-077RAL-X2081	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-077RAH-X2082	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-078RAL-X2081	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-078RAH-X2082	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-079RAL-X2081	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-079RAH-X2082	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-080RAL-X2081	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-080RAH-X2082	Mounting face: C \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-085RAL-X2081	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-085RAH-X2082	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-086RAL-X2081	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-086RAH-X2082	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-087RAL-X2081	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-087RAH-X2082	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-088RAL-X2081	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-088RAH-X2082	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-089RAL-X2081	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-089RAH-X2082	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-090RAL-X2081	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-090RAH-X2082	Mounting face: C \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-095RAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-095RAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-095DAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-095DAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-096RAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-096RAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-096DAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-096DAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-097RAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-097RAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-097DAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-097DAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-098RAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-098RAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-098DAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-098DAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-099RAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-099RAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-099DAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-099DAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-100RAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-100RAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-100DAL-X2081	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-100DAH-X2082	Mounting face: C \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-105RAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-105RAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-105DAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-105DAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-106RAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-106RAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-106DAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-106DAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-107RAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-107RAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-107DAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-107DAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-108RAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-108RAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-108DAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-108DAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-109RAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-109RAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-109DAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-109DAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-110RAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-110RAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-110DAL-X2081	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-110DAH-X2082	Mounting face: C \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-115RAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-115RAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-115DAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-115DAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-116RAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-116RAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-116DAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-116DAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-117RAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-117RAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-117DAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-117DAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-118RAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-118RAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-118DAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-118DAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-119RAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-119RAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-119DAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-119DAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-120RAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-120RAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-120DAL-X2081	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-120DAH-X2082	Mounting face: C \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-125RAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-125RAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-125DAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-125DAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-126RAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-126RAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-126DAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-126DAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-127RAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-127RAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-127DAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-127DAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-128RAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-128RAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-128DAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-128DAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-129RAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-129RAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-129DAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-129DAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-130RAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-130RAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-130DAL-X2081	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-130DAH-X2082	Mounting face: C \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-135RAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-135RAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-135DAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-135DAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-136RAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-136RAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-136DAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-136DAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-137RAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-137RAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-137DAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-137DAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-138RAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-138RAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-138DAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-138DAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-139RAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-139RAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-139DAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-139DAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-140RAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-140RAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-140DAL-X2081	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-140DAH-X2082	Mounting face: C \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-145RAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-145RAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-145DAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-145DAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-146RAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-146RAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-146DAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-146DAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-147RAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-147RAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-147DAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-147DAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-148RAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-148RAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-148DAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-148DAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-149RAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-149RAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-149DAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-149DAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-150RAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-150RAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-150DAL-X2081	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-150DAH-X2082	Mounting face: C \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-155RAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-155RAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-155DAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-155DAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-156RAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-156RAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-156DAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-156DAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-157RAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-157RAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-157DAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-157DAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-158RAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-158RAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-158DAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-158DAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-159RAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-159RAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-159DAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-159DAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-160RAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-160RAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-160DAL-X2081	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-160DAH-X2082	Mounting face: C \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-175RAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-175RAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-175DAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-175DAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-176RAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-176RAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-176DAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-176DAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-177RAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-177RAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-177DAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-177DAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-178RAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-178RAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-178DAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-178DAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-179RAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-179RAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-179DAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-179DAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-180RAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-180RAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-180DAL-X2081	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-180DAH-X2082	Mounting face: C \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-195RAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-195RAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-195DAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-195DAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-196RAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-196RAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-196DAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-196DAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-197RAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-197RAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-197DAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-197DAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-198RAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-198RAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-198DAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-198DAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-199RAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-199RAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-199DAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-199DAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-200RAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-200RAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGC32-200DAL-X2081	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGC32-200DAH-X2082	Mounting face: C \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-075RAL-X2081	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-075RAH-X2082	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-076RAL-X2081	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-076RAH-X2082	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-077RAL-X2081	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-077RAH-X2082	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-078RAL-X2081	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-078RAH-X2082	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-079RAL-X2081	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-079RAH-X2082	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-080RAL-X2081	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-080RAH-X2082	Mounting face: D \| Work hole: ø8 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-085RAL-X2081	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-085RAH-X2082	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-086RAL-X2081	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-086RAH-X2082	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-087RAL-X2081	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-087RAH-X2082	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-088RAL-X2081	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-088RAH-X2082	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-089RAL-X2081	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-089RAH-X2082	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-090RAL-X2081	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-090RAH-X2082	Mounting face: D \| Work hole: ø9 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-095RAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-095RAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-095DAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-095DAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-096RAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-096RAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-096DAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-096DAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-097RAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-097RAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-097DAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-097DAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-098RAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-098RAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-098DAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-098DAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-099RAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-099RAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-099DAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-099DAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-100RAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-100RAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-100DAL-X2081	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-100DAH-X2082	Mounting face: D \| Work hole: ø10 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-105RAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-105RAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-105DAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-105DAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-106RAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-106RAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-106DAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-106DAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-107RAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-107RAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-107DAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-107DAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-108RAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-108RAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-108DAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-108DAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-109RAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-109RAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-109DAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-109DAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-110RAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-110RAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-110DAL-X2081	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-110DAH-X2082	Mounting face: D \| Work hole: ø11 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-115RAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-115RAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-115DAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-115DAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-116RAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-116RAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-116DAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-116DAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-117RAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-117RAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-117DAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-117DAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-118RAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-118RAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-118DAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-118DAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-119RAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-119RAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-119DAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-119DAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-120RAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-120RAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-120DAL-X2081	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-120DAH-X2082	Mounting face: D \| Work hole: ø12 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-125RAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-125RAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-125DAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-125DAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-126RAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-126RAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-126DAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-126DAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-127RAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-127RAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-127DAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-127DAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-128RAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-128RAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-128DAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-128DAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-129RAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-129RAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-129DAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-129DAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-130RAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-130RAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-130DAL-X2081	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-130DAH-X2082	Mounting face: D \| Work hole: ø13 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-135RAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-135RAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-135DAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-135DAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-136RAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-136RAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-136DAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-136DAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-137RAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-137RAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-137DAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-137DAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-138RAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-138RAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-138DAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-138DAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-139RAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-139RAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-139DAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-139DAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-140RAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-140RAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-140DAL-X2081	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-140DAH-X2082	Mounting face: D \| Work hole: ø14 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-145RAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-145RAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-145DAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-145DAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-146RAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-146RAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-146DAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-146DAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-147RAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-147RAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-147DAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-147DAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-148RAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-148RAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-148DAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-148DAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-149RAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-149RAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-149DAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-149DAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-150RAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-150RAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-150DAL-X2081	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-150DAH-X2082	Mounting face: D \| Work hole: ø15 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-155RAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-155RAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-155DAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-155DAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-156RAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-156RAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-156DAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-156DAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-157RAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-157RAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-157DAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-157DAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-158RAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-158RAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-158DAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-158DAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-159RAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-159RAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-159DAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-159DAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-160RAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-160RAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-160DAL-X2081	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-160DAH-X2082	Mounting face: D \| Work hole: ø16 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-175RAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-175RAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-175DAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-175DAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-176RAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-176RAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-176DAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-176DAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-177RAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-177RAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-177DAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-177DAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-178RAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-178RAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-178DAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-178DAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-179RAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-179RAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-179DAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-179DAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-180RAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-180RAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-180DAL-X2081	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-180DAH-X2082	Mounting face: D \| Work hole: ø18 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-195RAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-195RAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-195DAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-195DAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.5 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-196RAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-196RAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-196DAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-196DAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.4 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-197RAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-197RAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-197DAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-197DAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.3 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-198RAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-198RAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-198DAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-198DAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.2 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-199RAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-199RAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-199DAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-199DAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.1 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-200RAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-200RAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Round \| Clamp height: HIGH 100 mm (-X2082)
	CLKQGD32-200DAL-X2081	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: LOW 30 mm (-X2081)
	CLKQGD32-200DAH-X2082	Mounting face: D \| Work hole: ø20 mm \| Pin undersize: 0.0 mm \| Pin shape: Diamond \| Clamp height: HIGH 100 mm (-X2082)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CLKQG32 Pin Clamp Cylinder with Lock (ø32, Thin Cylinder)
