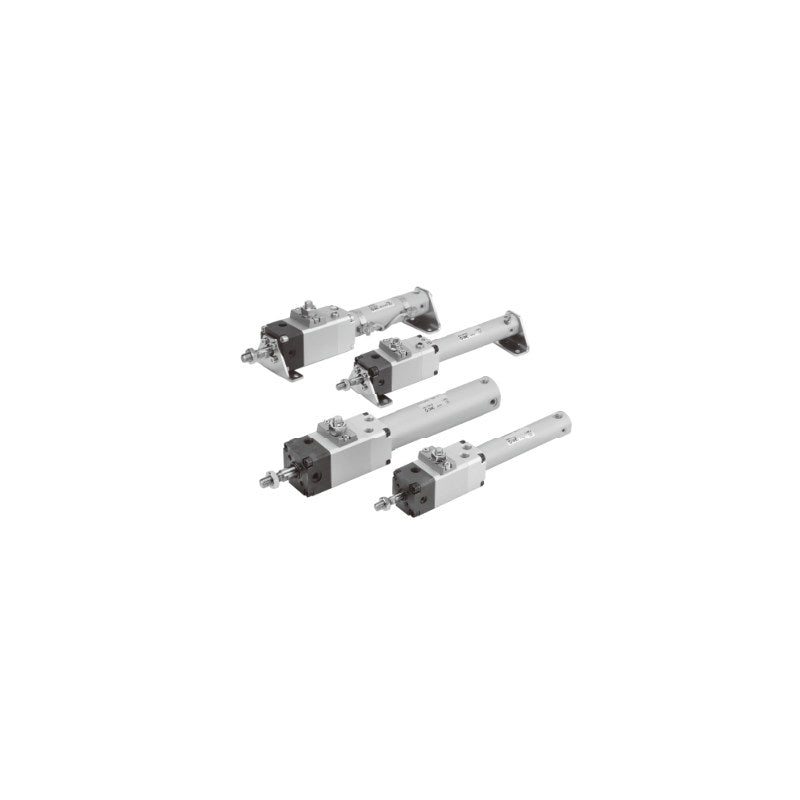

SMC CLM2 Fine Lock Cylinder (Bore 20/25 mm, Air Type)

SMC CLM2 series fine lock cylinder, a double-acting single-rod air cylinder (bore 20/25 mm) with a compact built-in lock that holds in both stroke directions.

Key features

Compact built-in lock for intermediate stops, emergency stops and drop prevention; locks in both directions
Three lock methods: spring lock (exhaust lock), pneumatic lock (pressure lock) and combined spring/pneumatic lock
Ten mounting styles including head trunnion, clevis integrated and space-saving boss-cut basic/flange types
Air-hydro type (CLM2H, 1.0 MPa, 15 to 300 mm/s) and NPT port (TN) available as other codes
Bellows (J nylon tarpaulin, K heat-resistant), auto switches and rod-end change (-XA) ordered as suffixes; max. stroke 1000 mm on order

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.08 MPa
Piston speed	50 to 500 mm/s
Cushion	Rubber bumper
Port size	Rc1/8 (20 to 32), Rc1/4 (40)
Lubrication	Not required (non-lube)
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Lock direction	Both directions
Source	SMC Korea catalog CL series (SMCKR_CLJ2_CLM2_CLG1_CL1.pdf), p. 975-978 (PDF p. 13-16)

CLM2B20-25-E		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2B20-25-P		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B20-25-D		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2B20-50-E		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2B20-50-P		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B20-50-D		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2B20-75-E		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2B20-75-P		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B20-75-D		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2B20-100-E		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2B20-100-P		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B20-100-D		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2B20-125-E		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2B20-125-P		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B20-125-D		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2B20-150-E		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2B20-150-P		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B20-150-D		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2B20-200-E		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2B20-200-P		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B20-200-D		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2B20-250-E		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2B20-250-P		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B20-250-D		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2B20-300-E		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2B20-300-P		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B20-300-D		Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2B25-25-E		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2B25-25-P		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B25-25-D		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2B25-50-E		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2B25-50-P		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B25-50-D		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2B25-75-E		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2B25-75-P		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B25-75-D		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2B25-100-E		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2B25-100-P		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B25-100-D		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2B25-125-E		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2B25-125-P		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B25-125-D		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2B25-150-E		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2B25-150-P		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B25-150-D		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2B25-200-E		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2B25-200-P		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B25-200-D		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2B25-250-E		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2B25-250-P		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B25-250-D		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2B25-300-E		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2B25-300-P		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2B25-300-D		Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2L20-25-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2L20-25-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L20-25-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2L20-50-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2L20-50-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L20-50-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2L20-75-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2L20-75-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L20-75-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2L20-100-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2L20-100-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L20-100-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2L20-125-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2L20-125-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L20-125-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2L20-150-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2L20-150-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L20-150-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2L20-200-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2L20-200-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L20-200-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2L20-250-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2L20-250-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L20-250-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2L20-300-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2L20-300-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L20-300-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2L25-25-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2L25-25-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L25-25-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2L25-50-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2L25-50-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L25-50-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2L25-75-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2L25-75-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L25-75-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2L25-100-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2L25-100-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L25-100-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2L25-125-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2L25-125-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L25-125-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2L25-150-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2L25-150-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L25-150-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2L25-200-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2L25-200-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L25-200-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2L25-250-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2L25-250-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L25-250-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2L25-300-E		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2L25-300-P		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2L25-300-D		Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2F20-25-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2F20-25-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F20-25-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2F20-50-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2F20-50-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F20-50-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2F20-75-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2F20-75-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F20-75-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2F20-100-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2F20-100-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F20-100-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2F20-125-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2F20-125-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F20-125-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2F20-150-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2F20-150-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F20-150-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2F20-200-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2F20-200-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F20-200-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2F20-250-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2F20-250-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F20-250-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2F20-300-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2F20-300-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F20-300-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2F25-25-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2F25-25-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F25-25-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2F25-50-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2F25-50-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F25-50-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2F25-75-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2F25-75-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F25-75-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2F25-100-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2F25-100-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F25-100-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2F25-125-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2F25-125-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F25-125-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2F25-150-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2F25-150-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F25-150-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2F25-200-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2F25-200-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F25-200-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2F25-250-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2F25-250-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F25-250-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2F25-300-E		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2F25-300-P		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2F25-300-D		Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2G20-25-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2G20-25-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G20-25-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2G20-50-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2G20-50-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G20-50-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2G20-75-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2G20-75-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G20-75-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2G20-100-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2G20-100-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G20-100-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2G20-125-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2G20-125-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G20-125-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2G20-150-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2G20-150-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G20-150-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2G20-200-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2G20-200-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G20-200-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2G20-250-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2G20-250-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G20-250-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2G20-300-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2G20-300-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G20-300-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2G25-25-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2G25-25-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G25-25-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2G25-50-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2G25-50-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G25-50-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2G25-75-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2G25-75-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G25-75-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2G25-100-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2G25-100-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G25-100-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2G25-125-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2G25-125-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G25-125-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2G25-150-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2G25-150-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G25-150-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2G25-200-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2G25-200-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G25-200-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2G25-250-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2G25-250-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G25-250-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2G25-300-E		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2G25-300-P		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2G25-300-D		Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2C20-25-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2C20-25-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C20-25-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2C20-50-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2C20-50-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C20-50-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2C20-75-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2C20-75-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C20-75-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2C20-100-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2C20-100-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C20-100-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2C20-125-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2C20-125-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C20-125-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2C20-150-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2C20-150-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C20-150-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2C20-200-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2C20-200-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C20-200-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2C20-250-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2C20-250-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C20-250-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2C20-300-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2C20-300-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C20-300-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2C25-25-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2C25-25-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C25-25-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2C25-50-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2C25-50-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C25-50-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2C25-75-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2C25-75-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C25-75-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2C25-100-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2C25-100-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C25-100-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2C25-125-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2C25-125-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C25-125-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2C25-150-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2C25-150-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C25-150-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2C25-200-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2C25-200-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C25-200-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2C25-250-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2C25-250-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C25-250-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2C25-300-E		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2C25-300-P		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2C25-300-D		Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2D20-25-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2D20-25-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D20-25-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2D20-50-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2D20-50-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D20-50-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2D20-75-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2D20-75-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D20-75-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2D20-100-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2D20-100-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D20-100-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2D20-125-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2D20-125-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D20-125-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2D20-150-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2D20-150-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D20-150-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2D20-200-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2D20-200-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D20-200-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2D20-250-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2D20-250-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D20-250-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2D20-300-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2D20-300-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D20-300-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2D25-25-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2D25-25-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D25-25-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2D25-50-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2D25-50-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D25-50-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2D25-75-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2D25-75-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D25-75-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2D25-100-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2D25-100-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D25-100-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2D25-125-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2D25-125-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D25-125-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2D25-150-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2D25-150-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D25-150-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2D25-200-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2D25-200-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D25-200-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2D25-250-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2D25-250-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D25-250-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2D25-300-E		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2D25-300-P		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2D25-300-D		Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2T20-25-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2T20-25-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T20-25-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2T20-50-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2T20-50-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T20-50-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2T20-75-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2T20-75-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T20-75-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2T20-100-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2T20-100-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T20-100-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2T20-125-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2T20-125-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T20-125-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2T20-150-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2T20-150-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T20-150-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2T20-200-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2T20-200-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T20-200-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2T20-250-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2T20-250-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T20-250-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2T20-300-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2T20-300-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T20-300-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2T25-25-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2T25-25-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T25-25-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2T25-50-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2T25-50-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T25-50-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2T25-75-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2T25-75-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T25-75-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2T25-100-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2T25-100-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T25-100-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2T25-125-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2T25-125-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T25-125-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2T25-150-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2T25-150-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T25-150-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2T25-200-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2T25-200-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T25-200-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2T25-250-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2T25-250-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T25-250-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2T25-300-E		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2T25-300-P		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2T25-300-D		Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2E20-25-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2E20-25-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E20-25-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2E20-50-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2E20-50-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E20-50-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2E20-75-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2E20-75-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E20-75-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2E20-100-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2E20-100-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E20-100-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2E20-125-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2E20-125-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E20-125-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2E20-150-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2E20-150-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E20-150-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2E20-200-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2E20-200-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E20-200-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2E20-250-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2E20-250-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E20-250-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2E20-300-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2E20-300-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E20-300-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2E25-25-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2E25-25-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E25-25-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2E25-50-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2E25-50-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E25-50-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2E25-75-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2E25-75-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E25-75-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2E25-100-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2E25-100-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E25-100-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2E25-125-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2E25-125-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E25-125-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2E25-150-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2E25-150-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E25-150-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2E25-200-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2E25-200-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E25-200-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2E25-250-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2E25-250-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E25-250-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2E25-300-E		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2E25-300-P		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2E25-300-D		Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2BZ20-25-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ20-25-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ20-25-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2BZ20-50-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ20-50-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ20-50-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2BZ20-75-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ20-75-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ20-75-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2BZ20-100-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ20-100-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ20-100-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2BZ20-125-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ20-125-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ20-125-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2BZ20-150-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ20-150-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ20-150-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2BZ20-200-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ20-200-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ20-200-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2BZ20-250-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ20-250-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ20-250-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2BZ20-300-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ20-300-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ20-300-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2BZ25-25-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ25-25-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ25-25-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2BZ25-50-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ25-50-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ25-50-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2BZ25-75-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ25-75-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ25-75-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2BZ25-100-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ25-100-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ25-100-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2BZ25-125-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ25-125-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ25-125-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2BZ25-150-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ25-150-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ25-150-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2BZ25-200-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ25-200-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ25-200-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2BZ25-250-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ25-250-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ25-250-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2BZ25-300-E		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2BZ25-300-P		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2BZ25-300-D		Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2FZ20-25-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ20-25-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ20-25-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2FZ20-50-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ20-50-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ20-50-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2FZ20-75-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ20-75-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ20-75-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2FZ20-100-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ20-100-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ20-100-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2FZ20-125-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ20-125-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ20-125-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2FZ20-150-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ20-150-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ20-150-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2FZ20-200-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ20-200-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ20-200-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2FZ20-250-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ20-250-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ20-250-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2FZ20-300-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ20-300-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ20-300-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CLM2FZ25-25-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ25-25-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ25-25-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CLM2FZ25-50-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ25-50-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ25-50-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CLM2FZ25-75-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ25-75-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ25-75-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CLM2FZ25-100-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ25-100-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ25-100-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CLM2FZ25-125-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ25-125-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ25-125-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CLM2FZ25-150-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ25-150-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ25-150-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CLM2FZ25-200-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ25-200-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ25-200-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CLM2FZ25-250-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ25-250-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ25-250-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CLM2FZ25-300-E		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CLM2FZ25-300-P		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CLM2FZ25-300-D		Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2B20-25-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2B20-25-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B20-25-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2B20-50-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2B20-50-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B20-50-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2B20-75-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2B20-75-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B20-75-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2B20-100-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2B20-100-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B20-100-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2B20-125-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2B20-125-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B20-125-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2B20-150-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2B20-150-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B20-150-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2B20-200-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2B20-200-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B20-200-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2B20-250-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2B20-250-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B20-250-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2B20-300-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2B20-300-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B20-300-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2B25-25-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2B25-25-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B25-25-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2B25-50-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2B25-50-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B25-50-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2B25-75-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2B25-75-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B25-75-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2B25-100-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2B25-100-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B25-100-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2B25-125-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2B25-125-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B25-125-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2B25-150-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2B25-150-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B25-150-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2B25-200-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2B25-200-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B25-200-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2B25-250-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2B25-250-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B25-250-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2B25-300-E		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2B25-300-P		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2B25-300-D		Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2L20-25-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2L20-25-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L20-25-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2L20-50-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2L20-50-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L20-50-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2L20-75-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2L20-75-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L20-75-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2L20-100-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2L20-100-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L20-100-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2L20-125-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2L20-125-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L20-125-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2L20-150-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2L20-150-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L20-150-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2L20-200-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2L20-200-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L20-200-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2L20-250-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2L20-250-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L20-250-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2L20-300-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2L20-300-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L20-300-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2L25-25-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2L25-25-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L25-25-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2L25-50-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2L25-50-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L25-50-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2L25-75-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2L25-75-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L25-75-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2L25-100-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2L25-100-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L25-100-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2L25-125-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2L25-125-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L25-125-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2L25-150-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2L25-150-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L25-150-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2L25-200-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2L25-200-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L25-200-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2L25-250-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2L25-250-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L25-250-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2L25-300-E		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2L25-300-P		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2L25-300-D		Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2F20-25-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2F20-25-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F20-25-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2F20-50-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2F20-50-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F20-50-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2F20-75-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2F20-75-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F20-75-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2F20-100-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2F20-100-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F20-100-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2F20-125-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2F20-125-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F20-125-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2F20-150-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2F20-150-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F20-150-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2F20-200-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2F20-200-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F20-200-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2F20-250-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2F20-250-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F20-250-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2F20-300-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2F20-300-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F20-300-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2F25-25-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2F25-25-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F25-25-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2F25-50-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2F25-50-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F25-50-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2F25-75-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2F25-75-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F25-75-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2F25-100-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2F25-100-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F25-100-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2F25-125-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2F25-125-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F25-125-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2F25-150-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2F25-150-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F25-150-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2F25-200-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2F25-200-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F25-200-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2F25-250-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2F25-250-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F25-250-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2F25-300-E		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2F25-300-P		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2F25-300-D		Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2G20-25-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2G20-25-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G20-25-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2G20-50-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2G20-50-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G20-50-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2G20-75-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2G20-75-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G20-75-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2G20-100-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2G20-100-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G20-100-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2G20-125-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2G20-125-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G20-125-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2G20-150-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2G20-150-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G20-150-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2G20-200-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2G20-200-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G20-200-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2G20-250-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2G20-250-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G20-250-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2G20-300-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2G20-300-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G20-300-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2G25-25-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2G25-25-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G25-25-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2G25-50-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2G25-50-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G25-50-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2G25-75-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2G25-75-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G25-75-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2G25-100-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2G25-100-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G25-100-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2G25-125-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2G25-125-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G25-125-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2G25-150-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2G25-150-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G25-150-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2G25-200-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2G25-200-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G25-200-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2G25-250-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2G25-250-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G25-250-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2G25-300-E		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2G25-300-P		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2G25-300-D		Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2C20-25-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2C20-25-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C20-25-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2C20-50-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2C20-50-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C20-50-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2C20-75-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2C20-75-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C20-75-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2C20-100-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2C20-100-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C20-100-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2C20-125-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2C20-125-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C20-125-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2C20-150-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2C20-150-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C20-150-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2C20-200-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2C20-200-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C20-200-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2C20-250-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2C20-250-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C20-250-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2C20-300-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2C20-300-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C20-300-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2C25-25-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2C25-25-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C25-25-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2C25-50-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2C25-50-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C25-50-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2C25-75-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2C25-75-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C25-75-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2C25-100-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2C25-100-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C25-100-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2C25-125-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2C25-125-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C25-125-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2C25-150-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2C25-150-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C25-150-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2C25-200-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2C25-200-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C25-200-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2C25-250-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2C25-250-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C25-250-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2C25-300-E		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2C25-300-P		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2C25-300-D		Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2D20-25-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2D20-25-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D20-25-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2D20-50-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2D20-50-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D20-50-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2D20-75-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2D20-75-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D20-75-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2D20-100-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2D20-100-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D20-100-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2D20-125-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2D20-125-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D20-125-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2D20-150-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2D20-150-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D20-150-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2D20-200-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2D20-200-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D20-200-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2D20-250-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2D20-250-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D20-250-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2D20-300-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2D20-300-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D20-300-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2D25-25-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2D25-25-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D25-25-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2D25-50-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2D25-50-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D25-50-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2D25-75-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2D25-75-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D25-75-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2D25-100-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2D25-100-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D25-100-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2D25-125-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2D25-125-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D25-125-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2D25-150-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2D25-150-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D25-150-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2D25-200-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2D25-200-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D25-200-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2D25-250-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2D25-250-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D25-250-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2D25-300-E		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2D25-300-P		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2D25-300-D		Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2T20-25-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2T20-25-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T20-25-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2T20-50-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2T20-50-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T20-50-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2T20-75-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2T20-75-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T20-75-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2T20-100-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2T20-100-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T20-100-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2T20-125-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2T20-125-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T20-125-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2T20-150-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2T20-150-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T20-150-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2T20-200-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2T20-200-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T20-200-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2T20-250-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2T20-250-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T20-250-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2T20-300-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2T20-300-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T20-300-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2T25-25-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2T25-25-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T25-25-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2T25-50-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2T25-50-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T25-50-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2T25-75-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2T25-75-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T25-75-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2T25-100-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2T25-100-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T25-100-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2T25-125-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2T25-125-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T25-125-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2T25-150-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2T25-150-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T25-150-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2T25-200-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2T25-200-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T25-200-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2T25-250-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2T25-250-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T25-250-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2T25-300-E		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2T25-300-P		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2T25-300-D		Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2E20-25-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2E20-25-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E20-25-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2E20-50-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2E20-50-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E20-50-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2E20-75-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2E20-75-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E20-75-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2E20-100-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2E20-100-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E20-100-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2E20-125-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2E20-125-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E20-125-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2E20-150-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2E20-150-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E20-150-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2E20-200-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2E20-200-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E20-200-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2E20-250-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2E20-250-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E20-250-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2E20-300-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2E20-300-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E20-300-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2E25-25-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2E25-25-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E25-25-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2E25-50-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2E25-50-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E25-50-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2E25-75-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2E25-75-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E25-75-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2E25-100-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2E25-100-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E25-100-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2E25-125-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2E25-125-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E25-125-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2E25-150-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2E25-150-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E25-150-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2E25-200-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2E25-200-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E25-200-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2E25-250-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2E25-250-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E25-250-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2E25-300-E		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2E25-300-P		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2E25-300-D		Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2BZ20-25-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ20-25-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ20-25-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2BZ20-50-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ20-50-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ20-50-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2BZ20-75-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ20-75-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ20-75-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2BZ20-100-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ20-100-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ20-100-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2BZ20-125-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ20-125-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ20-125-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2BZ20-150-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ20-150-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ20-150-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2BZ20-200-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ20-200-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ20-200-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2BZ20-250-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ20-250-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ20-250-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2BZ20-300-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ20-300-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ20-300-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2BZ25-25-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ25-25-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ25-25-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2BZ25-50-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ25-50-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ25-50-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2BZ25-75-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ25-75-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ25-75-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2BZ25-100-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ25-100-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ25-100-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2BZ25-125-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ25-125-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ25-125-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2BZ25-150-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ25-150-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ25-150-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2BZ25-200-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ25-200-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ25-200-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2BZ25-250-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ25-250-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ25-250-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2BZ25-300-E		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2BZ25-300-P		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2BZ25-300-D		Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2FZ20-25-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ20-25-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ20-25-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2FZ20-50-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ20-50-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ20-50-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2FZ20-75-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ20-75-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ20-75-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2FZ20-100-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ20-100-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ20-100-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2FZ20-125-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ20-125-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ20-125-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2FZ20-150-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ20-150-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ20-150-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2FZ20-200-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ20-200-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ20-200-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2FZ20-250-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ20-250-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ20-250-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2FZ20-300-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ20-300-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ20-300-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
CDLM2FZ25-25-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ25-25-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ25-25-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
CDLM2FZ25-50-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ25-50-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ25-50-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
CDLM2FZ25-75-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ25-75-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ25-75-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
CDLM2FZ25-100-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ25-100-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ25-100-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
CDLM2FZ25-125-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ25-125-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ25-125-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
CDLM2FZ25-150-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ25-150-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ25-150-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
CDLM2FZ25-200-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ25-200-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ25-200-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
CDLM2FZ25-250-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ25-250-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ25-250-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
CDLM2FZ25-300-E		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
CDLM2FZ25-300-P		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
CDLM2FZ25-300-D		Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock

Round Body CylindersSMC

1080 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CLM2 Fine Lock Cylinder (Bore 20/25 mm, Air Type)

Brand SMC·Round Body Cylinders

Available part numbers (1080)

CLM2B20-25-E, CLM2B20-25-P, CLM2B20-25-D, CLM2B20-50-E, CLM2B20-50-P, CLM2B20-50-D, CLM2B20-75-E, CLM2B20-75-P, CLM2B20-75-D, CLM2B20-100-E + 1070 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CLM2B20-25-E	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2B20-25-P	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B20-25-D	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2B20-50-E	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2B20-50-P	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B20-50-D	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2B20-75-E	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2B20-75-P	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B20-75-D	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2B20-100-E	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2B20-100-P	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B20-100-D	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2B20-125-E	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2B20-125-P	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B20-125-D	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2B20-150-E	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2B20-150-P	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B20-150-D	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2B20-200-E	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2B20-200-P	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B20-200-D	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2B20-250-E	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2B20-250-P	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B20-250-D	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2B20-300-E	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2B20-300-P	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B20-300-D	Magnet: No magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2B25-25-E	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2B25-25-P	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B25-25-D	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2B25-50-E	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2B25-50-P	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B25-50-D	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2B25-75-E	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2B25-75-P	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B25-75-D	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2B25-100-E	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2B25-100-P	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B25-100-D	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2B25-125-E	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2B25-125-P	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B25-125-D	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2B25-150-E	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2B25-150-P	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B25-150-D	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2B25-200-E	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2B25-200-P	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B25-200-D	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2B25-250-E	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2B25-250-P	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B25-250-D	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2B25-300-E	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2B25-300-P	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2B25-300-D	Magnet: No magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2L20-25-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2L20-25-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L20-25-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2L20-50-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2L20-50-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L20-50-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2L20-75-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2L20-75-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L20-75-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2L20-100-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2L20-100-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L20-100-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2L20-125-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2L20-125-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L20-125-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2L20-150-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2L20-150-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L20-150-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2L20-200-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2L20-200-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L20-200-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2L20-250-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2L20-250-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L20-250-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2L20-300-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2L20-300-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L20-300-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2L25-25-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2L25-25-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L25-25-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2L25-50-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2L25-50-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L25-50-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2L25-75-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2L25-75-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L25-75-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2L25-100-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2L25-100-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L25-100-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2L25-125-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2L25-125-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L25-125-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2L25-150-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2L25-150-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L25-150-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2L25-200-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2L25-200-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L25-200-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2L25-250-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2L25-250-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L25-250-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2L25-300-E	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2L25-300-P	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2L25-300-D	Magnet: No magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2F20-25-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2F20-25-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F20-25-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2F20-50-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2F20-50-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F20-50-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2F20-75-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2F20-75-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F20-75-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2F20-100-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2F20-100-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F20-100-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2F20-125-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2F20-125-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F20-125-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2F20-150-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2F20-150-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F20-150-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2F20-200-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2F20-200-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F20-200-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2F20-250-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2F20-250-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F20-250-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2F20-300-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2F20-300-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F20-300-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2F25-25-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2F25-25-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F25-25-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2F25-50-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2F25-50-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F25-50-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2F25-75-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2F25-75-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F25-75-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2F25-100-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2F25-100-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F25-100-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2F25-125-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2F25-125-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F25-125-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2F25-150-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2F25-150-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F25-150-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2F25-200-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2F25-200-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F25-200-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2F25-250-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2F25-250-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F25-250-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2F25-300-E	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2F25-300-P	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2F25-300-D	Magnet: No magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2G20-25-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2G20-25-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G20-25-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2G20-50-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2G20-50-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G20-50-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2G20-75-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2G20-75-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G20-75-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2G20-100-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2G20-100-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G20-100-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2G20-125-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2G20-125-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G20-125-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2G20-150-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2G20-150-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G20-150-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2G20-200-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2G20-200-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G20-200-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2G20-250-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2G20-250-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G20-250-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2G20-300-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2G20-300-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G20-300-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2G25-25-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2G25-25-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G25-25-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2G25-50-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2G25-50-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G25-50-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2G25-75-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2G25-75-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G25-75-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2G25-100-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2G25-100-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G25-100-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2G25-125-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2G25-125-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G25-125-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2G25-150-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2G25-150-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G25-150-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2G25-200-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2G25-200-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G25-200-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2G25-250-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2G25-250-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G25-250-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2G25-300-E	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2G25-300-P	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2G25-300-D	Magnet: No magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2C20-25-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2C20-25-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C20-25-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2C20-50-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2C20-50-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C20-50-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2C20-75-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2C20-75-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C20-75-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2C20-100-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2C20-100-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C20-100-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2C20-125-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2C20-125-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C20-125-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2C20-150-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2C20-150-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C20-150-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2C20-200-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2C20-200-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C20-200-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2C20-250-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2C20-250-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C20-250-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2C20-300-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2C20-300-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C20-300-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2C25-25-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2C25-25-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C25-25-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2C25-50-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2C25-50-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C25-50-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2C25-75-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2C25-75-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C25-75-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2C25-100-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2C25-100-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C25-100-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2C25-125-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2C25-125-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C25-125-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2C25-150-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2C25-150-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C25-150-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2C25-200-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2C25-200-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C25-200-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2C25-250-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2C25-250-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C25-250-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2C25-300-E	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2C25-300-P	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2C25-300-D	Magnet: No magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2D20-25-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2D20-25-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D20-25-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2D20-50-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2D20-50-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D20-50-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2D20-75-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2D20-75-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D20-75-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2D20-100-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2D20-100-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D20-100-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2D20-125-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2D20-125-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D20-125-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2D20-150-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2D20-150-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D20-150-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2D20-200-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2D20-200-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D20-200-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2D20-250-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2D20-250-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D20-250-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2D20-300-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2D20-300-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D20-300-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2D25-25-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2D25-25-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D25-25-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2D25-50-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2D25-50-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D25-50-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2D25-75-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2D25-75-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D25-75-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2D25-100-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2D25-100-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D25-100-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2D25-125-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2D25-125-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D25-125-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2D25-150-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2D25-150-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D25-150-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2D25-200-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2D25-200-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D25-200-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2D25-250-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2D25-250-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D25-250-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2D25-300-E	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2D25-300-P	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2D25-300-D	Magnet: No magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2T20-25-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2T20-25-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T20-25-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2T20-50-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2T20-50-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T20-50-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2T20-75-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2T20-75-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T20-75-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2T20-100-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2T20-100-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T20-100-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2T20-125-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2T20-125-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T20-125-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2T20-150-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2T20-150-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T20-150-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2T20-200-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2T20-200-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T20-200-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2T20-250-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2T20-250-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T20-250-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2T20-300-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2T20-300-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T20-300-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2T25-25-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2T25-25-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T25-25-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2T25-50-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2T25-50-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T25-50-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2T25-75-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2T25-75-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T25-75-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2T25-100-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2T25-100-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T25-100-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2T25-125-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2T25-125-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T25-125-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2T25-150-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2T25-150-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T25-150-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2T25-200-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2T25-200-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T25-200-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2T25-250-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2T25-250-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T25-250-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2T25-300-E	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2T25-300-P	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2T25-300-D	Magnet: No magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2E20-25-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2E20-25-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E20-25-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2E20-50-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2E20-50-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E20-50-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2E20-75-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2E20-75-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E20-75-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2E20-100-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2E20-100-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E20-100-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2E20-125-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2E20-125-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E20-125-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2E20-150-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2E20-150-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E20-150-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2E20-200-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2E20-200-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E20-200-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2E20-250-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2E20-250-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E20-250-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2E20-300-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2E20-300-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E20-300-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2E25-25-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2E25-25-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E25-25-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2E25-50-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2E25-50-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E25-50-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2E25-75-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2E25-75-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E25-75-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2E25-100-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2E25-100-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E25-100-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2E25-125-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2E25-125-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E25-125-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2E25-150-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2E25-150-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E25-150-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2E25-200-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2E25-200-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E25-200-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2E25-250-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2E25-250-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E25-250-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2E25-300-E	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2E25-300-P	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2E25-300-D	Magnet: No magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2BZ20-25-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ20-25-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ20-25-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2BZ20-50-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ20-50-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ20-50-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2BZ20-75-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ20-75-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ20-75-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2BZ20-100-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ20-100-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ20-100-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2BZ20-125-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ20-125-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ20-125-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2BZ20-150-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ20-150-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ20-150-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2BZ20-200-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ20-200-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ20-200-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2BZ20-250-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ20-250-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ20-250-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2BZ20-300-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ20-300-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ20-300-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2BZ25-25-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ25-25-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ25-25-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2BZ25-50-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ25-50-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ25-50-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2BZ25-75-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ25-75-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ25-75-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2BZ25-100-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ25-100-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ25-100-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2BZ25-125-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ25-125-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ25-125-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2BZ25-150-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ25-150-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ25-150-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2BZ25-200-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ25-200-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ25-200-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2BZ25-250-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ25-250-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ25-250-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2BZ25-300-E	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2BZ25-300-P	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2BZ25-300-D	Magnet: No magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2FZ20-25-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ20-25-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ20-25-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2FZ20-50-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ20-50-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ20-50-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2FZ20-75-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ20-75-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ20-75-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2FZ20-100-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ20-100-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ20-100-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2FZ20-125-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ20-125-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ20-125-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2FZ20-150-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ20-150-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ20-150-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2FZ20-200-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ20-200-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ20-200-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2FZ20-250-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ20-250-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ20-250-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2FZ20-300-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ20-300-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ20-300-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CLM2FZ25-25-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ25-25-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ25-25-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CLM2FZ25-50-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ25-50-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ25-50-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CLM2FZ25-75-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ25-75-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ25-75-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CLM2FZ25-100-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ25-100-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ25-100-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CLM2FZ25-125-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ25-125-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ25-125-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CLM2FZ25-150-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ25-150-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ25-150-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CLM2FZ25-200-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ25-200-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ25-200-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CLM2FZ25-250-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ25-250-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ25-250-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CLM2FZ25-300-E	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CLM2FZ25-300-P	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CLM2FZ25-300-D	Magnet: No magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2B20-25-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B20-25-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B20-25-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2B20-50-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B20-50-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B20-50-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2B20-75-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B20-75-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B20-75-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2B20-100-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B20-100-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B20-100-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2B20-125-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B20-125-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B20-125-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2B20-150-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B20-150-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B20-150-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2B20-200-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B20-200-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B20-200-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2B20-250-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B20-250-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B20-250-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2B20-300-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B20-300-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B20-300-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2B25-25-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B25-25-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B25-25-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2B25-50-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B25-50-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B25-50-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2B25-75-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B25-75-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B25-75-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2B25-100-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B25-100-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B25-100-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2B25-125-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B25-125-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B25-125-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2B25-150-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B25-150-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B25-150-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2B25-200-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B25-200-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B25-200-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2B25-250-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B25-250-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B25-250-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2B25-300-E	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2B25-300-P	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2B25-300-D	Magnet: Built-in magnet \| Mounting: Basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2L20-25-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L20-25-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L20-25-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2L20-50-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L20-50-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L20-50-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2L20-75-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L20-75-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L20-75-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2L20-100-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L20-100-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L20-100-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2L20-125-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L20-125-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L20-125-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2L20-150-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L20-150-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L20-150-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2L20-200-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L20-200-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L20-200-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2L20-250-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L20-250-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L20-250-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2L20-300-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L20-300-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L20-300-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2L25-25-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L25-25-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L25-25-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2L25-50-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L25-50-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L25-50-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2L25-75-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L25-75-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L25-75-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2L25-100-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L25-100-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L25-100-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2L25-125-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L25-125-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L25-125-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2L25-150-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L25-150-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L25-150-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2L25-200-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L25-200-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L25-200-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2L25-250-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L25-250-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L25-250-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2L25-300-E	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2L25-300-P	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2L25-300-D	Magnet: Built-in magnet \| Mounting: Axial foot \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2F20-25-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F20-25-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F20-25-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2F20-50-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F20-50-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F20-50-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2F20-75-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F20-75-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F20-75-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2F20-100-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F20-100-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F20-100-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2F20-125-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F20-125-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F20-125-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2F20-150-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F20-150-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F20-150-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2F20-200-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F20-200-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F20-200-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2F20-250-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F20-250-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F20-250-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2F20-300-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F20-300-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F20-300-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2F25-25-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F25-25-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F25-25-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2F25-50-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F25-50-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F25-50-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2F25-75-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F25-75-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F25-75-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2F25-100-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F25-100-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F25-100-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2F25-125-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F25-125-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F25-125-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2F25-150-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F25-150-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F25-150-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2F25-200-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F25-200-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F25-200-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2F25-250-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F25-250-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F25-250-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2F25-300-E	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2F25-300-P	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2F25-300-D	Magnet: Built-in magnet \| Mounting: Rod flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2G20-25-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G20-25-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G20-25-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2G20-50-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G20-50-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G20-50-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2G20-75-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G20-75-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G20-75-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2G20-100-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G20-100-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G20-100-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2G20-125-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G20-125-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G20-125-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2G20-150-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G20-150-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G20-150-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2G20-200-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G20-200-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G20-200-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2G20-250-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G20-250-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G20-250-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2G20-300-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G20-300-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G20-300-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2G25-25-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G25-25-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G25-25-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2G25-50-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G25-50-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G25-50-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2G25-75-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G25-75-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G25-75-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2G25-100-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G25-100-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G25-100-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2G25-125-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G25-125-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G25-125-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2G25-150-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G25-150-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G25-150-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2G25-200-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G25-200-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G25-200-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2G25-250-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G25-250-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G25-250-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2G25-300-E	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2G25-300-P	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2G25-300-D	Magnet: Built-in magnet \| Mounting: Head flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2C20-25-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C20-25-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C20-25-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2C20-50-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C20-50-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C20-50-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2C20-75-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C20-75-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C20-75-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2C20-100-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C20-100-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C20-100-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2C20-125-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C20-125-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C20-125-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2C20-150-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C20-150-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C20-150-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2C20-200-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C20-200-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C20-200-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2C20-250-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C20-250-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C20-250-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2C20-300-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C20-300-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C20-300-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2C25-25-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C25-25-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C25-25-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2C25-50-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C25-50-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C25-50-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2C25-75-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C25-75-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C25-75-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2C25-100-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C25-100-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C25-100-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2C25-125-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C25-125-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C25-125-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2C25-150-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C25-150-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C25-150-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2C25-200-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C25-200-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C25-200-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2C25-250-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C25-250-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C25-250-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2C25-300-E	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2C25-300-P	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2C25-300-D	Magnet: Built-in magnet \| Mounting: Single clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2D20-25-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D20-25-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D20-25-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2D20-50-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D20-50-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D20-50-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2D20-75-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D20-75-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D20-75-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2D20-100-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D20-100-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D20-100-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2D20-125-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D20-125-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D20-125-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2D20-150-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D20-150-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D20-150-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2D20-200-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D20-200-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D20-200-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2D20-250-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D20-250-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D20-250-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2D20-300-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D20-300-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D20-300-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2D25-25-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D25-25-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D25-25-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2D25-50-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D25-50-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D25-50-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2D25-75-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D25-75-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D25-75-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2D25-100-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D25-100-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D25-100-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2D25-125-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D25-125-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D25-125-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2D25-150-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D25-150-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D25-150-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2D25-200-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D25-200-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D25-200-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2D25-250-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D25-250-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D25-250-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2D25-300-E	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2D25-300-P	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2D25-300-D	Magnet: Built-in magnet \| Mounting: Double clevis \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2T20-25-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T20-25-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T20-25-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2T20-50-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T20-50-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T20-50-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2T20-75-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T20-75-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T20-75-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2T20-100-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T20-100-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T20-100-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2T20-125-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T20-125-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T20-125-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2T20-150-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T20-150-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T20-150-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2T20-200-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T20-200-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T20-200-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2T20-250-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T20-250-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T20-250-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2T20-300-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T20-300-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T20-300-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2T25-25-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T25-25-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T25-25-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2T25-50-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T25-50-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T25-50-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2T25-75-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T25-75-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T25-75-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2T25-100-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T25-100-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T25-100-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2T25-125-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T25-125-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T25-125-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2T25-150-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T25-150-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T25-150-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2T25-200-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T25-200-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T25-200-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2T25-250-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T25-250-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T25-250-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2T25-300-E	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2T25-300-P	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2T25-300-D	Magnet: Built-in magnet \| Mounting: Head trunnion \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2E20-25-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E20-25-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E20-25-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2E20-50-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E20-50-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E20-50-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2E20-75-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E20-75-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E20-75-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2E20-100-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E20-100-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E20-100-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2E20-125-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E20-125-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E20-125-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2E20-150-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E20-150-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E20-150-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2E20-200-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E20-200-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E20-200-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2E20-250-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E20-250-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E20-250-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2E20-300-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E20-300-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E20-300-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2E25-25-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E25-25-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E25-25-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2E25-50-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E25-50-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E25-50-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2E25-75-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E25-75-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E25-75-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2E25-100-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E25-100-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E25-100-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2E25-125-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E25-125-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E25-125-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2E25-150-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E25-150-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E25-150-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2E25-200-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E25-200-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E25-200-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2E25-250-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E25-250-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E25-250-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2E25-300-E	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2E25-300-P	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2E25-300-D	Magnet: Built-in magnet \| Mounting: Clevis integrated \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ20-25-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ20-25-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ20-25-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ20-50-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ20-50-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ20-50-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ20-75-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ20-75-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ20-75-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ20-100-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ20-100-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ20-100-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ20-125-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ20-125-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ20-125-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ20-150-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ20-150-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ20-150-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ20-200-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ20-200-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ20-200-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ20-250-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ20-250-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ20-250-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ20-300-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ20-300-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ20-300-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ25-25-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ25-25-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ25-25-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ25-50-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ25-50-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ25-50-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ25-75-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ25-75-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ25-75-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ25-100-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ25-100-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ25-100-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ25-125-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ25-125-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ25-125-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ25-150-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ25-150-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ25-150-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ25-200-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ25-200-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ25-200-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ25-250-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ25-250-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ25-250-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2BZ25-300-E	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2BZ25-300-P	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2BZ25-300-D	Magnet: Built-in magnet \| Mounting: Boss-cut basic \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ20-25-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ20-25-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ20-25-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ20-50-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ20-50-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ20-50-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ20-75-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ20-75-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ20-75-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ20-100-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ20-100-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ20-100-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ20-125-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ20-125-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ20-125-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ20-150-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ20-150-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ20-150-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ20-200-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ20-200-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ20-200-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ20-250-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ20-250-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ20-250-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ20-300-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ20-300-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ20-300-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 20 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ25-25-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ25-25-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ25-25-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 25 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ25-50-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ25-50-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ25-50-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 50 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ25-75-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ25-75-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ25-75-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 75 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ25-100-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ25-100-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ25-100-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 100 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ25-125-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ25-125-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ25-125-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 125 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ25-150-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ25-150-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ25-150-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 150 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ25-200-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ25-200-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ25-200-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 200 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ25-250-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ25-250-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ25-250-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 250 mm \| Lock: Spring and pneumatic lock
	CDLM2FZ25-300-E	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring lock (exhaust lock)
	CDLM2FZ25-300-P	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Pneumatic lock (pressure lock)
	CDLM2FZ25-300-D	Magnet: Built-in magnet \| Mounting: Boss-cut flange \| Bore: 25 mm \| Stroke: 300 mm \| Lock: Spring and pneumatic lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CLM2 Fine Lock Cylinder (Bore 20/25 mm, Air Type)
