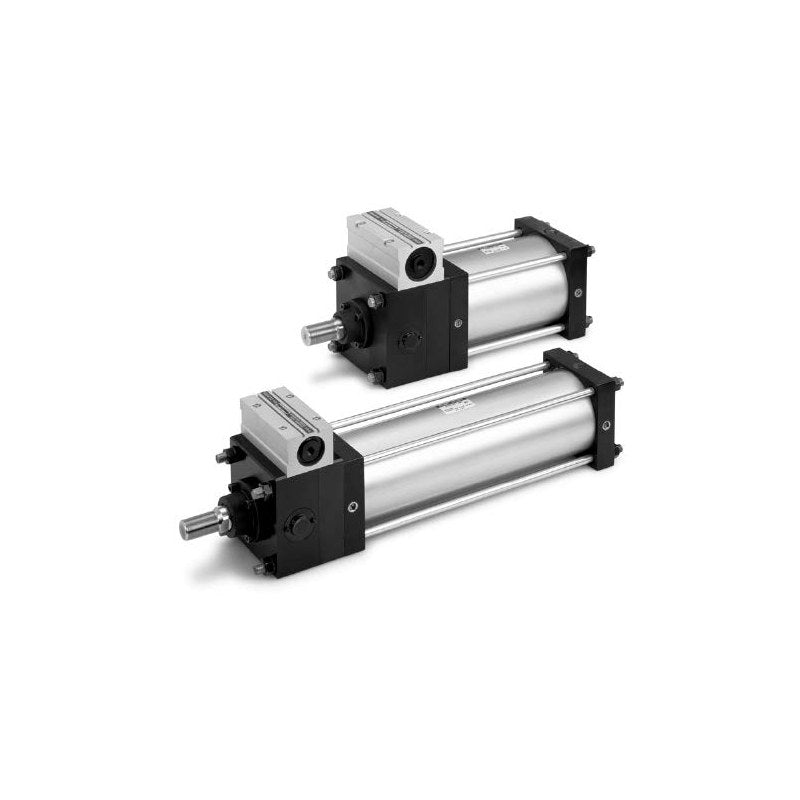

SMC CLS Cylinder with Lock (Tie-rod, ø125 to ø250)

SMC CLS series double acting, single rod tie-rod cylinder with a spring (exhaust) lock unit, ø125 to ø250 mm bore, for intermediate stops, emergency stops and drop prevention.

Key features

Spring lock (exhaust lock) holds the rod in both directions when air is cut off; manual lock release with a release bolt
Mounting styles: basic (B), foot (L), rod/head flange (F/G), single/double clevis (C/D) and center trunnion (T)
CDLS models have a built-in magnet for cylinder auto switches (D-M9, D-A9, D-F5, D-A5 etc., ordered as suffix); lock monitor magnet (D) and lock-unit switches available
Air cushion on both ends standard; cushion N/R/H, bellows J/K, NPT (TN) and G (TF) ports and steel tube (F) available as options
Stopping accuracy ±0.5 mm at 100 mm/s, ±1.0 mm at 300 mm/s, ±2.0 mm at 500 mm/s (horizontal, 0.5 MPa)
Made-to-order: rod end change (-XA), special port position (-XC3), trunnion position change (-XC14), coil scraper (-XC35)

Specifications

Action	Double acting, single rod, with spring lock
Fluid	Air
Proof pressure	1.57 MPa (ø180/200 with switch 1.2 MPa)
Max. operating pressure	0.97 MPa (ø180/200 with switch 0.7 MPa)
Min. operating pressure	0.08 MPa
Piston speed	50 to 500 mm/s
Ambient and fluid temperature	0 to 70°C without switch, 0 to 60°C with switch (no freezing)
Lubrication	Not required (non-lube)
Cushion	Air cushion
Lock release pressure	0.25 MPa or more (lock starts at 0.20 MPa or less)
Holding force (max. static load)	ø125 8.4, ø140 10.5, ø160 13.8, ø180 17.4, ø200 21.5, ø250 33.6 kN
Source	SMC Korea catalog CLS (SMCKR_CLS.pdf), p. 824-825, 828 (PDF p. 6-7, 10)

CLSB125-100		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB125-150		Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB125-200		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB125-250		Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB125-300		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB125-350		Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB125-400		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB125-450		Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB125-500		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB125-600		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB125-700		Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB125-800		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-100		Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-150		Mounting: Basic \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-200		Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-250		Mounting: Basic \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-300		Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-350		Mounting: Basic \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-400		Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-450		Mounting: Basic \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-500		Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-600		Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-700		Mounting: Basic \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB140-800		Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSB160-100		Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB160-150		Mounting: Basic \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB160-200		Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB160-250		Mounting: Basic \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB160-300		Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB160-350		Mounting: Basic \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB160-400		Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB160-450		Mounting: Basic \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB160-500		Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB160-600		Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB160-700		Mounting: Basic \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB160-800		Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-100		Mounting: Basic \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-150		Mounting: Basic \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-200		Mounting: Basic \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-250		Mounting: Basic \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-300		Mounting: Basic \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-350		Mounting: Basic \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-400		Mounting: Basic \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-450		Mounting: Basic \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-500		Mounting: Basic \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-600		Mounting: Basic \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-700		Mounting: Basic \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB180-800		Mounting: Basic \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-100		Mounting: Basic \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-150		Mounting: Basic \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-200		Mounting: Basic \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-250		Mounting: Basic \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-300		Mounting: Basic \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-350		Mounting: Basic \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-400		Mounting: Basic \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-450		Mounting: Basic \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-500		Mounting: Basic \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-600		Mounting: Basic \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-700		Mounting: Basic \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB200-800		Mounting: Basic \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSB250-100		Mounting: Basic \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CLSB250-150		Mounting: Basic \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
CLSB250-200		Mounting: Basic \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CLSB250-250		Mounting: Basic \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
CLSB250-300		Mounting: Basic \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CLSB250-350		Mounting: Basic \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
CLSB250-400		Mounting: Basic \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CLSB250-450		Mounting: Basic \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
CLSB250-500		Mounting: Basic \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CLSB250-600		Mounting: Basic \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CLSB250-700		Mounting: Basic \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
CLSB250-800		Mounting: Basic \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CLSL125-100		Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL125-150		Mounting: Foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL125-200		Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL125-250		Mounting: Foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL125-300		Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL125-350		Mounting: Foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL125-400		Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL125-450		Mounting: Foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL125-500		Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL125-600		Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL125-700		Mounting: Foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL125-800		Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-100		Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-150		Mounting: Foot \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-200		Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-250		Mounting: Foot \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-300		Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-350		Mounting: Foot \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-400		Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-450		Mounting: Foot \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-500		Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-600		Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-700		Mounting: Foot \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL140-800		Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSL160-100		Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL160-150		Mounting: Foot \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL160-200		Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL160-250		Mounting: Foot \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL160-300		Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL160-350		Mounting: Foot \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL160-400		Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL160-450		Mounting: Foot \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL160-500		Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL160-600		Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL160-700		Mounting: Foot \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL160-800		Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-100		Mounting: Foot \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-150		Mounting: Foot \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-200		Mounting: Foot \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-250		Mounting: Foot \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-300		Mounting: Foot \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-350		Mounting: Foot \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-400		Mounting: Foot \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-450		Mounting: Foot \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-500		Mounting: Foot \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-600		Mounting: Foot \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-700		Mounting: Foot \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL180-800		Mounting: Foot \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-100		Mounting: Foot \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-150		Mounting: Foot \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-200		Mounting: Foot \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-250		Mounting: Foot \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-300		Mounting: Foot \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-350		Mounting: Foot \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-400		Mounting: Foot \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-450		Mounting: Foot \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-500		Mounting: Foot \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-600		Mounting: Foot \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-700		Mounting: Foot \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL200-800		Mounting: Foot \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSL250-100		Mounting: Foot \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CLSL250-150		Mounting: Foot \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
CLSL250-200		Mounting: Foot \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CLSL250-250		Mounting: Foot \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
CLSL250-300		Mounting: Foot \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CLSL250-350		Mounting: Foot \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
CLSL250-400		Mounting: Foot \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CLSL250-450		Mounting: Foot \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
CLSL250-500		Mounting: Foot \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CLSL250-600		Mounting: Foot \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CLSL250-700		Mounting: Foot \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
CLSL250-800		Mounting: Foot \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CLSF125-100		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF125-150		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF125-200		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF125-250		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF125-300		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF125-350		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF125-400		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF125-450		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF125-500		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF125-600		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF125-700		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF125-800		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-100		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-150		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-200		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-250		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-300		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-350		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-400		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-450		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-500		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-600		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-700		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF140-800		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSF160-100		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF160-150		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF160-200		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF160-250		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF160-300		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF160-350		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF160-400		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF160-450		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF160-500		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF160-600		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF160-700		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF160-800		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-100		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-150		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-200		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-250		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-300		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-350		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-400		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-450		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-500		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-600		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-700		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF180-800		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-100		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-150		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-200		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-250		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-300		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-350		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-400		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-450		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-500		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-600		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-700		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF200-800		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSF250-100		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CLSF250-150		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
CLSF250-200		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CLSF250-250		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
CLSF250-300		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CLSF250-350		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
CLSF250-400		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CLSF250-450		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
CLSF250-500		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CLSF250-600		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CLSF250-700		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
CLSF250-800		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CLSG125-100		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG125-150		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG125-200		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG125-250		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG125-300		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG125-350		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG125-400		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG125-450		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG125-500		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG125-600		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG125-700		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG125-800		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-100		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-150		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-200		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-250		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-300		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-350		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-400		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-450		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-500		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-600		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-700		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG140-800		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSG160-100		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG160-150		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG160-200		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG160-250		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG160-300		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG160-350		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG160-400		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG160-450		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG160-500		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG160-600		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG160-700		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG160-800		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-100		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-150		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-200		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-250		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-300		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-350		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-400		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-450		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-500		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-600		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-700		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG180-800		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-100		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-150		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-200		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-250		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-300		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-350		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-400		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-450		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-500		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-600		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-700		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG200-800		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSG250-100		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CLSG250-150		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
CLSG250-200		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CLSG250-250		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
CLSG250-300		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CLSG250-350		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
CLSG250-400		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CLSG250-450		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
CLSG250-500		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CLSG250-600		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CLSG250-700		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
CLSG250-800		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CLSC125-100		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC125-150		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC125-200		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC125-250		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC125-300		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC125-350		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC125-400		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC125-450		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC125-500		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC125-600		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC125-700		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC125-800		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-100		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-150		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-200		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-250		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-300		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-350		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-400		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-450		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-500		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-600		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-700		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC140-800		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSC160-100		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC160-150		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC160-200		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC160-250		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC160-300		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC160-350		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC160-400		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC160-450		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC160-500		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC160-600		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC160-700		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC160-800		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-100		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-150		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-200		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-250		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-300		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-350		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-400		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-450		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-500		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-600		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-700		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC180-800		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-100		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-150		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-200		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-250		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-300		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-350		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-400		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-450		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-500		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-600		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-700		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC200-800		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSC250-100		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CLSC250-150		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
CLSC250-200		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CLSC250-250		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
CLSC250-300		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CLSC250-350		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
CLSC250-400		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CLSC250-450		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
CLSC250-500		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CLSC250-600		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CLSC250-700		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
CLSC250-800		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CLSD125-100		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD125-150		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD125-200		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD125-250		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD125-300		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD125-350		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD125-400		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD125-450		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD125-500		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD125-600		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD125-700		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD125-800		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-100		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-150		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-200		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-250		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-300		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-350		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-400		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-450		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-500		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-600		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-700		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD140-800		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLSD160-100		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD160-150		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD160-200		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD160-250		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD160-300		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD160-350		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD160-400		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD160-450		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD160-500		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD160-600		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD160-700		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD160-800		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-100		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-150		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-200		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-250		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-300		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-350		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-400		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-450		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-500		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-600		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-700		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD180-800		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-100		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-150		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-200		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-250		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-300		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-350		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-400		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-450		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-500		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-600		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-700		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD200-800		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLSD250-100		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CLSD250-150		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
CLSD250-200		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CLSD250-250		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
CLSD250-300		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CLSD250-350		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
CLSD250-400		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CLSD250-450		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
CLSD250-500		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CLSD250-600		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CLSD250-700		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
CLSD250-800		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CLST125-100		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST125-150		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST125-200		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST125-250		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST125-300		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST125-350		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST125-400		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST125-450		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST125-500		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST125-600		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST125-700		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST125-800		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-100		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-150		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-200		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-250		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-300		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-350		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-400		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-450		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-500		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-600		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-700		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST140-800		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CLST160-100		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST160-150		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST160-200		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST160-250		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST160-300		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST160-350		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST160-400		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST160-450		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST160-500		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST160-600		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST160-700		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST160-800		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-100		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-150		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-200		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-250		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-300		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-350		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-400		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-450		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-500		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-600		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-700		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST180-800		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-100		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-150		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-200		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-250		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-300		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-350		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-400		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-450		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-500		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-600		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-700		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST200-800		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CLST250-100		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CLST250-150		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
CLST250-200		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CLST250-250		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
CLST250-300		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CLST250-350		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
CLST250-400		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CLST250-450		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
CLST250-500		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CLST250-600		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CLST250-700		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
CLST250-800		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CDLSB125-100		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB125-150		Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB125-200		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB125-250		Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB125-300		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB125-350		Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB125-400		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB125-450		Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB125-500		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB125-600		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB125-700		Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB125-800		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-100		Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-150		Mounting: Basic \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-200		Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-250		Mounting: Basic \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-300		Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-350		Mounting: Basic \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-400		Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-450		Mounting: Basic \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-500		Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-600		Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-700		Mounting: Basic \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB140-800		Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSB160-100		Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB160-150		Mounting: Basic \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB160-200		Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB160-250		Mounting: Basic \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB160-300		Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB160-350		Mounting: Basic \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB160-400		Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB160-450		Mounting: Basic \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB160-500		Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB160-600		Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB160-700		Mounting: Basic \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB160-800		Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-100		Mounting: Basic \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-150		Mounting: Basic \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-200		Mounting: Basic \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-250		Mounting: Basic \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-300		Mounting: Basic \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-350		Mounting: Basic \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-400		Mounting: Basic \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-450		Mounting: Basic \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-500		Mounting: Basic \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-600		Mounting: Basic \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-700		Mounting: Basic \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB180-800		Mounting: Basic \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-100		Mounting: Basic \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-150		Mounting: Basic \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-200		Mounting: Basic \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-250		Mounting: Basic \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-300		Mounting: Basic \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-350		Mounting: Basic \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-400		Mounting: Basic \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-450		Mounting: Basic \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-500		Mounting: Basic \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-600		Mounting: Basic \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-700		Mounting: Basic \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB200-800		Mounting: Basic \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSB250-100		Mounting: Basic \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSB250-150		Mounting: Basic \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSB250-200		Mounting: Basic \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSB250-250		Mounting: Basic \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSB250-300		Mounting: Basic \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSB250-350		Mounting: Basic \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSB250-400		Mounting: Basic \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSB250-450		Mounting: Basic \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSB250-500		Mounting: Basic \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSB250-600		Mounting: Basic \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSB250-700		Mounting: Basic \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSB250-800		Mounting: Basic \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL125-100		Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL125-150		Mounting: Foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL125-200		Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL125-250		Mounting: Foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL125-300		Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL125-350		Mounting: Foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL125-400		Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL125-450		Mounting: Foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL125-500		Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL125-600		Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL125-700		Mounting: Foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL125-800		Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-100		Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-150		Mounting: Foot \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-200		Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-250		Mounting: Foot \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-300		Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-350		Mounting: Foot \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-400		Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-450		Mounting: Foot \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-500		Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-600		Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-700		Mounting: Foot \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL140-800		Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSL160-100		Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL160-150		Mounting: Foot \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL160-200		Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL160-250		Mounting: Foot \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL160-300		Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL160-350		Mounting: Foot \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL160-400		Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL160-450		Mounting: Foot \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL160-500		Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL160-600		Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL160-700		Mounting: Foot \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL160-800		Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-100		Mounting: Foot \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-150		Mounting: Foot \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-200		Mounting: Foot \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-250		Mounting: Foot \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-300		Mounting: Foot \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-350		Mounting: Foot \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-400		Mounting: Foot \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-450		Mounting: Foot \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-500		Mounting: Foot \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-600		Mounting: Foot \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-700		Mounting: Foot \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL180-800		Mounting: Foot \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-100		Mounting: Foot \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-150		Mounting: Foot \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-200		Mounting: Foot \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-250		Mounting: Foot \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-300		Mounting: Foot \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-350		Mounting: Foot \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-400		Mounting: Foot \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-450		Mounting: Foot \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-500		Mounting: Foot \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-600		Mounting: Foot \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-700		Mounting: Foot \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL200-800		Mounting: Foot \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSL250-100		Mounting: Foot \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL250-150		Mounting: Foot \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL250-200		Mounting: Foot \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL250-250		Mounting: Foot \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL250-300		Mounting: Foot \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL250-350		Mounting: Foot \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL250-400		Mounting: Foot \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL250-450		Mounting: Foot \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL250-500		Mounting: Foot \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL250-600		Mounting: Foot \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL250-700		Mounting: Foot \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSL250-800		Mounting: Foot \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF125-100		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF125-150		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF125-200		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF125-250		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF125-300		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF125-350		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF125-400		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF125-450		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF125-500		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF125-600		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF125-700		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF125-800		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-100		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-150		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-200		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-250		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-300		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-350		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-400		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-450		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-500		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-600		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-700		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF140-800		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSF160-100		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF160-150		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF160-200		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF160-250		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF160-300		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF160-350		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF160-400		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF160-450		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF160-500		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF160-600		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF160-700		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF160-800		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-100		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-150		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-200		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-250		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-300		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-350		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-400		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-450		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-500		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-600		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-700		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF180-800		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-100		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-150		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-200		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-250		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-300		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-350		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-400		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-450		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-500		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-600		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-700		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF200-800		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSF250-100		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF250-150		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF250-200		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF250-250		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF250-300		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF250-350		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF250-400		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF250-450		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF250-500		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF250-600		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF250-700		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSF250-800		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG125-100		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG125-150		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG125-200		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG125-250		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG125-300		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG125-350		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG125-400		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG125-450		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG125-500		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG125-600		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG125-700		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG125-800		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-100		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-150		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-200		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-250		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-300		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-350		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-400		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-450		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-500		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-600		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-700		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG140-800		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSG160-100		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG160-150		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG160-200		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG160-250		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG160-300		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG160-350		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG160-400		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG160-450		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG160-500		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG160-600		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG160-700		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG160-800		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-100		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-150		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-200		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-250		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-300		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-350		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-400		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-450		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-500		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-600		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-700		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG180-800		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-100		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-150		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-200		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-250		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-300		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-350		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-400		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-450		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-500		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-600		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-700		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG200-800		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSG250-100		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG250-150		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG250-200		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG250-250		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG250-300		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG250-350		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG250-400		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG250-450		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG250-500		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG250-600		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG250-700		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSG250-800		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC125-100		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC125-150		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC125-200		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC125-250		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC125-300		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC125-350		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC125-400		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC125-450		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC125-500		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC125-600		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC125-700		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC125-800		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-100		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-150		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-200		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-250		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-300		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-350		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-400		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-450		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-500		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-600		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-700		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC140-800		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSC160-100		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC160-150		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC160-200		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC160-250		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC160-300		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC160-350		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC160-400		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC160-450		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC160-500		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC160-600		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC160-700		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC160-800		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-100		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-150		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-200		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-250		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-300		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-350		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-400		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-450		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-500		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-600		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-700		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC180-800		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-100		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-150		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-200		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-250		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-300		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-350		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-400		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-450		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-500		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-600		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-700		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC200-800		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSC250-100		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC250-150		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC250-200		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC250-250		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC250-300		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC250-350		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC250-400		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC250-450		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC250-500		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC250-600		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC250-700		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSC250-800		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD125-100		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD125-150		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD125-200		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD125-250		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD125-300		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD125-350		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD125-400		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD125-450		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD125-500		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD125-600		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD125-700		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD125-800		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-100		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-150		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-200		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-250		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-300		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-350		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-400		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-450		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-500		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-600		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-700		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD140-800		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLSD160-100		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD160-150		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD160-200		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD160-250		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD160-300		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD160-350		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD160-400		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD160-450		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD160-500		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD160-600		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD160-700		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD160-800		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-100		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-150		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-200		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-250		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-300		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-350		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-400		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-450		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-500		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-600		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-700		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD180-800		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-100		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-150		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-200		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-250		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-300		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-350		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-400		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-450		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-500		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-600		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-700		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD200-800		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLSD250-100		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD250-150		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD250-200		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD250-250		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD250-300		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD250-350		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD250-400		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD250-450		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD250-500		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD250-600		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD250-700		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLSD250-800		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST125-100		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST125-150		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST125-200		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST125-250		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST125-300		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST125-350		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST125-400		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST125-450		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST125-500		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST125-600		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST125-700		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST125-800		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-100		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-150		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-200		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-250		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-300		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-350		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-400		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-450		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-500		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-600		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-700		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST140-800		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDLST160-100		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST160-150		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST160-200		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST160-250		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST160-300		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST160-350		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST160-400		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST160-450		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST160-500		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST160-600		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST160-700		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST160-800		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-100		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-150		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-200		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-250		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-300		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-350		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-400		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-450		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-500		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-600		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-700		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST180-800		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-100		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-150		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-200		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-250		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-300		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-350		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-400		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-450		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-500		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-600		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-700		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST200-800		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDLST250-100		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST250-150		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST250-200		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST250-250		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST250-300		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST250-350		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST250-400		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST250-450		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST250-500		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST250-600		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST250-700		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
CDLST250-800		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1

Round Body CylindersSMC

1008 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CLS Cylinder with Lock (Tie-rod, ø125 to ø250)

Brand SMC·Round Body Cylinders

Available part numbers (1008)

CLSB125-100, CLSB125-150, CLSB125-200, CLSB125-250, CLSB125-300, CLSB125-350, CLSB125-400, CLSB125-450, CLSB125-500, CLSB125-600 + 998 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CLSB125-100	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB125-150	Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB125-200	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB125-250	Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB125-300	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB125-350	Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB125-400	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB125-450	Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB125-500	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB125-600	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB125-700	Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB125-800	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-100	Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-150	Mounting: Basic \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-200	Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-250	Mounting: Basic \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-300	Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-350	Mounting: Basic \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-400	Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-450	Mounting: Basic \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-500	Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-600	Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-700	Mounting: Basic \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB140-800	Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSB160-100	Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB160-150	Mounting: Basic \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB160-200	Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB160-250	Mounting: Basic \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB160-300	Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB160-350	Mounting: Basic \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB160-400	Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB160-450	Mounting: Basic \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB160-500	Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB160-600	Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB160-700	Mounting: Basic \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB160-800	Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-100	Mounting: Basic \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-150	Mounting: Basic \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-200	Mounting: Basic \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-250	Mounting: Basic \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-300	Mounting: Basic \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-350	Mounting: Basic \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-400	Mounting: Basic \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-450	Mounting: Basic \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-500	Mounting: Basic \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-600	Mounting: Basic \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-700	Mounting: Basic \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB180-800	Mounting: Basic \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-100	Mounting: Basic \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-150	Mounting: Basic \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-200	Mounting: Basic \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-250	Mounting: Basic \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-300	Mounting: Basic \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-350	Mounting: Basic \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-400	Mounting: Basic \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-450	Mounting: Basic \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-500	Mounting: Basic \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-600	Mounting: Basic \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-700	Mounting: Basic \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB200-800	Mounting: Basic \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSB250-100	Mounting: Basic \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CLSB250-150	Mounting: Basic \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
	CLSB250-200	Mounting: Basic \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CLSB250-250	Mounting: Basic \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
	CLSB250-300	Mounting: Basic \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CLSB250-350	Mounting: Basic \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
	CLSB250-400	Mounting: Basic \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CLSB250-450	Mounting: Basic \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
	CLSB250-500	Mounting: Basic \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CLSB250-600	Mounting: Basic \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CLSB250-700	Mounting: Basic \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
	CLSB250-800	Mounting: Basic \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL125-100	Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL125-150	Mounting: Foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL125-200	Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL125-250	Mounting: Foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL125-300	Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL125-350	Mounting: Foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL125-400	Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL125-450	Mounting: Foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL125-500	Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL125-600	Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL125-700	Mounting: Foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL125-800	Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-100	Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-150	Mounting: Foot \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-200	Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-250	Mounting: Foot \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-300	Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-350	Mounting: Foot \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-400	Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-450	Mounting: Foot \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-500	Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-600	Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-700	Mounting: Foot \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL140-800	Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSL160-100	Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL160-150	Mounting: Foot \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL160-200	Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL160-250	Mounting: Foot \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL160-300	Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL160-350	Mounting: Foot \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL160-400	Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL160-450	Mounting: Foot \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL160-500	Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL160-600	Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL160-700	Mounting: Foot \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL160-800	Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-100	Mounting: Foot \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-150	Mounting: Foot \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-200	Mounting: Foot \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-250	Mounting: Foot \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-300	Mounting: Foot \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-350	Mounting: Foot \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-400	Mounting: Foot \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-450	Mounting: Foot \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-500	Mounting: Foot \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-600	Mounting: Foot \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-700	Mounting: Foot \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL180-800	Mounting: Foot \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-100	Mounting: Foot \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-150	Mounting: Foot \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-200	Mounting: Foot \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-250	Mounting: Foot \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-300	Mounting: Foot \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-350	Mounting: Foot \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-400	Mounting: Foot \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-450	Mounting: Foot \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-500	Mounting: Foot \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-600	Mounting: Foot \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-700	Mounting: Foot \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL200-800	Mounting: Foot \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSL250-100	Mounting: Foot \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL250-150	Mounting: Foot \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL250-200	Mounting: Foot \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL250-250	Mounting: Foot \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL250-300	Mounting: Foot \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL250-350	Mounting: Foot \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL250-400	Mounting: Foot \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL250-450	Mounting: Foot \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL250-500	Mounting: Foot \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL250-600	Mounting: Foot \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL250-700	Mounting: Foot \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
	CLSL250-800	Mounting: Foot \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF125-100	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF125-150	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF125-200	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF125-250	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF125-300	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF125-350	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF125-400	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF125-450	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF125-500	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF125-600	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF125-700	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF125-800	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-100	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-150	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-200	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-250	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-300	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-350	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-400	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-450	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-500	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-600	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-700	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF140-800	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSF160-100	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF160-150	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF160-200	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF160-250	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF160-300	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF160-350	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF160-400	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF160-450	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF160-500	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF160-600	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF160-700	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF160-800	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-100	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-150	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-200	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-250	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-300	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-350	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-400	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-450	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-500	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-600	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-700	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF180-800	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-100	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-150	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-200	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-250	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-300	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-350	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-400	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-450	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-500	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-600	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-700	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF200-800	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSF250-100	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF250-150	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF250-200	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF250-250	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF250-300	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF250-350	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF250-400	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF250-450	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF250-500	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF250-600	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF250-700	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
	CLSF250-800	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG125-100	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG125-150	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG125-200	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG125-250	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG125-300	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG125-350	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG125-400	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG125-450	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG125-500	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG125-600	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG125-700	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG125-800	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-100	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-150	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-200	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-250	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-300	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-350	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-400	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-450	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-500	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-600	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-700	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG140-800	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSG160-100	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG160-150	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG160-200	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG160-250	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG160-300	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG160-350	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG160-400	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG160-450	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG160-500	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG160-600	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG160-700	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG160-800	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-100	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-150	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-200	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-250	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-300	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-350	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-400	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-450	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-500	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-600	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-700	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG180-800	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-100	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-150	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-200	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-250	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-300	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-350	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-400	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-450	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-500	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-600	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-700	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG200-800	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSG250-100	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG250-150	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG250-200	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG250-250	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG250-300	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG250-350	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG250-400	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG250-450	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG250-500	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG250-600	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG250-700	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
	CLSG250-800	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC125-100	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC125-150	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC125-200	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC125-250	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC125-300	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC125-350	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC125-400	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC125-450	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC125-500	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC125-600	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC125-700	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC125-800	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-100	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-150	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-200	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-250	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-300	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-350	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-400	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-450	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-500	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-600	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-700	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC140-800	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSC160-100	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC160-150	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC160-200	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC160-250	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC160-300	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC160-350	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC160-400	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC160-450	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC160-500	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC160-600	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC160-700	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC160-800	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-100	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-150	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-200	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-250	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-300	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-350	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-400	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-450	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-500	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-600	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-700	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC180-800	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-100	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-150	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-200	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-250	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-300	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-350	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-400	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-450	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-500	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-600	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-700	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC200-800	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSC250-100	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC250-150	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC250-200	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC250-250	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC250-300	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC250-350	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC250-400	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC250-450	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC250-500	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC250-600	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC250-700	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
	CLSC250-800	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD125-100	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD125-150	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD125-200	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD125-250	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD125-300	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD125-350	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD125-400	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD125-450	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD125-500	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD125-600	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD125-700	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD125-800	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-100	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-150	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-200	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-250	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-300	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-350	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-400	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-450	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-500	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-600	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-700	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD140-800	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLSD160-100	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD160-150	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD160-200	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD160-250	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD160-300	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD160-350	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD160-400	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD160-450	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD160-500	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD160-600	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD160-700	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD160-800	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-100	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-150	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-200	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-250	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-300	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-350	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-400	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-450	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-500	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-600	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-700	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD180-800	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-100	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-150	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-200	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-250	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-300	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-350	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-400	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-450	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-500	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-600	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-700	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD200-800	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLSD250-100	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD250-150	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD250-200	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD250-250	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD250-300	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD250-350	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD250-400	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD250-450	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD250-500	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD250-600	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD250-700	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
	CLSD250-800	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CLST125-100	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST125-150	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST125-200	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST125-250	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST125-300	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST125-350	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST125-400	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST125-450	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST125-500	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST125-600	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST125-700	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST125-800	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-100	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-150	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-200	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-250	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-300	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-350	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-400	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-450	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-500	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-600	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-700	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST140-800	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CLST160-100	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST160-150	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST160-200	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST160-250	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST160-300	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST160-350	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST160-400	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST160-450	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST160-500	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST160-600	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST160-700	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST160-800	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-100	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-150	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-200	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-250	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-300	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-350	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-400	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-450	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-500	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-600	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-700	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST180-800	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-100	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-150	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-200	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-250	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-300	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-350	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-400	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-450	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-500	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-600	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-700	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST200-800	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CLST250-100	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CLST250-150	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Port: Rc1
	CLST250-200	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CLST250-250	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Port: Rc1
	CLST250-300	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CLST250-350	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Port: Rc1
	CLST250-400	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CLST250-450	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Port: Rc1
	CLST250-500	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CLST250-600	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CLST250-700	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Port: Rc1
	CLST250-800	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CDLSB125-100	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB125-150	Mounting: Basic \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB125-200	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB125-250	Mounting: Basic \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB125-300	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB125-350	Mounting: Basic \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB125-400	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB125-450	Mounting: Basic \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB125-500	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB125-600	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB125-700	Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB125-800	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-100	Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-150	Mounting: Basic \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-200	Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-250	Mounting: Basic \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-300	Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-350	Mounting: Basic \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-400	Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-450	Mounting: Basic \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-500	Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-600	Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-700	Mounting: Basic \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB140-800	Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSB160-100	Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB160-150	Mounting: Basic \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB160-200	Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB160-250	Mounting: Basic \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB160-300	Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB160-350	Mounting: Basic \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB160-400	Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB160-450	Mounting: Basic \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB160-500	Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB160-600	Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB160-700	Mounting: Basic \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB160-800	Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-100	Mounting: Basic \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-150	Mounting: Basic \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-200	Mounting: Basic \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-250	Mounting: Basic \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-300	Mounting: Basic \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-350	Mounting: Basic \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-400	Mounting: Basic \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-450	Mounting: Basic \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-500	Mounting: Basic \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-600	Mounting: Basic \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-700	Mounting: Basic \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB180-800	Mounting: Basic \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-100	Mounting: Basic \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-150	Mounting: Basic \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-200	Mounting: Basic \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-250	Mounting: Basic \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-300	Mounting: Basic \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-350	Mounting: Basic \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-400	Mounting: Basic \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-450	Mounting: Basic \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-500	Mounting: Basic \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-600	Mounting: Basic \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-700	Mounting: Basic \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB200-800	Mounting: Basic \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSB250-100	Mounting: Basic \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSB250-150	Mounting: Basic \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSB250-200	Mounting: Basic \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSB250-250	Mounting: Basic \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSB250-300	Mounting: Basic \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSB250-350	Mounting: Basic \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSB250-400	Mounting: Basic \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSB250-450	Mounting: Basic \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSB250-500	Mounting: Basic \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSB250-600	Mounting: Basic \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSB250-700	Mounting: Basic \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSB250-800	Mounting: Basic \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL125-100	Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL125-150	Mounting: Foot \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL125-200	Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL125-250	Mounting: Foot \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL125-300	Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL125-350	Mounting: Foot \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL125-400	Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL125-450	Mounting: Foot \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL125-500	Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL125-600	Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL125-700	Mounting: Foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL125-800	Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-100	Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-150	Mounting: Foot \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-200	Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-250	Mounting: Foot \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-300	Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-350	Mounting: Foot \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-400	Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-450	Mounting: Foot \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-500	Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-600	Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-700	Mounting: Foot \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL140-800	Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSL160-100	Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL160-150	Mounting: Foot \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL160-200	Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL160-250	Mounting: Foot \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL160-300	Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL160-350	Mounting: Foot \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL160-400	Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL160-450	Mounting: Foot \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL160-500	Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL160-600	Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL160-700	Mounting: Foot \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL160-800	Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-100	Mounting: Foot \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-150	Mounting: Foot \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-200	Mounting: Foot \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-250	Mounting: Foot \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-300	Mounting: Foot \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-350	Mounting: Foot \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-400	Mounting: Foot \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-450	Mounting: Foot \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-500	Mounting: Foot \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-600	Mounting: Foot \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-700	Mounting: Foot \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL180-800	Mounting: Foot \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-100	Mounting: Foot \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-150	Mounting: Foot \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-200	Mounting: Foot \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-250	Mounting: Foot \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-300	Mounting: Foot \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-350	Mounting: Foot \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-400	Mounting: Foot \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-450	Mounting: Foot \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-500	Mounting: Foot \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-600	Mounting: Foot \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-700	Mounting: Foot \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL200-800	Mounting: Foot \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSL250-100	Mounting: Foot \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL250-150	Mounting: Foot \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL250-200	Mounting: Foot \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL250-250	Mounting: Foot \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL250-300	Mounting: Foot \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL250-350	Mounting: Foot \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL250-400	Mounting: Foot \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL250-450	Mounting: Foot \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL250-500	Mounting: Foot \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL250-600	Mounting: Foot \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL250-700	Mounting: Foot \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSL250-800	Mounting: Foot \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF125-100	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF125-150	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF125-200	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF125-250	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF125-300	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF125-350	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF125-400	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF125-450	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF125-500	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF125-600	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF125-700	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF125-800	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-100	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-150	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-200	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-250	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-300	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-350	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-400	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-450	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-500	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-600	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-700	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF140-800	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSF160-100	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF160-150	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF160-200	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF160-250	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF160-300	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF160-350	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF160-400	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF160-450	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF160-500	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF160-600	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF160-700	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF160-800	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-100	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-150	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-200	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-250	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-300	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-350	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-400	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-450	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-500	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-600	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-700	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF180-800	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-100	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-150	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-200	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-250	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-300	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-350	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-400	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-450	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-500	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-600	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-700	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF200-800	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSF250-100	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF250-150	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF250-200	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF250-250	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF250-300	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF250-350	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF250-400	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF250-450	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF250-500	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF250-600	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF250-700	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSF250-800	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG125-100	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG125-150	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG125-200	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG125-250	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG125-300	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG125-350	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG125-400	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG125-450	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG125-500	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG125-600	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG125-700	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG125-800	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-100	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-150	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-200	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-250	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-300	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-350	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-400	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-450	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-500	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-600	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-700	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG140-800	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSG160-100	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG160-150	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG160-200	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG160-250	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG160-300	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG160-350	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG160-400	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG160-450	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG160-500	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG160-600	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG160-700	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG160-800	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-100	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-150	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-200	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-250	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-300	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-350	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-400	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-450	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-500	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-600	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-700	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG180-800	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-100	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-150	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-200	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-250	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-300	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-350	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-400	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-450	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-500	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-600	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-700	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG200-800	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSG250-100	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG250-150	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG250-200	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG250-250	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG250-300	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG250-350	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG250-400	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG250-450	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG250-500	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG250-600	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG250-700	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSG250-800	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC125-100	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC125-150	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC125-200	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC125-250	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC125-300	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC125-350	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC125-400	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC125-450	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC125-500	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC125-600	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC125-700	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC125-800	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-100	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-150	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-200	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-250	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-300	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-350	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-400	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-450	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-500	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-600	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-700	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC140-800	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSC160-100	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC160-150	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC160-200	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC160-250	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC160-300	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC160-350	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC160-400	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC160-450	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC160-500	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC160-600	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC160-700	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC160-800	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-100	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-150	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-200	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-250	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-300	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-350	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-400	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-450	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-500	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-600	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-700	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC180-800	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-100	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-150	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-200	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-250	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-300	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-350	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-400	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-450	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-500	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-600	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-700	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC200-800	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSC250-100	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC250-150	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC250-200	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC250-250	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC250-300	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC250-350	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC250-400	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC250-450	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC250-500	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC250-600	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC250-700	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSC250-800	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD125-100	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD125-150	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD125-200	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD125-250	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD125-300	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD125-350	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD125-400	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD125-450	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD125-500	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD125-600	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD125-700	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD125-800	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-100	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-150	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-200	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-250	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-300	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-350	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-400	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-450	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-500	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-600	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-700	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD140-800	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLSD160-100	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD160-150	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD160-200	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD160-250	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD160-300	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD160-350	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD160-400	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD160-450	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD160-500	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD160-600	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD160-700	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD160-800	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-100	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-150	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-200	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-250	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-300	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-350	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-400	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-450	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-500	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-600	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-700	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD180-800	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-100	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-150	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-200	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-250	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-300	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-350	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-400	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-450	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-500	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-600	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-700	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD200-800	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLSD250-100	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD250-150	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD250-200	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD250-250	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD250-300	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD250-350	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD250-400	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD250-450	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD250-500	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD250-600	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD250-700	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLSD250-800	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST125-100	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST125-150	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST125-200	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST125-250	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST125-300	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST125-350	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST125-400	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST125-450	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST125-500	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST125-600	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST125-700	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST125-800	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-100	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-150	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-200	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-250	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-300	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-350	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-400	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-450	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-500	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-600	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-700	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST140-800	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDLST160-100	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST160-150	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST160-200	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST160-250	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST160-300	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST160-350	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST160-400	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST160-450	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST160-500	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST160-600	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST160-700	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST160-800	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-100	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-150	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-200	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-250	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-300	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-350	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-400	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-450	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-500	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-600	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-700	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST180-800	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-100	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-150	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-200	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-250	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-300	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-350	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-400	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-450	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-500	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-600	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-700	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST200-800	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDLST250-100	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST250-150	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST250-200	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST250-250	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST250-300	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST250-350	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST250-400	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST250-450	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST250-500	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST250-600	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST250-700	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Port: Rc1
	CDLST250-800	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CLS Cylinder with Lock (Tie-rod, ø125 to ø250)
