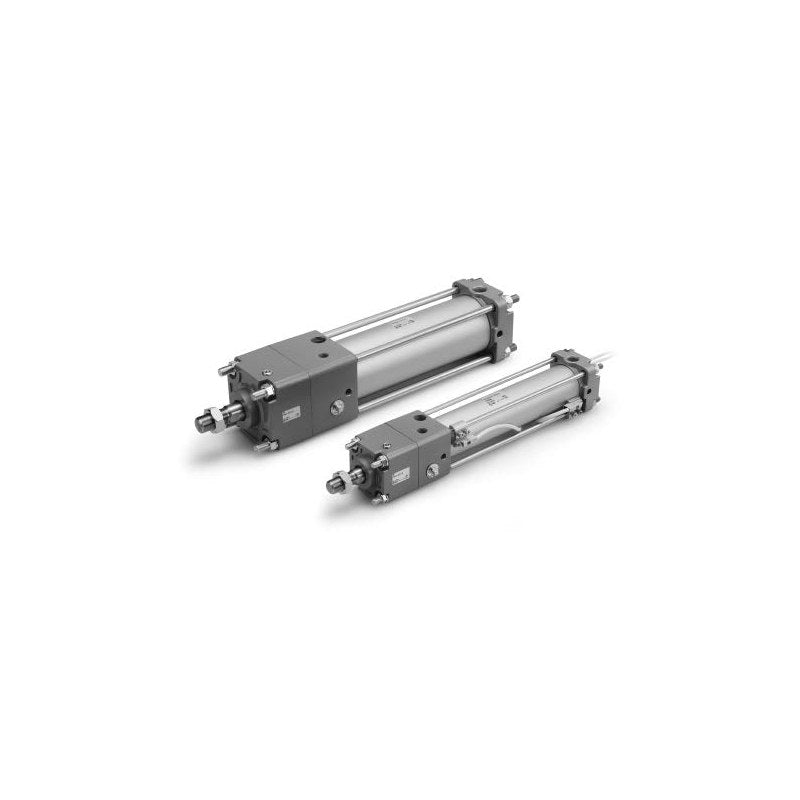

SMC CNA2 Cylinder with Lock (Double Acting, Single Rod, ø40-100)

SMC CNA2 series double-acting single-rod tie-rod air cylinder with spring lock, ø40 to ø100 mm bore, aluminum or steel tube, with or without auto switch magnet (CDNA2).

Key features

Spring lock (exhaust lock) holds in both directions when lock-release air is exhausted; suitable for intermediate stops, emergency stops and drop prevention
Seven mounting styles: basic, axial foot, rod/head flange, single/double clevis, center trunnion
Aluminum tube standard; steel tube (F) available for models without auto switch
Rc port standard, NPT (TN) and G (TF); bellows (J/K) and no-cushion (N) as suffixes
Made-to-order: -XA, -XC3, -XC4, -XC11, -XC14, -XC15, -XC35

Specifications

Action	Double acting, single rod, with lock
Min. operating pressure	0.08 MPa
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Piston speed	50 to 1000 mm/s
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Cushion	Air cushion (no cushion with suffix N)
Lock operation	Spring lock (exhaust lock), both directions; release 0.25 MPa min., start 0.20 MPa max.
Holding force (max. static load)	ø40 882, ø50 1370, ø63 2160, ø80 3430, ø100 5390 N
Stopping accuracy	±0.3 mm at 100 mm/s to ±2.0 mm at 1000 mm/s
Source	SMC Korea catalog CNA2 (SMCKR_CNA2.pdf), p. 762-763

CNA2B40-25-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-50-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-100-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-125-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-150-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-175-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-200-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-250-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-300-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-350-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-400-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-450-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B40-500-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-25-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-50-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-100-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-125-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-150-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-175-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-200-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-250-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-300-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-350-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-400-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-450-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-500-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B50-600-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-25-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-50-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-100-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-125-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-150-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-175-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-200-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-250-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-300-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-350-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-400-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-450-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-500-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B63-600-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-25-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-50-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-100-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-125-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-150-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-175-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-200-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-250-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-300-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-350-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-400-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-450-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-500-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-600-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B80-700-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-25-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-50-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-100-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-125-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-150-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-175-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-200-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-250-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-300-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-350-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-400-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-450-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-500-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-600-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2B100-700-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-25-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-50-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-100-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-125-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-150-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-175-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-200-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-250-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-300-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-350-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-400-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-450-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L40-500-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-25-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-50-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-100-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-125-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-150-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-175-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-200-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-250-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-300-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-350-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-400-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-450-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-500-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L50-600-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-25-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-50-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-100-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-125-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-150-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-175-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-200-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-250-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-300-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-350-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-400-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-450-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-500-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L63-600-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-25-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-50-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-100-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-125-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-150-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-175-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-200-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-250-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-300-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-350-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-400-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-450-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-500-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-600-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L80-700-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-25-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-50-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-100-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-125-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-150-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-175-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-200-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-250-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-300-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-350-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-400-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-450-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-500-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-600-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2L100-700-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-25-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-50-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-100-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-125-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-150-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-175-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-200-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-250-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-300-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-350-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-400-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-450-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F40-500-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-25-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-50-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-100-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-125-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-150-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-175-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-200-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-250-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-300-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-350-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-400-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-450-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-500-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F50-600-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-25-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-50-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-100-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-125-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-150-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-175-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-200-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-250-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-300-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-350-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-400-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-450-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-500-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F63-600-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-25-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-50-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-100-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-125-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-150-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-175-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-200-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-250-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-300-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-350-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-400-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-450-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-500-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-600-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F80-700-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-25-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-50-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-100-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-125-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-150-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-175-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-200-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-250-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-300-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-350-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-400-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-450-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-500-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-600-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2F100-700-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-25-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-50-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-100-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-125-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-150-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-175-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-200-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-250-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-300-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-350-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-400-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-450-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G40-500-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-25-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-50-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-100-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-125-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-150-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-175-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-200-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-250-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-300-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-350-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-400-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-450-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-500-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G50-600-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-25-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-50-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-100-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-125-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-150-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-175-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-200-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-250-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-300-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-350-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-400-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-450-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-500-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G63-600-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-25-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-50-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-100-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-125-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-150-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-175-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-200-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-250-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-300-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-350-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-400-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-450-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-500-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-600-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G80-700-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-25-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-50-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-100-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-125-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-150-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-175-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-200-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-250-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-300-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-350-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-400-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-450-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-500-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-600-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2G100-700-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-25-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-50-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-100-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-125-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-150-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-175-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-200-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-250-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-300-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-350-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-400-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-450-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C40-500-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-25-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-50-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-100-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-125-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-150-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-175-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-200-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-250-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-300-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-350-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-400-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-450-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-500-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C50-600-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-25-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-50-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-100-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-125-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-150-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-175-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-200-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-250-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-300-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-350-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-400-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-450-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-500-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C63-600-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-25-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-50-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-100-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-125-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-150-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-175-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-200-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-250-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-300-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-350-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-400-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-450-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-500-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-600-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C80-700-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-25-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-50-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-100-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-125-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-150-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-175-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-200-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-250-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-300-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-350-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-400-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-450-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-500-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-600-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2C100-700-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-25-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-50-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-100-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-125-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-150-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-175-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-200-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-250-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-300-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-350-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-400-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-450-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D40-500-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-25-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-50-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-100-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-125-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-150-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-175-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-200-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-250-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-300-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-350-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-400-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-450-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-500-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D50-600-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-25-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-50-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-100-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-125-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-150-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-175-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-200-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-250-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-300-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-350-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-400-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-450-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-500-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D63-600-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-25-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-50-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-100-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-125-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-150-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-175-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-200-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-250-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-300-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-350-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-400-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-450-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-500-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-600-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D80-700-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-25-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-50-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-100-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-125-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-150-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-175-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-200-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-250-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-300-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-350-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-400-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-450-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-500-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-600-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2D100-700-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-25-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-50-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-100-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-125-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-150-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-175-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-200-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-250-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-300-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-350-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-400-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-450-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T40-500-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-25-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-50-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-100-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-125-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-150-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-175-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-200-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-250-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-300-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-350-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-400-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-450-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-500-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T50-600-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-25-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-50-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-100-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-125-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-150-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-175-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-200-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-250-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-300-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-350-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-400-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-450-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-500-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T63-600-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-25-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-50-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-100-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-125-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-150-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-175-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-200-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-250-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-300-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-350-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-400-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-450-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-500-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-600-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T80-700-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-25-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-50-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-100-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-125-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-150-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-175-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-200-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-250-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-300-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-350-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-400-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-450-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-500-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-600-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2T100-700-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
CNA2BF40-25-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-50-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-100-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-125-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-150-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-175-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-200-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-250-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-300-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-350-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-400-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-450-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF40-500-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-25-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-50-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-100-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-125-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-150-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-175-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-200-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-250-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-300-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-350-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-400-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-450-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-500-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF50-600-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-25-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-50-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-100-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-125-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-150-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-175-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-200-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-250-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-300-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-350-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-400-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-450-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-500-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF63-600-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-25-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-50-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-100-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-125-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-150-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-175-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-200-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-250-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-300-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-350-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-400-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-450-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-500-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-600-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF80-700-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-25-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-50-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-100-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-125-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-150-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-175-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-200-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-250-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-300-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-350-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-400-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-450-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-500-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-600-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2BF100-700-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-25-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-50-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-100-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-125-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-150-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-175-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-200-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-250-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-300-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-350-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-400-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-450-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF40-500-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-25-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-50-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-100-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-125-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-150-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-175-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-200-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-250-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-300-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-350-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-400-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-450-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-500-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF50-600-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-25-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-50-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-100-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-125-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-150-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-175-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-200-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-250-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-300-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-350-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-400-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-450-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-500-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF63-600-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-25-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-50-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-100-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-125-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-150-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-175-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-200-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-250-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-300-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-350-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-400-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-450-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-500-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-600-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF80-700-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-25-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-50-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-100-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-125-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-150-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-175-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-200-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-250-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-300-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-350-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-400-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-450-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-500-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-600-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2LF100-700-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-25-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-50-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-100-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-125-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-150-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-175-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-200-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-250-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-300-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-350-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-400-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-450-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF40-500-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-25-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-50-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-100-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-125-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-150-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-175-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-200-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-250-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-300-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-350-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-400-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-450-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-500-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF50-600-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-25-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-50-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-100-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-125-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-150-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-175-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-200-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-250-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-300-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-350-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-400-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-450-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-500-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF63-600-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-25-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-50-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-100-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-125-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-150-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-175-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-200-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-250-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-300-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-350-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-400-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-450-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-500-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-600-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF80-700-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-25-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-50-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-100-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-125-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-150-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-175-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-200-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-250-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-300-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-350-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-400-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-450-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-500-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-600-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2FF100-700-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-25-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-50-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-100-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-125-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-150-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-175-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-200-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-250-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-300-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-350-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-400-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-450-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF40-500-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-25-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-50-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-100-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-125-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-150-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-175-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-200-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-250-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-300-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-350-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-400-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-450-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-500-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF50-600-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-25-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-50-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-100-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-125-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-150-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-175-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-200-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-250-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-300-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-350-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-400-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-450-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-500-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF63-600-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-25-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-50-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-100-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-125-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-150-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-175-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-200-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-250-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-300-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-350-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-400-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-450-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-500-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-600-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF80-700-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-25-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-50-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-100-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-125-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-150-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-175-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-200-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-250-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-300-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-350-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-400-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-450-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-500-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-600-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2GF100-700-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-25-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-50-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-100-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-125-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-150-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-175-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-200-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-250-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-300-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-350-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-400-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-450-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF40-500-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-25-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-50-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-100-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-125-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-150-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-175-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-200-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-250-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-300-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-350-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-400-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-450-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-500-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF50-600-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-25-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-50-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-100-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-125-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-150-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-175-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-200-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-250-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-300-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-350-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-400-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-450-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-500-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF63-600-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-25-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-50-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-100-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-125-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-150-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-175-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-200-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-250-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-300-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-350-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-400-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-450-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-500-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-600-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF80-700-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-25-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-50-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-100-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-125-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-150-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-175-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-200-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-250-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-300-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-350-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-400-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-450-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-500-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-600-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2CF100-700-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-25-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-50-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-100-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-125-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-150-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-175-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-200-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-250-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-300-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-350-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-400-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-450-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF40-500-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-25-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-50-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-100-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-125-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-150-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-175-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-200-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-250-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-300-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-350-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-400-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-450-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-500-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF50-600-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-25-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-50-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-100-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-125-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-150-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-175-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-200-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-250-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-300-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-350-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-400-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-450-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-500-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF63-600-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-25-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-50-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-100-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-125-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-150-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-175-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-200-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-250-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-300-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-350-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-400-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-450-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-500-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-600-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF80-700-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-25-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-50-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-100-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-125-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-150-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-175-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-200-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-250-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-300-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-350-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-400-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-450-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-500-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-600-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2DF100-700-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-25-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-50-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-100-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-125-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-150-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-175-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-200-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-250-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-300-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-350-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-400-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-450-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF40-500-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-25-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-50-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-100-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-125-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-150-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-175-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-200-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-250-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-300-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-350-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-400-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-450-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-500-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF50-600-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-25-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-50-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-100-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-125-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-150-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-175-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-200-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-250-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-300-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-350-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-400-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-450-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-500-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF63-600-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-25-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-50-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-100-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-125-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-150-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-175-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-200-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-250-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-300-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-350-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-400-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-450-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-500-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-600-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF80-700-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-25-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-50-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-100-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-125-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-150-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-175-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-200-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-250-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-300-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-350-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-400-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-450-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-500-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-600-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNA2TF100-700-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CDNA2B40-25-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-50-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-100-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-125-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-150-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-175-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-200-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-250-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-300-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-350-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-400-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-450-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B40-500-D		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-25-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-50-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-100-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-125-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-150-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-175-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-200-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-250-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-300-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-350-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-400-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-450-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-500-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B50-600-D		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-25-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-50-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-100-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-125-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-150-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-175-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-200-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-250-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-300-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-350-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-400-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-450-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-500-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B63-600-D		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-25-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-50-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-100-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-125-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-150-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-175-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-200-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-250-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-300-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-350-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-400-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-450-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-500-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-600-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B80-700-D		Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-25-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-50-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-100-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-125-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-150-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-175-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-200-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-250-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-300-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-350-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-400-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-450-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-500-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-600-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2B100-700-D		Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-25-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-50-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-100-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-125-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-150-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-175-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-200-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-250-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-300-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-350-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-400-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-450-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L40-500-D		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-25-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-50-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-100-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-125-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-150-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-175-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-200-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-250-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-300-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-350-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-400-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-450-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-500-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L50-600-D		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-25-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-50-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-100-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-125-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-150-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-175-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-200-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-250-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-300-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-350-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-400-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-450-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-500-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L63-600-D		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-25-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-50-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-100-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-125-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-150-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-175-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-200-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-250-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-300-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-350-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-400-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-450-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-500-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-600-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L80-700-D		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-25-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-50-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-100-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-125-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-150-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-175-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-200-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-250-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-300-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-350-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-400-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-450-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-500-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-600-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2L100-700-D		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-25-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-50-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-100-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-125-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-150-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-175-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-200-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-250-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-300-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-350-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-400-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-450-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F40-500-D		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-25-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-50-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-100-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-125-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-150-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-175-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-200-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-250-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-300-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-350-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-400-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-450-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-500-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F50-600-D		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-25-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-50-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-100-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-125-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-150-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-175-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-200-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-250-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-300-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-350-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-400-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-450-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-500-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F63-600-D		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-25-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-50-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-100-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-125-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-150-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-175-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-200-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-250-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-300-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-350-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-400-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-450-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-500-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-600-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F80-700-D		Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-25-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-50-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-100-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-125-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-150-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-175-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-200-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-250-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-300-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-350-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-400-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-450-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-500-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-600-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2F100-700-D		Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-25-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-50-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-100-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-125-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-150-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-175-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-200-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-250-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-300-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-350-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-400-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-450-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G40-500-D		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-25-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-50-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-100-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-125-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-150-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-175-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-200-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-250-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-300-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-350-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-400-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-450-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-500-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G50-600-D		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-25-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-50-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-100-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-125-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-150-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-175-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-200-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-250-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-300-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-350-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-400-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-450-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-500-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G63-600-D		Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-25-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-50-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-100-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-125-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-150-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-175-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-200-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-250-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-300-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-350-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-400-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-450-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-500-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-600-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G80-700-D		Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-25-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-50-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-100-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-125-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-150-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-175-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-200-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-250-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-300-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-350-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-400-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-450-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-500-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-600-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2G100-700-D		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-25-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-50-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-100-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-125-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-150-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-175-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-200-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-250-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-300-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-350-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-400-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-450-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C40-500-D		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-25-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-50-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-100-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-125-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-150-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-175-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-200-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-250-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-300-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-350-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-400-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-450-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-500-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C50-600-D		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-25-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-50-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-100-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-125-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-150-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-175-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-200-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-250-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-300-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-350-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-400-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-450-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-500-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C63-600-D		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-25-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-50-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-100-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-125-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-150-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-175-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-200-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-250-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-300-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-350-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-400-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-450-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-500-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-600-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C80-700-D		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-25-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-50-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-100-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-125-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-150-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-175-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-200-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-250-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-300-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-350-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-400-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-450-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-500-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-600-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2C100-700-D		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-25-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-50-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-100-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-125-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-150-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-175-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-200-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-250-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-300-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-350-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-400-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-450-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D40-500-D		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-25-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-50-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-100-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-125-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-150-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-175-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-200-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-250-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-300-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-350-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-400-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-450-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-500-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D50-600-D		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-25-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-50-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-100-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-125-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-150-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-175-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-200-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-250-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-300-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-350-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-400-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-450-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-500-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D63-600-D		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-25-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-50-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-100-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-125-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-150-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-175-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-200-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-250-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-300-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-350-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-400-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-450-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-500-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-600-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D80-700-D		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-25-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-50-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-100-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-125-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-150-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-175-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-200-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-250-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-300-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-350-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-400-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-450-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-500-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-600-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2D100-700-D		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-25-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-50-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-100-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-125-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-150-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-175-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-200-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-250-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-300-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-350-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-400-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-450-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T40-500-D		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-25-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-50-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-100-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-125-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-150-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-175-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-200-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-250-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-300-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-350-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-400-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-450-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-500-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T50-600-D		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-25-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-50-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-100-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-125-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-150-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-175-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-200-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-250-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-300-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-350-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-400-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-450-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-500-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T63-600-D		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-25-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-50-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-100-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-125-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-150-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-175-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-200-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-250-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-300-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-350-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-400-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-450-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-500-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-600-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T80-700-D		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-25-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-50-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-100-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-125-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-150-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-175-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-200-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-250-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-300-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-350-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-400-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-450-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-500-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-600-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNA2T100-700-D		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum

Round Body CylindersSMC

1491 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CNA2 Cylinder with Lock (Double Acting, Single Rod, ø40-100)

Brand SMC·Round Body Cylinders

Available part numbers (1491)

CNA2B40-25-D, CNA2B40-50-D, CNA2B40-100-D, CNA2B40-125-D, CNA2B40-150-D, CNA2B40-175-D, CNA2B40-200-D, CNA2B40-250-D, CNA2B40-300-D, CNA2B40-350-D + 1481 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CNA2B40-25-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-50-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-100-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-125-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-150-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-175-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-200-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-250-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-300-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-350-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-400-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-450-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B40-500-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-25-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-50-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-100-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-125-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-150-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-175-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-200-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-250-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-300-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-350-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-400-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-450-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-500-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B50-600-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-25-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-50-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-100-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-125-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-150-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-175-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-200-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-250-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-300-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-350-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-400-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-450-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-500-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B63-600-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-25-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-50-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-100-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-125-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-150-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-175-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-200-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-250-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-300-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-350-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-400-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-450-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-500-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-600-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B80-700-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-25-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-50-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-100-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-125-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-150-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-175-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-200-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-250-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-300-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-350-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-400-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-450-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-500-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-600-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2B100-700-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-25-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-50-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-100-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-125-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-150-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-175-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-200-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-250-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-300-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-350-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-400-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-450-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L40-500-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-25-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-50-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-100-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-125-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-150-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-175-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-200-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-250-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-300-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-350-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-400-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-450-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-500-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L50-600-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-25-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-50-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-100-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-125-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-150-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-175-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-200-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-250-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-300-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-350-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-400-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-450-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-500-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L63-600-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-25-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-50-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-100-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-125-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-150-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-175-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-200-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-250-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-300-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-350-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-400-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-450-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-500-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-600-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L80-700-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-25-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-50-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-100-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-125-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-150-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-175-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-200-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-250-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-300-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-350-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-400-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-450-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-500-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-600-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2L100-700-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-25-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-50-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-100-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-125-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-150-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-175-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-200-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-250-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-300-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-350-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-400-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-450-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F40-500-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-25-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-50-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-100-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-125-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-150-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-175-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-200-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-250-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-300-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-350-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-400-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-450-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-500-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F50-600-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-25-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-50-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-100-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-125-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-150-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-175-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-200-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-250-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-300-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-350-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-400-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-450-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-500-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F63-600-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-25-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-50-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-100-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-125-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-150-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-175-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-200-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-250-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-300-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-350-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-400-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-450-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-500-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-600-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F80-700-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-25-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-50-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-100-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-125-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-150-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-175-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-200-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-250-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-300-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-350-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-400-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-450-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-500-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-600-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2F100-700-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-25-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-50-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-100-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-125-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-150-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-175-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-200-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-250-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-300-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-350-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-400-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-450-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G40-500-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-25-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-50-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-100-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-125-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-150-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-175-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-200-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-250-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-300-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-350-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-400-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-450-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-500-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G50-600-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-25-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-50-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-100-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-125-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-150-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-175-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-200-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-250-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-300-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-350-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-400-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-450-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-500-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G63-600-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-25-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-50-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-100-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-125-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-150-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-175-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-200-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-250-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-300-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-350-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-400-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-450-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-500-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-600-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G80-700-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-25-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-50-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-100-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-125-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-150-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-175-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-200-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-250-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-300-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-350-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-400-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-450-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-500-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-600-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2G100-700-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-25-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-50-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-100-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-125-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-150-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-175-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-200-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-250-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-300-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-350-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-400-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-450-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C40-500-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-25-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-50-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-100-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-125-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-150-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-175-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-200-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-250-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-300-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-350-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-400-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-450-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-500-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C50-600-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-25-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-50-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-100-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-125-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-150-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-175-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-200-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-250-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-300-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-350-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-400-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-450-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-500-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C63-600-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-25-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-50-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-100-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-125-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-150-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-175-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-200-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-250-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-300-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-350-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-400-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-450-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-500-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-600-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C80-700-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-25-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-50-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-100-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-125-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-150-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-175-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-200-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-250-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-300-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-350-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-400-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-450-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-500-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-600-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2C100-700-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-25-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-50-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-100-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-125-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-150-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-175-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-200-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-250-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-300-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-350-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-400-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-450-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D40-500-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-25-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-50-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-100-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-125-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-150-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-175-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-200-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-250-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-300-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-350-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-400-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-450-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-500-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D50-600-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-25-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-50-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-100-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-125-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-150-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-175-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-200-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-250-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-300-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-350-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-400-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-450-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-500-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D63-600-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-25-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-50-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-100-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-125-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-150-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-175-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-200-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-250-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-300-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-350-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-400-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-450-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-500-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-600-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D80-700-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-25-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-50-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-100-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-125-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-150-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-175-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-200-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-250-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-300-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-350-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-400-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-450-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-500-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-600-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2D100-700-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-25-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-50-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-100-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-125-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-150-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-175-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-200-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-250-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-300-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-350-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-400-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-450-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T40-500-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-25-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-50-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-100-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-125-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-150-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-175-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-200-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-250-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-300-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-350-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-400-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-450-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-500-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T50-600-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-25-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-50-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-100-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-125-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-150-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-175-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-200-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-250-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-300-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-350-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-400-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-450-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-500-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T63-600-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-25-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-50-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-100-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-125-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-150-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-175-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-200-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-250-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-300-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-350-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-400-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-450-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-500-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-600-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T80-700-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-25-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-50-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-100-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-125-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-150-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-175-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-200-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-250-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-300-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-350-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-400-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-450-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-500-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-600-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2T100-700-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Aluminum
	CNA2BF40-25-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-50-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-100-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-125-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-150-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-175-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-200-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-250-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-300-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-350-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-400-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-450-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF40-500-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-25-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-50-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-100-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-125-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-150-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-175-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-200-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-250-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-300-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-350-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-400-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-450-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-500-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF50-600-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-25-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-50-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-100-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-125-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-150-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-175-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-200-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-250-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-300-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-350-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-400-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-450-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-500-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF63-600-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-25-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-50-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-100-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-125-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-150-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-175-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-200-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-250-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-300-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-350-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-400-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-450-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-500-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-600-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF80-700-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-25-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-50-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-100-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-125-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-150-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-175-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-200-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-250-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-300-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-350-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-400-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-450-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-500-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-600-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2BF100-700-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-25-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-50-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-100-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-125-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-150-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-175-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-200-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-250-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-300-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-350-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-400-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-450-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF40-500-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-25-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-50-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-100-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-125-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-150-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-175-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-200-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-250-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-300-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-350-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-400-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-450-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-500-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF50-600-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-25-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-50-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-100-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-125-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-150-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-175-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-200-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-250-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-300-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-350-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-400-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-450-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-500-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF63-600-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-25-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-50-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-100-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-125-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-150-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-175-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-200-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-250-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-300-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-350-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-400-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-450-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-500-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-600-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF80-700-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-25-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-50-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-100-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-125-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-150-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-175-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-200-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-250-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-300-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-350-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-400-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-450-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-500-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-600-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2LF100-700-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-25-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-50-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-100-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-125-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-150-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-175-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-200-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-250-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-300-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-350-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-400-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-450-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF40-500-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-25-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-50-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-100-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-125-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-150-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-175-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-200-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-250-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-300-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-350-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-400-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-450-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-500-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF50-600-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-25-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-50-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-100-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-125-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-150-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-175-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-200-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-250-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-300-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-350-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-400-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-450-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-500-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF63-600-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-25-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-50-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-100-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-125-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-150-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-175-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-200-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-250-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-300-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-350-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-400-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-450-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-500-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-600-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF80-700-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-25-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-50-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-100-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-125-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-150-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-175-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-200-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-250-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-300-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-350-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-400-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-450-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-500-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-600-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2FF100-700-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-25-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-50-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-100-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-125-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-150-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-175-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-200-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-250-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-300-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-350-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-400-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-450-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF40-500-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-25-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-50-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-100-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-125-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-150-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-175-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-200-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-250-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-300-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-350-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-400-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-450-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-500-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF50-600-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-25-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-50-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-100-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-125-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-150-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-175-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-200-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-250-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-300-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-350-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-400-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-450-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-500-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF63-600-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-25-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-50-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-100-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-125-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-150-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-175-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-200-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-250-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-300-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-350-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-400-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-450-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-500-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-600-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF80-700-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-25-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-50-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-100-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-125-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-150-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-175-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-200-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-250-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-300-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-350-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-400-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-450-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-500-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-600-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2GF100-700-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-25-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-50-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-100-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-125-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-150-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-175-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-200-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-250-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-300-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-350-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-400-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-450-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF40-500-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-25-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-50-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-100-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-125-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-150-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-175-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-200-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-250-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-300-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-350-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-400-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-450-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-500-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF50-600-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-25-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-50-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-100-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-125-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-150-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-175-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-200-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-250-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-300-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-350-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-400-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-450-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-500-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF63-600-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-25-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-50-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-100-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-125-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-150-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-175-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-200-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-250-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-300-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-350-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-400-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-450-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-500-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-600-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF80-700-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-25-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-50-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-100-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-125-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-150-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-175-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-200-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-250-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-300-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-350-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-400-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-450-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-500-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-600-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2CF100-700-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-25-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-50-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-100-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-125-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-150-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-175-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-200-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-250-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-300-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-350-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-400-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-450-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF40-500-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-25-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-50-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-100-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-125-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-150-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-175-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-200-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-250-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-300-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-350-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-400-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-450-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-500-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF50-600-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-25-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-50-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-100-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-125-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-150-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-175-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-200-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-250-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-300-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-350-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-400-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-450-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-500-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF63-600-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-25-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-50-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-100-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-125-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-150-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-175-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-200-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-250-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-300-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-350-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-400-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-450-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-500-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-600-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF80-700-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-25-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-50-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-100-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-125-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-150-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-175-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-200-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-250-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-300-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-350-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-400-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-450-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-500-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-600-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2DF100-700-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-25-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-50-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-100-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-125-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-150-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-175-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-200-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-250-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-300-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-350-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-400-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-450-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF40-500-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-25-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-50-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-100-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-125-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-150-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-175-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-200-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-250-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-300-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-350-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-400-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-450-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-500-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF50-600-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-25-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-50-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-100-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-125-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-150-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-175-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-200-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-250-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-300-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-350-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-400-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-450-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-500-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF63-600-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-25-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-50-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-100-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-125-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-150-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-175-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-200-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-250-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-300-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-350-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-400-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-450-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-500-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-600-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF80-700-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-25-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-50-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-100-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-125-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-150-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-175-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-200-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-250-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-300-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-350-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-400-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-450-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-500-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-600-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNA2TF100-700-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CDNA2B40-25-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-50-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-100-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-125-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-150-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-175-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-200-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-250-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-300-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-350-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-400-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-450-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B40-500-D	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-25-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-50-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-100-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-125-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-150-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-175-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-200-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-250-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-300-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-350-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-400-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-450-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-500-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B50-600-D	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-25-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-50-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-100-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-125-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-150-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-175-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-200-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-250-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-300-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-350-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-400-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-450-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-500-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B63-600-D	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-25-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-50-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-100-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-125-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-150-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-175-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-200-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-250-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-300-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-350-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-400-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-450-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-500-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-600-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B80-700-D	Mounting: Basic \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-25-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-50-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-100-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-125-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-150-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-175-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-200-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-250-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-300-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-350-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-400-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-450-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-500-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-600-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2B100-700-D	Mounting: Basic \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-25-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-50-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-100-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-125-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-150-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-175-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-200-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-250-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-300-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-350-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-400-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-450-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L40-500-D	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-25-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-50-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-100-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-125-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-150-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-175-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-200-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-250-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-300-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-350-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-400-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-450-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-500-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L50-600-D	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-25-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-50-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-100-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-125-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-150-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-175-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-200-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-250-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-300-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-350-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-400-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-450-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-500-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L63-600-D	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-25-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-50-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-100-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-125-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-150-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-175-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-200-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-250-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-300-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-350-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-400-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-450-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-500-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-600-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L80-700-D	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-25-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-50-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-100-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-125-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-150-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-175-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-200-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-250-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-300-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-350-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-400-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-450-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-500-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-600-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2L100-700-D	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-25-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-50-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-100-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-125-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-150-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-175-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-200-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-250-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-300-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-350-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-400-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-450-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F40-500-D	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-25-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-50-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-100-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-125-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-150-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-175-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-200-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-250-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-300-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-350-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-400-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-450-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-500-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F50-600-D	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-25-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-50-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-100-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-125-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-150-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-175-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-200-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-250-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-300-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-350-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-400-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-450-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-500-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F63-600-D	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-25-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-50-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-100-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-125-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-150-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-175-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-200-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-250-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-300-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-350-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-400-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-450-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-500-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-600-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F80-700-D	Mounting: Rod flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-25-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-50-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-100-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-125-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-150-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-175-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-200-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-250-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-300-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-350-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-400-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-450-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-500-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-600-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2F100-700-D	Mounting: Rod flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-25-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-50-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-100-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-125-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-150-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-175-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-200-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-250-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-300-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-350-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-400-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-450-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G40-500-D	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-25-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-50-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-100-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-125-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-150-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-175-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-200-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-250-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-300-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-350-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-400-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-450-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-500-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G50-600-D	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-25-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-50-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-100-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-125-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-150-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-175-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-200-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-250-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-300-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-350-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-400-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-450-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-500-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G63-600-D	Mounting: Head flange \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-25-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-50-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-100-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-125-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-150-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-175-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-200-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-250-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-300-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-350-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-400-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-450-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-500-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-600-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G80-700-D	Mounting: Head flange \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-25-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-50-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-100-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-125-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-150-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-175-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-200-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-250-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-300-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-350-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-400-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-450-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-500-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-600-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2G100-700-D	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-25-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-50-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-100-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-125-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-150-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-175-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-200-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-250-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-300-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-350-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-400-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-450-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C40-500-D	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-25-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-50-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-100-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-125-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-150-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-175-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-200-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-250-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-300-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-350-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-400-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-450-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-500-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C50-600-D	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-25-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-50-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-100-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-125-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-150-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-175-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-200-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-250-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-300-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-350-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-400-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-450-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-500-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C63-600-D	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-25-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-50-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-100-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-125-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-150-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-175-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-200-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-250-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-300-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-350-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-400-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-450-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-500-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-600-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C80-700-D	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-25-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-50-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-100-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-125-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-150-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-175-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-200-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-250-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-300-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-350-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-400-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-450-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-500-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-600-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2C100-700-D	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-25-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-50-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-100-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-125-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-150-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-175-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-200-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-250-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-300-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-350-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-400-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-450-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D40-500-D	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-25-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-50-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-100-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-125-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-150-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-175-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-200-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-250-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-300-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-350-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-400-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-450-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-500-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D50-600-D	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-25-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-50-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-100-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-125-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-150-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-175-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-200-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-250-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-300-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-350-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-400-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-450-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-500-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D63-600-D	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-25-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-50-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-100-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-125-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-150-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-175-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-200-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-250-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-300-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-350-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-400-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-450-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-500-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-600-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D80-700-D	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-25-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-50-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-100-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-125-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-150-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-175-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-200-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-250-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-300-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-350-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-400-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-450-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-500-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-600-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2D100-700-D	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-25-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-50-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-100-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-125-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-150-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-175-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-200-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-250-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-300-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-350-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-400-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-450-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T40-500-D	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-25-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-50-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-100-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-125-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-150-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-175-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-200-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-250-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-300-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-350-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-400-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-450-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-500-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T50-600-D	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-25-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-50-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-100-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-125-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-150-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-175-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-200-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-250-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-300-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-350-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-400-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-450-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-500-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T63-600-D	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-25-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-50-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-100-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-125-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-150-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-175-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-200-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-250-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-300-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-350-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-400-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-450-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-500-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-600-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T80-700-D	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-25-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-50-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-100-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-125-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-150-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-175-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-200-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-250-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-300-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-350-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-400-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-450-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-500-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-600-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNA2T100-700-D	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CNA2 Cylinder with Lock (Double Acting, Single Rod, ø40-100)
