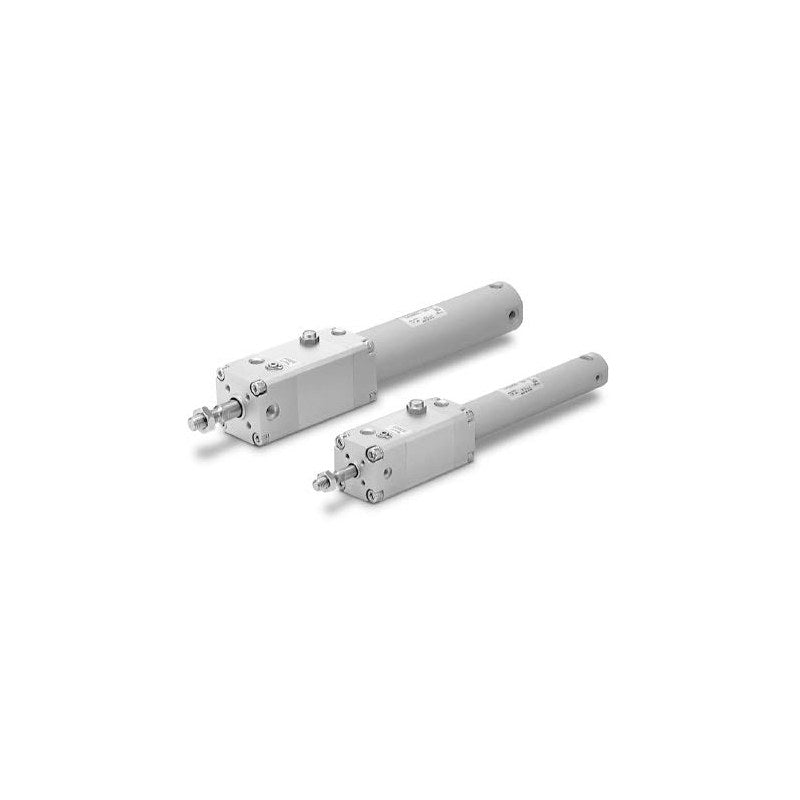

SMC CNG Cylinder with Lock (Double Acting, ø20 to ø40)

SMC CNG series double-acting single-rod air cylinder with built-in spring lock, ø20 to ø40 mm bore, for intermediate stopping and drop prevention, with or without auto switch magnet (CDNG).

Key features

Spring lock (exhaust lock) holds in both directions when lock-release air is exhausted; suitable for intermediate stops, emergency stops and drop prevention
Lock mechanism with tapered ring and two rows of steel balls for high locking efficiency and stable holding force
Manual lock release with a simple tool; relocks when released (double safety structure)
Seven mounting styles (B, L, F, G, U, T, D) and rubber (N) or air (A) cushion
Rc port standard (NPT: TN); bellows (J nylon tarpaulin, K heat-resistant tarpaulin), auto switches (e.g. -M9BW) and made-to-order -XA, -XC4, -XC35 as suffixes
Intermediate strokes in 1 mm increments on order, up to 1500 mm

Specifications

Action	Double acting, single rod, with lock
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.08 MPa
Piston speed	50 to 1000 mm/s
Ambient and fluid temperature	-10 to 70°C (with auto switch -10 to 60°C), no freezing
Lock operation	Spring lock (exhaust lock), both directions
Lock release / lock start pressure	ø20: 0.20 / 0.15 MPa; ø25 to ø40: 0.25 / 0.20 MPa
Holding force (max. static load)	ø20 215 N, ø25 335 N, ø32 550 N, ø40 860 N
Stopping accuracy	±0.3 mm at 100 mm/s to ±2.0 mm at 1000 mm/s
Source	SMC Korea catalog CNG (SMCKR_CNG.pdf), p. 692-693

CNGBN20-25-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGBN20-50-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGBN20-75-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGBN20-100-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGBN20-125-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGBN20-150-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGBN20-200-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGBN25-25-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGBN25-50-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGBN25-75-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGBN25-100-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGBN25-125-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGBN25-150-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGBN25-200-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGBN25-250-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGBN25-300-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGBN32-25-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGBN32-50-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGBN32-75-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGBN32-100-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGBN32-125-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGBN32-150-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGBN32-200-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGBN32-250-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGBN32-300-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGBN40-25-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGBN40-50-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGBN40-75-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGBN40-100-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGBN40-125-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGBN40-150-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGBN40-200-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGBN40-250-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGBN40-300-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGBA20-25-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGBA20-50-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGBA20-75-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGBA20-100-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGBA20-125-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGBA20-150-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGBA20-200-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGBA25-25-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGBA25-50-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGBA25-75-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGBA25-100-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGBA25-125-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGBA25-150-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGBA25-200-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGBA25-250-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGBA25-300-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGBA32-25-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGBA32-50-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGBA32-75-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGBA32-100-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGBA32-125-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGBA32-150-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGBA32-200-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGBA32-250-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGBA32-300-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGBA40-25-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGBA40-50-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGBA40-75-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGBA40-100-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGBA40-125-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGBA40-150-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGBA40-200-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGBA40-250-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGBA40-300-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGLN20-25-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGLN20-50-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGLN20-75-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGLN20-100-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGLN20-125-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGLN20-150-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGLN20-200-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGLN25-25-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGLN25-50-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGLN25-75-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGLN25-100-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGLN25-125-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGLN25-150-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGLN25-200-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGLN25-250-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGLN25-300-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGLN32-25-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGLN32-50-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGLN32-75-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGLN32-100-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGLN32-125-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGLN32-150-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGLN32-200-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGLN32-250-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGLN32-300-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGLN40-25-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGLN40-50-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGLN40-75-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGLN40-100-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGLN40-125-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGLN40-150-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGLN40-200-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGLN40-250-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGLN40-300-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGLA20-25-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGLA20-50-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGLA20-75-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGLA20-100-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGLA20-125-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGLA20-150-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGLA20-200-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGLA25-25-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGLA25-50-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGLA25-75-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGLA25-100-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGLA25-125-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGLA25-150-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGLA25-200-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGLA25-250-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGLA25-300-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGLA32-25-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGLA32-50-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGLA32-75-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGLA32-100-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGLA32-125-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGLA32-150-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGLA32-200-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGLA32-250-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGLA32-300-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGLA40-25-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGLA40-50-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGLA40-75-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGLA40-100-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGLA40-125-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGLA40-150-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGLA40-200-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGLA40-250-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGLA40-300-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGFN20-25-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGFN20-50-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGFN20-75-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGFN20-100-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGFN20-125-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGFN20-150-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGFN20-200-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGFN25-25-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGFN25-50-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGFN25-75-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGFN25-100-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGFN25-125-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGFN25-150-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGFN25-200-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGFN25-250-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGFN25-300-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGFN32-25-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGFN32-50-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGFN32-75-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGFN32-100-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGFN32-125-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGFN32-150-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGFN32-200-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGFN32-250-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGFN32-300-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGFN40-25-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGFN40-50-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGFN40-75-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGFN40-100-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGFN40-125-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGFN40-150-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGFN40-200-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGFN40-250-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGFN40-300-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGFA20-25-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGFA20-50-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGFA20-75-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGFA20-100-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGFA20-125-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGFA20-150-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGFA20-200-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGFA25-25-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGFA25-50-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGFA25-75-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGFA25-100-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGFA25-125-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGFA25-150-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGFA25-200-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGFA25-250-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGFA25-300-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGFA32-25-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGFA32-50-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGFA32-75-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGFA32-100-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGFA32-125-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGFA32-150-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGFA32-200-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGFA32-250-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGFA32-300-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGFA40-25-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGFA40-50-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGFA40-75-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGFA40-100-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGFA40-125-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGFA40-150-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGFA40-200-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGFA40-250-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGFA40-300-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGGN20-25-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGGN20-50-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGGN20-75-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGGN20-100-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGGN20-125-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGGN20-150-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGGN20-200-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGGN25-25-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGGN25-50-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGGN25-75-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGGN25-100-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGGN25-125-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGGN25-150-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGGN25-200-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGGN25-250-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGGN25-300-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGGN32-25-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGGN32-50-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGGN32-75-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGGN32-100-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGGN32-125-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGGN32-150-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGGN32-200-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGGN32-250-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGGN32-300-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGGN40-25-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGGN40-50-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGGN40-75-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGGN40-100-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGGN40-125-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGGN40-150-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGGN40-200-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGGN40-250-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGGN40-300-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGGA20-25-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGGA20-50-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGGA20-75-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGGA20-100-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGGA20-125-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGGA20-150-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGGA20-200-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGGA25-25-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGGA25-50-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGGA25-75-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGGA25-100-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGGA25-125-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGGA25-150-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGGA25-200-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGGA25-250-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGGA25-300-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGGA32-25-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGGA32-50-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGGA32-75-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGGA32-100-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGGA32-125-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGGA32-150-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGGA32-200-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGGA32-250-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGGA32-300-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGGA40-25-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGGA40-50-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGGA40-75-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGGA40-100-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGGA40-125-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGGA40-150-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGGA40-200-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGGA40-250-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGGA40-300-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGUN20-25-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGUN20-50-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGUN20-75-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGUN20-100-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGUN20-125-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGUN20-150-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGUN20-200-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGUN25-25-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGUN25-50-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGUN25-75-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGUN25-100-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGUN25-125-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGUN25-150-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGUN25-200-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGUN25-250-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGUN25-300-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGUN32-25-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGUN32-50-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGUN32-75-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGUN32-100-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGUN32-125-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGUN32-150-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGUN32-200-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGUN32-250-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGUN32-300-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGUN40-25-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGUN40-50-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGUN40-75-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGUN40-100-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGUN40-125-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGUN40-150-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGUN40-200-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGUN40-250-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGUN40-300-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGUA20-25-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGUA20-50-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGUA20-75-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGUA20-100-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGUA20-125-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGUA20-150-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGUA20-200-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGUA25-25-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGUA25-50-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGUA25-75-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGUA25-100-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGUA25-125-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGUA25-150-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGUA25-200-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGUA25-250-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGUA25-300-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGUA32-25-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGUA32-50-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGUA32-75-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGUA32-100-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGUA32-125-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGUA32-150-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGUA32-200-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGUA32-250-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGUA32-300-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGUA40-25-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGUA40-50-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGUA40-75-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGUA40-100-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGUA40-125-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGUA40-150-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGUA40-200-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGUA40-250-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGUA40-300-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGTN20-25-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGTN20-50-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGTN20-75-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGTN20-100-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGTN20-125-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGTN20-150-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGTN20-200-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGTN25-25-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGTN25-50-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGTN25-75-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGTN25-100-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGTN25-125-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGTN25-150-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGTN25-200-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGTN25-250-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGTN25-300-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGTN32-25-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGTN32-50-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGTN32-75-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGTN32-100-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGTN32-125-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGTN32-150-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGTN32-200-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGTN32-250-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGTN32-300-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGTN40-25-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGTN40-50-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGTN40-75-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGTN40-100-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGTN40-125-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGTN40-150-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGTN40-200-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGTN40-250-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGTN40-300-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGTA20-25-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGTA20-50-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGTA20-75-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGTA20-100-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGTA20-125-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGTA20-150-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGTA20-200-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGTA25-25-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGTA25-50-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGTA25-75-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGTA25-100-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGTA25-125-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGTA25-150-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGTA25-200-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGTA25-250-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGTA25-300-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGTA32-25-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGTA32-50-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGTA32-75-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGTA32-100-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGTA32-125-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGTA32-150-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGTA32-200-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGTA32-250-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGTA32-300-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGTA40-25-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGTA40-50-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGTA40-75-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGTA40-100-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGTA40-125-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGTA40-150-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGTA40-200-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGTA40-250-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGTA40-300-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGDN20-25-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGDN20-50-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGDN20-75-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGDN20-100-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGDN20-125-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGDN20-150-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGDN20-200-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGDN25-25-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGDN25-50-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGDN25-75-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGDN25-100-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGDN25-125-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGDN25-150-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGDN25-200-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGDN25-250-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGDN25-300-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGDN32-25-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGDN32-50-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGDN32-75-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGDN32-100-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGDN32-125-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGDN32-150-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGDN32-200-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGDN32-250-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGDN32-300-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGDN40-25-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGDN40-50-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGDN40-75-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGDN40-100-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGDN40-125-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGDN40-150-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGDN40-200-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGDN40-250-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGDN40-300-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGDA20-25-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGDA20-50-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGDA20-75-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGDA20-100-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGDA20-125-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGDA20-150-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGDA20-200-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGDA25-25-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGDA25-50-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGDA25-75-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGDA25-100-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGDA25-125-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGDA25-150-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGDA25-200-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGDA25-250-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGDA25-300-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGDA32-25-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGDA32-50-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGDA32-75-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGDA32-100-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGDA32-125-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGDA32-150-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGDA32-200-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGDA32-250-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGDA32-300-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CNGDA40-25-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CNGDA40-50-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CNGDA40-75-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CNGDA40-100-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CNGDA40-125-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CNGDA40-150-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CNGDA40-200-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CNGDA40-250-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CNGDA40-300-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CDNGBN20-25-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGBN20-50-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGBN20-75-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGBN20-100-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGBN20-125-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGBN20-150-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGBN20-200-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGBN25-25-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGBN25-50-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGBN25-75-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGBN25-100-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGBN25-125-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGBN25-150-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGBN25-200-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGBN25-250-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGBN25-300-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGBN32-25-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGBN32-50-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGBN32-75-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGBN32-100-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGBN32-125-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGBN32-150-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGBN32-200-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGBN32-250-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGBN32-300-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGBN40-25-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGBN40-50-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGBN40-75-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGBN40-100-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGBN40-125-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGBN40-150-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGBN40-200-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGBN40-250-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGBN40-300-D		Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGBA20-25-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGBA20-50-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGBA20-75-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGBA20-100-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGBA20-125-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGBA20-150-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGBA20-200-D		Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGBA25-25-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGBA25-50-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGBA25-75-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGBA25-100-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGBA25-125-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGBA25-150-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGBA25-200-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGBA25-250-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGBA25-300-D		Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGBA32-25-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGBA32-50-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGBA32-75-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGBA32-100-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGBA32-125-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGBA32-150-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGBA32-200-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGBA32-250-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGBA32-300-D		Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGBA40-25-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGBA40-50-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGBA40-75-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGBA40-100-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGBA40-125-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGBA40-150-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGBA40-200-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGBA40-250-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGBA40-300-D		Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGLN20-25-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGLN20-50-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGLN20-75-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGLN20-100-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGLN20-125-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGLN20-150-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGLN20-200-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGLN25-25-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGLN25-50-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGLN25-75-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGLN25-100-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGLN25-125-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGLN25-150-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGLN25-200-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGLN25-250-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGLN25-300-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGLN32-25-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGLN32-50-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGLN32-75-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGLN32-100-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGLN32-125-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGLN32-150-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGLN32-200-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGLN32-250-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGLN32-300-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGLN40-25-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGLN40-50-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGLN40-75-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGLN40-100-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGLN40-125-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGLN40-150-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGLN40-200-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGLN40-250-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGLN40-300-D		Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGLA20-25-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGLA20-50-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGLA20-75-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGLA20-100-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGLA20-125-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGLA20-150-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGLA20-200-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGLA25-25-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGLA25-50-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGLA25-75-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGLA25-100-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGLA25-125-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGLA25-150-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGLA25-200-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGLA25-250-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGLA25-300-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGLA32-25-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGLA32-50-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGLA32-75-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGLA32-100-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGLA32-125-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGLA32-150-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGLA32-200-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGLA32-250-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGLA32-300-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGLA40-25-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGLA40-50-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGLA40-75-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGLA40-100-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGLA40-125-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGLA40-150-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGLA40-200-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGLA40-250-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGLA40-300-D		Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGFN20-25-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGFN20-50-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGFN20-75-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGFN20-100-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGFN20-125-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGFN20-150-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGFN20-200-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGFN25-25-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGFN25-50-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGFN25-75-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGFN25-100-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGFN25-125-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGFN25-150-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGFN25-200-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGFN25-250-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGFN25-300-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGFN32-25-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGFN32-50-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGFN32-75-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGFN32-100-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGFN32-125-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGFN32-150-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGFN32-200-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGFN32-250-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGFN32-300-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGFN40-25-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGFN40-50-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGFN40-75-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGFN40-100-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGFN40-125-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGFN40-150-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGFN40-200-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGFN40-250-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGFN40-300-D		Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGFA20-25-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGFA20-50-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGFA20-75-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGFA20-100-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGFA20-125-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGFA20-150-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGFA20-200-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGFA25-25-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGFA25-50-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGFA25-75-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGFA25-100-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGFA25-125-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGFA25-150-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGFA25-200-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGFA25-250-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGFA25-300-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGFA32-25-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGFA32-50-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGFA32-75-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGFA32-100-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGFA32-125-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGFA32-150-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGFA32-200-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGFA32-250-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGFA32-300-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGFA40-25-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGFA40-50-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGFA40-75-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGFA40-100-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGFA40-125-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGFA40-150-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGFA40-200-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGFA40-250-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGFA40-300-D		Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGGN20-25-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGGN20-50-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGGN20-75-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGGN20-100-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGGN20-125-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGGN20-150-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGGN20-200-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGGN25-25-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGGN25-50-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGGN25-75-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGGN25-100-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGGN25-125-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGGN25-150-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGGN25-200-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGGN25-250-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGGN25-300-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGGN32-25-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGGN32-50-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGGN32-75-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGGN32-100-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGGN32-125-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGGN32-150-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGGN32-200-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGGN32-250-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGGN32-300-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGGN40-25-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGGN40-50-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGGN40-75-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGGN40-100-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGGN40-125-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGGN40-150-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGGN40-200-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGGN40-250-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGGN40-300-D		Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGGA20-25-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGGA20-50-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGGA20-75-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGGA20-100-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGGA20-125-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGGA20-150-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGGA20-200-D		Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGGA25-25-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGGA25-50-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGGA25-75-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGGA25-100-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGGA25-125-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGGA25-150-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGGA25-200-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGGA25-250-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGGA25-300-D		Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGGA32-25-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGGA32-50-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGGA32-75-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGGA32-100-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGGA32-125-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGGA32-150-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGGA32-200-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGGA32-250-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGGA32-300-D		Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGGA40-25-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGGA40-50-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGGA40-75-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGGA40-100-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGGA40-125-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGGA40-150-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGGA40-200-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGGA40-250-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGGA40-300-D		Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGUN20-25-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGUN20-50-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGUN20-75-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGUN20-100-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGUN20-125-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGUN20-150-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGUN20-200-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGUN25-25-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGUN25-50-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGUN25-75-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGUN25-100-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGUN25-125-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGUN25-150-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGUN25-200-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGUN25-250-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGUN25-300-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGUN32-25-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGUN32-50-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGUN32-75-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGUN32-100-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGUN32-125-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGUN32-150-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGUN32-200-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGUN32-250-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGUN32-300-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGUN40-25-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGUN40-50-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGUN40-75-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGUN40-100-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGUN40-125-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGUN40-150-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGUN40-200-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGUN40-250-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGUN40-300-D		Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGUA20-25-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGUA20-50-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGUA20-75-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGUA20-100-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGUA20-125-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGUA20-150-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGUA20-200-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGUA25-25-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGUA25-50-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGUA25-75-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGUA25-100-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGUA25-125-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGUA25-150-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGUA25-200-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGUA25-250-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGUA25-300-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGUA32-25-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGUA32-50-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGUA32-75-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGUA32-100-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGUA32-125-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGUA32-150-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGUA32-200-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGUA32-250-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGUA32-300-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGUA40-25-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGUA40-50-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGUA40-75-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGUA40-100-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGUA40-125-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGUA40-150-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGUA40-200-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGUA40-250-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGUA40-300-D		Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGTN20-25-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGTN20-50-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGTN20-75-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGTN20-100-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGTN20-125-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGTN20-150-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGTN20-200-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGTN25-25-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGTN25-50-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGTN25-75-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGTN25-100-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGTN25-125-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGTN25-150-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGTN25-200-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGTN25-250-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGTN25-300-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGTN32-25-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGTN32-50-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGTN32-75-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGTN32-100-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGTN32-125-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGTN32-150-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGTN32-200-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGTN32-250-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGTN32-300-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGTN40-25-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGTN40-50-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGTN40-75-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGTN40-100-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGTN40-125-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGTN40-150-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGTN40-200-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGTN40-250-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGTN40-300-D		Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGTA20-25-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGTA20-50-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGTA20-75-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGTA20-100-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGTA20-125-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGTA20-150-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGTA20-200-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGTA25-25-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGTA25-50-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGTA25-75-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGTA25-100-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGTA25-125-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGTA25-150-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGTA25-200-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGTA25-250-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGTA25-300-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGTA32-25-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGTA32-50-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGTA32-75-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGTA32-100-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGTA32-125-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGTA32-150-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGTA32-200-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGTA32-250-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGTA32-300-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGTA40-25-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGTA40-50-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGTA40-75-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGTA40-100-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGTA40-125-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGTA40-150-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGTA40-200-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGTA40-250-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGTA40-300-D		Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGDN20-25-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGDN20-50-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGDN20-75-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGDN20-100-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGDN20-125-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGDN20-150-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGDN20-200-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGDN25-25-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGDN25-50-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGDN25-75-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGDN25-100-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGDN25-125-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGDN25-150-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGDN25-200-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGDN25-250-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGDN25-300-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGDN32-25-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGDN32-50-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGDN32-75-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGDN32-100-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGDN32-125-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGDN32-150-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGDN32-200-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGDN32-250-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGDN32-300-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGDN40-25-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGDN40-50-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGDN40-75-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGDN40-100-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGDN40-125-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGDN40-150-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGDN40-200-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGDN40-250-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGDN40-300-D		Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGDA20-25-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGDA20-50-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGDA20-75-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGDA20-100-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGDA20-125-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGDA20-150-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGDA20-200-D		Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGDA25-25-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGDA25-50-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGDA25-75-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGDA25-100-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGDA25-125-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGDA25-150-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGDA25-200-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGDA25-250-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGDA25-300-D		Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGDA32-25-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGDA32-50-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGDA32-75-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGDA32-100-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGDA32-125-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGDA32-150-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGDA32-200-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGDA32-250-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGDA32-300-D		Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CDNGDA40-25-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDNGDA40-50-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDNGDA40-75-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CDNGDA40-100-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CDNGDA40-125-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CDNGDA40-150-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CDNGDA40-200-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CDNGDA40-250-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CDNGDA40-300-D		Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes

Round Body CylindersSMC

952 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CNG Cylinder with Lock (Double Acting, ø20 to ø40)

Brand SMC·Round Body Cylinders

Available part numbers (952)

CNGBN20-25-D, CNGBN20-50-D, CNGBN20-75-D, CNGBN20-100-D, CNGBN20-125-D, CNGBN20-150-D, CNGBN20-200-D, CNGBN25-25-D, CNGBN25-50-D, CNGBN25-75-D + 942 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CNGBN20-25-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGBN20-50-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGBN20-75-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGBN20-100-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGBN20-125-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGBN20-150-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGBN20-200-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGBN25-25-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGBN25-50-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGBN25-75-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGBN25-100-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGBN25-125-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGBN25-150-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGBN25-200-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGBN25-250-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGBN25-300-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGBN32-25-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGBN32-50-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGBN32-75-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGBN32-100-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGBN32-125-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGBN32-150-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGBN32-200-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGBN32-250-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGBN32-300-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGBN40-25-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGBN40-50-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGBN40-75-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGBN40-100-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGBN40-125-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGBN40-150-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGBN40-200-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGBN40-250-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGBN40-300-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGBA20-25-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGBA20-50-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGBA20-75-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGBA20-100-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGBA20-125-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGBA20-150-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGBA20-200-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGBA25-25-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGBA25-50-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGBA25-75-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGBA25-100-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGBA25-125-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGBA25-150-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGBA25-200-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGBA25-250-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGBA25-300-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGBA32-25-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGBA32-50-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGBA32-75-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGBA32-100-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGBA32-125-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGBA32-150-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGBA32-200-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGBA32-250-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGBA32-300-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGBA40-25-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGBA40-50-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGBA40-75-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGBA40-100-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGBA40-125-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGBA40-150-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGBA40-200-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGBA40-250-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGBA40-300-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGLN20-25-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGLN20-50-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGLN20-75-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGLN20-100-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGLN20-125-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGLN20-150-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGLN20-200-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGLN25-25-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGLN25-50-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGLN25-75-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGLN25-100-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGLN25-125-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGLN25-150-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGLN25-200-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGLN25-250-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGLN25-300-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGLN32-25-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGLN32-50-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGLN32-75-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGLN32-100-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGLN32-125-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGLN32-150-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGLN32-200-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGLN32-250-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGLN32-300-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGLN40-25-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGLN40-50-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGLN40-75-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGLN40-100-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGLN40-125-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGLN40-150-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGLN40-200-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGLN40-250-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGLN40-300-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGLA20-25-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGLA20-50-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGLA20-75-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGLA20-100-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGLA20-125-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGLA20-150-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGLA20-200-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGLA25-25-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGLA25-50-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGLA25-75-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGLA25-100-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGLA25-125-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGLA25-150-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGLA25-200-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGLA25-250-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGLA25-300-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGLA32-25-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGLA32-50-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGLA32-75-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGLA32-100-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGLA32-125-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGLA32-150-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGLA32-200-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGLA32-250-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGLA32-300-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGLA40-25-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGLA40-50-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGLA40-75-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGLA40-100-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGLA40-125-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGLA40-150-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGLA40-200-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGLA40-250-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGLA40-300-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGFN20-25-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGFN20-50-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGFN20-75-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGFN20-100-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGFN20-125-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGFN20-150-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGFN20-200-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGFN25-25-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGFN25-50-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGFN25-75-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGFN25-100-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGFN25-125-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGFN25-150-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGFN25-200-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGFN25-250-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGFN25-300-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGFN32-25-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGFN32-50-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGFN32-75-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGFN32-100-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGFN32-125-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGFN32-150-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGFN32-200-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGFN32-250-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGFN32-300-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGFN40-25-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGFN40-50-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGFN40-75-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGFN40-100-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGFN40-125-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGFN40-150-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGFN40-200-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGFN40-250-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGFN40-300-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGFA20-25-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGFA20-50-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGFA20-75-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGFA20-100-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGFA20-125-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGFA20-150-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGFA20-200-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGFA25-25-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGFA25-50-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGFA25-75-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGFA25-100-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGFA25-125-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGFA25-150-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGFA25-200-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGFA25-250-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGFA25-300-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGFA32-25-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGFA32-50-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGFA32-75-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGFA32-100-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGFA32-125-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGFA32-150-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGFA32-200-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGFA32-250-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGFA32-300-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGFA40-25-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGFA40-50-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGFA40-75-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGFA40-100-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGFA40-125-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGFA40-150-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGFA40-200-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGFA40-250-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGFA40-300-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGGN20-25-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGGN20-50-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGGN20-75-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGGN20-100-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGGN20-125-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGGN20-150-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGGN20-200-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGGN25-25-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGGN25-50-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGGN25-75-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGGN25-100-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGGN25-125-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGGN25-150-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGGN25-200-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGGN25-250-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGGN25-300-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGGN32-25-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGGN32-50-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGGN32-75-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGGN32-100-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGGN32-125-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGGN32-150-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGGN32-200-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGGN32-250-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGGN32-300-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGGN40-25-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGGN40-50-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGGN40-75-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGGN40-100-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGGN40-125-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGGN40-150-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGGN40-200-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGGN40-250-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGGN40-300-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGGA20-25-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGGA20-50-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGGA20-75-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGGA20-100-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGGA20-125-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGGA20-150-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGGA20-200-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGGA25-25-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGGA25-50-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGGA25-75-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGGA25-100-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGGA25-125-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGGA25-150-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGGA25-200-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGGA25-250-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGGA25-300-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGGA32-25-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGGA32-50-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGGA32-75-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGGA32-100-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGGA32-125-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGGA32-150-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGGA32-200-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGGA32-250-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGGA32-300-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGGA40-25-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGGA40-50-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGGA40-75-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGGA40-100-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGGA40-125-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGGA40-150-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGGA40-200-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGGA40-250-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGGA40-300-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGUN20-25-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGUN20-50-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGUN20-75-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGUN20-100-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGUN20-125-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGUN20-150-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGUN20-200-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGUN25-25-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGUN25-50-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGUN25-75-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGUN25-100-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGUN25-125-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGUN25-150-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGUN25-200-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGUN25-250-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGUN25-300-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGUN32-25-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGUN32-50-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGUN32-75-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGUN32-100-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGUN32-125-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGUN32-150-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGUN32-200-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGUN32-250-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGUN32-300-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGUN40-25-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGUN40-50-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGUN40-75-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGUN40-100-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGUN40-125-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGUN40-150-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGUN40-200-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGUN40-250-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGUN40-300-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGUA20-25-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGUA20-50-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGUA20-75-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGUA20-100-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGUA20-125-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGUA20-150-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGUA20-200-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGUA25-25-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGUA25-50-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGUA25-75-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGUA25-100-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGUA25-125-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGUA25-150-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGUA25-200-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGUA25-250-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGUA25-300-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGUA32-25-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGUA32-50-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGUA32-75-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGUA32-100-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGUA32-125-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGUA32-150-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGUA32-200-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGUA32-250-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGUA32-300-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGUA40-25-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGUA40-50-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGUA40-75-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGUA40-100-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGUA40-125-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGUA40-150-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGUA40-200-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGUA40-250-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGUA40-300-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGTN20-25-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGTN20-50-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGTN20-75-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGTN20-100-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGTN20-125-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGTN20-150-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGTN20-200-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGTN25-25-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGTN25-50-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGTN25-75-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGTN25-100-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGTN25-125-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGTN25-150-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGTN25-200-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGTN25-250-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGTN25-300-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGTN32-25-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGTN32-50-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGTN32-75-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGTN32-100-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGTN32-125-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGTN32-150-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGTN32-200-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGTN32-250-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGTN32-300-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGTN40-25-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGTN40-50-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGTN40-75-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGTN40-100-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGTN40-125-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGTN40-150-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGTN40-200-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGTN40-250-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGTN40-300-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGTA20-25-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGTA20-50-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGTA20-75-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGTA20-100-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGTA20-125-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGTA20-150-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGTA20-200-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGTA25-25-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGTA25-50-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGTA25-75-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGTA25-100-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGTA25-125-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGTA25-150-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGTA25-200-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGTA25-250-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGTA25-300-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGTA32-25-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGTA32-50-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGTA32-75-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGTA32-100-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGTA32-125-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGTA32-150-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGTA32-200-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGTA32-250-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGTA32-300-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGTA40-25-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGTA40-50-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGTA40-75-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGTA40-100-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGTA40-125-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGTA40-150-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGTA40-200-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGTA40-250-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGTA40-300-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGDN20-25-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGDN20-50-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGDN20-75-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGDN20-100-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGDN20-125-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGDN20-150-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGDN20-200-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGDN25-25-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGDN25-50-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGDN25-75-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGDN25-100-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGDN25-125-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGDN25-150-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGDN25-200-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGDN25-250-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGDN25-300-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGDN32-25-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGDN32-50-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGDN32-75-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGDN32-100-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGDN32-125-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGDN32-150-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGDN32-200-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGDN32-250-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGDN32-300-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGDN40-25-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGDN40-50-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGDN40-75-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGDN40-100-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGDN40-125-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGDN40-150-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGDN40-200-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGDN40-250-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGDN40-300-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGDA20-25-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGDA20-50-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGDA20-75-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGDA20-100-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGDA20-125-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGDA20-150-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGDA20-200-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGDA25-25-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGDA25-50-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGDA25-75-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGDA25-100-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGDA25-125-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGDA25-150-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGDA25-200-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGDA25-250-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGDA25-300-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGDA32-25-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGDA32-50-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGDA32-75-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGDA32-100-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGDA32-125-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGDA32-150-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGDA32-200-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGDA32-250-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGDA32-300-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CNGDA40-25-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CNGDA40-50-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CNGDA40-75-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CNGDA40-100-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CNGDA40-125-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CNGDA40-150-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CNGDA40-200-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CNGDA40-250-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CNGDA40-300-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CDNGBN20-25-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGBN20-50-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGBN20-75-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGBN20-100-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGBN20-125-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGBN20-150-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGBN20-200-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGBN25-25-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGBN25-50-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGBN25-75-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGBN25-100-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGBN25-125-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGBN25-150-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGBN25-200-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGBN25-250-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGBN25-300-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGBN32-25-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGBN32-50-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGBN32-75-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGBN32-100-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGBN32-125-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGBN32-150-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGBN32-200-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGBN32-250-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGBN32-300-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGBN40-25-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGBN40-50-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGBN40-75-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGBN40-100-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGBN40-125-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGBN40-150-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGBN40-200-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGBN40-250-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGBN40-300-D	Mounting: Basic \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGBA20-25-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGBA20-50-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGBA20-75-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGBA20-100-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGBA20-125-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGBA20-150-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGBA20-200-D	Mounting: Basic \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGBA25-25-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGBA25-50-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGBA25-75-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGBA25-100-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGBA25-125-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGBA25-150-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGBA25-200-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGBA25-250-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGBA25-300-D	Mounting: Basic \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGBA32-25-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGBA32-50-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGBA32-75-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGBA32-100-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGBA32-125-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGBA32-150-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGBA32-200-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGBA32-250-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGBA32-300-D	Mounting: Basic \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGBA40-25-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGBA40-50-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGBA40-75-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGBA40-100-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGBA40-125-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGBA40-150-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGBA40-200-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGBA40-250-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGBA40-300-D	Mounting: Basic \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGLN20-25-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGLN20-50-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGLN20-75-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGLN20-100-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGLN20-125-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGLN20-150-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGLN20-200-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGLN25-25-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGLN25-50-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGLN25-75-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGLN25-100-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGLN25-125-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGLN25-150-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGLN25-200-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGLN25-250-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGLN25-300-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGLN32-25-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGLN32-50-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGLN32-75-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGLN32-100-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGLN32-125-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGLN32-150-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGLN32-200-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGLN32-250-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGLN32-300-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGLN40-25-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGLN40-50-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGLN40-75-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGLN40-100-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGLN40-125-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGLN40-150-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGLN40-200-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGLN40-250-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGLN40-300-D	Mounting: Axial foot \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGLA20-25-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGLA20-50-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGLA20-75-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGLA20-100-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGLA20-125-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGLA20-150-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGLA20-200-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGLA25-25-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGLA25-50-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGLA25-75-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGLA25-100-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGLA25-125-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGLA25-150-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGLA25-200-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGLA25-250-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGLA25-300-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGLA32-25-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGLA32-50-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGLA32-75-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGLA32-100-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGLA32-125-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGLA32-150-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGLA32-200-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGLA32-250-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGLA32-300-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGLA40-25-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGLA40-50-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGLA40-75-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGLA40-100-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGLA40-125-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGLA40-150-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGLA40-200-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGLA40-250-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGLA40-300-D	Mounting: Axial foot \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGFN20-25-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGFN20-50-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGFN20-75-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGFN20-100-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGFN20-125-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGFN20-150-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGFN20-200-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGFN25-25-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGFN25-50-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGFN25-75-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGFN25-100-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGFN25-125-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGFN25-150-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGFN25-200-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGFN25-250-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGFN25-300-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGFN32-25-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGFN32-50-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGFN32-75-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGFN32-100-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGFN32-125-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGFN32-150-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGFN32-200-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGFN32-250-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGFN32-300-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGFN40-25-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGFN40-50-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGFN40-75-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGFN40-100-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGFN40-125-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGFN40-150-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGFN40-200-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGFN40-250-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGFN40-300-D	Mounting: Rod flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGFA20-25-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGFA20-50-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGFA20-75-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGFA20-100-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGFA20-125-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGFA20-150-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGFA20-200-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGFA25-25-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGFA25-50-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGFA25-75-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGFA25-100-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGFA25-125-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGFA25-150-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGFA25-200-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGFA25-250-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGFA25-300-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGFA32-25-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGFA32-50-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGFA32-75-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGFA32-100-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGFA32-125-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGFA32-150-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGFA32-200-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGFA32-250-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGFA32-300-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGFA40-25-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGFA40-50-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGFA40-75-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGFA40-100-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGFA40-125-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGFA40-150-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGFA40-200-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGFA40-250-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGFA40-300-D	Mounting: Rod flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGGN20-25-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGGN20-50-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGGN20-75-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGGN20-100-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGGN20-125-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGGN20-150-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGGN20-200-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGGN25-25-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGGN25-50-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGGN25-75-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGGN25-100-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGGN25-125-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGGN25-150-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGGN25-200-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGGN25-250-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGGN25-300-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGGN32-25-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGGN32-50-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGGN32-75-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGGN32-100-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGGN32-125-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGGN32-150-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGGN32-200-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGGN32-250-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGGN32-300-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGGN40-25-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGGN40-50-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGGN40-75-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGGN40-100-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGGN40-125-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGGN40-150-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGGN40-200-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGGN40-250-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGGN40-300-D	Mounting: Head flange \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGGA20-25-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGGA20-50-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGGA20-75-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGGA20-100-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGGA20-125-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGGA20-150-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGGA20-200-D	Mounting: Head flange \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGGA25-25-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGGA25-50-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGGA25-75-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGGA25-100-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGGA25-125-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGGA25-150-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGGA25-200-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGGA25-250-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGGA25-300-D	Mounting: Head flange \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGGA32-25-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGGA32-50-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGGA32-75-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGGA32-100-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGGA32-125-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGGA32-150-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGGA32-200-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGGA32-250-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGGA32-300-D	Mounting: Head flange \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGGA40-25-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGGA40-50-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGGA40-75-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGGA40-100-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGGA40-125-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGGA40-150-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGGA40-200-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGGA40-250-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGGA40-300-D	Mounting: Head flange \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGUN20-25-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGUN20-50-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGUN20-75-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGUN20-100-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGUN20-125-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGUN20-150-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGUN20-200-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGUN25-25-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGUN25-50-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGUN25-75-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGUN25-100-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGUN25-125-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGUN25-150-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGUN25-200-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGUN25-250-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGUN25-300-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGUN32-25-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGUN32-50-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGUN32-75-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGUN32-100-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGUN32-125-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGUN32-150-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGUN32-200-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGUN32-250-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGUN32-300-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGUN40-25-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGUN40-50-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGUN40-75-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGUN40-100-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGUN40-125-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGUN40-150-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGUN40-200-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGUN40-250-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGUN40-300-D	Mounting: Rod trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGUA20-25-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGUA20-50-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGUA20-75-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGUA20-100-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGUA20-125-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGUA20-150-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGUA20-200-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGUA25-25-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGUA25-50-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGUA25-75-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGUA25-100-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGUA25-125-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGUA25-150-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGUA25-200-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGUA25-250-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGUA25-300-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGUA32-25-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGUA32-50-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGUA32-75-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGUA32-100-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGUA32-125-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGUA32-150-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGUA32-200-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGUA32-250-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGUA32-300-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGUA40-25-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGUA40-50-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGUA40-75-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGUA40-100-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGUA40-125-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGUA40-150-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGUA40-200-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGUA40-250-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGUA40-300-D	Mounting: Rod trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGTN20-25-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGTN20-50-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGTN20-75-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGTN20-100-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGTN20-125-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGTN20-150-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGTN20-200-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGTN25-25-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGTN25-50-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGTN25-75-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGTN25-100-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGTN25-125-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGTN25-150-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGTN25-200-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGTN25-250-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGTN25-300-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGTN32-25-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGTN32-50-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGTN32-75-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGTN32-100-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGTN32-125-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGTN32-150-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGTN32-200-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGTN32-250-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGTN32-300-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGTN40-25-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGTN40-50-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGTN40-75-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGTN40-100-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGTN40-125-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGTN40-150-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGTN40-200-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGTN40-250-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGTN40-300-D	Mounting: Head trunnion \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGTA20-25-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGTA20-50-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGTA20-75-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGTA20-100-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGTA20-125-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGTA20-150-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGTA20-200-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGTA25-25-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGTA25-50-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGTA25-75-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGTA25-100-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGTA25-125-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGTA25-150-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGTA25-200-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGTA25-250-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGTA25-300-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGTA32-25-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGTA32-50-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGTA32-75-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGTA32-100-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGTA32-125-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGTA32-150-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGTA32-200-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGTA32-250-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGTA32-300-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGTA40-25-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGTA40-50-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGTA40-75-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGTA40-100-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGTA40-125-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGTA40-150-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGTA40-200-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGTA40-250-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGTA40-300-D	Mounting: Head trunnion \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGDN20-25-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGDN20-50-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGDN20-75-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGDN20-100-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGDN20-125-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGDN20-150-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGDN20-200-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGDN25-25-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGDN25-50-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGDN25-75-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGDN25-100-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGDN25-125-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGDN25-150-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGDN25-200-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGDN25-250-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGDN25-300-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGDN32-25-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGDN32-50-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGDN32-75-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGDN32-100-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGDN32-125-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGDN32-150-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGDN32-200-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGDN32-250-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGDN32-300-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGDN40-25-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGDN40-50-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGDN40-75-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGDN40-100-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGDN40-125-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGDN40-150-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGDN40-200-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGDN40-250-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGDN40-300-D	Mounting: Clevis \| Cushion: Rubber \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGDA20-25-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGDA20-50-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGDA20-75-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGDA20-100-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGDA20-125-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGDA20-150-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGDA20-200-D	Mounting: Clevis \| Cushion: Air \| Bore: ø20 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGDA25-25-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGDA25-50-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGDA25-75-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGDA25-100-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGDA25-125-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGDA25-150-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGDA25-200-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGDA25-250-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGDA25-300-D	Mounting: Clevis \| Cushion: Air \| Bore: ø25 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGDA32-25-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGDA32-50-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGDA32-75-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGDA32-100-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGDA32-125-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGDA32-150-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGDA32-200-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGDA32-250-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGDA32-300-D	Mounting: Clevis \| Cushion: Air \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CDNGDA40-25-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDNGDA40-50-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDNGDA40-75-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CDNGDA40-100-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CDNGDA40-125-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CDNGDA40-150-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CDNGDA40-200-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CDNGDA40-250-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CDNGDA40-300-D	Mounting: Clevis \| Cushion: Air \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CNG Cylinder with Lock (Double Acting, ø20 to ø40)
