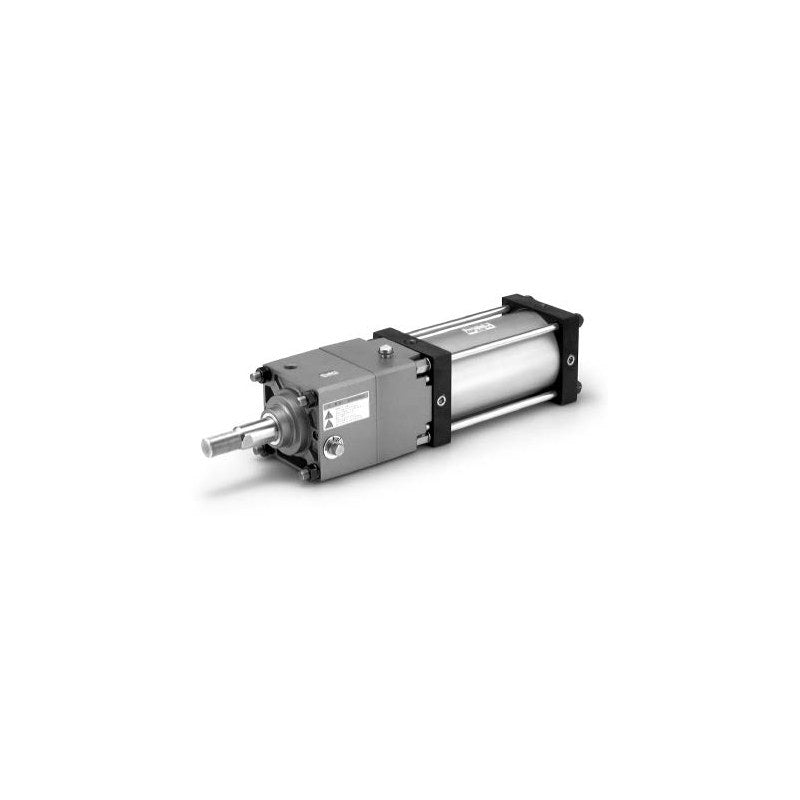

SMC CNS Cylinder with Lock (Double Acting, ø125 to ø160)

SMC CNS series large-bore double-acting single-rod tie-rod air cylinder with spring lock, ø125 to ø160 mm bore, with or without auto switch magnet (CDNS).

Key features

Spring lock (exhaust lock) holds in both directions when lock-release air is exhausted; suitable for intermediate stops, emergency stops and drop prevention
Seven mounting styles: basic, foot, rod/head flange, single/double clevis, center trunnion
Aluminum tube (steel tube automatically above 1000 st for ø125/140, 1200 st for ø160); steel tube (F) selectable without auto switch
Air cushion both ends standard; rod/head side only (R/H), no cushion (N) and bellows (J/K) as suffixes
Listed strokes in 100 mm steps; any stroke up to 1000 mm (ø125/140) or 1200 mm (ø160), steel tube up to 1600 mm, on order

Specifications

Action	Double acting, single rod, with lock
Fluid	Air
Proof pressure	1.57 MPa
Max. operating pressure	0.97 MPa
Min. operating pressure	0.08 MPa
Piston speed	50 to 500 mm/s
Ambient and fluid temperature	0 to 70°C (with auto switch 0 to 60°C), no freezing
Lock operation	Spring lock (exhaust lock), both directions; release 0.25 MPa min., start 0.20 MPa max.
Holding force (max. static load)	ø125 8.4 kN, ø140 10.5 kN, ø160 13.8 kN
Stopping accuracy	±0.5 mm at 100 mm/s to ±2.0 mm at 500 mm/s
Source	SMC Korea catalog CNS (SMCKR_CNS.pdf), p. 798-799

CNSB125-100-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB125-200-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB125-300-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB125-400-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB125-500-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB125-600-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB125-700-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB125-800-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB125-900-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB125-1000-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB140-100-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB140-200-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB140-300-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB140-400-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB140-500-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB140-600-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB140-700-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB140-800-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB140-900-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB140-1000-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-100-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-200-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-300-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-400-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-500-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-600-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-700-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-800-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-900-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-1000-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-1100-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSB160-1200-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL125-100-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL125-200-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL125-300-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL125-400-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL125-500-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL125-600-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL125-700-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL125-800-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL125-900-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL125-1000-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL140-100-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL140-200-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL140-300-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL140-400-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL140-500-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL140-600-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL140-700-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL140-800-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL140-900-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL140-1000-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-100-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-200-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-300-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-400-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-500-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-600-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-700-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-800-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-900-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-1000-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-1100-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSL160-1200-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF125-100-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF125-200-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF125-300-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF125-400-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF125-500-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF125-600-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF125-700-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF125-800-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF125-900-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF125-1000-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF140-100-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF140-200-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF140-300-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF140-400-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF140-500-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF140-600-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF140-700-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF140-800-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF140-900-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF140-1000-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-100-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-200-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-300-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-400-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-500-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-600-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-700-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-800-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-900-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-1000-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-1100-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSF160-1200-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG125-100-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG125-200-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG125-300-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG125-400-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG125-500-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG125-600-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG125-700-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG125-800-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG125-900-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG125-1000-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG140-100-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG140-200-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG140-300-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG140-400-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG140-500-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG140-600-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG140-700-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG140-800-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG140-900-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG140-1000-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-100-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-200-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-300-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-400-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-500-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-600-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-700-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-800-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-900-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-1000-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-1100-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSG160-1200-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC125-100-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC125-200-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC125-300-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC125-400-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC125-500-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC125-600-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC125-700-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC125-800-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC125-900-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC125-1000-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC140-100-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC140-200-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC140-300-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC140-400-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC140-500-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC140-600-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC140-700-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC140-800-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC140-900-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC140-1000-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-100-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-200-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-300-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-400-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-500-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-600-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-700-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-800-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-900-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-1000-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-1100-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSC160-1200-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD125-100-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD125-200-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD125-300-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD125-400-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD125-500-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD125-600-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD125-700-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD125-800-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD125-900-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD125-1000-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD140-100-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD140-200-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD140-300-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD140-400-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD140-500-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD140-600-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD140-700-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD140-800-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD140-900-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD140-1000-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-100-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-200-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-300-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-400-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-500-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-600-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-700-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-800-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-900-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-1000-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-1100-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSD160-1200-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST125-100-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST125-200-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST125-300-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST125-400-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST125-500-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST125-600-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST125-700-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST125-800-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST125-900-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST125-1000-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST140-100-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST140-200-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST140-300-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST140-400-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST140-500-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST140-600-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST140-700-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST140-800-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST140-900-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST140-1000-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-100-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-200-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-300-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-400-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-500-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-600-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-700-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-800-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-900-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-1000-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-1100-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNST160-1200-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
CNSBF125-100-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF125-200-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF125-300-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF125-400-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF125-500-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF125-600-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF125-700-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF125-800-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF125-900-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF125-1000-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF140-100-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF140-200-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF140-300-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF140-400-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF140-500-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF140-600-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF140-700-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF140-800-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF140-900-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF140-1000-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-100-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-200-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-300-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-400-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-500-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-600-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-700-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-800-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-900-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-1000-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-1100-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSBF160-1200-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF125-100-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF125-200-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF125-300-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF125-400-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF125-500-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF125-600-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF125-700-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF125-800-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF125-900-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF125-1000-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF140-100-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF140-200-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF140-300-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF140-400-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF140-500-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF140-600-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF140-700-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF140-800-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF140-900-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF140-1000-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-100-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-200-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-300-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-400-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-500-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-600-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-700-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-800-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-900-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-1000-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-1100-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSLF160-1200-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF125-100-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF125-200-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF125-300-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF125-400-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF125-500-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF125-600-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF125-700-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF125-800-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF125-900-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF125-1000-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF140-100-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF140-200-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF140-300-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF140-400-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF140-500-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF140-600-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF140-700-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF140-800-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF140-900-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF140-1000-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-100-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-200-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-300-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-400-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-500-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-600-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-700-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-800-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-900-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-1000-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-1100-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSFF160-1200-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF125-100-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF125-200-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF125-300-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF125-400-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF125-500-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF125-600-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF125-700-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF125-800-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF125-900-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF125-1000-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF140-100-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF140-200-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF140-300-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF140-400-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF140-500-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF140-600-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF140-700-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF140-800-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF140-900-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF140-1000-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-100-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-200-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-300-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-400-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-500-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-600-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-700-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-800-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-900-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-1000-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-1100-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSGF160-1200-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF125-100-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF125-200-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF125-300-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF125-400-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF125-500-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF125-600-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF125-700-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF125-800-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF125-900-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF125-1000-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF140-100-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF140-200-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF140-300-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF140-400-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF140-500-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF140-600-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF140-700-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF140-800-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF140-900-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF140-1000-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-100-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-200-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-300-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-400-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-500-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-600-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-700-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-800-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-900-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-1000-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-1100-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSCF160-1200-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF125-100-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF125-200-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF125-300-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF125-400-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF125-500-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF125-600-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF125-700-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF125-800-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF125-900-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF125-1000-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF140-100-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF140-200-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF140-300-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF140-400-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF140-500-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF140-600-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF140-700-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF140-800-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF140-900-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF140-1000-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-100-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-200-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-300-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-400-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-500-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-600-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-700-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-800-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-900-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-1000-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-1100-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSDF160-1200-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF125-100-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF125-200-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF125-300-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF125-400-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF125-500-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF125-600-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF125-700-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF125-800-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF125-900-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF125-1000-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF140-100-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF140-200-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF140-300-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF140-400-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF140-500-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF140-600-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF140-700-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF140-800-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF140-900-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF140-1000-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-100-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-200-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-300-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-400-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-500-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-600-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-700-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-800-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-900-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-1000-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-1100-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CNSTF160-1200-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
CDNSB125-100-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB125-200-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB125-300-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB125-400-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB125-500-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB125-600-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB125-700-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB125-800-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB125-900-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB125-1000-D		Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB140-100-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB140-200-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB140-300-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB140-400-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB140-500-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB140-600-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB140-700-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB140-800-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB140-900-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB140-1000-D		Mounting: Basic \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-100-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-200-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-300-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-400-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-500-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-600-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-700-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-800-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-900-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-1000-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-1100-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSB160-1200-D		Mounting: Basic \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL125-100-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL125-200-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL125-300-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL125-400-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL125-500-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL125-600-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL125-700-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL125-800-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL125-900-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL125-1000-D		Mounting: Foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL140-100-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL140-200-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL140-300-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL140-400-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL140-500-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL140-600-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL140-700-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL140-800-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL140-900-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL140-1000-D		Mounting: Foot \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-100-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-200-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-300-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-400-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-500-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-600-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-700-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-800-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-900-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-1000-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-1100-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSL160-1200-D		Mounting: Foot \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF125-100-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF125-200-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF125-300-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF125-400-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF125-500-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF125-600-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF125-700-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF125-800-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF125-900-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF125-1000-D		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF140-100-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF140-200-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF140-300-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF140-400-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF140-500-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF140-600-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF140-700-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF140-800-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF140-900-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF140-1000-D		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-100-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-200-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-300-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-400-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-500-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-600-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-700-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-800-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-900-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-1000-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-1100-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSF160-1200-D		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG125-100-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG125-200-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG125-300-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG125-400-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG125-500-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG125-600-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG125-700-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG125-800-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG125-900-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG125-1000-D		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG140-100-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG140-200-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG140-300-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG140-400-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG140-500-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG140-600-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG140-700-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG140-800-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG140-900-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG140-1000-D		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-100-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-200-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-300-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-400-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-500-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-600-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-700-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-800-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-900-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-1000-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-1100-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSG160-1200-D		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC125-100-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC125-200-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC125-300-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC125-400-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC125-500-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC125-600-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC125-700-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC125-800-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC125-900-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC125-1000-D		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC140-100-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC140-200-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC140-300-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC140-400-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC140-500-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC140-600-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC140-700-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC140-800-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC140-900-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC140-1000-D		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-100-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-200-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-300-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-400-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-500-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-600-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-700-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-800-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-900-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-1000-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-1100-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSC160-1200-D		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD125-100-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD125-200-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD125-300-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD125-400-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD125-500-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD125-600-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD125-700-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD125-800-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD125-900-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD125-1000-D		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD140-100-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD140-200-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD140-300-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD140-400-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD140-500-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD140-600-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD140-700-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD140-800-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD140-900-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD140-1000-D		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-100-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-200-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-300-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-400-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-500-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-600-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-700-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-800-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-900-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-1000-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-1100-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNSD160-1200-D		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST125-100-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST125-200-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST125-300-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST125-400-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST125-500-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST125-600-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST125-700-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST125-800-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST125-900-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST125-1000-D		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST140-100-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST140-200-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST140-300-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST140-400-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST140-500-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST140-600-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST140-700-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST140-800-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST140-900-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST140-1000-D		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-100-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-200-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-300-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-400-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-500-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-600-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-700-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-800-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-900-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-1000-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-1100-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
CDNST160-1200-D		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum

Round Body CylindersSMC

672 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CNS Cylinder with Lock (Double Acting, ø125 to ø160)

Brand SMC·Round Body Cylinders

Available part numbers (672)

CNSB125-100-D, CNSB125-200-D, CNSB125-300-D, CNSB125-400-D, CNSB125-500-D, CNSB125-600-D, CNSB125-700-D, CNSB125-800-D, CNSB125-900-D, CNSB125-1000-D + 662 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CNSB125-100-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB125-200-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB125-300-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB125-400-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB125-500-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB125-600-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB125-700-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB125-800-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB125-900-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB125-1000-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB140-100-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB140-200-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB140-300-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB140-400-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB140-500-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB140-600-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB140-700-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB140-800-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB140-900-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB140-1000-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-100-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-200-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-300-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-400-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-500-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-600-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-700-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-800-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-900-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-1000-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-1100-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSB160-1200-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL125-100-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL125-200-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL125-300-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL125-400-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL125-500-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL125-600-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL125-700-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL125-800-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL125-900-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL125-1000-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL140-100-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL140-200-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL140-300-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL140-400-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL140-500-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL140-600-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL140-700-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL140-800-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL140-900-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL140-1000-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-100-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-200-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-300-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-400-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-500-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-600-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-700-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-800-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-900-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-1000-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-1100-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSL160-1200-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF125-100-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF125-200-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF125-300-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF125-400-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF125-500-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF125-600-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF125-700-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF125-800-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF125-900-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF125-1000-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF140-100-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF140-200-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF140-300-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF140-400-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF140-500-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF140-600-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF140-700-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF140-800-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF140-900-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF140-1000-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-100-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-200-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-300-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-400-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-500-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-600-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-700-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-800-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-900-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-1000-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-1100-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSF160-1200-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG125-100-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG125-200-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG125-300-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG125-400-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG125-500-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG125-600-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG125-700-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG125-800-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG125-900-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG125-1000-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG140-100-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG140-200-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG140-300-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG140-400-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG140-500-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG140-600-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG140-700-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG140-800-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG140-900-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG140-1000-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-100-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-200-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-300-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-400-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-500-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-600-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-700-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-800-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-900-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-1000-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-1100-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSG160-1200-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC125-100-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC125-200-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC125-300-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC125-400-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC125-500-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC125-600-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC125-700-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC125-800-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC125-900-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC125-1000-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC140-100-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC140-200-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC140-300-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC140-400-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC140-500-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC140-600-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC140-700-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC140-800-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC140-900-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC140-1000-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-100-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-200-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-300-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-400-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-500-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-600-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-700-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-800-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-900-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-1000-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-1100-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSC160-1200-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD125-100-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD125-200-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD125-300-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD125-400-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD125-500-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD125-600-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD125-700-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD125-800-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD125-900-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD125-1000-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD140-100-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD140-200-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD140-300-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD140-400-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD140-500-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD140-600-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD140-700-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD140-800-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD140-900-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD140-1000-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-100-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-200-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-300-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-400-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-500-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-600-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-700-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-800-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-900-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-1000-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-1100-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSD160-1200-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST125-100-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST125-200-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST125-300-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST125-400-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST125-500-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST125-600-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST125-700-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST125-800-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST125-900-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST125-1000-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST140-100-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST140-200-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST140-300-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST140-400-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST140-500-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST140-600-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST140-700-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST140-800-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST140-900-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST140-1000-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-100-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-200-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-300-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-400-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-500-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-600-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-700-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-800-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-900-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-1000-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-1100-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNST160-1200-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Standard (Al to 1000/1200 st)
	CNSBF125-100-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF125-200-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF125-300-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF125-400-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF125-500-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF125-600-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF125-700-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF125-800-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF125-900-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF125-1000-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF140-100-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF140-200-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF140-300-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF140-400-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF140-500-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF140-600-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF140-700-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF140-800-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF140-900-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF140-1000-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-100-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-200-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-300-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-400-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-500-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-600-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-700-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-800-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-900-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-1000-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-1100-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSBF160-1200-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF125-100-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF125-200-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF125-300-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF125-400-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF125-500-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF125-600-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF125-700-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF125-800-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF125-900-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF125-1000-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF140-100-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF140-200-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF140-300-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF140-400-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF140-500-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF140-600-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF140-700-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF140-800-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF140-900-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF140-1000-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-100-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-200-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-300-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-400-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-500-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-600-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-700-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-800-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-900-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-1000-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-1100-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSLF160-1200-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF125-100-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF125-200-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF125-300-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF125-400-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF125-500-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF125-600-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF125-700-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF125-800-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF125-900-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF125-1000-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF140-100-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF140-200-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF140-300-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF140-400-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF140-500-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF140-600-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF140-700-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF140-800-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF140-900-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF140-1000-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-100-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-200-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-300-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-400-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-500-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-600-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-700-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-800-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-900-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-1000-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-1100-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSFF160-1200-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF125-100-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF125-200-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF125-300-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF125-400-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF125-500-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF125-600-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF125-700-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF125-800-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF125-900-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF125-1000-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF140-100-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF140-200-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF140-300-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF140-400-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF140-500-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF140-600-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF140-700-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF140-800-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF140-900-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF140-1000-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-100-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-200-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-300-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-400-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-500-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-600-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-700-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-800-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-900-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-1000-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-1100-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSGF160-1200-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF125-100-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF125-200-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF125-300-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF125-400-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF125-500-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF125-600-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF125-700-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF125-800-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF125-900-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF125-1000-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF140-100-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF140-200-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF140-300-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF140-400-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF140-500-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF140-600-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF140-700-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF140-800-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF140-900-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF140-1000-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-100-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-200-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-300-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-400-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-500-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-600-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-700-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-800-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-900-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-1000-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-1100-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSCF160-1200-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF125-100-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF125-200-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF125-300-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF125-400-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF125-500-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF125-600-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF125-700-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF125-800-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF125-900-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF125-1000-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF140-100-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF140-200-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF140-300-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF140-400-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF140-500-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF140-600-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF140-700-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF140-800-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF140-900-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF140-1000-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-100-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-200-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-300-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-400-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-500-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-600-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-700-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-800-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-900-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-1000-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-1100-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSDF160-1200-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF125-100-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF125-200-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF125-300-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF125-400-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF125-500-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF125-600-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF125-700-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF125-800-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF125-900-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF125-1000-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF140-100-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF140-200-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF140-300-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF140-400-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF140-500-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF140-600-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF140-700-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF140-800-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF140-900-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF140-1000-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-100-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-200-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-300-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-400-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-500-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-600-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-700-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-800-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-900-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-1000-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-1100-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CNSTF160-1200-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: No \| Cylinder tube: Steel
	CDNSB125-100-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB125-200-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB125-300-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB125-400-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB125-500-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB125-600-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB125-700-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB125-800-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB125-900-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB125-1000-D	Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB140-100-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB140-200-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB140-300-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB140-400-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB140-500-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB140-600-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB140-700-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB140-800-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB140-900-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB140-1000-D	Mounting: Basic \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-100-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-200-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-300-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-400-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-500-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-600-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-700-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-800-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-900-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-1000-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-1100-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSB160-1200-D	Mounting: Basic \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL125-100-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL125-200-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL125-300-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL125-400-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL125-500-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL125-600-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL125-700-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL125-800-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL125-900-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL125-1000-D	Mounting: Foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL140-100-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL140-200-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL140-300-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL140-400-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL140-500-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL140-600-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL140-700-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL140-800-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL140-900-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL140-1000-D	Mounting: Foot \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-100-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-200-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-300-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-400-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-500-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-600-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-700-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-800-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-900-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-1000-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-1100-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSL160-1200-D	Mounting: Foot \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF125-100-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF125-200-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF125-300-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF125-400-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF125-500-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF125-600-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF125-700-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF125-800-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF125-900-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF125-1000-D	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF140-100-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF140-200-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF140-300-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF140-400-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF140-500-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF140-600-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF140-700-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF140-800-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF140-900-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF140-1000-D	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-100-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-200-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-300-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-400-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-500-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-600-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-700-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-800-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-900-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-1000-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-1100-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSF160-1200-D	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG125-100-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG125-200-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG125-300-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG125-400-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG125-500-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG125-600-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG125-700-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG125-800-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG125-900-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG125-1000-D	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG140-100-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG140-200-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG140-300-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG140-400-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG140-500-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG140-600-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG140-700-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG140-800-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG140-900-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG140-1000-D	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-100-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-200-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-300-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-400-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-500-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-600-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-700-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-800-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-900-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-1000-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-1100-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSG160-1200-D	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC125-100-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC125-200-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC125-300-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC125-400-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC125-500-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC125-600-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC125-700-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC125-800-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC125-900-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC125-1000-D	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC140-100-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC140-200-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC140-300-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC140-400-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC140-500-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC140-600-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC140-700-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC140-800-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC140-900-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC140-1000-D	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-100-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-200-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-300-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-400-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-500-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-600-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-700-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-800-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-900-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-1000-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-1100-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSC160-1200-D	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD125-100-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD125-200-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD125-300-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD125-400-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD125-500-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD125-600-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD125-700-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD125-800-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD125-900-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD125-1000-D	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD140-100-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD140-200-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD140-300-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD140-400-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD140-500-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD140-600-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD140-700-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD140-800-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD140-900-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD140-1000-D	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-100-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-200-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-300-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-400-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-500-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-600-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-700-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-800-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-900-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-1000-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-1100-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNSD160-1200-D	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST125-100-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST125-200-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST125-300-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST125-400-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST125-500-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST125-600-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST125-700-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST125-800-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST125-900-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST125-1000-D	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST140-100-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST140-200-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST140-300-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST140-400-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST140-500-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST140-600-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST140-700-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST140-800-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST140-900-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST140-1000-D	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-100-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-200-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-300-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-400-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-500-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-600-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-700-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 700 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-800-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-900-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 900 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-1000-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-1100-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1100 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum
	CDNST160-1200-D	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1200 mm \| Auto switch magnet: Yes \| Cylinder tube: Aluminum

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CNS Cylinder with Lock (Double Acting, ø125 to ø160)
