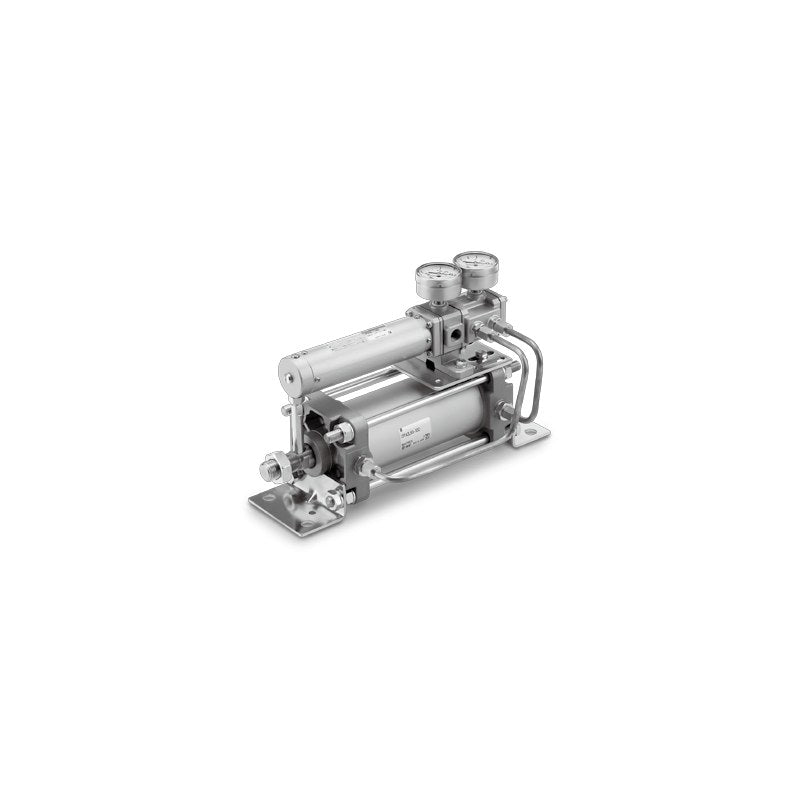

SMC CPS1 P Cylinder with Positioner (ø125 to ø300)

SMC CPS1 P cylinder: a non-lube CS1 large-bore air cylinder with integrated positioner that positions in proportion to a pneumatic input signal and corrects load-induced deviation.

Key features

Cylinder position proportional to 0.02 to 0.1 MPa input signal pressure
Built-in correction: returns to the initial set position if displaced by load fluctuation
Based on CS1 non-lube cylinder (N), bores ø125 to ø300, strokes 30 to 300 mm
Seven mounting styles; bellows J / K and rod-end knuckle I / Y as suffixes

Specifications

Input pressure	0.02 to 0.1 MPa
Supply pressure	0.3 to 0.7 MPa
Linearity	Within ±2% F.S.
Hysteresis	Within 1% F.S.
Repeatability	Within ±1% F.S.
Sensitivity	Within 0.5% F.S.
Air consumption	18 L/min (ANR) or less at 0.5 MPa
Ambient and fluid temperature	0 to 60°C (no freezing)
Stroke range	30 to 300 mm
Port size	Rc1/4
Source	SMC Korea catalog CPA2_CPS1 (SMCKR_CPA2_CPS1.pdf), p. 100-101, 106-110 (PDF p. 1-2, 7-11)

CPS1BN125-50		Bore: ø125 mm \| Mounting: Basic \| Stroke: 50 mm
CPS1BN125-100		Bore: ø125 mm \| Mounting: Basic \| Stroke: 100 mm
CPS1BN125-150		Bore: ø125 mm \| Mounting: Basic \| Stroke: 150 mm
CPS1BN125-200		Bore: ø125 mm \| Mounting: Basic \| Stroke: 200 mm
CPS1BN125-250		Bore: ø125 mm \| Mounting: Basic \| Stroke: 250 mm
CPS1BN125-300		Bore: ø125 mm \| Mounting: Basic \| Stroke: 300 mm
CPS1LN125-50		Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 50 mm
CPS1LN125-100		Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 100 mm
CPS1LN125-150		Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 150 mm
CPS1LN125-200		Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 200 mm
CPS1LN125-250		Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 250 mm
CPS1LN125-300		Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 300 mm
CPS1FN125-50		Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 50 mm
CPS1FN125-100		Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 100 mm
CPS1FN125-150		Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 150 mm
CPS1FN125-200		Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 200 mm
CPS1FN125-250		Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 250 mm
CPS1FN125-300		Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 300 mm
CPS1GN125-50		Bore: ø125 mm \| Mounting: Head flange \| Stroke: 50 mm
CPS1GN125-100		Bore: ø125 mm \| Mounting: Head flange \| Stroke: 100 mm
CPS1GN125-150		Bore: ø125 mm \| Mounting: Head flange \| Stroke: 150 mm
CPS1GN125-200		Bore: ø125 mm \| Mounting: Head flange \| Stroke: 200 mm
CPS1GN125-250		Bore: ø125 mm \| Mounting: Head flange \| Stroke: 250 mm
CPS1GN125-300		Bore: ø125 mm \| Mounting: Head flange \| Stroke: 300 mm
CPS1CN125-50		Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 50 mm
CPS1CN125-100		Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 100 mm
CPS1CN125-150		Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 150 mm
CPS1CN125-200		Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 200 mm
CPS1CN125-250		Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 250 mm
CPS1CN125-300		Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 300 mm
CPS1DN125-50		Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 50 mm
CPS1DN125-100		Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 100 mm
CPS1DN125-150		Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 150 mm
CPS1DN125-200		Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 200 mm
CPS1DN125-250		Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 250 mm
CPS1DN125-300		Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 300 mm
CPS1TN125-50		Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 50 mm
CPS1TN125-100		Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 100 mm
CPS1TN125-150		Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 150 mm
CPS1TN125-200		Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 200 mm
CPS1TN125-250		Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 250 mm
CPS1TN125-300		Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 300 mm
CPS1BN140-50		Bore: ø140 mm \| Mounting: Basic \| Stroke: 50 mm
CPS1BN140-100		Bore: ø140 mm \| Mounting: Basic \| Stroke: 100 mm
CPS1BN140-150		Bore: ø140 mm \| Mounting: Basic \| Stroke: 150 mm
CPS1BN140-200		Bore: ø140 mm \| Mounting: Basic \| Stroke: 200 mm
CPS1BN140-250		Bore: ø140 mm \| Mounting: Basic \| Stroke: 250 mm
CPS1BN140-300		Bore: ø140 mm \| Mounting: Basic \| Stroke: 300 mm
CPS1LN140-50		Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 50 mm
CPS1LN140-100		Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 100 mm
CPS1LN140-150		Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 150 mm
CPS1LN140-200		Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 200 mm
CPS1LN140-250		Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 250 mm
CPS1LN140-300		Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 300 mm
CPS1FN140-50		Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 50 mm
CPS1FN140-100		Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 100 mm
CPS1FN140-150		Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 150 mm
CPS1FN140-200		Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 200 mm
CPS1FN140-250		Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 250 mm
CPS1FN140-300		Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 300 mm
CPS1GN140-50		Bore: ø140 mm \| Mounting: Head flange \| Stroke: 50 mm
CPS1GN140-100		Bore: ø140 mm \| Mounting: Head flange \| Stroke: 100 mm
CPS1GN140-150		Bore: ø140 mm \| Mounting: Head flange \| Stroke: 150 mm
CPS1GN140-200		Bore: ø140 mm \| Mounting: Head flange \| Stroke: 200 mm
CPS1GN140-250		Bore: ø140 mm \| Mounting: Head flange \| Stroke: 250 mm
CPS1GN140-300		Bore: ø140 mm \| Mounting: Head flange \| Stroke: 300 mm
CPS1CN140-50		Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 50 mm
CPS1CN140-100		Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 100 mm
CPS1CN140-150		Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 150 mm
CPS1CN140-200		Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 200 mm
CPS1CN140-250		Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 250 mm
CPS1CN140-300		Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 300 mm
CPS1DN140-50		Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 50 mm
CPS1DN140-100		Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 100 mm
CPS1DN140-150		Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 150 mm
CPS1DN140-200		Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 200 mm
CPS1DN140-250		Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 250 mm
CPS1DN140-300		Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 300 mm
CPS1TN140-50		Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 50 mm
CPS1TN140-100		Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 100 mm
CPS1TN140-150		Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 150 mm
CPS1TN140-200		Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 200 mm
CPS1TN140-250		Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 250 mm
CPS1TN140-300		Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 300 mm
CPS1BN160-50		Bore: ø160 mm \| Mounting: Basic \| Stroke: 50 mm
CPS1BN160-100		Bore: ø160 mm \| Mounting: Basic \| Stroke: 100 mm
CPS1BN160-150		Bore: ø160 mm \| Mounting: Basic \| Stroke: 150 mm
CPS1BN160-200		Bore: ø160 mm \| Mounting: Basic \| Stroke: 200 mm
CPS1BN160-250		Bore: ø160 mm \| Mounting: Basic \| Stroke: 250 mm
CPS1BN160-300		Bore: ø160 mm \| Mounting: Basic \| Stroke: 300 mm
CPS1LN160-50		Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 50 mm
CPS1LN160-100		Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 100 mm
CPS1LN160-150		Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 150 mm
CPS1LN160-200		Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 200 mm
CPS1LN160-250		Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 250 mm
CPS1LN160-300		Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 300 mm
CPS1FN160-50		Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 50 mm
CPS1FN160-100		Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 100 mm
CPS1FN160-150		Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 150 mm
CPS1FN160-200		Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 200 mm
CPS1FN160-250		Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 250 mm
CPS1FN160-300		Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 300 mm
CPS1GN160-50		Bore: ø160 mm \| Mounting: Head flange \| Stroke: 50 mm
CPS1GN160-100		Bore: ø160 mm \| Mounting: Head flange \| Stroke: 100 mm
CPS1GN160-150		Bore: ø160 mm \| Mounting: Head flange \| Stroke: 150 mm
CPS1GN160-200		Bore: ø160 mm \| Mounting: Head flange \| Stroke: 200 mm
CPS1GN160-250		Bore: ø160 mm \| Mounting: Head flange \| Stroke: 250 mm
CPS1GN160-300		Bore: ø160 mm \| Mounting: Head flange \| Stroke: 300 mm
CPS1CN160-50		Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 50 mm
CPS1CN160-100		Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 100 mm
CPS1CN160-150		Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 150 mm
CPS1CN160-200		Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 200 mm
CPS1CN160-250		Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 250 mm
CPS1CN160-300		Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 300 mm
CPS1DN160-50		Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 50 mm
CPS1DN160-100		Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 100 mm
CPS1DN160-150		Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 150 mm
CPS1DN160-200		Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 200 mm
CPS1DN160-250		Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 250 mm
CPS1DN160-300		Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 300 mm
CPS1TN160-50		Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 50 mm
CPS1TN160-100		Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 100 mm
CPS1TN160-150		Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 150 mm
CPS1TN160-200		Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 200 mm
CPS1TN160-250		Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 250 mm
CPS1TN160-300		Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 300 mm
CPS1BN180-50		Bore: ø180 mm \| Mounting: Basic \| Stroke: 50 mm
CPS1BN180-100		Bore: ø180 mm \| Mounting: Basic \| Stroke: 100 mm
CPS1BN180-150		Bore: ø180 mm \| Mounting: Basic \| Stroke: 150 mm
CPS1BN180-200		Bore: ø180 mm \| Mounting: Basic \| Stroke: 200 mm
CPS1BN180-250		Bore: ø180 mm \| Mounting: Basic \| Stroke: 250 mm
CPS1BN180-300		Bore: ø180 mm \| Mounting: Basic \| Stroke: 300 mm
CPS1LN180-50		Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 50 mm
CPS1LN180-100		Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 100 mm
CPS1LN180-150		Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 150 mm
CPS1LN180-200		Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 200 mm
CPS1LN180-250		Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 250 mm
CPS1LN180-300		Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 300 mm
CPS1FN180-50		Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 50 mm
CPS1FN180-100		Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 100 mm
CPS1FN180-150		Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 150 mm
CPS1FN180-200		Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 200 mm
CPS1FN180-250		Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 250 mm
CPS1FN180-300		Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 300 mm
CPS1GN180-50		Bore: ø180 mm \| Mounting: Head flange \| Stroke: 50 mm
CPS1GN180-100		Bore: ø180 mm \| Mounting: Head flange \| Stroke: 100 mm
CPS1GN180-150		Bore: ø180 mm \| Mounting: Head flange \| Stroke: 150 mm
CPS1GN180-200		Bore: ø180 mm \| Mounting: Head flange \| Stroke: 200 mm
CPS1GN180-250		Bore: ø180 mm \| Mounting: Head flange \| Stroke: 250 mm
CPS1GN180-300		Bore: ø180 mm \| Mounting: Head flange \| Stroke: 300 mm
CPS1CN180-50		Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 50 mm
CPS1CN180-100		Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 100 mm
CPS1CN180-150		Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 150 mm
CPS1CN180-200		Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 200 mm
CPS1CN180-250		Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 250 mm
CPS1CN180-300		Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 300 mm
CPS1DN180-50		Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 50 mm
CPS1DN180-100		Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 100 mm
CPS1DN180-150		Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 150 mm
CPS1DN180-200		Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 200 mm
CPS1DN180-250		Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 250 mm
CPS1DN180-300		Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 300 mm
CPS1TN180-50		Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 50 mm
CPS1TN180-100		Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 100 mm
CPS1TN180-150		Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 150 mm
CPS1TN180-200		Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 200 mm
CPS1TN180-250		Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 250 mm
CPS1TN180-300		Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 300 mm
CPS1BN200-50		Bore: ø200 mm \| Mounting: Basic \| Stroke: 50 mm
CPS1BN200-100		Bore: ø200 mm \| Mounting: Basic \| Stroke: 100 mm
CPS1BN200-150		Bore: ø200 mm \| Mounting: Basic \| Stroke: 150 mm
CPS1BN200-200		Bore: ø200 mm \| Mounting: Basic \| Stroke: 200 mm
CPS1BN200-250		Bore: ø200 mm \| Mounting: Basic \| Stroke: 250 mm
CPS1BN200-300		Bore: ø200 mm \| Mounting: Basic \| Stroke: 300 mm
CPS1LN200-50		Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 50 mm
CPS1LN200-100		Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 100 mm
CPS1LN200-150		Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 150 mm
CPS1LN200-200		Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 200 mm
CPS1LN200-250		Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 250 mm
CPS1LN200-300		Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 300 mm
CPS1FN200-50		Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 50 mm
CPS1FN200-100		Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 100 mm
CPS1FN200-150		Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 150 mm
CPS1FN200-200		Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 200 mm
CPS1FN200-250		Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 250 mm
CPS1FN200-300		Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 300 mm
CPS1GN200-50		Bore: ø200 mm \| Mounting: Head flange \| Stroke: 50 mm
CPS1GN200-100		Bore: ø200 mm \| Mounting: Head flange \| Stroke: 100 mm
CPS1GN200-150		Bore: ø200 mm \| Mounting: Head flange \| Stroke: 150 mm
CPS1GN200-200		Bore: ø200 mm \| Mounting: Head flange \| Stroke: 200 mm
CPS1GN200-250		Bore: ø200 mm \| Mounting: Head flange \| Stroke: 250 mm
CPS1GN200-300		Bore: ø200 mm \| Mounting: Head flange \| Stroke: 300 mm
CPS1CN200-50		Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 50 mm
CPS1CN200-100		Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 100 mm
CPS1CN200-150		Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 150 mm
CPS1CN200-200		Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 200 mm
CPS1CN200-250		Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 250 mm
CPS1CN200-300		Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 300 mm
CPS1DN200-50		Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 50 mm
CPS1DN200-100		Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 100 mm
CPS1DN200-150		Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 150 mm
CPS1DN200-200		Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 200 mm
CPS1DN200-250		Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 250 mm
CPS1DN200-300		Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 300 mm
CPS1TN200-50		Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 50 mm
CPS1TN200-100		Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 100 mm
CPS1TN200-150		Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 150 mm
CPS1TN200-200		Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 200 mm
CPS1TN200-250		Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 250 mm
CPS1TN200-300		Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 300 mm
CPS1BN250-50		Bore: ø250 mm \| Mounting: Basic \| Stroke: 50 mm
CPS1BN250-100		Bore: ø250 mm \| Mounting: Basic \| Stroke: 100 mm
CPS1BN250-150		Bore: ø250 mm \| Mounting: Basic \| Stroke: 150 mm
CPS1BN250-200		Bore: ø250 mm \| Mounting: Basic \| Stroke: 200 mm
CPS1BN250-250		Bore: ø250 mm \| Mounting: Basic \| Stroke: 250 mm
CPS1BN250-300		Bore: ø250 mm \| Mounting: Basic \| Stroke: 300 mm
CPS1LN250-50		Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 50 mm
CPS1LN250-100		Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 100 mm
CPS1LN250-150		Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 150 mm
CPS1LN250-200		Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 200 mm
CPS1LN250-250		Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 250 mm
CPS1LN250-300		Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 300 mm
CPS1FN250-50		Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 50 mm
CPS1FN250-100		Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 100 mm
CPS1FN250-150		Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 150 mm
CPS1FN250-200		Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 200 mm
CPS1FN250-250		Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 250 mm
CPS1FN250-300		Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 300 mm
CPS1GN250-50		Bore: ø250 mm \| Mounting: Head flange \| Stroke: 50 mm
CPS1GN250-100		Bore: ø250 mm \| Mounting: Head flange \| Stroke: 100 mm
CPS1GN250-150		Bore: ø250 mm \| Mounting: Head flange \| Stroke: 150 mm
CPS1GN250-200		Bore: ø250 mm \| Mounting: Head flange \| Stroke: 200 mm
CPS1GN250-250		Bore: ø250 mm \| Mounting: Head flange \| Stroke: 250 mm
CPS1GN250-300		Bore: ø250 mm \| Mounting: Head flange \| Stroke: 300 mm
CPS1CN250-50		Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 50 mm
CPS1CN250-100		Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 100 mm
CPS1CN250-150		Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 150 mm
CPS1CN250-200		Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 200 mm
CPS1CN250-250		Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 250 mm
CPS1CN250-300		Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 300 mm
CPS1DN250-50		Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 50 mm
CPS1DN250-100		Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 100 mm
CPS1DN250-150		Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 150 mm
CPS1DN250-200		Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 200 mm
CPS1DN250-250		Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 250 mm
CPS1DN250-300		Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 300 mm
CPS1TN250-50		Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 50 mm
CPS1TN250-100		Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 100 mm
CPS1TN250-150		Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 150 mm
CPS1TN250-200		Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 200 mm
CPS1TN250-250		Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 250 mm
CPS1TN250-300		Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 300 mm
CPS1BN300-50		Bore: ø300 mm \| Mounting: Basic \| Stroke: 50 mm
CPS1BN300-100		Bore: ø300 mm \| Mounting: Basic \| Stroke: 100 mm
CPS1BN300-150		Bore: ø300 mm \| Mounting: Basic \| Stroke: 150 mm
CPS1BN300-200		Bore: ø300 mm \| Mounting: Basic \| Stroke: 200 mm
CPS1BN300-250		Bore: ø300 mm \| Mounting: Basic \| Stroke: 250 mm
CPS1BN300-300		Bore: ø300 mm \| Mounting: Basic \| Stroke: 300 mm
CPS1LN300-50		Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 50 mm
CPS1LN300-100		Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 100 mm
CPS1LN300-150		Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 150 mm
CPS1LN300-200		Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 200 mm
CPS1LN300-250		Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 250 mm
CPS1LN300-300		Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 300 mm
CPS1FN300-50		Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 50 mm
CPS1FN300-100		Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 100 mm
CPS1FN300-150		Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 150 mm
CPS1FN300-200		Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 200 mm
CPS1FN300-250		Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 250 mm
CPS1FN300-300		Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 300 mm
CPS1GN300-50		Bore: ø300 mm \| Mounting: Head flange \| Stroke: 50 mm
CPS1GN300-100		Bore: ø300 mm \| Mounting: Head flange \| Stroke: 100 mm
CPS1GN300-150		Bore: ø300 mm \| Mounting: Head flange \| Stroke: 150 mm
CPS1GN300-200		Bore: ø300 mm \| Mounting: Head flange \| Stroke: 200 mm
CPS1GN300-250		Bore: ø300 mm \| Mounting: Head flange \| Stroke: 250 mm
CPS1GN300-300		Bore: ø300 mm \| Mounting: Head flange \| Stroke: 300 mm
CPS1CN300-50		Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 50 mm
CPS1CN300-100		Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 100 mm
CPS1CN300-150		Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 150 mm
CPS1CN300-200		Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 200 mm
CPS1CN300-250		Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 250 mm
CPS1CN300-300		Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 300 mm
CPS1DN300-50		Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 50 mm
CPS1DN300-100		Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 100 mm
CPS1DN300-150		Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 150 mm
CPS1DN300-200		Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 200 mm
CPS1DN300-250		Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 250 mm
CPS1DN300-300		Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 300 mm
CPS1TN300-50		Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 50 mm
CPS1TN300-100		Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 100 mm
CPS1TN300-150		Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 150 mm
CPS1TN300-200		Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 200 mm
CPS1TN300-250		Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 250 mm
CPS1TN300-300		Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 300 mm

PositionersSMC

294 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CPS1 P Cylinder with Positioner (ø125 to ø300)

Brand SMC·Positioners

Available part numbers (294)

CPS1BN125-50, CPS1BN125-100, CPS1BN125-150, CPS1BN125-200, CPS1BN125-250, CPS1BN125-300, CPS1LN125-50, CPS1LN125-100, CPS1LN125-150, CPS1LN125-200 + 284 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CPS1BN125-50	Bore: ø125 mm \| Mounting: Basic \| Stroke: 50 mm
	CPS1BN125-100	Bore: ø125 mm \| Mounting: Basic \| Stroke: 100 mm
	CPS1BN125-150	Bore: ø125 mm \| Mounting: Basic \| Stroke: 150 mm
	CPS1BN125-200	Bore: ø125 mm \| Mounting: Basic \| Stroke: 200 mm
	CPS1BN125-250	Bore: ø125 mm \| Mounting: Basic \| Stroke: 250 mm
	CPS1BN125-300	Bore: ø125 mm \| Mounting: Basic \| Stroke: 300 mm
	CPS1LN125-50	Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 50 mm
	CPS1LN125-100	Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 100 mm
	CPS1LN125-150	Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 150 mm
	CPS1LN125-200	Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 200 mm
	CPS1LN125-250	Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 250 mm
	CPS1LN125-300	Bore: ø125 mm \| Mounting: Axial foot \| Stroke: 300 mm
	CPS1FN125-50	Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 50 mm
	CPS1FN125-100	Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 100 mm
	CPS1FN125-150	Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 150 mm
	CPS1FN125-200	Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 200 mm
	CPS1FN125-250	Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 250 mm
	CPS1FN125-300	Bore: ø125 mm \| Mounting: Rod flange \| Stroke: 300 mm
	CPS1GN125-50	Bore: ø125 mm \| Mounting: Head flange \| Stroke: 50 mm
	CPS1GN125-100	Bore: ø125 mm \| Mounting: Head flange \| Stroke: 100 mm
	CPS1GN125-150	Bore: ø125 mm \| Mounting: Head flange \| Stroke: 150 mm
	CPS1GN125-200	Bore: ø125 mm \| Mounting: Head flange \| Stroke: 200 mm
	CPS1GN125-250	Bore: ø125 mm \| Mounting: Head flange \| Stroke: 250 mm
	CPS1GN125-300	Bore: ø125 mm \| Mounting: Head flange \| Stroke: 300 mm
	CPS1CN125-50	Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 50 mm
	CPS1CN125-100	Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 100 mm
	CPS1CN125-150	Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 150 mm
	CPS1CN125-200	Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 200 mm
	CPS1CN125-250	Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 250 mm
	CPS1CN125-300	Bore: ø125 mm \| Mounting: Single clevis \| Stroke: 300 mm
	CPS1DN125-50	Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 50 mm
	CPS1DN125-100	Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 100 mm
	CPS1DN125-150	Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 150 mm
	CPS1DN125-200	Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 200 mm
	CPS1DN125-250	Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 250 mm
	CPS1DN125-300	Bore: ø125 mm \| Mounting: Double clevis \| Stroke: 300 mm
	CPS1TN125-50	Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 50 mm
	CPS1TN125-100	Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 100 mm
	CPS1TN125-150	Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 150 mm
	CPS1TN125-200	Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 200 mm
	CPS1TN125-250	Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 250 mm
	CPS1TN125-300	Bore: ø125 mm \| Mounting: Center trunnion \| Stroke: 300 mm
	CPS1BN140-50	Bore: ø140 mm \| Mounting: Basic \| Stroke: 50 mm
	CPS1BN140-100	Bore: ø140 mm \| Mounting: Basic \| Stroke: 100 mm
	CPS1BN140-150	Bore: ø140 mm \| Mounting: Basic \| Stroke: 150 mm
	CPS1BN140-200	Bore: ø140 mm \| Mounting: Basic \| Stroke: 200 mm
	CPS1BN140-250	Bore: ø140 mm \| Mounting: Basic \| Stroke: 250 mm
	CPS1BN140-300	Bore: ø140 mm \| Mounting: Basic \| Stroke: 300 mm
	CPS1LN140-50	Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 50 mm
	CPS1LN140-100	Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 100 mm
	CPS1LN140-150	Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 150 mm
	CPS1LN140-200	Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 200 mm
	CPS1LN140-250	Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 250 mm
	CPS1LN140-300	Bore: ø140 mm \| Mounting: Axial foot \| Stroke: 300 mm
	CPS1FN140-50	Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 50 mm
	CPS1FN140-100	Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 100 mm
	CPS1FN140-150	Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 150 mm
	CPS1FN140-200	Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 200 mm
	CPS1FN140-250	Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 250 mm
	CPS1FN140-300	Bore: ø140 mm \| Mounting: Rod flange \| Stroke: 300 mm
	CPS1GN140-50	Bore: ø140 mm \| Mounting: Head flange \| Stroke: 50 mm
	CPS1GN140-100	Bore: ø140 mm \| Mounting: Head flange \| Stroke: 100 mm
	CPS1GN140-150	Bore: ø140 mm \| Mounting: Head flange \| Stroke: 150 mm
	CPS1GN140-200	Bore: ø140 mm \| Mounting: Head flange \| Stroke: 200 mm
	CPS1GN140-250	Bore: ø140 mm \| Mounting: Head flange \| Stroke: 250 mm
	CPS1GN140-300	Bore: ø140 mm \| Mounting: Head flange \| Stroke: 300 mm
	CPS1CN140-50	Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 50 mm
	CPS1CN140-100	Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 100 mm
	CPS1CN140-150	Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 150 mm
	CPS1CN140-200	Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 200 mm
	CPS1CN140-250	Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 250 mm
	CPS1CN140-300	Bore: ø140 mm \| Mounting: Single clevis \| Stroke: 300 mm
	CPS1DN140-50	Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 50 mm
	CPS1DN140-100	Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 100 mm
	CPS1DN140-150	Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 150 mm
	CPS1DN140-200	Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 200 mm
	CPS1DN140-250	Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 250 mm
	CPS1DN140-300	Bore: ø140 mm \| Mounting: Double clevis \| Stroke: 300 mm
	CPS1TN140-50	Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 50 mm
	CPS1TN140-100	Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 100 mm
	CPS1TN140-150	Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 150 mm
	CPS1TN140-200	Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 200 mm
	CPS1TN140-250	Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 250 mm
	CPS1TN140-300	Bore: ø140 mm \| Mounting: Center trunnion \| Stroke: 300 mm
	CPS1BN160-50	Bore: ø160 mm \| Mounting: Basic \| Stroke: 50 mm
	CPS1BN160-100	Bore: ø160 mm \| Mounting: Basic \| Stroke: 100 mm
	CPS1BN160-150	Bore: ø160 mm \| Mounting: Basic \| Stroke: 150 mm
	CPS1BN160-200	Bore: ø160 mm \| Mounting: Basic \| Stroke: 200 mm
	CPS1BN160-250	Bore: ø160 mm \| Mounting: Basic \| Stroke: 250 mm
	CPS1BN160-300	Bore: ø160 mm \| Mounting: Basic \| Stroke: 300 mm
	CPS1LN160-50	Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 50 mm
	CPS1LN160-100	Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 100 mm
	CPS1LN160-150	Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 150 mm
	CPS1LN160-200	Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 200 mm
	CPS1LN160-250	Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 250 mm
	CPS1LN160-300	Bore: ø160 mm \| Mounting: Axial foot \| Stroke: 300 mm
	CPS1FN160-50	Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 50 mm
	CPS1FN160-100	Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 100 mm
	CPS1FN160-150	Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 150 mm
	CPS1FN160-200	Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 200 mm
	CPS1FN160-250	Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 250 mm
	CPS1FN160-300	Bore: ø160 mm \| Mounting: Rod flange \| Stroke: 300 mm
	CPS1GN160-50	Bore: ø160 mm \| Mounting: Head flange \| Stroke: 50 mm
	CPS1GN160-100	Bore: ø160 mm \| Mounting: Head flange \| Stroke: 100 mm
	CPS1GN160-150	Bore: ø160 mm \| Mounting: Head flange \| Stroke: 150 mm
	CPS1GN160-200	Bore: ø160 mm \| Mounting: Head flange \| Stroke: 200 mm
	CPS1GN160-250	Bore: ø160 mm \| Mounting: Head flange \| Stroke: 250 mm
	CPS1GN160-300	Bore: ø160 mm \| Mounting: Head flange \| Stroke: 300 mm
	CPS1CN160-50	Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 50 mm
	CPS1CN160-100	Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 100 mm
	CPS1CN160-150	Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 150 mm
	CPS1CN160-200	Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 200 mm
	CPS1CN160-250	Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 250 mm
	CPS1CN160-300	Bore: ø160 mm \| Mounting: Single clevis \| Stroke: 300 mm
	CPS1DN160-50	Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 50 mm
	CPS1DN160-100	Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 100 mm
	CPS1DN160-150	Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 150 mm
	CPS1DN160-200	Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 200 mm
	CPS1DN160-250	Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 250 mm
	CPS1DN160-300	Bore: ø160 mm \| Mounting: Double clevis \| Stroke: 300 mm
	CPS1TN160-50	Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 50 mm
	CPS1TN160-100	Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 100 mm
	CPS1TN160-150	Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 150 mm
	CPS1TN160-200	Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 200 mm
	CPS1TN160-250	Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 250 mm
	CPS1TN160-300	Bore: ø160 mm \| Mounting: Center trunnion \| Stroke: 300 mm
	CPS1BN180-50	Bore: ø180 mm \| Mounting: Basic \| Stroke: 50 mm
	CPS1BN180-100	Bore: ø180 mm \| Mounting: Basic \| Stroke: 100 mm
	CPS1BN180-150	Bore: ø180 mm \| Mounting: Basic \| Stroke: 150 mm
	CPS1BN180-200	Bore: ø180 mm \| Mounting: Basic \| Stroke: 200 mm
	CPS1BN180-250	Bore: ø180 mm \| Mounting: Basic \| Stroke: 250 mm
	CPS1BN180-300	Bore: ø180 mm \| Mounting: Basic \| Stroke: 300 mm
	CPS1LN180-50	Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 50 mm
	CPS1LN180-100	Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 100 mm
	CPS1LN180-150	Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 150 mm
	CPS1LN180-200	Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 200 mm
	CPS1LN180-250	Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 250 mm
	CPS1LN180-300	Bore: ø180 mm \| Mounting: Axial foot \| Stroke: 300 mm
	CPS1FN180-50	Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 50 mm
	CPS1FN180-100	Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 100 mm
	CPS1FN180-150	Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 150 mm
	CPS1FN180-200	Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 200 mm
	CPS1FN180-250	Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 250 mm
	CPS1FN180-300	Bore: ø180 mm \| Mounting: Rod flange \| Stroke: 300 mm
	CPS1GN180-50	Bore: ø180 mm \| Mounting: Head flange \| Stroke: 50 mm
	CPS1GN180-100	Bore: ø180 mm \| Mounting: Head flange \| Stroke: 100 mm
	CPS1GN180-150	Bore: ø180 mm \| Mounting: Head flange \| Stroke: 150 mm
	CPS1GN180-200	Bore: ø180 mm \| Mounting: Head flange \| Stroke: 200 mm
	CPS1GN180-250	Bore: ø180 mm \| Mounting: Head flange \| Stroke: 250 mm
	CPS1GN180-300	Bore: ø180 mm \| Mounting: Head flange \| Stroke: 300 mm
	CPS1CN180-50	Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 50 mm
	CPS1CN180-100	Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 100 mm
	CPS1CN180-150	Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 150 mm
	CPS1CN180-200	Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 200 mm
	CPS1CN180-250	Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 250 mm
	CPS1CN180-300	Bore: ø180 mm \| Mounting: Single clevis \| Stroke: 300 mm
	CPS1DN180-50	Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 50 mm
	CPS1DN180-100	Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 100 mm
	CPS1DN180-150	Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 150 mm
	CPS1DN180-200	Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 200 mm
	CPS1DN180-250	Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 250 mm
	CPS1DN180-300	Bore: ø180 mm \| Mounting: Double clevis \| Stroke: 300 mm
	CPS1TN180-50	Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 50 mm
	CPS1TN180-100	Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 100 mm
	CPS1TN180-150	Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 150 mm
	CPS1TN180-200	Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 200 mm
	CPS1TN180-250	Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 250 mm
	CPS1TN180-300	Bore: ø180 mm \| Mounting: Center trunnion \| Stroke: 300 mm
	CPS1BN200-50	Bore: ø200 mm \| Mounting: Basic \| Stroke: 50 mm
	CPS1BN200-100	Bore: ø200 mm \| Mounting: Basic \| Stroke: 100 mm
	CPS1BN200-150	Bore: ø200 mm \| Mounting: Basic \| Stroke: 150 mm
	CPS1BN200-200	Bore: ø200 mm \| Mounting: Basic \| Stroke: 200 mm
	CPS1BN200-250	Bore: ø200 mm \| Mounting: Basic \| Stroke: 250 mm
	CPS1BN200-300	Bore: ø200 mm \| Mounting: Basic \| Stroke: 300 mm
	CPS1LN200-50	Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 50 mm
	CPS1LN200-100	Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 100 mm
	CPS1LN200-150	Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 150 mm
	CPS1LN200-200	Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 200 mm
	CPS1LN200-250	Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 250 mm
	CPS1LN200-300	Bore: ø200 mm \| Mounting: Axial foot \| Stroke: 300 mm
	CPS1FN200-50	Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 50 mm
	CPS1FN200-100	Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 100 mm
	CPS1FN200-150	Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 150 mm
	CPS1FN200-200	Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 200 mm
	CPS1FN200-250	Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 250 mm
	CPS1FN200-300	Bore: ø200 mm \| Mounting: Rod flange \| Stroke: 300 mm
	CPS1GN200-50	Bore: ø200 mm \| Mounting: Head flange \| Stroke: 50 mm
	CPS1GN200-100	Bore: ø200 mm \| Mounting: Head flange \| Stroke: 100 mm
	CPS1GN200-150	Bore: ø200 mm \| Mounting: Head flange \| Stroke: 150 mm
	CPS1GN200-200	Bore: ø200 mm \| Mounting: Head flange \| Stroke: 200 mm
	CPS1GN200-250	Bore: ø200 mm \| Mounting: Head flange \| Stroke: 250 mm
	CPS1GN200-300	Bore: ø200 mm \| Mounting: Head flange \| Stroke: 300 mm
	CPS1CN200-50	Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 50 mm
	CPS1CN200-100	Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 100 mm
	CPS1CN200-150	Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 150 mm
	CPS1CN200-200	Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 200 mm
	CPS1CN200-250	Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 250 mm
	CPS1CN200-300	Bore: ø200 mm \| Mounting: Single clevis \| Stroke: 300 mm
	CPS1DN200-50	Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 50 mm
	CPS1DN200-100	Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 100 mm
	CPS1DN200-150	Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 150 mm
	CPS1DN200-200	Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 200 mm
	CPS1DN200-250	Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 250 mm
	CPS1DN200-300	Bore: ø200 mm \| Mounting: Double clevis \| Stroke: 300 mm
	CPS1TN200-50	Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 50 mm
	CPS1TN200-100	Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 100 mm
	CPS1TN200-150	Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 150 mm
	CPS1TN200-200	Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 200 mm
	CPS1TN200-250	Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 250 mm
	CPS1TN200-300	Bore: ø200 mm \| Mounting: Center trunnion \| Stroke: 300 mm
	CPS1BN250-50	Bore: ø250 mm \| Mounting: Basic \| Stroke: 50 mm
	CPS1BN250-100	Bore: ø250 mm \| Mounting: Basic \| Stroke: 100 mm
	CPS1BN250-150	Bore: ø250 mm \| Mounting: Basic \| Stroke: 150 mm
	CPS1BN250-200	Bore: ø250 mm \| Mounting: Basic \| Stroke: 200 mm
	CPS1BN250-250	Bore: ø250 mm \| Mounting: Basic \| Stroke: 250 mm
	CPS1BN250-300	Bore: ø250 mm \| Mounting: Basic \| Stroke: 300 mm
	CPS1LN250-50	Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 50 mm
	CPS1LN250-100	Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 100 mm
	CPS1LN250-150	Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 150 mm
	CPS1LN250-200	Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 200 mm
	CPS1LN250-250	Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 250 mm
	CPS1LN250-300	Bore: ø250 mm \| Mounting: Axial foot \| Stroke: 300 mm
	CPS1FN250-50	Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 50 mm
	CPS1FN250-100	Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 100 mm
	CPS1FN250-150	Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 150 mm
	CPS1FN250-200	Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 200 mm
	CPS1FN250-250	Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 250 mm
	CPS1FN250-300	Bore: ø250 mm \| Mounting: Rod flange \| Stroke: 300 mm
	CPS1GN250-50	Bore: ø250 mm \| Mounting: Head flange \| Stroke: 50 mm
	CPS1GN250-100	Bore: ø250 mm \| Mounting: Head flange \| Stroke: 100 mm
	CPS1GN250-150	Bore: ø250 mm \| Mounting: Head flange \| Stroke: 150 mm
	CPS1GN250-200	Bore: ø250 mm \| Mounting: Head flange \| Stroke: 200 mm
	CPS1GN250-250	Bore: ø250 mm \| Mounting: Head flange \| Stroke: 250 mm
	CPS1GN250-300	Bore: ø250 mm \| Mounting: Head flange \| Stroke: 300 mm
	CPS1CN250-50	Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 50 mm
	CPS1CN250-100	Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 100 mm
	CPS1CN250-150	Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 150 mm
	CPS1CN250-200	Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 200 mm
	CPS1CN250-250	Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 250 mm
	CPS1CN250-300	Bore: ø250 mm \| Mounting: Single clevis \| Stroke: 300 mm
	CPS1DN250-50	Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 50 mm
	CPS1DN250-100	Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 100 mm
	CPS1DN250-150	Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 150 mm
	CPS1DN250-200	Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 200 mm
	CPS1DN250-250	Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 250 mm
	CPS1DN250-300	Bore: ø250 mm \| Mounting: Double clevis \| Stroke: 300 mm
	CPS1TN250-50	Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 50 mm
	CPS1TN250-100	Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 100 mm
	CPS1TN250-150	Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 150 mm
	CPS1TN250-200	Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 200 mm
	CPS1TN250-250	Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 250 mm
	CPS1TN250-300	Bore: ø250 mm \| Mounting: Center trunnion \| Stroke: 300 mm
	CPS1BN300-50	Bore: ø300 mm \| Mounting: Basic \| Stroke: 50 mm
	CPS1BN300-100	Bore: ø300 mm \| Mounting: Basic \| Stroke: 100 mm
	CPS1BN300-150	Bore: ø300 mm \| Mounting: Basic \| Stroke: 150 mm
	CPS1BN300-200	Bore: ø300 mm \| Mounting: Basic \| Stroke: 200 mm
	CPS1BN300-250	Bore: ø300 mm \| Mounting: Basic \| Stroke: 250 mm
	CPS1BN300-300	Bore: ø300 mm \| Mounting: Basic \| Stroke: 300 mm
	CPS1LN300-50	Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 50 mm
	CPS1LN300-100	Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 100 mm
	CPS1LN300-150	Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 150 mm
	CPS1LN300-200	Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 200 mm
	CPS1LN300-250	Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 250 mm
	CPS1LN300-300	Bore: ø300 mm \| Mounting: Axial foot \| Stroke: 300 mm
	CPS1FN300-50	Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 50 mm
	CPS1FN300-100	Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 100 mm
	CPS1FN300-150	Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 150 mm
	CPS1FN300-200	Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 200 mm
	CPS1FN300-250	Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 250 mm
	CPS1FN300-300	Bore: ø300 mm \| Mounting: Rod flange \| Stroke: 300 mm
	CPS1GN300-50	Bore: ø300 mm \| Mounting: Head flange \| Stroke: 50 mm
	CPS1GN300-100	Bore: ø300 mm \| Mounting: Head flange \| Stroke: 100 mm
	CPS1GN300-150	Bore: ø300 mm \| Mounting: Head flange \| Stroke: 150 mm
	CPS1GN300-200	Bore: ø300 mm \| Mounting: Head flange \| Stroke: 200 mm
	CPS1GN300-250	Bore: ø300 mm \| Mounting: Head flange \| Stroke: 250 mm
	CPS1GN300-300	Bore: ø300 mm \| Mounting: Head flange \| Stroke: 300 mm
	CPS1CN300-50	Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 50 mm
	CPS1CN300-100	Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 100 mm
	CPS1CN300-150	Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 150 mm
	CPS1CN300-200	Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 200 mm
	CPS1CN300-250	Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 250 mm
	CPS1CN300-300	Bore: ø300 mm \| Mounting: Single clevis \| Stroke: 300 mm
	CPS1DN300-50	Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 50 mm
	CPS1DN300-100	Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 100 mm
	CPS1DN300-150	Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 150 mm
	CPS1DN300-200	Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 200 mm
	CPS1DN300-250	Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 250 mm
	CPS1DN300-300	Bore: ø300 mm \| Mounting: Double clevis \| Stroke: 300 mm
	CPS1TN300-50	Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 50 mm
	CPS1TN300-100	Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 100 mm
	CPS1TN300-150	Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 150 mm
	CPS1TN300-200	Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 200 mm
	CPS1TN300-250	Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 250 mm
	CPS1TN300-300	Bore: ø300 mm \| Mounting: Center trunnion \| Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CPS1 P Cylinder with Positioner (ø125 to ø300)
