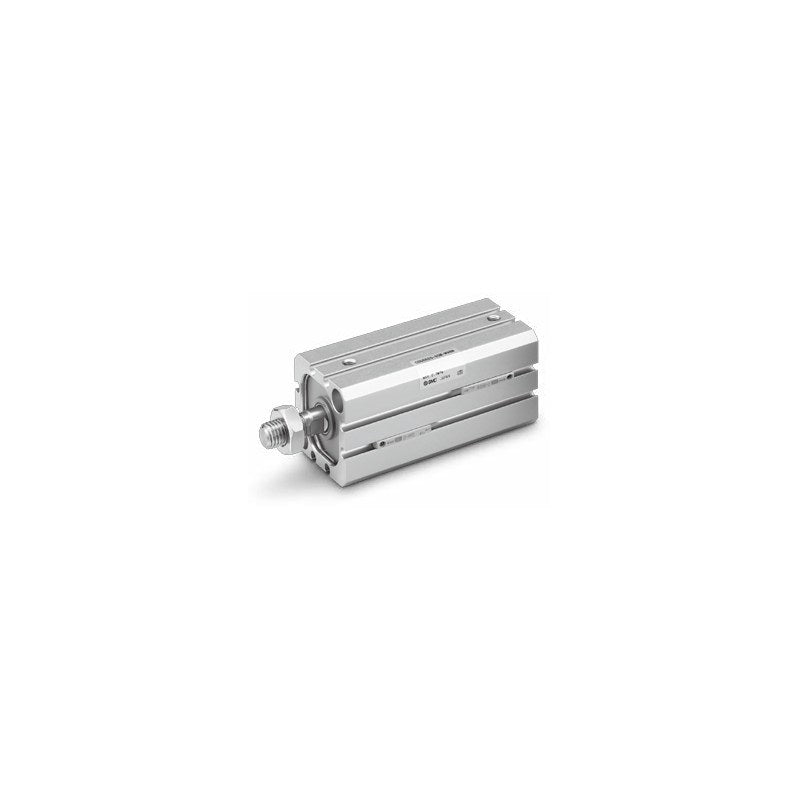

SMC CQE Compact Cylinder, High Power Type (Size 20 to 40)

SMC CQE Compact Cylinder, High Power Type (Size 20 to 40)

SMC CQE series high-power compact cylinder with a polygonal piston giving the theoretical output of one bore size larger in the same envelope as CQ2, sizes 20 to 40, with built-in magnet.

Key features

  • Polygonal piston gives up to 1.5x the output of a round piston (size 32 at 0.5 MPa: 603 N vs 402 N for CQ2 ø32)
  • Same output achievable at lower supply pressure (approx. 0.17 MPa reduction), helping lower plant air pressure
  • Same external dimensions as CQ2 (sizes 20, 25 match CQS); piston rod is non-rotating in normal operation
  • Built-in magnet as standard for compact D-M9 series auto switches (ordered as a suffix, e.g. -M9BW)
  • Stop ring can be removed with a small screwdriver for packing replacement; packing sets CQEB(size)-PS
  • Intermediate strokes by spacer or dedicated body (-XB10); rod end shape change (-XA) on order

Specifications

Action Double acting, single rod
Mounting Through-hole / both ends tapped common (B)
Auto switch magnet Built-in (standard)
Fluid Air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature -10 to 60°C (with auto switch)
Lubrication Not required (non-lube)
Piston speed 50 to 500 mm/s
Cushion Rubber bumper
Stroke length tolerance +1.0/0 mm
Source SMC Korea catalog CAT.KS20-309A (SMCKR_CQE.pdf), p. 1-5
CDQEB20-5 Size: 20 (ø25 equivalent area) | Stroke: 5 mm | Rod end: Female thread M5x0.8 | Port: M5x0.8
CDQEB20-5M Size: 20 (ø25 equivalent area) | Stroke: 5 mm | Rod end: Male thread M8x1.25 | Port: M5x0.8
CDQEB20-10 Size: 20 (ø25 equivalent area) | Stroke: 10 mm | Rod end: Female thread M5x0.8 | Port: M5x0.8
CDQEB20-10M Size: 20 (ø25 equivalent area) | Stroke: 10 mm | Rod end: Male thread M8x1.25 | Port: M5x0.8
CDQEB20-15 Size: 20 (ø25 equivalent area) | Stroke: 15 mm | Rod end: Female thread M5x0.8 | Port: M5x0.8
CDQEB20-15M Size: 20 (ø25 equivalent area) | Stroke: 15 mm | Rod end: Male thread M8x1.25 | Port: M5x0.8
CDQEB20-20 Size: 20 (ø25 equivalent area) | Stroke: 20 mm | Rod end: Female thread M5x0.8 | Port: M5x0.8
CDQEB20-20M Size: 20 (ø25 equivalent area) | Stroke: 20 mm | Rod end: Male thread M8x1.25 | Port: M5x0.8
CDQEB20-25 Size: 20 (ø25 equivalent area) | Stroke: 25 mm | Rod end: Female thread M5x0.8 | Port: M5x0.8
CDQEB20-25M Size: 20 (ø25 equivalent area) | Stroke: 25 mm | Rod end: Male thread M8x1.25 | Port: M5x0.8
CDQEB20-30 Size: 20 (ø25 equivalent area) | Stroke: 30 mm | Rod end: Female thread M5x0.8 | Port: M5x0.8
CDQEB20-30M Size: 20 (ø25 equivalent area) | Stroke: 30 mm | Rod end: Male thread M8x1.25 | Port: M5x0.8
CDQEB20-35 Size: 20 (ø25 equivalent area) | Stroke: 35 mm | Rod end: Female thread M5x0.8 | Port: M5x0.8
CDQEB20-35M Size: 20 (ø25 equivalent area) | Stroke: 35 mm | Rod end: Male thread M8x1.25 | Port: M5x0.8
CDQEB20-40 Size: 20 (ø25 equivalent area) | Stroke: 40 mm | Rod end: Female thread M5x0.8 | Port: M5x0.8
CDQEB20-40M Size: 20 (ø25 equivalent area) | Stroke: 40 mm | Rod end: Male thread M8x1.25 | Port: M5x0.8
CDQEB20-45 Size: 20 (ø25 equivalent area) | Stroke: 45 mm | Rod end: Female thread M5x0.8 | Port: M5x0.8
CDQEB20-45M Size: 20 (ø25 equivalent area) | Stroke: 45 mm | Rod end: Male thread M8x1.25 | Port: M5x0.8
CDQEB20-50 Size: 20 (ø25 equivalent area) | Stroke: 50 mm | Rod end: Female thread M5x0.8 | Port: M5x0.8
CDQEB20-50M Size: 20 (ø25 equivalent area) | Stroke: 50 mm | Rod end: Male thread M8x1.25 | Port: M5x0.8
CDQEB25-5 Size: 25 (ø32 equivalent area) | Stroke: 5 mm | Rod end: Female thread M6x1.0 | Port: M5x0.8
CDQEB25-5M Size: 25 (ø32 equivalent area) | Stroke: 5 mm | Rod end: Male thread M10x1.25 | Port: M5x0.8
CDQEB25-10 Size: 25 (ø32 equivalent area) | Stroke: 10 mm | Rod end: Female thread M6x1.0 | Port: M5x0.8
CDQEB25-10M Size: 25 (ø32 equivalent area) | Stroke: 10 mm | Rod end: Male thread M10x1.25 | Port: M5x0.8
CDQEB25-15 Size: 25 (ø32 equivalent area) | Stroke: 15 mm | Rod end: Female thread M6x1.0 | Port: M5x0.8
CDQEB25-15M Size: 25 (ø32 equivalent area) | Stroke: 15 mm | Rod end: Male thread M10x1.25 | Port: M5x0.8
CDQEB25-20 Size: 25 (ø32 equivalent area) | Stroke: 20 mm | Rod end: Female thread M6x1.0 | Port: M5x0.8
CDQEB25-20M Size: 25 (ø32 equivalent area) | Stroke: 20 mm | Rod end: Male thread M10x1.25 | Port: M5x0.8
CDQEB25-25 Size: 25 (ø32 equivalent area) | Stroke: 25 mm | Rod end: Female thread M6x1.0 | Port: M5x0.8
CDQEB25-25M Size: 25 (ø32 equivalent area) | Stroke: 25 mm | Rod end: Male thread M10x1.25 | Port: M5x0.8
CDQEB25-30 Size: 25 (ø32 equivalent area) | Stroke: 30 mm | Rod end: Female thread M6x1.0 | Port: M5x0.8
CDQEB25-30M Size: 25 (ø32 equivalent area) | Stroke: 30 mm | Rod end: Male thread M10x1.25 | Port: M5x0.8
CDQEB25-35 Size: 25 (ø32 equivalent area) | Stroke: 35 mm | Rod end: Female thread M6x1.0 | Port: M5x0.8
CDQEB25-35M Size: 25 (ø32 equivalent area) | Stroke: 35 mm | Rod end: Male thread M10x1.25 | Port: M5x0.8
CDQEB25-40 Size: 25 (ø32 equivalent area) | Stroke: 40 mm | Rod end: Female thread M6x1.0 | Port: M5x0.8
CDQEB25-40M Size: 25 (ø32 equivalent area) | Stroke: 40 mm | Rod end: Male thread M10x1.25 | Port: M5x0.8
CDQEB25-45 Size: 25 (ø32 equivalent area) | Stroke: 45 mm | Rod end: Female thread M6x1.0 | Port: M5x0.8
CDQEB25-45M Size: 25 (ø32 equivalent area) | Stroke: 45 mm | Rod end: Male thread M10x1.25 | Port: M5x0.8
CDQEB25-50 Size: 25 (ø32 equivalent area) | Stroke: 50 mm | Rod end: Female thread M6x1.0 | Port: M5x0.8
CDQEB25-50M Size: 25 (ø32 equivalent area) | Stroke: 50 mm | Rod end: Male thread M10x1.25 | Port: M5x0.8
CDQEB32-5 Size: 32 (ø40 equivalent area) | Stroke: 5 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-5M Size: 32 (ø40 equivalent area) | Stroke: 5 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB32-10 Size: 32 (ø40 equivalent area) | Stroke: 10 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-10M Size: 32 (ø40 equivalent area) | Stroke: 10 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB32-15 Size: 32 (ø40 equivalent area) | Stroke: 15 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-15M Size: 32 (ø40 equivalent area) | Stroke: 15 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB32-20 Size: 32 (ø40 equivalent area) | Stroke: 20 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-20M Size: 32 (ø40 equivalent area) | Stroke: 20 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB32-25 Size: 32 (ø40 equivalent area) | Stroke: 25 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-25M Size: 32 (ø40 equivalent area) | Stroke: 25 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB32-30 Size: 32 (ø40 equivalent area) | Stroke: 30 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-30M Size: 32 (ø40 equivalent area) | Stroke: 30 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB32-35 Size: 32 (ø40 equivalent area) | Stroke: 35 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-35M Size: 32 (ø40 equivalent area) | Stroke: 35 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB32-40 Size: 32 (ø40 equivalent area) | Stroke: 40 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-40M Size: 32 (ø40 equivalent area) | Stroke: 40 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB32-45 Size: 32 (ø40 equivalent area) | Stroke: 45 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-45M Size: 32 (ø40 equivalent area) | Stroke: 45 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB32-50 Size: 32 (ø40 equivalent area) | Stroke: 50 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-50M Size: 32 (ø40 equivalent area) | Stroke: 50 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB32-75 Size: 32 (ø40 equivalent area) | Stroke: 75 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-75M Size: 32 (ø40 equivalent area) | Stroke: 75 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB32-100 Size: 32 (ø40 equivalent area) | Stroke: 100 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB32-100M Size: 32 (ø40 equivalent area) | Stroke: 100 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-5 Size: 40 (ø50 equivalent area) | Stroke: 5 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-5M Size: 40 (ø50 equivalent area) | Stroke: 5 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-10 Size: 40 (ø50 equivalent area) | Stroke: 10 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-10M Size: 40 (ø50 equivalent area) | Stroke: 10 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-15 Size: 40 (ø50 equivalent area) | Stroke: 15 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-15M Size: 40 (ø50 equivalent area) | Stroke: 15 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-20 Size: 40 (ø50 equivalent area) | Stroke: 20 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-20M Size: 40 (ø50 equivalent area) | Stroke: 20 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-25 Size: 40 (ø50 equivalent area) | Stroke: 25 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-25M Size: 40 (ø50 equivalent area) | Stroke: 25 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-30 Size: 40 (ø50 equivalent area) | Stroke: 30 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-30M Size: 40 (ø50 equivalent area) | Stroke: 30 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-35 Size: 40 (ø50 equivalent area) | Stroke: 35 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-35M Size: 40 (ø50 equivalent area) | Stroke: 35 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-40 Size: 40 (ø50 equivalent area) | Stroke: 40 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-40M Size: 40 (ø50 equivalent area) | Stroke: 40 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-45 Size: 40 (ø50 equivalent area) | Stroke: 45 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-45M Size: 40 (ø50 equivalent area) | Stroke: 45 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-50 Size: 40 (ø50 equivalent area) | Stroke: 50 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-50M Size: 40 (ø50 equivalent area) | Stroke: 50 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-75 Size: 40 (ø50 equivalent area) | Stroke: 75 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-75M Size: 40 (ø50 equivalent area) | Stroke: 75 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
CDQEB40-100 Size: 40 (ø50 equivalent area) | Stroke: 100 mm | Rod end: Female thread M8x1.25 | Port: Rc1/8
CDQEB40-100M Size: 40 (ø50 equivalent area) | Stroke: 100 mm | Rod end: Male thread M14x1.5 | Port: Rc1/8
