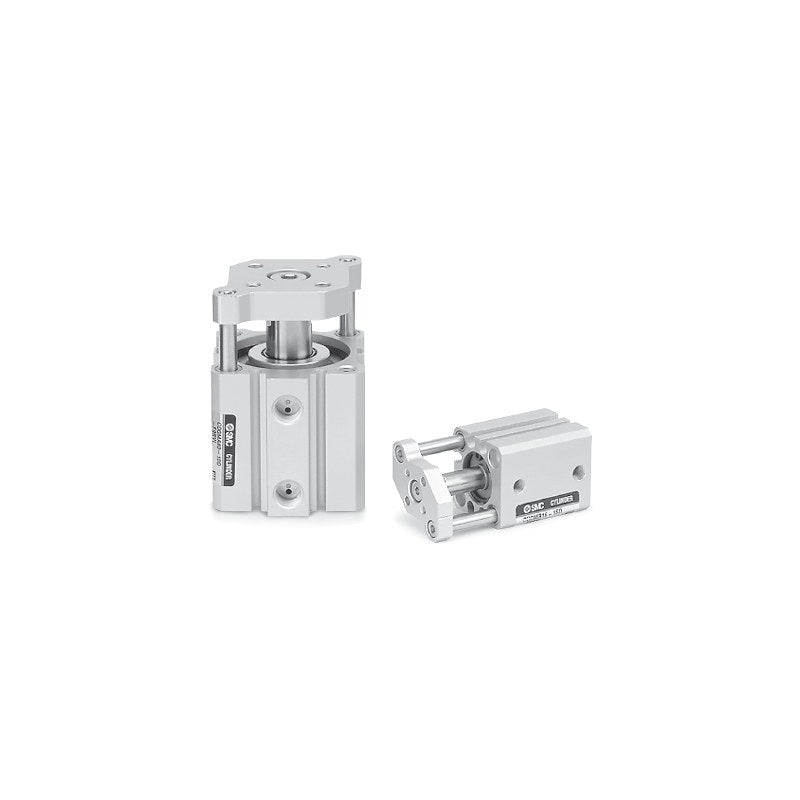

SMC CQM Compact Cylinder with Guide Rod (ø12 to ø100)

SMC CQM Compact Cylinder with Guide Rod (ø12 to ø100)

SMC CQM series compact cylinder with an integrated guide rod and end plate, ø12 to ø100, giving 2 to 4 times the lateral load resistance of the CQ series and direct load mounting.

Key features

  • Guide rod with slide bearing: non-rotating accuracy ±0.2° (ø12, ø16), ±0.1° (ø20 to ø100)
  • Lateral load resistance 2 to 4 times the CQ series; load can be mounted directly on the plate
  • Mounting dimensions interchangeable with CQS and CQ2 series
  • CDQM type has a built-in magnet; auto switches can be mounted or removed with the plate retracted
  • Mounting: through-hole (standard), both ends tapped (ø32 to ø100); mounting bolts ordered separately

Specifications

Action Double acting, single rod
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.12 MPa (ø12, ø16), 0.1 MPa (ø20 to ø100)
Ambient and fluid temperature -10 to 70°C (no switch), -10 to 60°C (with switch)
Lubrication Not required (non-lube)
Cushion Rubber bumper on both ends
Piston speed 50 to 500 mm/s (ø12 to ø63), 50 to 300 mm/s (ø80, ø100)
Stroke tolerance +1.0/0 mm
Source SMC Korea catalog CQM Series (SMCKR_CQM.pdf), p. 1060-1061 (PDF p. 2-3)
CQMB12-5 Bore: ø12 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMB12-10 Bore: ø12 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: M thread
CQMB12-15 Bore: ø12 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: M thread
CQMB12-20 Bore: ø12 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: M thread
CQMB12-25 Bore: ø12 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: M thread
CQMB12-30 Bore: ø12 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: M thread
CQMB16-5 Bore: ø16 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMB16-10 Bore: ø16 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: M thread
CQMB16-15 Bore: ø16 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: M thread
CQMB16-20 Bore: ø16 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: M thread
CQMB16-25 Bore: ø16 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: M thread
CQMB16-30 Bore: ø16 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: M thread
CQMB20-5 Bore: ø20 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMB20-10 Bore: ø20 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: M thread
CQMB20-15 Bore: ø20 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: M thread
CQMB20-20 Bore: ø20 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: M thread
CQMB20-25 Bore: ø20 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: M thread
CQMB20-30 Bore: ø20 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: M thread
CQMB20-35 Bore: ø20 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: M thread
CQMB20-40 Bore: ø20 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: M thread
CQMB20-45 Bore: ø20 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: M thread
CQMB20-50 Bore: ø20 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: M thread
CQMB25-5 Bore: ø25 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMB25-10 Bore: ø25 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: M thread
CQMB25-15 Bore: ø25 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: M thread
CQMB25-20 Bore: ø25 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: M thread
CQMB25-25 Bore: ø25 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: M thread
CQMB25-30 Bore: ø25 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: M thread
CQMB25-35 Bore: ø25 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: M thread
CQMB25-40 Bore: ø25 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: M thread
CQMB25-45 Bore: ø25 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: M thread
CQMB25-50 Bore: ø25 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: M thread
CQMB32-5 Bore: ø32 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMB32-10 Bore: ø32 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB32-15 Bore: ø32 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB32-20 Bore: ø32 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB32-25 Bore: ø32 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB32-30 Bore: ø32 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB32-35 Bore: ø32 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB32-40 Bore: ø32 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB32-45 Bore: ø32 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB32-50 Bore: ø32 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB32-75 Bore: ø32 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB32-100 Bore: ø32 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA32-5 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMA32-10 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA32-15 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA32-20 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA32-25 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA32-30 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA32-35 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA32-40 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA32-45 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA32-50 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA32-75 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA32-100 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMB40-5 Bore: ø40 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: Rc
CQMB40-10 Bore: ø40 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB40-15 Bore: ø40 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB40-20 Bore: ø40 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB40-25 Bore: ø40 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB40-30 Bore: ø40 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB40-35 Bore: ø40 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB40-40 Bore: ø40 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB40-45 Bore: ø40 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB40-50 Bore: ø40 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB40-75 Bore: ø40 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB40-100 Bore: ø40 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA40-5 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: Rc
CQMA40-10 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA40-15 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA40-20 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA40-25 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA40-30 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA40-35 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA40-40 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA40-45 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA40-50 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA40-75 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA40-100 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMB50-10 Bore: ø50 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB50-15 Bore: ø50 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB50-20 Bore: ø50 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB50-25 Bore: ø50 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB50-30 Bore: ø50 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB50-35 Bore: ø50 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB50-40 Bore: ø50 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB50-45 Bore: ø50 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB50-50 Bore: ø50 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB50-75 Bore: ø50 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB50-100 Bore: ø50 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA50-10 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA50-15 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA50-20 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA50-25 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA50-30 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA50-35 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA50-40 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA50-45 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA50-50 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA50-75 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA50-100 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMB63-10 Bore: ø63 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB63-15 Bore: ø63 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB63-20 Bore: ø63 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB63-25 Bore: ø63 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB63-30 Bore: ø63 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB63-35 Bore: ø63 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB63-40 Bore: ø63 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB63-45 Bore: ø63 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB63-50 Bore: ø63 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB63-75 Bore: ø63 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB63-100 Bore: ø63 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA63-10 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA63-15 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA63-20 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA63-25 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA63-30 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA63-35 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA63-40 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA63-45 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA63-50 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA63-75 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA63-100 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMB80-10 Bore: ø80 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB80-15 Bore: ø80 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB80-20 Bore: ø80 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB80-25 Bore: ø80 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB80-30 Bore: ø80 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB80-35 Bore: ø80 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB80-40 Bore: ø80 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB80-45 Bore: ø80 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB80-50 Bore: ø80 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB80-75 Bore: ø80 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB80-100 Bore: ø80 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA80-10 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA80-15 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA80-20 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA80-25 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA80-30 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA80-35 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA80-40 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA80-45 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA80-50 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA80-75 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA80-100 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMB100-10 Bore: ø100 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB100-15 Bore: ø100 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB100-20 Bore: ø100 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB100-25 Bore: ø100 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB100-30 Bore: ø100 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB100-35 Bore: ø100 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB100-40 Bore: ø100 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB100-45 Bore: ø100 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB100-50 Bore: ø100 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB100-75 Bore: ø100 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB100-100 Bore: ø100 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA100-10 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA100-15 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA100-20 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA100-25 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA100-30 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA100-35 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA100-40 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA100-45 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA100-50 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA100-75 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA100-100 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CDQMB12-5 Bore: ø12 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
CDQMB12-10 Bore: ø12 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
CDQMB12-15 Bore: ø12 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
CDQMB12-20 Bore: ø12 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
CDQMB12-25 Bore: ø12 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
CDQMB12-30 Bore: ø12 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-5 Bore: ø16 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-10 Bore: ø16 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-15 Bore: ø16 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-20 Bore: ø16 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-25 Bore: ø16 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-30 Bore: ø16 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-5 Bore: ø20 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-10 Bore: ø20 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-15 Bore: ø20 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-20 Bore: ø20 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-25 Bore: ø20 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-30 Bore: ø20 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-35 Bore: ø20 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-40 Bore: ø20 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-45 Bore: ø20 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-50 Bore: ø20 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-5 Bore: ø25 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-10 Bore: ø25 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-15 Bore: ø25 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-20 Bore: ø25 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-25 Bore: ø25 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-30 Bore: ø25 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-35 Bore: ø25 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-40 Bore: ø25 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-45 Bore: ø25 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-50 Bore: ø25 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
CDQMB32-5 Bore: ø32 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-10 Bore: ø32 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-15 Bore: ø32 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-20 Bore: ø32 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-25 Bore: ø32 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-30 Bore: ø32 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-35 Bore: ø32 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-40 Bore: ø32 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-45 Bore: ø32 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-50 Bore: ø32 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-75 Bore: ø32 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-100 Bore: ø32 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-5 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-10 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-15 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-20 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-25 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-30 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-35 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-40 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-45 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-50 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-75 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-100 Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-5 Bore: ø40 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-10 Bore: ø40 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-15 Bore: ø40 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-20 Bore: ø40 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-25 Bore: ø40 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-30 Bore: ø40 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-35 Bore: ø40 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-40 Bore: ø40 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-45 Bore: ø40 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-50 Bore: ø40 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-75 Bore: ø40 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-100 Bore: ø40 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-5 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-10 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-15 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-20 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-25 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-30 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-35 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-40 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-45 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-50 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-75 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-100 Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-10 Bore: ø50 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-15 Bore: ø50 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-20 Bore: ø50 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-25 Bore: ø50 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-30 Bore: ø50 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-35 Bore: ø50 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-40 Bore: ø50 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-45 Bore: ø50 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-50 Bore: ø50 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-75 Bore: ø50 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-100 Bore: ø50 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-10 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-15 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-20 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-25 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-30 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-35 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-40 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-45 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-50 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-75 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-100 Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-10 Bore: ø63 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-15 Bore: ø63 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-20 Bore: ø63 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-25 Bore: ø63 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-30 Bore: ø63 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-35 Bore: ø63 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-40 Bore: ø63 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-45 Bore: ø63 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-50 Bore: ø63 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-75 Bore: ø63 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-100 Bore: ø63 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-10 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-15 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-20 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-25 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-30 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-35 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-40 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-45 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-50 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-75 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-100 Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-10 Bore: ø80 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-15 Bore: ø80 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-20 Bore: ø80 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-25 Bore: ø80 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-30 Bore: ø80 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-35 Bore: ø80 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-40 Bore: ø80 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-45 Bore: ø80 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-50 Bore: ø80 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-75 Bore: ø80 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-100 Bore: ø80 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-10 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-15 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-20 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-25 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-30 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-35 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-40 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-45 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-50 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-75 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-100 Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-10 Bore: ø100 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-15 Bore: ø100 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-20 Bore: ø100 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-25 Bore: ø100 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-30 Bore: ø100 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-35 Bore: ø100 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-40 Bore: ø100 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-45 Bore: ø100 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-50 Bore: ø100 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-75 Bore: ø100 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-100 Bore: ø100 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-10 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-15 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-20 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-25 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-30 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-35 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-40 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-45 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-50 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-75 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-100 Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
Compact CylindersSMC
336 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CQM Compact Cylinder with Guide Rod (ø12 to ø100)

Brand SMC·Compact Cylinders

Available part numbers (336)

CQMB12-5, CQMB12-10, CQMB12-15, CQMB12-20, CQMB12-25, CQMB12-30, CQMB16-5, CQMB16-10, CQMB16-15, CQMB16-20 + 326 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CQMB12-5Bore: ø12 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMB12-10Bore: ø12 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: M thread
CQMB12-15Bore: ø12 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: M thread
CQMB12-20Bore: ø12 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: M thread
CQMB12-25Bore: ø12 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: M thread
CQMB12-30Bore: ø12 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: M thread
CQMB16-5Bore: ø16 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMB16-10Bore: ø16 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: M thread
CQMB16-15Bore: ø16 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: M thread
CQMB16-20Bore: ø16 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: M thread
CQMB16-25Bore: ø16 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: M thread
CQMB16-30Bore: ø16 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: M thread
CQMB20-5Bore: ø20 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMB20-10Bore: ø20 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: M thread
CQMB20-15Bore: ø20 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: M thread
CQMB20-20Bore: ø20 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: M thread
CQMB20-25Bore: ø20 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: M thread
CQMB20-30Bore: ø20 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: M thread
CQMB20-35Bore: ø20 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: M thread
CQMB20-40Bore: ø20 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: M thread
CQMB20-45Bore: ø20 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: M thread
CQMB20-50Bore: ø20 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: M thread
CQMB25-5Bore: ø25 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMB25-10Bore: ø25 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: M thread
CQMB25-15Bore: ø25 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: M thread
CQMB25-20Bore: ø25 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: M thread
CQMB25-25Bore: ø25 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: M thread
CQMB25-30Bore: ø25 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: M thread
CQMB25-35Bore: ø25 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: M thread
CQMB25-40Bore: ø25 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: M thread
CQMB25-45Bore: ø25 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: M thread
CQMB25-50Bore: ø25 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: M thread
CQMB32-5Bore: ø32 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMB32-10Bore: ø32 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB32-15Bore: ø32 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB32-20Bore: ø32 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB32-25Bore: ø32 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB32-30Bore: ø32 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB32-35Bore: ø32 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB32-40Bore: ø32 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB32-45Bore: ø32 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB32-50Bore: ø32 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB32-75Bore: ø32 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB32-100Bore: ø32 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA32-5Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: M thread
CQMA32-10Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA32-15Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA32-20Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA32-25Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA32-30Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA32-35Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA32-40Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA32-45Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA32-50Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA32-75Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA32-100Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMB40-5Bore: ø40 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: None | Port thread: Rc
CQMB40-10Bore: ø40 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB40-15Bore: ø40 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB40-20Bore: ø40 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB40-25Bore: ø40 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB40-30Bore: ø40 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB40-35Bore: ø40 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB40-40Bore: ø40 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB40-45Bore: ø40 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB40-50Bore: ø40 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB40-75Bore: ø40 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB40-100Bore: ø40 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA40-5Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: None | Port thread: Rc
CQMA40-10Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA40-15Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA40-20Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA40-25Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA40-30Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA40-35Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA40-40Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA40-45Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA40-50Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA40-75Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA40-100Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMB50-10Bore: ø50 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB50-15Bore: ø50 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB50-20Bore: ø50 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB50-25Bore: ø50 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB50-30Bore: ø50 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB50-35Bore: ø50 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB50-40Bore: ø50 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB50-45Bore: ø50 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB50-50Bore: ø50 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB50-75Bore: ø50 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB50-100Bore: ø50 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA50-10Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA50-15Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA50-20Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA50-25Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA50-30Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA50-35Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA50-40Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA50-45Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA50-50Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA50-75Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA50-100Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMB63-10Bore: ø63 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB63-15Bore: ø63 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB63-20Bore: ø63 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB63-25Bore: ø63 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB63-30Bore: ø63 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB63-35Bore: ø63 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB63-40Bore: ø63 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB63-45Bore: ø63 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB63-50Bore: ø63 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB63-75Bore: ø63 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB63-100Bore: ø63 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA63-10Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA63-15Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA63-20Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA63-25Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA63-30Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA63-35Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA63-40Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA63-45Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA63-50Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA63-75Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA63-100Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMB80-10Bore: ø80 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB80-15Bore: ø80 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB80-20Bore: ø80 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB80-25Bore: ø80 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB80-30Bore: ø80 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB80-35Bore: ø80 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB80-40Bore: ø80 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB80-45Bore: ø80 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB80-50Bore: ø80 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB80-75Bore: ø80 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB80-100Bore: ø80 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA80-10Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA80-15Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA80-20Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA80-25Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA80-30Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA80-35Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA80-40Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA80-45Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA80-50Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA80-75Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA80-100Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMB100-10Bore: ø100 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMB100-15Bore: ø100 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMB100-20Bore: ø100 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMB100-25Bore: ø100 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMB100-30Bore: ø100 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMB100-35Bore: ø100 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMB100-40Bore: ø100 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMB100-45Bore: ø100 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMB100-50Bore: ø100 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMB100-75Bore: ø100 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMB100-100Bore: ø100 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: None | Port thread: Rc
CQMA100-10Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: None | Port thread: Rc
CQMA100-15Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: None | Port thread: Rc
CQMA100-20Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: None | Port thread: Rc
CQMA100-25Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: None | Port thread: Rc
CQMA100-30Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: None | Port thread: Rc
CQMA100-35Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: None | Port thread: Rc
CQMA100-40Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: None | Port thread: Rc
CQMA100-45Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: None | Port thread: Rc
CQMA100-50Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: None | Port thread: Rc
CQMA100-75Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: None | Port thread: Rc
CQMA100-100Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: None | Port thread: Rc
CDQMB12-5Bore: ø12 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
CDQMB12-10Bore: ø12 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
CDQMB12-15Bore: ø12 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
CDQMB12-20Bore: ø12 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
CDQMB12-25Bore: ø12 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
CDQMB12-30Bore: ø12 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-5Bore: ø16 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-10Bore: ø16 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-15Bore: ø16 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-20Bore: ø16 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-25Bore: ø16 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
CDQMB16-30Bore: ø16 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-5Bore: ø20 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-10Bore: ø20 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-15Bore: ø20 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-20Bore: ø20 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-25Bore: ø20 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-30Bore: ø20 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-35Bore: ø20 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-40Bore: ø20 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-45Bore: ø20 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
CDQMB20-50Bore: ø20 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-5Bore: ø25 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-10Bore: ø25 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-15Bore: ø25 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-20Bore: ø25 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-25Bore: ø25 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-30Bore: ø25 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-35Bore: ø25 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-40Bore: ø25 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-45Bore: ø25 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: M thread
CDQMB25-50Bore: ø25 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: M thread
CDQMB32-5Bore: ø32 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-10Bore: ø32 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-15Bore: ø32 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-20Bore: ø32 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-25Bore: ø32 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-30Bore: ø32 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-35Bore: ø32 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-40Bore: ø32 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-45Bore: ø32 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-50Bore: ø32 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-75Bore: ø32 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB32-100Bore: ø32 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-5Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-10Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-15Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-20Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-25Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-30Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-35Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-40Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-45Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-50Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-75Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA32-100Bore: ø32 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-5Bore: ø40 mm | Mounting: Through-hole | Stroke: 5 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-10Bore: ø40 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-15Bore: ø40 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-20Bore: ø40 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-25Bore: ø40 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-30Bore: ø40 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-35Bore: ø40 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-40Bore: ø40 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-45Bore: ø40 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-50Bore: ø40 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-75Bore: ø40 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB40-100Bore: ø40 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-5Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 5 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-10Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-15Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-20Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-25Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-30Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-35Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-40Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-45Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-50Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-75Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA40-100Bore: ø40 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-10Bore: ø50 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-15Bore: ø50 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-20Bore: ø50 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-25Bore: ø50 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-30Bore: ø50 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-35Bore: ø50 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-40Bore: ø50 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-45Bore: ø50 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-50Bore: ø50 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-75Bore: ø50 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB50-100Bore: ø50 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-10Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-15Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-20Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-25Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-30Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-35Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-40Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-45Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-50Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-75Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA50-100Bore: ø50 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-10Bore: ø63 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-15Bore: ø63 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-20Bore: ø63 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-25Bore: ø63 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-30Bore: ø63 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-35Bore: ø63 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-40Bore: ø63 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-45Bore: ø63 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-50Bore: ø63 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-75Bore: ø63 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB63-100Bore: ø63 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-10Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-15Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-20Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-25Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-30Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-35Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-40Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-45Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-50Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-75Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA63-100Bore: ø63 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-10Bore: ø80 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-15Bore: ø80 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-20Bore: ø80 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-25Bore: ø80 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-30Bore: ø80 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-35Bore: ø80 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-40Bore: ø80 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-45Bore: ø80 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-50Bore: ø80 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-75Bore: ø80 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB80-100Bore: ø80 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-10Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-15Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-20Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-25Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-30Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-35Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-40Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-45Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-50Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-75Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA80-100Bore: ø80 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-10Bore: ø100 mm | Mounting: Through-hole | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-15Bore: ø100 mm | Mounting: Through-hole | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-20Bore: ø100 mm | Mounting: Through-hole | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-25Bore: ø100 mm | Mounting: Through-hole | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-30Bore: ø100 mm | Mounting: Through-hole | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-35Bore: ø100 mm | Mounting: Through-hole | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-40Bore: ø100 mm | Mounting: Through-hole | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-45Bore: ø100 mm | Mounting: Through-hole | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-50Bore: ø100 mm | Mounting: Through-hole | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-75Bore: ø100 mm | Mounting: Through-hole | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMB100-100Bore: ø100 mm | Mounting: Through-hole | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-10Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 10 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-15Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 15 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-20Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 20 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-25Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 25 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-30Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 30 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-35Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 35 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-40Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 40 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-45Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 45 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-50Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 50 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-75Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 75 mm | Magnet: Built-in | Port thread: Rc
CDQMA100-100Bore: ø100 mm | Mounting: Both ends tapped | Stroke: 100 mm | Magnet: Built-in | Port thread: Rc

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
