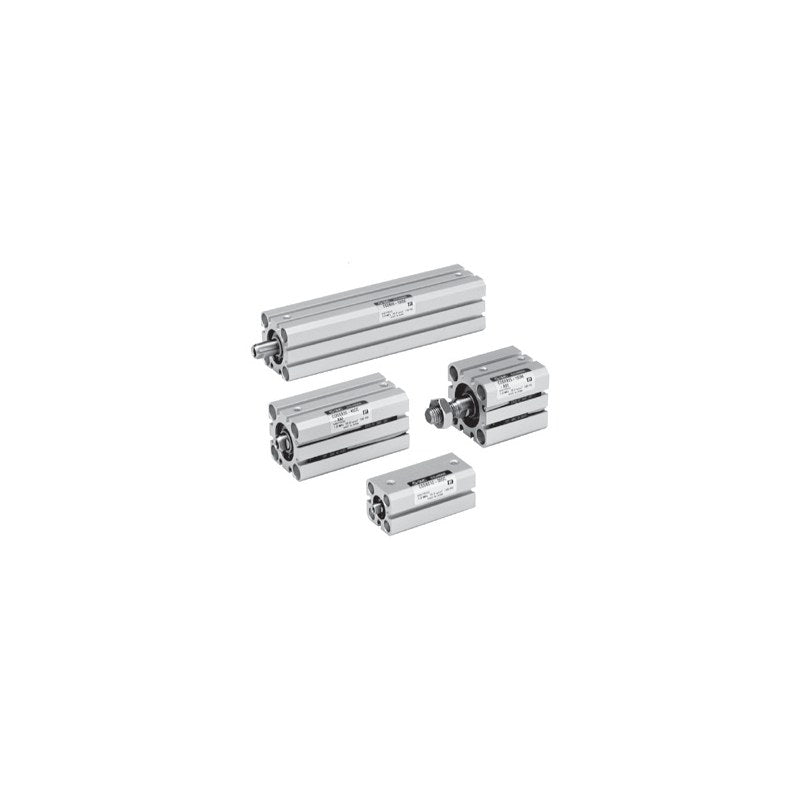

SMC CQS Compact Cylinder (Standard, ø12 to ø25)

SMC CQS series compact (thin) cylinder, ø12 to ø25 mm bore, double acting (standard and long stroke) or single acting, in six mounting styles with or without a built-in auto switch magnet (CDQS).

Key features

Mounting styles: through-hole/both ends tapped (B), foot (L), compact foot (LC), rod flange (F), head flange (G), double clevis (D)
Double acting standard strokes 5 to 50 mm; long strokes up to 200 mm (ø12 to ø20) and 300 mm (ø25) with rubber bumper (C) as standard
Single acting spring return (S) or spring extend (T), 5 and 10 mm strokes
CDQS models have a built-in magnet for D-M9, D-M9W, D-M9A, D-A9 and D-P3DWA auto switches (ordered as a suffix, e.g. -M9BW)
Body options as suffixes: rubber bumper (C), rod end male thread (M), head side spigot (F); long stroke CM = rubber bumper + male thread
Clean series (10-/11-), intermediate strokes (spacer or -XB10) and other made-to-order options available

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	-10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication	Not required (non-lube)
Piston speed	50 to 500 mm/s
Port size	M5x0.8
Rod end	Female thread (male thread with option M)
Min. operating pressure	Double acting 0.07 MPa (ø12, ø16), 0.05 MPa (ø20, ø25); single acting 0.18 to 0.25 MPa
Cushion	None (standard), rubber bumper (option C; standard on long stroke)
Stroke length tolerance	+1.0/0 mm (long stroke +1.4/0 mm)
Source	SMC Korea catalog CQS (SMCKR_CQS.pdf), p. 797-798, 818-819 (PDF p. 7-8, 30-31)

CQSB12-5D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSB12-10D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSB12-15D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSB12-20D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSB12-25D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSB12-30D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSB12-35DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB12-40DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB12-45DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB12-50DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB12-75DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB12-100DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB12-125DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB12-150DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB12-175DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB12-200DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB12-5S		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSB12-5T		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSB12-10S		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSB12-10T		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSB16-5D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSB16-10D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSB16-15D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSB16-20D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSB16-25D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSB16-30D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSB16-35DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB16-40DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB16-45DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB16-50DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB16-75DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB16-100DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB16-125DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB16-150DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB16-175DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB16-200DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB16-5S		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSB16-5T		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSB16-10S		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSB16-10T		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSB20-5D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSB20-10D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSB20-15D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSB20-20D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSB20-25D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSB20-30D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSB20-35D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSB20-40D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSB20-45D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSB20-50D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSB20-75DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB20-100DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB20-125DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB20-150DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB20-175DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB20-200DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB20-5S		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSB20-5T		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSB20-10S		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSB20-10T		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSB25-5D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSB25-10D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSB25-15D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSB25-20D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSB25-25D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSB25-30D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSB25-35D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSB25-40D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSB25-45D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSB25-50D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSB25-75DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB25-100DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB25-125DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB25-150DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB25-175DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB25-200DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB25-250DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB25-300DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSB25-5S		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSB25-5T		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSB25-10S		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSB25-10T		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSL12-5D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSL12-10D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSL12-15D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSL12-20D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSL12-25D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSL12-30D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSL12-35DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL12-40DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL12-45DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL12-50DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL12-75DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL12-100DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL12-125DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL12-150DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL12-175DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL12-200DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL12-5S		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSL12-5T		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSL12-10S		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSL12-10T		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSL16-5D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSL16-10D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSL16-15D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSL16-20D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSL16-25D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSL16-30D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSL16-35DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL16-40DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL16-45DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL16-50DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL16-75DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL16-100DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL16-125DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL16-150DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL16-175DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL16-200DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL16-5S		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSL16-5T		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSL16-10S		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSL16-10T		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSL20-5D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSL20-10D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSL20-15D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSL20-20D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSL20-25D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSL20-30D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSL20-35D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSL20-40D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSL20-45D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSL20-50D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSL20-75DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL20-100DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL20-125DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL20-150DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL20-175DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL20-200DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL20-5S		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSL20-5T		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSL20-10S		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSL20-10T		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSL25-5D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSL25-10D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSL25-15D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSL25-20D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSL25-25D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSL25-30D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSL25-35D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSL25-40D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSL25-45D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSL25-50D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSL25-75DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL25-100DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL25-125DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL25-150DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL25-175DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL25-200DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL25-250DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL25-300DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSL25-5S		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSL25-5T		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSL25-10S		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSL25-10T		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSLC12-5D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC12-10D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC12-15D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC12-20D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC12-25D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC12-30D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC12-35DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC12-40DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC12-45DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC12-50DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC12-75DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC12-100DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC12-125DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC12-150DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC12-175DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC12-200DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC12-5S		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSLC12-5T		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSLC12-10S		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSLC12-10T		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSLC16-5D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC16-10D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC16-15D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC16-20D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC16-25D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC16-30D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC16-35DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC16-40DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC16-45DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC16-50DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC16-75DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC16-100DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC16-125DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC16-150DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC16-175DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC16-200DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC16-5S		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSLC16-5T		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSLC16-10S		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSLC16-10T		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSLC20-5D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC20-10D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC20-15D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC20-20D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC20-25D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC20-30D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC20-35D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC20-40D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC20-45D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC20-50D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC20-75DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC20-100DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC20-125DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC20-150DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC20-175DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC20-200DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC20-5S		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSLC20-5T		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSLC20-10S		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSLC20-10T		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSLC25-5D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC25-10D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC25-15D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC25-20D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC25-25D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC25-30D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC25-35D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC25-40D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC25-45D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC25-50D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSLC25-75DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC25-100DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC25-125DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC25-150DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC25-175DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC25-200DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC25-250DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC25-300DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSLC25-5S		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSLC25-5T		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSLC25-10S		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSLC25-10T		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSF12-5D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSF12-10D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSF12-15D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSF12-20D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSF12-25D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSF12-30D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSF12-35DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF12-40DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF12-45DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF12-50DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF12-75DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF12-100DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF12-125DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF12-150DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF12-175DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF12-200DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF12-5S		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSF12-5T		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSF12-10S		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSF12-10T		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSF16-5D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSF16-10D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSF16-15D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSF16-20D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSF16-25D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSF16-30D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSF16-35DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF16-40DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF16-45DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF16-50DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF16-75DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF16-100DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF16-125DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF16-150DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF16-175DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF16-200DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF16-5S		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSF16-5T		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSF16-10S		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSF16-10T		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSF20-5D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSF20-10D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSF20-15D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSF20-20D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSF20-25D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSF20-30D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSF20-35D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSF20-40D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSF20-45D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSF20-50D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSF20-75DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF20-100DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF20-125DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF20-150DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF20-175DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF20-200DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF20-5S		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSF20-5T		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSF20-10S		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSF20-10T		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSF25-5D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSF25-10D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSF25-15D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSF25-20D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSF25-25D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSF25-30D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSF25-35D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSF25-40D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSF25-45D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSF25-50D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSF25-75DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF25-100DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF25-125DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF25-150DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF25-175DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF25-200DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF25-250DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF25-300DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSF25-5S		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSF25-5T		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSF25-10S		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSF25-10T		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSG12-5D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSG12-10D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSG12-15D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSG12-20D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSG12-25D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSG12-30D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSG12-35DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG12-40DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG12-45DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG12-50DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG12-75DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG12-100DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG12-125DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG12-150DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG12-175DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG12-200DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG12-5S		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSG12-5T		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSG12-10S		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSG12-10T		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSG16-5D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSG16-10D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSG16-15D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSG16-20D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSG16-25D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSG16-30D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSG16-35DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG16-40DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG16-45DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG16-50DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG16-75DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG16-100DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG16-125DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG16-150DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG16-175DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG16-200DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG16-5S		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSG16-5T		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSG16-10S		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSG16-10T		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSG20-5D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSG20-10D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSG20-15D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSG20-20D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSG20-25D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSG20-30D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSG20-35D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSG20-40D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSG20-45D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSG20-50D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSG20-75DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG20-100DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG20-125DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG20-150DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG20-175DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG20-200DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG20-5S		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSG20-5T		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSG20-10S		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSG20-10T		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSG25-5D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSG25-10D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSG25-15D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSG25-20D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSG25-25D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSG25-30D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSG25-35D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSG25-40D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSG25-45D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSG25-50D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSG25-75DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG25-100DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG25-125DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG25-150DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG25-175DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG25-200DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG25-250DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG25-300DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSG25-5S		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSG25-5T		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSG25-10S		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSG25-10T		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSD12-5D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSD12-10D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSD12-15D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSD12-20D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSD12-25D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSD12-30D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSD12-35DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD12-40DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD12-45DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD12-50DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD12-75DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD12-100DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD12-125DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD12-150DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD12-175DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD12-200DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD12-5S		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSD12-5T		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSD12-10S		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSD12-10T		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSD16-5D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSD16-10D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSD16-15D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSD16-20D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSD16-25D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSD16-30D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSD16-35DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD16-40DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD16-45DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD16-50DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD16-75DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD16-100DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD16-125DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD16-150DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD16-175DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD16-200DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD16-5S		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSD16-5T		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSD16-10S		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSD16-10T		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSD20-5D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSD20-10D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSD20-15D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSD20-20D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSD20-25D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSD20-30D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSD20-35D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSD20-40D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSD20-45D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSD20-50D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSD20-75DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD20-100DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD20-125DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD20-150DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD20-175DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD20-200DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD20-5S		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSD20-5T		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSD20-10S		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSD20-10T		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSD25-5D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
CQSD25-10D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
CQSD25-15D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
CQSD25-20D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
CQSD25-25D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
CQSD25-30D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
CQSD25-35D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
CQSD25-40D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
CQSD25-45D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
CQSD25-50D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
CQSD25-75DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD25-100DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD25-125DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD25-150DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD25-175DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD25-200DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD25-250DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD25-300DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
CQSD25-5S		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSD25-5T		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CQSD25-10S		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
CQSD25-10T		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
CDQSB12-5D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB12-10D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB12-15D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB12-20D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB12-25D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB12-30D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB12-35DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB12-40DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB12-45DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB12-50DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB12-75DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB12-100DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB12-125DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB12-150DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB12-175DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB12-200DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB12-5S		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSB12-5T		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSB12-10S		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSB12-10T		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSB16-5D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB16-10D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB16-15D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB16-20D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB16-25D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB16-30D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB16-35DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB16-40DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB16-45DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB16-50DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB16-75DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB16-100DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB16-125DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB16-150DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB16-175DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB16-200DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB16-5S		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSB16-5T		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSB16-10S		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSB16-10T		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSB20-5D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB20-10D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB20-15D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB20-20D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB20-25D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB20-30D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB20-35D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB20-40D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB20-45D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB20-50D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB20-75DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB20-100DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB20-125DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB20-150DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB20-175DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB20-200DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB20-5S		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSB20-5T		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSB20-10S		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSB20-10T		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSB25-5D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB25-10D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB25-15D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB25-20D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB25-25D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB25-30D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB25-35D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB25-40D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB25-45D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB25-50D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSB25-75DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB25-100DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB25-125DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB25-150DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB25-175DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB25-200DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB25-250DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB25-300DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSB25-5S		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSB25-5T		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSB25-10S		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSB25-10T		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSL12-5D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL12-10D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL12-15D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL12-20D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL12-25D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL12-30D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL12-35DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL12-40DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL12-45DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL12-50DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL12-75DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL12-100DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL12-125DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL12-150DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL12-175DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL12-200DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL12-5S		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSL12-5T		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSL12-10S		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSL12-10T		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSL16-5D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL16-10D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL16-15D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL16-20D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL16-25D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL16-30D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL16-35DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL16-40DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL16-45DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL16-50DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL16-75DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL16-100DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL16-125DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL16-150DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL16-175DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL16-200DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL16-5S		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSL16-5T		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSL16-10S		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSL16-10T		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSL20-5D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL20-10D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL20-15D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL20-20D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL20-25D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL20-30D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL20-35D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL20-40D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL20-45D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL20-50D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL20-75DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL20-100DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL20-125DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL20-150DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL20-175DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL20-200DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL20-5S		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSL20-5T		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSL20-10S		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSL20-10T		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSL25-5D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL25-10D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL25-15D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL25-20D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL25-25D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL25-30D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL25-35D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL25-40D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL25-45D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL25-50D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSL25-75DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL25-100DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL25-125DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL25-150DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL25-175DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL25-200DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL25-250DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL25-300DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSL25-5S		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSL25-5T		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSL25-10S		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSL25-10T		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSLC12-5D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC12-10D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC12-15D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC12-20D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC12-25D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC12-30D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC12-35DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC12-40DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC12-45DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC12-50DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC12-75DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC12-100DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC12-125DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC12-150DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC12-175DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC12-200DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC12-5S		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSLC12-5T		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSLC12-10S		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSLC12-10T		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSLC16-5D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC16-10D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC16-15D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC16-20D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC16-25D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC16-30D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC16-35DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC16-40DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC16-45DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC16-50DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC16-75DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC16-100DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC16-125DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC16-150DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC16-175DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC16-200DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC16-5S		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSLC16-5T		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSLC16-10S		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSLC16-10T		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSLC20-5D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC20-10D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC20-15D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC20-20D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC20-25D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC20-30D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC20-35D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC20-40D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC20-45D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC20-50D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC20-75DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC20-100DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC20-125DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC20-150DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC20-175DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC20-200DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC20-5S		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSLC20-5T		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSLC20-10S		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSLC20-10T		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSLC25-5D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC25-10D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC25-15D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC25-20D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC25-25D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC25-30D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC25-35D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC25-40D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC25-45D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC25-50D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSLC25-75DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC25-100DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC25-125DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC25-150DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC25-175DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC25-200DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC25-250DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC25-300DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSLC25-5S		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSLC25-5T		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSLC25-10S		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSLC25-10T		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSF12-5D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF12-10D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF12-15D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF12-20D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF12-25D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF12-30D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF12-35DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF12-40DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF12-45DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF12-50DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF12-75DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF12-100DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF12-125DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF12-150DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF12-175DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF12-200DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF12-5S		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSF12-5T		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSF12-10S		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSF12-10T		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSF16-5D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF16-10D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF16-15D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF16-20D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF16-25D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF16-30D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF16-35DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF16-40DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF16-45DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF16-50DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF16-75DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF16-100DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF16-125DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF16-150DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF16-175DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF16-200DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF16-5S		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSF16-5T		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSF16-10S		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSF16-10T		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSF20-5D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF20-10D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF20-15D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF20-20D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF20-25D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF20-30D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF20-35D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF20-40D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF20-45D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF20-50D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF20-75DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF20-100DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF20-125DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF20-150DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF20-175DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF20-200DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF20-5S		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSF20-5T		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSF20-10S		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSF20-10T		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSF25-5D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF25-10D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF25-15D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF25-20D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF25-25D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF25-30D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF25-35D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF25-40D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF25-45D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF25-50D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSF25-75DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF25-100DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF25-125DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF25-150DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF25-175DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF25-200DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF25-250DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF25-300DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSF25-5S		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSF25-5T		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSF25-10S		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSF25-10T		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSG12-5D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG12-10D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG12-15D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG12-20D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG12-25D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG12-30D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG12-35DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG12-40DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG12-45DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG12-50DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG12-75DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG12-100DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG12-125DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG12-150DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG12-175DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG12-200DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG12-5S		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSG12-5T		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSG12-10S		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSG12-10T		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSG16-5D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG16-10D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG16-15D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG16-20D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG16-25D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG16-30D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG16-35DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG16-40DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG16-45DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG16-50DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG16-75DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG16-100DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG16-125DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG16-150DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG16-175DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG16-200DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG16-5S		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSG16-5T		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSG16-10S		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSG16-10T		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSG20-5D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG20-10D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG20-15D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG20-20D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG20-25D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG20-30D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG20-35D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG20-40D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG20-45D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG20-50D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG20-75DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG20-100DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG20-125DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG20-150DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG20-175DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG20-200DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG20-5S		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSG20-5T		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSG20-10S		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSG20-10T		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSG25-5D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG25-10D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG25-15D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG25-20D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG25-25D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG25-30D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG25-35D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG25-40D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG25-45D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG25-50D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSG25-75DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG25-100DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG25-125DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG25-150DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG25-175DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG25-200DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG25-250DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG25-300DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSG25-5S		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSG25-5T		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSG25-10S		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSG25-10T		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSD12-5D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD12-10D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD12-15D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD12-20D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD12-25D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD12-30D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD12-35DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD12-40DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD12-45DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD12-50DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD12-75DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD12-100DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD12-125DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD12-150DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD12-175DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD12-200DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD12-5S		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSD12-5T		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSD12-10S		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSD12-10T		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSD16-5D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD16-10D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD16-15D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD16-20D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD16-25D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD16-30D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD16-35DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD16-40DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD16-45DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD16-50DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD16-75DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD16-100DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD16-125DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD16-150DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD16-175DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD16-200DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD16-5S		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSD16-5T		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSD16-10S		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSD16-10T		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSD20-5D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD20-10D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD20-15D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD20-20D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD20-25D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD20-30D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD20-35D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD20-40D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD20-45D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD20-50D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD20-75DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD20-100DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD20-125DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD20-150DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD20-175DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD20-200DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD20-5S		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSD20-5T		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSD20-10S		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSD20-10T		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSD25-5D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD25-10D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD25-15D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD25-20D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD25-25D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD25-30D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD25-35D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD25-40D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD25-45D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD25-50D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
CDQSD25-75DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD25-100DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD25-125DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD25-150DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD25-175DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD25-200DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD25-250DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD25-300DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
CDQSD25-5S		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSD25-5T		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
CDQSD25-10S		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
CDQSD25-10T		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes

Compact CylindersSMC

984 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CQS Compact Cylinder (Standard, ø12 to ø25)

Brand SMC·Compact Cylinders

Available part numbers (984)

CQSB12-5D, CQSB12-10D, CQSB12-15D, CQSB12-20D, CQSB12-25D, CQSB12-30D, CQSB12-35DC, CQSB12-40DC, CQSB12-45DC, CQSB12-50DC + 974 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CQSB12-5D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB12-10D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB12-15D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB12-20D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB12-25D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB12-30D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB12-35DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB12-40DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB12-45DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB12-50DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB12-75DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB12-100DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB12-125DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB12-150DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB12-175DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB12-200DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB12-5S	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSB12-5T	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSB12-10S	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSB12-10T	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSB16-5D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB16-10D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB16-15D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB16-20D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB16-25D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB16-30D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB16-35DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB16-40DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB16-45DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB16-50DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB16-75DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB16-100DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB16-125DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB16-150DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB16-175DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB16-200DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB16-5S	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSB16-5T	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSB16-10S	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSB16-10T	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSB20-5D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB20-10D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB20-15D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB20-20D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB20-25D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB20-30D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB20-35D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB20-40D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB20-45D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB20-50D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB20-75DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB20-100DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB20-125DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB20-150DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB20-175DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB20-200DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB20-5S	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSB20-5T	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSB20-10S	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSB20-10T	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSB25-5D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB25-10D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB25-15D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB25-20D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB25-25D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB25-30D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB25-35D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB25-40D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB25-45D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB25-50D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSB25-75DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB25-100DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB25-125DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB25-150DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB25-175DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB25-200DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB25-250DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB25-300DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSB25-5S	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSB25-5T	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSB25-10S	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSB25-10T	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSL12-5D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL12-10D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL12-15D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL12-20D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL12-25D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL12-30D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL12-35DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL12-40DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL12-45DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL12-50DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL12-75DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL12-100DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL12-125DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL12-150DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL12-175DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL12-200DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL12-5S	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSL12-5T	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSL12-10S	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSL12-10T	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSL16-5D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL16-10D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL16-15D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL16-20D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL16-25D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL16-30D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL16-35DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL16-40DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL16-45DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL16-50DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL16-75DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL16-100DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL16-125DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL16-150DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL16-175DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL16-200DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL16-5S	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSL16-5T	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSL16-10S	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSL16-10T	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSL20-5D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL20-10D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL20-15D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL20-20D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL20-25D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL20-30D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL20-35D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL20-40D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL20-45D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL20-50D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL20-75DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL20-100DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL20-125DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL20-150DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL20-175DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL20-200DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL20-5S	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSL20-5T	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSL20-10S	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSL20-10T	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSL25-5D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL25-10D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL25-15D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL25-20D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL25-25D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL25-30D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL25-35D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL25-40D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL25-45D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL25-50D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSL25-75DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL25-100DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL25-125DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL25-150DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL25-175DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL25-200DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL25-250DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL25-300DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSL25-5S	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSL25-5T	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSL25-10S	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSL25-10T	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSLC12-5D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC12-10D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC12-15D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC12-20D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC12-25D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC12-30D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC12-35DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC12-40DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC12-45DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC12-50DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC12-75DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC12-100DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC12-125DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC12-150DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC12-175DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC12-200DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC12-5S	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSLC12-5T	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSLC12-10S	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSLC12-10T	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSLC16-5D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC16-10D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC16-15D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC16-20D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC16-25D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC16-30D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC16-35DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC16-40DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC16-45DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC16-50DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC16-75DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC16-100DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC16-125DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC16-150DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC16-175DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC16-200DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC16-5S	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSLC16-5T	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSLC16-10S	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSLC16-10T	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSLC20-5D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC20-10D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC20-15D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC20-20D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC20-25D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC20-30D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC20-35D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC20-40D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC20-45D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC20-50D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC20-75DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC20-100DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC20-125DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC20-150DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC20-175DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC20-200DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC20-5S	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSLC20-5T	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSLC20-10S	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSLC20-10T	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSLC25-5D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC25-10D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC25-15D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC25-20D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC25-25D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC25-30D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC25-35D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC25-40D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC25-45D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC25-50D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSLC25-75DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC25-100DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC25-125DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC25-150DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC25-175DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC25-200DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC25-250DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC25-300DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSLC25-5S	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSLC25-5T	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSLC25-10S	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSLC25-10T	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSF12-5D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF12-10D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF12-15D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF12-20D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF12-25D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF12-30D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF12-35DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF12-40DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF12-45DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF12-50DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF12-75DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF12-100DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF12-125DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF12-150DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF12-175DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF12-200DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF12-5S	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSF12-5T	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSF12-10S	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSF12-10T	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSF16-5D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF16-10D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF16-15D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF16-20D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF16-25D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF16-30D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF16-35DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF16-40DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF16-45DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF16-50DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF16-75DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF16-100DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF16-125DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF16-150DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF16-175DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF16-200DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF16-5S	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSF16-5T	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSF16-10S	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSF16-10T	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSF20-5D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF20-10D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF20-15D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF20-20D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF20-25D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF20-30D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF20-35D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF20-40D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF20-45D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF20-50D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF20-75DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF20-100DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF20-125DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF20-150DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF20-175DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF20-200DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF20-5S	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSF20-5T	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSF20-10S	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSF20-10T	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSF25-5D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF25-10D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF25-15D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF25-20D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF25-25D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF25-30D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF25-35D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF25-40D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF25-45D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF25-50D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSF25-75DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF25-100DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF25-125DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF25-150DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF25-175DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF25-200DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF25-250DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF25-300DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSF25-5S	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSF25-5T	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSF25-10S	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSF25-10T	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSG12-5D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG12-10D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG12-15D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG12-20D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG12-25D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG12-30D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG12-35DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG12-40DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG12-45DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG12-50DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG12-75DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG12-100DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG12-125DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG12-150DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG12-175DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG12-200DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG12-5S	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSG12-5T	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSG12-10S	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSG12-10T	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSG16-5D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG16-10D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG16-15D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG16-20D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG16-25D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG16-30D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG16-35DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG16-40DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG16-45DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG16-50DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG16-75DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG16-100DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG16-125DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG16-150DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG16-175DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG16-200DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG16-5S	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSG16-5T	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSG16-10S	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSG16-10T	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSG20-5D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG20-10D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG20-15D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG20-20D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG20-25D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG20-30D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG20-35D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG20-40D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG20-45D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG20-50D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG20-75DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG20-100DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG20-125DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG20-150DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG20-175DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG20-200DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG20-5S	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSG20-5T	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSG20-10S	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSG20-10T	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSG25-5D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG25-10D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG25-15D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG25-20D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG25-25D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG25-30D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG25-35D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG25-40D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG25-45D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG25-50D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSG25-75DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG25-100DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG25-125DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG25-150DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG25-175DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG25-200DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG25-250DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG25-300DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSG25-5S	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSG25-5T	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSG25-10S	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSG25-10T	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSD12-5D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD12-10D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD12-15D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD12-20D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD12-25D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD12-30D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD12-35DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD12-40DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD12-45DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD12-50DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD12-75DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD12-100DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD12-125DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD12-150DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD12-175DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD12-200DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD12-5S	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSD12-5T	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSD12-10S	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSD12-10T	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSD16-5D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD16-10D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD16-15D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD16-20D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD16-25D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD16-30D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD16-35DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD16-40DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD16-45DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD16-50DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD16-75DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD16-100DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD16-125DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD16-150DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD16-175DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD16-200DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD16-5S	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSD16-5T	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSD16-10S	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSD16-10T	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSD20-5D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD20-10D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD20-15D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD20-20D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD20-25D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD20-30D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD20-35D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD20-40D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD20-45D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD20-50D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD20-75DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD20-100DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD20-125DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD20-150DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD20-175DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD20-200DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD20-5S	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSD20-5T	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSD20-10S	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSD20-10T	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSD25-5D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD25-10D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD25-15D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD25-20D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD25-25D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD25-30D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD25-35D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD25-40D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD25-45D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD25-50D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: No
	CQSD25-75DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD25-100DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD25-125DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD25-150DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD25-175DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD25-200DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD25-250DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD25-300DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: No
	CQSD25-5S	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSD25-5T	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CQSD25-10S	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: No
	CQSD25-10T	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: No
	CDQSB12-5D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB12-10D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB12-15D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB12-20D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB12-25D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB12-30D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB12-35DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB12-40DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB12-45DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB12-50DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB12-75DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB12-100DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB12-125DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB12-150DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB12-175DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB12-200DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB12-5S	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSB12-5T	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSB12-10S	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSB12-10T	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSB16-5D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB16-10D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB16-15D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB16-20D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB16-25D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB16-30D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB16-35DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB16-40DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB16-45DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB16-50DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB16-75DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB16-100DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB16-125DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB16-150DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB16-175DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB16-200DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB16-5S	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSB16-5T	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSB16-10S	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSB16-10T	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSB20-5D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB20-10D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB20-15D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB20-20D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB20-25D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB20-30D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB20-35D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB20-40D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB20-45D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB20-50D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB20-75DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB20-100DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB20-125DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB20-150DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB20-175DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB20-200DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB20-5S	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSB20-5T	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSB20-10S	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSB20-10T	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSB25-5D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB25-10D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB25-15D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB25-20D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB25-25D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB25-30D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB25-35D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB25-40D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB25-45D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB25-50D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSB25-75DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB25-100DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB25-125DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB25-150DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB25-175DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB25-200DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB25-250DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB25-300DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSB25-5S	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSB25-5T	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSB25-10S	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSB25-10T	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSL12-5D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL12-10D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL12-15D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL12-20D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL12-25D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL12-30D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL12-35DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL12-40DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL12-45DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL12-50DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL12-75DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL12-100DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL12-125DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL12-150DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL12-175DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL12-200DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL12-5S	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSL12-5T	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSL12-10S	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSL12-10T	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSL16-5D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL16-10D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL16-15D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL16-20D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL16-25D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL16-30D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL16-35DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL16-40DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL16-45DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL16-50DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL16-75DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL16-100DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL16-125DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL16-150DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL16-175DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL16-200DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL16-5S	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSL16-5T	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSL16-10S	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSL16-10T	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSL20-5D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL20-10D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL20-15D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL20-20D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL20-25D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL20-30D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL20-35D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL20-40D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL20-45D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL20-50D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL20-75DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL20-100DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL20-125DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL20-150DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL20-175DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL20-200DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL20-5S	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSL20-5T	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSL20-10S	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSL20-10T	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSL25-5D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL25-10D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL25-15D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL25-20D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL25-25D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL25-30D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL25-35D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL25-40D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL25-45D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL25-50D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSL25-75DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL25-100DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL25-125DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL25-150DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL25-175DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL25-200DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL25-250DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL25-300DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSL25-5S	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSL25-5T	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSL25-10S	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSL25-10T	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSLC12-5D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC12-10D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC12-15D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC12-20D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC12-25D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC12-30D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC12-35DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC12-40DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC12-45DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC12-50DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC12-75DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC12-100DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC12-125DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC12-150DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC12-175DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC12-200DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC12-5S	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSLC12-5T	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSLC12-10S	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSLC12-10T	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSLC16-5D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC16-10D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC16-15D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC16-20D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC16-25D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC16-30D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC16-35DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC16-40DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC16-45DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC16-50DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC16-75DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC16-100DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC16-125DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC16-150DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC16-175DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC16-200DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC16-5S	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSLC16-5T	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSLC16-10S	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSLC16-10T	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSLC20-5D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC20-10D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC20-15D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC20-20D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC20-25D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC20-30D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC20-35D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC20-40D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC20-45D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC20-50D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC20-75DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC20-100DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC20-125DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC20-150DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC20-175DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC20-200DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC20-5S	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSLC20-5T	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSLC20-10S	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSLC20-10T	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSLC25-5D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC25-10D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC25-15D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC25-20D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC25-25D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC25-30D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC25-35D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC25-40D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC25-45D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC25-50D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSLC25-75DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC25-100DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC25-125DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC25-150DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC25-175DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC25-200DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC25-250DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC25-300DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSLC25-5S	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSLC25-5T	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSLC25-10S	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSLC25-10T	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSF12-5D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF12-10D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF12-15D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF12-20D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF12-25D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF12-30D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF12-35DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF12-40DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF12-45DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF12-50DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF12-75DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF12-100DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF12-125DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF12-150DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF12-175DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF12-200DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF12-5S	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSF12-5T	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSF12-10S	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSF12-10T	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSF16-5D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF16-10D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF16-15D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF16-20D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF16-25D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF16-30D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF16-35DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF16-40DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF16-45DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF16-50DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF16-75DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF16-100DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF16-125DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF16-150DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF16-175DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF16-200DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF16-5S	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSF16-5T	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSF16-10S	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSF16-10T	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSF20-5D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF20-10D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF20-15D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF20-20D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF20-25D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF20-30D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF20-35D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF20-40D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF20-45D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF20-50D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF20-75DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF20-100DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF20-125DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF20-150DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF20-175DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF20-200DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF20-5S	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSF20-5T	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSF20-10S	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSF20-10T	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSF25-5D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF25-10D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF25-15D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF25-20D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF25-25D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF25-30D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF25-35D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF25-40D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF25-45D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF25-50D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSF25-75DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF25-100DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF25-125DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF25-150DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF25-175DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF25-200DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF25-250DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF25-300DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSF25-5S	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSF25-5T	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSF25-10S	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSF25-10T	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSG12-5D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG12-10D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG12-15D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG12-20D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG12-25D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG12-30D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG12-35DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG12-40DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG12-45DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG12-50DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG12-75DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG12-100DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG12-125DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG12-150DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG12-175DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG12-200DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG12-5S	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSG12-5T	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSG12-10S	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSG12-10T	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSG16-5D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG16-10D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG16-15D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG16-20D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG16-25D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG16-30D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG16-35DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG16-40DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG16-45DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG16-50DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG16-75DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG16-100DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG16-125DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG16-150DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG16-175DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG16-200DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG16-5S	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSG16-5T	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSG16-10S	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSG16-10T	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSG20-5D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG20-10D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG20-15D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG20-20D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG20-25D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG20-30D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG20-35D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG20-40D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG20-45D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG20-50D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG20-75DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG20-100DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG20-125DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG20-150DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG20-175DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG20-200DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG20-5S	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSG20-5T	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSG20-10S	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSG20-10T	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSG25-5D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG25-10D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG25-15D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG25-20D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG25-25D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG25-30D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG25-35D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG25-40D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG25-45D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG25-50D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSG25-75DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG25-100DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG25-125DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG25-150DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG25-175DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG25-200DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG25-250DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG25-300DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSG25-5S	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSG25-5T	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSG25-10S	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSG25-10T	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSD12-5D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD12-10D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD12-15D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD12-20D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD12-25D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD12-30D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD12-35DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD12-40DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD12-45DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD12-50DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD12-75DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD12-100DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD12-125DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD12-150DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD12-175DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD12-200DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD12-5S	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSD12-5T	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSD12-10S	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSD12-10T	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSD16-5D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD16-10D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD16-15D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD16-20D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD16-25D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD16-30D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD16-35DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 35 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD16-40DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 40 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD16-45DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 45 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD16-50DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 50 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD16-75DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD16-100DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD16-125DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD16-150DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD16-175DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD16-200DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD16-5S	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSD16-5T	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSD16-10S	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSD16-10T	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSD20-5D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD20-10D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD20-15D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD20-20D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD20-25D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD20-30D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD20-35D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD20-40D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD20-45D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD20-50D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD20-75DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD20-100DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD20-125DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD20-150DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD20-175DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD20-200DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD20-5S	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSD20-5T	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSD20-10S	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSD20-10T	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSD25-5D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD25-10D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD25-15D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD25-20D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD25-25D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD25-30D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD25-35D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD25-40D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD25-45D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD25-50D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Type: Double acting \| Auto switch magnet: Yes
	CDQSD25-75DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD25-100DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD25-125DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD25-150DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD25-175DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 175 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD25-200DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD25-250DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD25-300DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Type: Double acting, long stroke \| Auto switch magnet: Yes
	CDQSD25-5S	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSD25-5T	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes
	CDQSD25-10S	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring return \| Auto switch magnet: Yes
	CDQSD25-10T	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Type: Single acting, spring extend \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CQS Compact Cylinder (Standard, ø12 to ø25)
