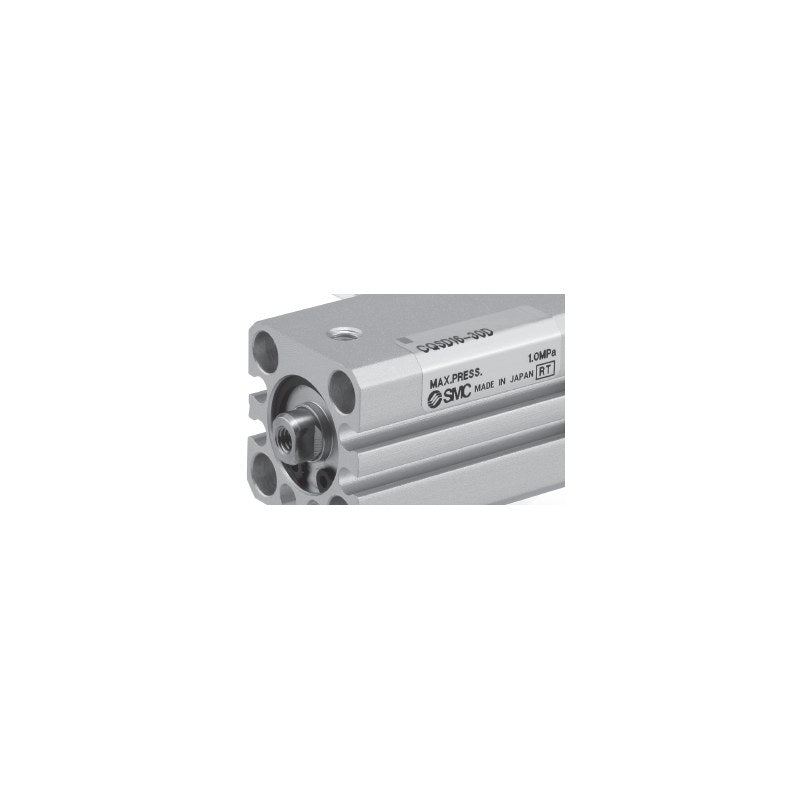

SMC CQS-S Compact Cylinder, Side Load Resistant (ø12 to ø25)

SMC CQS-S (CQSS) series side load resistant compact cylinder, double acting, ø12 to ø25 mm bore, with rubber bumper, in six mounting styles with or without a built-in auto switch magnet.

Key features

Higher allowable lateral load on the rod than the standard CQS (type symbol S after the mounting letter)
Mounting styles: through-hole/both ends tapped (B), foot (L), compact foot (LC), rod flange (F), head flange (G), double clevis (D)
Standard strokes 5 to 30 mm (ø12, ø16) and 5 to 50 mm (ø20, ø25); rubber bumper (C) in the listed codes
CDQS models have a built-in magnet for D-M9, D-M9W, D-M9A, D-A9 and D-P3DWA auto switches (ordered as a suffix, e.g. -M9BW)
Body options: head side spigot (F, before C) and rod end male thread (M, after C), e.g. CQSDS20-20DCM

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	-10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication	Not required (non-lube)
Piston speed	50 to 500 mm/s
Port size	M5x0.8
Action	Double acting, single rod
Rod end	Female thread (male thread with option M)
Cushion	Rubber bumper
Min. operating pressure	0.07 MPa (ø12, ø16), 0.05 MPa (ø20, ø25)
Stroke length tolerance	+1.0/0 mm
Source	SMC Korea catalog CQS (SMCKR_CQS.pdf), p. 844-845 (PDF p. 56-57)

CQSBS12-5DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSBS12-10DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSBS12-15DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSBS12-20DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSBS12-25DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSBS12-30DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSBS16-5DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSBS16-10DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSBS16-15DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSBS16-20DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSBS16-25DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSBS16-30DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSBS20-5DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSBS20-10DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSBS20-15DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSBS20-20DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSBS20-25DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSBS20-30DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSBS20-35DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSBS20-40DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSBS20-45DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSBS20-50DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSBS25-5DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSBS25-10DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSBS25-15DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSBS25-20DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSBS25-25DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSBS25-30DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSBS25-35DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSBS25-40DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSBS25-45DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSBS25-50DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSLS12-5DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSLS12-10DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSLS12-15DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSLS12-20DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSLS12-25DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSLS12-30DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSLS16-5DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSLS16-10DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSLS16-15DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSLS16-20DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSLS16-25DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSLS16-30DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSLS20-5DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSLS20-10DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSLS20-15DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSLS20-20DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSLS20-25DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSLS20-30DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSLS20-35DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSLS20-40DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSLS20-45DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSLS20-50DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSLS25-5DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSLS25-10DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSLS25-15DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSLS25-20DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSLS25-25DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSLS25-30DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSLS25-35DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSLS25-40DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSLS25-45DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSLS25-50DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSLCS12-5DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSLCS12-10DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSLCS12-15DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSLCS12-20DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSLCS12-25DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSLCS12-30DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSLCS16-5DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSLCS16-10DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSLCS16-15DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSLCS16-20DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSLCS16-25DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSLCS16-30DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSLCS20-5DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSLCS20-10DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSLCS20-15DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSLCS20-20DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSLCS20-25DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSLCS20-30DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSLCS20-35DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSLCS20-40DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSLCS20-45DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSLCS20-50DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSLCS25-5DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSLCS25-10DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSLCS25-15DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSLCS25-20DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSLCS25-25DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSLCS25-30DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSLCS25-35DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSLCS25-40DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSLCS25-45DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSLCS25-50DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSFS12-5DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSFS12-10DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSFS12-15DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSFS12-20DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSFS12-25DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSFS12-30DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSFS16-5DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSFS16-10DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSFS16-15DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSFS16-20DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSFS16-25DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSFS16-30DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSFS20-5DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSFS20-10DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSFS20-15DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSFS20-20DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSFS20-25DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSFS20-30DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSFS20-35DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSFS20-40DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSFS20-45DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSFS20-50DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSFS25-5DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSFS25-10DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSFS25-15DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSFS25-20DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSFS25-25DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSFS25-30DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSFS25-35DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSFS25-40DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSFS25-45DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSFS25-50DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSGS12-5DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSGS12-10DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSGS12-15DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSGS12-20DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSGS12-25DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSGS12-30DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSGS16-5DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSGS16-10DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSGS16-15DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSGS16-20DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSGS16-25DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSGS16-30DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSGS20-5DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSGS20-10DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSGS20-15DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSGS20-20DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSGS20-25DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSGS20-30DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSGS20-35DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSGS20-40DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSGS20-45DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSGS20-50DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSGS25-5DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSGS25-10DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSGS25-15DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSGS25-20DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSGS25-25DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSGS25-30DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSGS25-35DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSGS25-40DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSGS25-45DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSGS25-50DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSDS12-5DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSDS12-10DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSDS12-15DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSDS12-20DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSDS12-25DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSDS12-30DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSDS16-5DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSDS16-10DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSDS16-15DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSDS16-20DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSDS16-25DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSDS16-30DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSDS20-5DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSDS20-10DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSDS20-15DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSDS20-20DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSDS20-25DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSDS20-30DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSDS20-35DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSDS20-40DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSDS20-45DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSDS20-50DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSDS25-5DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSDS25-10DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSDS25-15DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSDS25-20DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSDS25-25DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSDS25-30DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSDS25-35DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSDS25-40DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSDS25-45DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSDS25-50DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CDQSBS12-5DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSBS12-10DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSBS12-15DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSBS12-20DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSBS12-25DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSBS12-30DC		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSBS16-5DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSBS16-10DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSBS16-15DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSBS16-20DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSBS16-25DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSBS16-30DC		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSBS20-5DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSBS20-10DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSBS20-15DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSBS20-20DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSBS20-25DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSBS20-30DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSBS20-35DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSBS20-40DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSBS20-45DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSBS20-50DC		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSBS25-5DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSBS25-10DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSBS25-15DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSBS25-20DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSBS25-25DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSBS25-30DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSBS25-35DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSBS25-40DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSBS25-45DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSBS25-50DC		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSLS12-5DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSLS12-10DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSLS12-15DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSLS12-20DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSLS12-25DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSLS12-30DC		Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSLS16-5DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSLS16-10DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSLS16-15DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSLS16-20DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSLS16-25DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSLS16-30DC		Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSLS20-5DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSLS20-10DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSLS20-15DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSLS20-20DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSLS20-25DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSLS20-30DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSLS20-35DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSLS20-40DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSLS20-45DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSLS20-50DC		Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSLS25-5DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSLS25-10DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSLS25-15DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSLS25-20DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSLS25-25DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSLS25-30DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSLS25-35DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSLS25-40DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSLS25-45DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSLS25-50DC		Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSLCS12-5DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSLCS12-10DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSLCS12-15DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSLCS12-20DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSLCS12-25DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSLCS12-30DC		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSLCS16-5DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSLCS16-10DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSLCS16-15DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSLCS16-20DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSLCS16-25DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSLCS16-30DC		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSLCS20-5DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSLCS20-10DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSLCS20-15DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSLCS20-20DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSLCS20-25DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSLCS20-30DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSLCS20-35DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSLCS20-40DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSLCS20-45DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSLCS20-50DC		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSLCS25-5DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSLCS25-10DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSLCS25-15DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSLCS25-20DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSLCS25-25DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSLCS25-30DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSLCS25-35DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSLCS25-40DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSLCS25-45DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSLCS25-50DC		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSFS12-5DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSFS12-10DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSFS12-15DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSFS12-20DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSFS12-25DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSFS12-30DC		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSFS16-5DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSFS16-10DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSFS16-15DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSFS16-20DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSFS16-25DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSFS16-30DC		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSFS20-5DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSFS20-10DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSFS20-15DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSFS20-20DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSFS20-25DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSFS20-30DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSFS20-35DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSFS20-40DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSFS20-45DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSFS20-50DC		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSFS25-5DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSFS25-10DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSFS25-15DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSFS25-20DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSFS25-25DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSFS25-30DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSFS25-35DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSFS25-40DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSFS25-45DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSFS25-50DC		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSGS12-5DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSGS12-10DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSGS12-15DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSGS12-20DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSGS12-25DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSGS12-30DC		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSGS16-5DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSGS16-10DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSGS16-15DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSGS16-20DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSGS16-25DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSGS16-30DC		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSGS20-5DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSGS20-10DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSGS20-15DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSGS20-20DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSGS20-25DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSGS20-30DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSGS20-35DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSGS20-40DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSGS20-45DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSGS20-50DC		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSGS25-5DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSGS25-10DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSGS25-15DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSGS25-20DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSGS25-25DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSGS25-30DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSGS25-35DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSGS25-40DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSGS25-45DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSGS25-50DC		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSDS12-5DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSDS12-10DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSDS12-15DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSDS12-20DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSDS12-25DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSDS12-30DC		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSDS16-5DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSDS16-10DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSDS16-15DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSDS16-20DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSDS16-25DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSDS16-30DC		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSDS20-5DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSDS20-10DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSDS20-15DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSDS20-20DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSDS20-25DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSDS20-30DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSDS20-35DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSDS20-40DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSDS20-45DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSDS20-50DC		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSDS25-5DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSDS25-10DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSDS25-15DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSDS25-20DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSDS25-25DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSDS25-30DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSDS25-35DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSDS25-40DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSDS25-45DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSDS25-50DC		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes

Compact CylindersSMC

384 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CQS-S Compact Cylinder, Side Load Resistant (ø12 to ø25)

Brand SMC·Compact Cylinders

Available part numbers (384)

CQSBS12-5DC, CQSBS12-10DC, CQSBS12-15DC, CQSBS12-20DC, CQSBS12-25DC, CQSBS12-30DC, CQSBS16-5DC, CQSBS16-10DC, CQSBS16-15DC, CQSBS16-20DC + 374 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CQSBS12-5DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSBS12-10DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSBS12-15DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSBS12-20DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSBS12-25DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSBS12-30DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSBS16-5DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSBS16-10DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSBS16-15DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSBS16-20DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSBS16-25DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSBS16-30DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSBS20-5DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSBS20-10DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSBS20-15DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSBS20-20DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSBS20-25DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSBS20-30DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSBS20-35DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSBS20-40DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSBS20-45DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSBS20-50DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSBS25-5DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSBS25-10DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSBS25-15DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSBS25-20DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSBS25-25DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSBS25-30DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSBS25-35DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSBS25-40DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSBS25-45DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSBS25-50DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSLS12-5DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSLS12-10DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSLS12-15DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSLS12-20DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSLS12-25DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSLS12-30DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSLS16-5DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSLS16-10DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSLS16-15DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSLS16-20DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSLS16-25DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSLS16-30DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSLS20-5DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSLS20-10DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSLS20-15DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSLS20-20DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSLS20-25DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSLS20-30DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSLS20-35DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSLS20-40DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSLS20-45DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSLS20-50DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSLS25-5DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSLS25-10DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSLS25-15DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSLS25-20DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSLS25-25DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSLS25-30DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSLS25-35DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSLS25-40DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSLS25-45DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSLS25-50DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSLCS12-5DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSLCS12-10DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSLCS12-15DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSLCS12-20DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSLCS12-25DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSLCS12-30DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSLCS16-5DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSLCS16-10DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSLCS16-15DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSLCS16-20DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSLCS16-25DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSLCS16-30DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSLCS20-5DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSLCS20-10DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSLCS20-15DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSLCS20-20DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSLCS20-25DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSLCS20-30DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSLCS20-35DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSLCS20-40DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSLCS20-45DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSLCS20-50DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSLCS25-5DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSLCS25-10DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSLCS25-15DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSLCS25-20DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSLCS25-25DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSLCS25-30DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSLCS25-35DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSLCS25-40DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSLCS25-45DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSLCS25-50DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSFS12-5DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSFS12-10DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSFS12-15DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSFS12-20DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSFS12-25DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSFS12-30DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSFS16-5DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSFS16-10DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSFS16-15DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSFS16-20DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSFS16-25DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSFS16-30DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSFS20-5DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSFS20-10DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSFS20-15DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSFS20-20DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSFS20-25DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSFS20-30DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSFS20-35DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSFS20-40DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSFS20-45DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSFS20-50DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSFS25-5DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSFS25-10DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSFS25-15DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSFS25-20DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSFS25-25DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSFS25-30DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSFS25-35DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSFS25-40DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSFS25-45DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSFS25-50DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSGS12-5DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSGS12-10DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSGS12-15DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSGS12-20DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSGS12-25DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSGS12-30DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSGS16-5DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSGS16-10DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSGS16-15DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSGS16-20DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSGS16-25DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSGS16-30DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSGS20-5DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSGS20-10DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSGS20-15DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSGS20-20DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSGS20-25DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSGS20-30DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSGS20-35DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSGS20-40DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSGS20-45DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSGS20-50DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSGS25-5DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSGS25-10DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSGS25-15DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSGS25-20DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSGS25-25DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSGS25-30DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSGS25-35DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSGS25-40DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSGS25-45DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSGS25-50DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSDS12-5DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSDS12-10DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSDS12-15DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSDS12-20DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSDS12-25DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSDS12-30DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSDS16-5DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSDS16-10DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSDS16-15DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSDS16-20DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSDS16-25DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSDS16-30DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSDS20-5DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSDS20-10DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSDS20-15DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSDS20-20DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSDS20-25DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSDS20-30DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSDS20-35DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSDS20-40DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSDS20-45DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSDS20-50DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSDS25-5DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSDS25-10DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSDS25-15DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSDS25-20DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSDS25-25DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSDS25-30DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSDS25-35DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSDS25-40DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSDS25-45DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSDS25-50DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CDQSBS12-5DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSBS12-10DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSBS12-15DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSBS12-20DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSBS12-25DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSBS12-30DC	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSBS16-5DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSBS16-10DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSBS16-15DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSBS16-20DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSBS16-25DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSBS16-30DC	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSBS20-5DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSBS20-10DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSBS20-15DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSBS20-20DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSBS20-25DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSBS20-30DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSBS20-35DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSBS20-40DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSBS20-45DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSBS20-50DC	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSBS25-5DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSBS25-10DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSBS25-15DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSBS25-20DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSBS25-25DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSBS25-30DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSBS25-35DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSBS25-40DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSBS25-45DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSBS25-50DC	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSLS12-5DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSLS12-10DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSLS12-15DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSLS12-20DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSLS12-25DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSLS12-30DC	Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSLS16-5DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSLS16-10DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSLS16-15DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSLS16-20DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSLS16-25DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSLS16-30DC	Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSLS20-5DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSLS20-10DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSLS20-15DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSLS20-20DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSLS20-25DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSLS20-30DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSLS20-35DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSLS20-40DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSLS20-45DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSLS20-50DC	Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSLS25-5DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSLS25-10DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSLS25-15DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSLS25-20DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSLS25-25DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSLS25-30DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSLS25-35DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSLS25-40DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSLS25-45DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSLS25-50DC	Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSLCS12-5DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSLCS12-10DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSLCS12-15DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSLCS12-20DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSLCS12-25DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSLCS12-30DC	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSLCS16-5DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSLCS16-10DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSLCS16-15DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSLCS16-20DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSLCS16-25DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSLCS16-30DC	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSLCS20-5DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSLCS20-10DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSLCS20-15DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSLCS20-20DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSLCS20-25DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSLCS20-30DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSLCS20-35DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSLCS20-40DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSLCS20-45DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSLCS20-50DC	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSLCS25-5DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSLCS25-10DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSLCS25-15DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSLCS25-20DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSLCS25-25DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSLCS25-30DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSLCS25-35DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSLCS25-40DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSLCS25-45DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSLCS25-50DC	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSFS12-5DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSFS12-10DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSFS12-15DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSFS12-20DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSFS12-25DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSFS12-30DC	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSFS16-5DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSFS16-10DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSFS16-15DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSFS16-20DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSFS16-25DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSFS16-30DC	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSFS20-5DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSFS20-10DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSFS20-15DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSFS20-20DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSFS20-25DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSFS20-30DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSFS20-35DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSFS20-40DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSFS20-45DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSFS20-50DC	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSFS25-5DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSFS25-10DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSFS25-15DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSFS25-20DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSFS25-25DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSFS25-30DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSFS25-35DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSFS25-40DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSFS25-45DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSFS25-50DC	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSGS12-5DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSGS12-10DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSGS12-15DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSGS12-20DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSGS12-25DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSGS12-30DC	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSGS16-5DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSGS16-10DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSGS16-15DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSGS16-20DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSGS16-25DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSGS16-30DC	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSGS20-5DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSGS20-10DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSGS20-15DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSGS20-20DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSGS20-25DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSGS20-30DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSGS20-35DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSGS20-40DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSGS20-45DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSGS20-50DC	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSGS25-5DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSGS25-10DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSGS25-15DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSGS25-20DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSGS25-25DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSGS25-30DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSGS25-35DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSGS25-40DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSGS25-45DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSGS25-50DC	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSDS12-5DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSDS12-10DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSDS12-15DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSDS12-20DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSDS12-25DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSDS12-30DC	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSDS16-5DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSDS16-10DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSDS16-15DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSDS16-20DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSDS16-25DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSDS16-30DC	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSDS20-5DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSDS20-10DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSDS20-15DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSDS20-20DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSDS20-25DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSDS20-30DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSDS20-35DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSDS20-40DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSDS20-45DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSDS20-50DC	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSDS25-5DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSDS25-10DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSDS25-15DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSDS25-20DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSDS25-25DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSDS25-30DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSDS25-35DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSDS25-40DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSDS25-45DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSDS25-50DC	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CQS-S Compact Cylinder, Side Load Resistant (ø12 to ø25)
