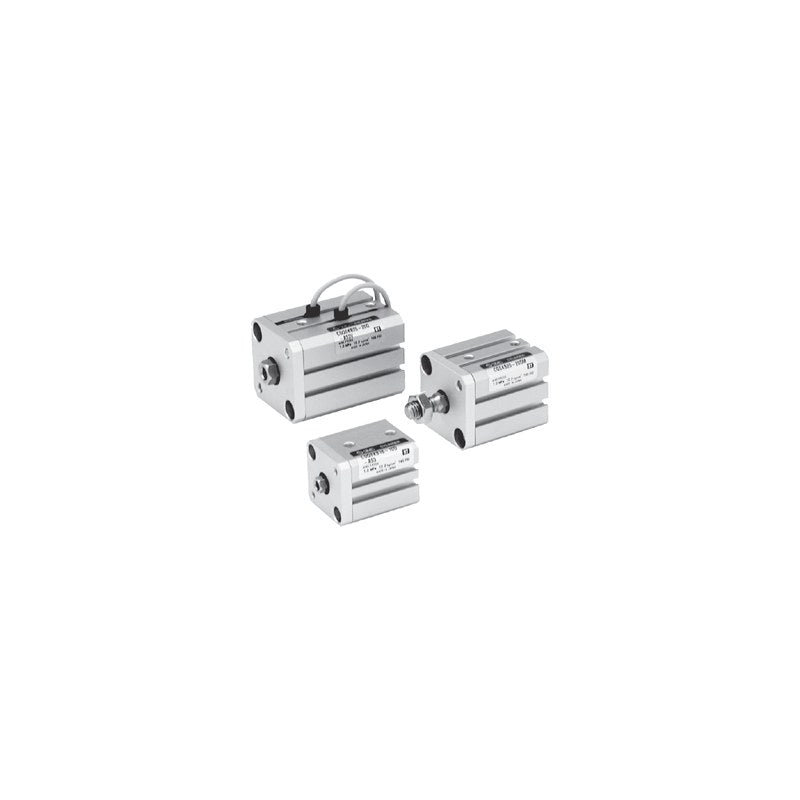

SMC CQSK Compact Cylinder, Non-rotating Rod (ø12 to ø25)

SMC CQSK series double acting compact cylinder with non-rotating hexagonal piston rod, ø12 to ø25 mm bore, in six mounting styles with or without a built-in auto switch magnet (CDQSK).

Key features

Non-rotating rod with rotation accuracy ±1°
Mounting styles: through-hole/both ends tapped (B), foot (L), compact foot (LC), rod flange (F), head flange (G), double clevis (D)
Standard strokes 5 to 30 mm (ø12, ø16) and 5 to 50 mm (ø20, ø25)
CDQSK models have a built-in magnet for D-M9, D-M9W, D-M9A, D-A9 and D-P3DWA auto switches (ordered as a suffix, e.g. -M9BW)
Body options as suffixes: rod end male thread (M), head side spigot (F), combined FM

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	-10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication	Not required (non-lube)
Piston speed	50 to 500 mm/s
Port size	M5x0.8
Action	Double acting, single rod
Rod end	Female thread (male thread with option M)
Non-rotating accuracy	±1°
Min. operating pressure	0.07 MPa (ø12, ø16), 0.05 MPa (ø20, ø25)
Cushion	None
Stroke length tolerance	+1.0/0 mm
Source	SMC Korea catalog CQS (SMCKR_CQS.pdf), p. 828-829 (PDF p. 40-41)

CQSKB12-5D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKB12-10D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKB12-15D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKB12-20D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKB12-25D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKB12-30D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKB16-5D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKB16-10D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKB16-15D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKB16-20D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKB16-25D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKB16-30D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKB20-5D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKB20-10D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKB20-15D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKB20-20D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKB20-25D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKB20-30D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKB20-35D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKB20-40D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKB20-45D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKB20-50D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSKB25-5D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKB25-10D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKB25-15D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKB25-20D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKB25-25D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKB25-30D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKB25-35D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKB25-40D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKB25-45D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKB25-50D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSKL12-5D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKL12-10D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKL12-15D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKL12-20D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKL12-25D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKL12-30D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKL16-5D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKL16-10D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKL16-15D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKL16-20D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKL16-25D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKL16-30D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKL20-5D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKL20-10D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKL20-15D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKL20-20D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKL20-25D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKL20-30D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKL20-35D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKL20-40D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKL20-45D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKL20-50D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSKL25-5D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKL25-10D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKL25-15D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKL25-20D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKL25-25D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKL25-30D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKL25-35D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKL25-40D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKL25-45D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKL25-50D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSKLC12-5D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKLC12-10D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKLC12-15D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKLC12-20D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKLC12-25D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKLC12-30D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKLC16-5D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKLC16-10D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKLC16-15D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKLC16-20D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKLC16-25D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKLC16-30D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKLC20-5D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKLC20-10D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKLC20-15D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKLC20-20D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKLC20-25D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKLC20-30D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKLC20-35D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKLC20-40D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKLC20-45D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKLC20-50D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSKLC25-5D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKLC25-10D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKLC25-15D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKLC25-20D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKLC25-25D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKLC25-30D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKLC25-35D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKLC25-40D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKLC25-45D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKLC25-50D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSKF12-5D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKF12-10D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKF12-15D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKF12-20D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKF12-25D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKF12-30D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKF16-5D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKF16-10D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKF16-15D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKF16-20D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKF16-25D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKF16-30D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKF20-5D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKF20-10D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKF20-15D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKF20-20D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKF20-25D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKF20-30D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKF20-35D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKF20-40D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKF20-45D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKF20-50D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSKF25-5D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKF25-10D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKF25-15D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKF25-20D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKF25-25D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKF25-30D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKF25-35D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKF25-40D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKF25-45D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKF25-50D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSKG12-5D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKG12-10D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKG12-15D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKG12-20D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKG12-25D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKG12-30D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKG16-5D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKG16-10D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKG16-15D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKG16-20D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKG16-25D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKG16-30D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKG20-5D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKG20-10D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKG20-15D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKG20-20D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKG20-25D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKG20-30D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKG20-35D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKG20-40D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKG20-45D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKG20-50D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSKG25-5D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKG25-10D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKG25-15D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKG25-20D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKG25-25D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKG25-30D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKG25-35D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKG25-40D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKG25-45D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKG25-50D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSKD12-5D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKD12-10D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKD12-15D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKD12-20D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKD12-25D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKD12-30D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKD16-5D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKD16-10D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKD16-15D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKD16-20D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKD16-25D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKD16-30D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKD20-5D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKD20-10D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKD20-15D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKD20-20D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKD20-25D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKD20-30D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKD20-35D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKD20-40D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKD20-45D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKD20-50D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSKD25-5D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSKD25-10D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSKD25-15D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSKD25-20D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSKD25-25D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSKD25-30D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSKD25-35D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSKD25-40D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSKD25-45D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSKD25-50D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CDQSKB12-5D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKB12-10D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKB12-15D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKB12-20D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKB12-25D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKB12-30D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKB16-5D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKB16-10D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKB16-15D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKB16-20D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKB16-25D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKB16-30D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKB20-5D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKB20-10D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKB20-15D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKB20-20D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKB20-25D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKB20-30D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKB20-35D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKB20-40D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKB20-45D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKB20-50D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSKB25-5D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKB25-10D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKB25-15D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKB25-20D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKB25-25D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKB25-30D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKB25-35D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKB25-40D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKB25-45D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKB25-50D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSKL12-5D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKL12-10D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKL12-15D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKL12-20D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKL12-25D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKL12-30D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKL16-5D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKL16-10D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKL16-15D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKL16-20D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKL16-25D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKL16-30D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKL20-5D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKL20-10D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKL20-15D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKL20-20D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKL20-25D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKL20-30D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKL20-35D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKL20-40D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKL20-45D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKL20-50D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSKL25-5D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKL25-10D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKL25-15D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKL25-20D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKL25-25D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKL25-30D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKL25-35D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKL25-40D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKL25-45D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKL25-50D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSKLC12-5D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKLC12-10D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKLC12-15D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKLC12-20D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKLC12-25D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKLC12-30D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKLC16-5D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKLC16-10D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKLC16-15D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKLC16-20D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKLC16-25D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKLC16-30D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKLC20-5D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKLC20-10D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKLC20-15D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKLC20-20D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKLC20-25D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKLC20-30D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKLC20-35D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKLC20-40D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKLC20-45D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKLC20-50D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSKLC25-5D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKLC25-10D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKLC25-15D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKLC25-20D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKLC25-25D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKLC25-30D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKLC25-35D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKLC25-40D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKLC25-45D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKLC25-50D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSKF12-5D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKF12-10D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKF12-15D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKF12-20D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKF12-25D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKF12-30D		Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKF16-5D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKF16-10D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKF16-15D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKF16-20D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKF16-25D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKF16-30D		Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKF20-5D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKF20-10D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKF20-15D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKF20-20D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKF20-25D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKF20-30D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKF20-35D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKF20-40D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKF20-45D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKF20-50D		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSKF25-5D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKF25-10D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKF25-15D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKF25-20D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKF25-25D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKF25-30D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKF25-35D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKF25-40D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKF25-45D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKF25-50D		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSKG12-5D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKG12-10D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKG12-15D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKG12-20D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKG12-25D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKG12-30D		Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKG16-5D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKG16-10D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKG16-15D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKG16-20D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKG16-25D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKG16-30D		Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKG20-5D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKG20-10D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKG20-15D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKG20-20D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKG20-25D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKG20-30D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKG20-35D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKG20-40D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKG20-45D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKG20-50D		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSKG25-5D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKG25-10D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKG25-15D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKG25-20D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKG25-25D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKG25-30D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKG25-35D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKG25-40D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKG25-45D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKG25-50D		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSKD12-5D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKD12-10D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKD12-15D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKD12-20D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKD12-25D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKD12-30D		Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKD16-5D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKD16-10D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKD16-15D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKD16-20D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKD16-25D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKD16-30D		Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKD20-5D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKD20-10D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKD20-15D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKD20-20D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKD20-25D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKD20-30D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKD20-35D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKD20-40D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKD20-45D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKD20-50D		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSKD25-5D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSKD25-10D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSKD25-15D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSKD25-20D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSKD25-25D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSKD25-30D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSKD25-35D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSKD25-40D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSKD25-45D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSKD25-50D		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes

Compact CylindersSMC

384 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CQSK Compact Cylinder, Non-rotating Rod (ø12 to ø25)

Brand SMC·Compact Cylinders

Available part numbers (384)

CQSKB12-5D, CQSKB12-10D, CQSKB12-15D, CQSKB12-20D, CQSKB12-25D, CQSKB12-30D, CQSKB16-5D, CQSKB16-10D, CQSKB16-15D, CQSKB16-20D + 374 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CQSKB12-5D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKB12-10D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKB12-15D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKB12-20D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKB12-25D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKB12-30D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKB16-5D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKB16-10D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKB16-15D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKB16-20D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKB16-25D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKB16-30D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKB20-5D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKB20-10D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKB20-15D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKB20-20D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKB20-25D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKB20-30D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKB20-35D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKB20-40D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKB20-45D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKB20-50D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSKB25-5D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKB25-10D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKB25-15D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKB25-20D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKB25-25D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKB25-30D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKB25-35D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKB25-40D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKB25-45D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKB25-50D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSKL12-5D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKL12-10D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKL12-15D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKL12-20D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKL12-25D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKL12-30D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKL16-5D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKL16-10D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKL16-15D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKL16-20D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKL16-25D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKL16-30D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKL20-5D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKL20-10D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKL20-15D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKL20-20D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKL20-25D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKL20-30D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKL20-35D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKL20-40D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKL20-45D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKL20-50D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSKL25-5D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKL25-10D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKL25-15D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKL25-20D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKL25-25D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKL25-30D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKL25-35D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKL25-40D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKL25-45D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKL25-50D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSKLC12-5D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKLC12-10D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKLC12-15D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKLC12-20D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKLC12-25D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKLC12-30D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKLC16-5D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKLC16-10D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKLC16-15D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKLC16-20D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKLC16-25D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKLC16-30D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKLC20-5D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKLC20-10D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKLC20-15D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKLC20-20D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKLC20-25D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKLC20-30D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKLC20-35D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKLC20-40D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKLC20-45D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKLC20-50D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSKLC25-5D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKLC25-10D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKLC25-15D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKLC25-20D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKLC25-25D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKLC25-30D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKLC25-35D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKLC25-40D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKLC25-45D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKLC25-50D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSKF12-5D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKF12-10D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKF12-15D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKF12-20D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKF12-25D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKF12-30D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKF16-5D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKF16-10D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKF16-15D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKF16-20D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKF16-25D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKF16-30D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKF20-5D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKF20-10D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKF20-15D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKF20-20D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKF20-25D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKF20-30D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKF20-35D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKF20-40D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKF20-45D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKF20-50D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSKF25-5D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKF25-10D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKF25-15D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKF25-20D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKF25-25D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKF25-30D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKF25-35D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKF25-40D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKF25-45D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKF25-50D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSKG12-5D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKG12-10D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKG12-15D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKG12-20D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKG12-25D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKG12-30D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKG16-5D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKG16-10D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKG16-15D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKG16-20D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKG16-25D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKG16-30D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKG20-5D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKG20-10D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKG20-15D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKG20-20D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKG20-25D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKG20-30D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKG20-35D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKG20-40D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKG20-45D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKG20-50D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSKG25-5D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKG25-10D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKG25-15D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKG25-20D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKG25-25D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKG25-30D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKG25-35D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKG25-40D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKG25-45D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKG25-50D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSKD12-5D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKD12-10D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKD12-15D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKD12-20D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKD12-25D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKD12-30D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKD16-5D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKD16-10D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKD16-15D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKD16-20D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKD16-25D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKD16-30D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKD20-5D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKD20-10D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKD20-15D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKD20-20D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKD20-25D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKD20-30D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKD20-35D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKD20-40D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKD20-45D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKD20-50D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSKD25-5D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSKD25-10D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSKD25-15D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSKD25-20D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSKD25-25D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSKD25-30D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSKD25-35D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSKD25-40D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSKD25-45D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSKD25-50D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CDQSKB12-5D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKB12-10D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKB12-15D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKB12-20D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKB12-25D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKB12-30D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKB16-5D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKB16-10D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKB16-15D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKB16-20D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKB16-25D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKB16-30D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKB20-5D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKB20-10D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKB20-15D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKB20-20D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKB20-25D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKB20-30D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKB20-35D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKB20-40D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKB20-45D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKB20-50D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSKB25-5D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKB25-10D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKB25-15D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKB25-20D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKB25-25D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKB25-30D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKB25-35D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKB25-40D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKB25-45D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKB25-50D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSKL12-5D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKL12-10D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKL12-15D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKL12-20D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKL12-25D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKL12-30D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKL16-5D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKL16-10D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKL16-15D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKL16-20D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKL16-25D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKL16-30D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKL20-5D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKL20-10D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKL20-15D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKL20-20D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKL20-25D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKL20-30D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKL20-35D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKL20-40D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKL20-45D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKL20-50D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSKL25-5D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKL25-10D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKL25-15D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKL25-20D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKL25-25D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKL25-30D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKL25-35D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKL25-40D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKL25-45D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKL25-50D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSKLC12-5D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKLC12-10D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKLC12-15D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKLC12-20D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKLC12-25D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKLC12-30D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKLC16-5D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKLC16-10D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKLC16-15D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKLC16-20D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKLC16-25D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKLC16-30D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKLC20-5D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKLC20-10D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKLC20-15D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKLC20-20D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKLC20-25D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKLC20-30D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKLC20-35D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKLC20-40D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKLC20-45D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKLC20-50D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSKLC25-5D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKLC25-10D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKLC25-15D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKLC25-20D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKLC25-25D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKLC25-30D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKLC25-35D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKLC25-40D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKLC25-45D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKLC25-50D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSKF12-5D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKF12-10D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKF12-15D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKF12-20D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKF12-25D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKF12-30D	Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKF16-5D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKF16-10D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKF16-15D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKF16-20D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKF16-25D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKF16-30D	Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKF20-5D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKF20-10D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKF20-15D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKF20-20D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKF20-25D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKF20-30D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKF20-35D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKF20-40D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKF20-45D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKF20-50D	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSKF25-5D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKF25-10D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKF25-15D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKF25-20D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKF25-25D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKF25-30D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKF25-35D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKF25-40D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKF25-45D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKF25-50D	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSKG12-5D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKG12-10D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKG12-15D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKG12-20D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKG12-25D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKG12-30D	Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKG16-5D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKG16-10D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKG16-15D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKG16-20D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKG16-25D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKG16-30D	Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKG20-5D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKG20-10D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKG20-15D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKG20-20D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKG20-25D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKG20-30D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKG20-35D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKG20-40D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKG20-45D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKG20-50D	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSKG25-5D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKG25-10D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKG25-15D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKG25-20D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKG25-25D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKG25-30D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKG25-35D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKG25-40D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKG25-45D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKG25-50D	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSKD12-5D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKD12-10D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKD12-15D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKD12-20D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKD12-25D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKD12-30D	Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKD16-5D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKD16-10D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKD16-15D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKD16-20D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKD16-25D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKD16-30D	Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKD20-5D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKD20-10D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKD20-15D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKD20-20D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKD20-25D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKD20-30D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKD20-35D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKD20-40D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKD20-45D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKD20-50D	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSKD25-5D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSKD25-10D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSKD25-15D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSKD25-20D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSKD25-25D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSKD25-30D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSKD25-35D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSKD25-40D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSKD25-45D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSKD25-50D	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CQSK Compact Cylinder, Non-rotating Rod (ø12 to ø25)
