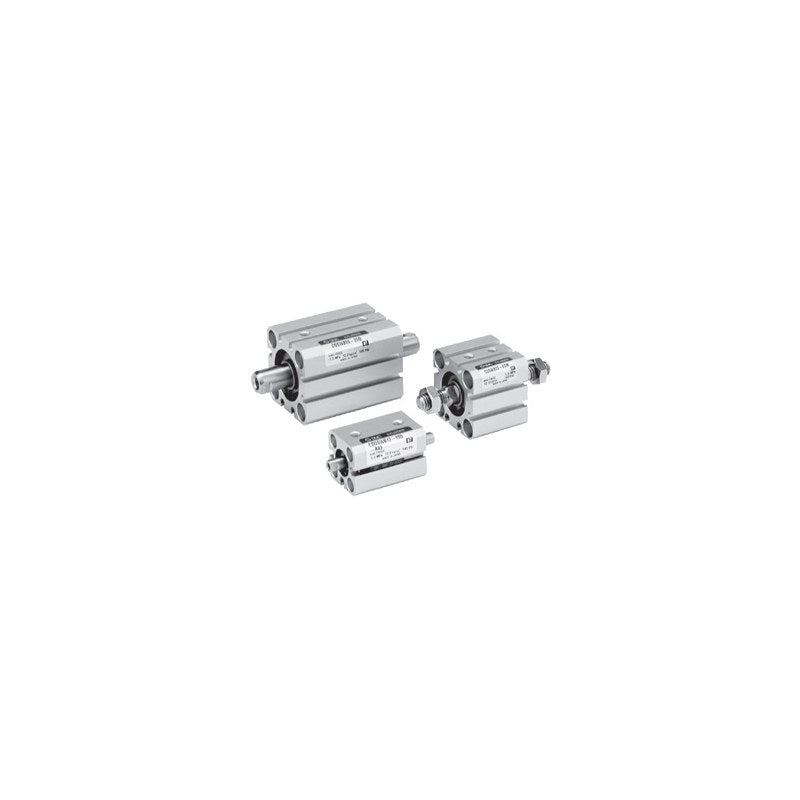

SMC CQSW Compact Cylinder, Double Rod (ø12 to ø25)

SMC CQSW series double acting, double rod compact cylinder, ø12 to ø25 mm bore, in four mounting styles with or without a built-in auto switch magnet (CDQSW).

Key features

Through rod on both ends for equal thrust in both directions
Mounting styles: through-hole/both ends tapped (B), foot (L), compact foot (LC), flange (F)
Standard strokes 5 to 30 mm (ø12, ø16) and 5 to 50 mm (ø20, ø25)
CDQSW models have a built-in magnet for D-M9, D-M9W, D-M9A, D-A9 and D-P3DWA auto switches (ordered as a suffix, e.g. -M9BW)
Body options as suffixes: rubber bumper (C), rod end male thread (M), combined CM

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	-10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication	Not required (non-lube)
Piston speed	50 to 500 mm/s
Port size	M5x0.8
Action	Double acting, double rod
Rod end	Female thread (male thread with option M)
Min. operating pressure	0.07 MPa (ø12, ø16), 0.05 MPa (ø20, ø25)
Cushion	None (standard), rubber bumper (option C)
Stroke length tolerance	+1.0/0 mm
Source	SMC Korea catalog CQS (SMCKR_CQS.pdf), p. 810-811 (PDF p. 22-23)

CQSWB12-5D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWB12-10D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWB12-15D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWB12-20D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWB12-25D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWB12-30D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWB16-5D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWB16-10D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWB16-15D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWB16-20D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWB16-25D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWB16-30D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWB20-5D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWB20-10D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWB20-15D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWB20-20D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWB20-25D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWB20-30D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWB20-35D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSWB20-40D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSWB20-45D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSWB20-50D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSWB25-5D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWB25-10D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWB25-15D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWB25-20D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWB25-25D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWB25-30D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWB25-35D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSWB25-40D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSWB25-45D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSWB25-50D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSWL12-5D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWL12-10D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWL12-15D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWL12-20D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWL12-25D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWL12-30D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWL16-5D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWL16-10D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWL16-15D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWL16-20D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWL16-25D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWL16-30D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWL20-5D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWL20-10D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWL20-15D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWL20-20D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWL20-25D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWL20-30D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWL20-35D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSWL20-40D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSWL20-45D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSWL20-50D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSWL25-5D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWL25-10D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWL25-15D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWL25-20D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWL25-25D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWL25-30D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWL25-35D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSWL25-40D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSWL25-45D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSWL25-50D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSWLC12-5D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWLC12-10D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWLC12-15D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWLC12-20D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWLC12-25D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWLC12-30D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWLC16-5D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWLC16-10D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWLC16-15D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWLC16-20D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWLC16-25D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWLC16-30D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWLC20-5D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWLC20-10D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWLC20-15D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWLC20-20D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWLC20-25D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWLC20-30D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWLC20-35D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSWLC20-40D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSWLC20-45D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSWLC20-50D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSWLC25-5D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWLC25-10D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWLC25-15D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWLC25-20D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWLC25-25D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWLC25-30D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWLC25-35D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSWLC25-40D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSWLC25-45D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSWLC25-50D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSWF12-5D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWF12-10D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWF12-15D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWF12-20D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWF12-25D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWF12-30D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWF16-5D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWF16-10D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWF16-15D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWF16-20D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWF16-25D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWF16-30D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWF20-5D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWF20-10D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWF20-15D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWF20-20D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWF20-25D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWF20-30D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWF20-35D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSWF20-40D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSWF20-45D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSWF20-50D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CQSWF25-5D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CQSWF25-10D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CQSWF25-15D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CQSWF25-20D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CQSWF25-25D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CQSWF25-30D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CQSWF25-35D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CQSWF25-40D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CQSWF25-45D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CQSWF25-50D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CDQSWB12-5D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWB12-10D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWB12-15D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWB12-20D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWB12-25D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWB12-30D		Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWB16-5D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWB16-10D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWB16-15D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWB16-20D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWB16-25D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWB16-30D		Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWB20-5D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWB20-10D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWB20-15D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWB20-20D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWB20-25D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWB20-30D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWB20-35D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSWB20-40D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSWB20-45D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSWB20-50D		Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSWB25-5D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWB25-10D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWB25-15D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWB25-20D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWB25-25D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWB25-30D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWB25-35D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSWB25-40D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSWB25-45D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSWB25-50D		Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSWL12-5D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWL12-10D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWL12-15D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWL12-20D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWL12-25D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWL12-30D		Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWL16-5D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWL16-10D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWL16-15D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWL16-20D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWL16-25D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWL16-30D		Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWL20-5D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWL20-10D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWL20-15D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWL20-20D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWL20-25D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWL20-30D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWL20-35D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSWL20-40D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSWL20-45D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSWL20-50D		Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSWL25-5D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWL25-10D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWL25-15D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWL25-20D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWL25-25D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWL25-30D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWL25-35D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSWL25-40D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSWL25-45D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSWL25-50D		Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSWLC12-5D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWLC12-10D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWLC12-15D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWLC12-20D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWLC12-25D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWLC12-30D		Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWLC16-5D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWLC16-10D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWLC16-15D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWLC16-20D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWLC16-25D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWLC16-30D		Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWLC20-5D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWLC20-10D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWLC20-15D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWLC20-20D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWLC20-25D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWLC20-30D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWLC20-35D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSWLC20-40D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSWLC20-45D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSWLC20-50D		Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSWLC25-5D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWLC25-10D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWLC25-15D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWLC25-20D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWLC25-25D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWLC25-30D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWLC25-35D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSWLC25-40D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSWLC25-45D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSWLC25-50D		Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSWF12-5D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWF12-10D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWF12-15D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWF12-20D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWF12-25D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWF12-30D		Mounting: Flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWF16-5D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWF16-10D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWF16-15D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWF16-20D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWF16-25D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWF16-30D		Mounting: Flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWF20-5D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWF20-10D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWF20-15D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWF20-20D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWF20-25D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWF20-30D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWF20-35D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSWF20-40D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSWF20-45D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSWF20-50D		Mounting: Flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CDQSWF25-5D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CDQSWF25-10D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CDQSWF25-15D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CDQSWF25-20D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CDQSWF25-25D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CDQSWF25-30D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CDQSWF25-35D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CDQSWF25-40D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CDQSWF25-45D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CDQSWF25-50D		Mounting: Flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes

Compact CylindersSMC

256 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CQSW Compact Cylinder, Double Rod (ø12 to ø25)

Brand SMC·Compact Cylinders

Available part numbers (256)

CQSWB12-5D, CQSWB12-10D, CQSWB12-15D, CQSWB12-20D, CQSWB12-25D, CQSWB12-30D, CQSWB16-5D, CQSWB16-10D, CQSWB16-15D, CQSWB16-20D + 246 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CQSWB12-5D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWB12-10D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWB12-15D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWB12-20D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWB12-25D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWB12-30D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWB16-5D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWB16-10D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWB16-15D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWB16-20D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWB16-25D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWB16-30D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWB20-5D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWB20-10D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWB20-15D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWB20-20D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWB20-25D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWB20-30D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWB20-35D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSWB20-40D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSWB20-45D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSWB20-50D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSWB25-5D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWB25-10D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWB25-15D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWB25-20D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWB25-25D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWB25-30D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWB25-35D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSWB25-40D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSWB25-45D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSWB25-50D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSWL12-5D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWL12-10D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWL12-15D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWL12-20D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWL12-25D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWL12-30D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWL16-5D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWL16-10D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWL16-15D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWL16-20D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWL16-25D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWL16-30D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWL20-5D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWL20-10D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWL20-15D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWL20-20D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWL20-25D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWL20-30D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWL20-35D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSWL20-40D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSWL20-45D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSWL20-50D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSWL25-5D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWL25-10D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWL25-15D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWL25-20D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWL25-25D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWL25-30D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWL25-35D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSWL25-40D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSWL25-45D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSWL25-50D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSWLC12-5D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWLC12-10D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWLC12-15D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWLC12-20D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWLC12-25D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWLC12-30D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWLC16-5D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWLC16-10D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWLC16-15D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWLC16-20D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWLC16-25D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWLC16-30D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWLC20-5D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWLC20-10D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWLC20-15D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWLC20-20D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWLC20-25D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWLC20-30D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWLC20-35D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSWLC20-40D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSWLC20-45D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSWLC20-50D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSWLC25-5D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWLC25-10D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWLC25-15D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWLC25-20D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWLC25-25D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWLC25-30D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWLC25-35D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSWLC25-40D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSWLC25-45D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSWLC25-50D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSWF12-5D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWF12-10D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWF12-15D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWF12-20D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWF12-25D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWF12-30D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWF16-5D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWF16-10D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWF16-15D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWF16-20D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWF16-25D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWF16-30D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWF20-5D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWF20-10D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWF20-15D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWF20-20D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWF20-25D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWF20-30D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWF20-35D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSWF20-40D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSWF20-45D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSWF20-50D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CQSWF25-5D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CQSWF25-10D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CQSWF25-15D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CQSWF25-20D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CQSWF25-25D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CQSWF25-30D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CQSWF25-35D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CQSWF25-40D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CQSWF25-45D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CQSWF25-50D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CDQSWB12-5D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWB12-10D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWB12-15D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWB12-20D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWB12-25D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWB12-30D	Mounting: Through-hole / both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWB16-5D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWB16-10D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWB16-15D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWB16-20D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWB16-25D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWB16-30D	Mounting: Through-hole / both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWB20-5D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWB20-10D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWB20-15D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWB20-20D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWB20-25D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWB20-30D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWB20-35D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSWB20-40D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSWB20-45D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSWB20-50D	Mounting: Through-hole / both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSWB25-5D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWB25-10D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWB25-15D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWB25-20D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWB25-25D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWB25-30D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWB25-35D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSWB25-40D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSWB25-45D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSWB25-50D	Mounting: Through-hole / both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSWL12-5D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWL12-10D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWL12-15D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWL12-20D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWL12-25D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWL12-30D	Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWL16-5D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWL16-10D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWL16-15D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWL16-20D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWL16-25D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWL16-30D	Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWL20-5D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWL20-10D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWL20-15D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWL20-20D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWL20-25D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWL20-30D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWL20-35D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSWL20-40D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSWL20-45D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSWL20-50D	Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSWL25-5D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWL25-10D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWL25-15D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWL25-20D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWL25-25D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWL25-30D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWL25-35D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSWL25-40D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSWL25-45D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSWL25-50D	Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSWLC12-5D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWLC12-10D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWLC12-15D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWLC12-20D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWLC12-25D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWLC12-30D	Mounting: Compact foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWLC16-5D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWLC16-10D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWLC16-15D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWLC16-20D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWLC16-25D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWLC16-30D	Mounting: Compact foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWLC20-5D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWLC20-10D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWLC20-15D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWLC20-20D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWLC20-25D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWLC20-30D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWLC20-35D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSWLC20-40D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSWLC20-45D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSWLC20-50D	Mounting: Compact foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSWLC25-5D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWLC25-10D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWLC25-15D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWLC25-20D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWLC25-25D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWLC25-30D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWLC25-35D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSWLC25-40D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSWLC25-45D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSWLC25-50D	Mounting: Compact foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSWF12-5D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWF12-10D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWF12-15D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWF12-20D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWF12-25D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWF12-30D	Mounting: Flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWF16-5D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWF16-10D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWF16-15D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWF16-20D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWF16-25D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWF16-30D	Mounting: Flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWF20-5D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWF20-10D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWF20-15D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWF20-20D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWF20-25D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWF20-30D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWF20-35D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSWF20-40D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSWF20-45D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSWF20-50D	Mounting: Flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CDQSWF25-5D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CDQSWF25-10D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CDQSWF25-15D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CDQSWF25-20D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CDQSWF25-25D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CDQSWF25-30D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CDQSWF25-35D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CDQSWF25-40D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CDQSWF25-45D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CDQSWF25-50D	Mounting: Flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CQSW Compact Cylinder, Double Rod (ø12 to ø25)
