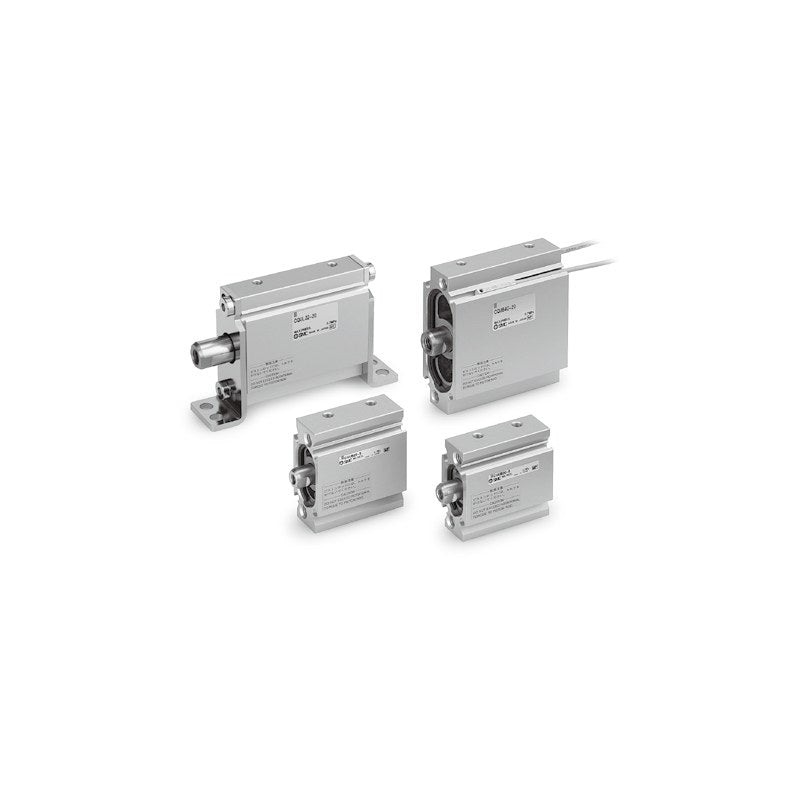

SMC CQU Compact Cylinder, Plate Type (Size 20 to 40)

SMC CQU series double-acting plate-type compact cylinder with non-round piston, sizes 20 to 40, up to 40% narrower than CQ2 and up to 36% lighter than the MU plate cylinder.

Key features

Width reduced by up to 40% vs CQ2; overall length up to 15% shorter; mass up to 36% lighter than MU (30 mm stroke)
Non-round piston gives a flat profile and rod non-rotation
Built-in magnet as standard; auto switches (D-M9, D-A9 series) can be mounted with the bracket attached
Mounting: through-hole/both ends tapped common body, axial foot, lateral foot, double clevis (brackets shipped unassembled)
Easy maintenance: packing replaceable just by removing the snap ring

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	1.0 MPa
Max. operating pressure	0.7 MPa
Min. operating pressure	0.08 MPa (size 20), 0.05 MPa (25 to 40)
Ambient and fluid temperature	-10 to 70°C (no switch), -10 to 60°C (with switch)
Cushion	Rubber bumper
Piston speed	50 to 500 mm/s
Stroke tolerance	+1.4/0 mm
Magnet	Built-in (standard)
Source	SMC Korea catalog CQU Series (SMCKR_CQU.pdf), p. 1023-1024 (PDF p. 3-4)

CQUB20-5		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Female thread
CQUB20-5M		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Male thread
CQUB20-10		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Female thread
CQUB20-10M		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Male thread
CQUB20-15		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Female thread
CQUB20-15M		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Male thread
CQUB20-20		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Female thread
CQUB20-20M		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Male thread
CQUB20-25		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Female thread
CQUB20-25M		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Male thread
CQUB20-30		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Female thread
CQUB20-30M		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Male thread
CQUB20-35		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Female thread
CQUB20-35M		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Male thread
CQUB20-40		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Female thread
CQUB20-40M		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Male thread
CQUB20-45		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Female thread
CQUB20-45M		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Male thread
CQUB20-50		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Female thread
CQUB20-50M		Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Male thread
CQUL20-5		Size: 20 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Female thread
CQUL20-5M		Size: 20 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Male thread
CQUL20-10		Size: 20 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Female thread
CQUL20-10M		Size: 20 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Male thread
CQUL20-15		Size: 20 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Female thread
CQUL20-15M		Size: 20 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Male thread
CQUL20-20		Size: 20 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Female thread
CQUL20-20M		Size: 20 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Male thread
CQUL20-25		Size: 20 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Female thread
CQUL20-25M		Size: 20 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Male thread
CQUL20-30		Size: 20 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Female thread
CQUL20-30M		Size: 20 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Male thread
CQUL20-35		Size: 20 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Female thread
CQUL20-35M		Size: 20 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Male thread
CQUL20-40		Size: 20 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Female thread
CQUL20-40M		Size: 20 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Male thread
CQUL20-45		Size: 20 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Female thread
CQUL20-45M		Size: 20 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Male thread
CQUL20-50		Size: 20 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Female thread
CQUL20-50M		Size: 20 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Male thread
CQUM20-5		Size: 20 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Female thread
CQUM20-5M		Size: 20 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Male thread
CQUM20-10		Size: 20 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Female thread
CQUM20-10M		Size: 20 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Male thread
CQUM20-15		Size: 20 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Female thread
CQUM20-15M		Size: 20 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Male thread
CQUM20-20		Size: 20 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Female thread
CQUM20-20M		Size: 20 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Male thread
CQUM20-25		Size: 20 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Female thread
CQUM20-25M		Size: 20 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Male thread
CQUM20-30		Size: 20 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Female thread
CQUM20-30M		Size: 20 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Male thread
CQUM20-35		Size: 20 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Female thread
CQUM20-35M		Size: 20 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Male thread
CQUM20-40		Size: 20 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Female thread
CQUM20-40M		Size: 20 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Male thread
CQUM20-45		Size: 20 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Female thread
CQUM20-45M		Size: 20 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Male thread
CQUM20-50		Size: 20 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Female thread
CQUM20-50M		Size: 20 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Male thread
CQUD20-5		Size: 20 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Female thread
CQUD20-5M		Size: 20 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Male thread
CQUD20-10		Size: 20 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Female thread
CQUD20-10M		Size: 20 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Male thread
CQUD20-15		Size: 20 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread
CQUD20-15M		Size: 20 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread
CQUD20-20		Size: 20 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread
CQUD20-20M		Size: 20 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread
CQUD20-25		Size: 20 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread
CQUD20-25M		Size: 20 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread
CQUD20-30		Size: 20 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread
CQUD20-30M		Size: 20 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread
CQUD20-35		Size: 20 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Female thread
CQUD20-35M		Size: 20 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Male thread
CQUD20-40		Size: 20 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread
CQUD20-40M		Size: 20 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread
CQUD20-45		Size: 20 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Female thread
CQUD20-45M		Size: 20 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Male thread
CQUD20-50		Size: 20 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread
CQUD20-50M		Size: 20 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread
CQUB25-5		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Female thread
CQUB25-5M		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Male thread
CQUB25-10		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Female thread
CQUB25-10M		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Male thread
CQUB25-15		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Female thread
CQUB25-15M		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Male thread
CQUB25-20		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Female thread
CQUB25-20M		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Male thread
CQUB25-25		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Female thread
CQUB25-25M		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Male thread
CQUB25-30		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Female thread
CQUB25-30M		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Male thread
CQUB25-35		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Female thread
CQUB25-35M		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Male thread
CQUB25-40		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Female thread
CQUB25-40M		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Male thread
CQUB25-45		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Female thread
CQUB25-45M		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Male thread
CQUB25-50		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Female thread
CQUB25-50M		Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Male thread
CQUL25-5		Size: 25 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Female thread
CQUL25-5M		Size: 25 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Male thread
CQUL25-10		Size: 25 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Female thread
CQUL25-10M		Size: 25 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Male thread
CQUL25-15		Size: 25 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Female thread
CQUL25-15M		Size: 25 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Male thread
CQUL25-20		Size: 25 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Female thread
CQUL25-20M		Size: 25 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Male thread
CQUL25-25		Size: 25 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Female thread
CQUL25-25M		Size: 25 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Male thread
CQUL25-30		Size: 25 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Female thread
CQUL25-30M		Size: 25 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Male thread
CQUL25-35		Size: 25 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Female thread
CQUL25-35M		Size: 25 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Male thread
CQUL25-40		Size: 25 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Female thread
CQUL25-40M		Size: 25 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Male thread
CQUL25-45		Size: 25 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Female thread
CQUL25-45M		Size: 25 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Male thread
CQUL25-50		Size: 25 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Female thread
CQUL25-50M		Size: 25 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Male thread
CQUM25-5		Size: 25 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Female thread
CQUM25-5M		Size: 25 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Male thread
CQUM25-10		Size: 25 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Female thread
CQUM25-10M		Size: 25 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Male thread
CQUM25-15		Size: 25 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Female thread
CQUM25-15M		Size: 25 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Male thread
CQUM25-20		Size: 25 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Female thread
CQUM25-20M		Size: 25 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Male thread
CQUM25-25		Size: 25 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Female thread
CQUM25-25M		Size: 25 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Male thread
CQUM25-30		Size: 25 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Female thread
CQUM25-30M		Size: 25 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Male thread
CQUM25-35		Size: 25 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Female thread
CQUM25-35M		Size: 25 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Male thread
CQUM25-40		Size: 25 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Female thread
CQUM25-40M		Size: 25 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Male thread
CQUM25-45		Size: 25 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Female thread
CQUM25-45M		Size: 25 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Male thread
CQUM25-50		Size: 25 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Female thread
CQUM25-50M		Size: 25 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Male thread
CQUD25-5		Size: 25 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Female thread
CQUD25-5M		Size: 25 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Male thread
CQUD25-10		Size: 25 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Female thread
CQUD25-10M		Size: 25 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Male thread
CQUD25-15		Size: 25 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread
CQUD25-15M		Size: 25 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread
CQUD25-20		Size: 25 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread
CQUD25-20M		Size: 25 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread
CQUD25-25		Size: 25 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread
CQUD25-25M		Size: 25 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread
CQUD25-30		Size: 25 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread
CQUD25-30M		Size: 25 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread
CQUD25-35		Size: 25 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Female thread
CQUD25-35M		Size: 25 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Male thread
CQUD25-40		Size: 25 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread
CQUD25-40M		Size: 25 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread
CQUD25-45		Size: 25 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Female thread
CQUD25-45M		Size: 25 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Male thread
CQUD25-50		Size: 25 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread
CQUD25-50M		Size: 25 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread
CQUB32-5		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Female thread
CQUB32-5M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Male thread
CQUB32-10		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Female thread
CQUB32-10M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Male thread
CQUB32-15		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Female thread
CQUB32-15M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Male thread
CQUB32-20		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Female thread
CQUB32-20M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Male thread
CQUB32-25		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Female thread
CQUB32-25M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Male thread
CQUB32-30		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Female thread
CQUB32-30M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Male thread
CQUB32-35		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Female thread
CQUB32-35M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Male thread
CQUB32-40		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Female thread
CQUB32-40M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Male thread
CQUB32-45		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Female thread
CQUB32-45M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Male thread
CQUB32-50		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Female thread
CQUB32-50M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Male thread
CQUB32-75		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 75 mm \| Rod end: Female thread
CQUB32-75M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 75 mm \| Rod end: Male thread
CQUB32-100		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 100 mm \| Rod end: Female thread
CQUB32-100M		Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 100 mm \| Rod end: Male thread
CQUL32-5		Size: 32 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Female thread
CQUL32-5M		Size: 32 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Male thread
CQUL32-10		Size: 32 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Female thread
CQUL32-10M		Size: 32 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Male thread
CQUL32-15		Size: 32 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Female thread
CQUL32-15M		Size: 32 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Male thread
CQUL32-20		Size: 32 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Female thread
CQUL32-20M		Size: 32 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Male thread
CQUL32-25		Size: 32 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Female thread
CQUL32-25M		Size: 32 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Male thread
CQUL32-30		Size: 32 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Female thread
CQUL32-30M		Size: 32 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Male thread
CQUL32-35		Size: 32 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Female thread
CQUL32-35M		Size: 32 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Male thread
CQUL32-40		Size: 32 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Female thread
CQUL32-40M		Size: 32 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Male thread
CQUL32-45		Size: 32 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Female thread
CQUL32-45M		Size: 32 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Male thread
CQUL32-50		Size: 32 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Female thread
CQUL32-50M		Size: 32 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Male thread
CQUL32-75		Size: 32 \| Mounting: Axial foot \| Stroke: 75 mm \| Rod end: Female thread
CQUL32-75M		Size: 32 \| Mounting: Axial foot \| Stroke: 75 mm \| Rod end: Male thread
CQUL32-100		Size: 32 \| Mounting: Axial foot \| Stroke: 100 mm \| Rod end: Female thread
CQUL32-100M		Size: 32 \| Mounting: Axial foot \| Stroke: 100 mm \| Rod end: Male thread
CQUM32-5		Size: 32 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Female thread
CQUM32-5M		Size: 32 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Male thread
CQUM32-10		Size: 32 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Female thread
CQUM32-10M		Size: 32 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Male thread
CQUM32-15		Size: 32 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Female thread
CQUM32-15M		Size: 32 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Male thread
CQUM32-20		Size: 32 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Female thread
CQUM32-20M		Size: 32 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Male thread
CQUM32-25		Size: 32 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Female thread
CQUM32-25M		Size: 32 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Male thread
CQUM32-30		Size: 32 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Female thread
CQUM32-30M		Size: 32 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Male thread
CQUM32-35		Size: 32 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Female thread
CQUM32-35M		Size: 32 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Male thread
CQUM32-40		Size: 32 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Female thread
CQUM32-40M		Size: 32 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Male thread
CQUM32-45		Size: 32 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Female thread
CQUM32-45M		Size: 32 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Male thread
CQUM32-50		Size: 32 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Female thread
CQUM32-50M		Size: 32 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Male thread
CQUM32-75		Size: 32 \| Mounting: Lateral foot \| Stroke: 75 mm \| Rod end: Female thread
CQUM32-75M		Size: 32 \| Mounting: Lateral foot \| Stroke: 75 mm \| Rod end: Male thread
CQUM32-100		Size: 32 \| Mounting: Lateral foot \| Stroke: 100 mm \| Rod end: Female thread
CQUM32-100M		Size: 32 \| Mounting: Lateral foot \| Stroke: 100 mm \| Rod end: Male thread
CQUD32-5		Size: 32 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Female thread
CQUD32-5M		Size: 32 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Male thread
CQUD32-10		Size: 32 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Female thread
CQUD32-10M		Size: 32 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Male thread
CQUD32-15		Size: 32 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread
CQUD32-15M		Size: 32 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread
CQUD32-20		Size: 32 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread
CQUD32-20M		Size: 32 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread
CQUD32-25		Size: 32 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread
CQUD32-25M		Size: 32 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread
CQUD32-30		Size: 32 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread
CQUD32-30M		Size: 32 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread
CQUD32-35		Size: 32 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Female thread
CQUD32-35M		Size: 32 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Male thread
CQUD32-40		Size: 32 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread
CQUD32-40M		Size: 32 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread
CQUD32-45		Size: 32 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Female thread
CQUD32-45M		Size: 32 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Male thread
CQUD32-50		Size: 32 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread
CQUD32-50M		Size: 32 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread
CQUD32-75		Size: 32 \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread
CQUD32-75M		Size: 32 \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread
CQUD32-100		Size: 32 \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread
CQUD32-100M		Size: 32 \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread
CQUB40-5		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Female thread
CQUB40-5M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Male thread
CQUB40-10		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Female thread
CQUB40-10M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Male thread
CQUB40-15		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Female thread
CQUB40-15M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Male thread
CQUB40-20		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Female thread
CQUB40-20M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Male thread
CQUB40-25		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Female thread
CQUB40-25M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Male thread
CQUB40-30		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Female thread
CQUB40-30M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Male thread
CQUB40-35		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Female thread
CQUB40-35M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Male thread
CQUB40-40		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Female thread
CQUB40-40M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Male thread
CQUB40-45		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Female thread
CQUB40-45M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Male thread
CQUB40-50		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Female thread
CQUB40-50M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Male thread
CQUB40-75		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 75 mm \| Rod end: Female thread
CQUB40-75M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 75 mm \| Rod end: Male thread
CQUB40-100		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 100 mm \| Rod end: Female thread
CQUB40-100M		Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 100 mm \| Rod end: Male thread
CQUL40-5		Size: 40 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Female thread
CQUL40-5M		Size: 40 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Male thread
CQUL40-10		Size: 40 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Female thread
CQUL40-10M		Size: 40 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Male thread
CQUL40-15		Size: 40 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Female thread
CQUL40-15M		Size: 40 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Male thread
CQUL40-20		Size: 40 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Female thread
CQUL40-20M		Size: 40 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Male thread
CQUL40-25		Size: 40 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Female thread
CQUL40-25M		Size: 40 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Male thread
CQUL40-30		Size: 40 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Female thread
CQUL40-30M		Size: 40 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Male thread
CQUL40-35		Size: 40 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Female thread
CQUL40-35M		Size: 40 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Male thread
CQUL40-40		Size: 40 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Female thread
CQUL40-40M		Size: 40 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Male thread
CQUL40-45		Size: 40 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Female thread
CQUL40-45M		Size: 40 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Male thread
CQUL40-50		Size: 40 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Female thread
CQUL40-50M		Size: 40 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Male thread
CQUL40-75		Size: 40 \| Mounting: Axial foot \| Stroke: 75 mm \| Rod end: Female thread
CQUL40-75M		Size: 40 \| Mounting: Axial foot \| Stroke: 75 mm \| Rod end: Male thread
CQUL40-100		Size: 40 \| Mounting: Axial foot \| Stroke: 100 mm \| Rod end: Female thread
CQUL40-100M		Size: 40 \| Mounting: Axial foot \| Stroke: 100 mm \| Rod end: Male thread
CQUM40-5		Size: 40 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Female thread
CQUM40-5M		Size: 40 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Male thread
CQUM40-10		Size: 40 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Female thread
CQUM40-10M		Size: 40 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Male thread
CQUM40-15		Size: 40 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Female thread
CQUM40-15M		Size: 40 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Male thread
CQUM40-20		Size: 40 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Female thread
CQUM40-20M		Size: 40 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Male thread
CQUM40-25		Size: 40 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Female thread
CQUM40-25M		Size: 40 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Male thread
CQUM40-30		Size: 40 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Female thread
CQUM40-30M		Size: 40 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Male thread
CQUM40-35		Size: 40 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Female thread
CQUM40-35M		Size: 40 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Male thread
CQUM40-40		Size: 40 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Female thread
CQUM40-40M		Size: 40 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Male thread
CQUM40-45		Size: 40 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Female thread
CQUM40-45M		Size: 40 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Male thread
CQUM40-50		Size: 40 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Female thread
CQUM40-50M		Size: 40 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Male thread
CQUM40-75		Size: 40 \| Mounting: Lateral foot \| Stroke: 75 mm \| Rod end: Female thread
CQUM40-75M		Size: 40 \| Mounting: Lateral foot \| Stroke: 75 mm \| Rod end: Male thread
CQUM40-100		Size: 40 \| Mounting: Lateral foot \| Stroke: 100 mm \| Rod end: Female thread
CQUM40-100M		Size: 40 \| Mounting: Lateral foot \| Stroke: 100 mm \| Rod end: Male thread
CQUD40-5		Size: 40 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Female thread
CQUD40-5M		Size: 40 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Male thread
CQUD40-10		Size: 40 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Female thread
CQUD40-10M		Size: 40 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Male thread
CQUD40-15		Size: 40 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread
CQUD40-15M		Size: 40 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread
CQUD40-20		Size: 40 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread
CQUD40-20M		Size: 40 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread
CQUD40-25		Size: 40 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread
CQUD40-25M		Size: 40 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread
CQUD40-30		Size: 40 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread
CQUD40-30M		Size: 40 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread
CQUD40-35		Size: 40 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Female thread
CQUD40-35M		Size: 40 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Male thread
CQUD40-40		Size: 40 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread
CQUD40-40M		Size: 40 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread
CQUD40-45		Size: 40 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Female thread
CQUD40-45M		Size: 40 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Male thread
CQUD40-50		Size: 40 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread
CQUD40-50M		Size: 40 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread
CQUD40-75		Size: 40 \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread
CQUD40-75M		Size: 40 \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread
CQUD40-100		Size: 40 \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread
CQUD40-100M		Size: 40 \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread

Compact CylindersSMC

352 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CQU Compact Cylinder, Plate Type (Size 20 to 40)

Brand SMC·Compact Cylinders

Available part numbers (352)

CQUB20-5, CQUB20-5M, CQUB20-10, CQUB20-10M, CQUB20-15, CQUB20-15M, CQUB20-20, CQUB20-20M, CQUB20-25, CQUB20-25M + 342 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CQUB20-5	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Female thread
	CQUB20-5M	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Male thread
	CQUB20-10	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Female thread
	CQUB20-10M	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Male thread
	CQUB20-15	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Female thread
	CQUB20-15M	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Male thread
	CQUB20-20	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Female thread
	CQUB20-20M	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Male thread
	CQUB20-25	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Female thread
	CQUB20-25M	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Male thread
	CQUB20-30	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Female thread
	CQUB20-30M	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Male thread
	CQUB20-35	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Female thread
	CQUB20-35M	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Male thread
	CQUB20-40	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Female thread
	CQUB20-40M	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Male thread
	CQUB20-45	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Female thread
	CQUB20-45M	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Male thread
	CQUB20-50	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Female thread
	CQUB20-50M	Size: 20 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Male thread
	CQUL20-5	Size: 20 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Female thread
	CQUL20-5M	Size: 20 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Male thread
	CQUL20-10	Size: 20 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Female thread
	CQUL20-10M	Size: 20 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Male thread
	CQUL20-15	Size: 20 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Female thread
	CQUL20-15M	Size: 20 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Male thread
	CQUL20-20	Size: 20 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Female thread
	CQUL20-20M	Size: 20 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Male thread
	CQUL20-25	Size: 20 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Female thread
	CQUL20-25M	Size: 20 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Male thread
	CQUL20-30	Size: 20 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Female thread
	CQUL20-30M	Size: 20 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Male thread
	CQUL20-35	Size: 20 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Female thread
	CQUL20-35M	Size: 20 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Male thread
	CQUL20-40	Size: 20 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Female thread
	CQUL20-40M	Size: 20 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Male thread
	CQUL20-45	Size: 20 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Female thread
	CQUL20-45M	Size: 20 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Male thread
	CQUL20-50	Size: 20 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Female thread
	CQUL20-50M	Size: 20 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Male thread
	CQUM20-5	Size: 20 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Female thread
	CQUM20-5M	Size: 20 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Male thread
	CQUM20-10	Size: 20 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Female thread
	CQUM20-10M	Size: 20 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Male thread
	CQUM20-15	Size: 20 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Female thread
	CQUM20-15M	Size: 20 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Male thread
	CQUM20-20	Size: 20 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Female thread
	CQUM20-20M	Size: 20 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Male thread
	CQUM20-25	Size: 20 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Female thread
	CQUM20-25M	Size: 20 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Male thread
	CQUM20-30	Size: 20 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Female thread
	CQUM20-30M	Size: 20 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Male thread
	CQUM20-35	Size: 20 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Female thread
	CQUM20-35M	Size: 20 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Male thread
	CQUM20-40	Size: 20 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Female thread
	CQUM20-40M	Size: 20 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Male thread
	CQUM20-45	Size: 20 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Female thread
	CQUM20-45M	Size: 20 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Male thread
	CQUM20-50	Size: 20 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Female thread
	CQUM20-50M	Size: 20 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Male thread
	CQUD20-5	Size: 20 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Female thread
	CQUD20-5M	Size: 20 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Male thread
	CQUD20-10	Size: 20 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Female thread
	CQUD20-10M	Size: 20 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Male thread
	CQUD20-15	Size: 20 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread
	CQUD20-15M	Size: 20 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread
	CQUD20-20	Size: 20 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread
	CQUD20-20M	Size: 20 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread
	CQUD20-25	Size: 20 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread
	CQUD20-25M	Size: 20 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread
	CQUD20-30	Size: 20 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread
	CQUD20-30M	Size: 20 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread
	CQUD20-35	Size: 20 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Female thread
	CQUD20-35M	Size: 20 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Male thread
	CQUD20-40	Size: 20 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread
	CQUD20-40M	Size: 20 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread
	CQUD20-45	Size: 20 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Female thread
	CQUD20-45M	Size: 20 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Male thread
	CQUD20-50	Size: 20 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread
	CQUD20-50M	Size: 20 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread
	CQUB25-5	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Female thread
	CQUB25-5M	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Male thread
	CQUB25-10	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Female thread
	CQUB25-10M	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Male thread
	CQUB25-15	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Female thread
	CQUB25-15M	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Male thread
	CQUB25-20	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Female thread
	CQUB25-20M	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Male thread
	CQUB25-25	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Female thread
	CQUB25-25M	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Male thread
	CQUB25-30	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Female thread
	CQUB25-30M	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Male thread
	CQUB25-35	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Female thread
	CQUB25-35M	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Male thread
	CQUB25-40	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Female thread
	CQUB25-40M	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Male thread
	CQUB25-45	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Female thread
	CQUB25-45M	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Male thread
	CQUB25-50	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Female thread
	CQUB25-50M	Size: 25 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Male thread
	CQUL25-5	Size: 25 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Female thread
	CQUL25-5M	Size: 25 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Male thread
	CQUL25-10	Size: 25 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Female thread
	CQUL25-10M	Size: 25 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Male thread
	CQUL25-15	Size: 25 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Female thread
	CQUL25-15M	Size: 25 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Male thread
	CQUL25-20	Size: 25 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Female thread
	CQUL25-20M	Size: 25 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Male thread
	CQUL25-25	Size: 25 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Female thread
	CQUL25-25M	Size: 25 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Male thread
	CQUL25-30	Size: 25 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Female thread
	CQUL25-30M	Size: 25 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Male thread
	CQUL25-35	Size: 25 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Female thread
	CQUL25-35M	Size: 25 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Male thread
	CQUL25-40	Size: 25 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Female thread
	CQUL25-40M	Size: 25 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Male thread
	CQUL25-45	Size: 25 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Female thread
	CQUL25-45M	Size: 25 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Male thread
	CQUL25-50	Size: 25 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Female thread
	CQUL25-50M	Size: 25 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Male thread
	CQUM25-5	Size: 25 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Female thread
	CQUM25-5M	Size: 25 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Male thread
	CQUM25-10	Size: 25 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Female thread
	CQUM25-10M	Size: 25 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Male thread
	CQUM25-15	Size: 25 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Female thread
	CQUM25-15M	Size: 25 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Male thread
	CQUM25-20	Size: 25 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Female thread
	CQUM25-20M	Size: 25 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Male thread
	CQUM25-25	Size: 25 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Female thread
	CQUM25-25M	Size: 25 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Male thread
	CQUM25-30	Size: 25 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Female thread
	CQUM25-30M	Size: 25 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Male thread
	CQUM25-35	Size: 25 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Female thread
	CQUM25-35M	Size: 25 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Male thread
	CQUM25-40	Size: 25 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Female thread
	CQUM25-40M	Size: 25 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Male thread
	CQUM25-45	Size: 25 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Female thread
	CQUM25-45M	Size: 25 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Male thread
	CQUM25-50	Size: 25 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Female thread
	CQUM25-50M	Size: 25 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Male thread
	CQUD25-5	Size: 25 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Female thread
	CQUD25-5M	Size: 25 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Male thread
	CQUD25-10	Size: 25 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Female thread
	CQUD25-10M	Size: 25 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Male thread
	CQUD25-15	Size: 25 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread
	CQUD25-15M	Size: 25 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread
	CQUD25-20	Size: 25 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread
	CQUD25-20M	Size: 25 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread
	CQUD25-25	Size: 25 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread
	CQUD25-25M	Size: 25 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread
	CQUD25-30	Size: 25 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread
	CQUD25-30M	Size: 25 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread
	CQUD25-35	Size: 25 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Female thread
	CQUD25-35M	Size: 25 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Male thread
	CQUD25-40	Size: 25 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread
	CQUD25-40M	Size: 25 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread
	CQUD25-45	Size: 25 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Female thread
	CQUD25-45M	Size: 25 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Male thread
	CQUD25-50	Size: 25 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread
	CQUD25-50M	Size: 25 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread
	CQUB32-5	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Female thread
	CQUB32-5M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Male thread
	CQUB32-10	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Female thread
	CQUB32-10M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Male thread
	CQUB32-15	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Female thread
	CQUB32-15M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Male thread
	CQUB32-20	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Female thread
	CQUB32-20M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Male thread
	CQUB32-25	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Female thread
	CQUB32-25M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Male thread
	CQUB32-30	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Female thread
	CQUB32-30M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Male thread
	CQUB32-35	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Female thread
	CQUB32-35M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Male thread
	CQUB32-40	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Female thread
	CQUB32-40M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Male thread
	CQUB32-45	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Female thread
	CQUB32-45M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Male thread
	CQUB32-50	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Female thread
	CQUB32-50M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Male thread
	CQUB32-75	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 75 mm \| Rod end: Female thread
	CQUB32-75M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 75 mm \| Rod end: Male thread
	CQUB32-100	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 100 mm \| Rod end: Female thread
	CQUB32-100M	Size: 32 \| Mounting: Through-hole/both ends tapped \| Stroke: 100 mm \| Rod end: Male thread
	CQUL32-5	Size: 32 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Female thread
	CQUL32-5M	Size: 32 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Male thread
	CQUL32-10	Size: 32 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Female thread
	CQUL32-10M	Size: 32 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Male thread
	CQUL32-15	Size: 32 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Female thread
	CQUL32-15M	Size: 32 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Male thread
	CQUL32-20	Size: 32 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Female thread
	CQUL32-20M	Size: 32 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Male thread
	CQUL32-25	Size: 32 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Female thread
	CQUL32-25M	Size: 32 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Male thread
	CQUL32-30	Size: 32 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Female thread
	CQUL32-30M	Size: 32 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Male thread
	CQUL32-35	Size: 32 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Female thread
	CQUL32-35M	Size: 32 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Male thread
	CQUL32-40	Size: 32 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Female thread
	CQUL32-40M	Size: 32 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Male thread
	CQUL32-45	Size: 32 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Female thread
	CQUL32-45M	Size: 32 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Male thread
	CQUL32-50	Size: 32 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Female thread
	CQUL32-50M	Size: 32 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Male thread
	CQUL32-75	Size: 32 \| Mounting: Axial foot \| Stroke: 75 mm \| Rod end: Female thread
	CQUL32-75M	Size: 32 \| Mounting: Axial foot \| Stroke: 75 mm \| Rod end: Male thread
	CQUL32-100	Size: 32 \| Mounting: Axial foot \| Stroke: 100 mm \| Rod end: Female thread
	CQUL32-100M	Size: 32 \| Mounting: Axial foot \| Stroke: 100 mm \| Rod end: Male thread
	CQUM32-5	Size: 32 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Female thread
	CQUM32-5M	Size: 32 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Male thread
	CQUM32-10	Size: 32 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Female thread
	CQUM32-10M	Size: 32 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Male thread
	CQUM32-15	Size: 32 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Female thread
	CQUM32-15M	Size: 32 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Male thread
	CQUM32-20	Size: 32 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Female thread
	CQUM32-20M	Size: 32 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Male thread
	CQUM32-25	Size: 32 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Female thread
	CQUM32-25M	Size: 32 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Male thread
	CQUM32-30	Size: 32 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Female thread
	CQUM32-30M	Size: 32 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Male thread
	CQUM32-35	Size: 32 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Female thread
	CQUM32-35M	Size: 32 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Male thread
	CQUM32-40	Size: 32 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Female thread
	CQUM32-40M	Size: 32 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Male thread
	CQUM32-45	Size: 32 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Female thread
	CQUM32-45M	Size: 32 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Male thread
	CQUM32-50	Size: 32 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Female thread
	CQUM32-50M	Size: 32 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Male thread
	CQUM32-75	Size: 32 \| Mounting: Lateral foot \| Stroke: 75 mm \| Rod end: Female thread
	CQUM32-75M	Size: 32 \| Mounting: Lateral foot \| Stroke: 75 mm \| Rod end: Male thread
	CQUM32-100	Size: 32 \| Mounting: Lateral foot \| Stroke: 100 mm \| Rod end: Female thread
	CQUM32-100M	Size: 32 \| Mounting: Lateral foot \| Stroke: 100 mm \| Rod end: Male thread
	CQUD32-5	Size: 32 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Female thread
	CQUD32-5M	Size: 32 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Male thread
	CQUD32-10	Size: 32 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Female thread
	CQUD32-10M	Size: 32 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Male thread
	CQUD32-15	Size: 32 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread
	CQUD32-15M	Size: 32 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread
	CQUD32-20	Size: 32 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread
	CQUD32-20M	Size: 32 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread
	CQUD32-25	Size: 32 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread
	CQUD32-25M	Size: 32 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread
	CQUD32-30	Size: 32 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread
	CQUD32-30M	Size: 32 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread
	CQUD32-35	Size: 32 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Female thread
	CQUD32-35M	Size: 32 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Male thread
	CQUD32-40	Size: 32 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread
	CQUD32-40M	Size: 32 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread
	CQUD32-45	Size: 32 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Female thread
	CQUD32-45M	Size: 32 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Male thread
	CQUD32-50	Size: 32 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread
	CQUD32-50M	Size: 32 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread
	CQUD32-75	Size: 32 \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread
	CQUD32-75M	Size: 32 \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread
	CQUD32-100	Size: 32 \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread
	CQUD32-100M	Size: 32 \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread
	CQUB40-5	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Female thread
	CQUB40-5M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 5 mm \| Rod end: Male thread
	CQUB40-10	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Female thread
	CQUB40-10M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 10 mm \| Rod end: Male thread
	CQUB40-15	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Female thread
	CQUB40-15M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 15 mm \| Rod end: Male thread
	CQUB40-20	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Female thread
	CQUB40-20M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 20 mm \| Rod end: Male thread
	CQUB40-25	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Female thread
	CQUB40-25M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 25 mm \| Rod end: Male thread
	CQUB40-30	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Female thread
	CQUB40-30M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 30 mm \| Rod end: Male thread
	CQUB40-35	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Female thread
	CQUB40-35M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 35 mm \| Rod end: Male thread
	CQUB40-40	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Female thread
	CQUB40-40M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 40 mm \| Rod end: Male thread
	CQUB40-45	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Female thread
	CQUB40-45M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 45 mm \| Rod end: Male thread
	CQUB40-50	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Female thread
	CQUB40-50M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 50 mm \| Rod end: Male thread
	CQUB40-75	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 75 mm \| Rod end: Female thread
	CQUB40-75M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 75 mm \| Rod end: Male thread
	CQUB40-100	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 100 mm \| Rod end: Female thread
	CQUB40-100M	Size: 40 \| Mounting: Through-hole/both ends tapped \| Stroke: 100 mm \| Rod end: Male thread
	CQUL40-5	Size: 40 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Female thread
	CQUL40-5M	Size: 40 \| Mounting: Axial foot \| Stroke: 5 mm \| Rod end: Male thread
	CQUL40-10	Size: 40 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Female thread
	CQUL40-10M	Size: 40 \| Mounting: Axial foot \| Stroke: 10 mm \| Rod end: Male thread
	CQUL40-15	Size: 40 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Female thread
	CQUL40-15M	Size: 40 \| Mounting: Axial foot \| Stroke: 15 mm \| Rod end: Male thread
	CQUL40-20	Size: 40 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Female thread
	CQUL40-20M	Size: 40 \| Mounting: Axial foot \| Stroke: 20 mm \| Rod end: Male thread
	CQUL40-25	Size: 40 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Female thread
	CQUL40-25M	Size: 40 \| Mounting: Axial foot \| Stroke: 25 mm \| Rod end: Male thread
	CQUL40-30	Size: 40 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Female thread
	CQUL40-30M	Size: 40 \| Mounting: Axial foot \| Stroke: 30 mm \| Rod end: Male thread
	CQUL40-35	Size: 40 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Female thread
	CQUL40-35M	Size: 40 \| Mounting: Axial foot \| Stroke: 35 mm \| Rod end: Male thread
	CQUL40-40	Size: 40 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Female thread
	CQUL40-40M	Size: 40 \| Mounting: Axial foot \| Stroke: 40 mm \| Rod end: Male thread
	CQUL40-45	Size: 40 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Female thread
	CQUL40-45M	Size: 40 \| Mounting: Axial foot \| Stroke: 45 mm \| Rod end: Male thread
	CQUL40-50	Size: 40 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Female thread
	CQUL40-50M	Size: 40 \| Mounting: Axial foot \| Stroke: 50 mm \| Rod end: Male thread
	CQUL40-75	Size: 40 \| Mounting: Axial foot \| Stroke: 75 mm \| Rod end: Female thread
	CQUL40-75M	Size: 40 \| Mounting: Axial foot \| Stroke: 75 mm \| Rod end: Male thread
	CQUL40-100	Size: 40 \| Mounting: Axial foot \| Stroke: 100 mm \| Rod end: Female thread
	CQUL40-100M	Size: 40 \| Mounting: Axial foot \| Stroke: 100 mm \| Rod end: Male thread
	CQUM40-5	Size: 40 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Female thread
	CQUM40-5M	Size: 40 \| Mounting: Lateral foot \| Stroke: 5 mm \| Rod end: Male thread
	CQUM40-10	Size: 40 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Female thread
	CQUM40-10M	Size: 40 \| Mounting: Lateral foot \| Stroke: 10 mm \| Rod end: Male thread
	CQUM40-15	Size: 40 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Female thread
	CQUM40-15M	Size: 40 \| Mounting: Lateral foot \| Stroke: 15 mm \| Rod end: Male thread
	CQUM40-20	Size: 40 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Female thread
	CQUM40-20M	Size: 40 \| Mounting: Lateral foot \| Stroke: 20 mm \| Rod end: Male thread
	CQUM40-25	Size: 40 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Female thread
	CQUM40-25M	Size: 40 \| Mounting: Lateral foot \| Stroke: 25 mm \| Rod end: Male thread
	CQUM40-30	Size: 40 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Female thread
	CQUM40-30M	Size: 40 \| Mounting: Lateral foot \| Stroke: 30 mm \| Rod end: Male thread
	CQUM40-35	Size: 40 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Female thread
	CQUM40-35M	Size: 40 \| Mounting: Lateral foot \| Stroke: 35 mm \| Rod end: Male thread
	CQUM40-40	Size: 40 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Female thread
	CQUM40-40M	Size: 40 \| Mounting: Lateral foot \| Stroke: 40 mm \| Rod end: Male thread
	CQUM40-45	Size: 40 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Female thread
	CQUM40-45M	Size: 40 \| Mounting: Lateral foot \| Stroke: 45 mm \| Rod end: Male thread
	CQUM40-50	Size: 40 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Female thread
	CQUM40-50M	Size: 40 \| Mounting: Lateral foot \| Stroke: 50 mm \| Rod end: Male thread
	CQUM40-75	Size: 40 \| Mounting: Lateral foot \| Stroke: 75 mm \| Rod end: Female thread
	CQUM40-75M	Size: 40 \| Mounting: Lateral foot \| Stroke: 75 mm \| Rod end: Male thread
	CQUM40-100	Size: 40 \| Mounting: Lateral foot \| Stroke: 100 mm \| Rod end: Female thread
	CQUM40-100M	Size: 40 \| Mounting: Lateral foot \| Stroke: 100 mm \| Rod end: Male thread
	CQUD40-5	Size: 40 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Female thread
	CQUD40-5M	Size: 40 \| Mounting: Double clevis \| Stroke: 5 mm \| Rod end: Male thread
	CQUD40-10	Size: 40 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Female thread
	CQUD40-10M	Size: 40 \| Mounting: Double clevis \| Stroke: 10 mm \| Rod end: Male thread
	CQUD40-15	Size: 40 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Female thread
	CQUD40-15M	Size: 40 \| Mounting: Double clevis \| Stroke: 15 mm \| Rod end: Male thread
	CQUD40-20	Size: 40 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Female thread
	CQUD40-20M	Size: 40 \| Mounting: Double clevis \| Stroke: 20 mm \| Rod end: Male thread
	CQUD40-25	Size: 40 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Female thread
	CQUD40-25M	Size: 40 \| Mounting: Double clevis \| Stroke: 25 mm \| Rod end: Male thread
	CQUD40-30	Size: 40 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Female thread
	CQUD40-30M	Size: 40 \| Mounting: Double clevis \| Stroke: 30 mm \| Rod end: Male thread
	CQUD40-35	Size: 40 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Female thread
	CQUD40-35M	Size: 40 \| Mounting: Double clevis \| Stroke: 35 mm \| Rod end: Male thread
	CQUD40-40	Size: 40 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Female thread
	CQUD40-40M	Size: 40 \| Mounting: Double clevis \| Stroke: 40 mm \| Rod end: Male thread
	CQUD40-45	Size: 40 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Female thread
	CQUD40-45M	Size: 40 \| Mounting: Double clevis \| Stroke: 45 mm \| Rod end: Male thread
	CQUD40-50	Size: 40 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Female thread
	CQUD40-50M	Size: 40 \| Mounting: Double clevis \| Stroke: 50 mm \| Rod end: Male thread
	CQUD40-75	Size: 40 \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Female thread
	CQUD40-75M	Size: 40 \| Mounting: Double clevis \| Stroke: 75 mm \| Rod end: Male thread
	CQUD40-100	Size: 40 \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Female thread
	CQUD40-100M	Size: 40 \| Mounting: Double clevis \| Stroke: 100 mm \| Rod end: Male thread

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CQU Compact Cylinder, Plate Type (Size 20 to 40)
