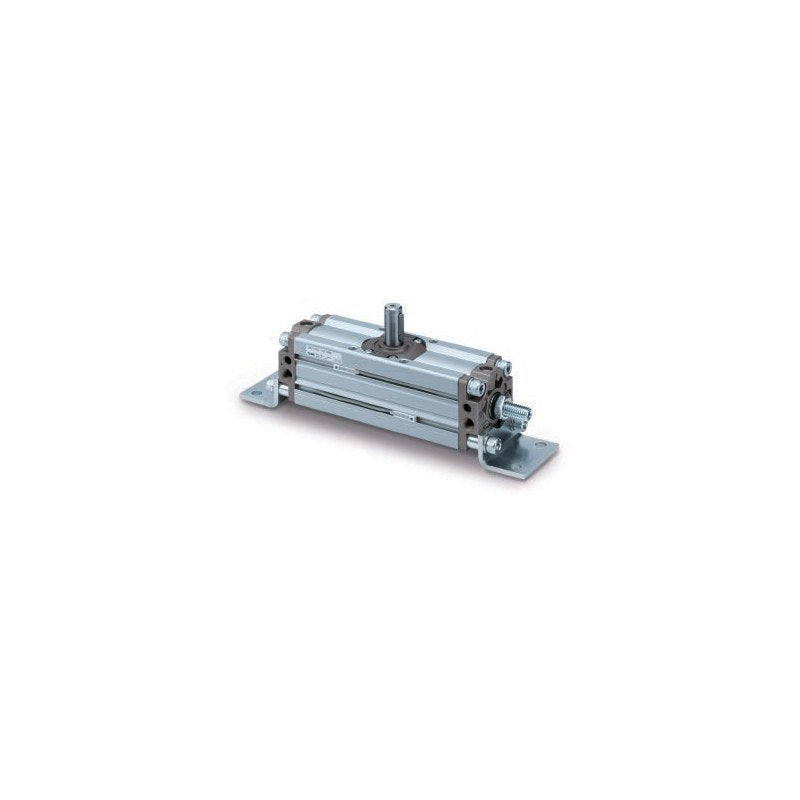

SMC CRA1 Rack and Pinion Rotary Actuator (Air-Hydro, Size 50 to 100)

SMC CRA1 Rack and Pinion Rotary Actuator (Air-Hydro, Size 50 to 100)

SMC CRA1 series air-hydro type (H) rack-and-pinion rotary actuator in sizes 50 to 100 for smooth low-speed rotation, with optional built-in magnet (CDRA1).

Key features

  • Hydraulic-oil (turbine oil) operation via an air-hydro converter for stable low-speed rotation
  • Rotation 90°, 100°, 180°, 190°
  • Basic, foot (L) or flange (F) mounting
  • No cushion; cushion valve not fitted on the air-hydro type
  • CDRA1 with magnet accepts D-M9, D-M9W and D-A9 auto switches (ordered as suffix)
  • Shaft types T, J, K and -X/-XC specials are made to order

Specifications

Fluid Turbine oil
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature 0 to 60°C (no freezing)
Backlash Within 1°
Rotation angle tolerance 0 to +4°
Cushion None
Port size Rc1/8 (50, 63), Rc1/4 (80), Rc3/8 (100)
Effective torque at 0.5 MPa 9.27/17.2/31.7/74.3 N·m (size 50/63/80/100)
Source SMC Korea catalog CRA1 Series (SMCKR_CRA1.pdf), p. 246-249, 292 (PDF p. 4-7)
CRA1BSH50-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1BSH50-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1BSH50-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1BSH50-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1BWH50-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1BWH50-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1BWH50-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1BWH50-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1BXH50-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1BXH50-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1BXH50-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1BXH50-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1BYH50-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1BYH50-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1BYH50-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1BYH50-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1BZH50-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1BZH50-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1BZH50-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1BZH50-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1LSH50-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1LSH50-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1LSH50-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1LSH50-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1LWH50-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1LWH50-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1LWH50-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1LWH50-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1LXH50-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1LXH50-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1LXH50-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1LXH50-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1LYH50-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1LYH50-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1LYH50-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1LYH50-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1LZH50-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1LZH50-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1LZH50-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1LZH50-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1FSH50-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1FSH50-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1FSH50-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1FSH50-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1FWH50-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1FWH50-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1FWH50-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1FWH50-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1FXH50-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1FXH50-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1FXH50-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1FXH50-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1FYH50-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1FYH50-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1FYH50-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1FYH50-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1FZH50-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1FZH50-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1FZH50-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1FZH50-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1BSH63-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1BSH63-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1BSH63-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1BSH63-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1BWH63-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1BWH63-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1BWH63-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1BWH63-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1BXH63-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1BXH63-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1BXH63-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1BXH63-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1BYH63-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1BYH63-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1BYH63-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1BYH63-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1BZH63-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1BZH63-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1BZH63-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1BZH63-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1LSH63-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1LSH63-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1LSH63-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1LSH63-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1LWH63-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1LWH63-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1LWH63-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1LWH63-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1LXH63-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1LXH63-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1LXH63-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1LXH63-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1LYH63-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1LYH63-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1LYH63-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1LYH63-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1LZH63-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1LZH63-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1LZH63-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1LZH63-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1FSH63-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1FSH63-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1FSH63-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1FSH63-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1FWH63-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1FWH63-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1FWH63-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1FWH63-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1FXH63-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1FXH63-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1FXH63-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1FXH63-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1FYH63-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1FYH63-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1FYH63-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1FYH63-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1FZH63-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1FZH63-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1FZH63-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1FZH63-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1BSH80-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1BSH80-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1BSH80-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1BSH80-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1BWH80-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1BWH80-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1BWH80-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1BWH80-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1BXH80-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1BXH80-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1BXH80-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1BXH80-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1BYH80-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1BYH80-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1BYH80-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1BYH80-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1BZH80-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1BZH80-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1BZH80-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1BZH80-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1LSH80-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1LSH80-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1LSH80-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1LSH80-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1LWH80-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1LWH80-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1LWH80-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1LWH80-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1LXH80-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1LXH80-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1LXH80-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1LXH80-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1LYH80-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1LYH80-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1LYH80-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1LYH80-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1LZH80-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1LZH80-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1LZH80-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1LZH80-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1FSH80-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1FSH80-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1FSH80-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1FSH80-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1FWH80-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1FWH80-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1FWH80-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1FWH80-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1FXH80-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1FXH80-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1FXH80-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1FXH80-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1FYH80-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1FYH80-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1FYH80-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1FYH80-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1FZH80-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1FZH80-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1FZH80-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1FZH80-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1BSH100-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1BSH100-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1BSH100-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1BSH100-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1BWH100-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1BWH100-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1BWH100-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1BWH100-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1BXH100-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1BXH100-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1BXH100-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1BXH100-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1BYH100-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1BYH100-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1BYH100-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1BYH100-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1BZH100-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1BZH100-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1BZH100-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1BZH100-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1LSH100-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1LSH100-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1LSH100-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1LSH100-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1LWH100-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1LWH100-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1LWH100-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1LWH100-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1LXH100-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1LXH100-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1LXH100-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1LXH100-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1LYH100-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1LYH100-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1LYH100-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1LYH100-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1LZH100-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1LZH100-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1LZH100-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1LZH100-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1FSH100-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1FSH100-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1FSH100-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1FSH100-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1FWH100-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1FWH100-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1FWH100-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1FWH100-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1FXH100-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1FXH100-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1FXH100-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1FXH100-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1FYH100-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1FYH100-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1FYH100-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1FYH100-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1FZH100-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1FZH100-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1FZH100-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1FZH100-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1BSH50-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1BSH50-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1BSH50-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1BSH50-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1BWH50-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1BWH50-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1BWH50-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1BWH50-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1BXH50-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1BXH50-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1BXH50-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1BXH50-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1BYH50-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1BYH50-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1BYH50-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1BYH50-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1BZH50-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1BZH50-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1BZH50-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1BZH50-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1LSH50-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1LSH50-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1LSH50-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1LSH50-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1LWH50-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1LWH50-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1LWH50-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1LWH50-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1LXH50-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1LXH50-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1LXH50-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1LXH50-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1LYH50-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1LYH50-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1LYH50-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1LYH50-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1LZH50-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1LZH50-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1LZH50-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1LZH50-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1FSH50-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1FSH50-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1FSH50-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1FSH50-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1FWH50-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1FWH50-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1FWH50-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1FWH50-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1FXH50-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1FXH50-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1FXH50-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1FXH50-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1FYH50-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1FYH50-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1FYH50-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1FYH50-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1FZH50-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1FZH50-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1FZH50-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1FZH50-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1BSH63-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1BSH63-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1BSH63-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1BSH63-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1BWH63-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1BWH63-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1BWH63-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1BWH63-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1BXH63-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1BXH63-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1BXH63-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1BXH63-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1BYH63-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1BYH63-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1BYH63-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1BYH63-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1BZH63-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1BZH63-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1BZH63-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1BZH63-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1LSH63-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1LSH63-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1LSH63-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1LSH63-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1LWH63-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1LWH63-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1LWH63-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1LWH63-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1LXH63-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1LXH63-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1LXH63-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1LXH63-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1LYH63-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1LYH63-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1LYH63-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1LYH63-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1LZH63-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1LZH63-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1LZH63-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1LZH63-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1FSH63-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1FSH63-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1FSH63-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1FSH63-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1FWH63-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1FWH63-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1FWH63-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1FWH63-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1FXH63-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1FXH63-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1FXH63-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1FXH63-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1FYH63-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1FYH63-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1FYH63-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1FYH63-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1FZH63-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1FZH63-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1FZH63-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1FZH63-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1BSH80-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1BSH80-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1BSH80-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1BSH80-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1BWH80-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1BWH80-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1BWH80-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1BWH80-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1BXH80-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1BXH80-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1BXH80-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1BXH80-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1BYH80-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1BYH80-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1BYH80-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1BYH80-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1BZH80-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1BZH80-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1BZH80-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1BZH80-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1LSH80-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1LSH80-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1LSH80-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1LSH80-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1LWH80-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1LWH80-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1LWH80-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1LWH80-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1LXH80-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1LXH80-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1LXH80-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1LXH80-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1LYH80-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1LYH80-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1LYH80-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1LYH80-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1LZH80-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1LZH80-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1LZH80-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1LZH80-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1FSH80-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1FSH80-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1FSH80-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1FSH80-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1FWH80-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1FWH80-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1FWH80-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1FWH80-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1FXH80-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1FXH80-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1FXH80-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1FXH80-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1FYH80-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1FYH80-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1FYH80-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1FYH80-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1FZH80-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1FZH80-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1FZH80-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1FZH80-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1BSH100-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1BSH100-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1BSH100-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1BSH100-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1BWH100-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1BWH100-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1BWH100-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1BWH100-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1BXH100-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1BXH100-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1BXH100-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1BXH100-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1BYH100-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1BYH100-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1BYH100-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1BYH100-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1BZH100-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1BZH100-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1BZH100-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1BZH100-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1LSH100-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1LSH100-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1LSH100-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1LSH100-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1LWH100-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1LWH100-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1LWH100-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1LWH100-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1LXH100-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1LXH100-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1LXH100-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1LXH100-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1LYH100-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1LYH100-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1LYH100-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1LYH100-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1LZH100-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1LZH100-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1LZH100-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1LZH100-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1FSH100-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1FSH100-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1FSH100-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1FSH100-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1FWH100-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1FWH100-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1FWH100-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1FWH100-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1FXH100-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1FXH100-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1FXH100-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1FXH100-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1FYH100-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1FYH100-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1FYH100-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1FYH100-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1FZH100-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1FZH100-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1FZH100-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1FZH100-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
Rotary ActuatorsSMC
480 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CRA1 Rack and Pinion Rotary Actuator (Air-Hydro, Size 50 to 100)

Brand SMC·Rotary Actuators

Available part numbers (480)

CRA1BSH50-90Z, CRA1BSH50-100Z, CRA1BSH50-180Z, CRA1BSH50-190Z, CRA1BWH50-90Z, CRA1BWH50-100Z, CRA1BWH50-180Z, CRA1BWH50-190Z, CRA1BXH50-90Z, CRA1BXH50-100Z + 470 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRA1BSH50-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1BSH50-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1BSH50-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1BSH50-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1BWH50-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1BWH50-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1BWH50-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1BWH50-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1BXH50-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1BXH50-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1BXH50-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1BXH50-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1BYH50-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1BYH50-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1BYH50-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1BYH50-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1BZH50-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1BZH50-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1BZH50-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1BZH50-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1LSH50-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1LSH50-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1LSH50-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1LSH50-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1LWH50-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1LWH50-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1LWH50-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1LWH50-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1LXH50-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1LXH50-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1LXH50-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1LXH50-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1LYH50-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1LYH50-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1LYH50-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1LYH50-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1LZH50-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1LZH50-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1LZH50-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1LZH50-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1FSH50-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1FSH50-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1FSH50-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1FSH50-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1FWH50-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1FWH50-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1FWH50-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1FWH50-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1FXH50-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1FXH50-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1FXH50-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1FXH50-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1FYH50-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1FYH50-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1FYH50-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1FYH50-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1FZH50-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1FZH50-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1FZH50-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1FZH50-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1BSH63-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1BSH63-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1BSH63-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1BSH63-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1BWH63-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1BWH63-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1BWH63-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1BWH63-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1BXH63-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1BXH63-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1BXH63-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1BXH63-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1BYH63-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1BYH63-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1BYH63-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1BYH63-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1BZH63-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1BZH63-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1BZH63-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1BZH63-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1LSH63-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1LSH63-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1LSH63-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1LSH63-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1LWH63-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1LWH63-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1LWH63-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1LWH63-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1LXH63-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1LXH63-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1LXH63-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1LXH63-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1LYH63-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1LYH63-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1LYH63-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1LYH63-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1LZH63-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1LZH63-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1LZH63-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1LZH63-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1FSH63-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1FSH63-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1FSH63-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1FSH63-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1FWH63-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1FWH63-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1FWH63-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1FWH63-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1FXH63-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1FXH63-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1FXH63-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1FXH63-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1FYH63-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1FYH63-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1FYH63-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1FYH63-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1FZH63-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1FZH63-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1FZH63-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1FZH63-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1BSH80-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1BSH80-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1BSH80-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1BSH80-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1BWH80-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1BWH80-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1BWH80-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1BWH80-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1BXH80-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1BXH80-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1BXH80-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1BXH80-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1BYH80-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1BYH80-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1BYH80-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1BYH80-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1BZH80-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1BZH80-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1BZH80-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1BZH80-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1LSH80-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1LSH80-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1LSH80-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1LSH80-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1LWH80-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1LWH80-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1LWH80-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1LWH80-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1LXH80-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1LXH80-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1LXH80-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1LXH80-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1LYH80-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1LYH80-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1LYH80-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1LYH80-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1LZH80-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1LZH80-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1LZH80-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1LZH80-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1FSH80-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1FSH80-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1FSH80-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1FSH80-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1FWH80-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1FWH80-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1FWH80-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1FWH80-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1FXH80-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1FXH80-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1FXH80-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1FXH80-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1FYH80-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1FYH80-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1FYH80-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1FYH80-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1FZH80-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1FZH80-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1FZH80-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1FZH80-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1BSH100-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1BSH100-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1BSH100-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1BSH100-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1BWH100-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1BWH100-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1BWH100-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1BWH100-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1BXH100-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1BXH100-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1BXH100-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1BXH100-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1BYH100-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1BYH100-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1BYH100-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1BYH100-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1BZH100-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1BZH100-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1BZH100-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1BZH100-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1LSH100-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1LSH100-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1LSH100-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1LSH100-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1LWH100-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1LWH100-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1LWH100-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1LWH100-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1LXH100-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1LXH100-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1LXH100-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1LXH100-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1LYH100-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1LYH100-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1LYH100-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1LYH100-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1LZH100-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1LZH100-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1LZH100-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1LZH100-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1FSH100-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1FSH100-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1FSH100-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1FSH100-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1FWH100-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1FWH100-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1FWH100-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1FWH100-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1FXH100-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1FXH100-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1FXH100-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1FXH100-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1FYH100-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1FYH100-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1FYH100-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1FYH100-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1FZH100-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1FZH100-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1FZH100-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1FZH100-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1BSH50-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1BSH50-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1BSH50-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1BSH50-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1BWH50-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1BWH50-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1BWH50-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1BWH50-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1BXH50-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1BXH50-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1BXH50-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1BXH50-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1BYH50-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1BYH50-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1BYH50-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1BYH50-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1BZH50-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1BZH50-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1BZH50-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1BZH50-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1LSH50-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1LSH50-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1LSH50-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1LSH50-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1LWH50-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1LWH50-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1LWH50-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1LWH50-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1LXH50-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1LXH50-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1LXH50-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1LXH50-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1LYH50-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1LYH50-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1LYH50-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1LYH50-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1LZH50-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1LZH50-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1LZH50-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1LZH50-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1FSH50-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1FSH50-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1FSH50-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1FSH50-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1FWH50-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1FWH50-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1FWH50-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1FWH50-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1FXH50-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1FXH50-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1FXH50-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1FXH50-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1FYH50-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1FYH50-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1FYH50-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1FYH50-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1FZH50-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1FZH50-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1FZH50-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1FZH50-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1BSH63-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1BSH63-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1BSH63-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1BSH63-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1BWH63-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1BWH63-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1BWH63-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1BWH63-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1BXH63-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1BXH63-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1BXH63-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1BXH63-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1BYH63-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1BYH63-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1BYH63-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1BYH63-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1BZH63-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1BZH63-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1BZH63-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1BZH63-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1LSH63-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1LSH63-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1LSH63-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1LSH63-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1LWH63-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1LWH63-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1LWH63-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1LWH63-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1LXH63-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1LXH63-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1LXH63-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1LXH63-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1LYH63-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1LYH63-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1LYH63-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1LYH63-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1LZH63-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1LZH63-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1LZH63-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1LZH63-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1FSH63-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1FSH63-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1FSH63-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1FSH63-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1FWH63-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1FWH63-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1FWH63-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1FWH63-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1FXH63-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1FXH63-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1FXH63-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1FXH63-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1FYH63-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1FYH63-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1FYH63-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1FYH63-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1FZH63-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1FZH63-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1FZH63-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1FZH63-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1BSH80-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1BSH80-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1BSH80-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1BSH80-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1BWH80-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1BWH80-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1BWH80-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1BWH80-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1BXH80-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1BXH80-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1BXH80-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1BXH80-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1BYH80-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1BYH80-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1BYH80-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1BYH80-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1BZH80-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1BZH80-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1BZH80-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1BZH80-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1LSH80-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1LSH80-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1LSH80-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1LSH80-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1LWH80-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1LWH80-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1LWH80-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1LWH80-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1LXH80-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1LXH80-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1LXH80-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1LXH80-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1LYH80-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1LYH80-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1LYH80-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1LYH80-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1LZH80-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1LZH80-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1LZH80-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1LZH80-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1FSH80-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1FSH80-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1FSH80-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1FSH80-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1FWH80-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1FWH80-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1FWH80-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1FWH80-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1FXH80-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1FXH80-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1FXH80-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1FXH80-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1FYH80-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1FYH80-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1FYH80-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1FYH80-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1FZH80-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1FZH80-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1FZH80-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1FZH80-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1BSH100-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1BSH100-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1BSH100-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1BSH100-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1BWH100-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1BWH100-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1BWH100-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1BWH100-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1BXH100-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1BXH100-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1BXH100-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1BXH100-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1BYH100-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1BYH100-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1BYH100-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1BYH100-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1BZH100-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1BZH100-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1BZH100-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1BZH100-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1LSH100-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1LSH100-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1LSH100-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1LSH100-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1LWH100-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1LWH100-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1LWH100-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1LWH100-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1LXH100-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1LXH100-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1LXH100-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1LXH100-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1LYH100-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1LYH100-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1LYH100-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1LYH100-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1LZH100-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1LZH100-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1LZH100-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1LZH100-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1FSH100-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1FSH100-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1FSH100-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1FSH100-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1FWH100-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1FWH100-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1FWH100-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1FWH100-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1FXH100-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1FXH100-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1FXH100-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1FXH100-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1FYH100-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1FYH100-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1FYH100-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1FYH100-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1FZH100-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1FZH100-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1FZH100-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1FZH100-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
