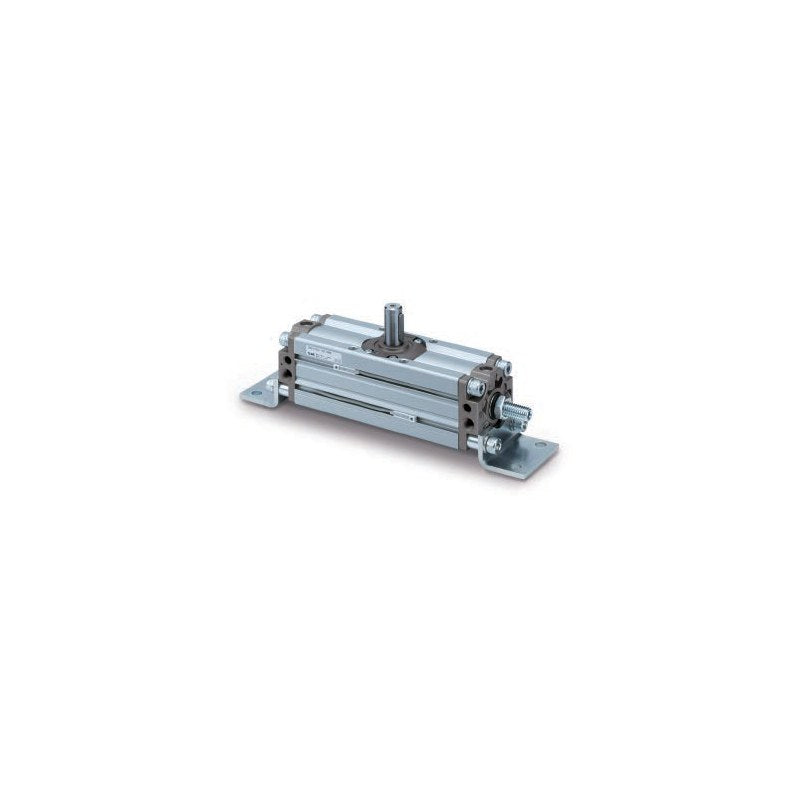

SMC CRA1U Variable Angle Rack and Pinion Rotary Actuator (50 to 100)

SMC CRA1U Variable Angle Rack and Pinion Rotary Actuator (50 to 100)

SMC CRA1U series variable-angle rack-and-pinion rotary actuator in sizes 50 to 100 with angle adjusting screw as standard equipment, optionally with built-in magnet (CDRA1).

Key features

  • Angle adjuster fitted as standard: rotation end adjustable up to 90°
  • Rotation 90°, 100°, 180°, 190°
  • Basic, foot (L) or flange (F) mounting
  • CDRA1 with magnet accepts D-M9, D-M9W and D-A9 auto switches (ordered as suffix)
  • Shaft types T, J, K, G/NPT ports and -X/-XC specials are made to order

Specifications

Fluid Air (non-lube)
Max. operating pressure 1.0 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature 0 to 60°C (no freezing)
Cushion None
Backlash Within 1°
Angle adjustment Max. 90°
Port size Rc1/8 (50, 63), Rc1/4 (80), Rc3/8 (100)
Source SMC Korea catalog CRA1 Series (SMCKR_CRA1.pdf), p. 258-259 (PDF p. 16-17)
CRA1BSU50-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1BSU50-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1BSU50-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1BSU50-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1BWU50-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1BWU50-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1BWU50-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1BWU50-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1BXU50-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1BXU50-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1BXU50-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1BXU50-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1BYU50-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1BYU50-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1BYU50-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1BYU50-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1BZU50-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1BZU50-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1BZU50-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1BZU50-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1LSU50-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1LSU50-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1LSU50-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1LSU50-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1LWU50-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1LWU50-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1LWU50-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1LWU50-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1LXU50-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1LXU50-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1LXU50-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1LXU50-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1LYU50-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1LYU50-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1LYU50-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1LYU50-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1LZU50-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1LZU50-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1LZU50-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1LZU50-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1FSU50-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1FSU50-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1FSU50-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1FSU50-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1FWU50-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1FWU50-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1FWU50-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1FWU50-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1FXU50-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1FXU50-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1FXU50-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1FXU50-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1FYU50-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1FYU50-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1FYU50-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1FYU50-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1FZU50-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1FZU50-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1FZU50-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1FZU50-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1BSU63-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1BSU63-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1BSU63-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1BSU63-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1BWU63-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1BWU63-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1BWU63-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1BWU63-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1BXU63-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1BXU63-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1BXU63-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1BXU63-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1BYU63-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1BYU63-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1BYU63-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1BYU63-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1BZU63-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1BZU63-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1BZU63-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1BZU63-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1LSU63-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1LSU63-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1LSU63-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1LSU63-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1LWU63-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1LWU63-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1LWU63-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1LWU63-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1LXU63-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1LXU63-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1LXU63-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1LXU63-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1LYU63-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1LYU63-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1LYU63-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1LYU63-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1LZU63-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1LZU63-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1LZU63-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1LZU63-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1FSU63-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1FSU63-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1FSU63-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1FSU63-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1FWU63-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1FWU63-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1FWU63-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1FWU63-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1FXU63-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1FXU63-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1FXU63-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1FXU63-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1FYU63-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1FYU63-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1FYU63-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1FYU63-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1FZU63-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1FZU63-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1FZU63-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1FZU63-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1BSU80-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1BSU80-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1BSU80-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1BSU80-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1BWU80-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1BWU80-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1BWU80-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1BWU80-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1BXU80-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1BXU80-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1BXU80-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1BXU80-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1BYU80-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1BYU80-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1BYU80-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1BYU80-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1BZU80-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1BZU80-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1BZU80-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1BZU80-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1LSU80-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1LSU80-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1LSU80-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1LSU80-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1LWU80-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1LWU80-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1LWU80-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1LWU80-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1LXU80-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1LXU80-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1LXU80-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1LXU80-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1LYU80-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1LYU80-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1LYU80-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1LYU80-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1LZU80-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1LZU80-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1LZU80-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1LZU80-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1FSU80-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1FSU80-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1FSU80-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1FSU80-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1FWU80-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1FWU80-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1FWU80-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1FWU80-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1FXU80-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1FXU80-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1FXU80-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1FXU80-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1FYU80-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1FYU80-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1FYU80-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1FYU80-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1FZU80-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1FZU80-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1FZU80-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1FZU80-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1BSU100-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1BSU100-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1BSU100-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1BSU100-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1BWU100-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1BWU100-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1BWU100-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1BWU100-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1BXU100-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1BXU100-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1BXU100-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1BXU100-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1BYU100-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1BYU100-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1BYU100-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1BYU100-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1BZU100-90Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1BZU100-100Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1BZU100-180Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1BZU100-190Z Magnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1LSU100-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1LSU100-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1LSU100-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1LSU100-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1LWU100-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1LWU100-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1LWU100-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1LWU100-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1LXU100-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1LXU100-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1LXU100-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1LXU100-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1LYU100-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1LYU100-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1LYU100-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1LYU100-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1LZU100-90Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1LZU100-100Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1LZU100-180Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1LZU100-190Z Magnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1FSU100-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1FSU100-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1FSU100-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1FSU100-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1FWU100-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1FWU100-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1FWU100-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1FWU100-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1FXU100-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1FXU100-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1FXU100-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1FXU100-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1FYU100-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1FYU100-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1FYU100-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1FYU100-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1FZU100-90Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1FZU100-100Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1FZU100-180Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1FZU100-190Z Magnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1BSU50-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1BSU50-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1BSU50-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1BSU50-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1BWU50-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1BWU50-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1BWU50-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1BWU50-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1BXU50-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1BXU50-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1BXU50-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1BXU50-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1BYU50-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1BYU50-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1BYU50-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1BYU50-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1BZU50-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1BZU50-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1BZU50-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1BZU50-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1LSU50-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1LSU50-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1LSU50-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1LSU50-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1LWU50-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1LWU50-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1LWU50-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1LWU50-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1LXU50-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1LXU50-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1LXU50-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1LXU50-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1LYU50-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1LYU50-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1LYU50-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1LYU50-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1LZU50-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1LZU50-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1LZU50-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1LZU50-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1FSU50-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1FSU50-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1FSU50-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1FSU50-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1FWU50-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1FWU50-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1FWU50-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1FWU50-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1FXU50-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1FXU50-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1FXU50-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1FXU50-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1FYU50-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1FYU50-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1FYU50-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1FYU50-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1FZU50-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1FZU50-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1FZU50-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1FZU50-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1BSU63-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1BSU63-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1BSU63-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1BSU63-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1BWU63-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1BWU63-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1BWU63-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1BWU63-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1BXU63-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1BXU63-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1BXU63-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1BXU63-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1BYU63-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1BYU63-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1BYU63-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1BYU63-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1BZU63-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1BZU63-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1BZU63-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1BZU63-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1LSU63-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1LSU63-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1LSU63-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1LSU63-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1LWU63-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1LWU63-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1LWU63-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1LWU63-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1LXU63-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1LXU63-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1LXU63-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1LXU63-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1LYU63-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1LYU63-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1LYU63-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1LYU63-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1LZU63-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1LZU63-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1LZU63-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1LZU63-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1FSU63-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1FSU63-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1FSU63-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1FSU63-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1FWU63-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1FWU63-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1FWU63-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1FWU63-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1FXU63-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1FXU63-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1FXU63-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1FXU63-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1FYU63-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1FYU63-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1FYU63-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1FYU63-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1FZU63-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1FZU63-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1FZU63-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1FZU63-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1BSU80-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1BSU80-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1BSU80-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1BSU80-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1BWU80-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1BWU80-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1BWU80-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1BWU80-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1BXU80-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1BXU80-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1BXU80-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1BXU80-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1BYU80-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1BYU80-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1BYU80-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1BYU80-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1BZU80-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1BZU80-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1BZU80-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1BZU80-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1LSU80-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1LSU80-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1LSU80-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1LSU80-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1LWU80-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1LWU80-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1LWU80-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1LWU80-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1LXU80-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1LXU80-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1LXU80-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1LXU80-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1LYU80-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1LYU80-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1LYU80-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1LYU80-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1LZU80-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1LZU80-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1LZU80-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1LZU80-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1FSU80-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1FSU80-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1FSU80-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1FSU80-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1FWU80-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1FWU80-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1FWU80-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1FWU80-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1FXU80-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1FXU80-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1FXU80-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1FXU80-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1FYU80-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1FYU80-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1FYU80-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1FYU80-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1FZU80-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1FZU80-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1FZU80-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1FZU80-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1BSU100-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1BSU100-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1BSU100-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1BSU100-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1BWU100-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1BWU100-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1BWU100-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1BWU100-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1BXU100-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1BXU100-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1BXU100-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1BXU100-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1BYU100-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1BYU100-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1BYU100-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1BYU100-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1BZU100-90Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1BZU100-100Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1BZU100-180Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1BZU100-190Z Magnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1LSU100-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1LSU100-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1LSU100-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1LSU100-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1LWU100-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1LWU100-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1LWU100-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1LWU100-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1LXU100-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1LXU100-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1LXU100-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1LXU100-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1LYU100-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1LYU100-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1LYU100-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1LYU100-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1LZU100-90Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1LZU100-100Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1LZU100-180Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1LZU100-190Z Magnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1FSU100-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1FSU100-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1FSU100-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1FSU100-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1FWU100-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1FWU100-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1FWU100-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1FWU100-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1FXU100-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1FXU100-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1FXU100-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1FXU100-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1FYU100-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1FYU100-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1FYU100-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1FYU100-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1FZU100-90Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1FZU100-100Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1FZU100-180Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1FZU100-190Z Magnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
Rotary ActuatorsSMC
480 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CRA1U Variable Angle Rack and Pinion Rotary Actuator (50 to 100)

Brand SMC·Rotary Actuators

Available part numbers (480)

CRA1BSU50-90Z, CRA1BSU50-100Z, CRA1BSU50-180Z, CRA1BSU50-190Z, CRA1BWU50-90Z, CRA1BWU50-100Z, CRA1BWU50-180Z, CRA1BWU50-190Z, CRA1BXU50-90Z, CRA1BXU50-100Z + 470 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRA1BSU50-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1BSU50-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1BSU50-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1BSU50-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1BWU50-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1BWU50-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1BWU50-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1BWU50-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1BXU50-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1BXU50-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1BXU50-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1BXU50-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1BYU50-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1BYU50-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1BYU50-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1BYU50-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1BZU50-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1BZU50-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1BZU50-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1BZU50-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1LSU50-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1LSU50-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1LSU50-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1LSU50-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1LWU50-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1LWU50-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1LWU50-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1LWU50-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1LXU50-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1LXU50-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1LXU50-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1LXU50-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1LYU50-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1LYU50-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1LYU50-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1LYU50-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1LZU50-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1LZU50-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1LZU50-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1LZU50-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1FSU50-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 90°
CRA1FSU50-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 100°
CRA1FSU50-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 180°
CRA1FSU50-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 190°
CRA1FWU50-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 90°
CRA1FWU50-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 100°
CRA1FWU50-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 180°
CRA1FWU50-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 190°
CRA1FXU50-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1FXU50-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1FXU50-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1FXU50-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1FYU50-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CRA1FYU50-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CRA1FYU50-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CRA1FYU50-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CRA1FZU50-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CRA1FZU50-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CRA1FZU50-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CRA1FZU50-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CRA1BSU63-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1BSU63-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1BSU63-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1BSU63-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1BWU63-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1BWU63-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1BWU63-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1BWU63-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1BXU63-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1BXU63-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1BXU63-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1BXU63-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1BYU63-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1BYU63-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1BYU63-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1BYU63-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1BZU63-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1BZU63-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1BZU63-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1BZU63-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1LSU63-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1LSU63-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1LSU63-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1LSU63-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1LWU63-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1LWU63-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1LWU63-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1LWU63-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1LXU63-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1LXU63-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1LXU63-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1LXU63-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1LYU63-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1LYU63-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1LYU63-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1LYU63-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1LZU63-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1LZU63-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1LZU63-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1LZU63-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1FSU63-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 90°
CRA1FSU63-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 100°
CRA1FSU63-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 180°
CRA1FSU63-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 190°
CRA1FWU63-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 90°
CRA1FWU63-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 100°
CRA1FWU63-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 180°
CRA1FWU63-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 190°
CRA1FXU63-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1FXU63-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1FXU63-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1FXU63-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1FYU63-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CRA1FYU63-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CRA1FYU63-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CRA1FYU63-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CRA1FZU63-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CRA1FZU63-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CRA1FZU63-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CRA1FZU63-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CRA1BSU80-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1BSU80-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1BSU80-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1BSU80-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1BWU80-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1BWU80-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1BWU80-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1BWU80-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1BXU80-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1BXU80-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1BXU80-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1BXU80-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1BYU80-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1BYU80-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1BYU80-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1BYU80-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1BZU80-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1BZU80-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1BZU80-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1BZU80-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1LSU80-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1LSU80-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1LSU80-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1LSU80-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1LWU80-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1LWU80-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1LWU80-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1LWU80-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1LXU80-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1LXU80-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1LXU80-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1LXU80-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1LYU80-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1LYU80-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1LYU80-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1LYU80-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1LZU80-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1LZU80-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1LZU80-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1LZU80-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1FSU80-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 90°
CRA1FSU80-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 100°
CRA1FSU80-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 180°
CRA1FSU80-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 190°
CRA1FWU80-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 90°
CRA1FWU80-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 100°
CRA1FWU80-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 180°
CRA1FWU80-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 190°
CRA1FXU80-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1FXU80-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1FXU80-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1FXU80-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1FYU80-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CRA1FYU80-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CRA1FYU80-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CRA1FYU80-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CRA1FZU80-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CRA1FZU80-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CRA1FZU80-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CRA1FZU80-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CRA1BSU100-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1BSU100-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1BSU100-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1BSU100-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1BWU100-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1BWU100-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1BWU100-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1BWU100-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1BXU100-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1BXU100-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1BXU100-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1BXU100-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1BYU100-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1BYU100-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1BYU100-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1BYU100-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1BZU100-90ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1BZU100-100ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1BZU100-180ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1BZU100-190ZMagnet: Without magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1LSU100-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1LSU100-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1LSU100-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1LSU100-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1LWU100-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1LWU100-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1LWU100-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1LWU100-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1LXU100-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1LXU100-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1LXU100-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1LXU100-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1LYU100-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1LYU100-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1LYU100-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1LYU100-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1LZU100-90ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1LZU100-100ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1LZU100-180ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1LZU100-190ZMagnet: Without magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1FSU100-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 90°
CRA1FSU100-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 100°
CRA1FSU100-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 180°
CRA1FSU100-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 190°
CRA1FWU100-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 90°
CRA1FWU100-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 100°
CRA1FWU100-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 180°
CRA1FWU100-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 190°
CRA1FXU100-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1FXU100-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1FXU100-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1FXU100-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CRA1FYU100-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CRA1FYU100-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CRA1FYU100-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CRA1FYU100-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CRA1FZU100-90ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CRA1FZU100-100ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CRA1FZU100-180ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CRA1FZU100-190ZMagnet: Without magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1BSU50-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1BSU50-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1BSU50-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1BSU50-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1BWU50-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1BWU50-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1BWU50-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1BWU50-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1BXU50-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1BXU50-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1BXU50-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1BXU50-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1BYU50-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1BYU50-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1BYU50-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1BYU50-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1BZU50-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1BZU50-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1BZU50-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1BZU50-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1LSU50-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1LSU50-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1LSU50-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1LSU50-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1LWU50-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1LWU50-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1LWU50-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1LWU50-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1LXU50-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1LXU50-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1LXU50-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1LXU50-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1LYU50-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1LYU50-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1LYU50-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1LYU50-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1LZU50-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1LZU50-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1LZU50-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1LZU50-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1FSU50-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 90°
CDRA1FSU50-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 100°
CDRA1FSU50-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 180°
CDRA1FSU50-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 50 | Rotation: 190°
CDRA1FWU50-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 90°
CDRA1FWU50-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 100°
CDRA1FWU50-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 180°
CDRA1FWU50-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 50 | Rotation: 190°
CDRA1FXU50-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1FXU50-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1FXU50-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1FXU50-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1FYU50-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 90°
CDRA1FYU50-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 100°
CDRA1FYU50-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 180°
CDRA1FYU50-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 50 | Rotation: 190°
CDRA1FZU50-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 90°
CDRA1FZU50-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 100°
CDRA1FZU50-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 180°
CDRA1FZU50-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 50 | Rotation: 190°
CDRA1BSU63-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1BSU63-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1BSU63-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1BSU63-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1BWU63-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1BWU63-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1BWU63-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1BWU63-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1BXU63-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1BXU63-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1BXU63-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1BXU63-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1BYU63-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1BYU63-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1BYU63-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1BYU63-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1BZU63-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1BZU63-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1BZU63-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1BZU63-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1LSU63-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1LSU63-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1LSU63-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1LSU63-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1LWU63-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1LWU63-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1LWU63-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1LWU63-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1LXU63-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1LXU63-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1LXU63-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1LXU63-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1LYU63-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1LYU63-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1LYU63-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1LYU63-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1LZU63-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1LZU63-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1LZU63-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1LZU63-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1FSU63-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 90°
CDRA1FSU63-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 100°
CDRA1FSU63-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 180°
CDRA1FSU63-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 63 | Rotation: 190°
CDRA1FWU63-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 90°
CDRA1FWU63-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 100°
CDRA1FWU63-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 180°
CDRA1FWU63-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 63 | Rotation: 190°
CDRA1FXU63-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1FXU63-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1FXU63-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1FXU63-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1FYU63-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 90°
CDRA1FYU63-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 100°
CDRA1FYU63-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 180°
CDRA1FYU63-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 63 | Rotation: 190°
CDRA1FZU63-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 90°
CDRA1FZU63-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 100°
CDRA1FZU63-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 180°
CDRA1FZU63-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 63 | Rotation: 190°
CDRA1BSU80-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1BSU80-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1BSU80-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1BSU80-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1BWU80-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1BWU80-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1BWU80-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1BWU80-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1BXU80-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1BXU80-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1BXU80-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1BXU80-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1BYU80-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1BYU80-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1BYU80-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1BYU80-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1BZU80-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1BZU80-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1BZU80-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1BZU80-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1LSU80-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1LSU80-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1LSU80-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1LSU80-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1LWU80-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1LWU80-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1LWU80-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1LWU80-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1LXU80-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1LXU80-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1LXU80-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1LXU80-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1LYU80-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1LYU80-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1LYU80-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1LYU80-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1LZU80-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1LZU80-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1LZU80-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1LZU80-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1FSU80-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 90°
CDRA1FSU80-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 100°
CDRA1FSU80-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 180°
CDRA1FSU80-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 80 | Rotation: 190°
CDRA1FWU80-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 90°
CDRA1FWU80-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 100°
CDRA1FWU80-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 180°
CDRA1FWU80-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 80 | Rotation: 190°
CDRA1FXU80-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1FXU80-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1FXU80-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1FXU80-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1FYU80-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 90°
CDRA1FYU80-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 100°
CDRA1FYU80-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 180°
CDRA1FYU80-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 80 | Rotation: 190°
CDRA1FZU80-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 90°
CDRA1FZU80-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 100°
CDRA1FZU80-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 180°
CDRA1FZU80-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 80 | Rotation: 190°
CDRA1BSU100-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1BSU100-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1BSU100-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1BSU100-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1BWU100-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1BWU100-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1BWU100-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1BWU100-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1BXU100-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1BXU100-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1BXU100-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1BXU100-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1BYU100-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1BYU100-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1BYU100-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1BYU100-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1BZU100-90ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1BZU100-100ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1BZU100-180ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1BZU100-190ZMagnet: Built-in magnet | Mounting: Basic | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1LSU100-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1LSU100-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1LSU100-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1LSU100-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1LWU100-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1LWU100-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1LWU100-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1LWU100-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1LXU100-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1LXU100-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1LXU100-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1LXU100-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1LYU100-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1LYU100-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1LYU100-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1LYU100-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1LZU100-90ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1LZU100-100ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1LZU100-180ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1LZU100-190ZMagnet: Built-in magnet | Mounting: Foot | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1FSU100-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 90°
CDRA1FSU100-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 100°
CDRA1FSU100-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 180°
CDRA1FSU100-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft | Size: 100 | Rotation: 190°
CDRA1FWU100-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 90°
CDRA1FWU100-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 100°
CDRA1FWU100-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 180°
CDRA1FWU100-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft | Size: 100 | Rotation: 190°
CDRA1FXU100-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1FXU100-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1FXU100-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1FXU100-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Single shaft, 4 flats | Size: 100 | Rotation: 190°
CDRA1FYU100-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 90°
CDRA1FYU100-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 100°
CDRA1FYU100-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 180°
CDRA1FYU100-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, key | Size: 100 | Rotation: 190°
CDRA1FZU100-90ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 90°
CDRA1FZU100-100ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 100°
CDRA1FZU100-180ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 180°
CDRA1FZU100-190ZMagnet: Built-in magnet | Mounting: Flange | Shaft: Double shaft, 4 flats | Size: 100 | Rotation: 190°

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
