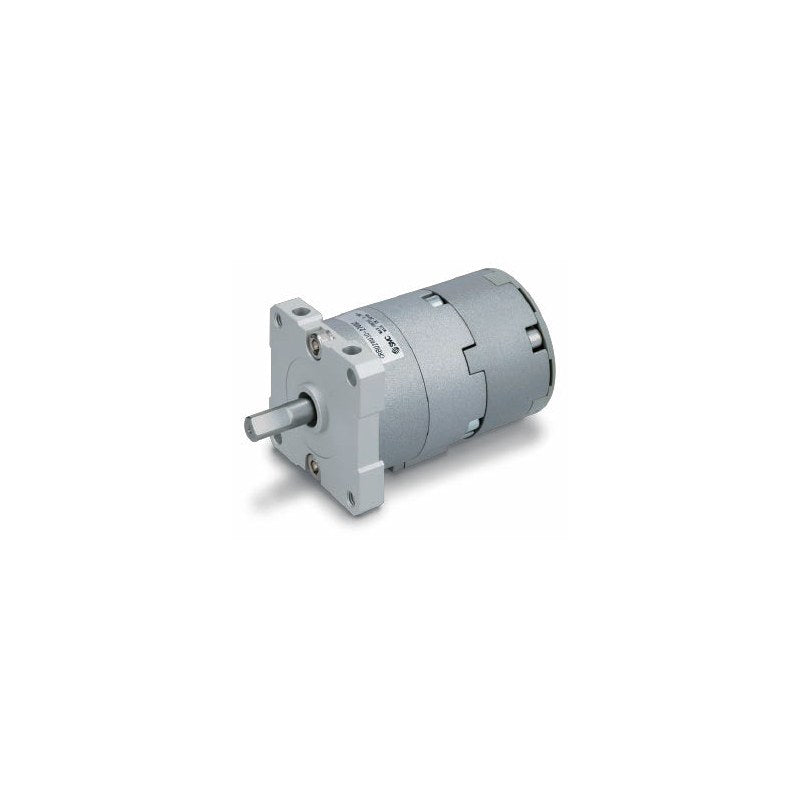

SMC CRB2 Vane Rotary Actuator (Size 10 to 40, 90° to 270°)

SMC CRB2 Vane Rotary Actuator (Size 10 to 40, 90° to 270°)

SMC CRB2 series vane-type rotary actuator in sizes 10 to 40 with single vane (90°, 180°, 270°) or double vane (90°, 100°) construction, available with auto switch unit (CDRB2) and angle adjuster unit (CRB2WU).

Key features

  • Single vane rotation up to 270° in all sizes; double vane delivers twice the torque at the same outer dimensions (except size 10)
  • Ports on the body side or in the axial direction (E); units are body-side ported only
  • Basic or flange (F, sizes 10 to 30) mounting; mounting pitch compatible with the previous CRB
  • Auto switch unit (CDRB2, built-in magnet) for D-M9 solid state and D-90/D-97 reed switches (10/15) or D-S7/T79/R73/R80 (20 to 40); switches ordered as suffix
  • Angle adjuster unit (WU): 0 to 230/240° adjustable (single vane), 0 to 90° (double vane)
  • Shaft types J, K, T, Y, shaft patterns -XA, rotation-range and other -XC options are made to order

Specifications

Fluid Air (non-lube)
Max. operating pressure 0.7 MPa (size 10 to 20), 1.0 MPa (size 30, 40)
Min. operating pressure 0.2 MPa (size 10), 0.15 MPa (size 15 to 40)
Proof pressure 1.05 MPa (size 10 to 20), 1.5 MPa (size 30, 40)
Ambient and fluid temperature 5 to 60°C
Rotation time adjustment 0.03 to 0.3 s/90° (10-20), 0.04-0.3 (30), 0.07-0.5 (40)
Allowable radial load 15/15/25/30/60 N (size 10/15/20/30/40)
Allowable thrust load 10/10/20/25/40 N (size 10/15/20/30/40)
Port size M3x0.5 (size 10, 15), M5x0.8 (size 20 to 40)
Rubber cushion Size 20 to 40 single vane
Source SMC Korea catalog CRB2 Series (SMCKR_CRB2-Z.pdf), p. 50, 52-54, 63 (PDF p. 4, 6-8, 17)
CRB2BS10-90SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2BS10-90SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BS10-180SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2BS10-180SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BS10-270SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2BS10-270SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BS10-90DZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2BS10-90DEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BS10-100DZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2BS10-100DEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2BW10-90SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2BW10-90SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BW10-180SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2BW10-180SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BW10-270SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2BW10-270SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BW10-90DZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2BW10-90DEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BW10-100DZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2BW10-100DEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2BW10-90SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2BWU10-90SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CDRB2BWU10-90SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CDRB2BW10-180SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2BWU10-180SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CDRB2BWU10-180SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CDRB2BW10-270SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2BWU10-270SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CDRB2BWU10-270SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CDRB2BW10-90DZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2BWU10-90DZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CDRB2BWU10-90DZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CDRB2BW10-100DZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2BWU10-100DZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CDRB2BWU10-100DZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2FS10-90SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2FS10-90SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FS10-180SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2FS10-180SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FS10-270SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2FS10-270SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FS10-90DZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2FS10-90DEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FS10-100DZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2FS10-100DEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2FW10-90SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2FW10-90SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FW10-180SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2FW10-180SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FW10-270SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2FW10-270SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FW10-90DZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2FW10-90DEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FW10-100DZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2FW10-100DEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2FW10-90SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2FWU10-90SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CDRB2FWU10-90SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CDRB2FW10-180SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2FWU10-180SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CDRB2FWU10-180SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CDRB2FW10-270SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2FWU10-270SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CDRB2FWU10-270SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CDRB2FW10-90DZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2FWU10-90DZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CDRB2FWU10-90DZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CDRB2FW10-100DZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2FWU10-100DZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CDRB2FWU10-100DZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2BS15-90SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2BS15-90SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BS15-180SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2BS15-180SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BS15-270SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2BS15-270SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BS15-90DZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2BS15-90DEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BS15-100DZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2BS15-100DEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2BW15-90SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2BW15-90SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BW15-180SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2BW15-180SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BW15-270SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2BW15-270SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BW15-90DZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2BW15-90DEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BW15-100DZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2BW15-100DEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2BW15-90SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2BWU15-90SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CDRB2BWU15-90SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CDRB2BW15-180SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2BWU15-180SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CDRB2BWU15-180SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CDRB2BW15-270SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2BWU15-270SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CDRB2BWU15-270SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CDRB2BW15-90DZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2BWU15-90DZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CDRB2BWU15-90DZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CDRB2BW15-100DZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2BWU15-100DZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CDRB2BWU15-100DZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2FS15-90SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2FS15-90SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FS15-180SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2FS15-180SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FS15-270SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2FS15-270SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FS15-90DZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2FS15-90DEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FS15-100DZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2FS15-100DEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2FW15-90SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2FW15-90SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FW15-180SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2FW15-180SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FW15-270SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2FW15-270SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FW15-90DZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2FW15-90DEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FW15-100DZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2FW15-100DEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2FW15-90SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2FWU15-90SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CDRB2FWU15-90SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CDRB2FW15-180SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2FWU15-180SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CDRB2FWU15-180SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CDRB2FW15-270SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2FWU15-270SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CDRB2FWU15-270SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CDRB2FW15-90DZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2FWU15-90DZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CDRB2FWU15-90DZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CDRB2FW15-100DZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2FWU15-100DZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CDRB2FWU15-100DZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2BS20-90SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2BS20-90SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BS20-180SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2BS20-180SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BS20-270SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2BS20-270SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BS20-90DZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2BS20-90DEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BS20-100DZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2BS20-100DEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2BW20-90SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2BW20-90SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BW20-180SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2BW20-180SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BW20-270SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2BW20-270SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BW20-90DZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2BW20-90DEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BW20-100DZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2BW20-100DEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2BW20-90SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2BWU20-90SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CDRB2BWU20-90SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CDRB2BW20-180SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2BWU20-180SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CDRB2BWU20-180SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CDRB2BW20-270SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2BWU20-270SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CDRB2BWU20-270SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CDRB2BW20-90DZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2BWU20-90DZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CDRB2BWU20-90DZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CDRB2BW20-100DZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2BWU20-100DZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CDRB2BWU20-100DZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2FS20-90SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2FS20-90SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FS20-180SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2FS20-180SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FS20-270SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2FS20-270SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FS20-90DZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2FS20-90DEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FS20-100DZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2FS20-100DEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2FW20-90SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2FW20-90SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FW20-180SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2FW20-180SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FW20-270SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2FW20-270SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FW20-90DZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2FW20-90DEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FW20-100DZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2FW20-100DEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2FW20-90SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2FWU20-90SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CDRB2FWU20-90SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CDRB2FW20-180SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2FWU20-180SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CDRB2FWU20-180SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CDRB2FW20-270SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2FWU20-270SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CDRB2FWU20-270SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CDRB2FW20-90DZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2FWU20-90DZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CDRB2FWU20-90DZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CDRB2FW20-100DZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2FWU20-100DZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CDRB2FWU20-100DZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2BS30-90SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2BS30-90SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BS30-180SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2BS30-180SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BS30-270SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2BS30-270SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BS30-90DZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2BS30-90DEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BS30-100DZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2BS30-100DEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2BW30-90SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2BW30-90SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BW30-180SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2BW30-180SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BW30-270SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2BW30-270SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BW30-90DZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2BW30-90DEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BW30-100DZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2BW30-100DEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2BW30-90SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2BWU30-90SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CDRB2BWU30-90SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CDRB2BW30-180SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2BWU30-180SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CDRB2BWU30-180SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CDRB2BW30-270SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2BWU30-270SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CDRB2BWU30-270SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CDRB2BW30-90DZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2BWU30-90DZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CDRB2BWU30-90DZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CDRB2BW30-100DZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2BWU30-100DZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CDRB2BWU30-100DZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2FS30-90SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2FS30-90SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FS30-180SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2FS30-180SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FS30-270SZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2FS30-270SEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FS30-90DZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2FS30-90DEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FS30-100DZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2FS30-100DEZ Configuration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2FW30-90SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2FW30-90SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FW30-180SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2FW30-180SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FW30-270SZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2FW30-270SEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FW30-90DZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2FW30-90DEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FW30-100DZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2FW30-100DEZ Configuration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2FW30-90SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2FWU30-90SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CDRB2FWU30-90SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CDRB2FW30-180SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2FWU30-180SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CDRB2FWU30-180SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CDRB2FW30-270SZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2FWU30-270SZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CDRB2FWU30-270SZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CDRB2FW30-90DZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2FWU30-90DZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CDRB2FWU30-90DZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CDRB2FW30-100DZ Configuration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2FWU30-100DZ Configuration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CDRB2FWU30-100DZ Configuration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2BS40-90SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 90°, single vane | Port location: Body side
CRB2BS40-90SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BS40-180SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 180°, single vane | Port location: Body side
CRB2BS40-180SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BS40-270SZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 270°, single vane | Port location: Body side
CRB2BS40-270SEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BS40-90DZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 90°, double vane | Port location: Body side
CRB2BS40-90DEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BS40-100DZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 100°, double vane | Port location: Body side
CRB2BS40-100DEZ Configuration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2BW40-90SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, single vane | Port location: Body side
CRB2BW40-90SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BW40-180SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 180°, single vane | Port location: Body side
CRB2BW40-180SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BW40-270SZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 270°, single vane | Port location: Body side
CRB2BW40-270SEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BW40-90DZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, double vane | Port location: Body side
CRB2BW40-90DEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BW40-100DZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 100°, double vane | Port location: Body side
CRB2BW40-100DEZ Configuration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2BW40-90SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, single vane | Port location: Body side
CRB2BWU40-90SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, single vane | Port location: Body side
CDRB2BWU40-90SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, single vane | Port location: Body side
CDRB2BW40-180SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 180°, single vane | Port location: Body side
CRB2BWU40-180SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 180°, single vane | Port location: Body side
CDRB2BWU40-180SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 180°, single vane | Port location: Body side
CDRB2BW40-270SZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 270°, single vane | Port location: Body side
CRB2BWU40-270SZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 270°, single vane | Port location: Body side
CDRB2BWU40-270SZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 270°, single vane | Port location: Body side
CDRB2BW40-90DZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, double vane | Port location: Body side
CRB2BWU40-90DZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, double vane | Port location: Body side
CDRB2BWU40-90DZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, double vane | Port location: Body side
CDRB2BW40-100DZ Configuration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 100°, double vane | Port location: Body side
CRB2BWU40-100DZ Configuration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 100°, double vane | Port location: Body side
CDRB2BWU40-100DZ Configuration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 100°, double vane | Port location: Body side
Rotary ActuatorsSMC
315 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CRB2 Vane Rotary Actuator (Size 10 to 40, 90° to 270°)

Brand SMC·Rotary Actuators

Available part numbers (315)

CRB2BS10-90SZ, CRB2BS10-90SEZ, CRB2BS10-180SZ, CRB2BS10-180SEZ, CRB2BS10-270SZ, CRB2BS10-270SEZ, CRB2BS10-90DZ, CRB2BS10-90DEZ, CRB2BS10-100DZ, CRB2BS10-100DEZ + 305 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRB2BS10-90SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2BS10-90SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BS10-180SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2BS10-180SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BS10-270SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2BS10-270SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BS10-90DZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2BS10-90DEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BS10-100DZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2BS10-100DEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 10 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2BW10-90SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2BW10-90SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BW10-180SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2BW10-180SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BW10-270SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2BW10-270SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BW10-90DZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2BW10-90DEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BW10-100DZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2BW10-100DEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2BW10-90SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2BWU10-90SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CDRB2BWU10-90SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CDRB2BW10-180SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2BWU10-180SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CDRB2BWU10-180SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CDRB2BW10-270SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2BWU10-270SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CDRB2BWU10-270SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CDRB2BW10-90DZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2BWU10-90DZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CDRB2BWU10-90DZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CDRB2BW10-100DZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2BWU10-100DZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CDRB2BWU10-100DZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2FS10-90SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2FS10-90SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FS10-180SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2FS10-180SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FS10-270SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2FS10-270SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FS10-90DZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2FS10-90DEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FS10-100DZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2FS10-100DEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 10 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2FW10-90SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2FW10-90SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FW10-180SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2FW10-180SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FW10-270SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2FW10-270SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FW10-90DZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2FW10-90DEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FW10-100DZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2FW10-100DEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2FW10-90SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CRB2FWU10-90SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CDRB2FWU10-90SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, single vane | Port location: Body side
CDRB2FW10-180SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CRB2FWU10-180SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CDRB2FWU10-180SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 180°, single vane | Port location: Body side
CDRB2FW10-270SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CRB2FWU10-270SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CDRB2FWU10-270SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 270°, single vane | Port location: Body side
CDRB2FW10-90DZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CRB2FWU10-90DZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CDRB2FWU10-90DZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 90°, double vane | Port location: Body side
CDRB2FW10-100DZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2FWU10-100DZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CDRB2FWU10-100DZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 10 | Rotation: 100°, double vane | Port location: Body side
CRB2BS15-90SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2BS15-90SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BS15-180SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2BS15-180SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BS15-270SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2BS15-270SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BS15-90DZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2BS15-90DEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BS15-100DZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2BS15-100DEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 15 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2BW15-90SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2BW15-90SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BW15-180SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2BW15-180SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BW15-270SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2BW15-270SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BW15-90DZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2BW15-90DEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BW15-100DZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2BW15-100DEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2BW15-90SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2BWU15-90SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CDRB2BWU15-90SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CDRB2BW15-180SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2BWU15-180SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CDRB2BWU15-180SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CDRB2BW15-270SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2BWU15-270SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CDRB2BWU15-270SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CDRB2BW15-90DZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2BWU15-90DZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CDRB2BWU15-90DZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CDRB2BW15-100DZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2BWU15-100DZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CDRB2BWU15-100DZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2FS15-90SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2FS15-90SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FS15-180SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2FS15-180SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FS15-270SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2FS15-270SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FS15-90DZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2FS15-90DEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FS15-100DZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2FS15-100DEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 15 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2FW15-90SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2FW15-90SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FW15-180SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2FW15-180SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FW15-270SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2FW15-270SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FW15-90DZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2FW15-90DEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FW15-100DZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2FW15-100DEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2FW15-90SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CRB2FWU15-90SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CDRB2FWU15-90SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, single vane | Port location: Body side
CDRB2FW15-180SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CRB2FWU15-180SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CDRB2FWU15-180SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 180°, single vane | Port location: Body side
CDRB2FW15-270SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CRB2FWU15-270SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CDRB2FWU15-270SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 270°, single vane | Port location: Body side
CDRB2FW15-90DZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CRB2FWU15-90DZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CDRB2FWU15-90DZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 90°, double vane | Port location: Body side
CDRB2FW15-100DZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2FWU15-100DZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CDRB2FWU15-100DZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 15 | Rotation: 100°, double vane | Port location: Body side
CRB2BS20-90SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2BS20-90SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BS20-180SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2BS20-180SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BS20-270SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2BS20-270SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BS20-90DZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2BS20-90DEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BS20-100DZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2BS20-100DEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 20 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2BW20-90SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2BW20-90SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BW20-180SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2BW20-180SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BW20-270SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2BW20-270SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BW20-90DZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2BW20-90DEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BW20-100DZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2BW20-100DEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2BW20-90SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2BWU20-90SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CDRB2BWU20-90SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CDRB2BW20-180SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2BWU20-180SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CDRB2BWU20-180SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CDRB2BW20-270SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2BWU20-270SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CDRB2BWU20-270SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CDRB2BW20-90DZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2BWU20-90DZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CDRB2BWU20-90DZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CDRB2BW20-100DZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2BWU20-100DZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CDRB2BWU20-100DZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2FS20-90SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2FS20-90SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FS20-180SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2FS20-180SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FS20-270SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2FS20-270SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FS20-90DZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2FS20-90DEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FS20-100DZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2FS20-100DEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 20 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2FW20-90SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2FW20-90SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FW20-180SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2FW20-180SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FW20-270SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2FW20-270SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FW20-90DZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2FW20-90DEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FW20-100DZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2FW20-100DEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2FW20-90SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CRB2FWU20-90SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CDRB2FWU20-90SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, single vane | Port location: Body side
CDRB2FW20-180SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CRB2FWU20-180SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CDRB2FWU20-180SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 180°, single vane | Port location: Body side
CDRB2FW20-270SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CRB2FWU20-270SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CDRB2FWU20-270SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 270°, single vane | Port location: Body side
CDRB2FW20-90DZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CRB2FWU20-90DZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CDRB2FWU20-90DZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 90°, double vane | Port location: Body side
CDRB2FW20-100DZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2FWU20-100DZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CDRB2FWU20-100DZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 20 | Rotation: 100°, double vane | Port location: Body side
CRB2BS30-90SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2BS30-90SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BS30-180SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2BS30-180SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BS30-270SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2BS30-270SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BS30-90DZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2BS30-90DEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BS30-100DZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2BS30-100DEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 30 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2BW30-90SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2BW30-90SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BW30-180SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2BW30-180SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BW30-270SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2BW30-270SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BW30-90DZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2BW30-90DEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BW30-100DZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2BW30-100DEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2BW30-90SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2BWU30-90SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CDRB2BWU30-90SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CDRB2BW30-180SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2BWU30-180SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CDRB2BWU30-180SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CDRB2BW30-270SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2BWU30-270SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CDRB2BWU30-270SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CDRB2BW30-90DZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2BWU30-90DZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CDRB2BWU30-90DZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CDRB2BW30-100DZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2BWU30-100DZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CDRB2BWU30-100DZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2FS30-90SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2FS30-90SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FS30-180SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2FS30-180SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FS30-270SZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2FS30-270SEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FS30-90DZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2FS30-90DEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FS30-100DZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2FS30-100DEZConfiguration: Standard | Mounting: Flange | Shaft: Single shaft (flat) | Size: 30 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2FW30-90SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2FW30-90SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2FW30-180SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2FW30-180SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2FW30-270SZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2FW30-270SEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2FW30-90DZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2FW30-90DEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2FW30-100DZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2FW30-100DEZConfiguration: Standard | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2FW30-90SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CRB2FWU30-90SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CDRB2FWU30-90SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, single vane | Port location: Body side
CDRB2FW30-180SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CRB2FWU30-180SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CDRB2FWU30-180SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 180°, single vane | Port location: Body side
CDRB2FW30-270SZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CRB2FWU30-270SZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CDRB2FWU30-270SZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 270°, single vane | Port location: Body side
CDRB2FW30-90DZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CRB2FWU30-90DZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CDRB2FWU30-90DZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 90°, double vane | Port location: Body side
CDRB2FW30-100DZConfiguration: With auto switch unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2FWU30-100DZConfiguration: With angle adjuster unit | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CDRB2FWU30-100DZConfiguration: Switch unit + angle adjuster | Mounting: Flange | Shaft: Double shaft (flats) | Size: 30 | Rotation: 100°, double vane | Port location: Body side
CRB2BS40-90SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 90°, single vane | Port location: Body side
CRB2BS40-90SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BS40-180SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 180°, single vane | Port location: Body side
CRB2BS40-180SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BS40-270SZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 270°, single vane | Port location: Body side
CRB2BS40-270SEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BS40-90DZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 90°, double vane | Port location: Body side
CRB2BS40-90DEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BS40-100DZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 100°, double vane | Port location: Body side
CRB2BS40-100DEZConfiguration: Standard | Mounting: Basic | Shaft: Single shaft (flat) | Size: 40 | Rotation: 100°, double vane | Port location: Axial (body end)
CRB2BW40-90SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, single vane | Port location: Body side
CRB2BW40-90SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, single vane | Port location: Axial (body end)
CRB2BW40-180SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 180°, single vane | Port location: Body side
CRB2BW40-180SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 180°, single vane | Port location: Axial (body end)
CRB2BW40-270SZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 270°, single vane | Port location: Body side
CRB2BW40-270SEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 270°, single vane | Port location: Axial (body end)
CRB2BW40-90DZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, double vane | Port location: Body side
CRB2BW40-90DEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, double vane | Port location: Axial (body end)
CRB2BW40-100DZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 100°, double vane | Port location: Body side
CRB2BW40-100DEZConfiguration: Standard | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 100°, double vane | Port location: Axial (body end)
CDRB2BW40-90SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, single vane | Port location: Body side
CRB2BWU40-90SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, single vane | Port location: Body side
CDRB2BWU40-90SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, single vane | Port location: Body side
CDRB2BW40-180SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 180°, single vane | Port location: Body side
CRB2BWU40-180SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 180°, single vane | Port location: Body side
CDRB2BWU40-180SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 180°, single vane | Port location: Body side
CDRB2BW40-270SZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 270°, single vane | Port location: Body side
CRB2BWU40-270SZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 270°, single vane | Port location: Body side
CDRB2BWU40-270SZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 270°, single vane | Port location: Body side
CDRB2BW40-90DZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, double vane | Port location: Body side
CRB2BWU40-90DZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, double vane | Port location: Body side
CDRB2BWU40-90DZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 90°, double vane | Port location: Body side
CDRB2BW40-100DZConfiguration: With auto switch unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 100°, double vane | Port location: Body side
CRB2BWU40-100DZConfiguration: With angle adjuster unit | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 100°, double vane | Port location: Body side
CDRB2BWU40-100DZConfiguration: Switch unit + angle adjuster | Mounting: Basic | Shaft: Double shaft (flats) | Size: 40 | Rotation: 100°, double vane | Port location: Body side

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
