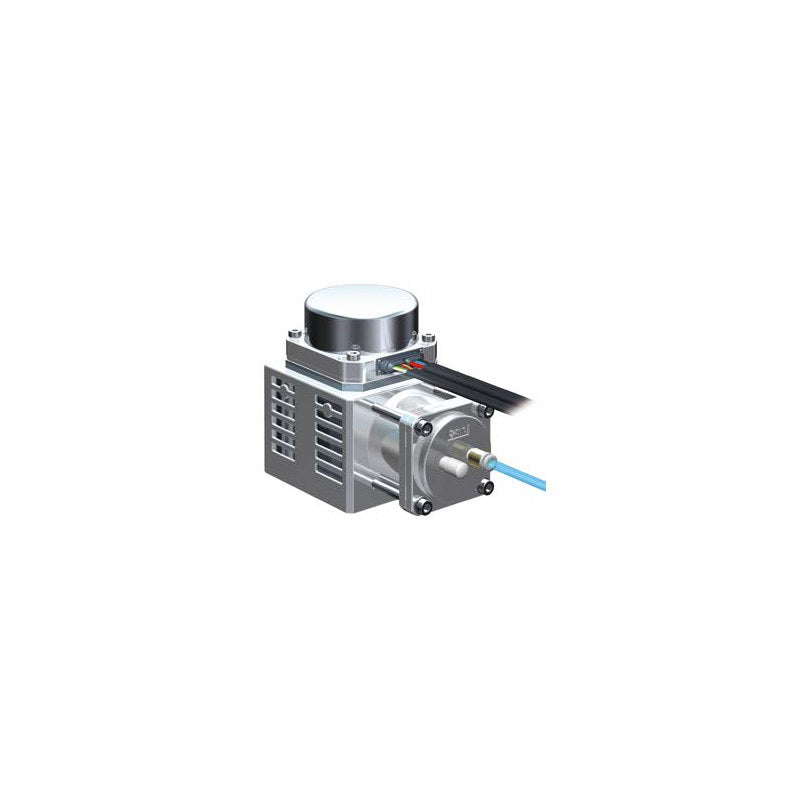

• SMC CRP Compact Compressor (Oil-Free, for Co-Robots and AGVs)
1 1

SMC CRP Compact Compressor (Oil-Free, for Co-Robots and AGVs)

SMC CRP Compact Compressor (Oil-Free, for Co-Robots and AGVs)

SMC CRP10 oil-free compact compressor with separate DC24V controller that supplies compressed air or vacuum where no plant air is available, such as on collaborative robots and AGVs.

Key features

  • One unit works as a pressure source (max. 0.55 MPa) or vacuum pump (-70 kPa), reaching -70 kPa in about 0.2 s
  • Oil-free reciprocating compressor with brushless motor, discharge flow up to 10 L/min (ANR)
  • Small and light: 154 x 134 x 100 mm, 3.5 kg (compressor 3.1 kg, controller 0.4 kg)
  • Pressure ON-OFF control with ISE20A digital pressure switch (M/P), alarm LED on the controller
  • Optional intake silencer (A/B), one-touch check valve AKH06-00 (K) and 3-port valve V124 (V) for residual exhaust
  • Horizontal or vertical installation; motor and sensor cables 1 m included

Specifications

Fluid Air
Compression method Reciprocating, oil-free
Max. discharge pressure / vacuum 0.55 MPa / -70 kPa
Max. discharge / suction flow 10 L/min (ANR)
Rated time Continuous
Noise 62 dB (AN10-01), 55 dB (ANB1-01)
Controller power supply DC24V ±10%, rated 4.5 A (110 W), peak 8 A
Operating temperature / humidity 5 to 40°C, 80% RH or less (no condensation)
Seal material PTFE (sliding), HNBR (O-ring)
Source SMC Korea catalog CAT.KS30-24B (SMCKR_CRP.pdf), p. 4-5
CRP10-S1-AM-KV Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-AM-K Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-AM-V Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-AM Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-AP-KV Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-AP-K Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-AP-V Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-AP Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-A-KV Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-A-K Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-A-V Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-A Controller mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-BM-KV Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-BM-K Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-BM-V Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-BM Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-BP-KV Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-BP-K Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-BP-V Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-BP Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-B-KV Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-B-K Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-B-V Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-B Controller mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-M-KV Controller mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-M-K Controller mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-M-V Controller mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-M Controller mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-P-KV Controller mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-P-K Controller mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-P-V Controller mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-P Controller mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1 Controller mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-AM-KV Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-AM-K Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-AM-V Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-AM Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-AP-KV Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-AP-K Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-AP-V Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-AP Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-A-KV Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-A-K Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-A-V Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-A Controller mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-BM-KV Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-BM-K Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-BM-V Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-BM Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-BP-KV Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-BP-K Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-BP-V Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-BP Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-B-KV Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-B-K Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-B-V Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-B Controller mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-M-KV Controller mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-M-K Controller mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-M-V Controller mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-M Controller mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-P-KV Controller mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-P-K Controller mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-P-V Controller mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-P Controller mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1 Controller mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None
CompressorsSMC
66 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CRP Compact Compressor (Oil-Free, for Co-Robots and AGVs)

Brand SMC·Compressors

Available part numbers (66)

CRP10-S1-AM-KV, CRP10-S1-AM-K, CRP10-S1-AM-V, CRP10-S1-AM, CRP10-S1-AP-KV, CRP10-S1-AP-K, CRP10-S1-AP-V, CRP10-S1-AP, CRP10-S1-A-KV, CRP10-S1-A-K + 56 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CRP10-S1-AM-KVController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-AM-KController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-AM-VController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-AMController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-AP-KVController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-AP-KController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-AP-VController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-APController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-A-KVController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-A-KController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-A-VController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-AController mounting: Screw mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-BM-KVController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-BM-KController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-BM-VController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-BMController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-BP-KVController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-BP-KController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-BP-VController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-BPController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-B-KVController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-B-KController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-B-VController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-BController mounting: Screw mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-M-KVController mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-M-KController mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-M-VController mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-MController mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1-P-KVController mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-S1-P-KController mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-S1-P-VController mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-S1-PController mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-S1Controller mounting: Screw mounting | Intake silencer: None (75 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-AM-KVController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-AM-KController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-AM-VController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-AMController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-AP-KVController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-AP-KController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-AP-VController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-APController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-A-KVController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-A-KController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-A-VController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-AController mounting: DIN rail mounting | Intake silencer: AN10-01 (62 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-BM-KVController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-BM-KController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-BM-VController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-BMController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-BP-KVController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-BP-KController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-BP-VController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-BPController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-B-KVController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-B-KController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-B-VController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-BController mounting: DIN rail mounting | Intake silencer: ANB1-01 (55 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-M-KVController mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-M-KController mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-M-VController mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-MController mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-M-01-J-X603 (SI fixed) | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1-P-KVController mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: V124-5LU-M5
CRP10-D1-P-KController mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: AKH06-00 (ø6) | Residual exhaust valve: None
CRP10-D1-P-VController mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: V124-5LU-M5
CRP10-D1-PController mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: ISE20A-Y-01-J-X603 | Residual exhaust check valve: None | Residual exhaust valve: None
CRP10-D1Controller mounting: DIN rail mounting | Intake silencer: None (75 dB) | Pressure switch: None | Residual exhaust check valve: None | Residual exhaust valve: None

Need a different model, or a part not listed here? Send us your parts list →
