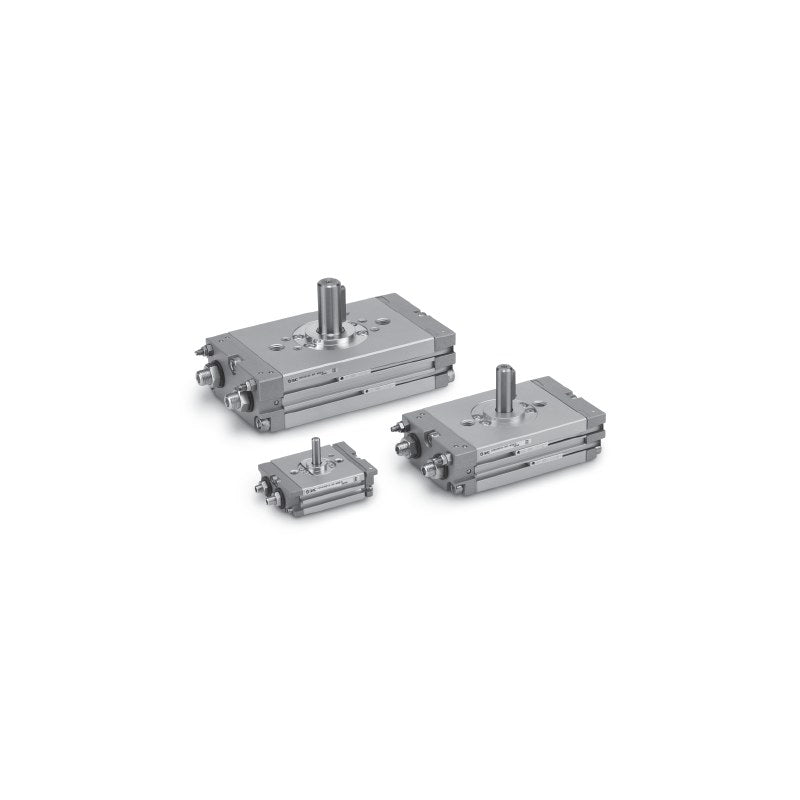

SMC CRQ2 Compact Rotary Actuator (Rack & Pinion, Size 10 to 40)

SMC CRQ2 Compact Rotary Actuator (Rack & Pinion, Size 10 to 40)

SMC CRQ2 series low-profile rack and pinion rotary actuator in five sizes with 90°, 180° and 360° rotation, single or double shaft, and optional built-in magnet for auto switches.

Key features

  • Double-piston rack and pinion design with no backlash; body can be used as a flange
  • Rotation angle 90°, 180° or 360° with angle adjustment of ±5° at each rotation end
  • Rubber cushion on sizes 10 and 15; sizes 20 to 40 without cushion or with air cushion (C)
  • Piping from one direction; two auto switches mountable on the same surface without protrusion
  • Other shaft types (X, Y, Z, T, J, K), shaft machining patterns (-XA), stainless shaft (-X6) and made-to-order -XC options available
  • Auto switches (solid state D-M9N/M9P/M9B, M9NW/M9PW/M9BW, M9NA/M9PA/M9BA; reed D-A90/A93/A96, vertical "V" versions) are ordered as a suffix, e.g. -M9BW; lead wire 0.5 m (blank), 1 m (M), 3 m (L), 5 m (Z)

Specifications

Fluid Air (non-lube)
Operating pressure Size 10/15: 0.15 to 0.7 MPa; size 20/30/40: 0.1 to 1.0 MPa
Ambient and fluid temperature 0 to 60°C (no freezing)
Output torque at 0.5 MPa 10: 0.3, 15: 0.75, 20: 1.8, 30: 3.1, 40: 5.3 N·m
Rotation time adjustment 10/15: 0.2 to 0.7 s/90°; 20/30/40: 0.2 to 1 s/90°
Allowable kinetic energy (air cushion) 20: 0.12, 30: 0.25, 40: 0.4 J
Angle adjustment ±5° at each rotation end
Port thread options Sizes 20-40: Rc1/8 standard; G (TF), NPT (TN), NPTF (TT) on order
Source SMC Korea catalog CRQ2 (SMCKR_CRQ2.pdf), p. 293-296 (PDF p. 1-4)
CRQ2BS10-90 Type: Standard (no magnet) | Shaft: Single shaft | Size: 10 | Rotation: 80 to 100° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BS10-180 Type: Standard (no magnet) | Shaft: Single shaft | Size: 10 | Rotation: 170 to 190° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BS10-360 Type: Standard (no magnet) | Shaft: Single shaft | Size: 10 | Rotation: 350 to 370° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BS15-90 Type: Standard (no magnet) | Shaft: Single shaft | Size: 15 | Rotation: 80 to 100° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BS15-180 Type: Standard (no magnet) | Shaft: Single shaft | Size: 15 | Rotation: 170 to 190° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BS15-360 Type: Standard (no magnet) | Shaft: Single shaft | Size: 15 | Rotation: 350 to 370° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BS20-90 Type: Standard (no magnet) | Shaft: Single shaft | Size: 20 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CRQ2BS20-90C Type: Standard (no magnet) | Shaft: Single shaft | Size: 20 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CRQ2BS20-180 Type: Standard (no magnet) | Shaft: Single shaft | Size: 20 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CRQ2BS20-180C Type: Standard (no magnet) | Shaft: Single shaft | Size: 20 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CRQ2BS20-360 Type: Standard (no magnet) | Shaft: Single shaft | Size: 20 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CRQ2BS20-360C Type: Standard (no magnet) | Shaft: Single shaft | Size: 20 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
CRQ2BS30-90 Type: Standard (no magnet) | Shaft: Single shaft | Size: 30 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CRQ2BS30-90C Type: Standard (no magnet) | Shaft: Single shaft | Size: 30 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CRQ2BS30-180 Type: Standard (no magnet) | Shaft: Single shaft | Size: 30 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CRQ2BS30-180C Type: Standard (no magnet) | Shaft: Single shaft | Size: 30 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CRQ2BS30-360 Type: Standard (no magnet) | Shaft: Single shaft | Size: 30 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CRQ2BS30-360C Type: Standard (no magnet) | Shaft: Single shaft | Size: 30 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
CRQ2BS40-90 Type: Standard (no magnet) | Shaft: Single shaft | Size: 40 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CRQ2BS40-90C Type: Standard (no magnet) | Shaft: Single shaft | Size: 40 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CRQ2BS40-180 Type: Standard (no magnet) | Shaft: Single shaft | Size: 40 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CRQ2BS40-180C Type: Standard (no magnet) | Shaft: Single shaft | Size: 40 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CRQ2BS40-360 Type: Standard (no magnet) | Shaft: Single shaft | Size: 40 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CRQ2BS40-360C Type: Standard (no magnet) | Shaft: Single shaft | Size: 40 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
CRQ2BW10-90 Type: Standard (no magnet) | Shaft: Double shaft | Size: 10 | Rotation: 80 to 100° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BW10-180 Type: Standard (no magnet) | Shaft: Double shaft | Size: 10 | Rotation: 170 to 190° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BW10-360 Type: Standard (no magnet) | Shaft: Double shaft | Size: 10 | Rotation: 350 to 370° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BW15-90 Type: Standard (no magnet) | Shaft: Double shaft | Size: 15 | Rotation: 80 to 100° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BW15-180 Type: Standard (no magnet) | Shaft: Double shaft | Size: 15 | Rotation: 170 to 190° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BW15-360 Type: Standard (no magnet) | Shaft: Double shaft | Size: 15 | Rotation: 350 to 370° | Cushion: Rubber cushion | Port: M5x0.8
CRQ2BW20-90 Type: Standard (no magnet) | Shaft: Double shaft | Size: 20 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CRQ2BW20-90C Type: Standard (no magnet) | Shaft: Double shaft | Size: 20 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CRQ2BW20-180 Type: Standard (no magnet) | Shaft: Double shaft | Size: 20 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CRQ2BW20-180C Type: Standard (no magnet) | Shaft: Double shaft | Size: 20 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CRQ2BW20-360 Type: Standard (no magnet) | Shaft: Double shaft | Size: 20 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CRQ2BW20-360C Type: Standard (no magnet) | Shaft: Double shaft | Size: 20 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
CRQ2BW30-90 Type: Standard (no magnet) | Shaft: Double shaft | Size: 30 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CRQ2BW30-90C Type: Standard (no magnet) | Shaft: Double shaft | Size: 30 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CRQ2BW30-180 Type: Standard (no magnet) | Shaft: Double shaft | Size: 30 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CRQ2BW30-180C Type: Standard (no magnet) | Shaft: Double shaft | Size: 30 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CRQ2BW30-360 Type: Standard (no magnet) | Shaft: Double shaft | Size: 30 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CRQ2BW30-360C Type: Standard (no magnet) | Shaft: Double shaft | Size: 30 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
CRQ2BW40-90 Type: Standard (no magnet) | Shaft: Double shaft | Size: 40 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CRQ2BW40-90C Type: Standard (no magnet) | Shaft: Double shaft | Size: 40 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CRQ2BW40-180 Type: Standard (no magnet) | Shaft: Double shaft | Size: 40 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CRQ2BW40-180C Type: Standard (no magnet) | Shaft: Double shaft | Size: 40 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CRQ2BW40-360 Type: Standard (no magnet) | Shaft: Double shaft | Size: 40 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CRQ2BW40-360C Type: Standard (no magnet) | Shaft: Double shaft | Size: 40 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BS10-90 Type: Built-in magnet | Shaft: Single shaft | Size: 10 | Rotation: 80 to 100° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BS10-180 Type: Built-in magnet | Shaft: Single shaft | Size: 10 | Rotation: 170 to 190° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BS10-360 Type: Built-in magnet | Shaft: Single shaft | Size: 10 | Rotation: 350 to 370° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BS15-90 Type: Built-in magnet | Shaft: Single shaft | Size: 15 | Rotation: 80 to 100° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BS15-180 Type: Built-in magnet | Shaft: Single shaft | Size: 15 | Rotation: 170 to 190° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BS15-360 Type: Built-in magnet | Shaft: Single shaft | Size: 15 | Rotation: 350 to 370° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BS20-90 Type: Built-in magnet | Shaft: Single shaft | Size: 20 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CDRQ2BS20-90C Type: Built-in magnet | Shaft: Single shaft | Size: 20 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BS20-180 Type: Built-in magnet | Shaft: Single shaft | Size: 20 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CDRQ2BS20-180C Type: Built-in magnet | Shaft: Single shaft | Size: 20 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BS20-360 Type: Built-in magnet | Shaft: Single shaft | Size: 20 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CDRQ2BS20-360C Type: Built-in magnet | Shaft: Single shaft | Size: 20 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BS30-90 Type: Built-in magnet | Shaft: Single shaft | Size: 30 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CDRQ2BS30-90C Type: Built-in magnet | Shaft: Single shaft | Size: 30 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BS30-180 Type: Built-in magnet | Shaft: Single shaft | Size: 30 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CDRQ2BS30-180C Type: Built-in magnet | Shaft: Single shaft | Size: 30 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BS30-360 Type: Built-in magnet | Shaft: Single shaft | Size: 30 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CDRQ2BS30-360C Type: Built-in magnet | Shaft: Single shaft | Size: 30 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BS40-90 Type: Built-in magnet | Shaft: Single shaft | Size: 40 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CDRQ2BS40-90C Type: Built-in magnet | Shaft: Single shaft | Size: 40 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BS40-180 Type: Built-in magnet | Shaft: Single shaft | Size: 40 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CDRQ2BS40-180C Type: Built-in magnet | Shaft: Single shaft | Size: 40 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BS40-360 Type: Built-in magnet | Shaft: Single shaft | Size: 40 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CDRQ2BS40-360C Type: Built-in magnet | Shaft: Single shaft | Size: 40 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BW10-90 Type: Built-in magnet | Shaft: Double shaft | Size: 10 | Rotation: 80 to 100° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BW10-180 Type: Built-in magnet | Shaft: Double shaft | Size: 10 | Rotation: 170 to 190° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BW10-360 Type: Built-in magnet | Shaft: Double shaft | Size: 10 | Rotation: 350 to 370° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BW15-90 Type: Built-in magnet | Shaft: Double shaft | Size: 15 | Rotation: 80 to 100° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BW15-180 Type: Built-in magnet | Shaft: Double shaft | Size: 15 | Rotation: 170 to 190° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BW15-360 Type: Built-in magnet | Shaft: Double shaft | Size: 15 | Rotation: 350 to 370° | Cushion: Rubber cushion | Port: M5x0.8
CDRQ2BW20-90 Type: Built-in magnet | Shaft: Double shaft | Size: 20 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CDRQ2BW20-90C Type: Built-in magnet | Shaft: Double shaft | Size: 20 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BW20-180 Type: Built-in magnet | Shaft: Double shaft | Size: 20 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CDRQ2BW20-180C Type: Built-in magnet | Shaft: Double shaft | Size: 20 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BW20-360 Type: Built-in magnet | Shaft: Double shaft | Size: 20 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CDRQ2BW20-360C Type: Built-in magnet | Shaft: Double shaft | Size: 20 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BW30-90 Type: Built-in magnet | Shaft: Double shaft | Size: 30 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CDRQ2BW30-90C Type: Built-in magnet | Shaft: Double shaft | Size: 30 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BW30-180 Type: Built-in magnet | Shaft: Double shaft | Size: 30 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CDRQ2BW30-180C Type: Built-in magnet | Shaft: Double shaft | Size: 30 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BW30-360 Type: Built-in magnet | Shaft: Double shaft | Size: 30 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CDRQ2BW30-360C Type: Built-in magnet | Shaft: Double shaft | Size: 30 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BW40-90 Type: Built-in magnet | Shaft: Double shaft | Size: 40 | Rotation: 80 to 100° | Cushion: No cushion | Port: Rc1/8
CDRQ2BW40-90C Type: Built-in magnet | Shaft: Double shaft | Size: 40 | Rotation: 80 to 100° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BW40-180 Type: Built-in magnet | Shaft: Double shaft | Size: 40 | Rotation: 170 to 190° | Cushion: No cushion | Port: Rc1/8
CDRQ2BW40-180C Type: Built-in magnet | Shaft: Double shaft | Size: 40 | Rotation: 170 to 190° | Cushion: Air cushion | Port: Rc1/8
CDRQ2BW40-360 Type: Built-in magnet | Shaft: Double shaft | Size: 40 | Rotation: 350 to 370° | Cushion: No cushion | Port: Rc1/8
CDRQ2BW40-360C Type: Built-in magnet | Shaft: Double shaft | Size: 40 | Rotation: 350 to 370° | Cushion: Air cushion | Port: Rc1/8
Rotary ActuatorsSMC
96 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CRQ2 Compact Rotary Actuator (Rack & Pinion, Size 10 to 40)

Brand SMC·Rotary Actuators

Available part numbers (96)

CRQ2BS10-90, CRQ2BS10-180, CRQ2BS10-360, CRQ2BS15-90, CRQ2BS15-180, CRQ2BS15-360, CRQ2BS20-90, CRQ2BS20-90C, CRQ2BS20-180, CRQ2BS20-180C + 86 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
