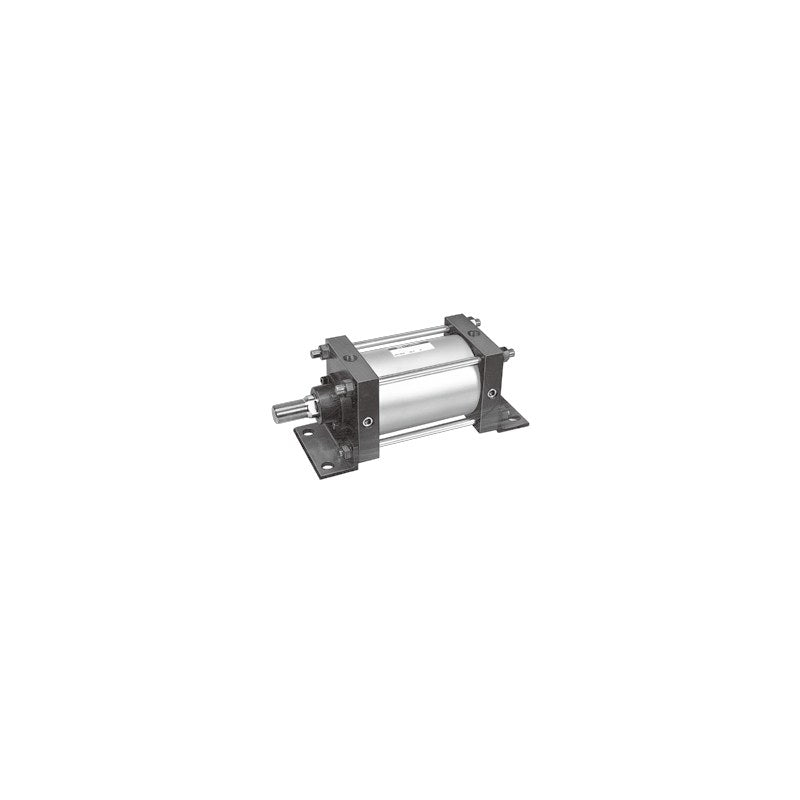

SMC CS1 Air Cylinder (Tie-rod, ø180 to ø300)

SMC CS1 series large-bore double-acting single-rod tie-rod air cylinder in ø180, ø200, ø250 and ø300, lube or non-lube type, with built-in auto switch magnet (CDS1) available up to ø200.

Key features

Seven mounting styles: basic, foot, rod/head flange, single/double clevis and center trunnion
Lube (no symbol) and non-lube (N) types; steel tube with hard chrome plated bore
Air cushion on both ends with cushion valves as standard
CDS1 version with built-in magnet for ø180 and ø200
Bellows J (nylon tarpaulin, 70°C) or K (heat-resistant tarpaulin, 110°C) as suffix; NPT (TN) and G (TF) port threads on order
Auto switch models (D-M9, D-A9, D-F59F, D-P3DWA, D-A5/A6, D-A3/A44 etc.) are ordered as suffixes on CDS1 codes

Specifications

Action	Double acting
Fluid	Air (air-hydro type: turbine oil)
Proof pressure	1.57 MPa (CDS1 ø180/200: 1.2 MPa)
Max. operating pressure	0.97 MPa (CDS1 ø180/200: 0.7 MPa)
Min. operating pressure	0.05 MPa (air-hydro 0.06 MPa)
Piston speed	50 to 500 mm/s (air-hydro 0.5 to 200 mm/s)
Ambient and fluid temperature	0 to 70°C, with auto switch 0 to 60°C (air-hydro 5 to 60°C)
Stroke tolerance	+1.0 mm (up to 250 st) to +2.6 mm (up to 2,400 st)
Port thread	Rc standard (NPT, G on order)
Max. stroke	Up to 2,400 mm by mounting; Japan Class-2 pressure vessel above ø180 1,569 / ø200 998 / ø250 813 / ø300 564 mm
Rod end thread	ø180 M40x1.5, ø200 M45x1.5, ø250 M56x2, ø300 M64x2
Source	SMC Korea catalog CS1 Series (SMCKR_CS1.pdf), p. 617-626, 630 (PDF p. 1-10, 14)

CS1B180-100		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B180-200		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B180-300		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B180-400		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B180-500		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B180-600		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B180-800		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B180-1000		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN180-100		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN180-200		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN180-300		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN180-400		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN180-500		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN180-600		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN180-800		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN180-1000		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B200-100		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B200-200		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B200-300		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B200-400		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B200-500		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B200-600		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B200-800		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN200-100		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN200-200		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN200-300		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN200-400		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN200-500		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN200-600		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1BN200-800		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1B250-100		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1B250-200		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1B250-300		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1B250-400		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1B250-500		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1B250-600		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1B250-800		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN250-100		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN250-200		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN250-300		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN250-400		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN250-500		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN250-600		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN250-800		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1B300-100		Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1B300-200		Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1B300-300		Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1B300-400		Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1B300-500		Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN300-100		Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN300-200		Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN300-300		Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN300-400		Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1BN300-500		Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1L180-100		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L180-200		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L180-300		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L180-400		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L180-500		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L180-600		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L180-800		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L180-1000		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN180-100		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN180-200		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN180-300		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN180-400		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN180-500		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN180-600		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN180-800		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN180-1000		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L200-100		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L200-200		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L200-300		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L200-400		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L200-500		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L200-600		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L200-800		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN200-100		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN200-200		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN200-300		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN200-400		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN200-500		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN200-600		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1LN200-800		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1L250-100		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1L250-200		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1L250-300		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1L250-400		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1L250-500		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1L250-600		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1L250-800		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN250-100		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN250-200		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN250-300		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN250-400		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN250-500		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN250-600		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN250-800		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1L300-100		Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1L300-200		Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1L300-300		Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1L300-400		Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1L300-500		Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN300-100		Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN300-200		Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN300-300		Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN300-400		Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1LN300-500		Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1F180-100		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F180-200		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F180-300		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F180-400		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F180-500		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F180-600		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F180-800		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F180-1000		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN180-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN180-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN180-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN180-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN180-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN180-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN180-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN180-1000		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F200-100		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F200-200		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F200-300		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F200-400		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F200-500		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F200-600		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F200-800		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN200-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN200-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN200-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN200-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN200-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN200-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1FN200-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1F250-100		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1F250-200		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1F250-300		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1F250-400		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1F250-500		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1F250-600		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1F250-800		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN250-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN250-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN250-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN250-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN250-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN250-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN250-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1F300-100		Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1F300-200		Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1F300-300		Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1F300-400		Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1F300-500		Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN300-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN300-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN300-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN300-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1FN300-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1G180-100		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G180-200		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G180-300		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G180-400		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G180-500		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G180-600		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G180-800		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G180-1000		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN180-100		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN180-200		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN180-300		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN180-400		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN180-500		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN180-600		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN180-800		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN180-1000		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G200-100		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G200-200		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G200-300		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G200-400		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G200-500		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G200-600		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G200-800		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN200-100		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN200-200		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN200-300		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN200-400		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN200-500		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN200-600		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1GN200-800		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1G250-100		Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1G250-200		Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1G250-300		Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1G250-400		Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1G250-500		Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1G250-600		Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1G250-800		Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN250-100		Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN250-200		Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN250-300		Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN250-400		Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN250-500		Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN250-600		Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN250-800		Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1G300-100		Mounting: Head flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1G300-200		Mounting: Head flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1G300-300		Mounting: Head flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1G300-400		Mounting: Head flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1G300-500		Mounting: Head flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN300-100		Mounting: Head flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN300-200		Mounting: Head flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN300-300		Mounting: Head flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN300-400		Mounting: Head flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1GN300-500		Mounting: Head flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1C180-100		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C180-200		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C180-300		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C180-400		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C180-500		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C180-600		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C180-800		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C180-1000		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN180-100		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN180-200		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN180-300		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN180-400		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN180-500		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN180-600		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN180-800		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN180-1000		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C200-100		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C200-200		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C200-300		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C200-400		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C200-500		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C200-600		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C200-800		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN200-100		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN200-200		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN200-300		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN200-400		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN200-500		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN200-600		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1CN200-800		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1C250-100		Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1C250-200		Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1C250-300		Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1C250-400		Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1C250-500		Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1C250-600		Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1C250-800		Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN250-100		Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN250-200		Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN250-300		Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN250-400		Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN250-500		Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN250-600		Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN250-800		Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1C300-100		Mounting: Single clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1C300-200		Mounting: Single clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1C300-300		Mounting: Single clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1C300-400		Mounting: Single clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1C300-500		Mounting: Single clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN300-100		Mounting: Single clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN300-200		Mounting: Single clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN300-300		Mounting: Single clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN300-400		Mounting: Single clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1CN300-500		Mounting: Single clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1D180-100		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D180-200		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D180-300		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D180-400		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D180-500		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D180-600		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D180-800		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D180-1000		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN180-100		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN180-200		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN180-300		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN180-400		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN180-500		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN180-600		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN180-800		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN180-1000		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D200-100		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D200-200		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D200-300		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D200-400		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D200-500		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D200-600		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D200-800		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN200-100		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN200-200		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN200-300		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN200-400		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN200-500		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN200-600		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1DN200-800		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1D250-100		Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1D250-200		Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1D250-300		Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1D250-400		Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1D250-500		Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1D250-600		Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1D250-800		Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN250-100		Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN250-200		Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN250-300		Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN250-400		Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN250-500		Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN250-600		Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN250-800		Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1D300-100		Mounting: Double clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1D300-200		Mounting: Double clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1D300-300		Mounting: Double clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1D300-400		Mounting: Double clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1D300-500		Mounting: Double clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN300-100		Mounting: Double clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN300-200		Mounting: Double clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN300-300		Mounting: Double clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN300-400		Mounting: Double clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1DN300-500		Mounting: Double clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1T180-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T180-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T180-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T180-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T180-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T180-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T180-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T180-1000		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN180-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN180-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN180-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN180-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN180-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN180-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN180-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN180-1000		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T200-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T200-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T200-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T200-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T200-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T200-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T200-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN200-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN200-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN200-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN200-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN200-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN200-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1TN200-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1T250-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1T250-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1T250-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1T250-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1T250-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1T250-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1T250-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN250-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN250-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN250-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN250-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN250-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN250-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN250-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1T300-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1T300-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1T300-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1T300-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1T300-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN300-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN300-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN300-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN300-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1TN300-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CDS1B180-100		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B180-200		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B180-300		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B180-400		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B180-500		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B180-600		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B180-800		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B180-1000		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN180-100		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN180-200		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN180-300		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN180-400		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN180-500		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN180-600		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN180-800		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN180-1000		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B200-100		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B200-200		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B200-300		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B200-400		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B200-500		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B200-600		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1B200-800		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN200-100		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN200-200		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN200-300		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN200-400		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN200-500		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN200-600		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1BN200-800		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L180-100		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L180-200		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L180-300		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L180-400		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L180-500		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L180-600		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L180-800		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L180-1000		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN180-100		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN180-200		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN180-300		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN180-400		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN180-500		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN180-600		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN180-800		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN180-1000		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L200-100		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L200-200		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L200-300		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L200-400		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L200-500		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L200-600		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1L200-800		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN200-100		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN200-200		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN200-300		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN200-400		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN200-500		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN200-600		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1LN200-800		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F180-100		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F180-200		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F180-300		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F180-400		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F180-500		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F180-600		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F180-800		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F180-1000		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN180-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN180-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN180-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN180-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN180-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN180-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN180-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN180-1000		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F200-100		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F200-200		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F200-300		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F200-400		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F200-500		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F200-600		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1F200-800		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN200-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN200-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN200-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN200-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN200-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN200-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1FN200-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G180-100		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G180-200		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G180-300		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G180-400		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G180-500		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G180-600		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G180-800		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G180-1000		Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN180-100		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN180-200		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN180-300		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN180-400		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN180-500		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN180-600		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN180-800		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN180-1000		Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G200-100		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G200-200		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G200-300		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G200-400		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G200-500		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G200-600		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1G200-800		Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN200-100		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN200-200		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN200-300		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN200-400		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN200-500		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN200-600		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1GN200-800		Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C180-100		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C180-200		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C180-300		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C180-400		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C180-500		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C180-600		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C180-800		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C180-1000		Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN180-100		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN180-200		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN180-300		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN180-400		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN180-500		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN180-600		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN180-800		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN180-1000		Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C200-100		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C200-200		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C200-300		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C200-400		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C200-500		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C200-600		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1C200-800		Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN200-100		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN200-200		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN200-300		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN200-400		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN200-500		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN200-600		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1CN200-800		Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D180-100		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D180-200		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D180-300		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D180-400		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D180-500		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D180-600		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D180-800		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D180-1000		Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN180-100		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN180-200		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN180-300		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN180-400		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN180-500		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN180-600		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN180-800		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN180-1000		Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D200-100		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D200-200		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D200-300		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D200-400		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D200-500		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D200-600		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1D200-800		Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN200-100		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN200-200		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN200-300		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN200-400		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN200-500		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN200-600		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1DN200-800		Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T180-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T180-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T180-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T180-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T180-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T180-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T180-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T180-1000		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN180-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN180-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN180-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN180-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN180-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN180-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN180-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN180-1000		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T200-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T200-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T200-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T200-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T200-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T200-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1T200-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN200-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN200-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN200-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN200-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN200-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN200-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1TN200-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4

Standard CylindersSMC

588 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CS1 Air Cylinder (Tie-rod, ø180 to ø300)

Brand SMC·Standard Cylinders

Available part numbers (588)

CS1B180-100, CS1B180-200, CS1B180-300, CS1B180-400, CS1B180-500, CS1B180-600, CS1B180-800, CS1B180-1000, CS1BN180-100, CS1BN180-200 + 578 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CS1B180-100	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B180-200	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B180-300	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B180-400	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B180-500	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B180-600	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B180-800	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B180-1000	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN180-100	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN180-200	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN180-300	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN180-400	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN180-500	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN180-600	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN180-800	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN180-1000	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B200-100	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B200-200	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B200-300	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B200-400	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B200-500	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B200-600	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B200-800	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN200-100	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN200-200	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN200-300	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN200-400	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN200-500	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN200-600	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1BN200-800	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1B250-100	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1B250-200	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1B250-300	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1B250-400	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1B250-500	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1B250-600	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1B250-800	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN250-100	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN250-200	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN250-300	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN250-400	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN250-500	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN250-600	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN250-800	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1B300-100	Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1B300-200	Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1B300-300	Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1B300-400	Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1B300-500	Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN300-100	Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN300-200	Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN300-300	Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN300-400	Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1BN300-500	Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L180-100	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L180-200	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L180-300	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L180-400	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L180-500	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L180-600	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L180-800	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L180-1000	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN180-100	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN180-200	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN180-300	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN180-400	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN180-500	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN180-600	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN180-800	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN180-1000	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L200-100	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L200-200	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L200-300	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L200-400	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L200-500	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L200-600	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L200-800	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN200-100	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN200-200	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN200-300	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN200-400	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN200-500	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN200-600	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1LN200-800	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1L250-100	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L250-200	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L250-300	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L250-400	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L250-500	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L250-600	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L250-800	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN250-100	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN250-200	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN250-300	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN250-400	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN250-500	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN250-600	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN250-800	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L300-100	Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L300-200	Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L300-300	Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L300-400	Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1L300-500	Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN300-100	Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN300-200	Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN300-300	Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN300-400	Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1LN300-500	Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F180-100	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F180-200	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F180-300	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F180-400	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F180-500	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F180-600	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F180-800	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F180-1000	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN180-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN180-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN180-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN180-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN180-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN180-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN180-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN180-1000	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F200-100	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F200-200	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F200-300	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F200-400	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F200-500	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F200-600	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F200-800	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN200-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN200-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN200-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN200-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN200-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN200-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1FN200-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1F250-100	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F250-200	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F250-300	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F250-400	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F250-500	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F250-600	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F250-800	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN250-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN250-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN250-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN250-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN250-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN250-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN250-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F300-100	Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F300-200	Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F300-300	Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F300-400	Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1F300-500	Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN300-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN300-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN300-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN300-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1FN300-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G180-100	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G180-200	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G180-300	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G180-400	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G180-500	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G180-600	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G180-800	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G180-1000	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN180-100	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN180-200	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN180-300	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN180-400	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN180-500	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN180-600	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN180-800	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN180-1000	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G200-100	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G200-200	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G200-300	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G200-400	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G200-500	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G200-600	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G200-800	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN200-100	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN200-200	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN200-300	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN200-400	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN200-500	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN200-600	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1GN200-800	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1G250-100	Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G250-200	Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G250-300	Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G250-400	Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G250-500	Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G250-600	Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G250-800	Mounting: Head flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN250-100	Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN250-200	Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN250-300	Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN250-400	Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN250-500	Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN250-600	Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN250-800	Mounting: Head flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G300-100	Mounting: Head flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G300-200	Mounting: Head flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G300-300	Mounting: Head flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G300-400	Mounting: Head flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1G300-500	Mounting: Head flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN300-100	Mounting: Head flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN300-200	Mounting: Head flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN300-300	Mounting: Head flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN300-400	Mounting: Head flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1GN300-500	Mounting: Head flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C180-100	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C180-200	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C180-300	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C180-400	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C180-500	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C180-600	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C180-800	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C180-1000	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN180-100	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN180-200	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN180-300	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN180-400	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN180-500	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN180-600	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN180-800	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN180-1000	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C200-100	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C200-200	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C200-300	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C200-400	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C200-500	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C200-600	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C200-800	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN200-100	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN200-200	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN200-300	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN200-400	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN200-500	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN200-600	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1CN200-800	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1C250-100	Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C250-200	Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C250-300	Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C250-400	Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C250-500	Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C250-600	Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C250-800	Mounting: Single clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN250-100	Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN250-200	Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN250-300	Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN250-400	Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN250-500	Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN250-600	Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN250-800	Mounting: Single clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C300-100	Mounting: Single clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C300-200	Mounting: Single clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C300-300	Mounting: Single clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C300-400	Mounting: Single clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1C300-500	Mounting: Single clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN300-100	Mounting: Single clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN300-200	Mounting: Single clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN300-300	Mounting: Single clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN300-400	Mounting: Single clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1CN300-500	Mounting: Single clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D180-100	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D180-200	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D180-300	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D180-400	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D180-500	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D180-600	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D180-800	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D180-1000	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN180-100	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN180-200	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN180-300	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN180-400	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN180-500	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN180-600	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN180-800	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN180-1000	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D200-100	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D200-200	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D200-300	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D200-400	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D200-500	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D200-600	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D200-800	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN200-100	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN200-200	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN200-300	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN200-400	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN200-500	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN200-600	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1DN200-800	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1D250-100	Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D250-200	Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D250-300	Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D250-400	Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D250-500	Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D250-600	Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D250-800	Mounting: Double clevis \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN250-100	Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN250-200	Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN250-300	Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN250-400	Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN250-500	Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN250-600	Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN250-800	Mounting: Double clevis \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D300-100	Mounting: Double clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D300-200	Mounting: Double clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D300-300	Mounting: Double clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D300-400	Mounting: Double clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1D300-500	Mounting: Double clevis \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN300-100	Mounting: Double clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN300-200	Mounting: Double clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN300-300	Mounting: Double clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN300-400	Mounting: Double clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1DN300-500	Mounting: Double clevis \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T180-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T180-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T180-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T180-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T180-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T180-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T180-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T180-1000	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN180-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN180-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN180-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN180-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN180-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN180-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN180-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN180-1000	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T200-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T200-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T200-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T200-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T200-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T200-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T200-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN200-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN200-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN200-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN200-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN200-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN200-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1TN200-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1T250-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T250-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T250-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T250-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T250-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T250-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T250-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN250-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN250-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN250-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN250-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN250-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN250-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN250-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T300-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T300-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T300-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T300-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1T300-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN300-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN300-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN300-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN300-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1TN300-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CDS1B180-100	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B180-200	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B180-300	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B180-400	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B180-500	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B180-600	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B180-800	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B180-1000	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN180-100	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN180-200	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN180-300	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN180-400	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN180-500	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN180-600	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN180-800	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN180-1000	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B200-100	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B200-200	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B200-300	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B200-400	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B200-500	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B200-600	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1B200-800	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN200-100	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN200-200	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN200-300	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN200-400	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN200-500	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN200-600	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1BN200-800	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L180-100	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L180-200	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L180-300	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L180-400	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L180-500	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L180-600	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L180-800	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L180-1000	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN180-100	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN180-200	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN180-300	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN180-400	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN180-500	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN180-600	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN180-800	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN180-1000	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L200-100	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L200-200	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L200-300	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L200-400	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L200-500	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L200-600	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1L200-800	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN200-100	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN200-200	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN200-300	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN200-400	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN200-500	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN200-600	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1LN200-800	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F180-100	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F180-200	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F180-300	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F180-400	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F180-500	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F180-600	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F180-800	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F180-1000	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN180-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN180-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN180-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN180-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN180-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN180-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN180-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN180-1000	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F200-100	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F200-200	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F200-300	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F200-400	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F200-500	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F200-600	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1F200-800	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN200-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN200-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN200-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN200-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN200-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN200-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1FN200-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G180-100	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G180-200	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G180-300	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G180-400	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G180-500	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G180-600	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G180-800	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G180-1000	Mounting: Head flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN180-100	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN180-200	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN180-300	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN180-400	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN180-500	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN180-600	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN180-800	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN180-1000	Mounting: Head flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G200-100	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G200-200	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G200-300	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G200-400	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G200-500	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G200-600	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1G200-800	Mounting: Head flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN200-100	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN200-200	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN200-300	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN200-400	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN200-500	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN200-600	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1GN200-800	Mounting: Head flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C180-100	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C180-200	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C180-300	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C180-400	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C180-500	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C180-600	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C180-800	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C180-1000	Mounting: Single clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN180-100	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN180-200	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN180-300	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN180-400	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN180-500	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN180-600	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN180-800	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN180-1000	Mounting: Single clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C200-100	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C200-200	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C200-300	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C200-400	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C200-500	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C200-600	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1C200-800	Mounting: Single clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN200-100	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN200-200	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN200-300	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN200-400	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN200-500	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN200-600	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1CN200-800	Mounting: Single clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D180-100	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D180-200	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D180-300	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D180-400	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D180-500	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D180-600	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D180-800	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D180-1000	Mounting: Double clevis \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN180-100	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN180-200	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN180-300	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN180-400	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN180-500	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN180-600	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN180-800	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN180-1000	Mounting: Double clevis \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D200-100	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D200-200	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D200-300	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D200-400	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D200-500	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D200-600	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1D200-800	Mounting: Double clevis \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN200-100	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN200-200	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN200-300	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN200-400	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN200-500	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN200-600	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1DN200-800	Mounting: Double clevis \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T180-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T180-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T180-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T180-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T180-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T180-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T180-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T180-1000	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN180-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN180-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN180-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN180-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN180-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN180-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN180-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN180-1000	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T200-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T200-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T200-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T200-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T200-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T200-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1T200-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN200-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN200-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN200-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN200-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN200-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN200-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1TN200-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CS1 Air Cylinder (Tie-rod, ø180 to ø300)
