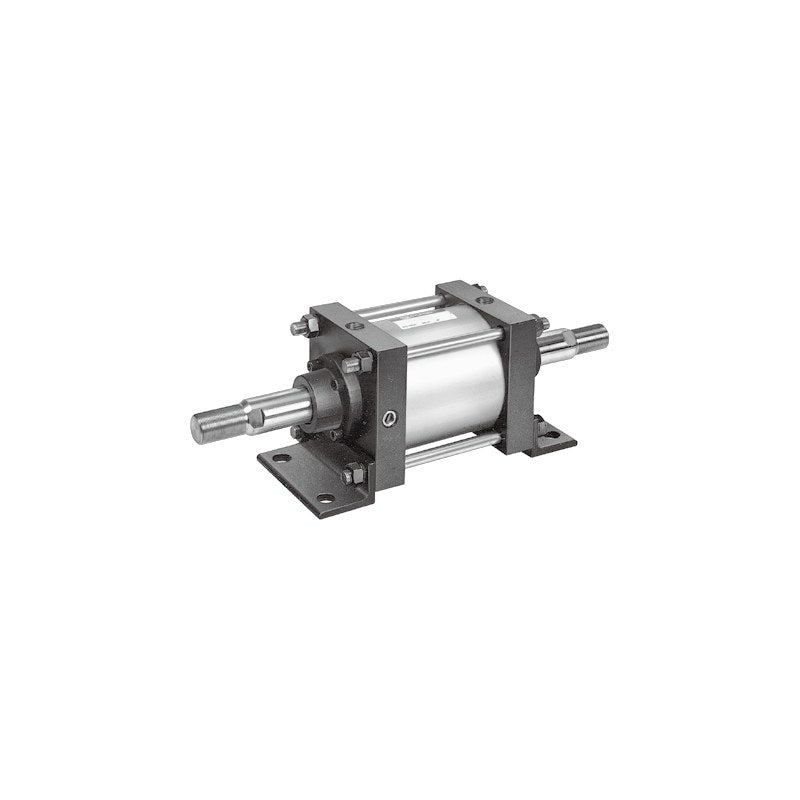

SMC CS1W Double Rod Air Cylinder (Tie-rod, ø125 to ø300)

SMC CS1W series large-bore double-acting double-rod tie-rod air cylinder from ø125 to ø300, lube, non-lube or air-hydro type, with built-in auto switch magnet (CDS1W) up to ø200.

Key features

Double rod (through rod) design with equal thrust and area on both sides
Four mounting styles: basic, foot, rod flange and center trunnion
Lube, non-lube (N) and air-hydro (H, ø125 to ø160) types
Bellows on one side (J, K) or both sides (JJ, KK); cushion N/R/H selection as suffix
CDS1W built-in magnet version for ø125 to ø200; auto switches ordered as suffixes

Specifications

Action	Double acting, double rod
Fluid	Air (air-hydro type: turbine oil)
Proof pressure	1.57 MPa
Max. operating pressure	0.97 MPa
Min. operating pressure	0.05 MPa (air-hydro 0.06 MPa)
Piston speed	50 to 500 mm/s (air-hydro 0.5 to 200 mm/s)
Cushion	Air cushion (air-hydro: none)
Ambient and fluid temperature	0 to 70°C, with auto switch 0 to 60°C
Port thread	Rc standard (NPT, G on order)
Source	SMC Korea catalog CS1 Series (SMCKR_CS1.pdf), p. 638-639 (PDF p. 22-23)

CS1WB125-100		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB125-200		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB125-300		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB125-400		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB125-500		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB125-600		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB125-800		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB125-1000		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN125-100		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN125-200		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN125-300		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN125-400		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN125-500		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN125-600		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN125-800		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN125-1000		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH125-100		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH125-200		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH125-300		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH125-400		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH125-500		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH125-600		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH125-800		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH125-1000		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB140-100		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB140-200		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB140-300		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB140-400		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB140-500		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB140-600		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB140-800		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB140-1000		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN140-100		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN140-200		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN140-300		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN140-400		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN140-500		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN140-600		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN140-800		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBN140-1000		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH140-100		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH140-200		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH140-300		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH140-400		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH140-500		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH140-600		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH140-800		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WBH140-1000		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WB160-100		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB160-200		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB160-300		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB160-400		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB160-500		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB160-600		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB160-800		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB160-1000		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN160-100		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN160-200		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN160-300		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN160-400		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN160-500		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN160-600		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN160-800		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN160-1000		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBH160-100		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBH160-200		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBH160-300		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBH160-400		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBH160-500		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBH160-600		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBH160-800		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBH160-1000		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB180-100		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB180-200		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB180-300		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB180-400		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB180-500		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB180-600		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB180-800		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB180-1000		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN180-100		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN180-200		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN180-300		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN180-400		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN180-500		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN180-600		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN180-800		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN180-1000		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB200-100		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB200-200		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB200-300		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB200-400		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB200-500		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB200-600		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB200-800		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN200-100		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN200-200		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN200-300		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN200-400		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN200-500		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN200-600		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WBN200-800		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WB250-100		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WB250-200		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WB250-300		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WB250-400		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WB250-500		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WB250-600		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1WB250-800		Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN250-100		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN250-200		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN250-300		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN250-400		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN250-500		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN250-600		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN250-800		Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1WB300-100		Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WB300-200		Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WB300-300		Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WB300-400		Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WB300-500		Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN300-100		Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN300-200		Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN300-300		Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN300-400		Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WBN300-500		Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL125-100		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL125-200		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL125-300		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL125-400		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL125-500		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL125-600		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL125-800		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL125-1000		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN125-100		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN125-200		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN125-300		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN125-400		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN125-500		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN125-600		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN125-800		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN125-1000		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH125-100		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH125-200		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH125-300		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH125-400		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH125-500		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH125-600		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH125-800		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH125-1000		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL140-100		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL140-200		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL140-300		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL140-400		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL140-500		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL140-600		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL140-800		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL140-1000		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN140-100		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN140-200		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN140-300		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN140-400		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN140-500		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN140-600		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN140-800		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLN140-1000		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH140-100		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH140-200		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH140-300		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH140-400		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH140-500		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH140-600		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH140-800		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WLH140-1000		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WL160-100		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL160-200		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL160-300		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL160-400		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL160-500		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL160-600		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL160-800		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL160-1000		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN160-100		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN160-200		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN160-300		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN160-400		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN160-500		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN160-600		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN160-800		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN160-1000		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLH160-100		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLH160-200		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLH160-300		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLH160-400		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLH160-500		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLH160-600		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLH160-800		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLH160-1000		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL180-100		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL180-200		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL180-300		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL180-400		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL180-500		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL180-600		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL180-800		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL180-1000		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN180-100		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN180-200		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN180-300		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN180-400		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN180-500		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN180-600		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN180-800		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN180-1000		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL200-100		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL200-200		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL200-300		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL200-400		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL200-500		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL200-600		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL200-800		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN200-100		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN200-200		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN200-300		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN200-400		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN200-500		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN200-600		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WLN200-800		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WL250-100		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL250-200		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL250-300		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL250-400		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL250-500		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL250-600		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL250-800		Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN250-100		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN250-200		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN250-300		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN250-400		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN250-500		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN250-600		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN250-800		Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL300-100		Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL300-200		Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL300-300		Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL300-400		Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WL300-500		Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN300-100		Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN300-200		Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN300-300		Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN300-400		Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WLN300-500		Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF125-100		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF125-200		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF125-300		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF125-400		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF125-500		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF125-600		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF125-800		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF125-1000		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN125-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN125-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN125-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN125-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN125-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN125-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN125-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN125-1000		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH125-100		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH125-200		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH125-300		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH125-400		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH125-500		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH125-600		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH125-800		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH125-1000		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF140-100		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF140-200		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF140-300		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF140-400		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF140-500		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF140-600		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF140-800		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF140-1000		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN140-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN140-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN140-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN140-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN140-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN140-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN140-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFN140-1000		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH140-100		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH140-200		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH140-300		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH140-400		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH140-500		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH140-600		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH140-800		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WFH140-1000		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WF160-100		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF160-200		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF160-300		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF160-400		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF160-500		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF160-600		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF160-800		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF160-1000		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN160-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN160-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN160-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN160-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN160-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN160-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN160-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN160-1000		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFH160-100		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFH160-200		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFH160-300		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFH160-400		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFH160-500		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFH160-600		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFH160-800		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFH160-1000		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF180-100		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF180-200		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF180-300		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF180-400		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF180-500		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF180-600		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF180-800		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF180-1000		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN180-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN180-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN180-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN180-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN180-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN180-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN180-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN180-1000		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF200-100		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF200-200		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF200-300		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF200-400		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF200-500		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF200-600		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF200-800		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN200-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN200-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN200-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN200-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN200-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN200-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WFN200-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WF250-100		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF250-200		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF250-300		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF250-400		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF250-500		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF250-600		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF250-800		Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN250-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN250-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN250-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN250-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN250-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN250-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN250-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF300-100		Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF300-200		Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF300-300		Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF300-400		Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WF300-500		Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN300-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN300-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN300-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN300-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WFN300-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT125-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT125-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT125-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT125-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT125-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT125-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT125-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT125-1000		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN125-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN125-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN125-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN125-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN125-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN125-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN125-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN125-1000		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH125-100		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH125-200		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH125-300		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH125-400		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH125-500		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH125-600		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH125-800		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH125-1000		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT140-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT140-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT140-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT140-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT140-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT140-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT140-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT140-1000		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN140-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN140-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN140-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN140-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN140-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN140-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN140-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTN140-1000		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH140-100		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH140-200		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH140-300		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH140-400		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH140-500		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH140-600		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH140-800		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WTH140-1000		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS1WT160-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT160-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT160-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT160-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT160-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT160-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT160-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT160-1000		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN160-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN160-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN160-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN160-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN160-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN160-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN160-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN160-1000		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTH160-100		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTH160-200		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTH160-300		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTH160-400		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTH160-500		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTH160-600		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTH160-800		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTH160-1000		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT180-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT180-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT180-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT180-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT180-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT180-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT180-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT180-1000		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN180-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN180-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN180-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN180-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN180-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN180-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN180-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN180-1000		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT200-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT200-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT200-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT200-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT200-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT200-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT200-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN200-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN200-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN200-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN200-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN200-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN200-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WTN200-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS1WT250-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT250-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT250-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT250-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT250-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT250-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT250-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN250-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN250-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN250-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN250-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN250-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN250-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN250-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT300-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT300-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT300-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT300-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WT300-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN300-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN300-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN300-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN300-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
CS1WTN300-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
CDS1WB125-100		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB125-200		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB125-300		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB125-400		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB125-500		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB125-600		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB125-800		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB125-1000		Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN125-100		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN125-200		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN125-300		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN125-400		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN125-500		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN125-600		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN125-800		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN125-1000		Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH125-100		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH125-200		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH125-300		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH125-400		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH125-500		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH125-600		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH125-800		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH125-1000		Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB140-100		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB140-200		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB140-300		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB140-400		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB140-500		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB140-600		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB140-800		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB140-1000		Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN140-100		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN140-200		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN140-300		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN140-400		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN140-500		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN140-600		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN140-800		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBN140-1000		Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH140-100		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH140-200		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH140-300		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH140-400		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH140-500		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH140-600		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH140-800		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WBH140-1000		Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WB160-100		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB160-200		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB160-300		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB160-400		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB160-500		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB160-600		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB160-800		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB160-1000		Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN160-100		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN160-200		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN160-300		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN160-400		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN160-500		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN160-600		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN160-800		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN160-1000		Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBH160-100		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBH160-200		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBH160-300		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBH160-400		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBH160-500		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBH160-600		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBH160-800		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBH160-1000		Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB180-100		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB180-200		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB180-300		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB180-400		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB180-500		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB180-600		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB180-800		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB180-1000		Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN180-100		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN180-200		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN180-300		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN180-400		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN180-500		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN180-600		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN180-800		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN180-1000		Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB200-100		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB200-200		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB200-300		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB200-400		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB200-500		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB200-600		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WB200-800		Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN200-100		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN200-200		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN200-300		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN200-400		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN200-500		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN200-600		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WBN200-800		Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL125-100		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL125-200		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL125-300		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL125-400		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL125-500		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL125-600		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL125-800		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL125-1000		Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN125-100		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN125-200		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN125-300		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN125-400		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN125-500		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN125-600		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN125-800		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN125-1000		Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH125-100		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH125-200		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH125-300		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH125-400		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH125-500		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH125-600		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH125-800		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH125-1000		Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL140-100		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL140-200		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL140-300		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL140-400		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL140-500		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL140-600		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL140-800		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL140-1000		Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN140-100		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN140-200		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN140-300		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN140-400		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN140-500		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN140-600		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN140-800		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLN140-1000		Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH140-100		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH140-200		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH140-300		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH140-400		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH140-500		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH140-600		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH140-800		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WLH140-1000		Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WL160-100		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL160-200		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL160-300		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL160-400		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL160-500		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL160-600		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL160-800		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL160-1000		Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN160-100		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN160-200		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN160-300		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN160-400		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN160-500		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN160-600		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN160-800		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN160-1000		Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLH160-100		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLH160-200		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLH160-300		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLH160-400		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLH160-500		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLH160-600		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLH160-800		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLH160-1000		Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL180-100		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL180-200		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL180-300		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL180-400		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL180-500		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL180-600		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL180-800		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL180-1000		Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN180-100		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN180-200		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN180-300		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN180-400		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN180-500		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN180-600		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN180-800		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN180-1000		Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL200-100		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL200-200		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL200-300		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL200-400		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL200-500		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL200-600		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WL200-800		Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN200-100		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN200-200		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN200-300		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN200-400		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN200-500		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN200-600		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WLN200-800		Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF125-100		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF125-200		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF125-300		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF125-400		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF125-500		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF125-600		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF125-800		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF125-1000		Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN125-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN125-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN125-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN125-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN125-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN125-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN125-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN125-1000		Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH125-100		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH125-200		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH125-300		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH125-400		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH125-500		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH125-600		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH125-800		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH125-1000		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF140-100		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF140-200		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF140-300		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF140-400		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF140-500		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF140-600		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF140-800		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF140-1000		Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN140-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN140-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN140-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN140-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN140-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN140-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN140-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFN140-1000		Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH140-100		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH140-200		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH140-300		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH140-400		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH140-500		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH140-600		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH140-800		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WFH140-1000		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WF160-100		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF160-200		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF160-300		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF160-400		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF160-500		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF160-600		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF160-800		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF160-1000		Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN160-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN160-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN160-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN160-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN160-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN160-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN160-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN160-1000		Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFH160-100		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFH160-200		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFH160-300		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFH160-400		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFH160-500		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFH160-600		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFH160-800		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFH160-1000		Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF180-100		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF180-200		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF180-300		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF180-400		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF180-500		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF180-600		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF180-800		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF180-1000		Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN180-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN180-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN180-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN180-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN180-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN180-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN180-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN180-1000		Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF200-100		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF200-200		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF200-300		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF200-400		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF200-500		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF200-600		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WF200-800		Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN200-100		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN200-200		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN200-300		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN200-400		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN200-500		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN200-600		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WFN200-800		Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT125-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT125-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT125-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT125-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT125-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT125-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT125-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT125-1000		Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN125-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN125-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN125-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN125-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN125-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN125-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN125-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN125-1000		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH125-100		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH125-200		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH125-300		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH125-400		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH125-500		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH125-600		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH125-800		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH125-1000		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT140-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT140-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT140-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT140-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT140-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT140-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT140-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT140-1000		Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN140-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN140-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN140-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN140-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN140-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN140-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN140-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTN140-1000		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH140-100		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH140-200		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH140-300		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH140-400		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH140-500		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH140-600		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH140-800		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WTH140-1000		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS1WT160-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT160-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT160-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT160-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT160-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT160-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT160-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT160-1000		Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN160-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN160-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN160-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN160-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN160-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN160-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN160-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN160-1000		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTH160-100		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTH160-200		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTH160-300		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTH160-400		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTH160-500		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTH160-600		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTH160-800		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTH160-1000		Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT180-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT180-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT180-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT180-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT180-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT180-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT180-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT180-1000		Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN180-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN180-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN180-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN180-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN180-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN180-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN180-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN180-1000		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT200-100		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT200-200		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT200-300		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT200-400		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT200-500		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT200-600		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WT200-800		Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN200-100		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN200-200		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN200-300		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN200-400		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN200-500		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN200-600		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS1WTN200-800		Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4

Standard CylindersSMC

912 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CS1W Double Rod Air Cylinder (Tie-rod, ø125 to ø300)

Brand SMC·Standard Cylinders

Available part numbers (912)

CS1WB125-100, CS1WB125-200, CS1WB125-300, CS1WB125-400, CS1WB125-500, CS1WB125-600, CS1WB125-800, CS1WB125-1000, CS1WBN125-100, CS1WBN125-200 + 902 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CS1WB125-100	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB125-200	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB125-300	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB125-400	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB125-500	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB125-600	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB125-800	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB125-1000	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN125-100	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN125-200	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN125-300	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN125-400	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN125-500	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN125-600	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN125-800	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN125-1000	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH125-100	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH125-200	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH125-300	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH125-400	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH125-500	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH125-600	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH125-800	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH125-1000	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB140-100	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB140-200	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB140-300	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB140-400	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB140-500	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB140-600	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB140-800	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB140-1000	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN140-100	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN140-200	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN140-300	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN140-400	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN140-500	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN140-600	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN140-800	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBN140-1000	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH140-100	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH140-200	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH140-300	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH140-400	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH140-500	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH140-600	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH140-800	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WBH140-1000	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WB160-100	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB160-200	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB160-300	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB160-400	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB160-500	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB160-600	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB160-800	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB160-1000	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN160-100	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN160-200	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN160-300	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN160-400	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN160-500	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN160-600	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN160-800	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN160-1000	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBH160-100	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBH160-200	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBH160-300	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBH160-400	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBH160-500	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBH160-600	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBH160-800	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBH160-1000	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB180-100	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB180-200	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB180-300	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB180-400	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB180-500	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB180-600	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB180-800	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB180-1000	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN180-100	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN180-200	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN180-300	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN180-400	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN180-500	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN180-600	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN180-800	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN180-1000	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB200-100	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB200-200	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB200-300	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB200-400	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB200-500	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB200-600	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB200-800	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN200-100	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN200-200	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN200-300	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN200-400	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN200-500	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN200-600	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WBN200-800	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WB250-100	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WB250-200	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WB250-300	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WB250-400	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WB250-500	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WB250-600	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WB250-800	Mounting: Basic \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN250-100	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN250-200	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN250-300	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN250-400	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN250-500	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN250-600	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN250-800	Mounting: Basic \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WB300-100	Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WB300-200	Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WB300-300	Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WB300-400	Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WB300-500	Mounting: Basic \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN300-100	Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN300-200	Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN300-300	Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN300-400	Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WBN300-500	Mounting: Basic \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL125-100	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL125-200	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL125-300	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL125-400	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL125-500	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL125-600	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL125-800	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL125-1000	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN125-100	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN125-200	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN125-300	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN125-400	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN125-500	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN125-600	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN125-800	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN125-1000	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH125-100	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH125-200	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH125-300	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH125-400	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH125-500	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH125-600	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH125-800	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH125-1000	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL140-100	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL140-200	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL140-300	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL140-400	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL140-500	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL140-600	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL140-800	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL140-1000	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN140-100	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN140-200	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN140-300	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN140-400	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN140-500	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN140-600	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN140-800	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLN140-1000	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH140-100	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH140-200	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH140-300	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH140-400	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH140-500	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH140-600	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH140-800	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WLH140-1000	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WL160-100	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL160-200	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL160-300	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL160-400	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL160-500	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL160-600	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL160-800	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL160-1000	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN160-100	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN160-200	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN160-300	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN160-400	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN160-500	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN160-600	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN160-800	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN160-1000	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLH160-100	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLH160-200	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLH160-300	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLH160-400	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLH160-500	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLH160-600	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLH160-800	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLH160-1000	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL180-100	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL180-200	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL180-300	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL180-400	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL180-500	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL180-600	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL180-800	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL180-1000	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN180-100	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN180-200	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN180-300	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN180-400	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN180-500	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN180-600	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN180-800	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN180-1000	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL200-100	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL200-200	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL200-300	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL200-400	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL200-500	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL200-600	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL200-800	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN200-100	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN200-200	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN200-300	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN200-400	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN200-500	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN200-600	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WLN200-800	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WL250-100	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL250-200	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL250-300	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL250-400	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL250-500	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL250-600	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL250-800	Mounting: Foot \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN250-100	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN250-200	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN250-300	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN250-400	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN250-500	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN250-600	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN250-800	Mounting: Foot \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL300-100	Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL300-200	Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL300-300	Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL300-400	Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WL300-500	Mounting: Foot \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN300-100	Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN300-200	Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN300-300	Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN300-400	Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WLN300-500	Mounting: Foot \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF125-100	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF125-200	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF125-300	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF125-400	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF125-500	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF125-600	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF125-800	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF125-1000	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN125-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN125-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN125-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN125-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN125-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN125-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN125-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN125-1000	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH125-100	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH125-200	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH125-300	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH125-400	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH125-500	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH125-600	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH125-800	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH125-1000	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF140-100	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF140-200	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF140-300	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF140-400	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF140-500	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF140-600	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF140-800	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF140-1000	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN140-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN140-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN140-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN140-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN140-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN140-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN140-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFN140-1000	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH140-100	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH140-200	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH140-300	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH140-400	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH140-500	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH140-600	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH140-800	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WFH140-1000	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WF160-100	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF160-200	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF160-300	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF160-400	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF160-500	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF160-600	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF160-800	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF160-1000	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN160-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN160-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN160-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN160-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN160-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN160-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN160-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN160-1000	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFH160-100	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFH160-200	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFH160-300	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFH160-400	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFH160-500	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFH160-600	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFH160-800	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFH160-1000	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF180-100	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF180-200	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF180-300	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF180-400	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF180-500	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF180-600	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF180-800	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF180-1000	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN180-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN180-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN180-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN180-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN180-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN180-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN180-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN180-1000	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF200-100	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF200-200	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF200-300	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF200-400	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF200-500	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF200-600	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF200-800	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN200-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN200-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN200-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN200-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN200-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN200-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WFN200-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WF250-100	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF250-200	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF250-300	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF250-400	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF250-500	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF250-600	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF250-800	Mounting: Rod flange \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN250-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN250-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN250-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN250-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN250-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN250-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN250-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF300-100	Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF300-200	Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF300-300	Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF300-400	Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WF300-500	Mounting: Rod flange \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN300-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN300-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN300-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN300-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WFN300-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT125-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT125-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT125-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT125-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT125-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT125-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT125-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT125-1000	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN125-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN125-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN125-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN125-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN125-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN125-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN125-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN125-1000	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH125-100	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH125-200	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH125-300	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH125-400	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH125-500	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH125-600	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH125-800	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH125-1000	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT140-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT140-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT140-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT140-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT140-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT140-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT140-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT140-1000	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN140-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN140-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN140-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN140-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN140-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN140-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN140-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTN140-1000	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH140-100	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH140-200	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH140-300	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH140-400	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH140-500	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH140-600	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH140-800	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WTH140-1000	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS1WT160-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT160-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT160-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT160-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT160-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT160-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT160-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT160-1000	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN160-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN160-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN160-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN160-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN160-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN160-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN160-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN160-1000	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTH160-100	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTH160-200	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTH160-300	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTH160-400	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTH160-500	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTH160-600	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTH160-800	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTH160-1000	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT180-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT180-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT180-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT180-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT180-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT180-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT180-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT180-1000	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN180-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN180-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN180-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN180-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN180-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN180-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN180-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN180-1000	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT200-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT200-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT200-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT200-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT200-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT200-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT200-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN200-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN200-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN200-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN200-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN200-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN200-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WTN200-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS1WT250-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT250-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT250-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT250-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT250-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT250-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT250-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN250-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN250-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN250-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN250-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN250-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN250-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN250-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT300-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT300-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT300-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT300-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WT300-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN300-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN300-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN300-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN300-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1
	CS1WTN300-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø300 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1
	CDS1WB125-100	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB125-200	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB125-300	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB125-400	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB125-500	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB125-600	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB125-800	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB125-1000	Mounting: Basic \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN125-100	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN125-200	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN125-300	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN125-400	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN125-500	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN125-600	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN125-800	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN125-1000	Mounting: Basic \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH125-100	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH125-200	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH125-300	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH125-400	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH125-500	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH125-600	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH125-800	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH125-1000	Mounting: Basic \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB140-100	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB140-200	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB140-300	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB140-400	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB140-500	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB140-600	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB140-800	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB140-1000	Mounting: Basic \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN140-100	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN140-200	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN140-300	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN140-400	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN140-500	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN140-600	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN140-800	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBN140-1000	Mounting: Basic \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH140-100	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH140-200	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH140-300	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH140-400	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH140-500	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH140-600	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH140-800	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WBH140-1000	Mounting: Basic \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WB160-100	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB160-200	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB160-300	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB160-400	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB160-500	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB160-600	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB160-800	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB160-1000	Mounting: Basic \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN160-100	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN160-200	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN160-300	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN160-400	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN160-500	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN160-600	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN160-800	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN160-1000	Mounting: Basic \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBH160-100	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBH160-200	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBH160-300	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBH160-400	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBH160-500	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBH160-600	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBH160-800	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBH160-1000	Mounting: Basic \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB180-100	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB180-200	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB180-300	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB180-400	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB180-500	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB180-600	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB180-800	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB180-1000	Mounting: Basic \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN180-100	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN180-200	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN180-300	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN180-400	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN180-500	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN180-600	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN180-800	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN180-1000	Mounting: Basic \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB200-100	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB200-200	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB200-300	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB200-400	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB200-500	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB200-600	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WB200-800	Mounting: Basic \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN200-100	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN200-200	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN200-300	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN200-400	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN200-500	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN200-600	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WBN200-800	Mounting: Basic \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL125-100	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL125-200	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL125-300	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL125-400	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL125-500	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL125-600	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL125-800	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL125-1000	Mounting: Foot \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN125-100	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN125-200	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN125-300	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN125-400	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN125-500	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN125-600	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN125-800	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN125-1000	Mounting: Foot \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH125-100	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH125-200	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH125-300	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH125-400	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH125-500	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH125-600	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH125-800	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH125-1000	Mounting: Foot \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL140-100	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL140-200	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL140-300	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL140-400	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL140-500	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL140-600	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL140-800	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL140-1000	Mounting: Foot \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN140-100	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN140-200	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN140-300	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN140-400	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN140-500	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN140-600	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN140-800	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLN140-1000	Mounting: Foot \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH140-100	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH140-200	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH140-300	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH140-400	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH140-500	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH140-600	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH140-800	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WLH140-1000	Mounting: Foot \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WL160-100	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL160-200	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL160-300	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL160-400	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL160-500	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL160-600	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL160-800	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL160-1000	Mounting: Foot \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN160-100	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN160-200	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN160-300	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN160-400	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN160-500	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN160-600	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN160-800	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN160-1000	Mounting: Foot \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLH160-100	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLH160-200	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLH160-300	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLH160-400	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLH160-500	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLH160-600	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLH160-800	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLH160-1000	Mounting: Foot \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL180-100	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL180-200	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL180-300	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL180-400	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL180-500	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL180-600	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL180-800	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL180-1000	Mounting: Foot \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN180-100	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN180-200	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN180-300	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN180-400	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN180-500	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN180-600	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN180-800	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN180-1000	Mounting: Foot \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL200-100	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL200-200	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL200-300	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL200-400	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL200-500	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL200-600	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WL200-800	Mounting: Foot \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN200-100	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN200-200	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN200-300	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN200-400	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN200-500	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN200-600	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WLN200-800	Mounting: Foot \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF125-100	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF125-200	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF125-300	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF125-400	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF125-500	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF125-600	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF125-800	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF125-1000	Mounting: Rod flange \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN125-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN125-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN125-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN125-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN125-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN125-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN125-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN125-1000	Mounting: Rod flange \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH125-100	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH125-200	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH125-300	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH125-400	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH125-500	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH125-600	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH125-800	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH125-1000	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF140-100	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF140-200	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF140-300	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF140-400	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF140-500	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF140-600	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF140-800	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF140-1000	Mounting: Rod flange \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN140-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN140-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN140-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN140-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN140-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN140-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN140-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFN140-1000	Mounting: Rod flange \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH140-100	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH140-200	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH140-300	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH140-400	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH140-500	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH140-600	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH140-800	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WFH140-1000	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WF160-100	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF160-200	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF160-300	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF160-400	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF160-500	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF160-600	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF160-800	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF160-1000	Mounting: Rod flange \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN160-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN160-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN160-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN160-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN160-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN160-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN160-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN160-1000	Mounting: Rod flange \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFH160-100	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFH160-200	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFH160-300	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFH160-400	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFH160-500	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFH160-600	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFH160-800	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFH160-1000	Mounting: Rod flange \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF180-100	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF180-200	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF180-300	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF180-400	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF180-500	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF180-600	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF180-800	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF180-1000	Mounting: Rod flange \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN180-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN180-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN180-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN180-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN180-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN180-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN180-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN180-1000	Mounting: Rod flange \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF200-100	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF200-200	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF200-300	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF200-400	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF200-500	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF200-600	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WF200-800	Mounting: Rod flange \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN200-100	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN200-200	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN200-300	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN200-400	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN200-500	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN200-600	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WFN200-800	Mounting: Rod flange \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT125-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT125-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT125-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT125-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT125-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT125-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT125-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT125-1000	Mounting: Center trunnion \| Type: Lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN125-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN125-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN125-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN125-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN125-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN125-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN125-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN125-1000	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH125-100	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH125-200	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH125-300	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH125-400	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH125-500	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH125-600	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH125-800	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH125-1000	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT140-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT140-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT140-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT140-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT140-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT140-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT140-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT140-1000	Mounting: Center trunnion \| Type: Lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN140-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN140-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN140-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN140-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN140-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN140-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN140-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTN140-1000	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH140-100	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH140-200	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH140-300	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH140-400	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH140-500	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH140-600	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH140-800	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WTH140-1000	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS1WT160-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT160-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT160-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT160-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT160-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT160-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT160-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT160-1000	Mounting: Center trunnion \| Type: Lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN160-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN160-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN160-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN160-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN160-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN160-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN160-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN160-1000	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTH160-100	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTH160-200	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTH160-300	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTH160-400	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTH160-500	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTH160-600	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTH160-800	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTH160-1000	Mounting: Center trunnion \| Type: Air-hydro \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT180-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT180-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT180-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT180-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT180-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT180-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT180-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT180-1000	Mounting: Center trunnion \| Type: Lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN180-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN180-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN180-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN180-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN180-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN180-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN180-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN180-1000	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT200-100	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT200-200	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT200-300	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT200-400	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT200-500	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT200-600	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WT200-800	Mounting: Center trunnion \| Type: Lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN200-100	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN200-200	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN200-300	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN200-400	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN200-500	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN200-600	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS1WTN200-800	Mounting: Center trunnion \| Type: Non-lube \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CS1W Double Rod Air Cylinder (Tie-rod, ø125 to ø300)
