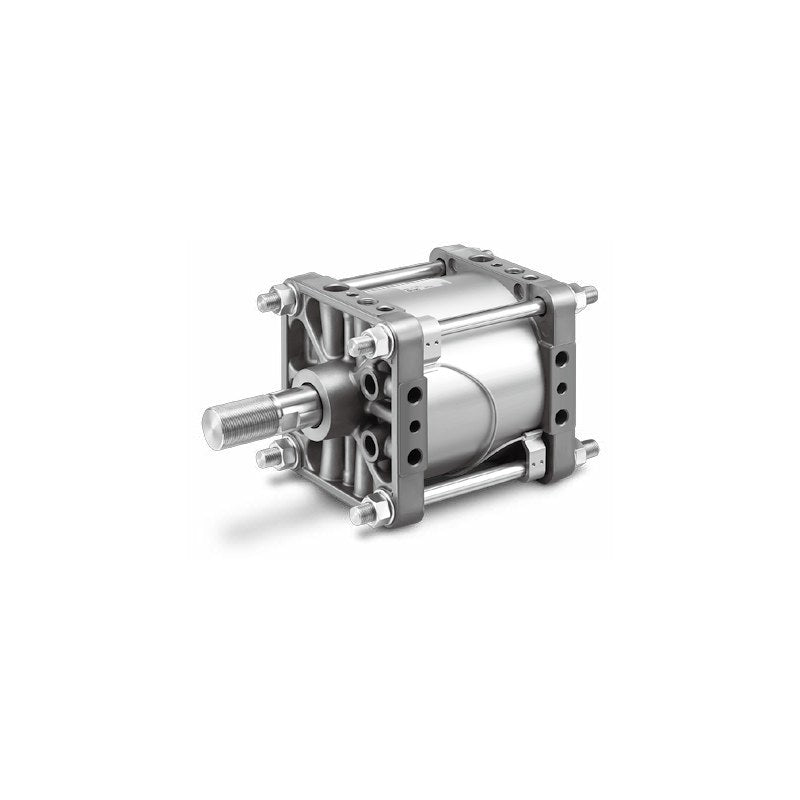

SMC CS2 Air Cylinder (Tie-rod, ø125 to ø320)

SMC CS2 series lightweight, high-rigidity large-bore tie-rod air cylinder, double acting single rod, ø125 to ø320, with optional built-in auto switch magnet (CDS2).

Key features

Lighter and more rigid than CS1; allowable lateral load at rod end up to 900 N
Seven mounting styles: basic, foot, rod/head flange, single/double clevis, center trunnion
Non-lube; air cushion (ø125-160) or air cushion plus damper cushion (ø180-320)
CDS2 built-in magnet version; tie-rod and band mounted auto switches ordered as suffixes
Bellows J (nylon tarpaulin) or K (heat-resistant tarpaulin) and made-to-order -X options as suffixes

Specifications

Action	Double acting, single rod
Fluid	Air
Proof pressure	ø125-160 1.57 MPa, ø180-320 1.2 MPa
Max. operating pressure	ø125-160 0.97 MPa, ø180-320 0.7 MPa
Min. operating pressure	0.05 MPa
Piston speed	ø125-160 50 to 500 mm/s, ø180-320 50 to 300 mm/s
Cushion	ø125-160 air cushion, ø180-320 air cushion + damper cushion
Ambient and fluid temperature	0 to 70°C, with auto switch 0 to 60°C
Lubrication	Not required (non-lube)
Port thread	Rc standard (NPT, G on order)
Allowable kinetic energy	32.3 J (ø125) to 265 J (ø320)
Source	SMC Korea catalog CS2 Series (SMCKR_CS2.pdf), p. 3-7, 12-13 (PDF p. 4-8, 13-14)

CS2B125-100		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B125-200		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B125-300		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B125-400		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B125-500		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B125-600		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B125-800		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B125-1000		Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B140-100		Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B140-200		Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B140-300		Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B140-400		Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B140-500		Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B140-600		Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B140-800		Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B140-1000		Mounting: Basic \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B160-100		Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B160-200		Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B160-300		Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B160-400		Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B160-500		Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B160-600		Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B160-800		Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B160-1000		Mounting: Basic \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B180-100		Mounting: Basic \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B180-200		Mounting: Basic \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B180-300		Mounting: Basic \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B180-400		Mounting: Basic \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B180-500		Mounting: Basic \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B180-600		Mounting: Basic \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B180-800		Mounting: Basic \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B180-1000		Mounting: Basic \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B200-100		Mounting: Basic \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B200-200		Mounting: Basic \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B200-300		Mounting: Basic \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B200-400		Mounting: Basic \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B200-500		Mounting: Basic \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B200-600		Mounting: Basic \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B200-800		Mounting: Basic \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2B250-100		Mounting: Basic \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B250-200		Mounting: Basic \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B250-300		Mounting: Basic \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B250-400		Mounting: Basic \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B250-500		Mounting: Basic \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B250-600		Mounting: Basic \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B250-800		Mounting: Basic \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B320-100		Mounting: Basic \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B320-200		Mounting: Basic \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B320-300		Mounting: Basic \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2B320-400		Mounting: Basic \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L125-100		Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L125-200		Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L125-300		Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L125-400		Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L125-500		Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L125-600		Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L125-800		Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L125-1000		Mounting: Foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L140-100		Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L140-200		Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L140-300		Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L140-400		Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L140-500		Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L140-600		Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L140-800		Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L140-1000		Mounting: Foot \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L160-100		Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L160-200		Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L160-300		Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L160-400		Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L160-500		Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L160-600		Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L160-800		Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L160-1000		Mounting: Foot \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L180-100		Mounting: Foot \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L180-200		Mounting: Foot \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L180-300		Mounting: Foot \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L180-400		Mounting: Foot \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L180-500		Mounting: Foot \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L180-600		Mounting: Foot \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L180-800		Mounting: Foot \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L180-1000		Mounting: Foot \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L200-100		Mounting: Foot \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L200-200		Mounting: Foot \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L200-300		Mounting: Foot \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L200-400		Mounting: Foot \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L200-500		Mounting: Foot \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L200-600		Mounting: Foot \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L200-800		Mounting: Foot \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2L250-100		Mounting: Foot \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L250-200		Mounting: Foot \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L250-300		Mounting: Foot \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L250-400		Mounting: Foot \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L250-500		Mounting: Foot \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L250-600		Mounting: Foot \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L250-800		Mounting: Foot \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L320-100		Mounting: Foot \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L320-200		Mounting: Foot \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L320-300		Mounting: Foot \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2L320-400		Mounting: Foot \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F125-100		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F125-200		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F125-300		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F125-400		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F125-500		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F125-600		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F125-800		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F125-1000		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F140-100		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F140-200		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F140-300		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F140-400		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F140-500		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F140-600		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F140-800		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F140-1000		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F160-100		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F160-200		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F160-300		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F160-400		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F160-500		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F160-600		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F160-800		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F160-1000		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F180-100		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F180-200		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F180-300		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F180-400		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F180-500		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F180-600		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F180-800		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F180-1000		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F200-100		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F200-200		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F200-300		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F200-400		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F200-500		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F200-600		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F200-800		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2F250-100		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F250-200		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F250-300		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F250-400		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F250-500		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F250-600		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F250-800		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F320-100		Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F320-200		Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F320-300		Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2F320-400		Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G125-100		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G125-200		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G125-300		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G125-400		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G125-500		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G125-600		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G125-800		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G125-1000		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G140-100		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G140-200		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G140-300		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G140-400		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G140-500		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G140-600		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G140-800		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G140-1000		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G160-100		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G160-200		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G160-300		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G160-400		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G160-500		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G160-600		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G160-800		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G160-1000		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G180-100		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G180-200		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G180-300		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G180-400		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G180-500		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G180-600		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G180-800		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G180-1000		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G200-100		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G200-200		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G200-300		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G200-400		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G200-500		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G200-600		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G200-800		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2G250-100		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G250-200		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G250-300		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G250-400		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G250-500		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G250-600		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G250-800		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G320-100		Mounting: Head flange \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G320-200		Mounting: Head flange \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G320-300		Mounting: Head flange \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2G320-400		Mounting: Head flange \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C125-100		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C125-200		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C125-300		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C125-400		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C125-500		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C125-600		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C125-800		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C125-1000		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C140-100		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C140-200		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C140-300		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C140-400		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C140-500		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C140-600		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C140-800		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C140-1000		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C160-100		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C160-200		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C160-300		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C160-400		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C160-500		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C160-600		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C160-800		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C160-1000		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C180-100		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C180-200		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C180-300		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C180-400		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C180-500		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C180-600		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C180-800		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C180-1000		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C200-100		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C200-200		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C200-300		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C200-400		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C200-500		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C200-600		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C200-800		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2C250-100		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C250-200		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C250-300		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C250-400		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C250-500		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C250-600		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C250-800		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C320-100		Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C320-200		Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C320-300		Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2C320-400		Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D125-100		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D125-200		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D125-300		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D125-400		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D125-500		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D125-600		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D125-800		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D125-1000		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D140-100		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D140-200		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D140-300		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D140-400		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D140-500		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D140-600		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D140-800		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D140-1000		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D160-100		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D160-200		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D160-300		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D160-400		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D160-500		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D160-600		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D160-800		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D160-1000		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D180-100		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D180-200		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D180-300		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D180-400		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D180-500		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D180-600		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D180-800		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D180-1000		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D200-100		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D200-200		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D200-300		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D200-400		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D200-500		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D200-600		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D200-800		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2D250-100		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D250-200		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D250-300		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D250-400		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D250-500		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D250-600		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D250-800		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D320-100		Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D320-200		Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D320-300		Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2D320-400		Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T125-100		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T125-200		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T125-300		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T125-400		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T125-500		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T125-600		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T125-800		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T125-1000		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T140-100		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T140-200		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T140-300		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T140-400		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T140-500		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T140-600		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T140-800		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T140-1000		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T160-100		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T160-200		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T160-300		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T160-400		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T160-500		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T160-600		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T160-800		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T160-1000		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T180-100		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T180-200		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T180-300		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T180-400		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T180-500		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T180-600		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T180-800		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T180-1000		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T200-100		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T200-200		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T200-300		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T200-400		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T200-500		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T200-600		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T200-800		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
CS2T250-100		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T250-200		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T250-300		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T250-400		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T250-500		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T250-600		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T250-800		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T320-100		Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T320-200		Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T320-300		Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
CS2T320-400		Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
CDS2B125-100		Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B125-200		Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B125-300		Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B125-400		Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B125-500		Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B125-600		Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B125-800		Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B125-1000		Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B140-100		Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B140-200		Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B140-300		Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B140-400		Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B140-500		Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B140-600		Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B140-800		Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B140-1000		Mounting: Basic \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B160-100		Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B160-200		Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B160-300		Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B160-400		Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B160-500		Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B160-600		Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B160-800		Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B160-1000		Mounting: Basic \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B180-100		Mounting: Basic \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B180-200		Mounting: Basic \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B180-300		Mounting: Basic \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B180-400		Mounting: Basic \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B180-500		Mounting: Basic \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B180-600		Mounting: Basic \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B180-800		Mounting: Basic \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B180-1000		Mounting: Basic \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B200-100		Mounting: Basic \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B200-200		Mounting: Basic \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B200-300		Mounting: Basic \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B200-400		Mounting: Basic \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B200-500		Mounting: Basic \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B200-600		Mounting: Basic \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B200-800		Mounting: Basic \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2B250-100		Mounting: Basic \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B250-200		Mounting: Basic \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B250-300		Mounting: Basic \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B250-400		Mounting: Basic \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B250-500		Mounting: Basic \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B250-600		Mounting: Basic \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B250-800		Mounting: Basic \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B320-100		Mounting: Basic \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B320-200		Mounting: Basic \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B320-300		Mounting: Basic \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2B320-400		Mounting: Basic \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L125-100		Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L125-200		Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L125-300		Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L125-400		Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L125-500		Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L125-600		Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L125-800		Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L125-1000		Mounting: Foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L140-100		Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L140-200		Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L140-300		Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L140-400		Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L140-500		Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L140-600		Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L140-800		Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L140-1000		Mounting: Foot \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L160-100		Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L160-200		Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L160-300		Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L160-400		Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L160-500		Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L160-600		Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L160-800		Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L160-1000		Mounting: Foot \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L180-100		Mounting: Foot \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L180-200		Mounting: Foot \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L180-300		Mounting: Foot \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L180-400		Mounting: Foot \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L180-500		Mounting: Foot \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L180-600		Mounting: Foot \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L180-800		Mounting: Foot \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L180-1000		Mounting: Foot \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L200-100		Mounting: Foot \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L200-200		Mounting: Foot \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L200-300		Mounting: Foot \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L200-400		Mounting: Foot \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L200-500		Mounting: Foot \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L200-600		Mounting: Foot \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L200-800		Mounting: Foot \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2L250-100		Mounting: Foot \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L250-200		Mounting: Foot \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L250-300		Mounting: Foot \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L250-400		Mounting: Foot \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L250-500		Mounting: Foot \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L250-600		Mounting: Foot \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L250-800		Mounting: Foot \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L320-100		Mounting: Foot \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L320-200		Mounting: Foot \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L320-300		Mounting: Foot \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2L320-400		Mounting: Foot \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F125-100		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F125-200		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F125-300		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F125-400		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F125-500		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F125-600		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F125-800		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F125-1000		Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F140-100		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F140-200		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F140-300		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F140-400		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F140-500		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F140-600		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F140-800		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F140-1000		Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F160-100		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F160-200		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F160-300		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F160-400		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F160-500		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F160-600		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F160-800		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F160-1000		Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F180-100		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F180-200		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F180-300		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F180-400		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F180-500		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F180-600		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F180-800		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F180-1000		Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F200-100		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F200-200		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F200-300		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F200-400		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F200-500		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F200-600		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F200-800		Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2F250-100		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F250-200		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F250-300		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F250-400		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F250-500		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F250-600		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F250-800		Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F320-100		Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F320-200		Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F320-300		Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2F320-400		Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G125-100		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G125-200		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G125-300		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G125-400		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G125-500		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G125-600		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G125-800		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G125-1000		Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G140-100		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G140-200		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G140-300		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G140-400		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G140-500		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G140-600		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G140-800		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G140-1000		Mounting: Head flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G160-100		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G160-200		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G160-300		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G160-400		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G160-500		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G160-600		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G160-800		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G160-1000		Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G180-100		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G180-200		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G180-300		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G180-400		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G180-500		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G180-600		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G180-800		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G180-1000		Mounting: Head flange \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G200-100		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G200-200		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G200-300		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G200-400		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G200-500		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G200-600		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G200-800		Mounting: Head flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2G250-100		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G250-200		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G250-300		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G250-400		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G250-500		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G250-600		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G250-800		Mounting: Head flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G320-100		Mounting: Head flange \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G320-200		Mounting: Head flange \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G320-300		Mounting: Head flange \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2G320-400		Mounting: Head flange \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C125-100		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C125-200		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C125-300		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C125-400		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C125-500		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C125-600		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C125-800		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C125-1000		Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C140-100		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C140-200		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C140-300		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C140-400		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C140-500		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C140-600		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C140-800		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C140-1000		Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C160-100		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C160-200		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C160-300		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C160-400		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C160-500		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C160-600		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C160-800		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C160-1000		Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C180-100		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C180-200		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C180-300		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C180-400		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C180-500		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C180-600		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C180-800		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C180-1000		Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C200-100		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C200-200		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C200-300		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C200-400		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C200-500		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C200-600		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C200-800		Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2C250-100		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C250-200		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C250-300		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C250-400		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C250-500		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C250-600		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C250-800		Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C320-100		Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C320-200		Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C320-300		Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2C320-400		Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D125-100		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D125-200		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D125-300		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D125-400		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D125-500		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D125-600		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D125-800		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D125-1000		Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D140-100		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D140-200		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D140-300		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D140-400		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D140-500		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D140-600		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D140-800		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D140-1000		Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D160-100		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D160-200		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D160-300		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D160-400		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D160-500		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D160-600		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D160-800		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D160-1000		Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D180-100		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D180-200		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D180-300		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D180-400		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D180-500		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D180-600		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D180-800		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D180-1000		Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D200-100		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D200-200		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D200-300		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D200-400		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D200-500		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D200-600		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D200-800		Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2D250-100		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D250-200		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D250-300		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D250-400		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D250-500		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D250-600		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D250-800		Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D320-100		Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D320-200		Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D320-300		Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2D320-400		Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T125-100		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T125-200		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T125-300		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T125-400		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T125-500		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T125-600		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T125-800		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T125-1000		Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T140-100		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T140-200		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T140-300		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T140-400		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T140-500		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T140-600		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T140-800		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T140-1000		Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T160-100		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T160-200		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T160-300		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T160-400		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T160-500		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T160-600		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T160-800		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T160-1000		Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T180-100		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T180-200		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T180-300		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T180-400		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T180-500		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T180-600		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T180-800		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T180-1000		Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T200-100		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T200-200		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T200-300		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T200-400		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T200-500		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T200-600		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T200-800		Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
CDS2T250-100		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T250-200		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T250-300		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T250-400		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T250-500		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T250-600		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T250-800		Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T320-100		Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T320-200		Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T320-300		Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
CDS2T320-400		Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4

Standard CylindersSMC

700 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CS2 Air Cylinder (Tie-rod, ø125 to ø320)

Brand SMC·Standard Cylinders

Available part numbers (700)

CS2B125-100, CS2B125-200, CS2B125-300, CS2B125-400, CS2B125-500, CS2B125-600, CS2B125-800, CS2B125-1000, CS2B140-100, CS2B140-200 + 690 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CS2B125-100	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B125-200	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B125-300	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B125-400	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B125-500	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B125-600	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B125-800	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B125-1000	Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B140-100	Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B140-200	Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B140-300	Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B140-400	Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B140-500	Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B140-600	Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B140-800	Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B140-1000	Mounting: Basic \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B160-100	Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B160-200	Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B160-300	Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B160-400	Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B160-500	Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B160-600	Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B160-800	Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B160-1000	Mounting: Basic \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B180-100	Mounting: Basic \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B180-200	Mounting: Basic \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B180-300	Mounting: Basic \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B180-400	Mounting: Basic \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B180-500	Mounting: Basic \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B180-600	Mounting: Basic \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B180-800	Mounting: Basic \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B180-1000	Mounting: Basic \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B200-100	Mounting: Basic \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B200-200	Mounting: Basic \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B200-300	Mounting: Basic \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B200-400	Mounting: Basic \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B200-500	Mounting: Basic \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B200-600	Mounting: Basic \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B200-800	Mounting: Basic \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2B250-100	Mounting: Basic \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B250-200	Mounting: Basic \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B250-300	Mounting: Basic \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B250-400	Mounting: Basic \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B250-500	Mounting: Basic \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B250-600	Mounting: Basic \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B250-800	Mounting: Basic \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B320-100	Mounting: Basic \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B320-200	Mounting: Basic \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B320-300	Mounting: Basic \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2B320-400	Mounting: Basic \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L125-100	Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L125-200	Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L125-300	Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L125-400	Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L125-500	Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L125-600	Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L125-800	Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L125-1000	Mounting: Foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L140-100	Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L140-200	Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L140-300	Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L140-400	Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L140-500	Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L140-600	Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L140-800	Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L140-1000	Mounting: Foot \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L160-100	Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L160-200	Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L160-300	Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L160-400	Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L160-500	Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L160-600	Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L160-800	Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L160-1000	Mounting: Foot \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L180-100	Mounting: Foot \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L180-200	Mounting: Foot \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L180-300	Mounting: Foot \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L180-400	Mounting: Foot \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L180-500	Mounting: Foot \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L180-600	Mounting: Foot \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L180-800	Mounting: Foot \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L180-1000	Mounting: Foot \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L200-100	Mounting: Foot \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L200-200	Mounting: Foot \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L200-300	Mounting: Foot \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L200-400	Mounting: Foot \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L200-500	Mounting: Foot \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L200-600	Mounting: Foot \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L200-800	Mounting: Foot \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2L250-100	Mounting: Foot \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L250-200	Mounting: Foot \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L250-300	Mounting: Foot \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L250-400	Mounting: Foot \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L250-500	Mounting: Foot \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L250-600	Mounting: Foot \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L250-800	Mounting: Foot \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L320-100	Mounting: Foot \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L320-200	Mounting: Foot \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L320-300	Mounting: Foot \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2L320-400	Mounting: Foot \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F125-100	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F125-200	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F125-300	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F125-400	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F125-500	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F125-600	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F125-800	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F125-1000	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F140-100	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F140-200	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F140-300	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F140-400	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F140-500	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F140-600	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F140-800	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F140-1000	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F160-100	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F160-200	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F160-300	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F160-400	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F160-500	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F160-600	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F160-800	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F160-1000	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F180-100	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F180-200	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F180-300	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F180-400	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F180-500	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F180-600	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F180-800	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F180-1000	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F200-100	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F200-200	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F200-300	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F200-400	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F200-500	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F200-600	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F200-800	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2F250-100	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F250-200	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F250-300	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F250-400	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F250-500	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F250-600	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F250-800	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F320-100	Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F320-200	Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F320-300	Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2F320-400	Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G125-100	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G125-200	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G125-300	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G125-400	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G125-500	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G125-600	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G125-800	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G125-1000	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G140-100	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G140-200	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G140-300	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G140-400	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G140-500	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G140-600	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G140-800	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G140-1000	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G160-100	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G160-200	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G160-300	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G160-400	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G160-500	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G160-600	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G160-800	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G160-1000	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G180-100	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G180-200	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G180-300	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G180-400	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G180-500	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G180-600	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G180-800	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G180-1000	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G200-100	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G200-200	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G200-300	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G200-400	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G200-500	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G200-600	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G200-800	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2G250-100	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G250-200	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G250-300	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G250-400	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G250-500	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G250-600	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G250-800	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G320-100	Mounting: Head flange \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G320-200	Mounting: Head flange \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G320-300	Mounting: Head flange \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2G320-400	Mounting: Head flange \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C125-100	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C125-200	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C125-300	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C125-400	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C125-500	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C125-600	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C125-800	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C125-1000	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C140-100	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C140-200	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C140-300	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C140-400	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C140-500	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C140-600	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C140-800	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C140-1000	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C160-100	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C160-200	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C160-300	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C160-400	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C160-500	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C160-600	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C160-800	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C160-1000	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C180-100	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C180-200	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C180-300	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C180-400	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C180-500	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C180-600	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C180-800	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C180-1000	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C200-100	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C200-200	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C200-300	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C200-400	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C200-500	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C200-600	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C200-800	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2C250-100	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C250-200	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C250-300	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C250-400	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C250-500	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C250-600	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C250-800	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C320-100	Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C320-200	Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C320-300	Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2C320-400	Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D125-100	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D125-200	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D125-300	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D125-400	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D125-500	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D125-600	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D125-800	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D125-1000	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D140-100	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D140-200	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D140-300	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D140-400	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D140-500	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D140-600	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D140-800	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D140-1000	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D160-100	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D160-200	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D160-300	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D160-400	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D160-500	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D160-600	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D160-800	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D160-1000	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D180-100	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D180-200	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D180-300	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D180-400	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D180-500	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D180-600	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D180-800	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D180-1000	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D200-100	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D200-200	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D200-300	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D200-400	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D200-500	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D200-600	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D200-800	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2D250-100	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D250-200	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D250-300	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D250-400	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D250-500	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D250-600	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D250-800	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D320-100	Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D320-200	Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D320-300	Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2D320-400	Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T125-100	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T125-200	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T125-300	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T125-400	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T125-500	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T125-600	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T125-800	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T125-1000	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T140-100	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T140-200	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T140-300	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T140-400	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T140-500	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T140-600	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T140-800	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T140-1000	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T160-100	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T160-200	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T160-300	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T160-400	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T160-500	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T160-600	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T160-800	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T160-1000	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T180-100	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T180-200	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T180-300	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T180-400	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T180-500	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T180-600	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T180-800	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T180-1000	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T200-100	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T200-200	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T200-300	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T200-400	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T200-500	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T200-600	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T200-800	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc1/2
	CS2T250-100	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T250-200	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T250-300	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T250-400	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T250-500	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T250-600	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T250-800	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T320-100	Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T320-200	Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T320-300	Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: No \| Port: Rc3/4
	CS2T320-400	Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: No \| Port: Rc3/4
	CDS2B125-100	Mounting: Basic \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B125-200	Mounting: Basic \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B125-300	Mounting: Basic \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B125-400	Mounting: Basic \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B125-500	Mounting: Basic \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B125-600	Mounting: Basic \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B125-800	Mounting: Basic \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B125-1000	Mounting: Basic \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B140-100	Mounting: Basic \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B140-200	Mounting: Basic \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B140-300	Mounting: Basic \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B140-400	Mounting: Basic \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B140-500	Mounting: Basic \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B140-600	Mounting: Basic \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B140-800	Mounting: Basic \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B140-1000	Mounting: Basic \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B160-100	Mounting: Basic \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B160-200	Mounting: Basic \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B160-300	Mounting: Basic \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B160-400	Mounting: Basic \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B160-500	Mounting: Basic \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B160-600	Mounting: Basic \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B160-800	Mounting: Basic \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B160-1000	Mounting: Basic \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B180-100	Mounting: Basic \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B180-200	Mounting: Basic \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B180-300	Mounting: Basic \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B180-400	Mounting: Basic \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B180-500	Mounting: Basic \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B180-600	Mounting: Basic \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B180-800	Mounting: Basic \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B180-1000	Mounting: Basic \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B200-100	Mounting: Basic \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B200-200	Mounting: Basic \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B200-300	Mounting: Basic \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B200-400	Mounting: Basic \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B200-500	Mounting: Basic \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B200-600	Mounting: Basic \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B200-800	Mounting: Basic \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2B250-100	Mounting: Basic \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B250-200	Mounting: Basic \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B250-300	Mounting: Basic \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B250-400	Mounting: Basic \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B250-500	Mounting: Basic \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B250-600	Mounting: Basic \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B250-800	Mounting: Basic \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B320-100	Mounting: Basic \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B320-200	Mounting: Basic \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B320-300	Mounting: Basic \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2B320-400	Mounting: Basic \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L125-100	Mounting: Foot \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L125-200	Mounting: Foot \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L125-300	Mounting: Foot \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L125-400	Mounting: Foot \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L125-500	Mounting: Foot \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L125-600	Mounting: Foot \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L125-800	Mounting: Foot \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L125-1000	Mounting: Foot \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L140-100	Mounting: Foot \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L140-200	Mounting: Foot \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L140-300	Mounting: Foot \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L140-400	Mounting: Foot \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L140-500	Mounting: Foot \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L140-600	Mounting: Foot \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L140-800	Mounting: Foot \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L140-1000	Mounting: Foot \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L160-100	Mounting: Foot \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L160-200	Mounting: Foot \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L160-300	Mounting: Foot \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L160-400	Mounting: Foot \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L160-500	Mounting: Foot \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L160-600	Mounting: Foot \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L160-800	Mounting: Foot \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L160-1000	Mounting: Foot \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L180-100	Mounting: Foot \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L180-200	Mounting: Foot \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L180-300	Mounting: Foot \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L180-400	Mounting: Foot \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L180-500	Mounting: Foot \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L180-600	Mounting: Foot \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L180-800	Mounting: Foot \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L180-1000	Mounting: Foot \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L200-100	Mounting: Foot \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L200-200	Mounting: Foot \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L200-300	Mounting: Foot \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L200-400	Mounting: Foot \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L200-500	Mounting: Foot \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L200-600	Mounting: Foot \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L200-800	Mounting: Foot \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2L250-100	Mounting: Foot \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L250-200	Mounting: Foot \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L250-300	Mounting: Foot \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L250-400	Mounting: Foot \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L250-500	Mounting: Foot \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L250-600	Mounting: Foot \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L250-800	Mounting: Foot \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L320-100	Mounting: Foot \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L320-200	Mounting: Foot \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L320-300	Mounting: Foot \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2L320-400	Mounting: Foot \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F125-100	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F125-200	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F125-300	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F125-400	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F125-500	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F125-600	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F125-800	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F125-1000	Mounting: Rod flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F140-100	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F140-200	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F140-300	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F140-400	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F140-500	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F140-600	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F140-800	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F140-1000	Mounting: Rod flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F160-100	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F160-200	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F160-300	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F160-400	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F160-500	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F160-600	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F160-800	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F160-1000	Mounting: Rod flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F180-100	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F180-200	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F180-300	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F180-400	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F180-500	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F180-600	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F180-800	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F180-1000	Mounting: Rod flange \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F200-100	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F200-200	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F200-300	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F200-400	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F200-500	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F200-600	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F200-800	Mounting: Rod flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2F250-100	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F250-200	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F250-300	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F250-400	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F250-500	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F250-600	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F250-800	Mounting: Rod flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F320-100	Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F320-200	Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F320-300	Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2F320-400	Mounting: Rod flange \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G125-100	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G125-200	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G125-300	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G125-400	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G125-500	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G125-600	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G125-800	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G125-1000	Mounting: Head flange \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G140-100	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G140-200	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G140-300	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G140-400	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G140-500	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G140-600	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G140-800	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G140-1000	Mounting: Head flange \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G160-100	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G160-200	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G160-300	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G160-400	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G160-500	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G160-600	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G160-800	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G160-1000	Mounting: Head flange \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G180-100	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G180-200	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G180-300	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G180-400	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G180-500	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G180-600	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G180-800	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G180-1000	Mounting: Head flange \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G200-100	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G200-200	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G200-300	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G200-400	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G200-500	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G200-600	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G200-800	Mounting: Head flange \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2G250-100	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G250-200	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G250-300	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G250-400	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G250-500	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G250-600	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G250-800	Mounting: Head flange \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G320-100	Mounting: Head flange \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G320-200	Mounting: Head flange \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G320-300	Mounting: Head flange \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2G320-400	Mounting: Head flange \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C125-100	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C125-200	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C125-300	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C125-400	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C125-500	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C125-600	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C125-800	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C125-1000	Mounting: Single clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C140-100	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C140-200	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C140-300	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C140-400	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C140-500	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C140-600	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C140-800	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C140-1000	Mounting: Single clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C160-100	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C160-200	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C160-300	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C160-400	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C160-500	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C160-600	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C160-800	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C160-1000	Mounting: Single clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C180-100	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C180-200	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C180-300	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C180-400	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C180-500	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C180-600	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C180-800	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C180-1000	Mounting: Single clevis \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C200-100	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C200-200	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C200-300	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C200-400	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C200-500	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C200-600	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C200-800	Mounting: Single clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2C250-100	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C250-200	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C250-300	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C250-400	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C250-500	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C250-600	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C250-800	Mounting: Single clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C320-100	Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C320-200	Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C320-300	Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2C320-400	Mounting: Single clevis \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D125-100	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D125-200	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D125-300	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D125-400	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D125-500	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D125-600	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D125-800	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D125-1000	Mounting: Double clevis \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D140-100	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D140-200	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D140-300	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D140-400	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D140-500	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D140-600	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D140-800	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D140-1000	Mounting: Double clevis \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D160-100	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D160-200	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D160-300	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D160-400	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D160-500	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D160-600	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D160-800	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D160-1000	Mounting: Double clevis \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D180-100	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D180-200	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D180-300	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D180-400	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D180-500	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D180-600	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D180-800	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D180-1000	Mounting: Double clevis \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D200-100	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D200-200	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D200-300	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D200-400	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D200-500	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D200-600	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D200-800	Mounting: Double clevis \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2D250-100	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D250-200	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D250-300	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D250-400	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D250-500	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D250-600	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D250-800	Mounting: Double clevis \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D320-100	Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D320-200	Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D320-300	Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2D320-400	Mounting: Double clevis \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T125-100	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T125-200	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T125-300	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T125-400	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T125-500	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T125-600	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T125-800	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T125-1000	Mounting: Center trunnion \| Bore: ø125 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T140-100	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T140-200	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T140-300	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T140-400	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T140-500	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T140-600	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T140-800	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T140-1000	Mounting: Center trunnion \| Bore: ø140 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T160-100	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T160-200	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T160-300	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T160-400	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T160-500	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T160-600	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T160-800	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T160-1000	Mounting: Center trunnion \| Bore: ø160 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T180-100	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T180-200	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T180-300	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T180-400	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T180-500	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T180-600	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T180-800	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T180-1000	Mounting: Center trunnion \| Bore: ø180 mm \| Stroke: 1000 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T200-100	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T200-200	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T200-300	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T200-400	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T200-500	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T200-600	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T200-800	Mounting: Center trunnion \| Bore: ø200 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc1/2
	CDS2T250-100	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T250-200	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T250-300	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T250-400	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T250-500	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 500 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T250-600	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 600 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T250-800	Mounting: Center trunnion \| Bore: ø250 mm \| Stroke: 800 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T320-100	Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 100 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T320-200	Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 200 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T320-300	Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 300 mm \| Auto switch magnet: Yes \| Port: Rc3/4
	CDS2T320-400	Mounting: Center trunnion \| Bore: ø320 mm \| Stroke: 400 mm \| Auto switch magnet: Yes \| Port: Rc3/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CS2 Air Cylinder (Tie-rod, ø125 to ø320)
