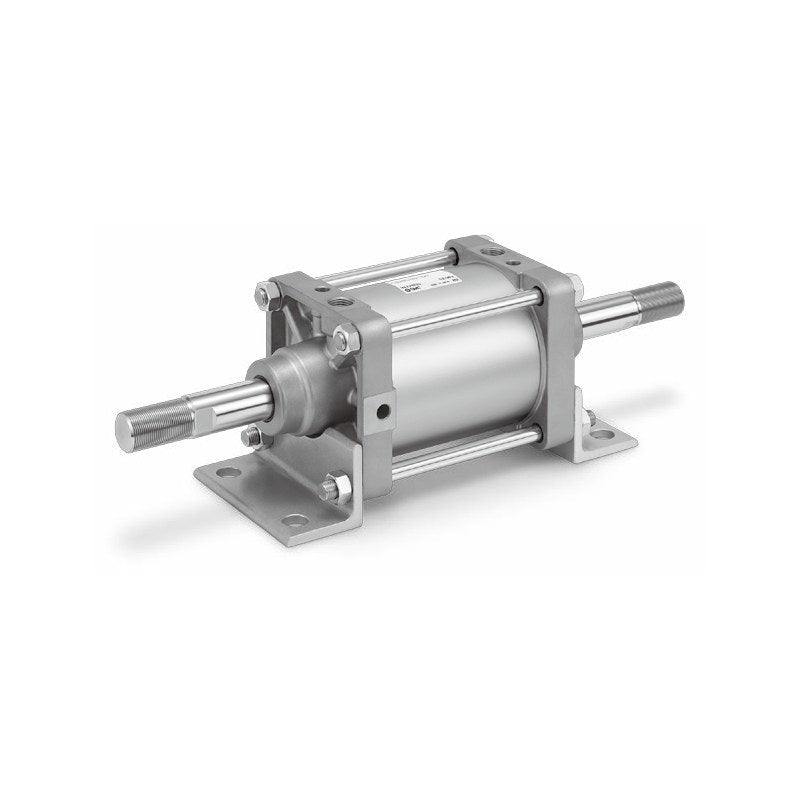

SMC CS2W Double Rod Air Cylinder (Tie-rod, ø125 to ø320)

SMC CS2W Double Rod Air Cylinder (Tie-rod, ø125 to ø320)

SMC CS2W series lightweight large-bore double-acting double-rod tie-rod air cylinder, ø125 to ø320, with optional built-in auto switch magnet (CDS2W).

Key features

  • Double rod (through rod) version of the CS2 series
  • Four mounting styles: basic, foot, flange and center trunnion
  • Non-lube; air cushion (ø125-160) or air cushion plus damper cushion (ø180-320)
  • Bellows on one side (J, K) or both sides (JJ, KK) as suffix
  • CDS2W built-in magnet version; auto switches ordered as suffixes

Specifications

Action Double acting, double rod
Fluid Air
Proof pressure ø125-160 1.57 MPa, ø180-320 1.2 MPa
Max. operating pressure ø125-160 0.97 MPa, ø180-320 0.7 MPa
Min. operating pressure 0.05 MPa
Piston speed ø125-160 50 to 500 mm/s, ø180-320 50 to 300 mm/s
Cushion ø125-160 air cushion, ø180-320 air cushion + damper cushion
Ambient and fluid temperature 0 to 70°C, with auto switch 0 to 60°C
Lubrication Not required (non-lube)
Port thread Rc standard (NPT, G on order)
Source SMC Korea catalog CS2 Series (SMCKR_CS2.pdf), p. 27-28 (PDF p. 28-29)
CS2WB125-100 Mounting: Basic | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-200 Mounting: Basic | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-300 Mounting: Basic | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-400 Mounting: Basic | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-500 Mounting: Basic | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-600 Mounting: Basic | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-800 Mounting: Basic | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-1000 Mounting: Basic | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-100 Mounting: Basic | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-200 Mounting: Basic | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-300 Mounting: Basic | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-400 Mounting: Basic | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-500 Mounting: Basic | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-600 Mounting: Basic | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-800 Mounting: Basic | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-1000 Mounting: Basic | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB160-100 Mounting: Basic | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-200 Mounting: Basic | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-300 Mounting: Basic | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-400 Mounting: Basic | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-500 Mounting: Basic | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-600 Mounting: Basic | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-800 Mounting: Basic | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-1000 Mounting: Basic | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB180-100 Mounting: Basic | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-200 Mounting: Basic | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-300 Mounting: Basic | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-400 Mounting: Basic | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-500 Mounting: Basic | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-600 Mounting: Basic | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-800 Mounting: Basic | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-1000 Mounting: Basic | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-100 Mounting: Basic | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-200 Mounting: Basic | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-300 Mounting: Basic | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-400 Mounting: Basic | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-500 Mounting: Basic | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-600 Mounting: Basic | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-800 Mounting: Basic | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB250-100 Mounting: Basic | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-200 Mounting: Basic | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-300 Mounting: Basic | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-400 Mounting: Basic | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-500 Mounting: Basic | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-600 Mounting: Basic | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-800 Mounting: Basic | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB320-100 Mounting: Basic | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB320-200 Mounting: Basic | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB320-300 Mounting: Basic | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB320-400 Mounting: Basic | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL125-100 Mounting: Foot | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-200 Mounting: Foot | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-300 Mounting: Foot | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-400 Mounting: Foot | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-500 Mounting: Foot | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-600 Mounting: Foot | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-800 Mounting: Foot | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-1000 Mounting: Foot | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-100 Mounting: Foot | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-200 Mounting: Foot | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-300 Mounting: Foot | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-400 Mounting: Foot | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-500 Mounting: Foot | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-600 Mounting: Foot | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-800 Mounting: Foot | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-1000 Mounting: Foot | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL160-100 Mounting: Foot | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-200 Mounting: Foot | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-300 Mounting: Foot | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-400 Mounting: Foot | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-500 Mounting: Foot | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-600 Mounting: Foot | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-800 Mounting: Foot | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-1000 Mounting: Foot | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL180-100 Mounting: Foot | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-200 Mounting: Foot | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-300 Mounting: Foot | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-400 Mounting: Foot | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-500 Mounting: Foot | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-600 Mounting: Foot | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-800 Mounting: Foot | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-1000 Mounting: Foot | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-100 Mounting: Foot | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-200 Mounting: Foot | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-300 Mounting: Foot | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-400 Mounting: Foot | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-500 Mounting: Foot | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-600 Mounting: Foot | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-800 Mounting: Foot | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL250-100 Mounting: Foot | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-200 Mounting: Foot | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-300 Mounting: Foot | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-400 Mounting: Foot | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-500 Mounting: Foot | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-600 Mounting: Foot | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-800 Mounting: Foot | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL320-100 Mounting: Foot | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL320-200 Mounting: Foot | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL320-300 Mounting: Foot | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL320-400 Mounting: Foot | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF125-100 Mounting: Rod flange | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-200 Mounting: Rod flange | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-300 Mounting: Rod flange | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-400 Mounting: Rod flange | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-500 Mounting: Rod flange | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-600 Mounting: Rod flange | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-800 Mounting: Rod flange | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-1000 Mounting: Rod flange | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-100 Mounting: Rod flange | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-200 Mounting: Rod flange | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-300 Mounting: Rod flange | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-400 Mounting: Rod flange | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-500 Mounting: Rod flange | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-600 Mounting: Rod flange | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-800 Mounting: Rod flange | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-1000 Mounting: Rod flange | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF160-100 Mounting: Rod flange | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-200 Mounting: Rod flange | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-300 Mounting: Rod flange | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-400 Mounting: Rod flange | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-500 Mounting: Rod flange | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-600 Mounting: Rod flange | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-800 Mounting: Rod flange | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-1000 Mounting: Rod flange | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF180-100 Mounting: Rod flange | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-200 Mounting: Rod flange | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-300 Mounting: Rod flange | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-400 Mounting: Rod flange | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-500 Mounting: Rod flange | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-600 Mounting: Rod flange | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-800 Mounting: Rod flange | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-1000 Mounting: Rod flange | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-100 Mounting: Rod flange | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-200 Mounting: Rod flange | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-300 Mounting: Rod flange | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-400 Mounting: Rod flange | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-500 Mounting: Rod flange | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-600 Mounting: Rod flange | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-800 Mounting: Rod flange | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF250-100 Mounting: Rod flange | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-200 Mounting: Rod flange | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-300 Mounting: Rod flange | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-400 Mounting: Rod flange | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-500 Mounting: Rod flange | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-600 Mounting: Rod flange | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-800 Mounting: Rod flange | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF320-100 Mounting: Rod flange | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF320-200 Mounting: Rod flange | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF320-300 Mounting: Rod flange | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF320-400 Mounting: Rod flange | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT125-100 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-200 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-300 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-400 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-500 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-600 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-800 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-1000 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-100 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-200 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-300 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-400 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-500 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-600 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-800 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-1000 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT160-100 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-200 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-300 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-400 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-500 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-600 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-800 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-1000 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT180-100 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-200 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-300 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-400 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-500 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-600 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-800 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-1000 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-100 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-200 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-300 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-400 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-500 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-600 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-800 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT250-100 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-200 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-300 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-400 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-500 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-600 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-800 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT320-100 Mounting: Center trunnion | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT320-200 Mounting: Center trunnion | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT320-300 Mounting: Center trunnion | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT320-400 Mounting: Center trunnion | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CDS2WB125-100 Mounting: Basic | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-200 Mounting: Basic | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-300 Mounting: Basic | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-400 Mounting: Basic | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-500 Mounting: Basic | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-600 Mounting: Basic | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-800 Mounting: Basic | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-1000 Mounting: Basic | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-100 Mounting: Basic | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-200 Mounting: Basic | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-300 Mounting: Basic | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-400 Mounting: Basic | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-500 Mounting: Basic | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-600 Mounting: Basic | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-800 Mounting: Basic | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-1000 Mounting: Basic | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB160-100 Mounting: Basic | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-200 Mounting: Basic | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-300 Mounting: Basic | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-400 Mounting: Basic | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-500 Mounting: Basic | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-600 Mounting: Basic | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-800 Mounting: Basic | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-1000 Mounting: Basic | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB180-100 Mounting: Basic | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-200 Mounting: Basic | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-300 Mounting: Basic | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-400 Mounting: Basic | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-500 Mounting: Basic | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-600 Mounting: Basic | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-800 Mounting: Basic | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-1000 Mounting: Basic | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-100 Mounting: Basic | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-200 Mounting: Basic | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-300 Mounting: Basic | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-400 Mounting: Basic | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-500 Mounting: Basic | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-600 Mounting: Basic | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-800 Mounting: Basic | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB250-100 Mounting: Basic | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-200 Mounting: Basic | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-300 Mounting: Basic | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-400 Mounting: Basic | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-500 Mounting: Basic | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-600 Mounting: Basic | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-800 Mounting: Basic | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB320-100 Mounting: Basic | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB320-200 Mounting: Basic | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB320-300 Mounting: Basic | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB320-400 Mounting: Basic | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL125-100 Mounting: Foot | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-200 Mounting: Foot | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-300 Mounting: Foot | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-400 Mounting: Foot | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-500 Mounting: Foot | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-600 Mounting: Foot | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-800 Mounting: Foot | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-1000 Mounting: Foot | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-100 Mounting: Foot | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-200 Mounting: Foot | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-300 Mounting: Foot | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-400 Mounting: Foot | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-500 Mounting: Foot | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-600 Mounting: Foot | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-800 Mounting: Foot | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-1000 Mounting: Foot | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL160-100 Mounting: Foot | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-200 Mounting: Foot | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-300 Mounting: Foot | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-400 Mounting: Foot | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-500 Mounting: Foot | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-600 Mounting: Foot | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-800 Mounting: Foot | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-1000 Mounting: Foot | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL180-100 Mounting: Foot | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-200 Mounting: Foot | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-300 Mounting: Foot | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-400 Mounting: Foot | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-500 Mounting: Foot | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-600 Mounting: Foot | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-800 Mounting: Foot | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-1000 Mounting: Foot | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-100 Mounting: Foot | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-200 Mounting: Foot | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-300 Mounting: Foot | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-400 Mounting: Foot | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-500 Mounting: Foot | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-600 Mounting: Foot | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-800 Mounting: Foot | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL250-100 Mounting: Foot | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-200 Mounting: Foot | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-300 Mounting: Foot | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-400 Mounting: Foot | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-500 Mounting: Foot | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-600 Mounting: Foot | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-800 Mounting: Foot | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL320-100 Mounting: Foot | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL320-200 Mounting: Foot | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL320-300 Mounting: Foot | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL320-400 Mounting: Foot | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF125-100 Mounting: Rod flange | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-200 Mounting: Rod flange | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-300 Mounting: Rod flange | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-400 Mounting: Rod flange | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-500 Mounting: Rod flange | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-600 Mounting: Rod flange | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-800 Mounting: Rod flange | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-1000 Mounting: Rod flange | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-100 Mounting: Rod flange | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-200 Mounting: Rod flange | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-300 Mounting: Rod flange | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-400 Mounting: Rod flange | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-500 Mounting: Rod flange | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-600 Mounting: Rod flange | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-800 Mounting: Rod flange | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-1000 Mounting: Rod flange | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF160-100 Mounting: Rod flange | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-200 Mounting: Rod flange | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-300 Mounting: Rod flange | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-400 Mounting: Rod flange | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-500 Mounting: Rod flange | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-600 Mounting: Rod flange | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-800 Mounting: Rod flange | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-1000 Mounting: Rod flange | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF180-100 Mounting: Rod flange | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-200 Mounting: Rod flange | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-300 Mounting: Rod flange | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-400 Mounting: Rod flange | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-500 Mounting: Rod flange | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-600 Mounting: Rod flange | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-800 Mounting: Rod flange | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-1000 Mounting: Rod flange | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-100 Mounting: Rod flange | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-200 Mounting: Rod flange | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-300 Mounting: Rod flange | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-400 Mounting: Rod flange | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-500 Mounting: Rod flange | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-600 Mounting: Rod flange | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-800 Mounting: Rod flange | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF250-100 Mounting: Rod flange | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-200 Mounting: Rod flange | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-300 Mounting: Rod flange | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-400 Mounting: Rod flange | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-500 Mounting: Rod flange | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-600 Mounting: Rod flange | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-800 Mounting: Rod flange | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF320-100 Mounting: Rod flange | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF320-200 Mounting: Rod flange | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF320-300 Mounting: Rod flange | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF320-400 Mounting: Rod flange | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT125-100 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-200 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-300 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-400 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-500 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-600 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-800 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-1000 Mounting: Center trunnion | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-100 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-200 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-300 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-400 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-500 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-600 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-800 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-1000 Mounting: Center trunnion | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT160-100 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-200 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-300 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-400 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-500 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-600 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-800 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-1000 Mounting: Center trunnion | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT180-100 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-200 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-300 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-400 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-500 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-600 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-800 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-1000 Mounting: Center trunnion | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-100 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-200 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-300 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-400 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-500 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-600 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-800 Mounting: Center trunnion | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT250-100 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-200 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-300 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-400 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-500 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-600 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-800 Mounting: Center trunnion | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT320-100 Mounting: Center trunnion | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT320-200 Mounting: Center trunnion | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT320-300 Mounting: Center trunnion | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT320-400 Mounting: Center trunnion | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
Standard CylindersSMC
400 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CS2W Double Rod Air Cylinder (Tie-rod, ø125 to ø320)

Brand SMC·Standard Cylinders

Available part numbers (400)

CS2WB125-100, CS2WB125-200, CS2WB125-300, CS2WB125-400, CS2WB125-500, CS2WB125-600, CS2WB125-800, CS2WB125-1000, CS2WB140-100, CS2WB140-200 + 390 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CS2WB125-100Mounting: Basic | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-200Mounting: Basic | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-300Mounting: Basic | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-400Mounting: Basic | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-500Mounting: Basic | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-600Mounting: Basic | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-800Mounting: Basic | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB125-1000Mounting: Basic | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-100Mounting: Basic | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-200Mounting: Basic | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-300Mounting: Basic | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-400Mounting: Basic | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-500Mounting: Basic | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-600Mounting: Basic | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-800Mounting: Basic | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB140-1000Mounting: Basic | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB160-100Mounting: Basic | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-200Mounting: Basic | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-300Mounting: Basic | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-400Mounting: Basic | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-500Mounting: Basic | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-600Mounting: Basic | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-800Mounting: Basic | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB160-1000Mounting: Basic | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB180-100Mounting: Basic | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-200Mounting: Basic | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-300Mounting: Basic | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-400Mounting: Basic | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-500Mounting: Basic | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-600Mounting: Basic | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-800Mounting: Basic | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB180-1000Mounting: Basic | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-100Mounting: Basic | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-200Mounting: Basic | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-300Mounting: Basic | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-400Mounting: Basic | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-500Mounting: Basic | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-600Mounting: Basic | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB200-800Mounting: Basic | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WB250-100Mounting: Basic | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-200Mounting: Basic | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-300Mounting: Basic | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-400Mounting: Basic | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-500Mounting: Basic | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-600Mounting: Basic | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB250-800Mounting: Basic | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB320-100Mounting: Basic | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB320-200Mounting: Basic | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB320-300Mounting: Basic | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WB320-400Mounting: Basic | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL125-100Mounting: Foot | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-200Mounting: Foot | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-300Mounting: Foot | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-400Mounting: Foot | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-500Mounting: Foot | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-600Mounting: Foot | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-800Mounting: Foot | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL125-1000Mounting: Foot | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-100Mounting: Foot | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-200Mounting: Foot | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-300Mounting: Foot | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-400Mounting: Foot | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-500Mounting: Foot | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-600Mounting: Foot | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-800Mounting: Foot | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL140-1000Mounting: Foot | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL160-100Mounting: Foot | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-200Mounting: Foot | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-300Mounting: Foot | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-400Mounting: Foot | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-500Mounting: Foot | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-600Mounting: Foot | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-800Mounting: Foot | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL160-1000Mounting: Foot | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL180-100Mounting: Foot | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-200Mounting: Foot | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-300Mounting: Foot | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-400Mounting: Foot | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-500Mounting: Foot | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-600Mounting: Foot | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-800Mounting: Foot | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL180-1000Mounting: Foot | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-100Mounting: Foot | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-200Mounting: Foot | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-300Mounting: Foot | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-400Mounting: Foot | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-500Mounting: Foot | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-600Mounting: Foot | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL200-800Mounting: Foot | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WL250-100Mounting: Foot | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-200Mounting: Foot | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-300Mounting: Foot | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-400Mounting: Foot | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-500Mounting: Foot | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-600Mounting: Foot | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL250-800Mounting: Foot | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL320-100Mounting: Foot | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL320-200Mounting: Foot | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL320-300Mounting: Foot | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WL320-400Mounting: Foot | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF125-100Mounting: Rod flange | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-200Mounting: Rod flange | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-300Mounting: Rod flange | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-400Mounting: Rod flange | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-500Mounting: Rod flange | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-600Mounting: Rod flange | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-800Mounting: Rod flange | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF125-1000Mounting: Rod flange | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-100Mounting: Rod flange | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-200Mounting: Rod flange | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-300Mounting: Rod flange | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-400Mounting: Rod flange | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-500Mounting: Rod flange | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-600Mounting: Rod flange | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-800Mounting: Rod flange | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF140-1000Mounting: Rod flange | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF160-100Mounting: Rod flange | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-200Mounting: Rod flange | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-300Mounting: Rod flange | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-400Mounting: Rod flange | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-500Mounting: Rod flange | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-600Mounting: Rod flange | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-800Mounting: Rod flange | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF160-1000Mounting: Rod flange | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF180-100Mounting: Rod flange | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-200Mounting: Rod flange | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-300Mounting: Rod flange | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-400Mounting: Rod flange | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-500Mounting: Rod flange | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-600Mounting: Rod flange | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-800Mounting: Rod flange | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF180-1000Mounting: Rod flange | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-100Mounting: Rod flange | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-200Mounting: Rod flange | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-300Mounting: Rod flange | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-400Mounting: Rod flange | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-500Mounting: Rod flange | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-600Mounting: Rod flange | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF200-800Mounting: Rod flange | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WF250-100Mounting: Rod flange | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-200Mounting: Rod flange | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-300Mounting: Rod flange | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-400Mounting: Rod flange | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-500Mounting: Rod flange | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-600Mounting: Rod flange | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF250-800Mounting: Rod flange | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF320-100Mounting: Rod flange | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF320-200Mounting: Rod flange | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF320-300Mounting: Rod flange | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WF320-400Mounting: Rod flange | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT125-100Mounting: Center trunnion | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-200Mounting: Center trunnion | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-300Mounting: Center trunnion | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-400Mounting: Center trunnion | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-500Mounting: Center trunnion | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-600Mounting: Center trunnion | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-800Mounting: Center trunnion | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT125-1000Mounting: Center trunnion | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-100Mounting: Center trunnion | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-200Mounting: Center trunnion | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-300Mounting: Center trunnion | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-400Mounting: Center trunnion | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-500Mounting: Center trunnion | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-600Mounting: Center trunnion | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-800Mounting: Center trunnion | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT140-1000Mounting: Center trunnion | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT160-100Mounting: Center trunnion | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-200Mounting: Center trunnion | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-300Mounting: Center trunnion | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-400Mounting: Center trunnion | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-500Mounting: Center trunnion | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-600Mounting: Center trunnion | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-800Mounting: Center trunnion | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT160-1000Mounting: Center trunnion | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT180-100Mounting: Center trunnion | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-200Mounting: Center trunnion | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-300Mounting: Center trunnion | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-400Mounting: Center trunnion | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-500Mounting: Center trunnion | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-600Mounting: Center trunnion | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-800Mounting: Center trunnion | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT180-1000Mounting: Center trunnion | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-100Mounting: Center trunnion | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-200Mounting: Center trunnion | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-300Mounting: Center trunnion | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-400Mounting: Center trunnion | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-500Mounting: Center trunnion | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-600Mounting: Center trunnion | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT200-800Mounting: Center trunnion | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc1/2
CS2WT250-100Mounting: Center trunnion | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-200Mounting: Center trunnion | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-300Mounting: Center trunnion | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-400Mounting: Center trunnion | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-500Mounting: Center trunnion | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-600Mounting: Center trunnion | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT250-800Mounting: Center trunnion | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT320-100Mounting: Center trunnion | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT320-200Mounting: Center trunnion | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT320-300Mounting: Center trunnion | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: No | Port: Rc3/4
CS2WT320-400Mounting: Center trunnion | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: No | Port: Rc3/4
CDS2WB125-100Mounting: Basic | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-200Mounting: Basic | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-300Mounting: Basic | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-400Mounting: Basic | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-500Mounting: Basic | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-600Mounting: Basic | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-800Mounting: Basic | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB125-1000Mounting: Basic | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-100Mounting: Basic | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-200Mounting: Basic | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-300Mounting: Basic | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-400Mounting: Basic | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-500Mounting: Basic | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-600Mounting: Basic | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-800Mounting: Basic | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB140-1000Mounting: Basic | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB160-100Mounting: Basic | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-200Mounting: Basic | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-300Mounting: Basic | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-400Mounting: Basic | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-500Mounting: Basic | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-600Mounting: Basic | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-800Mounting: Basic | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB160-1000Mounting: Basic | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB180-100Mounting: Basic | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-200Mounting: Basic | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-300Mounting: Basic | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-400Mounting: Basic | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-500Mounting: Basic | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-600Mounting: Basic | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-800Mounting: Basic | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB180-1000Mounting: Basic | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-100Mounting: Basic | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-200Mounting: Basic | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-300Mounting: Basic | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-400Mounting: Basic | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-500Mounting: Basic | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-600Mounting: Basic | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB200-800Mounting: Basic | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WB250-100Mounting: Basic | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-200Mounting: Basic | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-300Mounting: Basic | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-400Mounting: Basic | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-500Mounting: Basic | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-600Mounting: Basic | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB250-800Mounting: Basic | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB320-100Mounting: Basic | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB320-200Mounting: Basic | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB320-300Mounting: Basic | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WB320-400Mounting: Basic | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL125-100Mounting: Foot | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-200Mounting: Foot | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-300Mounting: Foot | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-400Mounting: Foot | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-500Mounting: Foot | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-600Mounting: Foot | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-800Mounting: Foot | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL125-1000Mounting: Foot | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-100Mounting: Foot | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-200Mounting: Foot | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-300Mounting: Foot | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-400Mounting: Foot | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-500Mounting: Foot | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-600Mounting: Foot | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-800Mounting: Foot | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL140-1000Mounting: Foot | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL160-100Mounting: Foot | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-200Mounting: Foot | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-300Mounting: Foot | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-400Mounting: Foot | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-500Mounting: Foot | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-600Mounting: Foot | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-800Mounting: Foot | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL160-1000Mounting: Foot | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL180-100Mounting: Foot | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-200Mounting: Foot | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-300Mounting: Foot | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-400Mounting: Foot | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-500Mounting: Foot | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-600Mounting: Foot | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-800Mounting: Foot | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL180-1000Mounting: Foot | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-100Mounting: Foot | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-200Mounting: Foot | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-300Mounting: Foot | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-400Mounting: Foot | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-500Mounting: Foot | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-600Mounting: Foot | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL200-800Mounting: Foot | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WL250-100Mounting: Foot | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-200Mounting: Foot | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-300Mounting: Foot | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-400Mounting: Foot | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-500Mounting: Foot | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-600Mounting: Foot | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL250-800Mounting: Foot | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL320-100Mounting: Foot | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL320-200Mounting: Foot | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL320-300Mounting: Foot | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WL320-400Mounting: Foot | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF125-100Mounting: Rod flange | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-200Mounting: Rod flange | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-300Mounting: Rod flange | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-400Mounting: Rod flange | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-500Mounting: Rod flange | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-600Mounting: Rod flange | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-800Mounting: Rod flange | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF125-1000Mounting: Rod flange | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-100Mounting: Rod flange | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-200Mounting: Rod flange | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-300Mounting: Rod flange | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-400Mounting: Rod flange | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-500Mounting: Rod flange | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-600Mounting: Rod flange | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-800Mounting: Rod flange | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF140-1000Mounting: Rod flange | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF160-100Mounting: Rod flange | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-200Mounting: Rod flange | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-300Mounting: Rod flange | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-400Mounting: Rod flange | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-500Mounting: Rod flange | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-600Mounting: Rod flange | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-800Mounting: Rod flange | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF160-1000Mounting: Rod flange | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF180-100Mounting: Rod flange | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-200Mounting: Rod flange | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-300Mounting: Rod flange | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-400Mounting: Rod flange | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-500Mounting: Rod flange | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-600Mounting: Rod flange | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-800Mounting: Rod flange | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF180-1000Mounting: Rod flange | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-100Mounting: Rod flange | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-200Mounting: Rod flange | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-300Mounting: Rod flange | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-400Mounting: Rod flange | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-500Mounting: Rod flange | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-600Mounting: Rod flange | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF200-800Mounting: Rod flange | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WF250-100Mounting: Rod flange | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-200Mounting: Rod flange | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-300Mounting: Rod flange | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-400Mounting: Rod flange | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-500Mounting: Rod flange | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-600Mounting: Rod flange | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF250-800Mounting: Rod flange | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF320-100Mounting: Rod flange | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF320-200Mounting: Rod flange | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF320-300Mounting: Rod flange | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WF320-400Mounting: Rod flange | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT125-100Mounting: Center trunnion | Bore: ø125 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-200Mounting: Center trunnion | Bore: ø125 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-300Mounting: Center trunnion | Bore: ø125 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-400Mounting: Center trunnion | Bore: ø125 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-500Mounting: Center trunnion | Bore: ø125 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-600Mounting: Center trunnion | Bore: ø125 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-800Mounting: Center trunnion | Bore: ø125 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT125-1000Mounting: Center trunnion | Bore: ø125 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-100Mounting: Center trunnion | Bore: ø140 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-200Mounting: Center trunnion | Bore: ø140 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-300Mounting: Center trunnion | Bore: ø140 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-400Mounting: Center trunnion | Bore: ø140 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-500Mounting: Center trunnion | Bore: ø140 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-600Mounting: Center trunnion | Bore: ø140 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-800Mounting: Center trunnion | Bore: ø140 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT140-1000Mounting: Center trunnion | Bore: ø140 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT160-100Mounting: Center trunnion | Bore: ø160 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-200Mounting: Center trunnion | Bore: ø160 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-300Mounting: Center trunnion | Bore: ø160 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-400Mounting: Center trunnion | Bore: ø160 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-500Mounting: Center trunnion | Bore: ø160 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-600Mounting: Center trunnion | Bore: ø160 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-800Mounting: Center trunnion | Bore: ø160 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT160-1000Mounting: Center trunnion | Bore: ø160 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT180-100Mounting: Center trunnion | Bore: ø180 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-200Mounting: Center trunnion | Bore: ø180 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-300Mounting: Center trunnion | Bore: ø180 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-400Mounting: Center trunnion | Bore: ø180 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-500Mounting: Center trunnion | Bore: ø180 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-600Mounting: Center trunnion | Bore: ø180 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-800Mounting: Center trunnion | Bore: ø180 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT180-1000Mounting: Center trunnion | Bore: ø180 mm | Stroke: 1000 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-100Mounting: Center trunnion | Bore: ø200 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-200Mounting: Center trunnion | Bore: ø200 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-300Mounting: Center trunnion | Bore: ø200 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-400Mounting: Center trunnion | Bore: ø200 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-500Mounting: Center trunnion | Bore: ø200 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-600Mounting: Center trunnion | Bore: ø200 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT200-800Mounting: Center trunnion | Bore: ø200 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc1/2
CDS2WT250-100Mounting: Center trunnion | Bore: ø250 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-200Mounting: Center trunnion | Bore: ø250 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-300Mounting: Center trunnion | Bore: ø250 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-400Mounting: Center trunnion | Bore: ø250 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-500Mounting: Center trunnion | Bore: ø250 mm | Stroke: 500 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-600Mounting: Center trunnion | Bore: ø250 mm | Stroke: 600 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT250-800Mounting: Center trunnion | Bore: ø250 mm | Stroke: 800 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT320-100Mounting: Center trunnion | Bore: ø320 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT320-200Mounting: Center trunnion | Bore: ø320 mm | Stroke: 200 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT320-300Mounting: Center trunnion | Bore: ø320 mm | Stroke: 300 mm | Auto switch magnet: Yes | Port: Rc3/4
CDS2WT320-400Mounting: Center trunnion | Bore: ø320 mm | Stroke: 400 mm | Auto switch magnet: Yes | Port: Rc3/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
