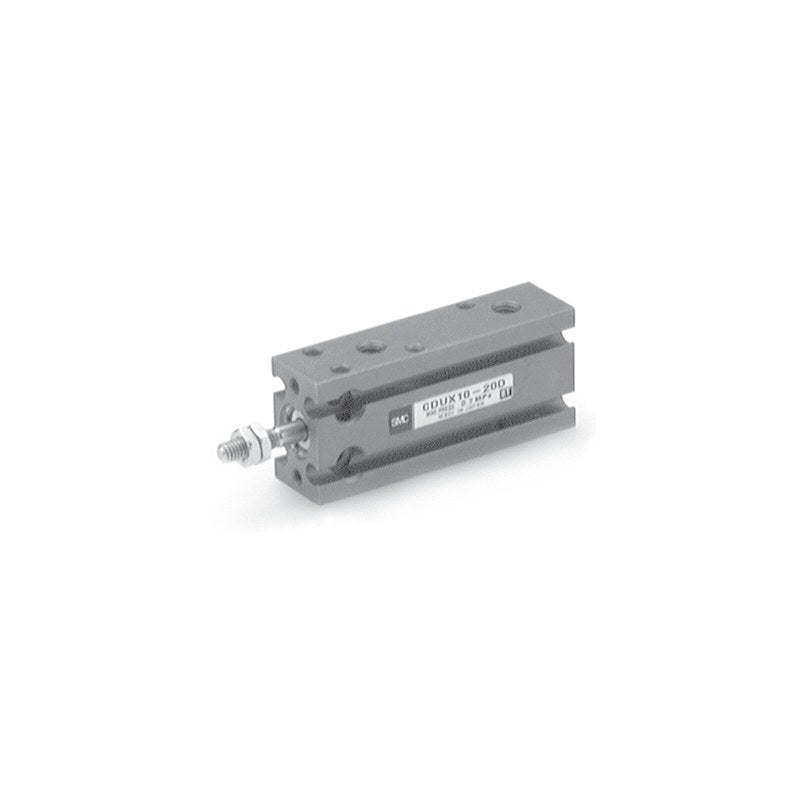

SMC CU Free Mount Cylinder (ø6 to ø32)

SMC CU Free Mount Cylinder (ø6 to ø32)

SMC CU series free mount cylinder with a square body that mounts directly from several faces without brackets, ø6 to ø32 mm bore, in double acting (standard and long stroke), single acting and air cushion versions.

Key features

  • Square body can be mounted directly on multiple faces without brackets for flexible machine layout
  • Double acting standard strokes 5 to 50 mm and long strokes up to 100 mm; single acting (S spring return, T spring extend) 5 to 15 mm
  • Air cushion type (A, ø20 to ø32): approx. 2.4x allowable kinetic energy and 11 dB lower end-of-stroke noise vs rubber bumper type
  • Built-in magnet versions (CDU...) accept D-M9, D-M9W, D-M9A and D-A9 series auto switches, ordered as a suffix (e.g. -M9BW)
  • Port thread M5 (ø32: Rc1/8) standard; NPT (TN) and G (TF) for ø32 on order
  • Made to order: heat/cold resistant (-XB6/-XB7), low speed (-XB9/-XB13), adjustable stroke (-XC8), 5 mm spacer strokes (-XC19), fluororubber seals (-XC22)

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Ambient and fluid temperature -10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication Not required (non-lube)
Piston speed 50 to 500 mm/s
Rod end Male thread
Stroke length tolerance +1.0/0 mm
Cushion Rubber bumper (air cushion on A type)
Min. operating pressure Double acting 0.05 to 0.12 MPa, single acting 0.13 to 0.2 MPa, air cushion 0.08 MPa
Source SMC Korea catalog CU (SMCKR_CU.pdf), p. 727-728, 739-740, 760-761, 770-771 (PDF p. 5-6, 17-18, 38-39, 48-49)
CU6-5D Type: Double acting | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU6-10D Type: Double acting | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU6-15D Type: Double acting | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU6-20D Type: Double acting | Bore: ø6 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU6-25D Type: Double acting | Bore: ø6 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CU6-30D Type: Double acting | Bore: ø6 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU6-40D Type: Double acting, long stroke | Bore: ø6 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU6-50D Type: Double acting, long stroke | Bore: ø6 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU6-60D Type: Double acting, long stroke | Bore: ø6 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU6-5S Type: Single acting, spring return | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU6-5T Type: Single acting, spring extend | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU6-10S Type: Single acting, spring return | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU6-10T Type: Single acting, spring extend | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU6-15S Type: Single acting, spring return | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU6-15T Type: Single acting, spring extend | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU10-5D Type: Double acting | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU10-10D Type: Double acting | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU10-15D Type: Double acting | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU10-20D Type: Double acting | Bore: ø10 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU10-25D Type: Double acting | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CU10-30D Type: Double acting | Bore: ø10 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU10-40D Type: Double acting, long stroke | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU10-50D Type: Double acting, long stroke | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU10-60D Type: Double acting, long stroke | Bore: ø10 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU10-5S Type: Single acting, spring return | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU10-5T Type: Single acting, spring extend | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU10-10S Type: Single acting, spring return | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU10-10T Type: Single acting, spring extend | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU10-15S Type: Single acting, spring return | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU10-15T Type: Single acting, spring extend | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU16-5D Type: Double acting | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU16-10D Type: Double acting | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU16-15D Type: Double acting | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU16-20D Type: Double acting | Bore: ø16 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU16-25D Type: Double acting | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CU16-30D Type: Double acting | Bore: ø16 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU16-40D Type: Double acting, long stroke | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU16-50D Type: Double acting, long stroke | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU16-60D Type: Double acting, long stroke | Bore: ø16 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU16-5S Type: Single acting, spring return | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU16-5T Type: Single acting, spring extend | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU16-10S Type: Single acting, spring return | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU16-10T Type: Single acting, spring extend | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU16-15S Type: Single acting, spring return | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU16-15T Type: Single acting, spring extend | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU20-5D Type: Double acting | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU20-10D Type: Double acting | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU20-15D Type: Double acting | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU20-20D Type: Double acting | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU20-25D Type: Double acting | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CU20-30D Type: Double acting | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU20-40D Type: Double acting | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU20-50D Type: Double acting | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU20-60D Type: Double acting, long stroke | Bore: ø20 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU20-70D Type: Double acting, long stroke | Bore: ø20 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CU20-80D Type: Double acting, long stroke | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CU20-90D Type: Double acting, long stroke | Bore: ø20 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CU20-100D Type: Double acting, long stroke | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CU20-5S Type: Single acting, spring return | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU20-5T Type: Single acting, spring extend | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU20-10S Type: Single acting, spring return | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU20-10T Type: Single acting, spring extend | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU20-15S Type: Single acting, spring return | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU20-15T Type: Single acting, spring extend | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU20-20A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU20-30A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU20-40A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU20-50A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU20-60A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU20-70A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CU20-80A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CU20-90A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CU20-100A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CU25-5D Type: Double acting | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU25-10D Type: Double acting | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU25-15D Type: Double acting | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU25-20D Type: Double acting | Bore: ø25 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU25-25D Type: Double acting | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CU25-30D Type: Double acting | Bore: ø25 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU25-40D Type: Double acting | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU25-50D Type: Double acting | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU25-60D Type: Double acting, long stroke | Bore: ø25 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU25-70D Type: Double acting, long stroke | Bore: ø25 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CU25-80D Type: Double acting, long stroke | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CU25-90D Type: Double acting, long stroke | Bore: ø25 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CU25-100D Type: Double acting, long stroke | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CU25-5S Type: Single acting, spring return | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU25-5T Type: Single acting, spring extend | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU25-10S Type: Single acting, spring return | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU25-10T Type: Single acting, spring extend | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU25-15S Type: Single acting, spring return | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU25-15T Type: Single acting, spring extend | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU25-20A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU25-30A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU25-40A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU25-50A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU25-60A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU25-70A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CU25-80A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CU25-90A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CU25-100A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CU32-5D Type: Double acting | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No | Port: Rc1/8
CU32-10D Type: Double acting | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No | Port: Rc1/8
CU32-15D Type: Double acting | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No | Port: Rc1/8
CU32-20D Type: Double acting | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: No | Port: Rc1/8
CU32-25D Type: Double acting | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No | Port: Rc1/8
CU32-30D Type: Double acting | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: No | Port: Rc1/8
CU32-40D Type: Double acting | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No | Port: Rc1/8
CU32-50D Type: Double acting | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No | Port: Rc1/8
CU32-60D Type: Double acting, long stroke | Bore: ø32 mm | Stroke: 60 mm | Auto switch magnet: No | Port: Rc1/8
CU32-70D Type: Double acting, long stroke | Bore: ø32 mm | Stroke: 70 mm | Auto switch magnet: No | Port: Rc1/8
CU32-80D Type: Double acting, long stroke | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No | Port: Rc1/8
CU32-90D Type: Double acting, long stroke | Bore: ø32 mm | Stroke: 90 mm | Auto switch magnet: No | Port: Rc1/8
CU32-100D Type: Double acting, long stroke | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/8
CU32-5S Type: Single acting, spring return | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No | Port: Rc1/8
CU32-5T Type: Single acting, spring extend | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No | Port: Rc1/8
CU32-10S Type: Single acting, spring return | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No | Port: Rc1/8
CU32-10T Type: Single acting, spring extend | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No | Port: Rc1/8
CU32-15S Type: Single acting, spring return | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No | Port: Rc1/8
CU32-15T Type: Single acting, spring extend | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No | Port: Rc1/8
CU32-20A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: No | Port: Rc1/8
CU32-30A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: No | Port: Rc1/8
CU32-40A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No | Port: Rc1/8
CU32-50A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No | Port: Rc1/8
CU32-60A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 60 mm | Auto switch magnet: No | Port: Rc1/8
CU32-70A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 70 mm | Auto switch magnet: No | Port: Rc1/8
CU32-80A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No | Port: Rc1/8
CU32-90A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 90 mm | Auto switch magnet: No | Port: Rc1/8
CU32-100A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/8
CDU6-5D Type: Double acting | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-10D Type: Double acting | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-15D Type: Double acting | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-20D Type: Double acting | Bore: ø6 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-25D Type: Double acting | Bore: ø6 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-30D Type: Double acting | Bore: ø6 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-40D Type: Double acting, long stroke | Bore: ø6 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-50D Type: Double acting, long stroke | Bore: ø6 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-60D Type: Double acting, long stroke | Bore: ø6 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-5S Type: Single acting, spring return | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-5T Type: Single acting, spring extend | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-10S Type: Single acting, spring return | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-10T Type: Single acting, spring extend | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-15S Type: Single acting, spring return | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-15T Type: Single acting, spring extend | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-5D Type: Double acting | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-10D Type: Double acting | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-15D Type: Double acting | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-20D Type: Double acting | Bore: ø10 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-25D Type: Double acting | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-30D Type: Double acting | Bore: ø10 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-40D Type: Double acting, long stroke | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-50D Type: Double acting, long stroke | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-60D Type: Double acting, long stroke | Bore: ø10 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-5S Type: Single acting, spring return | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-5T Type: Single acting, spring extend | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-10S Type: Single acting, spring return | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-10T Type: Single acting, spring extend | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-15S Type: Single acting, spring return | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-15T Type: Single acting, spring extend | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-5D Type: Double acting | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-10D Type: Double acting | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-15D Type: Double acting | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-20D Type: Double acting | Bore: ø16 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-25D Type: Double acting | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-30D Type: Double acting | Bore: ø16 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-40D Type: Double acting, long stroke | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-50D Type: Double acting, long stroke | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-60D Type: Double acting, long stroke | Bore: ø16 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-5S Type: Single acting, spring return | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-5T Type: Single acting, spring extend | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-10S Type: Single acting, spring return | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-10T Type: Single acting, spring extend | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-15S Type: Single acting, spring return | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-15T Type: Single acting, spring extend | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-5D Type: Double acting | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-10D Type: Double acting | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-15D Type: Double acting | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-20D Type: Double acting | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-25D Type: Double acting | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-30D Type: Double acting | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-40D Type: Double acting | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-50D Type: Double acting | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-60D Type: Double acting, long stroke | Bore: ø20 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-70D Type: Double acting, long stroke | Bore: ø20 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-80D Type: Double acting, long stroke | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-90D Type: Double acting, long stroke | Bore: ø20 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-100D Type: Double acting, long stroke | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-5S Type: Single acting, spring return | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-5T Type: Single acting, spring extend | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-10S Type: Single acting, spring return | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-10T Type: Single acting, spring extend | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-15S Type: Single acting, spring return | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-15T Type: Single acting, spring extend | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-20A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-30A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-40A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-50A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-60A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-70A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-80A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-90A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-100A Type: Double acting, air cushion | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-5D Type: Double acting | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-10D Type: Double acting | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-15D Type: Double acting | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-20D Type: Double acting | Bore: ø25 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-25D Type: Double acting | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-30D Type: Double acting | Bore: ø25 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-40D Type: Double acting | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-50D Type: Double acting | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-60D Type: Double acting, long stroke | Bore: ø25 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-70D Type: Double acting, long stroke | Bore: ø25 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-80D Type: Double acting, long stroke | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-90D Type: Double acting, long stroke | Bore: ø25 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-100D Type: Double acting, long stroke | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-5S Type: Single acting, spring return | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-5T Type: Single acting, spring extend | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-10S Type: Single acting, spring return | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-10T Type: Single acting, spring extend | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-15S Type: Single acting, spring return | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-15T Type: Single acting, spring extend | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-20A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-30A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-40A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-50A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-60A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-70A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-80A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-90A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-100A Type: Double acting, air cushion | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU32-5D Type: Double acting | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-10D Type: Double acting | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-15D Type: Double acting | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-20D Type: Double acting | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-25D Type: Double acting | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-30D Type: Double acting | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-40D Type: Double acting | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-50D Type: Double acting | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-60D Type: Double acting, long stroke | Bore: ø32 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-70D Type: Double acting, long stroke | Bore: ø32 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-80D Type: Double acting, long stroke | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-90D Type: Double acting, long stroke | Bore: ø32 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-100D Type: Double acting, long stroke | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-5S Type: Single acting, spring return | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-5T Type: Single acting, spring extend | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-10S Type: Single acting, spring return | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-10T Type: Single acting, spring extend | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-15S Type: Single acting, spring return | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-15T Type: Single acting, spring extend | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-20A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-30A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-40A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-50A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-60A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-70A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-80A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-90A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-100A Type: Double acting, air cushion | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/8
Compact CylindersSMC
258 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CU Free Mount Cylinder (ø6 to ø32)

Brand SMC·Compact Cylinders

Available part numbers (258)

CU6-5D, CU6-10D, CU6-15D, CU6-20D, CU6-25D, CU6-30D, CU6-40D, CU6-50D, CU6-60D, CU6-5S + 248 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CU6-5DType: Double acting | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU6-10DType: Double acting | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU6-15DType: Double acting | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU6-20DType: Double acting | Bore: ø6 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU6-25DType: Double acting | Bore: ø6 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CU6-30DType: Double acting | Bore: ø6 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU6-40DType: Double acting, long stroke | Bore: ø6 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU6-50DType: Double acting, long stroke | Bore: ø6 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU6-60DType: Double acting, long stroke | Bore: ø6 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU6-5SType: Single acting, spring return | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU6-5TType: Single acting, spring extend | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU6-10SType: Single acting, spring return | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU6-10TType: Single acting, spring extend | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU6-15SType: Single acting, spring return | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU6-15TType: Single acting, spring extend | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU10-5DType: Double acting | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU10-10DType: Double acting | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU10-15DType: Double acting | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU10-20DType: Double acting | Bore: ø10 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU10-25DType: Double acting | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CU10-30DType: Double acting | Bore: ø10 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU10-40DType: Double acting, long stroke | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU10-50DType: Double acting, long stroke | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU10-60DType: Double acting, long stroke | Bore: ø10 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU10-5SType: Single acting, spring return | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU10-5TType: Single acting, spring extend | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU10-10SType: Single acting, spring return | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU10-10TType: Single acting, spring extend | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU10-15SType: Single acting, spring return | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU10-15TType: Single acting, spring extend | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU16-5DType: Double acting | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU16-10DType: Double acting | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU16-15DType: Double acting | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU16-20DType: Double acting | Bore: ø16 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU16-25DType: Double acting | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CU16-30DType: Double acting | Bore: ø16 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU16-40DType: Double acting, long stroke | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU16-50DType: Double acting, long stroke | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU16-60DType: Double acting, long stroke | Bore: ø16 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU16-5SType: Single acting, spring return | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU16-5TType: Single acting, spring extend | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU16-10SType: Single acting, spring return | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU16-10TType: Single acting, spring extend | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU16-15SType: Single acting, spring return | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU16-15TType: Single acting, spring extend | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU20-5DType: Double acting | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU20-10DType: Double acting | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU20-15DType: Double acting | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU20-20DType: Double acting | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU20-25DType: Double acting | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CU20-30DType: Double acting | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU20-40DType: Double acting | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU20-50DType: Double acting | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU20-60DType: Double acting, long stroke | Bore: ø20 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU20-70DType: Double acting, long stroke | Bore: ø20 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CU20-80DType: Double acting, long stroke | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CU20-90DType: Double acting, long stroke | Bore: ø20 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CU20-100DType: Double acting, long stroke | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CU20-5SType: Single acting, spring return | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU20-5TType: Single acting, spring extend | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU20-10SType: Single acting, spring return | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU20-10TType: Single acting, spring extend | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU20-15SType: Single acting, spring return | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU20-15TType: Single acting, spring extend | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU20-20AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU20-30AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU20-40AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU20-50AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU20-60AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU20-70AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CU20-80AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CU20-90AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CU20-100AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CU25-5DType: Double acting | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU25-10DType: Double acting | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU25-15DType: Double acting | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU25-20DType: Double acting | Bore: ø25 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU25-25DType: Double acting | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CU25-30DType: Double acting | Bore: ø25 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU25-40DType: Double acting | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU25-50DType: Double acting | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU25-60DType: Double acting, long stroke | Bore: ø25 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU25-70DType: Double acting, long stroke | Bore: ø25 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CU25-80DType: Double acting, long stroke | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CU25-90DType: Double acting, long stroke | Bore: ø25 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CU25-100DType: Double acting, long stroke | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CU25-5SType: Single acting, spring return | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU25-5TType: Single acting, spring extend | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CU25-10SType: Single acting, spring return | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU25-10TType: Single acting, spring extend | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CU25-15SType: Single acting, spring return | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU25-15TType: Single acting, spring extend | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CU25-20AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CU25-30AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CU25-40AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CU25-50AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CU25-60AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CU25-70AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CU25-80AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CU25-90AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CU25-100AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CU32-5DType: Double acting | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No | Port: Rc1/8
CU32-10DType: Double acting | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No | Port: Rc1/8
CU32-15DType: Double acting | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No | Port: Rc1/8
CU32-20DType: Double acting | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: No | Port: Rc1/8
CU32-25DType: Double acting | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No | Port: Rc1/8
CU32-30DType: Double acting | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: No | Port: Rc1/8
CU32-40DType: Double acting | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No | Port: Rc1/8
CU32-50DType: Double acting | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No | Port: Rc1/8
CU32-60DType: Double acting, long stroke | Bore: ø32 mm | Stroke: 60 mm | Auto switch magnet: No | Port: Rc1/8
CU32-70DType: Double acting, long stroke | Bore: ø32 mm | Stroke: 70 mm | Auto switch magnet: No | Port: Rc1/8
CU32-80DType: Double acting, long stroke | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No | Port: Rc1/8
CU32-90DType: Double acting, long stroke | Bore: ø32 mm | Stroke: 90 mm | Auto switch magnet: No | Port: Rc1/8
CU32-100DType: Double acting, long stroke | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/8
CU32-5SType: Single acting, spring return | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No | Port: Rc1/8
CU32-5TType: Single acting, spring extend | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No | Port: Rc1/8
CU32-10SType: Single acting, spring return | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No | Port: Rc1/8
CU32-10TType: Single acting, spring extend | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No | Port: Rc1/8
CU32-15SType: Single acting, spring return | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No | Port: Rc1/8
CU32-15TType: Single acting, spring extend | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No | Port: Rc1/8
CU32-20AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: No | Port: Rc1/8
CU32-30AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: No | Port: Rc1/8
CU32-40AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No | Port: Rc1/8
CU32-50AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No | Port: Rc1/8
CU32-60AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 60 mm | Auto switch magnet: No | Port: Rc1/8
CU32-70AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 70 mm | Auto switch magnet: No | Port: Rc1/8
CU32-80AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No | Port: Rc1/8
CU32-90AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 90 mm | Auto switch magnet: No | Port: Rc1/8
CU32-100AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/8
CDU6-5DType: Double acting | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-10DType: Double acting | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-15DType: Double acting | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-20DType: Double acting | Bore: ø6 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-25DType: Double acting | Bore: ø6 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-30DType: Double acting | Bore: ø6 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-40DType: Double acting, long stroke | Bore: ø6 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-50DType: Double acting, long stroke | Bore: ø6 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-60DType: Double acting, long stroke | Bore: ø6 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-5SType: Single acting, spring return | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-5TType: Single acting, spring extend | Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-10SType: Single acting, spring return | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-10TType: Single acting, spring extend | Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-15SType: Single acting, spring return | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU6-15TType: Single acting, spring extend | Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-5DType: Double acting | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-10DType: Double acting | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-15DType: Double acting | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-20DType: Double acting | Bore: ø10 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-25DType: Double acting | Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-30DType: Double acting | Bore: ø10 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-40DType: Double acting, long stroke | Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-50DType: Double acting, long stroke | Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-60DType: Double acting, long stroke | Bore: ø10 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-5SType: Single acting, spring return | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-5TType: Single acting, spring extend | Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-10SType: Single acting, spring return | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-10TType: Single acting, spring extend | Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-15SType: Single acting, spring return | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU10-15TType: Single acting, spring extend | Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-5DType: Double acting | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-10DType: Double acting | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-15DType: Double acting | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-20DType: Double acting | Bore: ø16 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-25DType: Double acting | Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-30DType: Double acting | Bore: ø16 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-40DType: Double acting, long stroke | Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-50DType: Double acting, long stroke | Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-60DType: Double acting, long stroke | Bore: ø16 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-5SType: Single acting, spring return | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-5TType: Single acting, spring extend | Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-10SType: Single acting, spring return | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-10TType: Single acting, spring extend | Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-15SType: Single acting, spring return | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU16-15TType: Single acting, spring extend | Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-5DType: Double acting | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-10DType: Double acting | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-15DType: Double acting | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-20DType: Double acting | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-25DType: Double acting | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-30DType: Double acting | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-40DType: Double acting | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-50DType: Double acting | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-60DType: Double acting, long stroke | Bore: ø20 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-70DType: Double acting, long stroke | Bore: ø20 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-80DType: Double acting, long stroke | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-90DType: Double acting, long stroke | Bore: ø20 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-100DType: Double acting, long stroke | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-5SType: Single acting, spring return | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-5TType: Single acting, spring extend | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-10SType: Single acting, spring return | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-10TType: Single acting, spring extend | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-15SType: Single acting, spring return | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-15TType: Single acting, spring extend | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-20AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-30AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-40AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-50AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-60AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-70AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-80AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-90AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU20-100AType: Double acting, air cushion | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-5DType: Double acting | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-10DType: Double acting | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-15DType: Double acting | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-20DType: Double acting | Bore: ø25 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-25DType: Double acting | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-30DType: Double acting | Bore: ø25 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-40DType: Double acting | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-50DType: Double acting | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-60DType: Double acting, long stroke | Bore: ø25 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-70DType: Double acting, long stroke | Bore: ø25 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-80DType: Double acting, long stroke | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-90DType: Double acting, long stroke | Bore: ø25 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-100DType: Double acting, long stroke | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-5SType: Single acting, spring return | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-5TType: Single acting, spring extend | Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-10SType: Single acting, spring return | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-10TType: Single acting, spring extend | Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-15SType: Single acting, spring return | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-15TType: Single acting, spring extend | Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-20AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-30AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-40AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-50AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-60AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-70AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-80AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-90AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU25-100AType: Double acting, air cushion | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDU32-5DType: Double acting | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-10DType: Double acting | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-15DType: Double acting | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-20DType: Double acting | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-25DType: Double acting | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-30DType: Double acting | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-40DType: Double acting | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-50DType: Double acting | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-60DType: Double acting, long stroke | Bore: ø32 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-70DType: Double acting, long stroke | Bore: ø32 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-80DType: Double acting, long stroke | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-90DType: Double acting, long stroke | Bore: ø32 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-100DType: Double acting, long stroke | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-5SType: Single acting, spring return | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-5TType: Single acting, spring extend | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-10SType: Single acting, spring return | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-10TType: Single acting, spring extend | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-15SType: Single acting, spring return | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-15TType: Single acting, spring extend | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-20AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-30AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-40AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-50AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-60AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-70AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-80AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-90AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: Rc1/8
CDU32-100AType: Double acting, air cushion | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
