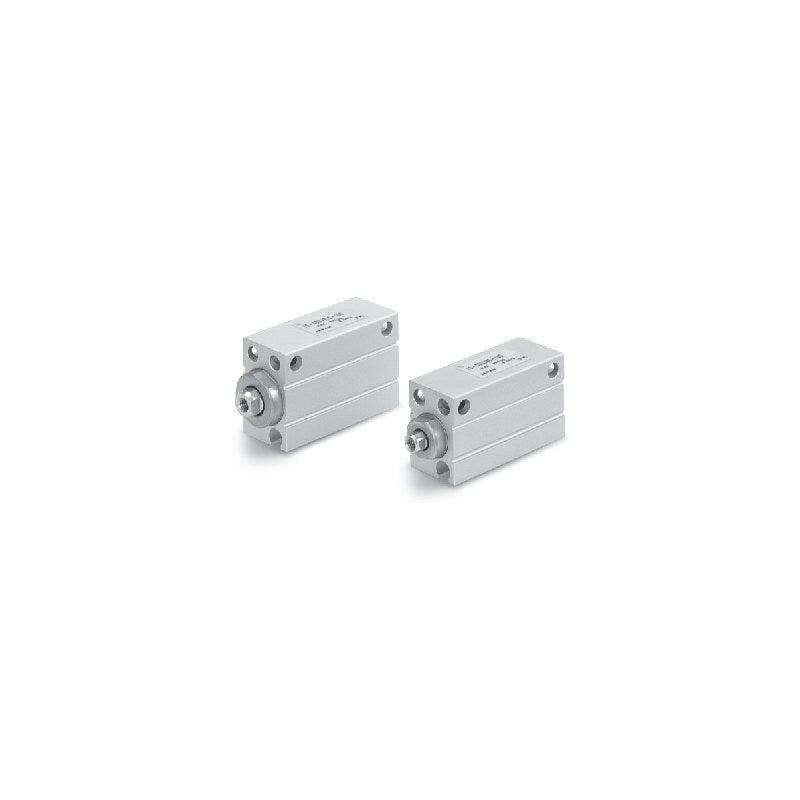

SMC CUJ Mini Free Mount Cylinder (ø4 to ø20)

SMC CUJ Mini Free Mount Cylinder (ø4 to ø20)

SMC CUJ series mini free mount cylinder, ø4 to ø20 mm bore, a very short square-body cylinder that can be mounted directly from four sides, double acting or single acting spring return, with or without a built-in magnet (CDUJ).

Key features

  • Overall length up to approx. 64% shorter and volume up to 70% smaller than the CU cylinder (ø4 to ø10)
  • Square body mountable on four faces; counterbored mounting holes keep the mounting bolts flush
  • ø12 to ø20 offered in lateral (CUJB) and axial (CUJS) through-hole mounting bodies; ø4 to ø10 lateral through-hole (B)
  • CDUJ models (ø6 to ø20) have a built-in magnet for D-F8 and D-M9 series auto switches (ordered as a suffix)
  • Female rod end thread as standard (ø4 without thread); male rod end (M) listed
  • Clean series (10-/11- prefix), heat resistant (-XB6), fluororubber seals (-XC22) and rod end change (-XA) on order

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure Double acting 0.05 to 0.15 MPa; single acting 0.18 to 0.35 MPa (by bore)
Ambient and fluid temperature -10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication Not required (non-lube)
Piston speed 50 to 500 mm/s
Cushion None (ø4 to ø10), rubber bumper (ø12 to ø20)
Port size M3x0.5 (ø20: M5x0.8)
Source SMC Korea catalog CUJ (SMCKR_CUJ.pdf), p. 593-597, 605-606, 610 (PDF p. 1-5, 13-14, 18)
CUJB4-4D Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 4 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-4DM Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-6D Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 6 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-6DM Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-8D Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 8 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-8DM Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-10D Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 10 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-10DM Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-15D Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 15 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-15DM Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-20D Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 20 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-20DM Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-4S Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: No thread | Auto switch magnet: No
CUJB4-4SM Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB4-6S Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: No thread | Auto switch magnet: No
CUJB4-6SM Mounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB6-4D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-4DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-6D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-6DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-8D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-8DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-10D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-10DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-15D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-15DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-20D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-20DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-25D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-25DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-30D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-30DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-4S Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB6-4SM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB6-6S Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB6-6SM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB6-8S Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB6-8SM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB8-4D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-4DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-6D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-6DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-8D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-8DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-10D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-10DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-15D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-15DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-20D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-20DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-25D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-25DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-30D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-30DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-4S Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB8-4SM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB8-6S Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB8-6SM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB8-8S Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB8-8SM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB8-10S Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB8-10SM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB10-4D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-4DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-6D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-6DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-8D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-8DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-10D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-10DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-15D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-15DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-20D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-20DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-25D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-25DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-30D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-30DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-4S Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB10-4SM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB10-6S Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB10-6SM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB10-8S Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB10-8SM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB10-10S Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB10-10SM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB12-5D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-5DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-10D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-10DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-15D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-15DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-20D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-20DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-25D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-25DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-30D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-30DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-35D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-35DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-40D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-40DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-45D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-45DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-50D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-50DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-5S Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB12-5SM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB12-10S Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB12-10SM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB16-5D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-5DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-10D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-10DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-15D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-15DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-20D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-20DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-25D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-25DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-30D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-30DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-35D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-35DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-40D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-40DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-45D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-45DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-50D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-50DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-5S Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB16-5SM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB16-10S Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB16-10SM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB20-5D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-5DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-10D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-10DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-15D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-15DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-20D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-20DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-25D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-25DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-30D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-30DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-35D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-35DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-40D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-40DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-45D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-45DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-50D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-50DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-5S Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB20-5SM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB20-10S Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB20-10SM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS12-5D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-5DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-10D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-10DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-15D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-15DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-20D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-20DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-25D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-25DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-30D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-30DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-35D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-35DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-40D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-40DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-45D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-45DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-50D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-50DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-5S Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS12-5SM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS12-10S Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS12-10SM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS16-5D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-5DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-10D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-10DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-15D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-15DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-20D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-20DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-25D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-25DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-30D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-30DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-35D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-35DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-40D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-40DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-45D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-45DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-50D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-50DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-5S Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS16-5SM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS16-10S Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS16-10SM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS20-5D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-5DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-10D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-10DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-15D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-15DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-20D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-20DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-25D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-25DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-30D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-30DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-35D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-35DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-40D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-40DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-45D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-45DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-50D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-50DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-5S Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS20-5SM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS20-10S Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS20-10SM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CDUJB6-4D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-4DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-6D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-6DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-8D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-8DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-10D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-10DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-15D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-15DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-20D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-20DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-25D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-25DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-30D Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-30DM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-4S Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-4SM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-6S Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-6SM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-8S Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-8SM Mounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-4D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-4DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-6D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-6DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-8D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-8DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-10D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-10DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-15D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-15DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-20D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-20DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-25D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-25DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-30D Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-30DM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-4S Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-4SM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-6S Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-6SM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-8S Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-8SM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-10S Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-10SM Mounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-4D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-4DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-6D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-6DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-8D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-8DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-10D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-10DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-15D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-15DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-20D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-20DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-25D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-25DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-30D Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-30DM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-4S Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-4SM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-6S Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-6SM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-8S Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-8SM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-10S Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-10SM Mounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-5D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-5DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-10D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-10DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-15D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-15DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-20D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-20DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-25D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-25DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-30D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-30DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-35D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-35DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-40D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-40DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-45D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-45DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-50D Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-50DM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-5S Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-5SM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-10S Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-10SM Mounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-5D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-5DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-10D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-10DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-15D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-15DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-20D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-20DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-25D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-25DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-30D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-30DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-35D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-35DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-40D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-40DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-45D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-45DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-50D Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-50DM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-5S Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-5SM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-10S Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-10SM Mounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-5D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-5DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-10D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-10DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-15D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-15DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-20D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-20DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-25D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-25DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-30D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-30DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-35D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-35DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-40D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-40DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-45D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-45DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-50D Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-50DM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-5S Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-5SM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-10S Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-10SM Mounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-5D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-5DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-10D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-10DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-15D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-15DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-20D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-20DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-25D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-25DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-30D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-30DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-35D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-35DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-40D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-40DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-45D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-45DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-50D Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-50DM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-5S Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-5SM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-10S Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-10SM Mounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-5D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-5DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-10D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-10DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-15D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-15DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-20D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-20DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-25D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-25DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-30D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-30DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-35D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-35DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-40D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-40DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-45D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-45DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-50D Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-50DM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-5S Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-5SM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-10S Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-10SM Mounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-5D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-5DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-10D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-10DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-15D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-15DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-20D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-20DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-25D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-25DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-30D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-30DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-35D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-35DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-40D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-40DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-45D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-45DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-50D Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-50DM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-5S Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-5SM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-10S Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-10SM Mounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
Compact CylindersSMC
444 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CUJ Mini Free Mount Cylinder (ø4 to ø20)

Brand SMC·Compact Cylinders

Available part numbers (444)

CUJB4-4D, CUJB4-4DM, CUJB4-6D, CUJB4-6DM, CUJB4-8D, CUJB4-8DM, CUJB4-10D, CUJB4-10DM, CUJB4-15D, CUJB4-15DM + 434 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CUJB4-4DMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 4 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-4DMMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-6DMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 6 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-6DMMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-8DMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 8 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-8DMMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-10DMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 10 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-10DMMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-15DMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 15 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-15DMMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-20DMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 20 mm | Action: Double acting | Rod end: No thread | Auto switch magnet: No
CUJB4-20DMMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB4-4SMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: No thread | Auto switch magnet: No
CUJB4-4SMMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB4-6SMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: No thread | Auto switch magnet: No
CUJB4-6SMMounting: Through-hole (lateral) | Bore: ø4 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB6-4DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-4DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-6DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-6DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-8DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-8DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-10DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-10DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-15DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-15DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-20DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-20DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-25DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-25DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-30DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB6-30DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB6-4SMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB6-4SMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB6-6SMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB6-6SMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB6-8SMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB6-8SMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB8-4DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-4DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-6DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-6DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-8DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-8DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-10DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-10DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-15DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-15DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-20DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-20DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-25DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-25DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-30DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB8-30DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB8-4SMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB8-4SMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB8-6SMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB8-6SMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB8-8SMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB8-8SMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB8-10SMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB8-10SMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB10-4DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-4DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-6DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-6DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-8DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-8DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-10DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-10DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-15DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-15DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-20DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-20DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-25DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-25DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-30DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB10-30DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB10-4SMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB10-4SMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB10-6SMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB10-6SMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB10-8SMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB10-8SMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB10-10SMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB10-10SMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB12-5DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-5DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-10DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-10DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-15DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-15DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-20DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-20DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-25DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-25DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-30DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-30DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-35DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-35DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-40DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-40DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-45DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-45DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-50DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB12-50DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB12-5SMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB12-5SMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB12-10SMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB12-10SMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB16-5DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-5DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-10DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-10DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-15DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-15DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-20DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-20DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-25DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-25DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-30DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-30DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-35DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-35DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-40DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-40DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-45DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-45DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-50DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB16-50DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB16-5SMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB16-5SMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB16-10SMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB16-10SMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB20-5DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-5DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-10DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-10DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-15DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-15DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-20DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-20DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-25DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-25DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-30DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-30DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-35DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-35DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-40DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-40DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-45DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-45DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-50DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJB20-50DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJB20-5SMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB20-5SMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJB20-10SMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJB20-10SMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS12-5DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-5DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-10DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-10DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-15DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-15DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-20DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-20DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-25DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-25DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-30DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-30DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-35DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-35DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-40DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-40DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-45DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-45DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-50DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS12-50DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS12-5SMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS12-5SMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS12-10SMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS12-10SMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS16-5DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-5DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-10DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-10DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-15DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-15DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-20DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-20DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-25DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-25DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-30DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-30DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-35DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-35DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-40DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-40DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-45DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-45DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-50DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS16-50DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS16-5SMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS16-5SMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS16-10SMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS16-10SMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS20-5DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-5DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-10DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-10DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-15DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-15DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-20DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-20DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-25DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-25DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-30DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-30DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-35DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-35DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-40DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-40DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-45DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-45DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-50DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: No
CUJS20-50DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: No
CUJS20-5SMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS20-5SMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CUJS20-10SMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: No
CUJS20-10SMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: No
CDUJB6-4DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-4DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-6DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-6DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-8DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-8DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-10DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-10DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-15DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-15DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-20DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-20DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-25DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-25DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-30DMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-30DMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-4SMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-4SMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-6SMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-6SMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB6-8SMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB6-8SMMounting: Through-hole (lateral) | Bore: ø6 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-4DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-4DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-6DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-6DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-8DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-8DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-10DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-10DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-15DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-15DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-20DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-20DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-25DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-25DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-30DMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-30DMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-4SMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-4SMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-6SMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-6SMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-8SMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-8SMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB8-10SMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB8-10SMMounting: Through-hole (lateral) | Bore: ø8 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-4DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-4DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-6DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-6DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-8DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-8DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-10DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-10DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-15DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-15DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-20DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-20DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-25DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-25DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-30DMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-30DMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-4SMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-4SMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 4 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-6SMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-6SMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 6 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-8SMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-8SMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 8 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB10-10SMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB10-10SMMounting: Through-hole (lateral) | Bore: ø10 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-5DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-5DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-10DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-10DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-15DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-15DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-20DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-20DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-25DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-25DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-30DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-30DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-35DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-35DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-40DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-40DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-45DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-45DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-50DMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-50DMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-5SMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-5SMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB12-10SMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB12-10SMMounting: Through-hole (lateral) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-5DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-5DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-10DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-10DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-15DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-15DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-20DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-20DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-25DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-25DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-30DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-30DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-35DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-35DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-40DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-40DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-45DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-45DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-50DMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-50DMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-5SMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-5SMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB16-10SMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB16-10SMMounting: Through-hole (lateral) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-5DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-5DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-10DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-10DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-15DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-15DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-20DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-20DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-25DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-25DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-30DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-30DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-35DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-35DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-40DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-40DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-45DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-45DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-50DMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-50DMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-5SMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-5SMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJB20-10SMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJB20-10SMMounting: Through-hole (lateral) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-5DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-5DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-10DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-10DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-15DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-15DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-20DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-20DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-25DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-25DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-30DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-30DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-35DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-35DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-40DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-40DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-45DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-45DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-50DMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-50DMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-5SMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-5SMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS12-10SMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS12-10SMMounting: Through-hole (axial) | Bore: ø12 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-5DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-5DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-10DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-10DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-15DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-15DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-20DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-20DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-25DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-25DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-30DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-30DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-35DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-35DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-40DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-40DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-45DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-45DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-50DMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-50DMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-5SMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-5SMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS16-10SMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS16-10SMMounting: Through-hole (axial) | Bore: ø16 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-5DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-5DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-10DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-10DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-15DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-15DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 15 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-20DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-20DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 20 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-25DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-25DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 25 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-30DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-30DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 30 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-35DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-35DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 35 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-40DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-40DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 40 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-45DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-45DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 45 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-50DMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-50DMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 50 mm | Action: Double acting | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-5SMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-5SMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 5 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes
CDUJS20-10SMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Female thread | Auto switch magnet: Yes
CDUJS20-10SMMounting: Through-hole (axial) | Bore: ø20 mm | Stroke: 10 mm | Action: Single acting, spring return | Rod end: Male thread | Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
