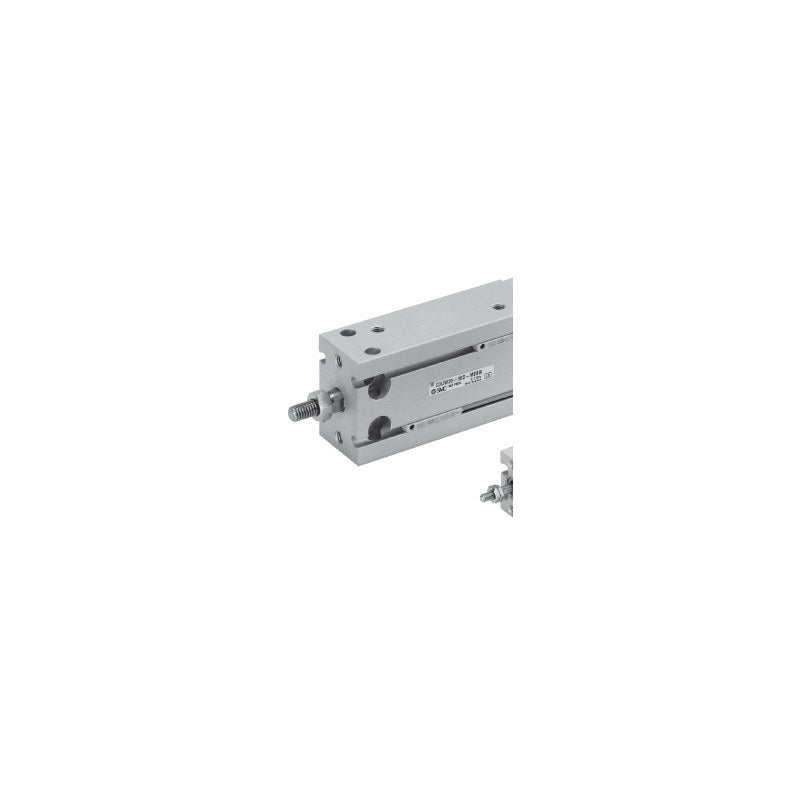

SMC CUW Free Mount Cylinder, Double Rod (ø6 to ø32)

SMC CUW Free Mount Cylinder, Double Rod (ø6 to ø32)

SMC CUW series double acting, double rod free mount cylinder with a square body for direct multi-face mounting, ø6 to ø32 mm bore, with or without a built-in magnet (CDUW).

Key features

  • Through rod on both ends for equal force in both directions and stop/dog mounting on the rear rod
  • Square body mountable directly on several faces without brackets
  • Standard strokes 5 to 60 mm (ø6 to ø16) and 5 to 100 mm (ø20 to ø32)
  • Built-in magnet versions (CDU...) accept D-M9, D-M9W, D-M9A and D-A9 series auto switches, ordered as a suffix (e.g. -M9BW)
  • Port thread M5 (ø32: Rc1/8) standard; NPT (TN) and G (TF) for ø32 on order

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Ambient and fluid temperature -10 to 70°C without magnet, -10 to 60°C with magnet (no freezing)
Lubrication Not required (non-lube)
Piston speed 50 to 500 mm/s
Rod end Male thread
Stroke length tolerance +1.0/0 mm
Action Double acting, double rod
Cushion Rubber bumper
Min. operating pressure 0.15 MPa (ø6), 0.10 MPa (ø10, ø16), 0.08 MPa (ø20 to ø32)
Source SMC Korea catalog CU (SMCKR_CU.pdf), p. 734-735 (PDF p. 12-13)
CUW6-5D Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-10D Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-15D Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-20D Bore: ø6 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-25D Bore: ø6 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-30D Bore: ø6 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-40D Bore: ø6 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-50D Bore: ø6 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-60D Bore: ø6 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-5D Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-10D Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-15D Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-20D Bore: ø10 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-25D Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-30D Bore: ø10 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-40D Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-50D Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-60D Bore: ø10 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-5D Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-10D Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-15D Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-20D Bore: ø16 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-25D Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-30D Bore: ø16 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-40D Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-50D Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-60D Bore: ø16 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-5D Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-10D Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-15D Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-20D Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-25D Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-30D Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-40D Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-50D Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-60D Bore: ø20 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-70D Bore: ø20 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-80D Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-90D Bore: ø20 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-100D Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-5D Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-10D Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-15D Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-20D Bore: ø25 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-25D Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-30D Bore: ø25 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-40D Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-50D Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-60D Bore: ø25 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-70D Bore: ø25 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-80D Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-90D Bore: ø25 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-100D Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CUW32-5D Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-10D Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-15D Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-20D Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-25D Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-30D Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-40D Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-50D Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-60D Bore: ø32 mm | Stroke: 60 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-70D Bore: ø32 mm | Stroke: 70 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-80D Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-90D Bore: ø32 mm | Stroke: 90 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-100D Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/8
CDUW6-5D Bore: ø6 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-10D Bore: ø6 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-15D Bore: ø6 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-20D Bore: ø6 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-25D Bore: ø6 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-30D Bore: ø6 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-40D Bore: ø6 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-50D Bore: ø6 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-60D Bore: ø6 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-5D Bore: ø10 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-10D Bore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-15D Bore: ø10 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-20D Bore: ø10 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-25D Bore: ø10 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-30D Bore: ø10 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-40D Bore: ø10 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-50D Bore: ø10 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-60D Bore: ø10 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-5D Bore: ø16 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-10D Bore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-15D Bore: ø16 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-20D Bore: ø16 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-25D Bore: ø16 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-30D Bore: ø16 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-40D Bore: ø16 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-50D Bore: ø16 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-60D Bore: ø16 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-5D Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-10D Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-15D Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-20D Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-25D Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-30D Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-40D Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-50D Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-60D Bore: ø20 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-70D Bore: ø20 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-80D Bore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-90D Bore: ø20 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-100D Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-5D Bore: ø25 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-10D Bore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-15D Bore: ø25 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-20D Bore: ø25 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-25D Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-30D Bore: ø25 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-40D Bore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-50D Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-60D Bore: ø25 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-70D Bore: ø25 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-80D Bore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-90D Bore: ø25 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-100D Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW32-5D Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-10D Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-15D Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-20D Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-25D Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-30D Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-40D Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-50D Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-60D Bore: ø32 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-70D Bore: ø32 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-80D Bore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-90D Bore: ø32 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-100D Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/8
Compact CylindersSMC
132 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CUW Free Mount Cylinder, Double Rod (ø6 to ø32)

Brand SMC·Compact Cylinders

Available part numbers (132)

CUW6-5D, CUW6-10D, CUW6-15D, CUW6-20D, CUW6-25D, CUW6-30D, CUW6-40D, CUW6-50D, CUW6-60D, CUW10-5D + 122 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CUW6-5DBore: ø6 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-10DBore: ø6 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-15DBore: ø6 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-20DBore: ø6 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-25DBore: ø6 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-30DBore: ø6 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-40DBore: ø6 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-50DBore: ø6 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CUW6-60DBore: ø6 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-5DBore: ø10 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-10DBore: ø10 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-15DBore: ø10 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-20DBore: ø10 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-25DBore: ø10 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-30DBore: ø10 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-40DBore: ø10 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-50DBore: ø10 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CUW10-60DBore: ø10 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-5DBore: ø16 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-10DBore: ø16 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-15DBore: ø16 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-20DBore: ø16 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-25DBore: ø16 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-30DBore: ø16 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-40DBore: ø16 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-50DBore: ø16 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CUW16-60DBore: ø16 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-5DBore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-10DBore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-15DBore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-20DBore: ø20 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-25DBore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-30DBore: ø20 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-40DBore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-50DBore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-60DBore: ø20 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-70DBore: ø20 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-80DBore: ø20 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-90DBore: ø20 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CUW20-100DBore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-5DBore: ø25 mm | Stroke: 5 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-10DBore: ø25 mm | Stroke: 10 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-15DBore: ø25 mm | Stroke: 15 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-20DBore: ø25 mm | Stroke: 20 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-25DBore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-30DBore: ø25 mm | Stroke: 30 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-40DBore: ø25 mm | Stroke: 40 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-50DBore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-60DBore: ø25 mm | Stroke: 60 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-70DBore: ø25 mm | Stroke: 70 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-80DBore: ø25 mm | Stroke: 80 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-90DBore: ø25 mm | Stroke: 90 mm | Auto switch magnet: No | Port: M5x0.8
CUW25-100DBore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No | Port: M5x0.8
CUW32-5DBore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-10DBore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-15DBore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-20DBore: ø32 mm | Stroke: 20 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-25DBore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-30DBore: ø32 mm | Stroke: 30 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-40DBore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-50DBore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-60DBore: ø32 mm | Stroke: 60 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-70DBore: ø32 mm | Stroke: 70 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-80DBore: ø32 mm | Stroke: 80 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-90DBore: ø32 mm | Stroke: 90 mm | Auto switch magnet: No | Port: Rc1/8
CUW32-100DBore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No | Port: Rc1/8
CDUW6-5DBore: ø6 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-10DBore: ø6 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-15DBore: ø6 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-20DBore: ø6 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-25DBore: ø6 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-30DBore: ø6 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-40DBore: ø6 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-50DBore: ø6 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW6-60DBore: ø6 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-5DBore: ø10 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-10DBore: ø10 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-15DBore: ø10 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-20DBore: ø10 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-25DBore: ø10 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-30DBore: ø10 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-40DBore: ø10 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-50DBore: ø10 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW10-60DBore: ø10 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-5DBore: ø16 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-10DBore: ø16 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-15DBore: ø16 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-20DBore: ø16 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-25DBore: ø16 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-30DBore: ø16 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-40DBore: ø16 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-50DBore: ø16 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW16-60DBore: ø16 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-5DBore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-10DBore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-15DBore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-20DBore: ø20 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-25DBore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-30DBore: ø20 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-40DBore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-50DBore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-60DBore: ø20 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-70DBore: ø20 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-80DBore: ø20 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-90DBore: ø20 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW20-100DBore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-5DBore: ø25 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-10DBore: ø25 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-15DBore: ø25 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-20DBore: ø25 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-25DBore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-30DBore: ø25 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-40DBore: ø25 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-50DBore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-60DBore: ø25 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-70DBore: ø25 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-80DBore: ø25 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-90DBore: ø25 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW25-100DBore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: M5x0.8
CDUW32-5DBore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-10DBore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-15DBore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-20DBore: ø32 mm | Stroke: 20 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-25DBore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-30DBore: ø32 mm | Stroke: 30 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-40DBore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-50DBore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-60DBore: ø32 mm | Stroke: 60 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-70DBore: ø32 mm | Stroke: 70 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-80DBore: ø32 mm | Stroke: 80 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-90DBore: ø32 mm | Stroke: 90 mm | Auto switch magnet: Yes | Port: Rc1/8
CDUW32-100DBore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
