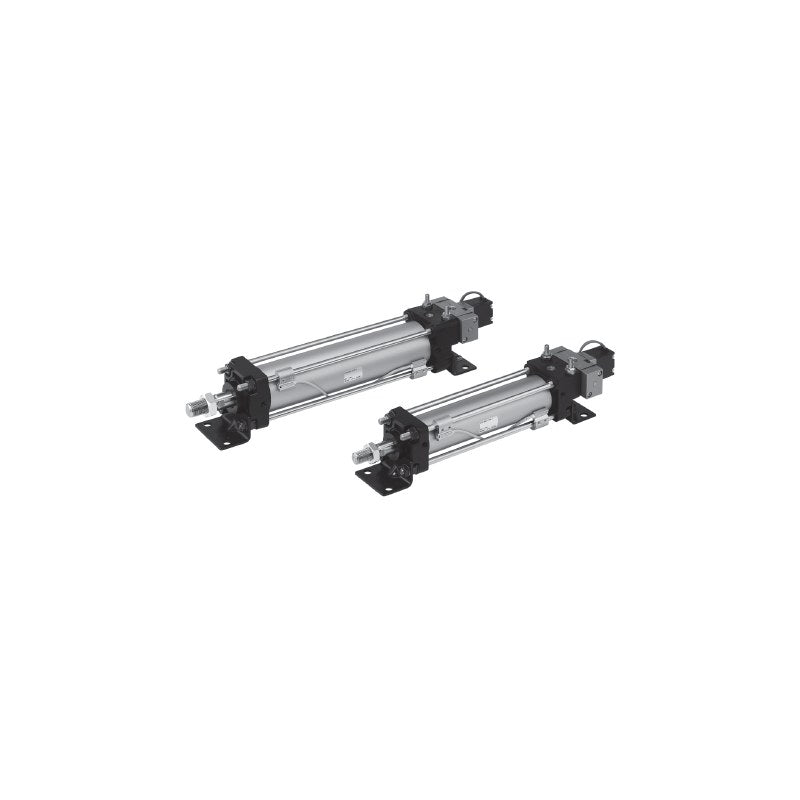

SMC CV3 Valve Mounted Tie-rod Cylinder (ø40 to ø63)

SMC CV3 series double acting tie-rod air cylinder with integrated V3000 solenoid valve and speed control orifices, ø40 to ø63 mm bore.

Key features

Tie-rod air cylinder with a V308 5-port solenoid valve and orifice (speed) valves mounted on the head cover
Valve: single solenoid (rod extends on energizing, or retracts with -B) or double solenoid (W)
Basic, foot, rod flange, single/double clevis (not ø40) and center trunnion mounting
CDV3 built-in magnet for tie-rod or band mounted auto switches (switch ordered as suffix)
Options as code letters: steel tube (F), bellows J/K, no cushion N, rod/head-side cushion R/H, DIN terminal (D)
Coil voltages AC100/200/110/220/240/48/24V, DC24/12/100/6/48/110V; made-to-order -XA, -XC4, -XC15, -XC68

Specifications

Fluid	Air
Proof pressure	1.35 MPa
Max. operating pressure	0.9 MPa
Min. operating pressure	0.15 MPa
Ambient and fluid temperature	-10 to 50°C (no freezing)
Cushion	Air cushion
Port size	Rc1/4
Solenoid valve	V308, B-class coil insulation
Coil voltage / entry (listed codes)	DC24V (5, 6 W), grommet
Piston speed	50 to 500 mm/s (ø100: 50 to 350 mm/s)
Source	SMC Korea catalog CV series (SMCKR_CV__.pdf), p. 1216, 1217 (PDF p. 64, 65)

CV3BN40-25-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-25-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-25-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-25-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-25-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-25-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-50-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-50-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-50-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-50-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-50-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-50-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-75-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-75-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-75-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-75-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-75-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-75-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-100-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-100-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-100-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-100-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-100-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-100-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-125-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-125-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-125-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-125-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-125-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-125-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-150-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-150-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-150-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-150-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-150-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-150-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-200-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-200-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-200-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-200-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-200-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-200-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-250-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-250-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-250-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-250-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-250-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-250-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-300-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-300-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-300-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-300-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-300-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-300-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-350-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-350-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-350-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-350-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-350-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-350-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-400-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-400-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-400-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-400-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-400-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-400-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-450-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-450-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-450-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-450-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-450-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-450-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN40-500-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN40-500-5		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN40-500-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN40-500-5-B		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN40-500-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN40-500-5W		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-25-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-25-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-25-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-25-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-25-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-25-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-50-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-50-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-50-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-50-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-50-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-50-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-75-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-75-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-75-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-75-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-75-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-75-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-100-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-100-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-100-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-100-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-100-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-100-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-125-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-125-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-125-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-125-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-125-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-125-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-150-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-150-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-150-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-150-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-150-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-150-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-200-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-200-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-200-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-200-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-200-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-200-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-250-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-250-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-250-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-250-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-250-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-250-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-300-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-300-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-300-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-300-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-300-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-300-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-350-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-350-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-350-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-350-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-350-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-350-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-400-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-400-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-400-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-400-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-400-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-400-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-450-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-450-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-450-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-450-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-450-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-450-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-500-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-500-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-500-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-500-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-500-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-500-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN50-600-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN50-600-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN50-600-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN50-600-5-B		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN50-600-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN50-600-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-25-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-25-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-25-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-25-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-25-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-25-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-50-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-50-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-50-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-50-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-50-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-50-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-75-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-75-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-75-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-75-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-75-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-75-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-100-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-100-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-100-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-100-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-100-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-100-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-125-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-125-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-125-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-125-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-125-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-125-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-150-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-150-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-150-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-150-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-150-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-150-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-200-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-200-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-200-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-200-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-200-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-200-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-250-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-250-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-250-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-250-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-250-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-250-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-300-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-300-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-300-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-300-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-300-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-300-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-350-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-350-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-350-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-350-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-350-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-350-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-400-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-400-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-400-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-400-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-400-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-400-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-450-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-450-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-450-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-450-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-450-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-450-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-500-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-500-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-500-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-500-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-500-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-500-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3BN63-600-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3BN63-600-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3BN63-600-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3BN63-600-5-B		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3BN63-600-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3BN63-600-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-25-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-25-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-25-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-25-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-25-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-25-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-50-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-50-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-50-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-50-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-50-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-50-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-75-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-75-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-75-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-75-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-75-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-75-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-100-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-100-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-100-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-100-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-100-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-100-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-125-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-125-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-125-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-125-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-125-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-125-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-150-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-150-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-150-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-150-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-150-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-150-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-200-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-200-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-200-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-200-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-200-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-200-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-250-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-250-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-250-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-250-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-250-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-250-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-300-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-300-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-300-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-300-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-300-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-300-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-350-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-350-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-350-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-350-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-350-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-350-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-400-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-400-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-400-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-400-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-400-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-400-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-450-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-450-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-450-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-450-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-450-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-450-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN40-500-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN40-500-5		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN40-500-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN40-500-5-B		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN40-500-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN40-500-5W		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-25-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-25-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-25-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-25-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-25-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-25-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-50-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-50-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-50-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-50-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-50-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-50-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-75-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-75-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-75-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-75-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-75-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-75-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-100-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-100-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-100-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-100-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-100-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-100-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-125-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-125-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-125-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-125-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-125-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-125-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-150-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-150-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-150-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-150-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-150-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-150-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-200-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-200-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-200-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-200-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-200-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-200-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-250-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-250-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-250-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-250-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-250-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-250-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-300-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-300-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-300-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-300-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-300-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-300-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-350-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-350-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-350-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-350-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-350-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-350-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-400-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-400-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-400-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-400-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-400-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-400-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-450-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-450-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-450-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-450-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-450-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-450-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-500-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-500-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-500-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-500-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-500-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-500-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN50-600-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN50-600-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN50-600-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN50-600-5-B		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN50-600-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN50-600-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-25-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-25-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-25-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-25-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-25-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-25-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-50-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-50-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-50-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-50-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-50-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-50-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-75-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-75-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-75-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-75-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-75-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-75-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-100-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-100-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-100-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-100-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-100-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-100-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-125-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-125-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-125-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-125-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-125-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-125-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-150-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-150-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-150-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-150-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-150-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-150-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-200-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-200-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-200-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-200-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-200-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-200-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-250-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-250-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-250-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-250-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-250-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-250-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-300-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-300-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-300-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-300-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-300-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-300-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-350-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-350-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-350-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-350-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-350-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-350-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-400-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-400-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-400-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-400-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-400-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-400-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-450-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-450-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-450-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-450-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-450-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-450-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-500-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-500-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-500-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-500-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-500-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-500-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3LN63-600-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3LN63-600-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3LN63-600-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3LN63-600-5-B		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3LN63-600-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3LN63-600-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-25-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-25-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-25-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-25-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-25-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-25-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-50-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-50-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-50-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-50-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-50-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-50-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-75-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-75-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-75-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-75-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-75-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-75-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-100-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-100-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-100-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-100-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-100-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-100-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-125-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-125-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-125-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-125-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-125-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-125-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-150-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-150-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-150-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-150-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-150-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-150-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-200-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-200-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-200-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-200-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-200-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-200-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-250-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-250-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-250-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-250-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-250-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-250-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-300-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-300-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-300-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-300-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-300-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-300-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-350-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-350-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-350-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-350-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-350-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-350-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-400-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-400-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-400-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-400-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-400-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-400-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-450-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-450-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-450-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-450-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-450-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-450-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN40-500-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN40-500-5		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN40-500-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN40-500-5-B		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN40-500-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN40-500-5W		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-25-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-25-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-25-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-25-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-25-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-25-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-50-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-50-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-50-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-50-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-50-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-50-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-75-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-75-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-75-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-75-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-75-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-75-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-100-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-100-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-100-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-100-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-100-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-100-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-125-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-125-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-125-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-125-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-125-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-125-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-150-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-150-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-150-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-150-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-150-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-150-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-200-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-200-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-200-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-200-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-200-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-200-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-250-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-250-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-250-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-250-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-250-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-250-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-300-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-300-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-300-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-300-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-300-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-300-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-350-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-350-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-350-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-350-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-350-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-350-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-400-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-400-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-400-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-400-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-400-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-400-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-450-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-450-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-450-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-450-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-450-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-450-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-500-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-500-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-500-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-500-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-500-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-500-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN50-600-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN50-600-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN50-600-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN50-600-5-B		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN50-600-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN50-600-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-25-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-25-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-25-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-25-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-25-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-25-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-50-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-50-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-50-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-50-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-50-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-50-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-75-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-75-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-75-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-75-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-75-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-75-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-100-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-100-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-100-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-100-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-100-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-100-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-125-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-125-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-125-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-125-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-125-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-125-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-150-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-150-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-150-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-150-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-150-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-150-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-200-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-200-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-200-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-200-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-200-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-200-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-250-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-250-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-250-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-250-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-250-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-250-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-300-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-300-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-300-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-300-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-300-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-300-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-350-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-350-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-350-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-350-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-350-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-350-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-400-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-400-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-400-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-400-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-400-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-400-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-450-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-450-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-450-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-450-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-450-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-450-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-500-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-500-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-500-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-500-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-500-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-500-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3FN63-600-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3FN63-600-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3FN63-600-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3FN63-600-5-B		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3FN63-600-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3FN63-600-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-25-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-25-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-25-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-25-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-25-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-25-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-50-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-50-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-50-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-50-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-50-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-50-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-75-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-75-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-75-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-75-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-75-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-75-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-100-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-100-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-100-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-100-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-100-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-100-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-125-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-125-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-125-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-125-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-125-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-125-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-150-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-150-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-150-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-150-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-150-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-150-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-200-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-200-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-200-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-200-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-200-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-200-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-250-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-250-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-250-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-250-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-250-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-250-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-300-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-300-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-300-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-300-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-300-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-300-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-350-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-350-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-350-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-350-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-350-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-350-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-400-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-400-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-400-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-400-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-400-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-400-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-450-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-450-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-450-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-450-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-450-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-450-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-500-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-500-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-500-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-500-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-500-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-500-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN50-600-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN50-600-5		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN50-600-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN50-600-5-B		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN50-600-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN50-600-5W		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-25-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-25-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-25-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-25-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-25-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-25-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-50-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-50-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-50-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-50-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-50-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-50-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-75-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-75-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-75-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-75-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-75-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-75-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-100-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-100-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-100-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-100-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-100-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-100-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-125-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-125-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-125-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-125-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-125-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-125-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-150-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-150-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-150-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-150-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-150-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-150-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-200-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-200-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-200-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-200-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-200-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-200-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-250-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-250-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-250-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-250-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-250-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-250-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-300-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-300-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-300-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-300-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-300-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-300-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-350-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-350-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-350-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-350-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-350-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-350-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-400-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-400-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-400-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-400-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-400-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-400-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-450-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-450-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-450-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-450-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-450-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-450-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-500-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-500-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-500-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-500-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-500-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-500-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3CN63-600-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3CN63-600-5		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3CN63-600-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3CN63-600-5-B		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3CN63-600-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3CN63-600-5W		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-25-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-25-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-25-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-25-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-25-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-25-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-50-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-50-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-50-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-50-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-50-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-50-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-75-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-75-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-75-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-75-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-75-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-75-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-100-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-100-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-100-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-100-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-100-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-100-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-125-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-125-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-125-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-125-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-125-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-125-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-150-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-150-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-150-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-150-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-150-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-150-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-200-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-200-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-200-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-200-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-200-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-200-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-250-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-250-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-250-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-250-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-250-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-250-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-300-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-300-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-300-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-300-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-300-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-300-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-350-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-350-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-350-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-350-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-350-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-350-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-400-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-400-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-400-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-400-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-400-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-400-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-450-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-450-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-450-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-450-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-450-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-450-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-500-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-500-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-500-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-500-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-500-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-500-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN50-600-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN50-600-5		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN50-600-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN50-600-5-B		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN50-600-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN50-600-5W		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-25-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-25-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-25-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-25-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-25-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-25-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-50-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-50-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-50-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-50-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-50-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-50-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-75-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-75-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-75-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-75-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-75-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-75-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-100-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-100-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-100-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-100-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-100-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-100-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-125-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-125-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-125-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-125-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-125-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-125-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-150-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-150-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-150-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-150-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-150-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-150-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-200-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-200-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-200-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-200-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-200-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-200-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-250-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-250-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-250-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-250-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-250-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-250-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-300-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-300-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-300-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-300-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-300-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-300-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-350-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-350-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-350-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-350-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-350-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-350-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-400-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-400-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-400-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-400-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-400-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-400-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-450-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-450-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-450-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-450-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-450-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-450-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-500-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-500-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-500-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-500-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-500-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-500-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3DN63-600-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3DN63-600-5		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3DN63-600-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3DN63-600-5-B		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3DN63-600-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3DN63-600-5W		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-25-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-25-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-25-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-25-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-25-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-25-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-50-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-50-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-50-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-50-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-50-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-50-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-75-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-75-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-75-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-75-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-75-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-75-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-100-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-100-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-100-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-100-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-100-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-100-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-125-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-125-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-125-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-125-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-125-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-125-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-150-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-150-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-150-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-150-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-150-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-150-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-200-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-200-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-200-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-200-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-200-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-200-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-250-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-250-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-250-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-250-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-250-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-250-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-300-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-300-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-300-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-300-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-300-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-300-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-350-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-350-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-350-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-350-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-350-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-350-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-400-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-400-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-400-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-400-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-400-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-400-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-450-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-450-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-450-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-450-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-450-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-450-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN40-500-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN40-500-5		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN40-500-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN40-500-5-B		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN40-500-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN40-500-5W		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-25-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-25-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-25-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-25-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-25-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-25-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-50-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-50-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-50-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-50-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-50-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-50-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-75-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-75-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-75-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-75-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-75-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-75-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-100-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-100-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-100-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-100-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-100-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-100-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-125-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-125-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-125-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-125-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-125-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-125-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-150-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-150-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-150-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-150-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-150-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-150-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-200-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-200-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-200-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-200-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-200-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-200-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-250-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-250-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-250-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-250-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-250-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-250-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-300-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-300-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-300-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-300-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-300-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-300-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-350-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-350-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-350-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-350-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-350-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-350-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-400-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-400-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-400-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-400-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-400-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-400-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-450-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-450-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-450-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-450-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-450-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-450-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-500-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-500-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-500-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-500-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-500-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-500-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN50-600-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN50-600-5		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN50-600-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN50-600-5-B		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN50-600-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN50-600-5W		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-25-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-25-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-25-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-25-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-25-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-25-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-50-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-50-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-50-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-50-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-50-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-50-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-75-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-75-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-75-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-75-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-75-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-75-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-100-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-100-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-100-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-100-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-100-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-100-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-125-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-125-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-125-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-125-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-125-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-125-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-150-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-150-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-150-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-150-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-150-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-150-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-200-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-200-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-200-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-200-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-200-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-200-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-250-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-250-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-250-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-250-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-250-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-250-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-300-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-300-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-300-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-300-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-300-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-300-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-350-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-350-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-350-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-350-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-350-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-350-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-400-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-400-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-400-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-400-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-400-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-400-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-450-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-450-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-450-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-450-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-450-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-450-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-500-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-500-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-500-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-500-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-500-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-500-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CV3TN63-600-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDV3TN63-600-5		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CV3TN63-600-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDV3TN63-600-5-B		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CV3TN63-600-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDV3TN63-600-5W		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes

Round Body CylindersSMC

1320 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CV3 Valve Mounted Tie-rod Cylinder (ø40 to ø63)

Brand SMC·Round Body Cylinders

Available part numbers (1320)

CV3BN40-25-5, CDV3BN40-25-5, CV3BN40-25-5-B, CDV3BN40-25-5-B, CV3BN40-25-5W, CDV3BN40-25-5W, CV3BN40-50-5, CDV3BN40-50-5, CV3BN40-50-5-B, CDV3BN40-50-5-B + 1310 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CV3BN40-25-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-25-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-25-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-25-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-25-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-25-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-50-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-50-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-50-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-50-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-50-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-50-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-75-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-75-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-75-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-75-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-75-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-75-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-100-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-100-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-100-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-100-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-100-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-100-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-125-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-125-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-125-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-125-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-125-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-125-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-150-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-150-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-150-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-150-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-150-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-150-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-200-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-200-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-200-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-200-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-200-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-200-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-250-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-250-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-250-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-250-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-250-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-250-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-300-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-300-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-300-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-300-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-300-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-300-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-350-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-350-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-350-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-350-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-350-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-350-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-400-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-400-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-400-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-400-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-400-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-400-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-450-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-450-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-450-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-450-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-450-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-450-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN40-500-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN40-500-5	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN40-500-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN40-500-5-B	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN40-500-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN40-500-5W	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-25-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-25-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-25-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-25-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-25-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-25-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-50-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-50-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-50-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-50-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-50-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-50-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-75-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-75-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-75-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-75-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-75-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-75-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-100-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-100-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-100-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-100-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-100-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-100-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-125-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-125-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-125-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-125-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-125-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-125-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-150-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-150-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-150-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-150-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-150-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-150-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-200-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-200-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-200-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-200-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-200-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-200-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-250-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-250-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-250-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-250-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-250-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-250-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-300-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-300-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-300-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-300-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-300-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-300-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-350-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-350-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-350-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-350-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-350-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-350-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-400-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-400-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-400-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-400-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-400-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-400-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-450-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-450-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-450-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-450-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-450-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-450-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-500-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-500-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-500-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-500-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-500-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-500-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN50-600-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN50-600-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN50-600-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN50-600-5-B	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN50-600-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN50-600-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-25-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-25-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-25-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-25-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-25-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-25-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-50-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-50-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-50-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-50-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-50-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-50-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-75-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-75-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-75-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-75-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-75-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-75-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-100-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-100-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-100-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-100-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-100-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-100-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-125-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-125-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-125-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-125-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-125-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-125-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-150-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-150-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-150-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-150-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-150-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-150-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-200-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-200-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-200-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-200-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-200-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-200-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-250-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-250-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-250-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-250-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-250-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-250-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-300-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-300-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-300-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-300-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-300-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-300-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-350-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-350-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-350-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-350-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-350-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-350-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-400-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-400-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-400-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-400-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-400-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-400-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-450-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-450-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-450-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-450-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-450-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-450-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-500-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-500-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-500-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-500-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-500-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-500-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3BN63-600-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3BN63-600-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3BN63-600-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3BN63-600-5-B	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3BN63-600-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3BN63-600-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-25-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-25-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-25-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-25-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-25-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-25-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-50-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-50-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-50-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-50-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-50-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-50-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-75-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-75-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-75-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-75-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-75-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-75-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-100-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-100-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-100-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-100-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-100-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-100-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-125-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-125-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-125-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-125-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-125-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-125-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-150-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-150-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-150-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-150-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-150-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-150-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-200-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-200-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-200-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-200-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-200-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-200-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-250-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-250-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-250-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-250-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-250-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-250-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-300-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-300-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-300-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-300-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-300-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-300-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-350-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-350-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-350-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-350-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-350-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-350-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-400-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-400-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-400-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-400-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-400-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-400-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-450-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-450-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-450-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-450-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-450-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-450-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN40-500-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN40-500-5	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN40-500-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN40-500-5-B	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN40-500-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN40-500-5W	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-25-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-25-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-25-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-25-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-25-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-25-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-50-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-50-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-50-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-50-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-50-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-50-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-75-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-75-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-75-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-75-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-75-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-75-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-100-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-100-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-100-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-100-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-100-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-100-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-125-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-125-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-125-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-125-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-125-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-125-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-150-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-150-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-150-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-150-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-150-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-150-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-200-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-200-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-200-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-200-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-200-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-200-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-250-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-250-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-250-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-250-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-250-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-250-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-300-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-300-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-300-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-300-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-300-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-300-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-350-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-350-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-350-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-350-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-350-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-350-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-400-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-400-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-400-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-400-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-400-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-400-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-450-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-450-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-450-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-450-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-450-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-450-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-500-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-500-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-500-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-500-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-500-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-500-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN50-600-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN50-600-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN50-600-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN50-600-5-B	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN50-600-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN50-600-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-25-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-25-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-25-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-25-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-25-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-25-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-50-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-50-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-50-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-50-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-50-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-50-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-75-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-75-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-75-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-75-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-75-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-75-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-100-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-100-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-100-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-100-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-100-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-100-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-125-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-125-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-125-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-125-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-125-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-125-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-150-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-150-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-150-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-150-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-150-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-150-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-200-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-200-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-200-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-200-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-200-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-200-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-250-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-250-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-250-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-250-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-250-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-250-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-300-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-300-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-300-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-300-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-300-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-300-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-350-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-350-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-350-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-350-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-350-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-350-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-400-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-400-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-400-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-400-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-400-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-400-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-450-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-450-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-450-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-450-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-450-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-450-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-500-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-500-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-500-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-500-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-500-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-500-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3LN63-600-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3LN63-600-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3LN63-600-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3LN63-600-5-B	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3LN63-600-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3LN63-600-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-25-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-25-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-25-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-25-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-25-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-25-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-50-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-50-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-50-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-50-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-50-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-50-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-75-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-75-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-75-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-75-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-75-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-75-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-100-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-100-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-100-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-100-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-100-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-100-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-125-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-125-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-125-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-125-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-125-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-125-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-150-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-150-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-150-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-150-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-150-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-150-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-200-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-200-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-200-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-200-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-200-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-200-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-250-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-250-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-250-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-250-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-250-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-250-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-300-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-300-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-300-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-300-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-300-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-300-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-350-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-350-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-350-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-350-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-350-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-350-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-400-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-400-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-400-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-400-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-400-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-400-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-450-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-450-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-450-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-450-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-450-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-450-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN40-500-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN40-500-5	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN40-500-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN40-500-5-B	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN40-500-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN40-500-5W	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-25-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-25-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-25-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-25-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-25-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-25-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-50-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-50-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-50-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-50-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-50-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-50-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-75-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-75-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-75-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-75-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-75-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-75-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-100-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-100-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-100-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-100-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-100-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-100-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-125-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-125-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-125-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-125-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-125-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-125-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-150-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-150-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-150-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-150-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-150-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-150-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-200-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-200-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-200-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-200-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-200-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-200-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-250-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-250-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-250-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-250-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-250-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-250-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-300-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-300-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-300-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-300-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-300-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-300-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-350-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-350-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-350-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-350-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-350-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-350-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-400-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-400-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-400-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-400-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-400-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-400-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-450-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-450-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-450-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-450-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-450-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-450-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-500-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-500-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-500-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-500-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-500-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-500-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN50-600-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN50-600-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN50-600-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN50-600-5-B	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN50-600-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN50-600-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-25-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-25-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-25-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-25-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-25-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-25-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-50-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-50-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-50-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-50-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-50-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-50-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-75-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-75-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-75-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-75-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-75-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-75-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-100-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-100-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-100-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-100-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-100-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-100-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-125-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-125-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-125-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-125-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-125-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-125-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-150-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-150-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-150-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-150-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-150-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-150-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-200-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-200-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-200-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-200-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-200-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-200-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-250-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-250-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-250-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-250-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-250-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-250-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-300-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-300-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-300-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-300-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-300-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-300-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-350-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-350-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-350-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-350-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-350-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-350-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-400-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-400-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-400-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-400-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-400-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-400-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-450-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-450-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-450-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-450-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-450-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-450-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-500-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-500-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-500-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-500-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-500-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-500-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3FN63-600-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3FN63-600-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3FN63-600-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3FN63-600-5-B	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3FN63-600-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3FN63-600-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-25-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-25-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-25-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-25-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-25-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-25-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-50-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-50-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-50-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-50-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-50-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-50-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-75-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-75-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-75-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-75-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-75-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-75-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-100-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-100-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-100-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-100-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-100-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-100-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-125-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-125-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-125-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-125-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-125-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-125-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-150-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-150-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-150-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-150-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-150-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-150-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-200-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-200-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-200-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-200-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-200-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-200-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-250-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-250-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-250-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-250-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-250-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-250-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-300-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-300-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-300-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-300-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-300-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-300-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-350-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-350-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-350-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-350-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-350-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-350-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-400-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-400-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-400-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-400-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-400-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-400-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-450-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-450-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-450-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-450-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-450-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-450-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-500-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-500-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-500-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-500-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-500-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-500-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN50-600-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN50-600-5	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN50-600-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN50-600-5-B	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN50-600-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN50-600-5W	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-25-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-25-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-25-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-25-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-25-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-25-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-50-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-50-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-50-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-50-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-50-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-50-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-75-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-75-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-75-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-75-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-75-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-75-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-100-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-100-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-100-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-100-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-100-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-100-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-125-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-125-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-125-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-125-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-125-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-125-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-150-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-150-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-150-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-150-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-150-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-150-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-200-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-200-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-200-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-200-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-200-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-200-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-250-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-250-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-250-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-250-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-250-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-250-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-300-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-300-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-300-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-300-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-300-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-300-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-350-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-350-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-350-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-350-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-350-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-350-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-400-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-400-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-400-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-400-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-400-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-400-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-450-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-450-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-450-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-450-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-450-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-450-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-500-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-500-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-500-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-500-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-500-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-500-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3CN63-600-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3CN63-600-5	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3CN63-600-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3CN63-600-5-B	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3CN63-600-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3CN63-600-5W	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-25-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-25-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-25-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-25-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-25-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-25-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-50-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-50-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-50-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-50-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-50-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-50-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-75-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-75-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-75-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-75-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-75-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-75-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-100-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-100-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-100-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-100-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-100-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-100-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-125-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-125-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-125-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-125-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-125-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-125-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-150-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-150-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-150-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-150-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-150-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-150-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-200-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-200-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-200-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-200-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-200-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-200-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-250-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-250-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-250-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-250-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-250-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-250-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-300-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-300-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-300-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-300-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-300-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-300-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-350-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-350-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-350-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-350-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-350-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-350-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-400-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-400-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-400-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-400-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-400-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-400-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-450-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-450-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-450-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-450-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-450-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-450-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-500-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-500-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-500-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-500-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-500-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-500-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN50-600-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN50-600-5	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN50-600-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN50-600-5-B	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN50-600-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN50-600-5W	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-25-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-25-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-25-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-25-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-25-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-25-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-50-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-50-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-50-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-50-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-50-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-50-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-75-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-75-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-75-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-75-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-75-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-75-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-100-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-100-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-100-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-100-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-100-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-100-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-125-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-125-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-125-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-125-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-125-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-125-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-150-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-150-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-150-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-150-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-150-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-150-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-200-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-200-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-200-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-200-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-200-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-200-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-250-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-250-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-250-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-250-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-250-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-250-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-300-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-300-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-300-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-300-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-300-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-300-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-350-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-350-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-350-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-350-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-350-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-350-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-400-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-400-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-400-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-400-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-400-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-400-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-450-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-450-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-450-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-450-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-450-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-450-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-500-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-500-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-500-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-500-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-500-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-500-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3DN63-600-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3DN63-600-5	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3DN63-600-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3DN63-600-5-B	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3DN63-600-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3DN63-600-5W	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-25-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-25-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-25-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-25-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-25-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-25-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-50-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-50-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-50-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-50-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-50-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-50-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-75-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-75-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-75-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-75-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-75-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-75-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-100-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-100-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-100-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-100-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-100-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-100-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-125-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-125-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-125-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-125-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-125-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-125-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-150-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-150-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-150-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-150-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-150-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-150-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-200-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-200-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-200-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-200-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-200-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-200-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-250-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-250-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-250-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-250-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-250-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-250-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-300-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-300-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-300-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-300-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-300-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-300-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-350-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-350-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-350-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-350-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-350-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-350-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-400-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-400-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-400-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-400-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-400-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-400-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-450-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-450-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-450-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-450-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-450-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-450-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN40-500-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN40-500-5	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN40-500-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN40-500-5-B	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN40-500-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN40-500-5W	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-25-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-25-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-25-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-25-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-25-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-25-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-50-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-50-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-50-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-50-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-50-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-50-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-75-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-75-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-75-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-75-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-75-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-75-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-100-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-100-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-100-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-100-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-100-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-100-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-125-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-125-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-125-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-125-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-125-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-125-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-150-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-150-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-150-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-150-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-150-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-150-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-200-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-200-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-200-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-200-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-200-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-200-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-250-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-250-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-250-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-250-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-250-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-250-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-300-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-300-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-300-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-300-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-300-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-300-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-350-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-350-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-350-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-350-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-350-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-350-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-400-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-400-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-400-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-400-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-400-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-400-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-450-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-450-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-450-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-450-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-450-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-450-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-500-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-500-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-500-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-500-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-500-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-500-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN50-600-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN50-600-5	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN50-600-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN50-600-5-B	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN50-600-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN50-600-5W	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-25-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-25-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-25-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-25-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-25-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-25-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-50-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-50-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-50-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-50-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-50-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-50-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-75-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-75-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-75-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-75-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-75-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-75-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-100-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-100-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-100-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-100-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-100-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-100-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-125-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-125-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-125-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-125-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-125-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-125-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-150-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-150-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-150-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-150-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-150-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-150-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-200-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-200-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-200-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-200-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-200-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-200-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-250-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-250-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-250-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-250-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-250-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-250-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-300-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-300-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-300-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-300-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-300-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-300-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-350-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-350-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-350-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-350-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-350-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-350-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-400-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-400-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-400-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-400-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-400-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-400-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-450-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-450-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-450-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-450-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-450-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-450-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-500-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-500-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-500-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-500-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-500-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-500-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CV3TN63-600-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDV3TN63-600-5	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CV3TN63-600-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDV3TN63-600-5-B	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CV3TN63-600-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDV3TN63-600-5W	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CV3 Valve Mounted Tie-rod Cylinder (ø40 to ø63)
