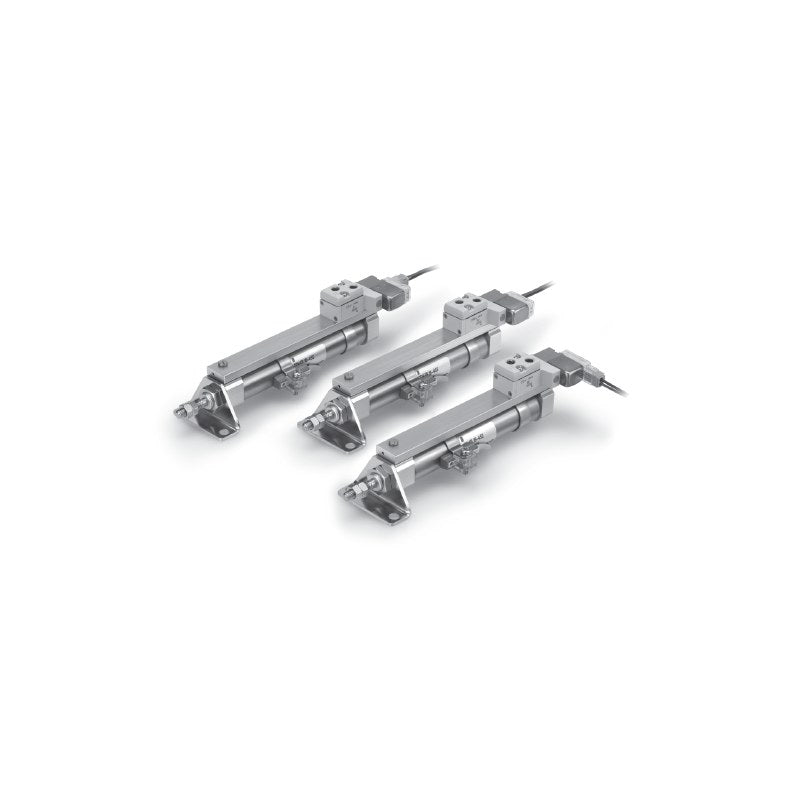

SMC CVJ3 Valve Mounted Air Cylinder (Single Acting, ø10, ø16)

SMC CVJ3 Valve Mounted Air Cylinder (Single Acting, ø10, ø16)

SMC CVJ3 series miniature single acting spring return/extend air cylinder with an integrated SYJ3000 3-port solenoid valve, ø10 and ø16 mm bore.

Key features

  • Single acting cylinder with valve mounted directly on the body: spring extend (T) or spring return (S) type
  • Basic, axial foot and rod flange mounting; standard strokes 15, 30, 45 and 60 mm
  • CDVJ3 built-in magnet version for D-M9/D-A9 auto switches; add -A (rail) or -B (band) when ordered without switch
  • Grommet, L or M plug connector electrical entry; DC24 to 3V and AC100 to 220V coils
  • Spring force ø10: 3.5 to 6.9 N, ø16: 6.9 to 14.2 N

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.15 MPa
Ambient and fluid temperature -10 to 50°C (no freezing)
Cushion Rubber cushion
Lubrication Not required (non-lube)
Port size M5x0.8
Solenoid valve SYJ319 (SYJ3000 series)
Coil voltage (listed codes) DC24V (code 5)
Allowable kinetic energy 0.035 J (ø10), 0.090 J (ø16)
Source SMC Korea catalog CV series (SMCKR_CV__.pdf), p. 1164, 1165 (PDF p. 12, 13)
CVJ3B10-15S-5G Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B10-15S-5L Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-15S-5M Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-15S-5G-A Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-15S-5L-A Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-15S-5M-A Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-15S-5G-B Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-15S-5L-B Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-15S-5M-B Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-15T-5G Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B10-15T-5L Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-15T-5M Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-15T-5G-A Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-15T-5L-A Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-15T-5M-A Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-15T-5G-B Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-15T-5L-B Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-15T-5M-B Mounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-30S-5G Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B10-30S-5L Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-30S-5M Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-30S-5G-A Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-30S-5L-A Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-30S-5M-A Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-30S-5G-B Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-30S-5L-B Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-30S-5M-B Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-30T-5G Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B10-30T-5L Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-30T-5M Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-30T-5G-A Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-30T-5L-A Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-30T-5M-A Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-30T-5G-B Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-30T-5L-B Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-30T-5M-B Mounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-45S-5G Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B10-45S-5L Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-45S-5M Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-45S-5G-A Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-45S-5L-A Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-45S-5M-A Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-45S-5G-B Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-45S-5L-B Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-45S-5M-B Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-45T-5G Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B10-45T-5L Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-45T-5M Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-45T-5G-A Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-45T-5L-A Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-45T-5M-A Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-45T-5G-B Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-45T-5L-B Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-45T-5M-B Mounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-60S-5G Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B10-60S-5L Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-60S-5M Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-60S-5G-A Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-60S-5L-A Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-60S-5M-A Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-60S-5G-B Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-60S-5L-B Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-60S-5M-B Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-60T-5G Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B10-60T-5L Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-60T-5M Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-60T-5G-A Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-60T-5L-A Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-60T-5M-A Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-60T-5G-B Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-60T-5L-B Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-60T-5M-B Mounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-15S-5G Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B16-15S-5L Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-15S-5M Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-15S-5G-A Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-15S-5L-A Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-15S-5M-A Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-15S-5G-B Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-15S-5L-B Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-15S-5M-B Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-15T-5G Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B16-15T-5L Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-15T-5M Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-15T-5G-A Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-15T-5L-A Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-15T-5M-A Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-15T-5G-B Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-15T-5L-B Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-15T-5M-B Mounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-30S-5G Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B16-30S-5L Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-30S-5M Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-30S-5G-A Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-30S-5L-A Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-30S-5M-A Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-30S-5G-B Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-30S-5L-B Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-30S-5M-B Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-30T-5G Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B16-30T-5L Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-30T-5M Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-30T-5G-A Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-30T-5L-A Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-30T-5M-A Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-30T-5G-B Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-30T-5L-B Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-30T-5M-B Mounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-45S-5G Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B16-45S-5L Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-45S-5M Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-45S-5G-A Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-45S-5L-A Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-45S-5M-A Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-45S-5G-B Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-45S-5L-B Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-45S-5M-B Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-45T-5G Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B16-45T-5L Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-45T-5M Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-45T-5G-A Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-45T-5L-A Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-45T-5M-A Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-45T-5G-B Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-45T-5L-B Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-45T-5M-B Mounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-60S-5G Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B16-60S-5L Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-60S-5M Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-60S-5G-A Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-60S-5L-A Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-60S-5M-A Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-60S-5G-B Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-60S-5L-B Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-60S-5M-B Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-60T-5G Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B16-60T-5L Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-60T-5M Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-60T-5G-A Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-60T-5L-A Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-60T-5M-A Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-60T-5G-B Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-60T-5L-B Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-60T-5M-B Mounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-15S-5G Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L10-15S-5L Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-15S-5M Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-15S-5G-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-15S-5L-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-15S-5M-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-15S-5G-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-15S-5L-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-15S-5M-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-15T-5G Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L10-15T-5L Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-15T-5M Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-15T-5G-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-15T-5L-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-15T-5M-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-15T-5G-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-15T-5L-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-15T-5M-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-30S-5G Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L10-30S-5L Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-30S-5M Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-30S-5G-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-30S-5L-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-30S-5M-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-30S-5G-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-30S-5L-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-30S-5M-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-30T-5G Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L10-30T-5L Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-30T-5M Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-30T-5G-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-30T-5L-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-30T-5M-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-30T-5G-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-30T-5L-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-30T-5M-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-45S-5G Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L10-45S-5L Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-45S-5M Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-45S-5G-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-45S-5L-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-45S-5M-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-45S-5G-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-45S-5L-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-45S-5M-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-45T-5G Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L10-45T-5L Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-45T-5M Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-45T-5G-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-45T-5L-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-45T-5M-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-45T-5G-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-45T-5L-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-45T-5M-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-60S-5G Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L10-60S-5L Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-60S-5M Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-60S-5G-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-60S-5L-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-60S-5M-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-60S-5G-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-60S-5L-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-60S-5M-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-60T-5G Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L10-60T-5L Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-60T-5M Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-60T-5G-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-60T-5L-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-60T-5M-A Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-60T-5G-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-60T-5L-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-60T-5M-B Mounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-15S-5G Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L16-15S-5L Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-15S-5M Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-15S-5G-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-15S-5L-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-15S-5M-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-15S-5G-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-15S-5L-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-15S-5M-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-15T-5G Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L16-15T-5L Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-15T-5M Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-15T-5G-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-15T-5L-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-15T-5M-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-15T-5G-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-15T-5L-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-15T-5M-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-30S-5G Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L16-30S-5L Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-30S-5M Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-30S-5G-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-30S-5L-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-30S-5M-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-30S-5G-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-30S-5L-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-30S-5M-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-30T-5G Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L16-30T-5L Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-30T-5M Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-30T-5G-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-30T-5L-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-30T-5M-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-30T-5G-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-30T-5L-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-30T-5M-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-45S-5G Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L16-45S-5L Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-45S-5M Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-45S-5G-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-45S-5L-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-45S-5M-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-45S-5G-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-45S-5L-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-45S-5M-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-45T-5G Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L16-45T-5L Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-45T-5M Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-45T-5G-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-45T-5L-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-45T-5M-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-45T-5G-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-45T-5L-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-45T-5M-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-60S-5G Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L16-60S-5L Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-60S-5M Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-60S-5G-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-60S-5L-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-60S-5M-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-60S-5G-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-60S-5L-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-60S-5M-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-60T-5G Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L16-60T-5L Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-60T-5M Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-60T-5G-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-60T-5L-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-60T-5M-A Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-60T-5G-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-60T-5L-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-60T-5M-B Mounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-15S-5G Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F10-15S-5L Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-15S-5M Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-15S-5G-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-15S-5L-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-15S-5M-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-15S-5G-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-15S-5L-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-15S-5M-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-15T-5G Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F10-15T-5L Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-15T-5M Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-15T-5G-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-15T-5L-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-15T-5M-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-15T-5G-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-15T-5L-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-15T-5M-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-30S-5G Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F10-30S-5L Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-30S-5M Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-30S-5G-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-30S-5L-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-30S-5M-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-30S-5G-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-30S-5L-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-30S-5M-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-30T-5G Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F10-30T-5L Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-30T-5M Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-30T-5G-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-30T-5L-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-30T-5M-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-30T-5G-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-30T-5L-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-30T-5M-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-45S-5G Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F10-45S-5L Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-45S-5M Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-45S-5G-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-45S-5L-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-45S-5M-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-45S-5G-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-45S-5L-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-45S-5M-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-45T-5G Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F10-45T-5L Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-45T-5M Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-45T-5G-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-45T-5L-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-45T-5M-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-45T-5G-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-45T-5L-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-45T-5M-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-60S-5G Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F10-60S-5L Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-60S-5M Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-60S-5G-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-60S-5L-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-60S-5M-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-60S-5G-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-60S-5L-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-60S-5M-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-60T-5G Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F10-60T-5L Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-60T-5M Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-60T-5G-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-60T-5L-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-60T-5M-A Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-60T-5G-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-60T-5L-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-60T-5M-B Mounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-15S-5G Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F16-15S-5L Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-15S-5M Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-15S-5G-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-15S-5L-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-15S-5M-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-15S-5G-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-15S-5L-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-15S-5M-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-15T-5G Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F16-15T-5L Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-15T-5M Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-15T-5G-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-15T-5L-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-15T-5M-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-15T-5G-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-15T-5L-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-15T-5M-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-30S-5G Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F16-30S-5L Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-30S-5M Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-30S-5G-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-30S-5L-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-30S-5M-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-30S-5G-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-30S-5L-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-30S-5M-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-30T-5G Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F16-30T-5L Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-30T-5M Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-30T-5G-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-30T-5L-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-30T-5M-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-30T-5G-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-30T-5L-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-30T-5M-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-45S-5G Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F16-45S-5L Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-45S-5M Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-45S-5G-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-45S-5L-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-45S-5M-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-45S-5G-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-45S-5L-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-45S-5M-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-45T-5G Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F16-45T-5L Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-45T-5M Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-45T-5G-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-45T-5L-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-45T-5M-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-45T-5G-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-45T-5L-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-45T-5M-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-60S-5G Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F16-60S-5L Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-60S-5M Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-60S-5G-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-60S-5L-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-60S-5M-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-60S-5G-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-60S-5L-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-60S-5M-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-60T-5G Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F16-60T-5L Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-60T-5M Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-60T-5G-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-60T-5L-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-60T-5M-A Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-60T-5G-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-60T-5L-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-60T-5M-B Mounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
Round Body CylindersSMC
432 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CVJ3 Valve Mounted Air Cylinder (Single Acting, ø10, ø16)

Brand SMC·Round Body Cylinders

Available part numbers (432)

CVJ3B10-15S-5G, CVJ3B10-15S-5L, CVJ3B10-15S-5M, CDVJ3B10-15S-5G-A, CDVJ3B10-15S-5L-A, CDVJ3B10-15S-5M-A, CDVJ3B10-15S-5G-B, CDVJ3B10-15S-5L-B, CDVJ3B10-15S-5M-B, CVJ3B10-15T-5G + 422 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CVJ3B10-15S-5GMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B10-15S-5LMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-15S-5MMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-15S-5G-AMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-15S-5L-AMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-15S-5M-AMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-15S-5G-BMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-15S-5L-BMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-15S-5M-BMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-15T-5GMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B10-15T-5LMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-15T-5MMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-15T-5G-AMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-15T-5L-AMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-15T-5M-AMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-15T-5G-BMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-15T-5L-BMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-15T-5M-BMounting: Basic | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-30S-5GMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B10-30S-5LMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-30S-5MMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-30S-5G-AMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-30S-5L-AMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-30S-5M-AMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-30S-5G-BMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-30S-5L-BMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-30S-5M-BMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-30T-5GMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B10-30T-5LMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-30T-5MMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-30T-5G-AMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-30T-5L-AMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-30T-5M-AMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-30T-5G-BMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-30T-5L-BMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-30T-5M-BMounting: Basic | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-45S-5GMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B10-45S-5LMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-45S-5MMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-45S-5G-AMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-45S-5L-AMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-45S-5M-AMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-45S-5G-BMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-45S-5L-BMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-45S-5M-BMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-45T-5GMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B10-45T-5LMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-45T-5MMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-45T-5G-AMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-45T-5L-AMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-45T-5M-AMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-45T-5G-BMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-45T-5L-BMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-45T-5M-BMounting: Basic | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-60S-5GMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B10-60S-5LMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-60S-5MMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-60S-5G-AMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-60S-5L-AMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-60S-5M-AMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-60S-5G-BMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-60S-5L-BMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-60S-5M-BMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B10-60T-5GMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B10-60T-5LMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B10-60T-5MMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B10-60T-5G-AMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B10-60T-5L-AMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B10-60T-5M-AMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B10-60T-5G-BMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B10-60T-5L-BMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B10-60T-5M-BMounting: Basic | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-15S-5GMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B16-15S-5LMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-15S-5MMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-15S-5G-AMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-15S-5L-AMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-15S-5M-AMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-15S-5G-BMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-15S-5L-BMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-15S-5M-BMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-15T-5GMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B16-15T-5LMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-15T-5MMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-15T-5G-AMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-15T-5L-AMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-15T-5M-AMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-15T-5G-BMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-15T-5L-BMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-15T-5M-BMounting: Basic | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-30S-5GMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B16-30S-5LMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-30S-5MMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-30S-5G-AMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-30S-5L-AMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-30S-5M-AMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-30S-5G-BMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-30S-5L-BMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-30S-5M-BMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-30T-5GMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B16-30T-5LMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-30T-5MMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-30T-5G-AMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-30T-5L-AMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-30T-5M-AMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-30T-5G-BMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-30T-5L-BMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-30T-5M-BMounting: Basic | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-45S-5GMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B16-45S-5LMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-45S-5MMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-45S-5G-AMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-45S-5L-AMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-45S-5M-AMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-45S-5G-BMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-45S-5L-BMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-45S-5M-BMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-45T-5GMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B16-45T-5LMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-45T-5MMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-45T-5G-AMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-45T-5L-AMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-45T-5M-AMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-45T-5G-BMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-45T-5L-BMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-45T-5M-BMounting: Basic | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-60S-5GMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3B16-60S-5LMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-60S-5MMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-60S-5G-AMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-60S-5L-AMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-60S-5M-AMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-60S-5G-BMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-60S-5L-BMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-60S-5M-BMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3B16-60T-5GMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3B16-60T-5LMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3B16-60T-5MMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3B16-60T-5G-AMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3B16-60T-5L-AMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3B16-60T-5M-AMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3B16-60T-5G-BMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3B16-60T-5L-BMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3B16-60T-5M-BMounting: Basic | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-15S-5GMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L10-15S-5LMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-15S-5MMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-15S-5G-AMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-15S-5L-AMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-15S-5M-AMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-15S-5G-BMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-15S-5L-BMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-15S-5M-BMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-15T-5GMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L10-15T-5LMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-15T-5MMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-15T-5G-AMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-15T-5L-AMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-15T-5M-AMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-15T-5G-BMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-15T-5L-BMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-15T-5M-BMounting: Axial foot | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-30S-5GMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L10-30S-5LMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-30S-5MMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-30S-5G-AMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-30S-5L-AMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-30S-5M-AMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-30S-5G-BMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-30S-5L-BMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-30S-5M-BMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-30T-5GMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L10-30T-5LMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-30T-5MMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-30T-5G-AMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-30T-5L-AMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-30T-5M-AMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-30T-5G-BMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-30T-5L-BMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-30T-5M-BMounting: Axial foot | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-45S-5GMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L10-45S-5LMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-45S-5MMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-45S-5G-AMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-45S-5L-AMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-45S-5M-AMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-45S-5G-BMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-45S-5L-BMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-45S-5M-BMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-45T-5GMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L10-45T-5LMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-45T-5MMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-45T-5G-AMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-45T-5L-AMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-45T-5M-AMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-45T-5G-BMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-45T-5L-BMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-45T-5M-BMounting: Axial foot | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-60S-5GMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L10-60S-5LMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-60S-5MMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-60S-5G-AMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-60S-5L-AMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-60S-5M-AMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-60S-5G-BMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-60S-5L-BMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-60S-5M-BMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L10-60T-5GMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L10-60T-5LMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L10-60T-5MMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L10-60T-5G-AMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L10-60T-5L-AMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L10-60T-5M-AMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L10-60T-5G-BMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L10-60T-5L-BMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L10-60T-5M-BMounting: Axial foot | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-15S-5GMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L16-15S-5LMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-15S-5MMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-15S-5G-AMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-15S-5L-AMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-15S-5M-AMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-15S-5G-BMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-15S-5L-BMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-15S-5M-BMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-15T-5GMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L16-15T-5LMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-15T-5MMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-15T-5G-AMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-15T-5L-AMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-15T-5M-AMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-15T-5G-BMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-15T-5L-BMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-15T-5M-BMounting: Axial foot | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-30S-5GMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L16-30S-5LMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-30S-5MMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-30S-5G-AMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-30S-5L-AMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-30S-5M-AMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-30S-5G-BMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-30S-5L-BMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-30S-5M-BMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-30T-5GMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L16-30T-5LMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-30T-5MMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-30T-5G-AMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-30T-5L-AMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-30T-5M-AMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-30T-5G-BMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-30T-5L-BMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-30T-5M-BMounting: Axial foot | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-45S-5GMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L16-45S-5LMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-45S-5MMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-45S-5G-AMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-45S-5L-AMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-45S-5M-AMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-45S-5G-BMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-45S-5L-BMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-45S-5M-BMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-45T-5GMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L16-45T-5LMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-45T-5MMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-45T-5G-AMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-45T-5L-AMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-45T-5M-AMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-45T-5G-BMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-45T-5L-BMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-45T-5M-BMounting: Axial foot | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-60S-5GMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3L16-60S-5LMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-60S-5MMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-60S-5G-AMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-60S-5L-AMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-60S-5M-AMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-60S-5G-BMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-60S-5L-BMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-60S-5M-BMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3L16-60T-5GMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3L16-60T-5LMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3L16-60T-5MMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3L16-60T-5G-AMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3L16-60T-5L-AMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3L16-60T-5M-AMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3L16-60T-5G-BMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3L16-60T-5L-BMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3L16-60T-5M-BMounting: Axial foot | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-15S-5GMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F10-15S-5LMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-15S-5MMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-15S-5G-AMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-15S-5L-AMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-15S-5M-AMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-15S-5G-BMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-15S-5L-BMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-15S-5M-BMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-15T-5GMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F10-15T-5LMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-15T-5MMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-15T-5G-AMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-15T-5L-AMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-15T-5M-AMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-15T-5G-BMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-15T-5L-BMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-15T-5M-BMounting: Rod flange | Bore: ø10 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-30S-5GMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F10-30S-5LMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-30S-5MMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-30S-5G-AMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-30S-5L-AMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-30S-5M-AMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-30S-5G-BMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-30S-5L-BMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-30S-5M-BMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-30T-5GMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F10-30T-5LMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-30T-5MMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-30T-5G-AMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-30T-5L-AMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-30T-5M-AMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-30T-5G-BMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-30T-5L-BMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-30T-5M-BMounting: Rod flange | Bore: ø10 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-45S-5GMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F10-45S-5LMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-45S-5MMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-45S-5G-AMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-45S-5L-AMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-45S-5M-AMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-45S-5G-BMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-45S-5L-BMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-45S-5M-BMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-45T-5GMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F10-45T-5LMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-45T-5MMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-45T-5G-AMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-45T-5L-AMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-45T-5M-AMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-45T-5G-BMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-45T-5L-BMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-45T-5M-BMounting: Rod flange | Bore: ø10 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-60S-5GMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F10-60S-5LMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-60S-5MMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-60S-5G-AMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-60S-5L-AMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-60S-5M-AMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-60S-5G-BMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-60S-5L-BMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-60S-5M-BMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F10-60T-5GMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F10-60T-5LMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F10-60T-5MMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F10-60T-5G-AMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F10-60T-5L-AMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F10-60T-5M-AMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F10-60T-5G-BMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F10-60T-5L-BMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F10-60T-5M-BMounting: Rod flange | Bore: ø10 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-15S-5GMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F16-15S-5LMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-15S-5MMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-15S-5G-AMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-15S-5L-AMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-15S-5M-AMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-15S-5G-BMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-15S-5L-BMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-15S-5M-BMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-15T-5GMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F16-15T-5LMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-15T-5MMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-15T-5G-AMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-15T-5L-AMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-15T-5M-AMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-15T-5G-BMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-15T-5L-BMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-15T-5M-BMounting: Rod flange | Bore: ø16 mm | Stroke: 15 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-30S-5GMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F16-30S-5LMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-30S-5MMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-30S-5G-AMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-30S-5L-AMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-30S-5M-AMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-30S-5G-BMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-30S-5L-BMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-30S-5M-BMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-30T-5GMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F16-30T-5LMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-30T-5MMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-30T-5G-AMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-30T-5L-AMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-30T-5M-AMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-30T-5G-BMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-30T-5L-BMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-30T-5M-BMounting: Rod flange | Bore: ø16 mm | Stroke: 30 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-45S-5GMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F16-45S-5LMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-45S-5MMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-45S-5G-AMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-45S-5L-AMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-45S-5M-AMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-45S-5G-BMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-45S-5L-BMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-45S-5M-BMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-45T-5GMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F16-45T-5LMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-45T-5MMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-45T-5G-AMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-45T-5L-AMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-45T-5M-AMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-45T-5G-BMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-45T-5L-BMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-45T-5M-BMounting: Rod flange | Bore: ø16 mm | Stroke: 45 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-60S-5GMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: Grommet
CVJ3F16-60S-5LMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-60S-5MMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-60S-5G-AMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-60S-5L-AMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-60S-5M-AMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-60S-5G-BMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-60S-5L-BMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-60S-5M-BMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, push (S) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector
CVJ3F16-60T-5GMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: Grommet
CVJ3F16-60T-5LMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: L-type plug connector
CVJ3F16-60T-5MMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: No | Electrical entry: M-type plug connector
CDVJ3F16-60T-5G-AMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: Grommet
CDVJ3F16-60T-5L-AMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: L-type plug connector
CDVJ3F16-60T-5M-AMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, rail-mount switch (-A) | Electrical entry: M-type plug connector
CDVJ3F16-60T-5G-BMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: Grommet
CDVJ3F16-60T-5L-BMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: L-type plug connector
CDVJ3F16-60T-5M-BMounting: Rod flange | Bore: ø16 mm | Stroke: 60 mm | Action: Single acting, pull (T) | Magnet: Yes, band-mount switch (-B) | Electrical entry: M-type plug connector

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
