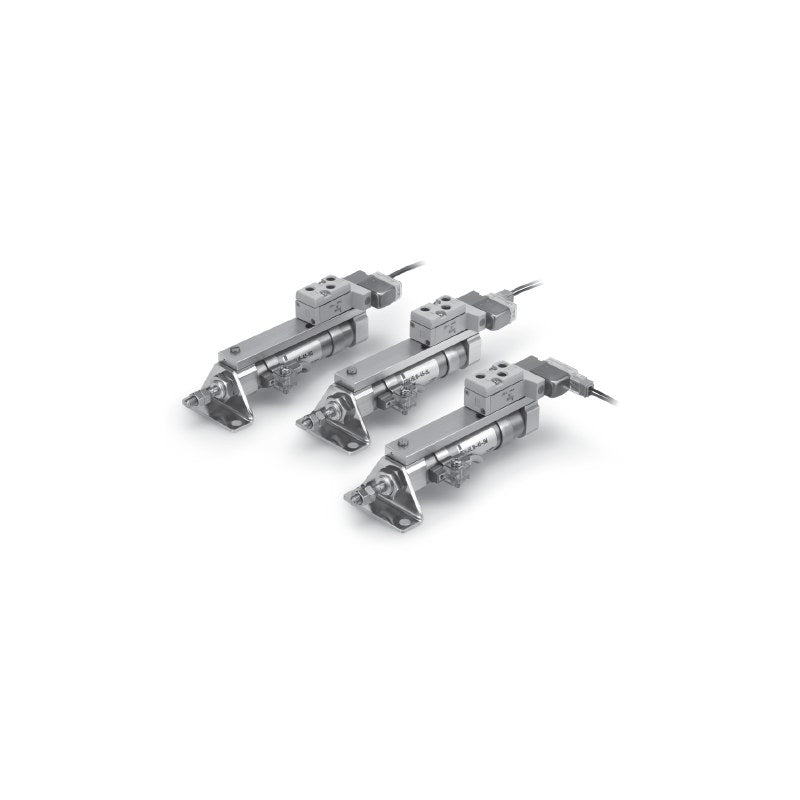

SMC CVM3K Valve Mounted Cylinder (Non-rotating, Single Acting)

SMC CVM3K series single acting non-rotating rod air cylinder (spring return or spring extend) with an integrated SYJ519 3-port solenoid valve, ø20 to ø40 mm bore.

Key features

Non-rotating hexagon rod: ±0.7° (ø20, ø25), ±0.5° (ø32, ø40); Single acting push (S) or pull (T) type with valve mounted on the cylinder
Eight mountings: basic, foot, rod/head flange, single/double clevis, rod/head trunnion
Standard strokes 25 to 150 mm (ø20, ø25), to 200 mm (ø32), to 250 mm (ø40)
CDVM3K built-in magnet for D-M9, D-A9 and other auto switches (switch ordered as suffix)
Options: NPT/G port (TN/TF), built-in one-touch fittings (F), L/M plug or DIN (D) entry, lamp/surge S/Z/R/U, locking manual D/E
Other voltages DC12/6/5/3V and AC100/200/110/220V; made-to-order -XA

Specifications

Fluid	Air
Proof pressure	1.0 MPa
Max. operating pressure	0.7 MPa
Ambient and fluid temperature	-10 to 50°C (no freezing)
Cushion	Rubber cushion
Lubrication	Not required (non-lube)
Port size	Rc1/8 (one-touch fitting ø6 type F option)
Coil voltage / entry (listed codes)	DC24V (5), grommet (G)
Min. operating pressure	0.18 MPa (push), 0.23 MPa (pull)
Solenoid valve	SYJ519 (3-port)
Allowable kinetic energy	0.27 J (ø20), 0.4 J (ø25), 0.65 J (ø32), 1.2 J (ø40)
Source	SMC Korea catalog CV series (SMCKR_CV__.pdf), p. 1207, 1208 (PDF p. 55, 56)

CVM3KB20-25S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB20-25S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB20-25T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB20-25T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB20-50S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB20-50S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB20-50T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB20-50T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB20-75S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB20-75S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB20-75T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB20-75T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB20-100S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB20-100S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB20-100T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB20-100T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB20-125S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB20-125S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB20-125T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB20-125T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB20-150S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB20-150S-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB20-150T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB20-150T-5G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB25-25S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB25-25S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB25-25T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB25-25T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB25-50S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB25-50S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB25-50T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB25-50T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB25-75S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB25-75S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB25-75T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB25-75T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB25-100S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB25-100S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB25-100T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB25-100T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB25-125S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB25-125S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB25-125T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB25-125T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB25-150S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB25-150S-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB25-150T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB25-150T-5G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB32-25S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB32-25S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB32-25T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB32-25T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB32-50S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB32-50S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB32-50T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB32-50T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB32-75S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB32-75S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB32-75T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB32-75T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB32-100S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB32-100S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB32-100T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB32-100T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB32-125S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB32-125S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB32-125T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB32-125T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB32-150S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB32-150S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB32-150T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB32-150T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB32-200S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB32-200S-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB32-200T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB32-200T-5G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB40-25S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB40-25S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB40-25T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB40-25T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB40-50S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB40-50S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB40-50T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB40-50T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB40-75S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB40-75S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB40-75T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB40-75T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB40-100S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB40-100S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB40-100T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB40-100T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB40-125S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB40-125S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB40-125T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB40-125T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB40-150S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB40-150S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB40-150T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB40-150T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB40-200S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB40-200S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB40-200T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB40-200T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KB40-250S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KB40-250S-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KB40-250T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KB40-250T-5G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL20-25S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL20-25S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL20-25T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL20-25T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL20-50S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL20-50S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL20-50T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL20-50T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL20-75S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL20-75S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL20-75T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL20-75T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL20-100S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL20-100S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL20-100T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL20-100T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL20-125S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL20-125S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL20-125T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL20-125T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL20-150S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL20-150S-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL20-150T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL20-150T-5G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL25-25S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL25-25S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL25-25T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL25-25T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL25-50S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL25-50S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL25-50T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL25-50T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL25-75S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL25-75S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL25-75T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL25-75T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL25-100S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL25-100S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL25-100T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL25-100T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL25-125S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL25-125S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL25-125T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL25-125T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL25-150S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL25-150S-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL25-150T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL25-150T-5G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL32-25S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL32-25S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL32-25T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL32-25T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL32-50S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL32-50S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL32-50T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL32-50T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL32-75S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL32-75S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL32-75T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL32-75T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL32-100S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL32-100S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL32-100T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL32-100T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL32-125S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL32-125S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL32-125T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL32-125T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL32-150S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL32-150S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL32-150T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL32-150T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL32-200S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL32-200S-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL32-200T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL32-200T-5G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL40-25S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL40-25S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL40-25T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL40-25T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL40-50S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL40-50S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL40-50T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL40-50T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL40-75S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL40-75S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL40-75T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL40-75T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL40-100S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL40-100S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL40-100T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL40-100T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL40-125S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL40-125S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL40-125T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL40-125T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL40-150S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL40-150S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL40-150T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL40-150T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL40-200S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL40-200S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL40-200T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL40-200T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KL40-250S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KL40-250S-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KL40-250T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KL40-250T-5G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF20-25S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF20-25S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF20-25T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF20-25T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF20-50S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF20-50S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF20-50T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF20-50T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF20-75S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF20-75S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF20-75T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF20-75T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF20-100S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF20-100S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF20-100T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF20-100T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF20-125S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF20-125S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF20-125T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF20-125T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF20-150S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF20-150S-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF20-150T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF20-150T-5G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF25-25S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF25-25S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF25-25T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF25-25T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF25-50S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF25-50S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF25-50T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF25-50T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF25-75S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF25-75S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF25-75T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF25-75T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF25-100S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF25-100S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF25-100T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF25-100T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF25-125S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF25-125S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF25-125T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF25-125T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF25-150S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF25-150S-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF25-150T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF25-150T-5G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF32-25S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF32-25S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF32-25T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF32-25T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF32-50S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF32-50S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF32-50T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF32-50T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF32-75S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF32-75S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF32-75T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF32-75T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF32-100S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF32-100S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF32-100T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF32-100T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF32-125S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF32-125S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF32-125T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF32-125T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF32-150S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF32-150S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF32-150T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF32-150T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF32-200S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF32-200S-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF32-200T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF32-200T-5G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF40-25S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF40-25S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF40-25T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF40-25T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF40-50S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF40-50S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF40-50T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF40-50T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF40-75S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF40-75S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF40-75T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF40-75T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF40-100S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF40-100S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF40-100T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF40-100T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF40-125S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF40-125S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF40-125T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF40-125T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF40-150S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF40-150S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF40-150T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF40-150T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF40-200S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF40-200S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF40-200T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF40-200T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KF40-250S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KF40-250S-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KF40-250T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KF40-250T-5G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG20-25S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG20-25S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG20-25T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG20-25T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG20-50S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG20-50S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG20-50T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG20-50T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG20-75S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG20-75S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG20-75T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG20-75T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG20-100S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG20-100S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG20-100T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG20-100T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG20-125S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG20-125S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG20-125T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG20-125T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG20-150S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG20-150S-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG20-150T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG20-150T-5G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG25-25S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG25-25S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG25-25T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG25-25T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG25-50S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG25-50S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG25-50T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG25-50T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG25-75S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG25-75S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG25-75T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG25-75T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG25-100S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG25-100S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG25-100T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG25-100T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG25-125S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG25-125S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG25-125T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG25-125T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG25-150S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG25-150S-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG25-150T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG25-150T-5G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG32-25S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG32-25S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG32-25T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG32-25T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG32-50S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG32-50S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG32-50T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG32-50T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG32-75S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG32-75S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG32-75T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG32-75T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG32-100S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG32-100S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG32-100T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG32-100T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG32-125S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG32-125S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG32-125T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG32-125T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG32-150S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG32-150S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG32-150T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG32-150T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG32-200S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG32-200S-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG32-200T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG32-200T-5G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG40-25S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG40-25S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG40-25T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG40-25T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG40-50S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG40-50S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG40-50T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG40-50T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG40-75S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG40-75S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG40-75T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG40-75T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG40-100S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG40-100S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG40-100T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG40-100T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG40-125S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG40-125S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG40-125T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG40-125T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG40-150S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG40-150S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG40-150T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG40-150T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG40-200S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG40-200S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG40-200T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG40-200T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KG40-250S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KG40-250S-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KG40-250T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KG40-250T-5G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC20-25S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC20-25S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC20-25T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC20-25T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC20-50S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC20-50S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC20-50T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC20-50T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC20-75S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC20-75S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC20-75T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC20-75T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC20-100S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC20-100S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC20-100T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC20-100T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC20-125S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC20-125S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC20-125T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC20-125T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC20-150S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC20-150S-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC20-150T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC20-150T-5G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC25-25S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC25-25S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC25-25T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC25-25T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC25-50S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC25-50S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC25-50T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC25-50T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC25-75S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC25-75S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC25-75T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC25-75T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC25-100S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC25-100S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC25-100T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC25-100T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC25-125S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC25-125S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC25-125T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC25-125T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC25-150S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC25-150S-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC25-150T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC25-150T-5G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC32-25S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC32-25S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC32-25T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC32-25T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC32-50S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC32-50S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC32-50T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC32-50T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC32-75S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC32-75S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC32-75T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC32-75T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC32-100S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC32-100S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC32-100T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC32-100T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC32-125S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC32-125S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC32-125T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC32-125T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC32-150S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC32-150S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC32-150T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC32-150T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC32-200S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC32-200S-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC32-200T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC32-200T-5G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC40-25S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC40-25S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC40-25T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC40-25T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC40-50S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC40-50S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC40-50T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC40-50T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC40-75S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC40-75S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC40-75T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC40-75T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC40-100S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC40-100S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC40-100T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC40-100T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC40-125S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC40-125S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC40-125T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC40-125T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC40-150S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC40-150S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC40-150T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC40-150T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC40-200S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC40-200S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC40-200T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC40-200T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KC40-250S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KC40-250S-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KC40-250T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KC40-250T-5G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD20-25S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD20-25S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD20-25T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD20-25T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD20-50S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD20-50S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD20-50T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD20-50T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD20-75S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD20-75S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD20-75T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD20-75T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD20-100S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD20-100S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD20-100T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD20-100T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD20-125S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD20-125S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD20-125T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD20-125T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD20-150S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD20-150S-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD20-150T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD20-150T-5G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD25-25S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD25-25S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD25-25T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD25-25T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD25-50S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD25-50S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD25-50T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD25-50T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD25-75S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD25-75S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD25-75T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD25-75T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD25-100S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD25-100S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD25-100T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD25-100T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD25-125S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD25-125S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD25-125T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD25-125T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD25-150S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD25-150S-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD25-150T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD25-150T-5G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD32-25S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD32-25S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD32-25T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD32-25T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD32-50S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD32-50S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD32-50T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD32-50T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD32-75S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD32-75S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD32-75T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD32-75T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD32-100S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD32-100S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD32-100T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD32-100T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD32-125S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD32-125S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD32-125T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD32-125T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD32-150S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD32-150S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD32-150T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD32-150T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD32-200S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD32-200S-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD32-200T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD32-200T-5G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD40-25S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD40-25S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD40-25T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD40-25T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD40-50S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD40-50S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD40-50T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD40-50T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD40-75S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD40-75S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD40-75T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD40-75T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD40-100S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD40-100S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD40-100T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD40-100T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD40-125S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD40-125S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD40-125T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD40-125T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD40-150S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD40-150S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD40-150T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD40-150T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD40-200S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD40-200S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD40-200T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD40-200T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KD40-250S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KD40-250S-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KD40-250T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KD40-250T-5G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT20-25S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT20-25S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT20-25T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT20-25T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT20-50S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT20-50S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT20-50T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT20-50T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT20-75S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT20-75S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT20-75T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT20-75T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT20-100S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT20-100S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT20-100T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT20-100T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT20-125S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT20-125S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT20-125T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT20-125T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT20-150S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT20-150S-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT20-150T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT20-150T-5G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT25-25S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT25-25S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT25-25T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT25-25T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT25-50S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT25-50S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT25-50T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT25-50T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT25-75S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT25-75S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT25-75T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT25-75T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT25-100S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT25-100S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT25-100T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT25-100T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT25-125S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT25-125S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT25-125T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT25-125T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT25-150S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT25-150S-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT25-150T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT25-150T-5G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT32-25S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT32-25S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT32-25T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT32-25T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT32-50S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT32-50S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT32-50T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT32-50T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT32-75S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT32-75S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT32-75T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT32-75T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT32-100S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT32-100S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT32-100T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT32-100T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT32-125S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT32-125S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT32-125T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT32-125T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT32-150S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT32-150S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT32-150T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT32-150T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT32-200S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT32-200S-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT32-200T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT32-200T-5G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT40-25S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT40-25S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT40-25T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT40-25T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT40-50S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT40-50S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT40-50T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT40-50T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT40-75S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT40-75S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT40-75T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT40-75T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT40-100S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT40-100S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT40-100T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT40-100T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT40-125S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT40-125S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT40-125T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT40-125T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT40-150S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT40-150S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT40-150T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT40-150T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT40-200S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT40-200S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT40-200T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT40-200T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KT40-250S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KT40-250S-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KT40-250T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KT40-250T-5G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU20-25S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU20-25S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU20-25T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU20-25T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU20-50S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU20-50S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU20-50T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU20-50T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU20-75S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU20-75S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU20-75T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU20-75T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU20-100S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU20-100S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU20-100T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU20-100T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU20-125S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU20-125S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU20-125T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU20-125T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU20-150S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU20-150S-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU20-150T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU20-150T-5G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU25-25S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU25-25S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU25-25T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU25-25T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU25-50S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU25-50S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU25-50T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU25-50T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU25-75S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU25-75S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU25-75T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU25-75T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU25-100S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU25-100S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU25-100T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU25-100T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU25-125S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU25-125S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU25-125T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU25-125T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU25-150S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU25-150S-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU25-150T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU25-150T-5G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU32-25S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU32-25S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU32-25T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU32-25T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU32-50S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU32-50S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU32-50T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU32-50T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU32-75S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU32-75S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU32-75T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU32-75T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU32-100S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU32-100S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU32-100T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU32-100T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU32-125S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU32-125S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU32-125T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU32-125T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU32-150S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU32-150S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU32-150T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU32-150T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU32-200S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU32-200S-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU32-200T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU32-200T-5G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU40-25S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU40-25S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU40-25T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU40-25T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU40-50S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU40-50S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU40-50T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU40-50T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU40-75S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU40-75S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU40-75T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU40-75T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU40-100S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU40-100S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU40-100T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU40-100T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU40-125S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU40-125S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU40-125T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU40-125T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU40-150S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU40-150S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU40-150T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU40-150T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU40-200S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU40-200S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU40-200T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU40-200T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
CVM3KU40-250S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
CDVM3KU40-250S-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
CVM3KU40-250T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
CDVM3KU40-250T-5G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes

Round Body CylindersSMC

864 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CVM3K Valve Mounted Cylinder (Non-rotating, Single Acting)

Brand SMC·Round Body Cylinders

Available part numbers (864)

CVM3KB20-25S-5G, CDVM3KB20-25S-5G, CVM3KB20-25T-5G, CDVM3KB20-25T-5G, CVM3KB20-50S-5G, CDVM3KB20-50S-5G, CVM3KB20-50T-5G, CDVM3KB20-50T-5G, CVM3KB20-75S-5G, CDVM3KB20-75S-5G + 854 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CVM3KB20-25S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB20-25S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB20-25T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB20-25T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB20-50S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB20-50S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB20-50T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB20-50T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB20-75S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB20-75S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB20-75T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB20-75T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB20-100S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB20-100S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB20-100T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB20-100T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB20-125S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB20-125S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB20-125T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB20-125T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB20-150S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB20-150S-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB20-150T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB20-150T-5G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB25-25S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB25-25S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB25-25T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB25-25T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB25-50S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB25-50S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB25-50T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB25-50T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB25-75S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB25-75S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB25-75T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB25-75T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB25-100S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB25-100S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB25-100T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB25-100T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB25-125S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB25-125S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB25-125T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB25-125T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB25-150S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB25-150S-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB25-150T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB25-150T-5G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB32-25S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB32-25S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB32-25T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB32-25T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB32-50S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB32-50S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB32-50T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB32-50T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB32-75S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB32-75S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB32-75T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB32-75T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB32-100S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB32-100S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB32-100T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB32-100T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB32-125S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB32-125S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB32-125T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB32-125T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB32-150S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB32-150S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB32-150T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB32-150T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB32-200S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB32-200S-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB32-200T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB32-200T-5G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB40-25S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB40-25S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB40-25T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB40-25T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB40-50S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB40-50S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB40-50T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB40-50T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB40-75S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB40-75S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB40-75T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB40-75T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB40-100S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB40-100S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB40-100T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB40-100T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB40-125S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB40-125S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB40-125T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB40-125T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB40-150S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB40-150S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB40-150T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB40-150T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB40-200S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB40-200S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB40-200T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB40-200T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KB40-250S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KB40-250S-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KB40-250T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KB40-250T-5G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL20-25S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL20-25S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL20-25T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL20-25T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL20-50S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL20-50S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL20-50T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL20-50T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL20-75S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL20-75S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL20-75T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL20-75T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL20-100S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL20-100S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL20-100T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL20-100T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL20-125S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL20-125S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL20-125T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL20-125T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL20-150S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL20-150S-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL20-150T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL20-150T-5G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL25-25S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL25-25S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL25-25T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL25-25T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL25-50S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL25-50S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL25-50T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL25-50T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL25-75S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL25-75S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL25-75T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL25-75T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL25-100S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL25-100S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL25-100T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL25-100T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL25-125S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL25-125S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL25-125T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL25-125T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL25-150S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL25-150S-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL25-150T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL25-150T-5G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL32-25S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL32-25S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL32-25T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL32-25T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL32-50S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL32-50S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL32-50T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL32-50T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL32-75S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL32-75S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL32-75T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL32-75T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL32-100S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL32-100S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL32-100T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL32-100T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL32-125S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL32-125S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL32-125T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL32-125T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL32-150S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL32-150S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL32-150T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL32-150T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL32-200S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL32-200S-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL32-200T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL32-200T-5G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL40-25S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL40-25S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL40-25T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL40-25T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL40-50S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL40-50S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL40-50T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL40-50T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL40-75S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL40-75S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL40-75T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL40-75T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL40-100S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL40-100S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL40-100T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL40-100T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL40-125S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL40-125S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL40-125T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL40-125T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL40-150S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL40-150S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL40-150T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL40-150T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL40-200S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL40-200S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL40-200T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL40-200T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KL40-250S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KL40-250S-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KL40-250T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KL40-250T-5G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF20-25S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF20-25S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF20-25T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF20-25T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF20-50S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF20-50S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF20-50T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF20-50T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF20-75S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF20-75S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF20-75T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF20-75T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF20-100S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF20-100S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF20-100T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF20-100T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF20-125S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF20-125S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF20-125T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF20-125T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF20-150S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF20-150S-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF20-150T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF20-150T-5G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF25-25S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF25-25S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF25-25T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF25-25T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF25-50S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF25-50S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF25-50T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF25-50T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF25-75S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF25-75S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF25-75T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF25-75T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF25-100S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF25-100S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF25-100T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF25-100T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF25-125S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF25-125S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF25-125T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF25-125T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF25-150S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF25-150S-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF25-150T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF25-150T-5G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF32-25S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF32-25S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF32-25T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF32-25T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF32-50S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF32-50S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF32-50T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF32-50T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF32-75S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF32-75S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF32-75T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF32-75T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF32-100S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF32-100S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF32-100T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF32-100T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF32-125S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF32-125S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF32-125T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF32-125T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF32-150S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF32-150S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF32-150T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF32-150T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF32-200S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF32-200S-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF32-200T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF32-200T-5G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF40-25S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF40-25S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF40-25T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF40-25T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF40-50S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF40-50S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF40-50T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF40-50T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF40-75S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF40-75S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF40-75T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF40-75T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF40-100S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF40-100S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF40-100T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF40-100T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF40-125S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF40-125S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF40-125T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF40-125T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF40-150S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF40-150S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF40-150T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF40-150T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF40-200S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF40-200S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF40-200T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF40-200T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KF40-250S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KF40-250S-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KF40-250T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KF40-250T-5G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG20-25S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG20-25S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG20-25T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG20-25T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG20-50S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG20-50S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG20-50T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG20-50T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG20-75S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG20-75S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG20-75T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG20-75T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG20-100S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG20-100S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG20-100T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG20-100T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG20-125S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG20-125S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG20-125T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG20-125T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG20-150S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG20-150S-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG20-150T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG20-150T-5G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG25-25S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG25-25S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG25-25T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG25-25T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG25-50S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG25-50S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG25-50T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG25-50T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG25-75S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG25-75S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG25-75T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG25-75T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG25-100S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG25-100S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG25-100T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG25-100T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG25-125S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG25-125S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG25-125T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG25-125T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG25-150S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG25-150S-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG25-150T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG25-150T-5G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG32-25S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG32-25S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG32-25T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG32-25T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG32-50S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG32-50S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG32-50T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG32-50T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG32-75S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG32-75S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG32-75T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG32-75T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG32-100S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG32-100S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG32-100T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG32-100T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG32-125S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG32-125S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG32-125T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG32-125T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG32-150S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG32-150S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG32-150T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG32-150T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG32-200S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG32-200S-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG32-200T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG32-200T-5G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG40-25S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG40-25S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG40-25T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG40-25T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG40-50S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG40-50S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG40-50T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG40-50T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG40-75S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG40-75S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG40-75T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG40-75T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG40-100S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG40-100S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG40-100T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG40-100T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG40-125S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG40-125S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG40-125T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG40-125T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG40-150S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG40-150S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG40-150T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG40-150T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG40-200S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG40-200S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG40-200T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG40-200T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KG40-250S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KG40-250S-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KG40-250T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KG40-250T-5G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC20-25S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC20-25S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC20-25T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC20-25T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC20-50S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC20-50S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC20-50T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC20-50T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC20-75S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC20-75S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC20-75T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC20-75T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC20-100S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC20-100S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC20-100T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC20-100T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC20-125S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC20-125S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC20-125T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC20-125T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC20-150S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC20-150S-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC20-150T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC20-150T-5G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC25-25S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC25-25S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC25-25T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC25-25T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC25-50S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC25-50S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC25-50T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC25-50T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC25-75S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC25-75S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC25-75T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC25-75T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC25-100S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC25-100S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC25-100T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC25-100T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC25-125S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC25-125S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC25-125T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC25-125T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC25-150S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC25-150S-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC25-150T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC25-150T-5G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC32-25S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC32-25S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC32-25T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC32-25T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC32-50S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC32-50S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC32-50T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC32-50T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC32-75S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC32-75S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC32-75T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC32-75T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC32-100S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC32-100S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC32-100T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC32-100T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC32-125S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC32-125S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC32-125T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC32-125T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC32-150S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC32-150S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC32-150T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC32-150T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC32-200S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC32-200S-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC32-200T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC32-200T-5G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC40-25S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC40-25S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC40-25T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC40-25T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC40-50S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC40-50S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC40-50T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC40-50T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC40-75S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC40-75S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC40-75T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC40-75T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC40-100S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC40-100S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC40-100T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC40-100T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC40-125S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC40-125S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC40-125T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC40-125T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC40-150S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC40-150S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC40-150T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC40-150T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC40-200S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC40-200S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC40-200T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC40-200T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KC40-250S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KC40-250S-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KC40-250T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KC40-250T-5G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD20-25S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD20-25S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD20-25T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD20-25T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD20-50S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD20-50S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD20-50T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD20-50T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD20-75S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD20-75S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD20-75T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD20-75T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD20-100S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD20-100S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD20-100T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD20-100T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD20-125S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD20-125S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD20-125T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD20-125T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD20-150S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD20-150S-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD20-150T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD20-150T-5G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD25-25S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD25-25S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD25-25T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD25-25T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD25-50S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD25-50S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD25-50T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD25-50T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD25-75S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD25-75S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD25-75T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD25-75T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD25-100S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD25-100S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD25-100T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD25-100T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD25-125S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD25-125S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD25-125T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD25-125T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD25-150S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD25-150S-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD25-150T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD25-150T-5G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD32-25S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD32-25S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD32-25T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD32-25T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD32-50S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD32-50S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD32-50T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD32-50T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD32-75S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD32-75S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD32-75T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD32-75T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD32-100S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD32-100S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD32-100T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD32-100T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD32-125S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD32-125S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD32-125T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD32-125T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD32-150S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD32-150S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD32-150T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD32-150T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD32-200S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD32-200S-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD32-200T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD32-200T-5G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD40-25S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD40-25S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD40-25T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD40-25T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD40-50S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD40-50S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD40-50T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD40-50T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD40-75S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD40-75S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD40-75T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD40-75T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD40-100S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD40-100S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD40-100T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD40-100T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD40-125S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD40-125S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD40-125T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD40-125T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD40-150S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD40-150S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD40-150T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD40-150T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD40-200S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD40-200S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD40-200T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD40-200T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KD40-250S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KD40-250S-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KD40-250T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KD40-250T-5G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT20-25S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT20-25S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT20-25T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT20-25T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT20-50S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT20-50S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT20-50T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT20-50T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT20-75S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT20-75S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT20-75T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT20-75T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT20-100S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT20-100S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT20-100T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT20-100T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT20-125S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT20-125S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT20-125T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT20-125T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT20-150S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT20-150S-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT20-150T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT20-150T-5G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT25-25S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT25-25S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT25-25T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT25-25T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT25-50S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT25-50S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT25-50T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT25-50T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT25-75S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT25-75S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT25-75T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT25-75T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT25-100S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT25-100S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT25-100T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT25-100T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT25-125S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT25-125S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT25-125T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT25-125T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT25-150S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT25-150S-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT25-150T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT25-150T-5G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT32-25S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT32-25S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT32-25T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT32-25T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT32-50S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT32-50S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT32-50T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT32-50T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT32-75S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT32-75S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT32-75T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT32-75T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT32-100S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT32-100S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT32-100T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT32-100T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT32-125S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT32-125S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT32-125T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT32-125T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT32-150S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT32-150S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT32-150T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT32-150T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT32-200S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT32-200S-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT32-200T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT32-200T-5G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT40-25S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT40-25S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT40-25T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT40-25T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT40-50S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT40-50S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT40-50T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT40-50T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT40-75S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT40-75S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT40-75T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT40-75T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT40-100S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT40-100S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT40-100T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT40-100T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT40-125S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT40-125S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT40-125T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT40-125T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT40-150S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT40-150S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT40-150T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT40-150T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT40-200S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT40-200S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT40-200T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT40-200T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KT40-250S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KT40-250S-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KT40-250T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KT40-250T-5G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU20-25S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU20-25S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU20-25T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU20-25T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU20-50S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU20-50S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU20-50T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU20-50T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU20-75S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU20-75S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU20-75T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU20-75T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU20-100S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU20-100S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU20-100T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU20-100T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU20-125S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU20-125S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU20-125T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU20-125T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU20-150S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU20-150S-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU20-150T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU20-150T-5G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU25-25S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU25-25S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU25-25T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU25-25T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU25-50S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU25-50S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU25-50T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU25-50T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU25-75S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU25-75S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU25-75T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU25-75T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU25-100S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU25-100S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU25-100T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU25-100T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU25-125S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU25-125S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU25-125T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU25-125T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU25-150S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU25-150S-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU25-150T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU25-150T-5G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU32-25S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU32-25S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU32-25T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU32-25T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU32-50S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU32-50S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU32-50T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU32-50T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU32-75S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU32-75S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU32-75T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU32-75T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU32-100S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU32-100S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU32-100T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU32-100T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU32-125S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU32-125S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU32-125T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU32-125T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU32-150S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU32-150S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU32-150T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU32-150T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU32-200S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU32-200S-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU32-200T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU32-200T-5G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU40-25S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU40-25S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU40-25T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU40-25T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU40-50S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU40-50S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU40-50T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU40-50T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU40-75S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU40-75S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU40-75T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU40-75T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU40-100S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU40-100S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU40-100T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU40-100T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU40-125S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU40-125S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU40-125T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU40-125T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU40-150S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU40-150S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU40-150T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU40-150T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU40-200S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU40-200S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU40-200T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU40-200T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Action: Single acting, pull (T) \| Magnet: Yes
	CVM3KU40-250S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: No
	CDVM3KU40-250S-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, push (S) \| Magnet: Yes
	CVM3KU40-250T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: No
	CDVM3KU40-250T-5G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Action: Single acting, pull (T) \| Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CVM3K Valve Mounted Cylinder (Non-rotating, Single Acting)
