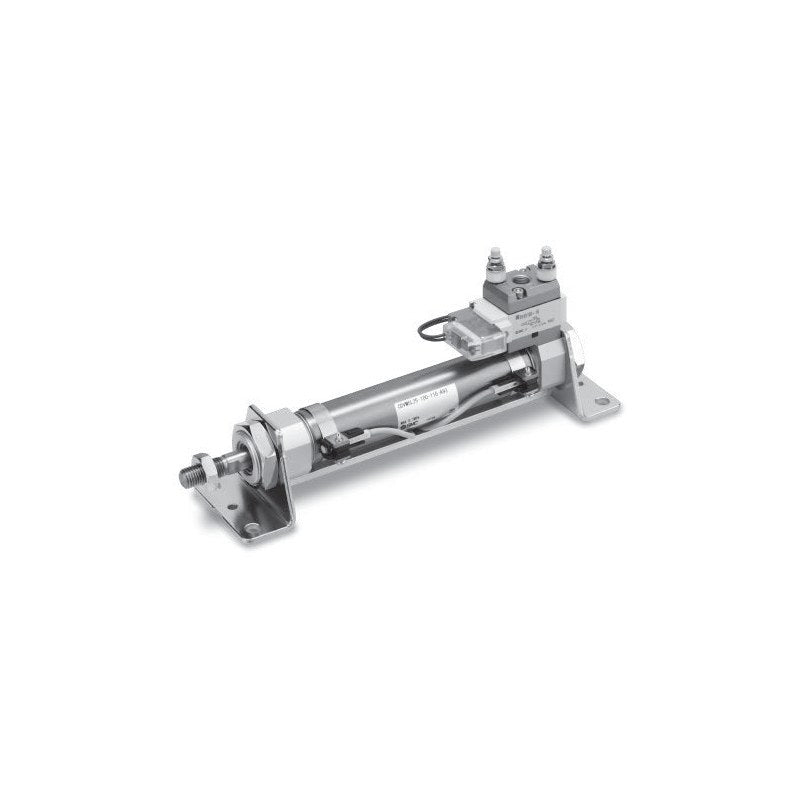

SMC CVM5 Valve Mounted Cylinder (ø20, ø25)

SMC CVM5 series double acting air cylinder with an integrated SYJ5000 solenoid valve, ø20, ø25 mm bore, standard strokes 25 to 300 mm.

Key features

Double acting CM2-based cylinder with SYJ590 solenoid valve mounted on the cylinder
Valve switching: 2-position single (rod extends, or retracts with B), 2-position double, 3-position closed or exhaust center
Eight mountings: basic, foot, rod/head flange, single/double clevis, rod/head trunnion
CDVM5 built-in magnet for D-M9, D-A9 and other auto switches (switch ordered as suffix, e.g. -M9BW)
Options as code letters: NPT/G port (TN/TF), built-in one-touch fittings (F), bellows J/K, L/M plug or DIN (D) entry, lamp/surge S/Z/R/U, locking manual D/E
Other voltages DC12/6/5/3V and AC100/200/110/220V; made-to-order -XA, -XC4, -XC6

Specifications

Fluid	Air
Proof pressure	1.0 MPa
Max. operating pressure	0.7 MPa
Ambient and fluid temperature	-10 to 50°C (no freezing)
Cushion	Rubber cushion
Lubrication	Not required (non-lube)
Port size	Rc1/8 (one-touch fitting ø6 type F option)
Coil voltage / entry (listed codes)	DC24V (5), grommet (G)
Min. operating pressure	0.15 MPa
Solenoid valve	SYJ590 series
Allowable kinetic energy	0.27 J (ø20), 0.4 J (ø25), 0.65 J (ø32), 1.2 J (ø40)
Source	SMC Korea catalog CV series (SMCKR_CV__.pdf), p. 1175, 1176 (PDF p. 23, 24)

CVM5B20-25-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B20-25-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B20-25B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B20-25B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B20-25-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B20-25-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B20-25-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B20-25-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B20-25-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B20-25-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B20-50-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B20-50-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B20-50B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B20-50B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B20-50-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B20-50-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B20-50-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B20-50-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B20-50-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B20-50-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B20-75-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B20-75-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B20-75B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B20-75B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B20-75-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B20-75-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B20-75-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B20-75-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B20-75-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B20-75-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B20-100-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B20-100-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B20-100B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B20-100B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B20-100-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B20-100-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B20-100-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B20-100-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B20-100-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B20-100-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B20-125-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B20-125-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B20-125B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B20-125B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B20-125-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B20-125-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B20-125-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B20-125-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B20-125-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B20-125-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B20-150-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B20-150-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B20-150B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B20-150B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B20-150-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B20-150-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B20-150-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B20-150-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B20-150-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B20-150-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B20-200-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B20-200-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B20-200B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B20-200B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B20-200-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B20-200-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B20-200-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B20-200-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B20-200-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B20-200-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B20-250-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B20-250-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B20-250B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B20-250B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B20-250-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B20-250-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B20-250-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B20-250-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B20-250-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B20-250-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B20-300-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B20-300-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B20-300B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B20-300B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B20-300-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B20-300-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B20-300-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B20-300-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B20-300-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B20-300-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B25-25-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B25-25-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B25-25B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B25-25B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B25-25-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B25-25-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B25-25-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B25-25-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B25-25-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B25-25-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B25-50-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B25-50-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B25-50B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B25-50B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B25-50-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B25-50-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B25-50-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B25-50-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B25-50-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B25-50-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B25-75-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B25-75-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B25-75B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B25-75B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B25-75-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B25-75-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B25-75-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B25-75-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B25-75-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B25-75-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B25-100-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B25-100-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B25-100B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B25-100B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B25-100-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B25-100-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B25-100-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B25-100-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B25-100-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B25-100-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B25-125-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B25-125-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B25-125B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B25-125B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B25-125-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B25-125-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B25-125-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B25-125-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B25-125-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B25-125-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B25-150-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B25-150-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B25-150B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B25-150B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B25-150-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B25-150-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B25-150-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B25-150-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B25-150-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B25-150-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B25-200-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B25-200-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B25-200B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B25-200B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B25-200-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B25-200-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B25-200-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B25-200-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B25-200-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B25-200-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B25-250-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B25-250-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B25-250B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B25-250B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B25-250-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B25-250-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B25-250-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B25-250-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B25-250-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B25-250-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B25-300-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B25-300-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B25-300B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B25-300B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B25-300-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B25-300-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B25-300-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B25-300-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B25-300-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B25-300-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L20-25-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L20-25-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L20-25B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L20-25B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L20-25-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L20-25-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L20-25-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L20-25-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L20-25-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L20-25-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L20-50-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L20-50-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L20-50B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L20-50B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L20-50-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L20-50-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L20-50-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L20-50-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L20-50-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L20-50-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L20-75-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L20-75-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L20-75B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L20-75B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L20-75-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L20-75-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L20-75-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L20-75-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L20-75-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L20-75-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L20-100-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L20-100-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L20-100B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L20-100B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L20-100-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L20-100-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L20-100-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L20-100-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L20-100-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L20-100-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L20-125-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L20-125-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L20-125B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L20-125B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L20-125-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L20-125-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L20-125-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L20-125-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L20-125-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L20-125-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L20-150-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L20-150-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L20-150B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L20-150B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L20-150-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L20-150-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L20-150-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L20-150-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L20-150-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L20-150-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L20-200-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L20-200-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L20-200B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L20-200B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L20-200-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L20-200-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L20-200-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L20-200-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L20-200-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L20-200-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L20-250-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L20-250-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L20-250B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L20-250B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L20-250-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L20-250-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L20-250-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L20-250-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L20-250-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L20-250-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L20-300-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L20-300-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L20-300B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L20-300B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L20-300-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L20-300-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L20-300-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L20-300-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L20-300-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L20-300-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L25-25-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L25-25-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L25-25B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L25-25B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L25-25-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L25-25-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L25-25-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L25-25-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L25-25-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L25-25-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L25-50-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L25-50-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L25-50B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L25-50B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L25-50-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L25-50-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L25-50-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L25-50-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L25-50-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L25-50-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L25-75-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L25-75-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L25-75B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L25-75B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L25-75-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L25-75-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L25-75-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L25-75-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L25-75-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L25-75-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L25-100-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L25-100-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L25-100B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L25-100B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L25-100-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L25-100-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L25-100-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L25-100-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L25-100-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L25-100-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L25-125-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L25-125-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L25-125B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L25-125B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L25-125-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L25-125-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L25-125-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L25-125-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L25-125-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L25-125-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L25-150-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L25-150-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L25-150B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L25-150B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L25-150-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L25-150-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L25-150-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L25-150-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L25-150-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L25-150-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L25-200-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L25-200-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L25-200B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L25-200B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L25-200-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L25-200-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L25-200-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L25-200-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L25-200-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L25-200-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L25-250-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L25-250-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L25-250B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L25-250B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L25-250-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L25-250-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L25-250-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L25-250-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L25-250-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L25-250-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L25-300-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L25-300-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L25-300B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L25-300B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L25-300-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L25-300-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L25-300-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L25-300-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L25-300-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L25-300-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F20-25-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F20-25-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F20-25B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F20-25B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F20-25-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F20-25-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F20-25-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F20-25-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F20-25-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F20-25-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F20-50-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F20-50-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F20-50B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F20-50B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F20-50-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F20-50-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F20-50-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F20-50-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F20-50-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F20-50-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F20-75-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F20-75-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F20-75B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F20-75B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F20-75-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F20-75-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F20-75-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F20-75-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F20-75-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F20-75-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F20-100-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F20-100-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F20-100B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F20-100B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F20-100-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F20-100-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F20-100-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F20-100-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F20-100-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F20-100-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F20-125-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F20-125-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F20-125B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F20-125B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F20-125-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F20-125-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F20-125-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F20-125-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F20-125-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F20-125-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F20-150-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F20-150-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F20-150B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F20-150B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F20-150-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F20-150-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F20-150-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F20-150-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F20-150-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F20-150-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F20-200-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F20-200-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F20-200B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F20-200B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F20-200-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F20-200-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F20-200-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F20-200-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F20-200-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F20-200-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F20-250-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F20-250-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F20-250B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F20-250B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F20-250-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F20-250-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F20-250-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F20-250-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F20-250-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F20-250-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F20-300-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F20-300-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F20-300B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F20-300B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F20-300-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F20-300-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F20-300-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F20-300-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F20-300-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F20-300-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F25-25-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F25-25-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F25-25B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F25-25B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F25-25-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F25-25-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F25-25-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F25-25-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F25-25-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F25-25-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F25-50-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F25-50-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F25-50B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F25-50B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F25-50-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F25-50-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F25-50-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F25-50-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F25-50-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F25-50-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F25-75-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F25-75-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F25-75B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F25-75B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F25-75-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F25-75-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F25-75-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F25-75-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F25-75-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F25-75-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F25-100-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F25-100-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F25-100B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F25-100B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F25-100-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F25-100-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F25-100-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F25-100-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F25-100-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F25-100-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F25-125-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F25-125-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F25-125B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F25-125B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F25-125-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F25-125-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F25-125-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F25-125-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F25-125-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F25-125-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F25-150-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F25-150-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F25-150B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F25-150B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F25-150-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F25-150-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F25-150-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F25-150-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F25-150-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F25-150-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F25-200-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F25-200-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F25-200B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F25-200B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F25-200-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F25-200-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F25-200-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F25-200-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F25-200-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F25-200-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F25-250-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F25-250-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F25-250B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F25-250B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F25-250-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F25-250-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F25-250-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F25-250-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F25-250-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F25-250-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F25-300-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F25-300-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F25-300B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F25-300B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F25-300-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F25-300-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F25-300-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F25-300-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F25-300-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F25-300-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G20-25-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G20-25-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G20-25B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G20-25B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G20-25-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G20-25-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G20-25-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G20-25-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G20-25-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G20-25-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G20-50-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G20-50-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G20-50B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G20-50B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G20-50-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G20-50-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G20-50-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G20-50-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G20-50-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G20-50-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G20-75-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G20-75-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G20-75B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G20-75B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G20-75-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G20-75-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G20-75-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G20-75-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G20-75-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G20-75-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G20-100-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G20-100-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G20-100B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G20-100B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G20-100-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G20-100-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G20-100-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G20-100-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G20-100-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G20-100-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G20-125-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G20-125-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G20-125B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G20-125B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G20-125-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G20-125-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G20-125-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G20-125-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G20-125-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G20-125-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G20-150-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G20-150-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G20-150B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G20-150B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G20-150-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G20-150-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G20-150-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G20-150-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G20-150-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G20-150-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G20-200-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G20-200-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G20-200B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G20-200B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G20-200-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G20-200-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G20-200-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G20-200-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G20-200-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G20-200-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G20-250-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G20-250-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G20-250B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G20-250B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G20-250-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G20-250-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G20-250-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G20-250-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G20-250-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G20-250-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G20-300-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G20-300-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G20-300B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G20-300B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G20-300-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G20-300-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G20-300-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G20-300-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G20-300-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G20-300-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G25-25-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G25-25-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G25-25B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G25-25B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G25-25-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G25-25-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G25-25-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G25-25-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G25-25-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G25-25-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G25-50-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G25-50-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G25-50B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G25-50B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G25-50-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G25-50-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G25-50-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G25-50-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G25-50-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G25-50-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G25-75-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G25-75-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G25-75B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G25-75B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G25-75-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G25-75-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G25-75-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G25-75-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G25-75-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G25-75-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G25-100-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G25-100-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G25-100B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G25-100B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G25-100-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G25-100-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G25-100-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G25-100-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G25-100-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G25-100-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G25-125-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G25-125-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G25-125B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G25-125B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G25-125-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G25-125-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G25-125-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G25-125-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G25-125-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G25-125-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G25-150-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G25-150-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G25-150B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G25-150B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G25-150-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G25-150-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G25-150-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G25-150-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G25-150-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G25-150-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G25-200-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G25-200-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G25-200B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G25-200B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G25-200-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G25-200-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G25-200-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G25-200-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G25-200-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G25-200-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G25-250-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G25-250-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G25-250B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G25-250B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G25-250-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G25-250-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G25-250-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G25-250-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G25-250-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G25-250-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G25-300-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G25-300-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G25-300B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G25-300B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G25-300-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G25-300-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G25-300-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G25-300-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G25-300-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G25-300-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C20-25-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C20-25-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C20-25B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C20-25B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C20-25-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C20-25-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C20-25-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C20-25-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C20-25-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C20-25-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C20-50-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C20-50-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C20-50B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C20-50B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C20-50-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C20-50-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C20-50-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C20-50-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C20-50-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C20-50-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C20-75-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C20-75-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C20-75B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C20-75B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C20-75-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C20-75-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C20-75-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C20-75-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C20-75-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C20-75-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C20-100-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C20-100-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C20-100B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C20-100B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C20-100-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C20-100-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C20-100-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C20-100-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C20-100-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C20-100-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C20-125-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C20-125-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C20-125B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C20-125B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C20-125-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C20-125-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C20-125-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C20-125-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C20-125-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C20-125-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C20-150-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C20-150-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C20-150B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C20-150B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C20-150-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C20-150-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C20-150-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C20-150-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C20-150-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C20-150-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C20-200-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C20-200-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C20-200B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C20-200B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C20-200-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C20-200-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C20-200-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C20-200-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C20-200-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C20-200-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C20-250-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C20-250-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C20-250B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C20-250B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C20-250-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C20-250-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C20-250-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C20-250-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C20-250-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C20-250-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C20-300-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C20-300-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C20-300B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C20-300B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C20-300-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C20-300-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C20-300-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C20-300-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C20-300-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C20-300-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C25-25-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C25-25-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C25-25B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C25-25B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C25-25-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C25-25-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C25-25-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C25-25-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C25-25-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C25-25-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C25-50-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C25-50-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C25-50B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C25-50B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C25-50-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C25-50-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C25-50-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C25-50-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C25-50-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C25-50-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C25-75-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C25-75-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C25-75B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C25-75B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C25-75-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C25-75-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C25-75-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C25-75-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C25-75-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C25-75-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C25-100-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C25-100-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C25-100B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C25-100B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C25-100-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C25-100-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C25-100-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C25-100-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C25-100-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C25-100-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C25-125-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C25-125-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C25-125B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C25-125B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C25-125-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C25-125-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C25-125-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C25-125-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C25-125-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C25-125-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C25-150-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C25-150-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C25-150B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C25-150B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C25-150-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C25-150-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C25-150-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C25-150-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C25-150-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C25-150-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C25-200-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C25-200-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C25-200B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C25-200B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C25-200-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C25-200-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C25-200-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C25-200-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C25-200-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C25-200-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C25-250-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C25-250-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C25-250B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C25-250B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C25-250-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C25-250-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C25-250-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C25-250-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C25-250-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C25-250-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C25-300-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C25-300-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C25-300B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C25-300B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C25-300-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C25-300-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C25-300-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C25-300-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C25-300-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C25-300-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D20-25-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D20-25-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D20-25B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D20-25B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D20-25-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D20-25-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D20-25-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D20-25-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D20-25-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D20-25-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D20-50-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D20-50-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D20-50B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D20-50B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D20-50-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D20-50-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D20-50-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D20-50-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D20-50-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D20-50-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D20-75-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D20-75-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D20-75B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D20-75B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D20-75-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D20-75-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D20-75-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D20-75-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D20-75-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D20-75-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D20-100-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D20-100-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D20-100B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D20-100B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D20-100-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D20-100-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D20-100-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D20-100-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D20-100-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D20-100-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D20-125-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D20-125-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D20-125B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D20-125B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D20-125-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D20-125-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D20-125-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D20-125-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D20-125-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D20-125-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D20-150-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D20-150-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D20-150B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D20-150B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D20-150-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D20-150-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D20-150-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D20-150-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D20-150-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D20-150-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D20-200-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D20-200-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D20-200B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D20-200B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D20-200-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D20-200-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D20-200-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D20-200-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D20-200-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D20-200-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D20-250-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D20-250-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D20-250B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D20-250B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D20-250-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D20-250-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D20-250-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D20-250-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D20-250-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D20-250-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D20-300-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D20-300-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D20-300B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D20-300B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D20-300-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D20-300-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D20-300-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D20-300-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D20-300-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D20-300-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D25-25-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D25-25-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D25-25B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D25-25B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D25-25-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D25-25-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D25-25-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D25-25-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D25-25-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D25-25-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D25-50-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D25-50-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D25-50B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D25-50B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D25-50-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D25-50-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D25-50-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D25-50-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D25-50-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D25-50-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D25-75-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D25-75-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D25-75B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D25-75B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D25-75-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D25-75-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D25-75-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D25-75-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D25-75-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D25-75-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D25-100-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D25-100-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D25-100B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D25-100B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D25-100-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D25-100-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D25-100-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D25-100-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D25-100-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D25-100-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D25-125-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D25-125-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D25-125B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D25-125B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D25-125-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D25-125-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D25-125-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D25-125-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D25-125-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D25-125-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D25-150-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D25-150-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D25-150B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D25-150B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D25-150-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D25-150-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D25-150-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D25-150-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D25-150-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D25-150-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D25-200-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D25-200-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D25-200B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D25-200B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D25-200-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D25-200-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D25-200-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D25-200-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D25-200-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D25-200-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D25-250-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D25-250-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D25-250B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D25-250B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D25-250-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D25-250-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D25-250-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D25-250-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D25-250-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D25-250-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D25-300-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D25-300-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D25-300B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D25-300B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D25-300-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D25-300-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D25-300-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D25-300-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D25-300-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D25-300-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T20-25-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T20-25-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T20-25B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T20-25B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T20-25-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T20-25-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T20-25-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T20-25-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T20-25-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T20-25-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T20-50-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T20-50-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T20-50B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T20-50B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T20-50-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T20-50-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T20-50-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T20-50-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T20-50-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T20-50-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T20-75-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T20-75-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T20-75B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T20-75B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T20-75-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T20-75-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T20-75-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T20-75-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T20-75-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T20-75-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T20-100-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T20-100-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T20-100B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T20-100B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T20-100-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T20-100-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T20-100-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T20-100-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T20-100-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T20-100-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T20-125-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T20-125-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T20-125B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T20-125B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T20-125-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T20-125-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T20-125-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T20-125-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T20-125-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T20-125-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T20-150-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T20-150-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T20-150B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T20-150B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T20-150-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T20-150-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T20-150-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T20-150-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T20-150-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T20-150-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T20-200-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T20-200-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T20-200B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T20-200B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T20-200-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T20-200-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T20-200-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T20-200-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T20-200-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T20-200-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T20-250-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T20-250-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T20-250B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T20-250B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T20-250-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T20-250-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T20-250-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T20-250-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T20-250-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T20-250-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T20-300-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T20-300-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T20-300B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T20-300B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T20-300-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T20-300-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T20-300-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T20-300-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T20-300-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T20-300-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T25-25-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T25-25-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T25-25B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T25-25B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T25-25-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T25-25-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T25-25-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T25-25-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T25-25-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T25-25-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T25-50-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T25-50-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T25-50B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T25-50B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T25-50-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T25-50-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T25-50-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T25-50-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T25-50-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T25-50-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T25-75-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T25-75-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T25-75B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T25-75B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T25-75-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T25-75-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T25-75-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T25-75-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T25-75-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T25-75-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T25-100-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T25-100-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T25-100B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T25-100B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T25-100-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T25-100-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T25-100-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T25-100-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T25-100-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T25-100-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T25-125-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T25-125-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T25-125B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T25-125B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T25-125-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T25-125-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T25-125-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T25-125-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T25-125-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T25-125-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T25-150-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T25-150-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T25-150B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T25-150B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T25-150-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T25-150-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T25-150-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T25-150-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T25-150-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T25-150-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T25-200-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T25-200-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T25-200B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T25-200B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T25-200-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T25-200-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T25-200-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T25-200-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T25-200-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T25-200-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T25-250-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T25-250-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T25-250B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T25-250B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T25-250-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T25-250-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T25-250-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T25-250-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T25-250-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T25-250-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T25-300-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T25-300-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T25-300B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T25-300B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T25-300-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T25-300-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T25-300-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T25-300-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T25-300-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T25-300-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U20-25-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U20-25-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U20-25B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U20-25B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U20-25-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U20-25-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U20-25-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U20-25-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U20-25-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U20-25-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U20-50-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U20-50-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U20-50B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U20-50B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U20-50-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U20-50-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U20-50-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U20-50-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U20-50-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U20-50-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U20-75-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U20-75-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U20-75B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U20-75B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U20-75-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U20-75-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U20-75-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U20-75-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U20-75-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U20-75-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U20-100-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U20-100-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U20-100B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U20-100B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U20-100-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U20-100-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U20-100-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U20-100-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U20-100-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U20-100-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U20-125-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U20-125-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U20-125B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U20-125B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U20-125-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U20-125-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U20-125-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U20-125-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U20-125-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U20-125-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U20-150-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U20-150-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U20-150B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U20-150B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U20-150-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U20-150-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U20-150-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U20-150-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U20-150-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U20-150-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U20-200-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U20-200-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U20-200B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U20-200B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U20-200-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U20-200-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U20-200-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U20-200-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U20-200-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U20-200-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U20-250-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U20-250-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U20-250B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U20-250B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U20-250-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U20-250-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U20-250-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U20-250-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U20-250-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U20-250-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U20-300-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U20-300-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U20-300B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U20-300B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U20-300-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U20-300-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U20-300-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U20-300-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U20-300-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U20-300-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U25-25-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U25-25-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U25-25B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U25-25B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U25-25-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U25-25-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U25-25-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U25-25-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U25-25-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U25-25-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U25-50-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U25-50-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U25-50B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U25-50B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U25-50-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U25-50-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U25-50-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U25-50-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U25-50-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U25-50-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U25-75-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U25-75-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U25-75B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U25-75B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U25-75-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U25-75-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U25-75-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U25-75-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U25-75-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U25-75-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U25-100-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U25-100-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U25-100B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U25-100B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U25-100-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U25-100-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U25-100-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U25-100-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U25-100-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U25-100-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U25-125-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U25-125-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U25-125B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U25-125B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U25-125-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U25-125-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U25-125-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U25-125-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U25-125-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U25-125-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U25-150-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U25-150-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U25-150B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U25-150B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U25-150-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U25-150-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U25-150-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U25-150-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U25-150-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U25-150-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U25-200-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U25-200-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U25-200B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U25-200B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U25-200-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U25-200-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U25-200-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U25-200-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U25-200-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U25-200-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U25-250-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U25-250-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U25-250B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U25-250B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U25-250-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U25-250-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U25-250-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U25-250-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U25-250-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U25-250-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U25-300-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U25-300-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U25-300B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U25-300B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U25-300-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U25-300-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U25-300-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U25-300-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U25-300-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U25-300-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes

Round Body CylindersSMC

1440 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CVM5 Valve Mounted Cylinder (ø20, ø25)

Brand SMC·Round Body Cylinders

Available part numbers (1440)

CVM5B20-25-15G, CDVM5B20-25-15G, CVM5B20-25B-15G, CDVM5B20-25B-15G, CVM5B20-25-25G, CDVM5B20-25-25G, CVM5B20-25-35G, CDVM5B20-25-35G, CVM5B20-25-45G, CDVM5B20-25-45G + 1430 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CVM5B20-25-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B20-25-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B20-25B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B20-25B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B20-25-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B20-25-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B20-25-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B20-25-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B20-25-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B20-25-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B20-50-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B20-50-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B20-50B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B20-50B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B20-50-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B20-50-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B20-50-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B20-50-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B20-50-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B20-50-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B20-75-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B20-75-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B20-75B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B20-75B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B20-75-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B20-75-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B20-75-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B20-75-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B20-75-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B20-75-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B20-100-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B20-100-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B20-100B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B20-100B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B20-100-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B20-100-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B20-100-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B20-100-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B20-100-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B20-100-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B20-125-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B20-125-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B20-125B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B20-125B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B20-125-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B20-125-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B20-125-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B20-125-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B20-125-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B20-125-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B20-150-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B20-150-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B20-150B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B20-150B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B20-150-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B20-150-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B20-150-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B20-150-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B20-150-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B20-150-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B20-200-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B20-200-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B20-200B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B20-200B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B20-200-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B20-200-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B20-200-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B20-200-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B20-200-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B20-200-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B20-250-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B20-250-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B20-250B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B20-250B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B20-250-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B20-250-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B20-250-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B20-250-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B20-250-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B20-250-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B20-300-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B20-300-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B20-300B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B20-300B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B20-300-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B20-300-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B20-300-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B20-300-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B20-300-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B20-300-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B25-25-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B25-25-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B25-25B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B25-25B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B25-25-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B25-25-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B25-25-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B25-25-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B25-25-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B25-25-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B25-50-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B25-50-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B25-50B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B25-50B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B25-50-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B25-50-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B25-50-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B25-50-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B25-50-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B25-50-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B25-75-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B25-75-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B25-75B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B25-75B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B25-75-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B25-75-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B25-75-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B25-75-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B25-75-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B25-75-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B25-100-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B25-100-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B25-100B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B25-100B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B25-100-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B25-100-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B25-100-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B25-100-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B25-100-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B25-100-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B25-125-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B25-125-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B25-125B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B25-125B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B25-125-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B25-125-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B25-125-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B25-125-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B25-125-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B25-125-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B25-150-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B25-150-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B25-150B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B25-150B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B25-150-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B25-150-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B25-150-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B25-150-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B25-150-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B25-150-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B25-200-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B25-200-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B25-200B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B25-200B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B25-200-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B25-200-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B25-200-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B25-200-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B25-200-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B25-200-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B25-250-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B25-250-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B25-250B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B25-250B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B25-250-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B25-250-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B25-250-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B25-250-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B25-250-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B25-250-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B25-300-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B25-300-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B25-300B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B25-300B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B25-300-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B25-300-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B25-300-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B25-300-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B25-300-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B25-300-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L20-25-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L20-25-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L20-25B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L20-25B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L20-25-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L20-25-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L20-25-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L20-25-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L20-25-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L20-25-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L20-50-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L20-50-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L20-50B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L20-50B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L20-50-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L20-50-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L20-50-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L20-50-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L20-50-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L20-50-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L20-75-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L20-75-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L20-75B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L20-75B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L20-75-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L20-75-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L20-75-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L20-75-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L20-75-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L20-75-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L20-100-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L20-100-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L20-100B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L20-100B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L20-100-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L20-100-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L20-100-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L20-100-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L20-100-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L20-100-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L20-125-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L20-125-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L20-125B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L20-125B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L20-125-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L20-125-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L20-125-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L20-125-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L20-125-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L20-125-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L20-150-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L20-150-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L20-150B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L20-150B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L20-150-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L20-150-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L20-150-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L20-150-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L20-150-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L20-150-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L20-200-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L20-200-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L20-200B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L20-200B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L20-200-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L20-200-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L20-200-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L20-200-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L20-200-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L20-200-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L20-250-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L20-250-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L20-250B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L20-250B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L20-250-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L20-250-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L20-250-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L20-250-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L20-250-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L20-250-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L20-300-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L20-300-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L20-300B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L20-300B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L20-300-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L20-300-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L20-300-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L20-300-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L20-300-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L20-300-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L25-25-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L25-25-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L25-25B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L25-25B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L25-25-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L25-25-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L25-25-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L25-25-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L25-25-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L25-25-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L25-50-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L25-50-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L25-50B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L25-50B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L25-50-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L25-50-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L25-50-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L25-50-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L25-50-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L25-50-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L25-75-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L25-75-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L25-75B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L25-75B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L25-75-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L25-75-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L25-75-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L25-75-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L25-75-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L25-75-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L25-100-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L25-100-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L25-100B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L25-100B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L25-100-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L25-100-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L25-100-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L25-100-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L25-100-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L25-100-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L25-125-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L25-125-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L25-125B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L25-125B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L25-125-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L25-125-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L25-125-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L25-125-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L25-125-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L25-125-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L25-150-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L25-150-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L25-150B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L25-150B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L25-150-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L25-150-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L25-150-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L25-150-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L25-150-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L25-150-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L25-200-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L25-200-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L25-200B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L25-200B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L25-200-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L25-200-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L25-200-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L25-200-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L25-200-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L25-200-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L25-250-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L25-250-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L25-250B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L25-250B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L25-250-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L25-250-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L25-250-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L25-250-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L25-250-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L25-250-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L25-300-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L25-300-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L25-300B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L25-300B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L25-300-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L25-300-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L25-300-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L25-300-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L25-300-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L25-300-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F20-25-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F20-25-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F20-25B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F20-25B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F20-25-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F20-25-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F20-25-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F20-25-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F20-25-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F20-25-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F20-50-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F20-50-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F20-50B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F20-50B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F20-50-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F20-50-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F20-50-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F20-50-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F20-50-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F20-50-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F20-75-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F20-75-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F20-75B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F20-75B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F20-75-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F20-75-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F20-75-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F20-75-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F20-75-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F20-75-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F20-100-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F20-100-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F20-100B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F20-100B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F20-100-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F20-100-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F20-100-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F20-100-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F20-100-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F20-100-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F20-125-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F20-125-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F20-125B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F20-125B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F20-125-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F20-125-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F20-125-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F20-125-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F20-125-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F20-125-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F20-150-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F20-150-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F20-150B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F20-150B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F20-150-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F20-150-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F20-150-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F20-150-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F20-150-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F20-150-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F20-200-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F20-200-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F20-200B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F20-200B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F20-200-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F20-200-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F20-200-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F20-200-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F20-200-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F20-200-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F20-250-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F20-250-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F20-250B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F20-250B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F20-250-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F20-250-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F20-250-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F20-250-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F20-250-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F20-250-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F20-300-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F20-300-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F20-300B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F20-300B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F20-300-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F20-300-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F20-300-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F20-300-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F20-300-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F20-300-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F25-25-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F25-25-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F25-25B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F25-25B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F25-25-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F25-25-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F25-25-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F25-25-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F25-25-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F25-25-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F25-50-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F25-50-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F25-50B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F25-50B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F25-50-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F25-50-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F25-50-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F25-50-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F25-50-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F25-50-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F25-75-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F25-75-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F25-75B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F25-75B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F25-75-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F25-75-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F25-75-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F25-75-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F25-75-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F25-75-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F25-100-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F25-100-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F25-100B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F25-100B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F25-100-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F25-100-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F25-100-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F25-100-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F25-100-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F25-100-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F25-125-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F25-125-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F25-125B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F25-125B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F25-125-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F25-125-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F25-125-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F25-125-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F25-125-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F25-125-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F25-150-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F25-150-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F25-150B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F25-150B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F25-150-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F25-150-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F25-150-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F25-150-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F25-150-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F25-150-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F25-200-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F25-200-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F25-200B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F25-200B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F25-200-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F25-200-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F25-200-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F25-200-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F25-200-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F25-200-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F25-250-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F25-250-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F25-250B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F25-250B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F25-250-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F25-250-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F25-250-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F25-250-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F25-250-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F25-250-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F25-300-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F25-300-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F25-300B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F25-300B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F25-300-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F25-300-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F25-300-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F25-300-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F25-300-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F25-300-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G20-25-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G20-25-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G20-25B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G20-25B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G20-25-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G20-25-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G20-25-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G20-25-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G20-25-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G20-25-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G20-50-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G20-50-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G20-50B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G20-50B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G20-50-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G20-50-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G20-50-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G20-50-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G20-50-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G20-50-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G20-75-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G20-75-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G20-75B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G20-75B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G20-75-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G20-75-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G20-75-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G20-75-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G20-75-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G20-75-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G20-100-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G20-100-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G20-100B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G20-100B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G20-100-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G20-100-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G20-100-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G20-100-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G20-100-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G20-100-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G20-125-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G20-125-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G20-125B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G20-125B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G20-125-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G20-125-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G20-125-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G20-125-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G20-125-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G20-125-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G20-150-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G20-150-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G20-150B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G20-150B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G20-150-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G20-150-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G20-150-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G20-150-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G20-150-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G20-150-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G20-200-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G20-200-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G20-200B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G20-200B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G20-200-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G20-200-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G20-200-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G20-200-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G20-200-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G20-200-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G20-250-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G20-250-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G20-250B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G20-250B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G20-250-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G20-250-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G20-250-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G20-250-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G20-250-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G20-250-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G20-300-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G20-300-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G20-300B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G20-300B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G20-300-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G20-300-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G20-300-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G20-300-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G20-300-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G20-300-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G25-25-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G25-25-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G25-25B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G25-25B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G25-25-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G25-25-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G25-25-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G25-25-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G25-25-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G25-25-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G25-50-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G25-50-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G25-50B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G25-50B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G25-50-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G25-50-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G25-50-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G25-50-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G25-50-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G25-50-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G25-75-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G25-75-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G25-75B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G25-75B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G25-75-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G25-75-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G25-75-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G25-75-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G25-75-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G25-75-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G25-100-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G25-100-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G25-100B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G25-100B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G25-100-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G25-100-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G25-100-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G25-100-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G25-100-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G25-100-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G25-125-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G25-125-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G25-125B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G25-125B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G25-125-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G25-125-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G25-125-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G25-125-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G25-125-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G25-125-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G25-150-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G25-150-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G25-150B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G25-150B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G25-150-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G25-150-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G25-150-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G25-150-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G25-150-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G25-150-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G25-200-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G25-200-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G25-200B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G25-200B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G25-200-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G25-200-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G25-200-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G25-200-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G25-200-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G25-200-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G25-250-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G25-250-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G25-250B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G25-250B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G25-250-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G25-250-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G25-250-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G25-250-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G25-250-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G25-250-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G25-300-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G25-300-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G25-300B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G25-300B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G25-300-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G25-300-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G25-300-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G25-300-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G25-300-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G25-300-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C20-25-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C20-25-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C20-25B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C20-25B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C20-25-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C20-25-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C20-25-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C20-25-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C20-25-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C20-25-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C20-50-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C20-50-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C20-50B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C20-50B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C20-50-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C20-50-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C20-50-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C20-50-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C20-50-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C20-50-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C20-75-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C20-75-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C20-75B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C20-75B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C20-75-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C20-75-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C20-75-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C20-75-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C20-75-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C20-75-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C20-100-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C20-100-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C20-100B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C20-100B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C20-100-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C20-100-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C20-100-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C20-100-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C20-100-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C20-100-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C20-125-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C20-125-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C20-125B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C20-125B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C20-125-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C20-125-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C20-125-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C20-125-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C20-125-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C20-125-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C20-150-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C20-150-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C20-150B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C20-150B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C20-150-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C20-150-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C20-150-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C20-150-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C20-150-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C20-150-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C20-200-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C20-200-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C20-200B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C20-200B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C20-200-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C20-200-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C20-200-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C20-200-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C20-200-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C20-200-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C20-250-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C20-250-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C20-250B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C20-250B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C20-250-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C20-250-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C20-250-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C20-250-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C20-250-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C20-250-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C20-300-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C20-300-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C20-300B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C20-300B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C20-300-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C20-300-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C20-300-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C20-300-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C20-300-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C20-300-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C25-25-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C25-25-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C25-25B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C25-25B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C25-25-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C25-25-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C25-25-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C25-25-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C25-25-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C25-25-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C25-50-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C25-50-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C25-50B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C25-50B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C25-50-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C25-50-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C25-50-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C25-50-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C25-50-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C25-50-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C25-75-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C25-75-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C25-75B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C25-75B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C25-75-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C25-75-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C25-75-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C25-75-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C25-75-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C25-75-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C25-100-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C25-100-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C25-100B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C25-100B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C25-100-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C25-100-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C25-100-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C25-100-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C25-100-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C25-100-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C25-125-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C25-125-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C25-125B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C25-125B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C25-125-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C25-125-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C25-125-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C25-125-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C25-125-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C25-125-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C25-150-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C25-150-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C25-150B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C25-150B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C25-150-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C25-150-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C25-150-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C25-150-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C25-150-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C25-150-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C25-200-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C25-200-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C25-200B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C25-200B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C25-200-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C25-200-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C25-200-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C25-200-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C25-200-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C25-200-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C25-250-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C25-250-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C25-250B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C25-250B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C25-250-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C25-250-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C25-250-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C25-250-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C25-250-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C25-250-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C25-300-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C25-300-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C25-300B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C25-300B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C25-300-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C25-300-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C25-300-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C25-300-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C25-300-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C25-300-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D20-25-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D20-25-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D20-25B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D20-25B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D20-25-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D20-25-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D20-25-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D20-25-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D20-25-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D20-25-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D20-50-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D20-50-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D20-50B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D20-50B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D20-50-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D20-50-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D20-50-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D20-50-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D20-50-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D20-50-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D20-75-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D20-75-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D20-75B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D20-75B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D20-75-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D20-75-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D20-75-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D20-75-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D20-75-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D20-75-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D20-100-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D20-100-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D20-100B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D20-100B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D20-100-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D20-100-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D20-100-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D20-100-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D20-100-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D20-100-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D20-125-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D20-125-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D20-125B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D20-125B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D20-125-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D20-125-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D20-125-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D20-125-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D20-125-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D20-125-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D20-150-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D20-150-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D20-150B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D20-150B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D20-150-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D20-150-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D20-150-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D20-150-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D20-150-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D20-150-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D20-200-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D20-200-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D20-200B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D20-200B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D20-200-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D20-200-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D20-200-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D20-200-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D20-200-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D20-200-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D20-250-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D20-250-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D20-250B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D20-250B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D20-250-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D20-250-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D20-250-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D20-250-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D20-250-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D20-250-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D20-300-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D20-300-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D20-300B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D20-300B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D20-300-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D20-300-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D20-300-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D20-300-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D20-300-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D20-300-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D25-25-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D25-25-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D25-25B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D25-25B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D25-25-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D25-25-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D25-25-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D25-25-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D25-25-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D25-25-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D25-50-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D25-50-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D25-50B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D25-50B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D25-50-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D25-50-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D25-50-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D25-50-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D25-50-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D25-50-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D25-75-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D25-75-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D25-75B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D25-75B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D25-75-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D25-75-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D25-75-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D25-75-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D25-75-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D25-75-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D25-100-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D25-100-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D25-100B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D25-100B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D25-100-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D25-100-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D25-100-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D25-100-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D25-100-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D25-100-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D25-125-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D25-125-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D25-125B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D25-125B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D25-125-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D25-125-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D25-125-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D25-125-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D25-125-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D25-125-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D25-150-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D25-150-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D25-150B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D25-150B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D25-150-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D25-150-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D25-150-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D25-150-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D25-150-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D25-150-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D25-200-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D25-200-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D25-200B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D25-200B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D25-200-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D25-200-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D25-200-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D25-200-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D25-200-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D25-200-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D25-250-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D25-250-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D25-250B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D25-250B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D25-250-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D25-250-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D25-250-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D25-250-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D25-250-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D25-250-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D25-300-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D25-300-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D25-300B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D25-300B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D25-300-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D25-300-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D25-300-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D25-300-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D25-300-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D25-300-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T20-25-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T20-25-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T20-25B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T20-25B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T20-25-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T20-25-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T20-25-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T20-25-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T20-25-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T20-25-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T20-50-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T20-50-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T20-50B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T20-50B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T20-50-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T20-50-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T20-50-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T20-50-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T20-50-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T20-50-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T20-75-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T20-75-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T20-75B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T20-75B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T20-75-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T20-75-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T20-75-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T20-75-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T20-75-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T20-75-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T20-100-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T20-100-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T20-100B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T20-100B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T20-100-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T20-100-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T20-100-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T20-100-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T20-100-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T20-100-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T20-125-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T20-125-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T20-125B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T20-125B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T20-125-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T20-125-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T20-125-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T20-125-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T20-125-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T20-125-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T20-150-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T20-150-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T20-150B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T20-150B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T20-150-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T20-150-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T20-150-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T20-150-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T20-150-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T20-150-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T20-200-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T20-200-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T20-200B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T20-200B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T20-200-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T20-200-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T20-200-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T20-200-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T20-200-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T20-200-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T20-250-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T20-250-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T20-250B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T20-250B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T20-250-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T20-250-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T20-250-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T20-250-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T20-250-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T20-250-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T20-300-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T20-300-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T20-300B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T20-300B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T20-300-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T20-300-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T20-300-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T20-300-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T20-300-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T20-300-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T25-25-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T25-25-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T25-25B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T25-25B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T25-25-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T25-25-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T25-25-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T25-25-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T25-25-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T25-25-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T25-50-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T25-50-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T25-50B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T25-50B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T25-50-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T25-50-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T25-50-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T25-50-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T25-50-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T25-50-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T25-75-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T25-75-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T25-75B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T25-75B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T25-75-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T25-75-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T25-75-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T25-75-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T25-75-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T25-75-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T25-100-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T25-100-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T25-100B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T25-100B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T25-100-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T25-100-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T25-100-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T25-100-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T25-100-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T25-100-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T25-125-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T25-125-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T25-125B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T25-125B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T25-125-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T25-125-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T25-125-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T25-125-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T25-125-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T25-125-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T25-150-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T25-150-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T25-150B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T25-150B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T25-150-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T25-150-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T25-150-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T25-150-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T25-150-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T25-150-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T25-200-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T25-200-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T25-200B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T25-200B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T25-200-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T25-200-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T25-200-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T25-200-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T25-200-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T25-200-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T25-250-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T25-250-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T25-250B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T25-250B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T25-250-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T25-250-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T25-250-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T25-250-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T25-250-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T25-250-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T25-300-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T25-300-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T25-300B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T25-300B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T25-300-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T25-300-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T25-300-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T25-300-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T25-300-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T25-300-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U20-25-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U20-25-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U20-25B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U20-25B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U20-25-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U20-25-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U20-25-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U20-25-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U20-25-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U20-25-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U20-50-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U20-50-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U20-50B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U20-50B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U20-50-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U20-50-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U20-50-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U20-50-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U20-50-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U20-50-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U20-75-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U20-75-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U20-75B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U20-75B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U20-75-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U20-75-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U20-75-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U20-75-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U20-75-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U20-75-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U20-100-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U20-100-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U20-100B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U20-100B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U20-100-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U20-100-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U20-100-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U20-100-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U20-100-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U20-100-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U20-125-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U20-125-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U20-125B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U20-125B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U20-125-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U20-125-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U20-125-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U20-125-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U20-125-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U20-125-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U20-150-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U20-150-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U20-150B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U20-150B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U20-150-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U20-150-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U20-150-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U20-150-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U20-150-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U20-150-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U20-200-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U20-200-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U20-200B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U20-200B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U20-200-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U20-200-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U20-200-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U20-200-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U20-200-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U20-200-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U20-250-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U20-250-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U20-250B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U20-250B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U20-250-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U20-250-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U20-250-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U20-250-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U20-250-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U20-250-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U20-300-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U20-300-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U20-300B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U20-300B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U20-300-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U20-300-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U20-300-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U20-300-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U20-300-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U20-300-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U25-25-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U25-25-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U25-25B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U25-25B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U25-25-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U25-25-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U25-25-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U25-25-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U25-25-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U25-25-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U25-50-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U25-50-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U25-50B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U25-50B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U25-50-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U25-50-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U25-50-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U25-50-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U25-50-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U25-50-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U25-75-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U25-75-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U25-75B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U25-75B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U25-75-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U25-75-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U25-75-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U25-75-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U25-75-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U25-75-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U25-100-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U25-100-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U25-100B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U25-100B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U25-100-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U25-100-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U25-100-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U25-100-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U25-100-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U25-100-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U25-125-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U25-125-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U25-125B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U25-125B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U25-125-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U25-125-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U25-125-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U25-125-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U25-125-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U25-125-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U25-150-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U25-150-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U25-150B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U25-150B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U25-150-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U25-150-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U25-150-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U25-150-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U25-150-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U25-150-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U25-200-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U25-200-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U25-200B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U25-200B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U25-200-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U25-200-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U25-200-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U25-200-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U25-200-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U25-200-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U25-250-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U25-250-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U25-250B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U25-250B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U25-250-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U25-250-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U25-250-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U25-250-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U25-250-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U25-250-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U25-300-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U25-300-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U25-300B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U25-300B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U25-300-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U25-300-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U25-300-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U25-300-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U25-300-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U25-300-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CVM5 Valve Mounted Cylinder (ø20, ø25)
