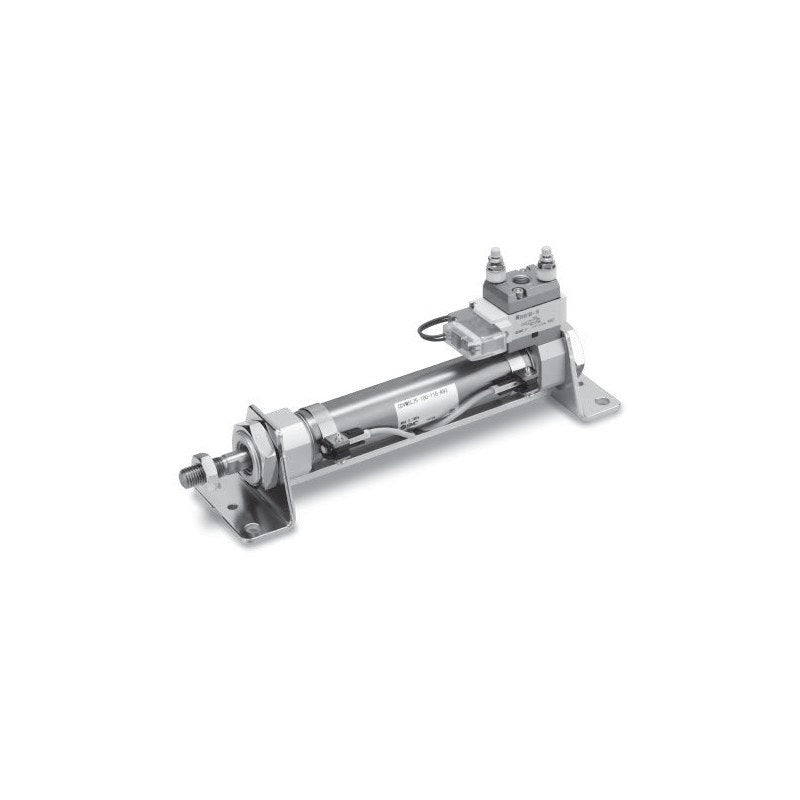

SMC CVM5 Valve Mounted Cylinder (ø32, ø40)

SMC CVM5 series double acting air cylinder with an integrated SYJ5000 solenoid valve, ø32, ø40 mm bore, standard strokes 25 to 300 mm.

Key features

Double acting CM2-based cylinder with SYJ590 solenoid valve mounted on the cylinder
Valve switching: 2-position single (rod extends, or retracts with B), 2-position double, 3-position closed or exhaust center
Eight mountings: basic, foot, rod/head flange, single/double clevis, rod/head trunnion
CDVM5 built-in magnet for D-M9, D-A9 and other auto switches (switch ordered as suffix, e.g. -M9BW)
Options as code letters: NPT/G port (TN/TF), built-in one-touch fittings (F), bellows J/K, L/M plug or DIN (D) entry, lamp/surge S/Z/R/U, locking manual D/E
Other voltages DC12/6/5/3V and AC100/200/110/220V; made-to-order -XA, -XC4, -XC6

Specifications

Fluid	Air
Proof pressure	1.0 MPa
Max. operating pressure	0.7 MPa
Ambient and fluid temperature	-10 to 50°C (no freezing)
Cushion	Rubber cushion
Lubrication	Not required (non-lube)
Port size	Rc1/8 (one-touch fitting ø6 type F option)
Coil voltage / entry (listed codes)	DC24V (5), grommet (G)
Min. operating pressure	0.15 MPa
Solenoid valve	SYJ590 series
Allowable kinetic energy	0.27 J (ø20), 0.4 J (ø25), 0.65 J (ø32), 1.2 J (ø40)
Source	SMC Korea catalog CV series (SMCKR_CV__.pdf), p. 1175, 1176 (PDF p. 23, 24)

CVM5B32-25-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B32-25-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B32-25B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B32-25B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B32-25-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B32-25-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B32-25-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B32-25-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B32-25-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B32-25-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B32-50-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B32-50-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B32-50B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B32-50B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B32-50-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B32-50-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B32-50-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B32-50-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B32-50-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B32-50-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B32-75-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B32-75-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B32-75B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B32-75B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B32-75-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B32-75-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B32-75-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B32-75-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B32-75-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B32-75-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B32-100-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B32-100-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B32-100B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B32-100B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B32-100-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B32-100-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B32-100-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B32-100-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B32-100-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B32-100-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B32-125-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B32-125-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B32-125B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B32-125B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B32-125-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B32-125-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B32-125-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B32-125-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B32-125-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B32-125-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B32-150-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B32-150-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B32-150B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B32-150B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B32-150-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B32-150-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B32-150-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B32-150-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B32-150-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B32-150-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B32-200-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B32-200-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B32-200B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B32-200B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B32-200-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B32-200-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B32-200-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B32-200-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B32-200-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B32-200-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B32-250-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B32-250-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B32-250B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B32-250B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B32-250-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B32-250-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B32-250-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B32-250-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B32-250-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B32-250-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B32-300-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B32-300-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B32-300B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B32-300B-15G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B32-300-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B32-300-25G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B32-300-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B32-300-35G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B32-300-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B32-300-45G		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B40-25-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B40-25-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B40-25B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B40-25B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B40-25-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B40-25-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B40-25-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B40-25-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B40-25-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B40-25-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B40-50-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B40-50-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B40-50B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B40-50B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B40-50-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B40-50-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B40-50-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B40-50-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B40-50-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B40-50-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B40-75-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B40-75-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B40-75B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B40-75B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B40-75-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B40-75-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B40-75-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B40-75-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B40-75-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B40-75-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B40-100-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B40-100-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B40-100B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B40-100B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B40-100-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B40-100-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B40-100-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B40-100-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B40-100-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B40-100-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B40-125-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B40-125-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B40-125B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B40-125B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B40-125-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B40-125-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B40-125-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B40-125-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B40-125-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B40-125-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B40-150-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B40-150-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B40-150B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B40-150B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B40-150-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B40-150-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B40-150-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B40-150-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B40-150-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B40-150-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B40-200-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B40-200-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B40-200B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B40-200B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B40-200-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B40-200-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B40-200-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B40-200-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B40-200-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B40-200-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B40-250-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B40-250-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B40-250B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B40-250B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B40-250-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B40-250-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B40-250-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B40-250-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B40-250-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B40-250-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5B40-300-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5B40-300-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5B40-300B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5B40-300B-15G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5B40-300-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5B40-300-25G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5B40-300-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5B40-300-35G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5B40-300-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5B40-300-45G		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L32-25-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L32-25-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L32-25B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L32-25B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L32-25-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L32-25-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L32-25-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L32-25-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L32-25-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L32-25-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L32-50-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L32-50-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L32-50B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L32-50B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L32-50-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L32-50-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L32-50-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L32-50-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L32-50-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L32-50-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L32-75-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L32-75-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L32-75B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L32-75B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L32-75-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L32-75-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L32-75-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L32-75-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L32-75-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L32-75-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L32-100-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L32-100-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L32-100B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L32-100B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L32-100-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L32-100-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L32-100-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L32-100-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L32-100-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L32-100-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L32-125-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L32-125-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L32-125B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L32-125B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L32-125-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L32-125-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L32-125-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L32-125-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L32-125-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L32-125-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L32-150-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L32-150-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L32-150B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L32-150B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L32-150-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L32-150-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L32-150-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L32-150-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L32-150-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L32-150-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L32-200-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L32-200-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L32-200B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L32-200B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L32-200-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L32-200-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L32-200-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L32-200-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L32-200-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L32-200-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L32-250-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L32-250-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L32-250B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L32-250B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L32-250-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L32-250-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L32-250-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L32-250-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L32-250-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L32-250-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L32-300-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L32-300-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L32-300B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L32-300B-15G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L32-300-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L32-300-25G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L32-300-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L32-300-35G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L32-300-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L32-300-45G		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L40-25-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L40-25-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L40-25B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L40-25B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L40-25-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L40-25-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L40-25-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L40-25-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L40-25-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L40-25-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L40-50-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L40-50-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L40-50B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L40-50B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L40-50-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L40-50-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L40-50-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L40-50-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L40-50-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L40-50-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L40-75-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L40-75-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L40-75B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L40-75B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L40-75-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L40-75-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L40-75-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L40-75-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L40-75-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L40-75-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L40-100-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L40-100-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L40-100B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L40-100B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L40-100-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L40-100-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L40-100-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L40-100-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L40-100-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L40-100-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L40-125-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L40-125-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L40-125B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L40-125B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L40-125-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L40-125-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L40-125-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L40-125-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L40-125-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L40-125-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L40-150-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L40-150-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L40-150B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L40-150B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L40-150-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L40-150-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L40-150-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L40-150-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L40-150-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L40-150-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L40-200-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L40-200-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L40-200B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L40-200B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L40-200-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L40-200-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L40-200-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L40-200-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L40-200-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L40-200-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L40-250-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L40-250-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L40-250B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L40-250B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L40-250-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L40-250-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L40-250-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L40-250-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L40-250-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L40-250-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5L40-300-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5L40-300-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5L40-300B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5L40-300B-15G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5L40-300-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5L40-300-25G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5L40-300-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5L40-300-35G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5L40-300-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5L40-300-45G		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F32-25-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F32-25-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F32-25B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F32-25B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F32-25-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F32-25-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F32-25-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F32-25-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F32-25-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F32-25-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F32-50-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F32-50-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F32-50B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F32-50B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F32-50-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F32-50-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F32-50-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F32-50-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F32-50-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F32-50-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F32-75-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F32-75-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F32-75B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F32-75B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F32-75-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F32-75-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F32-75-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F32-75-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F32-75-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F32-75-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F32-100-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F32-100-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F32-100B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F32-100B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F32-100-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F32-100-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F32-100-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F32-100-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F32-100-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F32-100-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F32-125-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F32-125-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F32-125B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F32-125B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F32-125-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F32-125-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F32-125-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F32-125-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F32-125-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F32-125-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F32-150-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F32-150-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F32-150B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F32-150B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F32-150-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F32-150-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F32-150-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F32-150-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F32-150-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F32-150-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F32-200-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F32-200-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F32-200B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F32-200B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F32-200-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F32-200-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F32-200-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F32-200-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F32-200-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F32-200-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F32-250-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F32-250-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F32-250B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F32-250B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F32-250-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F32-250-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F32-250-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F32-250-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F32-250-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F32-250-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F32-300-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F32-300-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F32-300B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F32-300B-15G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F32-300-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F32-300-25G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F32-300-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F32-300-35G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F32-300-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F32-300-45G		Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F40-25-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F40-25-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F40-25B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F40-25B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F40-25-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F40-25-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F40-25-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F40-25-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F40-25-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F40-25-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F40-50-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F40-50-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F40-50B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F40-50B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F40-50-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F40-50-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F40-50-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F40-50-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F40-50-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F40-50-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F40-75-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F40-75-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F40-75B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F40-75B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F40-75-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F40-75-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F40-75-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F40-75-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F40-75-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F40-75-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F40-100-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F40-100-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F40-100B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F40-100B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F40-100-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F40-100-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F40-100-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F40-100-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F40-100-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F40-100-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F40-125-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F40-125-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F40-125B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F40-125B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F40-125-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F40-125-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F40-125-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F40-125-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F40-125-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F40-125-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F40-150-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F40-150-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F40-150B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F40-150B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F40-150-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F40-150-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F40-150-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F40-150-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F40-150-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F40-150-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F40-200-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F40-200-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F40-200B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F40-200B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F40-200-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F40-200-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F40-200-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F40-200-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F40-200-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F40-200-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F40-250-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F40-250-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F40-250B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F40-250B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F40-250-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F40-250-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F40-250-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F40-250-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F40-250-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F40-250-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5F40-300-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5F40-300-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5F40-300B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5F40-300B-15G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5F40-300-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5F40-300-25G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5F40-300-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5F40-300-35G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5F40-300-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5F40-300-45G		Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G32-25-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G32-25-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G32-25B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G32-25B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G32-25-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G32-25-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G32-25-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G32-25-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G32-25-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G32-25-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G32-50-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G32-50-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G32-50B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G32-50B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G32-50-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G32-50-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G32-50-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G32-50-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G32-50-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G32-50-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G32-75-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G32-75-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G32-75B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G32-75B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G32-75-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G32-75-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G32-75-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G32-75-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G32-75-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G32-75-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G32-100-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G32-100-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G32-100B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G32-100B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G32-100-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G32-100-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G32-100-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G32-100-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G32-100-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G32-100-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G32-125-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G32-125-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G32-125B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G32-125B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G32-125-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G32-125-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G32-125-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G32-125-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G32-125-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G32-125-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G32-150-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G32-150-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G32-150B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G32-150B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G32-150-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G32-150-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G32-150-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G32-150-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G32-150-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G32-150-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G32-200-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G32-200-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G32-200B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G32-200B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G32-200-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G32-200-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G32-200-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G32-200-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G32-200-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G32-200-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G32-250-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G32-250-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G32-250B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G32-250B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G32-250-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G32-250-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G32-250-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G32-250-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G32-250-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G32-250-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G32-300-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G32-300-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G32-300B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G32-300B-15G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G32-300-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G32-300-25G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G32-300-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G32-300-35G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G32-300-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G32-300-45G		Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G40-25-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G40-25-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G40-25B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G40-25B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G40-25-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G40-25-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G40-25-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G40-25-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G40-25-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G40-25-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G40-50-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G40-50-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G40-50B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G40-50B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G40-50-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G40-50-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G40-50-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G40-50-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G40-50-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G40-50-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G40-75-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G40-75-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G40-75B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G40-75B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G40-75-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G40-75-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G40-75-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G40-75-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G40-75-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G40-75-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G40-100-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G40-100-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G40-100B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G40-100B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G40-100-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G40-100-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G40-100-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G40-100-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G40-100-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G40-100-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G40-125-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G40-125-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G40-125B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G40-125B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G40-125-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G40-125-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G40-125-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G40-125-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G40-125-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G40-125-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G40-150-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G40-150-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G40-150B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G40-150B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G40-150-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G40-150-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G40-150-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G40-150-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G40-150-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G40-150-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G40-200-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G40-200-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G40-200B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G40-200B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G40-200-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G40-200-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G40-200-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G40-200-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G40-200-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G40-200-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G40-250-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G40-250-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G40-250B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G40-250B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G40-250-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G40-250-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G40-250-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G40-250-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G40-250-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G40-250-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5G40-300-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5G40-300-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5G40-300B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5G40-300B-15G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5G40-300-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5G40-300-25G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5G40-300-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5G40-300-35G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5G40-300-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5G40-300-45G		Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C32-25-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C32-25-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C32-25B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C32-25B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C32-25-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C32-25-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C32-25-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C32-25-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C32-25-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C32-25-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C32-50-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C32-50-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C32-50B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C32-50B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C32-50-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C32-50-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C32-50-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C32-50-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C32-50-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C32-50-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C32-75-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C32-75-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C32-75B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C32-75B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C32-75-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C32-75-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C32-75-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C32-75-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C32-75-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C32-75-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C32-100-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C32-100-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C32-100B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C32-100B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C32-100-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C32-100-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C32-100-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C32-100-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C32-100-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C32-100-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C32-125-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C32-125-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C32-125B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C32-125B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C32-125-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C32-125-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C32-125-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C32-125-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C32-125-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C32-125-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C32-150-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C32-150-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C32-150B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C32-150B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C32-150-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C32-150-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C32-150-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C32-150-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C32-150-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C32-150-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C32-200-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C32-200-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C32-200B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C32-200B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C32-200-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C32-200-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C32-200-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C32-200-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C32-200-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C32-200-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C32-250-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C32-250-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C32-250B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C32-250B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C32-250-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C32-250-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C32-250-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C32-250-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C32-250-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C32-250-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C32-300-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C32-300-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C32-300B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C32-300B-15G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C32-300-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C32-300-25G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C32-300-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C32-300-35G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C32-300-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C32-300-45G		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C40-25-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C40-25-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C40-25B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C40-25B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C40-25-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C40-25-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C40-25-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C40-25-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C40-25-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C40-25-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C40-50-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C40-50-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C40-50B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C40-50B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C40-50-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C40-50-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C40-50-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C40-50-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C40-50-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C40-50-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C40-75-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C40-75-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C40-75B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C40-75B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C40-75-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C40-75-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C40-75-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C40-75-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C40-75-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C40-75-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C40-100-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C40-100-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C40-100B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C40-100B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C40-100-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C40-100-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C40-100-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C40-100-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C40-100-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C40-100-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C40-125-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C40-125-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C40-125B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C40-125B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C40-125-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C40-125-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C40-125-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C40-125-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C40-125-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C40-125-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C40-150-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C40-150-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C40-150B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C40-150B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C40-150-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C40-150-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C40-150-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C40-150-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C40-150-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C40-150-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C40-200-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C40-200-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C40-200B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C40-200B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C40-200-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C40-200-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C40-200-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C40-200-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C40-200-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C40-200-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C40-250-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C40-250-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C40-250B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C40-250B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C40-250-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C40-250-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C40-250-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C40-250-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C40-250-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C40-250-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5C40-300-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5C40-300-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5C40-300B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5C40-300B-15G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5C40-300-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5C40-300-25G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5C40-300-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5C40-300-35G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5C40-300-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5C40-300-45G		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D32-25-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D32-25-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D32-25B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D32-25B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D32-25-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D32-25-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D32-25-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D32-25-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D32-25-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D32-25-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D32-50-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D32-50-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D32-50B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D32-50B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D32-50-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D32-50-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D32-50-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D32-50-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D32-50-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D32-50-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D32-75-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D32-75-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D32-75B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D32-75B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D32-75-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D32-75-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D32-75-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D32-75-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D32-75-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D32-75-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D32-100-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D32-100-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D32-100B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D32-100B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D32-100-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D32-100-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D32-100-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D32-100-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D32-100-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D32-100-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D32-125-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D32-125-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D32-125B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D32-125B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D32-125-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D32-125-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D32-125-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D32-125-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D32-125-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D32-125-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D32-150-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D32-150-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D32-150B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D32-150B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D32-150-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D32-150-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D32-150-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D32-150-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D32-150-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D32-150-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D32-200-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D32-200-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D32-200B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D32-200B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D32-200-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D32-200-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D32-200-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D32-200-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D32-200-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D32-200-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D32-250-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D32-250-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D32-250B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D32-250B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D32-250-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D32-250-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D32-250-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D32-250-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D32-250-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D32-250-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D32-300-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D32-300-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D32-300B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D32-300B-15G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D32-300-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D32-300-25G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D32-300-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D32-300-35G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D32-300-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D32-300-45G		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D40-25-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D40-25-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D40-25B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D40-25B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D40-25-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D40-25-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D40-25-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D40-25-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D40-25-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D40-25-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D40-50-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D40-50-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D40-50B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D40-50B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D40-50-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D40-50-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D40-50-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D40-50-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D40-50-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D40-50-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D40-75-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D40-75-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D40-75B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D40-75B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D40-75-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D40-75-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D40-75-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D40-75-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D40-75-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D40-75-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D40-100-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D40-100-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D40-100B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D40-100B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D40-100-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D40-100-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D40-100-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D40-100-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D40-100-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D40-100-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D40-125-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D40-125-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D40-125B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D40-125B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D40-125-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D40-125-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D40-125-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D40-125-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D40-125-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D40-125-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D40-150-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D40-150-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D40-150B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D40-150B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D40-150-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D40-150-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D40-150-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D40-150-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D40-150-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D40-150-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D40-200-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D40-200-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D40-200B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D40-200B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D40-200-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D40-200-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D40-200-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D40-200-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D40-200-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D40-200-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D40-250-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D40-250-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D40-250B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D40-250B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D40-250-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D40-250-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D40-250-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D40-250-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D40-250-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D40-250-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5D40-300-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5D40-300-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5D40-300B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5D40-300B-15G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5D40-300-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5D40-300-25G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5D40-300-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5D40-300-35G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5D40-300-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5D40-300-45G		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T32-25-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T32-25-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T32-25B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T32-25B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T32-25-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T32-25-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T32-25-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T32-25-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T32-25-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T32-25-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T32-50-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T32-50-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T32-50B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T32-50B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T32-50-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T32-50-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T32-50-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T32-50-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T32-50-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T32-50-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T32-75-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T32-75-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T32-75B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T32-75B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T32-75-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T32-75-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T32-75-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T32-75-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T32-75-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T32-75-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T32-100-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T32-100-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T32-100B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T32-100B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T32-100-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T32-100-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T32-100-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T32-100-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T32-100-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T32-100-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T32-125-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T32-125-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T32-125B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T32-125B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T32-125-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T32-125-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T32-125-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T32-125-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T32-125-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T32-125-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T32-150-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T32-150-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T32-150B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T32-150B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T32-150-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T32-150-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T32-150-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T32-150-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T32-150-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T32-150-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T32-200-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T32-200-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T32-200B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T32-200B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T32-200-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T32-200-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T32-200-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T32-200-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T32-200-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T32-200-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T32-250-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T32-250-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T32-250B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T32-250B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T32-250-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T32-250-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T32-250-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T32-250-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T32-250-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T32-250-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T32-300-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T32-300-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T32-300B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T32-300B-15G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T32-300-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T32-300-25G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T32-300-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T32-300-35G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T32-300-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T32-300-45G		Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T40-25-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T40-25-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T40-25B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T40-25B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T40-25-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T40-25-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T40-25-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T40-25-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T40-25-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T40-25-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T40-50-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T40-50-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T40-50B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T40-50B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T40-50-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T40-50-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T40-50-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T40-50-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T40-50-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T40-50-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T40-75-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T40-75-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T40-75B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T40-75B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T40-75-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T40-75-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T40-75-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T40-75-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T40-75-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T40-75-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T40-100-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T40-100-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T40-100B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T40-100B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T40-100-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T40-100-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T40-100-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T40-100-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T40-100-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T40-100-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T40-125-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T40-125-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T40-125B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T40-125B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T40-125-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T40-125-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T40-125-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T40-125-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T40-125-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T40-125-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T40-150-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T40-150-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T40-150B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T40-150B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T40-150-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T40-150-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T40-150-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T40-150-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T40-150-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T40-150-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T40-200-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T40-200-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T40-200B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T40-200B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T40-200-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T40-200-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T40-200-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T40-200-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T40-200-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T40-200-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T40-250-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T40-250-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T40-250B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T40-250B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T40-250-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T40-250-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T40-250-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T40-250-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T40-250-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T40-250-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5T40-300-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5T40-300-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5T40-300B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5T40-300B-15G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5T40-300-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5T40-300-25G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5T40-300-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5T40-300-35G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5T40-300-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5T40-300-45G		Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U32-25-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U32-25-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U32-25B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U32-25B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U32-25-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U32-25-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U32-25-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U32-25-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U32-25-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U32-25-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U32-50-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U32-50-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U32-50B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U32-50B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U32-50-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U32-50-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U32-50-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U32-50-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U32-50-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U32-50-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U32-75-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U32-75-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U32-75B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U32-75B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U32-75-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U32-75-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U32-75-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U32-75-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U32-75-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U32-75-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U32-100-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U32-100-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U32-100B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U32-100B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U32-100-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U32-100-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U32-100-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U32-100-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U32-100-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U32-100-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U32-125-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U32-125-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U32-125B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U32-125B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U32-125-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U32-125-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U32-125-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U32-125-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U32-125-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U32-125-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U32-150-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U32-150-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U32-150B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U32-150B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U32-150-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U32-150-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U32-150-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U32-150-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U32-150-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U32-150-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U32-200-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U32-200-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U32-200B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U32-200B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U32-200-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U32-200-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U32-200-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U32-200-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U32-200-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U32-200-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U32-250-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U32-250-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U32-250B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U32-250B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U32-250-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U32-250-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U32-250-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U32-250-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U32-250-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U32-250-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U32-300-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U32-300-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U32-300B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U32-300B-15G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U32-300-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U32-300-25G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U32-300-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U32-300-35G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U32-300-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U32-300-45G		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U40-25-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U40-25-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U40-25B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U40-25B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U40-25-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U40-25-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U40-25-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U40-25-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U40-25-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U40-25-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U40-50-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U40-50-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U40-50B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U40-50B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U40-50-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U40-50-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U40-50-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U40-50-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U40-50-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U40-50-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U40-75-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U40-75-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U40-75B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U40-75B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U40-75-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U40-75-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U40-75-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U40-75-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U40-75-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U40-75-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U40-100-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U40-100-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U40-100B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U40-100B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U40-100-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U40-100-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U40-100-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U40-100-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U40-100-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U40-100-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U40-125-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U40-125-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U40-125B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U40-125B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U40-125-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U40-125-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U40-125-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U40-125-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U40-125-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U40-125-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U40-150-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U40-150-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U40-150B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U40-150B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U40-150-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U40-150-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U40-150-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U40-150-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U40-150-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U40-150-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U40-200-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U40-200-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U40-200B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U40-200B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U40-200-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U40-200-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U40-200-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U40-200-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U40-200-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U40-200-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U40-250-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U40-250-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U40-250B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U40-250B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U40-250-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U40-250-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U40-250-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U40-250-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U40-250-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U40-250-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5U40-300-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5U40-300-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5U40-300B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5U40-300B-15G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5U40-300-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5U40-300-25G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5U40-300-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5U40-300-35G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5U40-300-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5U40-300-45G		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes

Round Body CylindersSMC

1440 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CVM5 Valve Mounted Cylinder (ø32, ø40)

Brand SMC·Round Body Cylinders

Available part numbers (1440)

CVM5B32-25-15G, CDVM5B32-25-15G, CVM5B32-25B-15G, CDVM5B32-25B-15G, CVM5B32-25-25G, CDVM5B32-25-25G, CVM5B32-25-35G, CDVM5B32-25-35G, CVM5B32-25-45G, CDVM5B32-25-45G + 1430 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CVM5B32-25-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B32-25-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B32-25B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B32-25B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B32-25-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B32-25-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B32-25-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B32-25-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B32-25-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B32-25-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B32-50-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B32-50-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B32-50B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B32-50B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B32-50-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B32-50-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B32-50-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B32-50-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B32-50-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B32-50-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B32-75-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B32-75-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B32-75B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B32-75B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B32-75-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B32-75-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B32-75-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B32-75-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B32-75-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B32-75-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B32-100-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B32-100-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B32-100B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B32-100B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B32-100-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B32-100-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B32-100-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B32-100-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B32-100-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B32-100-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B32-125-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B32-125-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B32-125B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B32-125B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B32-125-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B32-125-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B32-125-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B32-125-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B32-125-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B32-125-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B32-150-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B32-150-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B32-150B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B32-150B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B32-150-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B32-150-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B32-150-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B32-150-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B32-150-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B32-150-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B32-200-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B32-200-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B32-200B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B32-200B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B32-200-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B32-200-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B32-200-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B32-200-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B32-200-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B32-200-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B32-250-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B32-250-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B32-250B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B32-250B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B32-250-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B32-250-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B32-250-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B32-250-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B32-250-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B32-250-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B32-300-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B32-300-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B32-300B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B32-300B-15G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B32-300-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B32-300-25G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B32-300-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B32-300-35G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B32-300-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B32-300-45G	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B40-25-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B40-25-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B40-25B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B40-25B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B40-25-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B40-25-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B40-25-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B40-25-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B40-25-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B40-25-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B40-50-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B40-50-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B40-50B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B40-50B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B40-50-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B40-50-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B40-50-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B40-50-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B40-50-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B40-50-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B40-75-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B40-75-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B40-75B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B40-75B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B40-75-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B40-75-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B40-75-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B40-75-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B40-75-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B40-75-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B40-100-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B40-100-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B40-100B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B40-100B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B40-100-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B40-100-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B40-100-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B40-100-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B40-100-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B40-100-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B40-125-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B40-125-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B40-125B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B40-125B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B40-125-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B40-125-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B40-125-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B40-125-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B40-125-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B40-125-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B40-150-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B40-150-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B40-150B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B40-150B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B40-150-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B40-150-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B40-150-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B40-150-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B40-150-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B40-150-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B40-200-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B40-200-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B40-200B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B40-200B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B40-200-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B40-200-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B40-200-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B40-200-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B40-200-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B40-200-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B40-250-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B40-250-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B40-250B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B40-250B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B40-250-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B40-250-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B40-250-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B40-250-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B40-250-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B40-250-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5B40-300-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5B40-300-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5B40-300B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5B40-300B-15G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5B40-300-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5B40-300-25G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5B40-300-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5B40-300-35G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5B40-300-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5B40-300-45G	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L32-25-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L32-25-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L32-25B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L32-25B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L32-25-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L32-25-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L32-25-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L32-25-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L32-25-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L32-25-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L32-50-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L32-50-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L32-50B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L32-50B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L32-50-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L32-50-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L32-50-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L32-50-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L32-50-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L32-50-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L32-75-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L32-75-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L32-75B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L32-75B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L32-75-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L32-75-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L32-75-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L32-75-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L32-75-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L32-75-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L32-100-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L32-100-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L32-100B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L32-100B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L32-100-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L32-100-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L32-100-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L32-100-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L32-100-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L32-100-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L32-125-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L32-125-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L32-125B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L32-125B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L32-125-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L32-125-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L32-125-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L32-125-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L32-125-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L32-125-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L32-150-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L32-150-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L32-150B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L32-150B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L32-150-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L32-150-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L32-150-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L32-150-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L32-150-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L32-150-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L32-200-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L32-200-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L32-200B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L32-200B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L32-200-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L32-200-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L32-200-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L32-200-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L32-200-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L32-200-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L32-250-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L32-250-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L32-250B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L32-250B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L32-250-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L32-250-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L32-250-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L32-250-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L32-250-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L32-250-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L32-300-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L32-300-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L32-300B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L32-300B-15G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L32-300-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L32-300-25G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L32-300-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L32-300-35G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L32-300-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L32-300-45G	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L40-25-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L40-25-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L40-25B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L40-25B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L40-25-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L40-25-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L40-25-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L40-25-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L40-25-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L40-25-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L40-50-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L40-50-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L40-50B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L40-50B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L40-50-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L40-50-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L40-50-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L40-50-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L40-50-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L40-50-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L40-75-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L40-75-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L40-75B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L40-75B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L40-75-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L40-75-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L40-75-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L40-75-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L40-75-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L40-75-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L40-100-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L40-100-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L40-100B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L40-100B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L40-100-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L40-100-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L40-100-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L40-100-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L40-100-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L40-100-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L40-125-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L40-125-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L40-125B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L40-125B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L40-125-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L40-125-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L40-125-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L40-125-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L40-125-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L40-125-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L40-150-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L40-150-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L40-150B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L40-150B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L40-150-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L40-150-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L40-150-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L40-150-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L40-150-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L40-150-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L40-200-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L40-200-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L40-200B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L40-200B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L40-200-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L40-200-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L40-200-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L40-200-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L40-200-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L40-200-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L40-250-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L40-250-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L40-250B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L40-250B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L40-250-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L40-250-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L40-250-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L40-250-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L40-250-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L40-250-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5L40-300-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5L40-300-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5L40-300B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5L40-300B-15G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5L40-300-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5L40-300-25G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5L40-300-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5L40-300-35G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5L40-300-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5L40-300-45G	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F32-25-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F32-25-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F32-25B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F32-25B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F32-25-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F32-25-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F32-25-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F32-25-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F32-25-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F32-25-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F32-50-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F32-50-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F32-50B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F32-50B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F32-50-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F32-50-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F32-50-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F32-50-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F32-50-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F32-50-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F32-75-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F32-75-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F32-75B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F32-75B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F32-75-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F32-75-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F32-75-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F32-75-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F32-75-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F32-75-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F32-100-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F32-100-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F32-100B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F32-100B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F32-100-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F32-100-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F32-100-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F32-100-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F32-100-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F32-100-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F32-125-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F32-125-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F32-125B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F32-125B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F32-125-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F32-125-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F32-125-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F32-125-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F32-125-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F32-125-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F32-150-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F32-150-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F32-150B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F32-150B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F32-150-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F32-150-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F32-150-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F32-150-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F32-150-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F32-150-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F32-200-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F32-200-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F32-200B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F32-200B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F32-200-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F32-200-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F32-200-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F32-200-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F32-200-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F32-200-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F32-250-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F32-250-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F32-250B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F32-250B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F32-250-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F32-250-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F32-250-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F32-250-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F32-250-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F32-250-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F32-300-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F32-300-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F32-300B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F32-300B-15G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F32-300-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F32-300-25G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F32-300-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F32-300-35G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F32-300-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F32-300-45G	Mounting: Rod flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F40-25-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F40-25-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F40-25B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F40-25B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F40-25-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F40-25-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F40-25-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F40-25-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F40-25-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F40-25-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F40-50-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F40-50-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F40-50B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F40-50B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F40-50-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F40-50-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F40-50-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F40-50-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F40-50-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F40-50-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F40-75-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F40-75-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F40-75B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F40-75B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F40-75-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F40-75-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F40-75-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F40-75-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F40-75-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F40-75-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F40-100-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F40-100-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F40-100B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F40-100B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F40-100-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F40-100-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F40-100-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F40-100-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F40-100-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F40-100-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F40-125-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F40-125-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F40-125B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F40-125B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F40-125-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F40-125-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F40-125-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F40-125-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F40-125-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F40-125-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F40-150-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F40-150-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F40-150B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F40-150B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F40-150-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F40-150-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F40-150-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F40-150-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F40-150-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F40-150-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F40-200-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F40-200-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F40-200B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F40-200B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F40-200-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F40-200-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F40-200-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F40-200-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F40-200-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F40-200-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F40-250-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F40-250-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F40-250B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F40-250B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F40-250-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F40-250-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F40-250-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F40-250-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F40-250-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F40-250-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5F40-300-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5F40-300-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5F40-300B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5F40-300B-15G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5F40-300-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5F40-300-25G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5F40-300-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5F40-300-35G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5F40-300-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5F40-300-45G	Mounting: Rod flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G32-25-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G32-25-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G32-25B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G32-25B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G32-25-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G32-25-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G32-25-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G32-25-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G32-25-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G32-25-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G32-50-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G32-50-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G32-50B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G32-50B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G32-50-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G32-50-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G32-50-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G32-50-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G32-50-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G32-50-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G32-75-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G32-75-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G32-75B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G32-75B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G32-75-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G32-75-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G32-75-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G32-75-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G32-75-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G32-75-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G32-100-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G32-100-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G32-100B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G32-100B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G32-100-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G32-100-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G32-100-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G32-100-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G32-100-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G32-100-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G32-125-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G32-125-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G32-125B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G32-125B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G32-125-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G32-125-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G32-125-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G32-125-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G32-125-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G32-125-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G32-150-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G32-150-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G32-150B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G32-150B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G32-150-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G32-150-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G32-150-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G32-150-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G32-150-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G32-150-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G32-200-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G32-200-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G32-200B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G32-200B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G32-200-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G32-200-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G32-200-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G32-200-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G32-200-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G32-200-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G32-250-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G32-250-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G32-250B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G32-250B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G32-250-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G32-250-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G32-250-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G32-250-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G32-250-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G32-250-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G32-300-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G32-300-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G32-300B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G32-300B-15G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G32-300-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G32-300-25G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G32-300-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G32-300-35G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G32-300-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G32-300-45G	Mounting: Head flange \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G40-25-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G40-25-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G40-25B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G40-25B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G40-25-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G40-25-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G40-25-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G40-25-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G40-25-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G40-25-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G40-50-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G40-50-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G40-50B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G40-50B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G40-50-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G40-50-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G40-50-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G40-50-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G40-50-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G40-50-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G40-75-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G40-75-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G40-75B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G40-75B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G40-75-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G40-75-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G40-75-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G40-75-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G40-75-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G40-75-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G40-100-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G40-100-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G40-100B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G40-100B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G40-100-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G40-100-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G40-100-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G40-100-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G40-100-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G40-100-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G40-125-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G40-125-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G40-125B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G40-125B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G40-125-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G40-125-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G40-125-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G40-125-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G40-125-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G40-125-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G40-150-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G40-150-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G40-150B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G40-150B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G40-150-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G40-150-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G40-150-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G40-150-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G40-150-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G40-150-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G40-200-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G40-200-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G40-200B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G40-200B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G40-200-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G40-200-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G40-200-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G40-200-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G40-200-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G40-200-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G40-250-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G40-250-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G40-250B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G40-250B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G40-250-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G40-250-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G40-250-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G40-250-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G40-250-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G40-250-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5G40-300-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5G40-300-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5G40-300B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5G40-300B-15G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5G40-300-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5G40-300-25G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5G40-300-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5G40-300-35G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5G40-300-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5G40-300-45G	Mounting: Head flange \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C32-25-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C32-25-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C32-25B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C32-25B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C32-25-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C32-25-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C32-25-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C32-25-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C32-25-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C32-25-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C32-50-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C32-50-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C32-50B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C32-50B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C32-50-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C32-50-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C32-50-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C32-50-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C32-50-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C32-50-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C32-75-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C32-75-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C32-75B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C32-75B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C32-75-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C32-75-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C32-75-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C32-75-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C32-75-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C32-75-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C32-100-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C32-100-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C32-100B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C32-100B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C32-100-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C32-100-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C32-100-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C32-100-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C32-100-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C32-100-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C32-125-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C32-125-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C32-125B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C32-125B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C32-125-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C32-125-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C32-125-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C32-125-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C32-125-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C32-125-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C32-150-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C32-150-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C32-150B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C32-150B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C32-150-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C32-150-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C32-150-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C32-150-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C32-150-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C32-150-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C32-200-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C32-200-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C32-200B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C32-200B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C32-200-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C32-200-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C32-200-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C32-200-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C32-200-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C32-200-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C32-250-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C32-250-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C32-250B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C32-250B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C32-250-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C32-250-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C32-250-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C32-250-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C32-250-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C32-250-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C32-300-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C32-300-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C32-300B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C32-300B-15G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C32-300-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C32-300-25G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C32-300-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C32-300-35G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C32-300-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C32-300-45G	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C40-25-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C40-25-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C40-25B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C40-25B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C40-25-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C40-25-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C40-25-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C40-25-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C40-25-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C40-25-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C40-50-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C40-50-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C40-50B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C40-50B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C40-50-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C40-50-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C40-50-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C40-50-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C40-50-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C40-50-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C40-75-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C40-75-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C40-75B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C40-75B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C40-75-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C40-75-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C40-75-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C40-75-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C40-75-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C40-75-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C40-100-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C40-100-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C40-100B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C40-100B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C40-100-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C40-100-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C40-100-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C40-100-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C40-100-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C40-100-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C40-125-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C40-125-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C40-125B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C40-125B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C40-125-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C40-125-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C40-125-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C40-125-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C40-125-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C40-125-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C40-150-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C40-150-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C40-150B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C40-150B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C40-150-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C40-150-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C40-150-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C40-150-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C40-150-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C40-150-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C40-200-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C40-200-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C40-200B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C40-200B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C40-200-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C40-200-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C40-200-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C40-200-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C40-200-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C40-200-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C40-250-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C40-250-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C40-250B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C40-250B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C40-250-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C40-250-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C40-250-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C40-250-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C40-250-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C40-250-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5C40-300-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5C40-300-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5C40-300B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5C40-300B-15G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5C40-300-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5C40-300-25G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5C40-300-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5C40-300-35G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5C40-300-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5C40-300-45G	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D32-25-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D32-25-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D32-25B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D32-25B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D32-25-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D32-25-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D32-25-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D32-25-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D32-25-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D32-25-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D32-50-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D32-50-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D32-50B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D32-50B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D32-50-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D32-50-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D32-50-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D32-50-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D32-50-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D32-50-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D32-75-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D32-75-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D32-75B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D32-75B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D32-75-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D32-75-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D32-75-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D32-75-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D32-75-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D32-75-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D32-100-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D32-100-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D32-100B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D32-100B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D32-100-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D32-100-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D32-100-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D32-100-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D32-100-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D32-100-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D32-125-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D32-125-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D32-125B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D32-125B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D32-125-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D32-125-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D32-125-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D32-125-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D32-125-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D32-125-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D32-150-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D32-150-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D32-150B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D32-150B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D32-150-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D32-150-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D32-150-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D32-150-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D32-150-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D32-150-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D32-200-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D32-200-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D32-200B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D32-200B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D32-200-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D32-200-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D32-200-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D32-200-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D32-200-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D32-200-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D32-250-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D32-250-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D32-250B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D32-250B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D32-250-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D32-250-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D32-250-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D32-250-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D32-250-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D32-250-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D32-300-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D32-300-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D32-300B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D32-300B-15G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D32-300-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D32-300-25G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D32-300-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D32-300-35G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D32-300-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D32-300-45G	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D40-25-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D40-25-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D40-25B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D40-25B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D40-25-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D40-25-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D40-25-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D40-25-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D40-25-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D40-25-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D40-50-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D40-50-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D40-50B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D40-50B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D40-50-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D40-50-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D40-50-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D40-50-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D40-50-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D40-50-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D40-75-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D40-75-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D40-75B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D40-75B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D40-75-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D40-75-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D40-75-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D40-75-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D40-75-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D40-75-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D40-100-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D40-100-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D40-100B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D40-100B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D40-100-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D40-100-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D40-100-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D40-100-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D40-100-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D40-100-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D40-125-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D40-125-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D40-125B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D40-125B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D40-125-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D40-125-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D40-125-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D40-125-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D40-125-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D40-125-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D40-150-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D40-150-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D40-150B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D40-150B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D40-150-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D40-150-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D40-150-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D40-150-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D40-150-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D40-150-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D40-200-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D40-200-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D40-200B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D40-200B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D40-200-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D40-200-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D40-200-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D40-200-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D40-200-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D40-200-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D40-250-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D40-250-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D40-250B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D40-250B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D40-250-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D40-250-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D40-250-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D40-250-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D40-250-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D40-250-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5D40-300-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5D40-300-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5D40-300B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5D40-300B-15G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5D40-300-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5D40-300-25G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5D40-300-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5D40-300-35G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5D40-300-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5D40-300-45G	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T32-25-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T32-25-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T32-25B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T32-25B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T32-25-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T32-25-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T32-25-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T32-25-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T32-25-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T32-25-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T32-50-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T32-50-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T32-50B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T32-50B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T32-50-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T32-50-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T32-50-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T32-50-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T32-50-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T32-50-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T32-75-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T32-75-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T32-75B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T32-75B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T32-75-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T32-75-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T32-75-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T32-75-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T32-75-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T32-75-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T32-100-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T32-100-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T32-100B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T32-100B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T32-100-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T32-100-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T32-100-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T32-100-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T32-100-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T32-100-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T32-125-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T32-125-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T32-125B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T32-125B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T32-125-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T32-125-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T32-125-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T32-125-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T32-125-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T32-125-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T32-150-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T32-150-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T32-150B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T32-150B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T32-150-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T32-150-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T32-150-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T32-150-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T32-150-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T32-150-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T32-200-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T32-200-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T32-200B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T32-200B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T32-200-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T32-200-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T32-200-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T32-200-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T32-200-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T32-200-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T32-250-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T32-250-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T32-250B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T32-250B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T32-250-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T32-250-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T32-250-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T32-250-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T32-250-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T32-250-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T32-300-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T32-300-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T32-300B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T32-300B-15G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T32-300-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T32-300-25G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T32-300-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T32-300-35G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T32-300-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T32-300-45G	Mounting: Head trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T40-25-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T40-25-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T40-25B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T40-25B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T40-25-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T40-25-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T40-25-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T40-25-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T40-25-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T40-25-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T40-50-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T40-50-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T40-50B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T40-50B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T40-50-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T40-50-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T40-50-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T40-50-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T40-50-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T40-50-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T40-75-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T40-75-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T40-75B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T40-75B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T40-75-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T40-75-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T40-75-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T40-75-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T40-75-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T40-75-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T40-100-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T40-100-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T40-100B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T40-100B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T40-100-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T40-100-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T40-100-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T40-100-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T40-100-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T40-100-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T40-125-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T40-125-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T40-125B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T40-125B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T40-125-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T40-125-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T40-125-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T40-125-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T40-125-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T40-125-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T40-150-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T40-150-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T40-150B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T40-150B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T40-150-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T40-150-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T40-150-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T40-150-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T40-150-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T40-150-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T40-200-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T40-200-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T40-200B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T40-200B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T40-200-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T40-200-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T40-200-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T40-200-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T40-200-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T40-200-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T40-250-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T40-250-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T40-250B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T40-250B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T40-250-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T40-250-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T40-250-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T40-250-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T40-250-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T40-250-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5T40-300-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5T40-300-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5T40-300B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5T40-300B-15G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5T40-300-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5T40-300-25G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5T40-300-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5T40-300-35G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5T40-300-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5T40-300-45G	Mounting: Head trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U32-25-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U32-25-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U32-25B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U32-25B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U32-25-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U32-25-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U32-25-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U32-25-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U32-25-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U32-25-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U32-50-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U32-50-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U32-50B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U32-50B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U32-50-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U32-50-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U32-50-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U32-50-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U32-50-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U32-50-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U32-75-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U32-75-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U32-75B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U32-75B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U32-75-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U32-75-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U32-75-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U32-75-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U32-75-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U32-75-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U32-100-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U32-100-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U32-100B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U32-100B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U32-100-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U32-100-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U32-100-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U32-100-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U32-100-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U32-100-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U32-125-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U32-125-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U32-125B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U32-125B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U32-125-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U32-125-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U32-125-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U32-125-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U32-125-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U32-125-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U32-150-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U32-150-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U32-150B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U32-150B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U32-150-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U32-150-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U32-150-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U32-150-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U32-150-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U32-150-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U32-200-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U32-200-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U32-200B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U32-200B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U32-200-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U32-200-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U32-200-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U32-200-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U32-200-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U32-200-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U32-250-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U32-250-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U32-250B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U32-250B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U32-250-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U32-250-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U32-250-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U32-250-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U32-250-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U32-250-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U32-300-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U32-300-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U32-300B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U32-300B-15G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U32-300-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U32-300-25G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U32-300-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U32-300-35G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U32-300-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U32-300-45G	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U40-25-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U40-25-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U40-25B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U40-25B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U40-25-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U40-25-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U40-25-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U40-25-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U40-25-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U40-25-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U40-50-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U40-50-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U40-50B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U40-50B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U40-50-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U40-50-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U40-50-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U40-50-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U40-50-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U40-50-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U40-75-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U40-75-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U40-75B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U40-75B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U40-75-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U40-75-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U40-75-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U40-75-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U40-75-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U40-75-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U40-100-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U40-100-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U40-100B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U40-100B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U40-100-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U40-100-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U40-100-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U40-100-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U40-100-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U40-100-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U40-125-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U40-125-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U40-125B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U40-125B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U40-125-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U40-125-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U40-125-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U40-125-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U40-125-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U40-125-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U40-150-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U40-150-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U40-150B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U40-150B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U40-150-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U40-150-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U40-150-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U40-150-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U40-150-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U40-150-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U40-200-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U40-200-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U40-200B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U40-200B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U40-200-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U40-200-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U40-200-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U40-200-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U40-200-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U40-200-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U40-250-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U40-250-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U40-250B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U40-250B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U40-250-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U40-250-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U40-250-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U40-250-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U40-250-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U40-250-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5U40-300-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5U40-300-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5U40-300B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5U40-300B-15G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5U40-300-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5U40-300-25G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5U40-300-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5U40-300-35G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5U40-300-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5U40-300-45G	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CVM5 Valve Mounted Cylinder (ø32, ø40)
