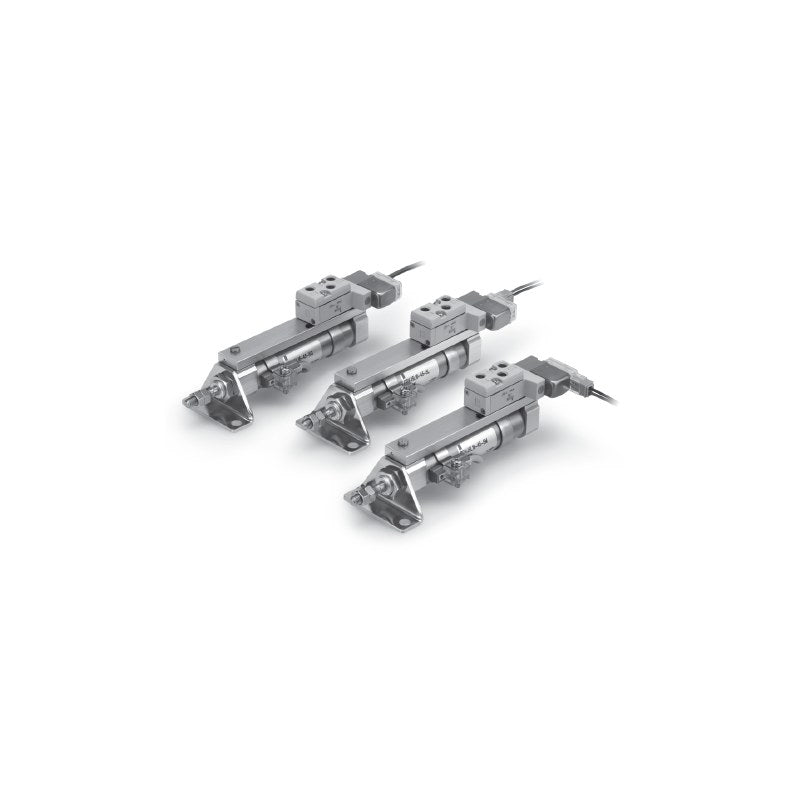

SMC CVM5K Valve Mounted Cylinder (Non-rotating, ø20, ø25)

SMC CVM5K series double acting non-rotating rod air cylinder with an integrated SYJ5000 solenoid valve, ø20, ø25 mm bore, standard strokes 25 to 300 mm.

Key features

Non-rotating hexagon rod: rotation accuracy ±0.7° (ø20, ø25), ±0.5° (ø32, ø40); SYJ590 valve mounted on the cylinder
Valve switching: 2-position single (rod extends, or retracts with B), 2-position double, 3-position closed or exhaust center
Eight mountings: basic, foot, rod/head flange, single/double clevis, rod/head trunnion
CDVM5 built-in magnet for D-M9, D-A9 and other auto switches (switch ordered as suffix, e.g. -M9BW)
Options as code letters: NPT/G port (TN/TF), built-in one-touch fittings (F), bellows J/K, L/M plug or DIN (D) entry, lamp/surge S/Z/R/U, locking manual D/E
Other voltages DC12/6/5/3V and AC100/200/110/220V; made-to-order -XA, -XC4, -XC6

Specifications

Fluid	Air
Proof pressure	1.0 MPa
Max. operating pressure	0.7 MPa
Ambient and fluid temperature	-10 to 50°C (no freezing)
Cushion	Rubber cushion
Lubrication	Not required (non-lube)
Port size	Rc1/8 (one-touch fitting ø6 type F option)
Coil voltage / entry (listed codes)	DC24V (5), grommet (G)
Min. operating pressure	0.15 MPa
Solenoid valve	SYJ590 series
Allowable kinetic energy	0.27 J (ø20), 0.4 J (ø25), 0.65 J (ø32), 1.2 J (ø40)
Source	SMC Korea catalog CV series (SMCKR_CV__.pdf), p. 1185, 1186 (PDF p. 33, 34)

CVM5KB20-25-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB20-25-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB20-25B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB20-25B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB20-25-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB20-25-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB20-25-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB20-25-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB20-25-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB20-25-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB20-50-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB20-50-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB20-50B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB20-50B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB20-50-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB20-50-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB20-50-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB20-50-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB20-50-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB20-50-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB20-75-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB20-75-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB20-75B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB20-75B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB20-75-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB20-75-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB20-75-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB20-75-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB20-75-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB20-75-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB20-100-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB20-100-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB20-100B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB20-100B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB20-100-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB20-100-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB20-100-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB20-100-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB20-100-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB20-100-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB20-125-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB20-125-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB20-125B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB20-125B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB20-125-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB20-125-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB20-125-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB20-125-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB20-125-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB20-125-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB20-150-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB20-150-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB20-150B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB20-150B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB20-150-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB20-150-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB20-150-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB20-150-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB20-150-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB20-150-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB20-200-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB20-200-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB20-200B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB20-200B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB20-200-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB20-200-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB20-200-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB20-200-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB20-200-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB20-200-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB20-250-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB20-250-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB20-250B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB20-250B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB20-250-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB20-250-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB20-250-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB20-250-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB20-250-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB20-250-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB20-300-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB20-300-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB20-300B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB20-300B-15G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB20-300-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB20-300-25G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB20-300-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB20-300-35G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB20-300-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB20-300-45G		Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB25-25-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB25-25-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB25-25B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB25-25B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB25-25-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB25-25-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB25-25-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB25-25-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB25-25-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB25-25-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB25-50-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB25-50-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB25-50B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB25-50B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB25-50-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB25-50-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB25-50-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB25-50-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB25-50-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB25-50-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB25-75-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB25-75-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB25-75B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB25-75B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB25-75-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB25-75-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB25-75-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB25-75-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB25-75-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB25-75-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB25-100-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB25-100-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB25-100B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB25-100B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB25-100-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB25-100-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB25-100-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB25-100-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB25-100-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB25-100-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB25-125-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB25-125-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB25-125B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB25-125B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB25-125-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB25-125-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB25-125-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB25-125-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB25-125-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB25-125-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB25-150-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB25-150-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB25-150B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB25-150B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB25-150-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB25-150-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB25-150-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB25-150-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB25-150-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB25-150-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB25-200-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB25-200-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB25-200B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB25-200B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB25-200-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB25-200-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB25-200-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB25-200-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB25-200-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB25-200-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB25-250-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB25-250-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB25-250B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB25-250B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB25-250-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB25-250-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB25-250-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB25-250-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB25-250-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB25-250-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KB25-300-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KB25-300-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KB25-300B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KB25-300B-15G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KB25-300-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KB25-300-25G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KB25-300-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KB25-300-35G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KB25-300-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KB25-300-45G		Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL20-25-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL20-25-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL20-25B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL20-25B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL20-25-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL20-25-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL20-25-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL20-25-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL20-25-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL20-25-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL20-50-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL20-50-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL20-50B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL20-50B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL20-50-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL20-50-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL20-50-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL20-50-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL20-50-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL20-50-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL20-75-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL20-75-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL20-75B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL20-75B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL20-75-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL20-75-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL20-75-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL20-75-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL20-75-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL20-75-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL20-100-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL20-100-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL20-100B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL20-100B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL20-100-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL20-100-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL20-100-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL20-100-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL20-100-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL20-100-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL20-125-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL20-125-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL20-125B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL20-125B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL20-125-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL20-125-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL20-125-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL20-125-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL20-125-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL20-125-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL20-150-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL20-150-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL20-150B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL20-150B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL20-150-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL20-150-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL20-150-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL20-150-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL20-150-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL20-150-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL20-200-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL20-200-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL20-200B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL20-200B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL20-200-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL20-200-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL20-200-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL20-200-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL20-200-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL20-200-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL20-250-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL20-250-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL20-250B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL20-250B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL20-250-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL20-250-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL20-250-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL20-250-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL20-250-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL20-250-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL20-300-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL20-300-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL20-300B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL20-300B-15G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL20-300-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL20-300-25G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL20-300-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL20-300-35G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL20-300-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL20-300-45G		Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL25-25-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL25-25-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL25-25B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL25-25B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL25-25-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL25-25-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL25-25-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL25-25-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL25-25-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL25-25-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL25-50-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL25-50-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL25-50B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL25-50B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL25-50-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL25-50-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL25-50-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL25-50-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL25-50-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL25-50-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL25-75-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL25-75-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL25-75B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL25-75B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL25-75-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL25-75-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL25-75-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL25-75-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL25-75-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL25-75-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL25-100-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL25-100-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL25-100B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL25-100B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL25-100-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL25-100-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL25-100-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL25-100-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL25-100-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL25-100-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL25-125-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL25-125-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL25-125B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL25-125B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL25-125-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL25-125-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL25-125-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL25-125-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL25-125-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL25-125-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL25-150-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL25-150-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL25-150B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL25-150B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL25-150-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL25-150-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL25-150-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL25-150-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL25-150-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL25-150-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL25-200-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL25-200-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL25-200B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL25-200B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL25-200-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL25-200-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL25-200-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL25-200-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL25-200-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL25-200-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL25-250-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL25-250-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL25-250B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL25-250B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL25-250-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL25-250-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL25-250-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL25-250-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL25-250-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL25-250-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KL25-300-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KL25-300-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KL25-300B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KL25-300B-15G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KL25-300-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KL25-300-25G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KL25-300-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KL25-300-35G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KL25-300-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KL25-300-45G		Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF20-25-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF20-25-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF20-25B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF20-25B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF20-25-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF20-25-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF20-25-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF20-25-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF20-25-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF20-25-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF20-50-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF20-50-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF20-50B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF20-50B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF20-50-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF20-50-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF20-50-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF20-50-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF20-50-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF20-50-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF20-75-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF20-75-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF20-75B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF20-75B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF20-75-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF20-75-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF20-75-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF20-75-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF20-75-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF20-75-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF20-100-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF20-100-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF20-100B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF20-100B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF20-100-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF20-100-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF20-100-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF20-100-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF20-100-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF20-100-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF20-125-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF20-125-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF20-125B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF20-125B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF20-125-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF20-125-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF20-125-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF20-125-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF20-125-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF20-125-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF20-150-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF20-150-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF20-150B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF20-150B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF20-150-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF20-150-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF20-150-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF20-150-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF20-150-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF20-150-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF20-200-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF20-200-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF20-200B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF20-200B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF20-200-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF20-200-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF20-200-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF20-200-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF20-200-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF20-200-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF20-250-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF20-250-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF20-250B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF20-250B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF20-250-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF20-250-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF20-250-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF20-250-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF20-250-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF20-250-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF20-300-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF20-300-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF20-300B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF20-300B-15G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF20-300-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF20-300-25G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF20-300-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF20-300-35G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF20-300-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF20-300-45G		Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF25-25-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF25-25-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF25-25B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF25-25B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF25-25-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF25-25-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF25-25-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF25-25-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF25-25-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF25-25-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF25-50-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF25-50-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF25-50B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF25-50B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF25-50-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF25-50-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF25-50-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF25-50-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF25-50-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF25-50-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF25-75-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF25-75-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF25-75B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF25-75B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF25-75-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF25-75-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF25-75-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF25-75-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF25-75-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF25-75-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF25-100-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF25-100-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF25-100B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF25-100B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF25-100-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF25-100-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF25-100-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF25-100-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF25-100-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF25-100-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF25-125-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF25-125-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF25-125B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF25-125B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF25-125-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF25-125-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF25-125-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF25-125-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF25-125-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF25-125-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF25-150-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF25-150-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF25-150B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF25-150B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF25-150-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF25-150-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF25-150-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF25-150-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF25-150-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF25-150-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF25-200-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF25-200-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF25-200B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF25-200B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF25-200-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF25-200-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF25-200-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF25-200-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF25-200-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF25-200-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF25-250-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF25-250-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF25-250B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF25-250B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF25-250-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF25-250-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF25-250-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF25-250-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF25-250-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF25-250-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KF25-300-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KF25-300-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KF25-300B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KF25-300B-15G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KF25-300-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KF25-300-25G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KF25-300-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KF25-300-35G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KF25-300-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KF25-300-45G		Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG20-25-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG20-25-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG20-25B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG20-25B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG20-25-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG20-25-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG20-25-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG20-25-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG20-25-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG20-25-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG20-50-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG20-50-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG20-50B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG20-50B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG20-50-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG20-50-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG20-50-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG20-50-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG20-50-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG20-50-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG20-75-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG20-75-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG20-75B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG20-75B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG20-75-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG20-75-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG20-75-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG20-75-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG20-75-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG20-75-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG20-100-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG20-100-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG20-100B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG20-100B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG20-100-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG20-100-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG20-100-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG20-100-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG20-100-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG20-100-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG20-125-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG20-125-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG20-125B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG20-125B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG20-125-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG20-125-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG20-125-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG20-125-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG20-125-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG20-125-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG20-150-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG20-150-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG20-150B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG20-150B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG20-150-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG20-150-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG20-150-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG20-150-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG20-150-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG20-150-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG20-200-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG20-200-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG20-200B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG20-200B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG20-200-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG20-200-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG20-200-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG20-200-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG20-200-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG20-200-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG20-250-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG20-250-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG20-250B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG20-250B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG20-250-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG20-250-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG20-250-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG20-250-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG20-250-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG20-250-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG20-300-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG20-300-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG20-300B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG20-300B-15G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG20-300-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG20-300-25G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG20-300-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG20-300-35G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG20-300-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG20-300-45G		Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG25-25-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG25-25-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG25-25B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG25-25B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG25-25-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG25-25-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG25-25-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG25-25-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG25-25-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG25-25-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG25-50-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG25-50-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG25-50B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG25-50B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG25-50-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG25-50-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG25-50-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG25-50-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG25-50-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG25-50-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG25-75-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG25-75-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG25-75B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG25-75B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG25-75-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG25-75-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG25-75-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG25-75-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG25-75-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG25-75-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG25-100-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG25-100-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG25-100B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG25-100B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG25-100-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG25-100-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG25-100-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG25-100-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG25-100-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG25-100-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG25-125-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG25-125-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG25-125B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG25-125B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG25-125-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG25-125-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG25-125-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG25-125-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG25-125-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG25-125-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG25-150-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG25-150-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG25-150B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG25-150B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG25-150-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG25-150-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG25-150-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG25-150-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG25-150-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG25-150-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG25-200-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG25-200-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG25-200B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG25-200B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG25-200-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG25-200-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG25-200-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG25-200-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG25-200-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG25-200-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG25-250-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG25-250-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG25-250B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG25-250B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG25-250-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG25-250-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG25-250-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG25-250-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG25-250-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG25-250-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KG25-300-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KG25-300-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KG25-300B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KG25-300B-15G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KG25-300-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KG25-300-25G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KG25-300-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KG25-300-35G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KG25-300-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KG25-300-45G		Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC20-25-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC20-25-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC20-25B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC20-25B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC20-25-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC20-25-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC20-25-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC20-25-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC20-25-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC20-25-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC20-50-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC20-50-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC20-50B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC20-50B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC20-50-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC20-50-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC20-50-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC20-50-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC20-50-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC20-50-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC20-75-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC20-75-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC20-75B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC20-75B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC20-75-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC20-75-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC20-75-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC20-75-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC20-75-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC20-75-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC20-100-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC20-100-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC20-100B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC20-100B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC20-100-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC20-100-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC20-100-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC20-100-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC20-100-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC20-100-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC20-125-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC20-125-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC20-125B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC20-125B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC20-125-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC20-125-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC20-125-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC20-125-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC20-125-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC20-125-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC20-150-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC20-150-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC20-150B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC20-150B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC20-150-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC20-150-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC20-150-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC20-150-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC20-150-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC20-150-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC20-200-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC20-200-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC20-200B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC20-200B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC20-200-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC20-200-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC20-200-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC20-200-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC20-200-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC20-200-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC20-250-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC20-250-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC20-250B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC20-250B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC20-250-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC20-250-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC20-250-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC20-250-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC20-250-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC20-250-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC20-300-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC20-300-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC20-300B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC20-300B-15G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC20-300-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC20-300-25G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC20-300-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC20-300-35G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC20-300-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC20-300-45G		Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC25-25-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC25-25-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC25-25B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC25-25B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC25-25-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC25-25-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC25-25-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC25-25-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC25-25-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC25-25-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC25-50-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC25-50-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC25-50B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC25-50B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC25-50-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC25-50-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC25-50-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC25-50-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC25-50-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC25-50-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC25-75-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC25-75-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC25-75B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC25-75B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC25-75-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC25-75-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC25-75-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC25-75-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC25-75-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC25-75-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC25-100-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC25-100-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC25-100B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC25-100B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC25-100-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC25-100-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC25-100-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC25-100-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC25-100-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC25-100-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC25-125-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC25-125-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC25-125B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC25-125B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC25-125-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC25-125-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC25-125-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC25-125-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC25-125-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC25-125-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC25-150-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC25-150-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC25-150B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC25-150B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC25-150-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC25-150-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC25-150-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC25-150-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC25-150-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC25-150-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC25-200-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC25-200-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC25-200B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC25-200B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC25-200-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC25-200-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC25-200-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC25-200-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC25-200-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC25-200-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC25-250-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC25-250-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC25-250B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC25-250B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC25-250-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC25-250-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC25-250-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC25-250-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC25-250-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC25-250-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KC25-300-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KC25-300-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KC25-300B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KC25-300B-15G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KC25-300-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KC25-300-25G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KC25-300-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KC25-300-35G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KC25-300-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KC25-300-45G		Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD20-25-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD20-25-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD20-25B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD20-25B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD20-25-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD20-25-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD20-25-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD20-25-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD20-25-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD20-25-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD20-50-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD20-50-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD20-50B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD20-50B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD20-50-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD20-50-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD20-50-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD20-50-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD20-50-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD20-50-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD20-75-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD20-75-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD20-75B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD20-75B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD20-75-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD20-75-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD20-75-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD20-75-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD20-75-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD20-75-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD20-100-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD20-100-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD20-100B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD20-100B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD20-100-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD20-100-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD20-100-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD20-100-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD20-100-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD20-100-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD20-125-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD20-125-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD20-125B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD20-125B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD20-125-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD20-125-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD20-125-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD20-125-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD20-125-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD20-125-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD20-150-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD20-150-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD20-150B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD20-150B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD20-150-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD20-150-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD20-150-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD20-150-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD20-150-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD20-150-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD20-200-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD20-200-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD20-200B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD20-200B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD20-200-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD20-200-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD20-200-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD20-200-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD20-200-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD20-200-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD20-250-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD20-250-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD20-250B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD20-250B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD20-250-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD20-250-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD20-250-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD20-250-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD20-250-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD20-250-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD20-300-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD20-300-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD20-300B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD20-300B-15G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD20-300-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD20-300-25G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD20-300-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD20-300-35G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD20-300-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD20-300-45G		Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD25-25-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD25-25-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD25-25B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD25-25B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD25-25-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD25-25-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD25-25-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD25-25-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD25-25-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD25-25-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD25-50-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD25-50-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD25-50B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD25-50B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD25-50-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD25-50-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD25-50-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD25-50-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD25-50-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD25-50-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD25-75-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD25-75-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD25-75B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD25-75B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD25-75-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD25-75-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD25-75-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD25-75-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD25-75-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD25-75-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD25-100-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD25-100-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD25-100B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD25-100B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD25-100-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD25-100-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD25-100-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD25-100-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD25-100-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD25-100-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD25-125-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD25-125-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD25-125B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD25-125B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD25-125-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD25-125-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD25-125-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD25-125-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD25-125-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD25-125-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD25-150-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD25-150-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD25-150B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD25-150B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD25-150-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD25-150-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD25-150-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD25-150-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD25-150-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD25-150-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD25-200-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD25-200-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD25-200B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD25-200B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD25-200-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD25-200-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD25-200-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD25-200-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD25-200-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD25-200-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD25-250-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD25-250-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD25-250B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD25-250B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD25-250-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD25-250-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD25-250-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD25-250-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD25-250-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD25-250-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KD25-300-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KD25-300-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KD25-300B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KD25-300B-15G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KD25-300-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KD25-300-25G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KD25-300-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KD25-300-35G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KD25-300-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KD25-300-45G		Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT20-25-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT20-25-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT20-25B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT20-25B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT20-25-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT20-25-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT20-25-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT20-25-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT20-25-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT20-25-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT20-50-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT20-50-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT20-50B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT20-50B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT20-50-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT20-50-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT20-50-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT20-50-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT20-50-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT20-50-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT20-75-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT20-75-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT20-75B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT20-75B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT20-75-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT20-75-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT20-75-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT20-75-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT20-75-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT20-75-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT20-100-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT20-100-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT20-100B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT20-100B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT20-100-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT20-100-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT20-100-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT20-100-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT20-100-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT20-100-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT20-125-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT20-125-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT20-125B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT20-125B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT20-125-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT20-125-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT20-125-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT20-125-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT20-125-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT20-125-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT20-150-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT20-150-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT20-150B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT20-150B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT20-150-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT20-150-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT20-150-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT20-150-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT20-150-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT20-150-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT20-200-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT20-200-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT20-200B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT20-200B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT20-200-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT20-200-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT20-200-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT20-200-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT20-200-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT20-200-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT20-250-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT20-250-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT20-250B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT20-250B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT20-250-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT20-250-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT20-250-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT20-250-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT20-250-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT20-250-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT20-300-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT20-300-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT20-300B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT20-300B-15G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT20-300-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT20-300-25G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT20-300-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT20-300-35G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT20-300-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT20-300-45G		Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT25-25-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT25-25-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT25-25B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT25-25B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT25-25-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT25-25-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT25-25-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT25-25-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT25-25-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT25-25-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT25-50-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT25-50-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT25-50B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT25-50B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT25-50-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT25-50-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT25-50-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT25-50-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT25-50-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT25-50-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT25-75-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT25-75-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT25-75B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT25-75B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT25-75-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT25-75-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT25-75-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT25-75-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT25-75-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT25-75-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT25-100-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT25-100-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT25-100B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT25-100B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT25-100-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT25-100-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT25-100-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT25-100-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT25-100-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT25-100-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT25-125-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT25-125-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT25-125B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT25-125B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT25-125-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT25-125-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT25-125-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT25-125-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT25-125-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT25-125-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT25-150-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT25-150-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT25-150B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT25-150B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT25-150-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT25-150-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT25-150-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT25-150-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT25-150-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT25-150-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT25-200-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT25-200-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT25-200B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT25-200B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT25-200-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT25-200-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT25-200-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT25-200-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT25-200-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT25-200-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT25-250-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT25-250-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT25-250B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT25-250B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT25-250-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT25-250-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT25-250-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT25-250-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT25-250-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT25-250-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KT25-300-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KT25-300-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KT25-300B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KT25-300B-15G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KT25-300-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KT25-300-25G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KT25-300-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KT25-300-35G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KT25-300-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KT25-300-45G		Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU20-25-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU20-25-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU20-25B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU20-25B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU20-25-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU20-25-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU20-25-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU20-25-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU20-25-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU20-25-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU20-50-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU20-50-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU20-50B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU20-50B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU20-50-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU20-50-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU20-50-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU20-50-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU20-50-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU20-50-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU20-75-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU20-75-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU20-75B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU20-75B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU20-75-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU20-75-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU20-75-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU20-75-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU20-75-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU20-75-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU20-100-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU20-100-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU20-100B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU20-100B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU20-100-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU20-100-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU20-100-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU20-100-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU20-100-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU20-100-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU20-125-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU20-125-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU20-125B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU20-125B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU20-125-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU20-125-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU20-125-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU20-125-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU20-125-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU20-125-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU20-150-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU20-150-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU20-150B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU20-150B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU20-150-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU20-150-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU20-150-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU20-150-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU20-150-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU20-150-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU20-200-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU20-200-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU20-200B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU20-200B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU20-200-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU20-200-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU20-200-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU20-200-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU20-200-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU20-200-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU20-250-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU20-250-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU20-250B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU20-250B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU20-250-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU20-250-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU20-250-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU20-250-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU20-250-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU20-250-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU20-300-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU20-300-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU20-300B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU20-300B-15G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU20-300-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU20-300-25G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU20-300-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU20-300-35G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU20-300-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU20-300-45G		Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU25-25-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU25-25-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU25-25B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU25-25B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU25-25-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU25-25-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU25-25-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU25-25-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU25-25-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU25-25-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU25-50-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU25-50-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU25-50B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU25-50B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU25-50-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU25-50-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU25-50-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU25-50-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU25-50-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU25-50-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU25-75-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU25-75-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU25-75B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU25-75B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU25-75-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU25-75-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU25-75-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU25-75-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU25-75-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU25-75-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU25-100-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU25-100-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU25-100B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU25-100B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU25-100-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU25-100-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU25-100-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU25-100-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU25-100-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU25-100-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU25-125-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU25-125-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU25-125B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU25-125B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU25-125-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU25-125-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU25-125-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU25-125-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU25-125-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU25-125-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU25-150-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU25-150-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU25-150B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU25-150B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU25-150-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU25-150-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU25-150-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU25-150-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU25-150-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU25-150-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU25-200-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU25-200-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU25-200B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU25-200B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU25-200-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU25-200-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU25-200-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU25-200-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU25-200-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU25-200-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU25-250-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU25-250-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU25-250B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU25-250B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU25-250-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU25-250-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU25-250-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU25-250-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU25-250-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU25-250-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVM5KU25-300-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
CDVM5KU25-300-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
CVM5KU25-300B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
CDVM5KU25-300B-15G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
CVM5KU25-300-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVM5KU25-300-25G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVM5KU25-300-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVM5KU25-300-35G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVM5KU25-300-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVM5KU25-300-45G		Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes

Round Body CylindersSMC

1440 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CVM5K Valve Mounted Cylinder (Non-rotating, ø20, ø25)

Brand SMC·Round Body Cylinders

Available part numbers (1440)

CVM5KB20-25-15G, CDVM5KB20-25-15G, CVM5KB20-25B-15G, CDVM5KB20-25B-15G, CVM5KB20-25-25G, CDVM5KB20-25-25G, CVM5KB20-25-35G, CDVM5KB20-25-35G, CVM5KB20-25-45G, CDVM5KB20-25-45G + 1430 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CVM5KB20-25-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB20-25-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB20-25B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB20-25B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB20-25-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB20-25-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB20-25-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB20-25-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB20-25-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB20-25-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB20-50-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB20-50-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB20-50B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB20-50B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB20-50-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB20-50-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB20-50-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB20-50-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB20-50-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB20-50-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB20-75-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB20-75-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB20-75B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB20-75B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB20-75-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB20-75-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB20-75-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB20-75-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB20-75-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB20-75-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB20-100-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB20-100-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB20-100B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB20-100B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB20-100-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB20-100-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB20-100-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB20-100-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB20-100-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB20-100-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB20-125-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB20-125-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB20-125B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB20-125B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB20-125-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB20-125-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB20-125-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB20-125-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB20-125-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB20-125-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB20-150-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB20-150-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB20-150B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB20-150B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB20-150-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB20-150-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB20-150-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB20-150-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB20-150-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB20-150-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB20-200-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB20-200-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB20-200B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB20-200B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB20-200-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB20-200-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB20-200-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB20-200-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB20-200-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB20-200-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB20-250-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB20-250-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB20-250B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB20-250B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB20-250-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB20-250-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB20-250-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB20-250-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB20-250-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB20-250-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB20-300-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB20-300-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB20-300B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB20-300B-15G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB20-300-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB20-300-25G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB20-300-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB20-300-35G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB20-300-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB20-300-45G	Mounting: Basic \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB25-25-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB25-25-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB25-25B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB25-25B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB25-25-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB25-25-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB25-25-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB25-25-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB25-25-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB25-25-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB25-50-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB25-50-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB25-50B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB25-50B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB25-50-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB25-50-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB25-50-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB25-50-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB25-50-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB25-50-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB25-75-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB25-75-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB25-75B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB25-75B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB25-75-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB25-75-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB25-75-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB25-75-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB25-75-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB25-75-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB25-100-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB25-100-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB25-100B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB25-100B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB25-100-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB25-100-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB25-100-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB25-100-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB25-100-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB25-100-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB25-125-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB25-125-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB25-125B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB25-125B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB25-125-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB25-125-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB25-125-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB25-125-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB25-125-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB25-125-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB25-150-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB25-150-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB25-150B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB25-150B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB25-150-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB25-150-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB25-150-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB25-150-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB25-150-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB25-150-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB25-200-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB25-200-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB25-200B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB25-200B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB25-200-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB25-200-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB25-200-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB25-200-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB25-200-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB25-200-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB25-250-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB25-250-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB25-250B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB25-250B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB25-250-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB25-250-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB25-250-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB25-250-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB25-250-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB25-250-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KB25-300-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KB25-300-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KB25-300B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KB25-300B-15G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KB25-300-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KB25-300-25G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KB25-300-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KB25-300-35G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KB25-300-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KB25-300-45G	Mounting: Basic \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL20-25-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL20-25-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL20-25B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL20-25B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL20-25-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL20-25-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL20-25-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL20-25-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL20-25-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL20-25-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL20-50-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL20-50-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL20-50B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL20-50B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL20-50-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL20-50-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL20-50-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL20-50-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL20-50-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL20-50-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL20-75-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL20-75-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL20-75B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL20-75B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL20-75-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL20-75-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL20-75-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL20-75-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL20-75-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL20-75-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL20-100-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL20-100-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL20-100B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL20-100B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL20-100-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL20-100-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL20-100-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL20-100-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL20-100-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL20-100-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL20-125-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL20-125-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL20-125B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL20-125B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL20-125-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL20-125-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL20-125-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL20-125-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL20-125-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL20-125-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL20-150-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL20-150-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL20-150B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL20-150B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL20-150-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL20-150-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL20-150-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL20-150-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL20-150-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL20-150-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL20-200-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL20-200-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL20-200B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL20-200B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL20-200-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL20-200-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL20-200-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL20-200-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL20-200-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL20-200-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL20-250-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL20-250-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL20-250B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL20-250B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL20-250-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL20-250-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL20-250-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL20-250-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL20-250-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL20-250-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL20-300-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL20-300-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL20-300B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL20-300B-15G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL20-300-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL20-300-25G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL20-300-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL20-300-35G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL20-300-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL20-300-45G	Mounting: Axial foot \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL25-25-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL25-25-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL25-25B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL25-25B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL25-25-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL25-25-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL25-25-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL25-25-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL25-25-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL25-25-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL25-50-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL25-50-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL25-50B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL25-50B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL25-50-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL25-50-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL25-50-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL25-50-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL25-50-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL25-50-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL25-75-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL25-75-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL25-75B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL25-75B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL25-75-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL25-75-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL25-75-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL25-75-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL25-75-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL25-75-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL25-100-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL25-100-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL25-100B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL25-100B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL25-100-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL25-100-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL25-100-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL25-100-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL25-100-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL25-100-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL25-125-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL25-125-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL25-125B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL25-125B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL25-125-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL25-125-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL25-125-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL25-125-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL25-125-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL25-125-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL25-150-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL25-150-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL25-150B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL25-150B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL25-150-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL25-150-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL25-150-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL25-150-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL25-150-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL25-150-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL25-200-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL25-200-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL25-200B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL25-200B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL25-200-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL25-200-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL25-200-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL25-200-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL25-200-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL25-200-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL25-250-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL25-250-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL25-250B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL25-250B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL25-250-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL25-250-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL25-250-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL25-250-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL25-250-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL25-250-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KL25-300-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KL25-300-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KL25-300B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KL25-300B-15G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KL25-300-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KL25-300-25G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KL25-300-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KL25-300-35G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KL25-300-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KL25-300-45G	Mounting: Axial foot \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF20-25-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF20-25-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF20-25B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF20-25B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF20-25-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF20-25-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF20-25-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF20-25-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF20-25-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF20-25-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF20-50-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF20-50-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF20-50B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF20-50B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF20-50-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF20-50-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF20-50-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF20-50-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF20-50-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF20-50-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF20-75-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF20-75-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF20-75B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF20-75B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF20-75-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF20-75-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF20-75-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF20-75-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF20-75-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF20-75-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF20-100-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF20-100-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF20-100B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF20-100B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF20-100-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF20-100-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF20-100-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF20-100-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF20-100-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF20-100-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF20-125-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF20-125-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF20-125B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF20-125B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF20-125-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF20-125-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF20-125-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF20-125-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF20-125-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF20-125-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF20-150-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF20-150-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF20-150B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF20-150B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF20-150-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF20-150-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF20-150-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF20-150-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF20-150-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF20-150-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF20-200-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF20-200-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF20-200B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF20-200B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF20-200-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF20-200-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF20-200-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF20-200-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF20-200-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF20-200-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF20-250-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF20-250-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF20-250B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF20-250B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF20-250-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF20-250-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF20-250-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF20-250-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF20-250-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF20-250-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF20-300-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF20-300-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF20-300B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF20-300B-15G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF20-300-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF20-300-25G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF20-300-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF20-300-35G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF20-300-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF20-300-45G	Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF25-25-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF25-25-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF25-25B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF25-25B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF25-25-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF25-25-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF25-25-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF25-25-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF25-25-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF25-25-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF25-50-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF25-50-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF25-50B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF25-50B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF25-50-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF25-50-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF25-50-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF25-50-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF25-50-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF25-50-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF25-75-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF25-75-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF25-75B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF25-75B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF25-75-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF25-75-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF25-75-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF25-75-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF25-75-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF25-75-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF25-100-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF25-100-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF25-100B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF25-100B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF25-100-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF25-100-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF25-100-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF25-100-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF25-100-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF25-100-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF25-125-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF25-125-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF25-125B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF25-125B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF25-125-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF25-125-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF25-125-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF25-125-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF25-125-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF25-125-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF25-150-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF25-150-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF25-150B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF25-150B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF25-150-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF25-150-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF25-150-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF25-150-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF25-150-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF25-150-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF25-200-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF25-200-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF25-200B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF25-200B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF25-200-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF25-200-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF25-200-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF25-200-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF25-200-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF25-200-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF25-250-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF25-250-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF25-250B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF25-250B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF25-250-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF25-250-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF25-250-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF25-250-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF25-250-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF25-250-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KF25-300-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KF25-300-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KF25-300B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KF25-300B-15G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KF25-300-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KF25-300-25G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KF25-300-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KF25-300-35G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KF25-300-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KF25-300-45G	Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG20-25-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG20-25-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG20-25B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG20-25B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG20-25-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG20-25-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG20-25-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG20-25-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG20-25-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG20-25-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG20-50-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG20-50-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG20-50B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG20-50B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG20-50-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG20-50-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG20-50-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG20-50-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG20-50-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG20-50-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG20-75-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG20-75-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG20-75B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG20-75B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG20-75-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG20-75-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG20-75-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG20-75-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG20-75-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG20-75-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG20-100-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG20-100-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG20-100B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG20-100B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG20-100-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG20-100-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG20-100-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG20-100-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG20-100-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG20-100-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG20-125-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG20-125-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG20-125B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG20-125B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG20-125-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG20-125-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG20-125-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG20-125-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG20-125-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG20-125-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG20-150-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG20-150-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG20-150B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG20-150B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG20-150-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG20-150-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG20-150-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG20-150-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG20-150-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG20-150-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG20-200-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG20-200-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG20-200B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG20-200B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG20-200-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG20-200-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG20-200-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG20-200-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG20-200-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG20-200-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG20-250-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG20-250-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG20-250B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG20-250B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG20-250-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG20-250-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG20-250-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG20-250-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG20-250-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG20-250-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG20-300-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG20-300-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG20-300B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG20-300B-15G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG20-300-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG20-300-25G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG20-300-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG20-300-35G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG20-300-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG20-300-45G	Mounting: Head flange \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG25-25-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG25-25-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG25-25B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG25-25B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG25-25-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG25-25-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG25-25-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG25-25-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG25-25-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG25-25-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG25-50-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG25-50-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG25-50B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG25-50B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG25-50-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG25-50-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG25-50-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG25-50-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG25-50-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG25-50-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG25-75-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG25-75-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG25-75B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG25-75B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG25-75-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG25-75-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG25-75-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG25-75-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG25-75-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG25-75-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG25-100-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG25-100-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG25-100B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG25-100B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG25-100-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG25-100-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG25-100-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG25-100-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG25-100-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG25-100-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG25-125-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG25-125-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG25-125B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG25-125B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG25-125-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG25-125-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG25-125-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG25-125-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG25-125-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG25-125-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG25-150-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG25-150-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG25-150B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG25-150B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG25-150-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG25-150-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG25-150-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG25-150-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG25-150-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG25-150-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG25-200-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG25-200-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG25-200B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG25-200B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG25-200-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG25-200-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG25-200-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG25-200-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG25-200-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG25-200-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG25-250-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG25-250-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG25-250B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG25-250B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG25-250-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG25-250-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG25-250-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG25-250-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG25-250-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG25-250-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KG25-300-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KG25-300-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KG25-300B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KG25-300B-15G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KG25-300-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KG25-300-25G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KG25-300-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KG25-300-35G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KG25-300-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KG25-300-45G	Mounting: Head flange \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC20-25-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC20-25-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC20-25B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC20-25B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC20-25-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC20-25-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC20-25-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC20-25-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC20-25-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC20-25-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC20-50-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC20-50-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC20-50B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC20-50B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC20-50-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC20-50-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC20-50-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC20-50-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC20-50-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC20-50-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC20-75-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC20-75-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC20-75B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC20-75B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC20-75-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC20-75-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC20-75-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC20-75-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC20-75-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC20-75-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC20-100-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC20-100-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC20-100B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC20-100B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC20-100-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC20-100-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC20-100-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC20-100-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC20-100-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC20-100-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC20-125-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC20-125-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC20-125B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC20-125B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC20-125-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC20-125-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC20-125-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC20-125-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC20-125-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC20-125-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC20-150-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC20-150-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC20-150B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC20-150B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC20-150-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC20-150-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC20-150-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC20-150-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC20-150-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC20-150-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC20-200-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC20-200-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC20-200B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC20-200B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC20-200-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC20-200-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC20-200-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC20-200-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC20-200-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC20-200-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC20-250-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC20-250-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC20-250B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC20-250B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC20-250-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC20-250-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC20-250-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC20-250-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC20-250-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC20-250-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC20-300-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC20-300-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC20-300B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC20-300B-15G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC20-300-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC20-300-25G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC20-300-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC20-300-35G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC20-300-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC20-300-45G	Mounting: Single clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC25-25-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC25-25-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC25-25B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC25-25B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC25-25-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC25-25-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC25-25-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC25-25-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC25-25-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC25-25-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC25-50-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC25-50-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC25-50B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC25-50B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC25-50-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC25-50-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC25-50-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC25-50-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC25-50-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC25-50-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC25-75-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC25-75-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC25-75B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC25-75B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC25-75-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC25-75-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC25-75-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC25-75-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC25-75-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC25-75-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC25-100-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC25-100-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC25-100B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC25-100B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC25-100-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC25-100-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC25-100-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC25-100-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC25-100-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC25-100-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC25-125-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC25-125-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC25-125B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC25-125B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC25-125-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC25-125-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC25-125-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC25-125-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC25-125-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC25-125-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC25-150-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC25-150-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC25-150B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC25-150B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC25-150-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC25-150-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC25-150-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC25-150-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC25-150-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC25-150-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC25-200-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC25-200-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC25-200B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC25-200B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC25-200-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC25-200-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC25-200-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC25-200-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC25-200-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC25-200-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC25-250-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC25-250-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC25-250B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC25-250B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC25-250-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC25-250-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC25-250-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC25-250-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC25-250-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC25-250-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KC25-300-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KC25-300-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KC25-300B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KC25-300B-15G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KC25-300-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KC25-300-25G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KC25-300-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KC25-300-35G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KC25-300-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KC25-300-45G	Mounting: Single clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD20-25-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD20-25-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD20-25B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD20-25B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD20-25-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD20-25-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD20-25-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD20-25-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD20-25-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD20-25-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD20-50-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD20-50-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD20-50B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD20-50B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD20-50-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD20-50-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD20-50-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD20-50-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD20-50-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD20-50-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD20-75-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD20-75-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD20-75B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD20-75B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD20-75-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD20-75-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD20-75-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD20-75-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD20-75-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD20-75-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD20-100-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD20-100-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD20-100B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD20-100B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD20-100-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD20-100-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD20-100-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD20-100-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD20-100-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD20-100-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD20-125-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD20-125-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD20-125B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD20-125B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD20-125-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD20-125-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD20-125-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD20-125-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD20-125-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD20-125-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD20-150-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD20-150-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD20-150B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD20-150B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD20-150-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD20-150-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD20-150-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD20-150-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD20-150-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD20-150-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD20-200-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD20-200-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD20-200B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD20-200B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD20-200-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD20-200-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD20-200-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD20-200-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD20-200-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD20-200-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD20-250-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD20-250-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD20-250B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD20-250B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD20-250-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD20-250-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD20-250-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD20-250-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD20-250-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD20-250-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD20-300-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD20-300-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD20-300B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD20-300B-15G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD20-300-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD20-300-25G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD20-300-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD20-300-35G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD20-300-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD20-300-45G	Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD25-25-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD25-25-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD25-25B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD25-25B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD25-25-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD25-25-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD25-25-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD25-25-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD25-25-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD25-25-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD25-50-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD25-50-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD25-50B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD25-50B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD25-50-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD25-50-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD25-50-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD25-50-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD25-50-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD25-50-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD25-75-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD25-75-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD25-75B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD25-75B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD25-75-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD25-75-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD25-75-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD25-75-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD25-75-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD25-75-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD25-100-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD25-100-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD25-100B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD25-100B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD25-100-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD25-100-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD25-100-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD25-100-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD25-100-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD25-100-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD25-125-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD25-125-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD25-125B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD25-125B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD25-125-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD25-125-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD25-125-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD25-125-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD25-125-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD25-125-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD25-150-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD25-150-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD25-150B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD25-150B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD25-150-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD25-150-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD25-150-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD25-150-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD25-150-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD25-150-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD25-200-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD25-200-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD25-200B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD25-200B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD25-200-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD25-200-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD25-200-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD25-200-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD25-200-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD25-200-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD25-250-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD25-250-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD25-250B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD25-250B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD25-250-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD25-250-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD25-250-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD25-250-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD25-250-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD25-250-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KD25-300-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KD25-300-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KD25-300B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KD25-300B-15G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KD25-300-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KD25-300-25G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KD25-300-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KD25-300-35G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KD25-300-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KD25-300-45G	Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT20-25-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT20-25-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT20-25B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT20-25B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT20-25-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT20-25-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT20-25-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT20-25-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT20-25-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT20-25-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT20-50-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT20-50-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT20-50B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT20-50B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT20-50-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT20-50-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT20-50-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT20-50-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT20-50-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT20-50-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT20-75-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT20-75-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT20-75B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT20-75B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT20-75-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT20-75-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT20-75-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT20-75-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT20-75-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT20-75-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT20-100-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT20-100-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT20-100B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT20-100B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT20-100-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT20-100-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT20-100-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT20-100-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT20-100-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT20-100-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT20-125-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT20-125-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT20-125B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT20-125B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT20-125-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT20-125-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT20-125-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT20-125-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT20-125-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT20-125-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT20-150-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT20-150-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT20-150B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT20-150B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT20-150-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT20-150-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT20-150-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT20-150-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT20-150-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT20-150-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT20-200-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT20-200-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT20-200B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT20-200B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT20-200-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT20-200-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT20-200-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT20-200-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT20-200-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT20-200-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT20-250-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT20-250-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT20-250B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT20-250B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT20-250-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT20-250-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT20-250-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT20-250-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT20-250-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT20-250-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT20-300-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT20-300-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT20-300B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT20-300B-15G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT20-300-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT20-300-25G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT20-300-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT20-300-35G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT20-300-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT20-300-45G	Mounting: Head trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT25-25-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT25-25-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT25-25B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT25-25B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT25-25-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT25-25-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT25-25-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT25-25-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT25-25-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT25-25-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT25-50-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT25-50-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT25-50B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT25-50B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT25-50-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT25-50-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT25-50-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT25-50-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT25-50-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT25-50-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT25-75-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT25-75-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT25-75B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT25-75B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT25-75-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT25-75-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT25-75-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT25-75-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT25-75-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT25-75-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT25-100-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT25-100-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT25-100B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT25-100B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT25-100-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT25-100-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT25-100-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT25-100-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT25-100-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT25-100-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT25-125-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT25-125-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT25-125B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT25-125B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT25-125-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT25-125-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT25-125-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT25-125-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT25-125-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT25-125-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT25-150-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT25-150-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT25-150B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT25-150B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT25-150-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT25-150-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT25-150-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT25-150-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT25-150-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT25-150-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT25-200-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT25-200-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT25-200B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT25-200B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT25-200-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT25-200-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT25-200-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT25-200-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT25-200-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT25-200-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT25-250-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT25-250-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT25-250B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT25-250B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT25-250-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT25-250-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT25-250-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT25-250-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT25-250-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT25-250-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KT25-300-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KT25-300-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KT25-300B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KT25-300B-15G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KT25-300-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KT25-300-25G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KT25-300-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KT25-300-35G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KT25-300-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KT25-300-45G	Mounting: Head trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU20-25-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU20-25-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU20-25B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU20-25B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU20-25-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU20-25-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU20-25-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU20-25-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU20-25-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU20-25-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU20-50-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU20-50-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU20-50B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU20-50B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU20-50-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU20-50-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU20-50-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU20-50-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU20-50-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU20-50-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU20-75-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU20-75-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU20-75B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU20-75B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU20-75-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU20-75-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU20-75-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU20-75-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU20-75-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU20-75-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU20-100-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU20-100-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU20-100B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU20-100B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU20-100-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU20-100-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU20-100-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU20-100-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU20-100-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU20-100-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU20-125-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU20-125-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU20-125B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU20-125B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU20-125-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU20-125-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU20-125-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU20-125-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU20-125-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU20-125-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU20-150-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU20-150-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU20-150B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU20-150B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU20-150-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU20-150-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU20-150-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU20-150-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU20-150-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU20-150-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU20-200-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU20-200-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU20-200B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU20-200B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU20-200-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU20-200-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU20-200-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU20-200-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU20-200-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU20-200-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU20-250-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU20-250-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU20-250B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU20-250B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU20-250-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU20-250-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU20-250-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU20-250-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU20-250-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU20-250-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU20-300-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU20-300-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU20-300B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU20-300B-15G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU20-300-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU20-300-25G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU20-300-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU20-300-35G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU20-300-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU20-300-45G	Mounting: Rod trunnion \| Bore: ø20 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU25-25-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU25-25-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU25-25B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU25-25B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU25-25-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU25-25-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU25-25-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU25-25-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU25-25-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU25-25-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU25-50-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU25-50-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU25-50B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU25-50B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU25-50-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU25-50-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU25-50-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU25-50-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU25-50-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU25-50-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU25-75-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU25-75-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU25-75B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU25-75B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU25-75-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU25-75-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU25-75-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU25-75-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU25-75-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU25-75-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU25-100-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU25-100-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU25-100B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU25-100B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU25-100-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU25-100-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU25-100-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU25-100-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU25-100-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU25-100-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU25-125-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU25-125-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU25-125B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU25-125B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU25-125-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU25-125-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU25-125-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU25-125-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU25-125-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU25-125-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU25-150-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU25-150-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU25-150B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU25-150B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU25-150-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU25-150-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU25-150-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU25-150-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU25-150-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU25-150-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU25-200-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU25-200-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU25-200B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU25-200B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU25-200-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU25-200-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU25-200-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU25-200-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU25-200-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU25-200-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU25-250-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU25-250-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU25-250B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU25-250B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU25-250-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU25-250-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU25-250-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU25-250-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU25-250-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU25-250-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVM5KU25-300-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: No
	CDVM5KU25-300-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized extend \| Magnet: Yes
	CVM5KU25-300B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: No
	CDVM5KU25-300B-15G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos single, energized retract \| Magnet: Yes
	CVM5KU25-300-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVM5KU25-300-25G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVM5KU25-300-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVM5KU25-300-35G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVM5KU25-300-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVM5KU25-300-45G	Mounting: Rod trunnion \| Bore: ø25 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CVM5K Valve Mounted Cylinder (Non-rotating, ø20, ø25)
