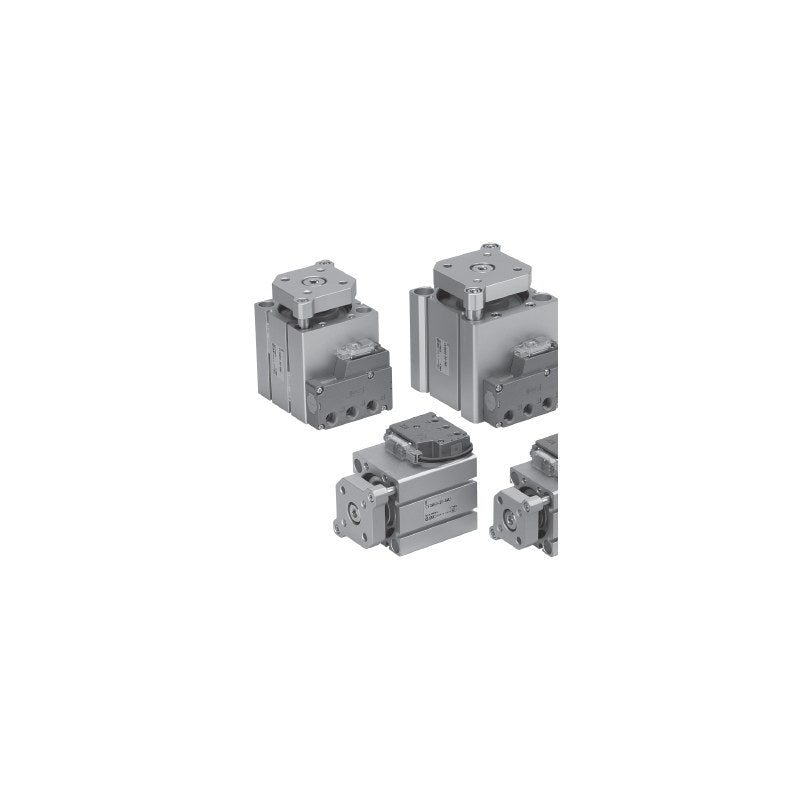

SMC CVQM Guided Compact Cylinder with Solenoid Valve (32-63 mm)

SMC CVQM Guided Compact Cylinder with Solenoid Valve (32-63 mm)

SMC CVQM series guide-rod compact cylinder with an integrated 2-position single solenoid valve, mounting-compatible with the CQ2 series.

Key features

  • Guide rods give non-rotating accuracy of +/-0.1 deg or less
  • Integrated valve saves piping work, space and air consumption
  • Through-hole or tapped mounting, interchangeable with CQ2 mounting dimensions
  • M-type plug connector (M) or without connector (MO); surge/lamp options S, Z, R, U
  • Locking manual override (B), axial piping (P), G/NPT thread options

Specifications

Action Double acting, single rod, guide rod type
Fluid Air (non-lube)
Operating pressure 0.15 to 0.7 MPa
Piston speed 50 to 500 mm/s (32, 40), 50 to 300 mm/s (50, 63)
Ambient and fluid temperature -10 to 50 C (no freezing)
Cushion Rubber bumper
Valve 2-position single
Electrical entry M-type plug connector
Power consumption 0.35 W (0.4 W with lamp)
Port thread M5x0.8 (32, 40), Rc (50, 63)
