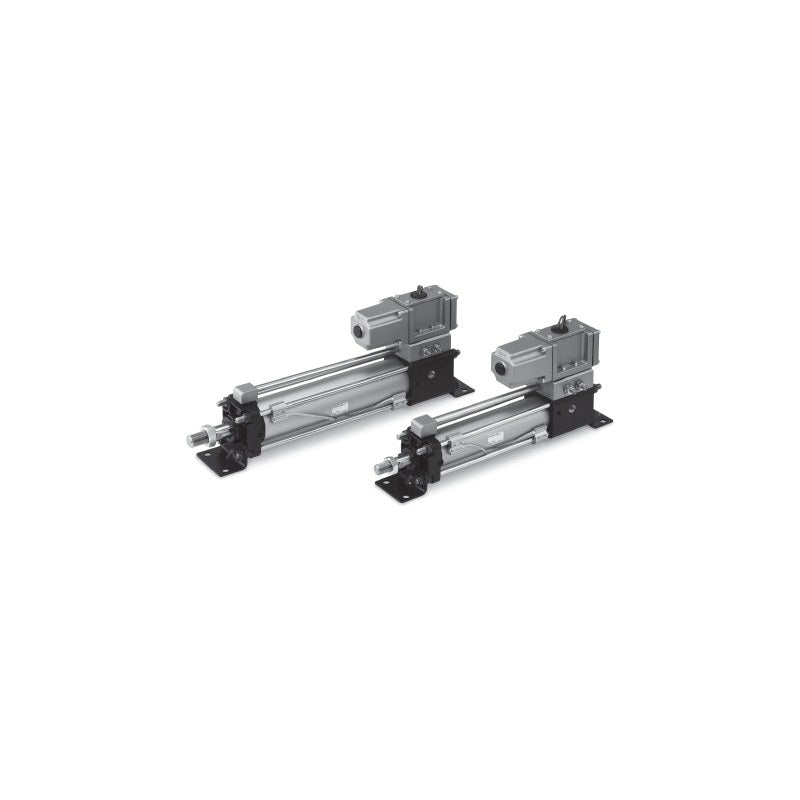

SMC CVS1 Valve Mounted Cylinder with Speed Controller (ø40)

SMC CVS1 Valve Mounted Cylinder with Speed Controller (ø40)

SMC CVS1 series double acting tie-rod cylinder with integrated VS4000 solenoid valve and built-in speed controllers, ø40 mm bore.

Key features

  • Built-in speed controllers; rod extend/retract on energizing can be changed
  • Valve: 2-position single (VS4124), double (W, VS4224), 3-position closed center (Y) or exhaust center (Z)
  • Basic, foot, rod/head flange, single/double clevis and center trunnion mounting
  • CDVS1 built-in magnet for tie-rod or band mounted auto switches (switch ordered as suffix)
  • Options as code letters: steel tube (F), bellows J/K, cushion N/R/H, conduit/DIN terminal entry (T, D, DL, TZ)
  • DC coils 24/12/100/32/48/110V; made-to-order -XA, -XC4, -XC6, -XC14, -XC15

Specifications

Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Cushion Air cushion
Port size Rc1/4
Solenoid valve VS424, DC 13.2 W, B-class insulation
Coil voltage / entry (listed codes) DC24V (5), grommet
Bore ø40 mm
Source SMC Korea catalog CV series (SMCKR_CV__.pdf), p. 1238, 1239 (PDF p. 86, 87)
CVS1BN40-25-5 Mounting: Basic | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-25-5 Mounting: Basic | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-25-5W Mounting: Basic | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-25-5W Mounting: Basic | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-25-5Y Mounting: Basic | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-25-5Y Mounting: Basic | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-25-5Z Mounting: Basic | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-25-5Z Mounting: Basic | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-50-5 Mounting: Basic | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-50-5 Mounting: Basic | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-50-5W Mounting: Basic | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-50-5W Mounting: Basic | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-50-5Y Mounting: Basic | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-50-5Y Mounting: Basic | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-50-5Z Mounting: Basic | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-50-5Z Mounting: Basic | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-75-5 Mounting: Basic | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-75-5 Mounting: Basic | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-75-5W Mounting: Basic | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-75-5W Mounting: Basic | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-75-5Y Mounting: Basic | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-75-5Y Mounting: Basic | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-75-5Z Mounting: Basic | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-75-5Z Mounting: Basic | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-100-5 Mounting: Basic | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-100-5 Mounting: Basic | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-100-5W Mounting: Basic | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-100-5W Mounting: Basic | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-100-5Y Mounting: Basic | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-100-5Y Mounting: Basic | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-100-5Z Mounting: Basic | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-100-5Z Mounting: Basic | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-125-5 Mounting: Basic | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-125-5 Mounting: Basic | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-125-5W Mounting: Basic | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-125-5W Mounting: Basic | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-125-5Y Mounting: Basic | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-125-5Y Mounting: Basic | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-125-5Z Mounting: Basic | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-125-5Z Mounting: Basic | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-150-5 Mounting: Basic | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-150-5 Mounting: Basic | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-150-5W Mounting: Basic | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-150-5W Mounting: Basic | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-150-5Y Mounting: Basic | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-150-5Y Mounting: Basic | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-150-5Z Mounting: Basic | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-150-5Z Mounting: Basic | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-200-5 Mounting: Basic | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-200-5 Mounting: Basic | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-200-5W Mounting: Basic | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-200-5W Mounting: Basic | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-200-5Y Mounting: Basic | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-200-5Y Mounting: Basic | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-200-5Z Mounting: Basic | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-200-5Z Mounting: Basic | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-250-5 Mounting: Basic | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-250-5 Mounting: Basic | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-250-5W Mounting: Basic | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-250-5W Mounting: Basic | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-250-5Y Mounting: Basic | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-250-5Y Mounting: Basic | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-250-5Z Mounting: Basic | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-250-5Z Mounting: Basic | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-300-5 Mounting: Basic | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-300-5 Mounting: Basic | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-300-5W Mounting: Basic | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-300-5W Mounting: Basic | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-300-5Y Mounting: Basic | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-300-5Y Mounting: Basic | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-300-5Z Mounting: Basic | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-300-5Z Mounting: Basic | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-350-5 Mounting: Basic | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-350-5 Mounting: Basic | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-350-5W Mounting: Basic | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-350-5W Mounting: Basic | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-350-5Y Mounting: Basic | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-350-5Y Mounting: Basic | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-350-5Z Mounting: Basic | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-350-5Z Mounting: Basic | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-400-5 Mounting: Basic | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-400-5 Mounting: Basic | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-400-5W Mounting: Basic | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-400-5W Mounting: Basic | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-400-5Y Mounting: Basic | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-400-5Y Mounting: Basic | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-400-5Z Mounting: Basic | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-400-5Z Mounting: Basic | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-450-5 Mounting: Basic | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-450-5 Mounting: Basic | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-450-5W Mounting: Basic | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-450-5W Mounting: Basic | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-450-5Y Mounting: Basic | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-450-5Y Mounting: Basic | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-450-5Z Mounting: Basic | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-450-5Z Mounting: Basic | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-500-5 Mounting: Basic | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-500-5 Mounting: Basic | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-500-5W Mounting: Basic | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-500-5W Mounting: Basic | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-500-5Y Mounting: Basic | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-500-5Y Mounting: Basic | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-500-5Z Mounting: Basic | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-500-5Z Mounting: Basic | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-25-5 Mounting: Axial foot | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-25-5 Mounting: Axial foot | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-25-5W Mounting: Axial foot | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-25-5W Mounting: Axial foot | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-25-5Y Mounting: Axial foot | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-25-5Y Mounting: Axial foot | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-25-5Z Mounting: Axial foot | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-25-5Z Mounting: Axial foot | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-50-5 Mounting: Axial foot | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-50-5 Mounting: Axial foot | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-50-5W Mounting: Axial foot | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-50-5W Mounting: Axial foot | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-50-5Y Mounting: Axial foot | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-50-5Y Mounting: Axial foot | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-50-5Z Mounting: Axial foot | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-50-5Z Mounting: Axial foot | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-75-5 Mounting: Axial foot | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-75-5 Mounting: Axial foot | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-75-5W Mounting: Axial foot | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-75-5W Mounting: Axial foot | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-75-5Y Mounting: Axial foot | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-75-5Y Mounting: Axial foot | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-75-5Z Mounting: Axial foot | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-75-5Z Mounting: Axial foot | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-100-5 Mounting: Axial foot | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-100-5 Mounting: Axial foot | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-100-5W Mounting: Axial foot | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-100-5W Mounting: Axial foot | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-100-5Y Mounting: Axial foot | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-100-5Y Mounting: Axial foot | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-100-5Z Mounting: Axial foot | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-100-5Z Mounting: Axial foot | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-125-5 Mounting: Axial foot | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-125-5 Mounting: Axial foot | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-125-5W Mounting: Axial foot | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-125-5W Mounting: Axial foot | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-125-5Y Mounting: Axial foot | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-125-5Y Mounting: Axial foot | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-125-5Z Mounting: Axial foot | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-125-5Z Mounting: Axial foot | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-150-5 Mounting: Axial foot | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-150-5 Mounting: Axial foot | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-150-5W Mounting: Axial foot | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-150-5W Mounting: Axial foot | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-150-5Y Mounting: Axial foot | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-150-5Y Mounting: Axial foot | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-150-5Z Mounting: Axial foot | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-150-5Z Mounting: Axial foot | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-200-5 Mounting: Axial foot | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-200-5 Mounting: Axial foot | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-200-5W Mounting: Axial foot | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-200-5W Mounting: Axial foot | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-200-5Y Mounting: Axial foot | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-200-5Y Mounting: Axial foot | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-200-5Z Mounting: Axial foot | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-200-5Z Mounting: Axial foot | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-250-5 Mounting: Axial foot | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-250-5 Mounting: Axial foot | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-250-5W Mounting: Axial foot | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-250-5W Mounting: Axial foot | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-250-5Y Mounting: Axial foot | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-250-5Y Mounting: Axial foot | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-250-5Z Mounting: Axial foot | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-250-5Z Mounting: Axial foot | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-300-5 Mounting: Axial foot | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-300-5 Mounting: Axial foot | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-300-5W Mounting: Axial foot | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-300-5W Mounting: Axial foot | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-300-5Y Mounting: Axial foot | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-300-5Y Mounting: Axial foot | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-300-5Z Mounting: Axial foot | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-300-5Z Mounting: Axial foot | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-350-5 Mounting: Axial foot | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-350-5 Mounting: Axial foot | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-350-5W Mounting: Axial foot | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-350-5W Mounting: Axial foot | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-350-5Y Mounting: Axial foot | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-350-5Y Mounting: Axial foot | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-350-5Z Mounting: Axial foot | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-350-5Z Mounting: Axial foot | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-400-5 Mounting: Axial foot | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-400-5 Mounting: Axial foot | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-400-5W Mounting: Axial foot | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-400-5W Mounting: Axial foot | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-400-5Y Mounting: Axial foot | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-400-5Y Mounting: Axial foot | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-400-5Z Mounting: Axial foot | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-400-5Z Mounting: Axial foot | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-450-5 Mounting: Axial foot | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-450-5 Mounting: Axial foot | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-450-5W Mounting: Axial foot | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-450-5W Mounting: Axial foot | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-450-5Y Mounting: Axial foot | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-450-5Y Mounting: Axial foot | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-450-5Z Mounting: Axial foot | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-450-5Z Mounting: Axial foot | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-500-5 Mounting: Axial foot | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-500-5 Mounting: Axial foot | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-500-5W Mounting: Axial foot | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-500-5W Mounting: Axial foot | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-500-5Y Mounting: Axial foot | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-500-5Y Mounting: Axial foot | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-500-5Z Mounting: Axial foot | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-500-5Z Mounting: Axial foot | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-25-5 Mounting: Rod flange | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-25-5 Mounting: Rod flange | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-25-5W Mounting: Rod flange | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-25-5W Mounting: Rod flange | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-25-5Y Mounting: Rod flange | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-25-5Y Mounting: Rod flange | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-25-5Z Mounting: Rod flange | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-25-5Z Mounting: Rod flange | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-50-5 Mounting: Rod flange | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-50-5 Mounting: Rod flange | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-50-5W Mounting: Rod flange | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-50-5W Mounting: Rod flange | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-50-5Y Mounting: Rod flange | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-50-5Y Mounting: Rod flange | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-50-5Z Mounting: Rod flange | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-50-5Z Mounting: Rod flange | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-75-5 Mounting: Rod flange | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-75-5 Mounting: Rod flange | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-75-5W Mounting: Rod flange | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-75-5W Mounting: Rod flange | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-75-5Y Mounting: Rod flange | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-75-5Y Mounting: Rod flange | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-75-5Z Mounting: Rod flange | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-75-5Z Mounting: Rod flange | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-100-5 Mounting: Rod flange | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-100-5 Mounting: Rod flange | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-100-5W Mounting: Rod flange | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-100-5W Mounting: Rod flange | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-100-5Y Mounting: Rod flange | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-100-5Y Mounting: Rod flange | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-100-5Z Mounting: Rod flange | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-100-5Z Mounting: Rod flange | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-125-5 Mounting: Rod flange | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-125-5 Mounting: Rod flange | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-125-5W Mounting: Rod flange | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-125-5W Mounting: Rod flange | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-125-5Y Mounting: Rod flange | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-125-5Y Mounting: Rod flange | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-125-5Z Mounting: Rod flange | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-125-5Z Mounting: Rod flange | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-150-5 Mounting: Rod flange | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-150-5 Mounting: Rod flange | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-150-5W Mounting: Rod flange | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-150-5W Mounting: Rod flange | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-150-5Y Mounting: Rod flange | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-150-5Y Mounting: Rod flange | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-150-5Z Mounting: Rod flange | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-150-5Z Mounting: Rod flange | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-200-5 Mounting: Rod flange | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-200-5 Mounting: Rod flange | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-200-5W Mounting: Rod flange | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-200-5W Mounting: Rod flange | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-200-5Y Mounting: Rod flange | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-200-5Y Mounting: Rod flange | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-200-5Z Mounting: Rod flange | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-200-5Z Mounting: Rod flange | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-250-5 Mounting: Rod flange | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-250-5 Mounting: Rod flange | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-250-5W Mounting: Rod flange | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-250-5W Mounting: Rod flange | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-250-5Y Mounting: Rod flange | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-250-5Y Mounting: Rod flange | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-250-5Z Mounting: Rod flange | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-250-5Z Mounting: Rod flange | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-300-5 Mounting: Rod flange | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-300-5 Mounting: Rod flange | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-300-5W Mounting: Rod flange | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-300-5W Mounting: Rod flange | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-300-5Y Mounting: Rod flange | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-300-5Y Mounting: Rod flange | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-300-5Z Mounting: Rod flange | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-300-5Z Mounting: Rod flange | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-350-5 Mounting: Rod flange | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-350-5 Mounting: Rod flange | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-350-5W Mounting: Rod flange | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-350-5W Mounting: Rod flange | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-350-5Y Mounting: Rod flange | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-350-5Y Mounting: Rod flange | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-350-5Z Mounting: Rod flange | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-350-5Z Mounting: Rod flange | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-400-5 Mounting: Rod flange | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-400-5 Mounting: Rod flange | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-400-5W Mounting: Rod flange | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-400-5W Mounting: Rod flange | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-400-5Y Mounting: Rod flange | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-400-5Y Mounting: Rod flange | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-400-5Z Mounting: Rod flange | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-400-5Z Mounting: Rod flange | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-450-5 Mounting: Rod flange | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-450-5 Mounting: Rod flange | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-450-5W Mounting: Rod flange | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-450-5W Mounting: Rod flange | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-450-5Y Mounting: Rod flange | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-450-5Y Mounting: Rod flange | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-450-5Z Mounting: Rod flange | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-450-5Z Mounting: Rod flange | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-500-5 Mounting: Rod flange | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-500-5 Mounting: Rod flange | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-500-5W Mounting: Rod flange | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-500-5W Mounting: Rod flange | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-500-5Y Mounting: Rod flange | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-500-5Y Mounting: Rod flange | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-500-5Z Mounting: Rod flange | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-500-5Z Mounting: Rod flange | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-25-5 Mounting: Head flange | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-25-5 Mounting: Head flange | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-25-5W Mounting: Head flange | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-25-5W Mounting: Head flange | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-25-5Y Mounting: Head flange | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-25-5Y Mounting: Head flange | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-25-5Z Mounting: Head flange | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-25-5Z Mounting: Head flange | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-50-5 Mounting: Head flange | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-50-5 Mounting: Head flange | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-50-5W Mounting: Head flange | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-50-5W Mounting: Head flange | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-50-5Y Mounting: Head flange | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-50-5Y Mounting: Head flange | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-50-5Z Mounting: Head flange | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-50-5Z Mounting: Head flange | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-75-5 Mounting: Head flange | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-75-5 Mounting: Head flange | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-75-5W Mounting: Head flange | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-75-5W Mounting: Head flange | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-75-5Y Mounting: Head flange | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-75-5Y Mounting: Head flange | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-75-5Z Mounting: Head flange | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-75-5Z Mounting: Head flange | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-100-5 Mounting: Head flange | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-100-5 Mounting: Head flange | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-100-5W Mounting: Head flange | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-100-5W Mounting: Head flange | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-100-5Y Mounting: Head flange | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-100-5Y Mounting: Head flange | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-100-5Z Mounting: Head flange | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-100-5Z Mounting: Head flange | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-125-5 Mounting: Head flange | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-125-5 Mounting: Head flange | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-125-5W Mounting: Head flange | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-125-5W Mounting: Head flange | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-125-5Y Mounting: Head flange | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-125-5Y Mounting: Head flange | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-125-5Z Mounting: Head flange | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-125-5Z Mounting: Head flange | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-150-5 Mounting: Head flange | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-150-5 Mounting: Head flange | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-150-5W Mounting: Head flange | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-150-5W Mounting: Head flange | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-150-5Y Mounting: Head flange | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-150-5Y Mounting: Head flange | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-150-5Z Mounting: Head flange | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-150-5Z Mounting: Head flange | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-200-5 Mounting: Head flange | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-200-5 Mounting: Head flange | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-200-5W Mounting: Head flange | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-200-5W Mounting: Head flange | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-200-5Y Mounting: Head flange | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-200-5Y Mounting: Head flange | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-200-5Z Mounting: Head flange | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-200-5Z Mounting: Head flange | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-250-5 Mounting: Head flange | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-250-5 Mounting: Head flange | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-250-5W Mounting: Head flange | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-250-5W Mounting: Head flange | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-250-5Y Mounting: Head flange | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-250-5Y Mounting: Head flange | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-250-5Z Mounting: Head flange | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-250-5Z Mounting: Head flange | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-300-5 Mounting: Head flange | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-300-5 Mounting: Head flange | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-300-5W Mounting: Head flange | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-300-5W Mounting: Head flange | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-300-5Y Mounting: Head flange | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-300-5Y Mounting: Head flange | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-300-5Z Mounting: Head flange | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-300-5Z Mounting: Head flange | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-350-5 Mounting: Head flange | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-350-5 Mounting: Head flange | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-350-5W Mounting: Head flange | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-350-5W Mounting: Head flange | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-350-5Y Mounting: Head flange | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-350-5Y Mounting: Head flange | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-350-5Z Mounting: Head flange | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-350-5Z Mounting: Head flange | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-400-5 Mounting: Head flange | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-400-5 Mounting: Head flange | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-400-5W Mounting: Head flange | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-400-5W Mounting: Head flange | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-400-5Y Mounting: Head flange | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-400-5Y Mounting: Head flange | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-400-5Z Mounting: Head flange | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-400-5Z Mounting: Head flange | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-450-5 Mounting: Head flange | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-450-5 Mounting: Head flange | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-450-5W Mounting: Head flange | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-450-5W Mounting: Head flange | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-450-5Y Mounting: Head flange | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-450-5Y Mounting: Head flange | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-450-5Z Mounting: Head flange | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-450-5Z Mounting: Head flange | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-500-5 Mounting: Head flange | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-500-5 Mounting: Head flange | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-500-5W Mounting: Head flange | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-500-5W Mounting: Head flange | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-500-5Y Mounting: Head flange | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-500-5Y Mounting: Head flange | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-500-5Z Mounting: Head flange | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-500-5Z Mounting: Head flange | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-25-5 Mounting: Single clevis | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-25-5 Mounting: Single clevis | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-25-5W Mounting: Single clevis | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-25-5W Mounting: Single clevis | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-25-5Y Mounting: Single clevis | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-25-5Y Mounting: Single clevis | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-25-5Z Mounting: Single clevis | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-25-5Z Mounting: Single clevis | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-50-5 Mounting: Single clevis | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-50-5 Mounting: Single clevis | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-50-5W Mounting: Single clevis | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-50-5W Mounting: Single clevis | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-50-5Y Mounting: Single clevis | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-50-5Y Mounting: Single clevis | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-50-5Z Mounting: Single clevis | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-50-5Z Mounting: Single clevis | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-75-5 Mounting: Single clevis | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-75-5 Mounting: Single clevis | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-75-5W Mounting: Single clevis | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-75-5W Mounting: Single clevis | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-75-5Y Mounting: Single clevis | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-75-5Y Mounting: Single clevis | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-75-5Z Mounting: Single clevis | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-75-5Z Mounting: Single clevis | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-100-5 Mounting: Single clevis | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-100-5 Mounting: Single clevis | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-100-5W Mounting: Single clevis | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-100-5W Mounting: Single clevis | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-100-5Y Mounting: Single clevis | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-100-5Y Mounting: Single clevis | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-100-5Z Mounting: Single clevis | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-100-5Z Mounting: Single clevis | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-125-5 Mounting: Single clevis | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-125-5 Mounting: Single clevis | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-125-5W Mounting: Single clevis | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-125-5W Mounting: Single clevis | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-125-5Y Mounting: Single clevis | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-125-5Y Mounting: Single clevis | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-125-5Z Mounting: Single clevis | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-125-5Z Mounting: Single clevis | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-150-5 Mounting: Single clevis | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-150-5 Mounting: Single clevis | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-150-5W Mounting: Single clevis | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-150-5W Mounting: Single clevis | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-150-5Y Mounting: Single clevis | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-150-5Y Mounting: Single clevis | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-150-5Z Mounting: Single clevis | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-150-5Z Mounting: Single clevis | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-200-5 Mounting: Single clevis | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-200-5 Mounting: Single clevis | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-200-5W Mounting: Single clevis | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-200-5W Mounting: Single clevis | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-200-5Y Mounting: Single clevis | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-200-5Y Mounting: Single clevis | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-200-5Z Mounting: Single clevis | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-200-5Z Mounting: Single clevis | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-250-5 Mounting: Single clevis | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-250-5 Mounting: Single clevis | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-250-5W Mounting: Single clevis | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-250-5W Mounting: Single clevis | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-250-5Y Mounting: Single clevis | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-250-5Y Mounting: Single clevis | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-250-5Z Mounting: Single clevis | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-250-5Z Mounting: Single clevis | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-300-5 Mounting: Single clevis | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-300-5 Mounting: Single clevis | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-300-5W Mounting: Single clevis | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-300-5W Mounting: Single clevis | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-300-5Y Mounting: Single clevis | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-300-5Y Mounting: Single clevis | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-300-5Z Mounting: Single clevis | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-300-5Z Mounting: Single clevis | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-350-5 Mounting: Single clevis | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-350-5 Mounting: Single clevis | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-350-5W Mounting: Single clevis | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-350-5W Mounting: Single clevis | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-350-5Y Mounting: Single clevis | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-350-5Y Mounting: Single clevis | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-350-5Z Mounting: Single clevis | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-350-5Z Mounting: Single clevis | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-400-5 Mounting: Single clevis | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-400-5 Mounting: Single clevis | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-400-5W Mounting: Single clevis | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-400-5W Mounting: Single clevis | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-400-5Y Mounting: Single clevis | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-400-5Y Mounting: Single clevis | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-400-5Z Mounting: Single clevis | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-400-5Z Mounting: Single clevis | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-450-5 Mounting: Single clevis | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-450-5 Mounting: Single clevis | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-450-5W Mounting: Single clevis | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-450-5W Mounting: Single clevis | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-450-5Y Mounting: Single clevis | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-450-5Y Mounting: Single clevis | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-450-5Z Mounting: Single clevis | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-450-5Z Mounting: Single clevis | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-500-5 Mounting: Single clevis | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-500-5 Mounting: Single clevis | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-500-5W Mounting: Single clevis | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-500-5W Mounting: Single clevis | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-500-5Y Mounting: Single clevis | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-500-5Y Mounting: Single clevis | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-500-5Z Mounting: Single clevis | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-500-5Z Mounting: Single clevis | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-25-5 Mounting: Double clevis | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-25-5 Mounting: Double clevis | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-25-5W Mounting: Double clevis | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-25-5W Mounting: Double clevis | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-25-5Y Mounting: Double clevis | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-25-5Y Mounting: Double clevis | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-25-5Z Mounting: Double clevis | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-25-5Z Mounting: Double clevis | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-50-5 Mounting: Double clevis | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-50-5 Mounting: Double clevis | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-50-5W Mounting: Double clevis | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-50-5W Mounting: Double clevis | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-50-5Y Mounting: Double clevis | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-50-5Y Mounting: Double clevis | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-50-5Z Mounting: Double clevis | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-50-5Z Mounting: Double clevis | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-75-5 Mounting: Double clevis | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-75-5 Mounting: Double clevis | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-75-5W Mounting: Double clevis | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-75-5W Mounting: Double clevis | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-75-5Y Mounting: Double clevis | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-75-5Y Mounting: Double clevis | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-75-5Z Mounting: Double clevis | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-75-5Z Mounting: Double clevis | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-100-5 Mounting: Double clevis | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-100-5 Mounting: Double clevis | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-100-5W Mounting: Double clevis | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-100-5W Mounting: Double clevis | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-100-5Y Mounting: Double clevis | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-100-5Y Mounting: Double clevis | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-100-5Z Mounting: Double clevis | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-100-5Z Mounting: Double clevis | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-125-5 Mounting: Double clevis | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-125-5 Mounting: Double clevis | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-125-5W Mounting: Double clevis | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-125-5W Mounting: Double clevis | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-125-5Y Mounting: Double clevis | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-125-5Y Mounting: Double clevis | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-125-5Z Mounting: Double clevis | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-125-5Z Mounting: Double clevis | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-150-5 Mounting: Double clevis | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-150-5 Mounting: Double clevis | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-150-5W Mounting: Double clevis | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-150-5W Mounting: Double clevis | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-150-5Y Mounting: Double clevis | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-150-5Y Mounting: Double clevis | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-150-5Z Mounting: Double clevis | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-150-5Z Mounting: Double clevis | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-200-5 Mounting: Double clevis | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-200-5 Mounting: Double clevis | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-200-5W Mounting: Double clevis | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-200-5W Mounting: Double clevis | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-200-5Y Mounting: Double clevis | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-200-5Y Mounting: Double clevis | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-200-5Z Mounting: Double clevis | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-200-5Z Mounting: Double clevis | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-250-5 Mounting: Double clevis | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-250-5 Mounting: Double clevis | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-250-5W Mounting: Double clevis | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-250-5W Mounting: Double clevis | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-250-5Y Mounting: Double clevis | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-250-5Y Mounting: Double clevis | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-250-5Z Mounting: Double clevis | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-250-5Z Mounting: Double clevis | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-300-5 Mounting: Double clevis | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-300-5 Mounting: Double clevis | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-300-5W Mounting: Double clevis | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-300-5W Mounting: Double clevis | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-300-5Y Mounting: Double clevis | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-300-5Y Mounting: Double clevis | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-300-5Z Mounting: Double clevis | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-300-5Z Mounting: Double clevis | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-350-5 Mounting: Double clevis | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-350-5 Mounting: Double clevis | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-350-5W Mounting: Double clevis | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-350-5W Mounting: Double clevis | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-350-5Y Mounting: Double clevis | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-350-5Y Mounting: Double clevis | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-350-5Z Mounting: Double clevis | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-350-5Z Mounting: Double clevis | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-400-5 Mounting: Double clevis | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-400-5 Mounting: Double clevis | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-400-5W Mounting: Double clevis | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-400-5W Mounting: Double clevis | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-400-5Y Mounting: Double clevis | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-400-5Y Mounting: Double clevis | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-400-5Z Mounting: Double clevis | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-400-5Z Mounting: Double clevis | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-450-5 Mounting: Double clevis | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-450-5 Mounting: Double clevis | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-450-5W Mounting: Double clevis | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-450-5W Mounting: Double clevis | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-450-5Y Mounting: Double clevis | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-450-5Y Mounting: Double clevis | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-450-5Z Mounting: Double clevis | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-450-5Z Mounting: Double clevis | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-500-5 Mounting: Double clevis | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-500-5 Mounting: Double clevis | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-500-5W Mounting: Double clevis | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-500-5W Mounting: Double clevis | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-500-5Y Mounting: Double clevis | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-500-5Y Mounting: Double clevis | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-500-5Z Mounting: Double clevis | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-500-5Z Mounting: Double clevis | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-25-5 Mounting: Center trunnion | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-25-5 Mounting: Center trunnion | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-25-5W Mounting: Center trunnion | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-25-5W Mounting: Center trunnion | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-25-5Y Mounting: Center trunnion | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-25-5Y Mounting: Center trunnion | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-25-5Z Mounting: Center trunnion | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-25-5Z Mounting: Center trunnion | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-50-5 Mounting: Center trunnion | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-50-5 Mounting: Center trunnion | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-50-5W Mounting: Center trunnion | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-50-5W Mounting: Center trunnion | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-50-5Y Mounting: Center trunnion | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-50-5Y Mounting: Center trunnion | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-50-5Z Mounting: Center trunnion | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-50-5Z Mounting: Center trunnion | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-75-5 Mounting: Center trunnion | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-75-5 Mounting: Center trunnion | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-75-5W Mounting: Center trunnion | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-75-5W Mounting: Center trunnion | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-75-5Y Mounting: Center trunnion | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-75-5Y Mounting: Center trunnion | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-75-5Z Mounting: Center trunnion | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-75-5Z Mounting: Center trunnion | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-100-5 Mounting: Center trunnion | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-100-5 Mounting: Center trunnion | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-100-5W Mounting: Center trunnion | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-100-5W Mounting: Center trunnion | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-100-5Y Mounting: Center trunnion | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-100-5Y Mounting: Center trunnion | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-100-5Z Mounting: Center trunnion | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-100-5Z Mounting: Center trunnion | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-125-5 Mounting: Center trunnion | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-125-5 Mounting: Center trunnion | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-125-5W Mounting: Center trunnion | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-125-5W Mounting: Center trunnion | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-125-5Y Mounting: Center trunnion | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-125-5Y Mounting: Center trunnion | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-125-5Z Mounting: Center trunnion | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-125-5Z Mounting: Center trunnion | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-150-5 Mounting: Center trunnion | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-150-5 Mounting: Center trunnion | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-150-5W Mounting: Center trunnion | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-150-5W Mounting: Center trunnion | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-150-5Y Mounting: Center trunnion | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-150-5Y Mounting: Center trunnion | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-150-5Z Mounting: Center trunnion | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-150-5Z Mounting: Center trunnion | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-200-5 Mounting: Center trunnion | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-200-5 Mounting: Center trunnion | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-200-5W Mounting: Center trunnion | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-200-5W Mounting: Center trunnion | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-200-5Y Mounting: Center trunnion | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-200-5Y Mounting: Center trunnion | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-200-5Z Mounting: Center trunnion | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-200-5Z Mounting: Center trunnion | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-250-5 Mounting: Center trunnion | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-250-5 Mounting: Center trunnion | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-250-5W Mounting: Center trunnion | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-250-5W Mounting: Center trunnion | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-250-5Y Mounting: Center trunnion | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-250-5Y Mounting: Center trunnion | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-250-5Z Mounting: Center trunnion | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-250-5Z Mounting: Center trunnion | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-300-5 Mounting: Center trunnion | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-300-5 Mounting: Center trunnion | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-300-5W Mounting: Center trunnion | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-300-5W Mounting: Center trunnion | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-300-5Y Mounting: Center trunnion | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-300-5Y Mounting: Center trunnion | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-300-5Z Mounting: Center trunnion | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-300-5Z Mounting: Center trunnion | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-350-5 Mounting: Center trunnion | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-350-5 Mounting: Center trunnion | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-350-5W Mounting: Center trunnion | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-350-5W Mounting: Center trunnion | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-350-5Y Mounting: Center trunnion | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-350-5Y Mounting: Center trunnion | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-350-5Z Mounting: Center trunnion | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-350-5Z Mounting: Center trunnion | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-400-5 Mounting: Center trunnion | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-400-5 Mounting: Center trunnion | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-400-5W Mounting: Center trunnion | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-400-5W Mounting: Center trunnion | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-400-5Y Mounting: Center trunnion | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-400-5Y Mounting: Center trunnion | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-400-5Z Mounting: Center trunnion | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-400-5Z Mounting: Center trunnion | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-450-5 Mounting: Center trunnion | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-450-5 Mounting: Center trunnion | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-450-5W Mounting: Center trunnion | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-450-5W Mounting: Center trunnion | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-450-5Y Mounting: Center trunnion | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-450-5Y Mounting: Center trunnion | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-450-5Z Mounting: Center trunnion | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-450-5Z Mounting: Center trunnion | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-500-5 Mounting: Center trunnion | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-500-5 Mounting: Center trunnion | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-500-5W Mounting: Center trunnion | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-500-5W Mounting: Center trunnion | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-500-5Y Mounting: Center trunnion | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-500-5Y Mounting: Center trunnion | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-500-5Z Mounting: Center trunnion | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-500-5Z Mounting: Center trunnion | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
Round Body CylindersSMC
728 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CVS1 Valve Mounted Cylinder with Speed Controller (ø40)

Brand SMC·Round Body Cylinders

Available part numbers (728)

CVS1BN40-25-5, CDVS1BN40-25-5, CVS1BN40-25-5W, CDVS1BN40-25-5W, CVS1BN40-25-5Y, CDVS1BN40-25-5Y, CVS1BN40-25-5Z, CDVS1BN40-25-5Z, CVS1BN40-50-5, CDVS1BN40-50-5 + 718 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CVS1BN40-25-5Mounting: Basic | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-25-5Mounting: Basic | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-25-5WMounting: Basic | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-25-5WMounting: Basic | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-25-5YMounting: Basic | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-25-5YMounting: Basic | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-25-5ZMounting: Basic | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-25-5ZMounting: Basic | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-50-5Mounting: Basic | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-50-5Mounting: Basic | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-50-5WMounting: Basic | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-50-5WMounting: Basic | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-50-5YMounting: Basic | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-50-5YMounting: Basic | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-50-5ZMounting: Basic | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-50-5ZMounting: Basic | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-75-5Mounting: Basic | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-75-5Mounting: Basic | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-75-5WMounting: Basic | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-75-5WMounting: Basic | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-75-5YMounting: Basic | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-75-5YMounting: Basic | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-75-5ZMounting: Basic | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-75-5ZMounting: Basic | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-100-5Mounting: Basic | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-100-5Mounting: Basic | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-100-5WMounting: Basic | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-100-5WMounting: Basic | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-100-5YMounting: Basic | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-100-5YMounting: Basic | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-100-5ZMounting: Basic | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-100-5ZMounting: Basic | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-125-5Mounting: Basic | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-125-5Mounting: Basic | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-125-5WMounting: Basic | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-125-5WMounting: Basic | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-125-5YMounting: Basic | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-125-5YMounting: Basic | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-125-5ZMounting: Basic | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-125-5ZMounting: Basic | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-150-5Mounting: Basic | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-150-5Mounting: Basic | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-150-5WMounting: Basic | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-150-5WMounting: Basic | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-150-5YMounting: Basic | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-150-5YMounting: Basic | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-150-5ZMounting: Basic | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-150-5ZMounting: Basic | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-200-5Mounting: Basic | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-200-5Mounting: Basic | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-200-5WMounting: Basic | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-200-5WMounting: Basic | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-200-5YMounting: Basic | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-200-5YMounting: Basic | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-200-5ZMounting: Basic | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-200-5ZMounting: Basic | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-250-5Mounting: Basic | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-250-5Mounting: Basic | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-250-5WMounting: Basic | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-250-5WMounting: Basic | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-250-5YMounting: Basic | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-250-5YMounting: Basic | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-250-5ZMounting: Basic | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-250-5ZMounting: Basic | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-300-5Mounting: Basic | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-300-5Mounting: Basic | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-300-5WMounting: Basic | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-300-5WMounting: Basic | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-300-5YMounting: Basic | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-300-5YMounting: Basic | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-300-5ZMounting: Basic | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-300-5ZMounting: Basic | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-350-5Mounting: Basic | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-350-5Mounting: Basic | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-350-5WMounting: Basic | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-350-5WMounting: Basic | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-350-5YMounting: Basic | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-350-5YMounting: Basic | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-350-5ZMounting: Basic | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-350-5ZMounting: Basic | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-400-5Mounting: Basic | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-400-5Mounting: Basic | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-400-5WMounting: Basic | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-400-5WMounting: Basic | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-400-5YMounting: Basic | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-400-5YMounting: Basic | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-400-5ZMounting: Basic | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-400-5ZMounting: Basic | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-450-5Mounting: Basic | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-450-5Mounting: Basic | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-450-5WMounting: Basic | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-450-5WMounting: Basic | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-450-5YMounting: Basic | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-450-5YMounting: Basic | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-450-5ZMounting: Basic | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-450-5ZMounting: Basic | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1BN40-500-5Mounting: Basic | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1BN40-500-5Mounting: Basic | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1BN40-500-5WMounting: Basic | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1BN40-500-5WMounting: Basic | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1BN40-500-5YMounting: Basic | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1BN40-500-5YMounting: Basic | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1BN40-500-5ZMounting: Basic | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1BN40-500-5ZMounting: Basic | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-25-5Mounting: Axial foot | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-25-5Mounting: Axial foot | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-25-5WMounting: Axial foot | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-25-5WMounting: Axial foot | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-25-5YMounting: Axial foot | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-25-5YMounting: Axial foot | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-25-5ZMounting: Axial foot | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-25-5ZMounting: Axial foot | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-50-5Mounting: Axial foot | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-50-5Mounting: Axial foot | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-50-5WMounting: Axial foot | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-50-5WMounting: Axial foot | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-50-5YMounting: Axial foot | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-50-5YMounting: Axial foot | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-50-5ZMounting: Axial foot | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-50-5ZMounting: Axial foot | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-75-5Mounting: Axial foot | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-75-5Mounting: Axial foot | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-75-5WMounting: Axial foot | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-75-5WMounting: Axial foot | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-75-5YMounting: Axial foot | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-75-5YMounting: Axial foot | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-75-5ZMounting: Axial foot | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-75-5ZMounting: Axial foot | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-100-5Mounting: Axial foot | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-100-5Mounting: Axial foot | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-100-5WMounting: Axial foot | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-100-5WMounting: Axial foot | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-100-5YMounting: Axial foot | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-100-5YMounting: Axial foot | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-100-5ZMounting: Axial foot | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-100-5ZMounting: Axial foot | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-125-5Mounting: Axial foot | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-125-5Mounting: Axial foot | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-125-5WMounting: Axial foot | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-125-5WMounting: Axial foot | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-125-5YMounting: Axial foot | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-125-5YMounting: Axial foot | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-125-5ZMounting: Axial foot | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-125-5ZMounting: Axial foot | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-150-5Mounting: Axial foot | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-150-5Mounting: Axial foot | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-150-5WMounting: Axial foot | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-150-5WMounting: Axial foot | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-150-5YMounting: Axial foot | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-150-5YMounting: Axial foot | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-150-5ZMounting: Axial foot | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-150-5ZMounting: Axial foot | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-200-5Mounting: Axial foot | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-200-5Mounting: Axial foot | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-200-5WMounting: Axial foot | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-200-5WMounting: Axial foot | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-200-5YMounting: Axial foot | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-200-5YMounting: Axial foot | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-200-5ZMounting: Axial foot | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-200-5ZMounting: Axial foot | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-250-5Mounting: Axial foot | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-250-5Mounting: Axial foot | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-250-5WMounting: Axial foot | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-250-5WMounting: Axial foot | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-250-5YMounting: Axial foot | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-250-5YMounting: Axial foot | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-250-5ZMounting: Axial foot | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-250-5ZMounting: Axial foot | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-300-5Mounting: Axial foot | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-300-5Mounting: Axial foot | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-300-5WMounting: Axial foot | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-300-5WMounting: Axial foot | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-300-5YMounting: Axial foot | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-300-5YMounting: Axial foot | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-300-5ZMounting: Axial foot | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-300-5ZMounting: Axial foot | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-350-5Mounting: Axial foot | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-350-5Mounting: Axial foot | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-350-5WMounting: Axial foot | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-350-5WMounting: Axial foot | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-350-5YMounting: Axial foot | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-350-5YMounting: Axial foot | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-350-5ZMounting: Axial foot | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-350-5ZMounting: Axial foot | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-400-5Mounting: Axial foot | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-400-5Mounting: Axial foot | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-400-5WMounting: Axial foot | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-400-5WMounting: Axial foot | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-400-5YMounting: Axial foot | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-400-5YMounting: Axial foot | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-400-5ZMounting: Axial foot | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-400-5ZMounting: Axial foot | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-450-5Mounting: Axial foot | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-450-5Mounting: Axial foot | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-450-5WMounting: Axial foot | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-450-5WMounting: Axial foot | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-450-5YMounting: Axial foot | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-450-5YMounting: Axial foot | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-450-5ZMounting: Axial foot | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-450-5ZMounting: Axial foot | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1LN40-500-5Mounting: Axial foot | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1LN40-500-5Mounting: Axial foot | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1LN40-500-5WMounting: Axial foot | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1LN40-500-5WMounting: Axial foot | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1LN40-500-5YMounting: Axial foot | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1LN40-500-5YMounting: Axial foot | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1LN40-500-5ZMounting: Axial foot | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1LN40-500-5ZMounting: Axial foot | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-25-5Mounting: Rod flange | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-25-5Mounting: Rod flange | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-25-5WMounting: Rod flange | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-25-5WMounting: Rod flange | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-25-5YMounting: Rod flange | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-25-5YMounting: Rod flange | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-25-5ZMounting: Rod flange | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-25-5ZMounting: Rod flange | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-50-5Mounting: Rod flange | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-50-5Mounting: Rod flange | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-50-5WMounting: Rod flange | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-50-5WMounting: Rod flange | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-50-5YMounting: Rod flange | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-50-5YMounting: Rod flange | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-50-5ZMounting: Rod flange | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-50-5ZMounting: Rod flange | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-75-5Mounting: Rod flange | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-75-5Mounting: Rod flange | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-75-5WMounting: Rod flange | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-75-5WMounting: Rod flange | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-75-5YMounting: Rod flange | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-75-5YMounting: Rod flange | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-75-5ZMounting: Rod flange | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-75-5ZMounting: Rod flange | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-100-5Mounting: Rod flange | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-100-5Mounting: Rod flange | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-100-5WMounting: Rod flange | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-100-5WMounting: Rod flange | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-100-5YMounting: Rod flange | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-100-5YMounting: Rod flange | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-100-5ZMounting: Rod flange | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-100-5ZMounting: Rod flange | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-125-5Mounting: Rod flange | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-125-5Mounting: Rod flange | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-125-5WMounting: Rod flange | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-125-5WMounting: Rod flange | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-125-5YMounting: Rod flange | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-125-5YMounting: Rod flange | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-125-5ZMounting: Rod flange | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-125-5ZMounting: Rod flange | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-150-5Mounting: Rod flange | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-150-5Mounting: Rod flange | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-150-5WMounting: Rod flange | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-150-5WMounting: Rod flange | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-150-5YMounting: Rod flange | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-150-5YMounting: Rod flange | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-150-5ZMounting: Rod flange | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-150-5ZMounting: Rod flange | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-200-5Mounting: Rod flange | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-200-5Mounting: Rod flange | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-200-5WMounting: Rod flange | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-200-5WMounting: Rod flange | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-200-5YMounting: Rod flange | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-200-5YMounting: Rod flange | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-200-5ZMounting: Rod flange | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-200-5ZMounting: Rod flange | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-250-5Mounting: Rod flange | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-250-5Mounting: Rod flange | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-250-5WMounting: Rod flange | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-250-5WMounting: Rod flange | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-250-5YMounting: Rod flange | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-250-5YMounting: Rod flange | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-250-5ZMounting: Rod flange | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-250-5ZMounting: Rod flange | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-300-5Mounting: Rod flange | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-300-5Mounting: Rod flange | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-300-5WMounting: Rod flange | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-300-5WMounting: Rod flange | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-300-5YMounting: Rod flange | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-300-5YMounting: Rod flange | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-300-5ZMounting: Rod flange | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-300-5ZMounting: Rod flange | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-350-5Mounting: Rod flange | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-350-5Mounting: Rod flange | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-350-5WMounting: Rod flange | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-350-5WMounting: Rod flange | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-350-5YMounting: Rod flange | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-350-5YMounting: Rod flange | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-350-5ZMounting: Rod flange | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-350-5ZMounting: Rod flange | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-400-5Mounting: Rod flange | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-400-5Mounting: Rod flange | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-400-5WMounting: Rod flange | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-400-5WMounting: Rod flange | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-400-5YMounting: Rod flange | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-400-5YMounting: Rod flange | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-400-5ZMounting: Rod flange | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-400-5ZMounting: Rod flange | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-450-5Mounting: Rod flange | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-450-5Mounting: Rod flange | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-450-5WMounting: Rod flange | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-450-5WMounting: Rod flange | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-450-5YMounting: Rod flange | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-450-5YMounting: Rod flange | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-450-5ZMounting: Rod flange | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-450-5ZMounting: Rod flange | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1FN40-500-5Mounting: Rod flange | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1FN40-500-5Mounting: Rod flange | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1FN40-500-5WMounting: Rod flange | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1FN40-500-5WMounting: Rod flange | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1FN40-500-5YMounting: Rod flange | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1FN40-500-5YMounting: Rod flange | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1FN40-500-5ZMounting: Rod flange | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1FN40-500-5ZMounting: Rod flange | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-25-5Mounting: Head flange | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-25-5Mounting: Head flange | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-25-5WMounting: Head flange | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-25-5WMounting: Head flange | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-25-5YMounting: Head flange | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-25-5YMounting: Head flange | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-25-5ZMounting: Head flange | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-25-5ZMounting: Head flange | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-50-5Mounting: Head flange | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-50-5Mounting: Head flange | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-50-5WMounting: Head flange | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-50-5WMounting: Head flange | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-50-5YMounting: Head flange | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-50-5YMounting: Head flange | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-50-5ZMounting: Head flange | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-50-5ZMounting: Head flange | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-75-5Mounting: Head flange | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-75-5Mounting: Head flange | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-75-5WMounting: Head flange | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-75-5WMounting: Head flange | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-75-5YMounting: Head flange | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-75-5YMounting: Head flange | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-75-5ZMounting: Head flange | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-75-5ZMounting: Head flange | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-100-5Mounting: Head flange | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-100-5Mounting: Head flange | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-100-5WMounting: Head flange | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-100-5WMounting: Head flange | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-100-5YMounting: Head flange | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-100-5YMounting: Head flange | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-100-5ZMounting: Head flange | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-100-5ZMounting: Head flange | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-125-5Mounting: Head flange | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-125-5Mounting: Head flange | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-125-5WMounting: Head flange | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-125-5WMounting: Head flange | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-125-5YMounting: Head flange | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-125-5YMounting: Head flange | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-125-5ZMounting: Head flange | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-125-5ZMounting: Head flange | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-150-5Mounting: Head flange | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-150-5Mounting: Head flange | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-150-5WMounting: Head flange | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-150-5WMounting: Head flange | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-150-5YMounting: Head flange | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-150-5YMounting: Head flange | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-150-5ZMounting: Head flange | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-150-5ZMounting: Head flange | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-200-5Mounting: Head flange | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-200-5Mounting: Head flange | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-200-5WMounting: Head flange | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-200-5WMounting: Head flange | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-200-5YMounting: Head flange | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-200-5YMounting: Head flange | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-200-5ZMounting: Head flange | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-200-5ZMounting: Head flange | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-250-5Mounting: Head flange | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-250-5Mounting: Head flange | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-250-5WMounting: Head flange | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-250-5WMounting: Head flange | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-250-5YMounting: Head flange | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-250-5YMounting: Head flange | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-250-5ZMounting: Head flange | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-250-5ZMounting: Head flange | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-300-5Mounting: Head flange | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-300-5Mounting: Head flange | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-300-5WMounting: Head flange | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-300-5WMounting: Head flange | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-300-5YMounting: Head flange | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-300-5YMounting: Head flange | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-300-5ZMounting: Head flange | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-300-5ZMounting: Head flange | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-350-5Mounting: Head flange | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-350-5Mounting: Head flange | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-350-5WMounting: Head flange | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-350-5WMounting: Head flange | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-350-5YMounting: Head flange | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-350-5YMounting: Head flange | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-350-5ZMounting: Head flange | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-350-5ZMounting: Head flange | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-400-5Mounting: Head flange | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-400-5Mounting: Head flange | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-400-5WMounting: Head flange | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-400-5WMounting: Head flange | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-400-5YMounting: Head flange | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-400-5YMounting: Head flange | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-400-5ZMounting: Head flange | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-400-5ZMounting: Head flange | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-450-5Mounting: Head flange | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-450-5Mounting: Head flange | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-450-5WMounting: Head flange | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-450-5WMounting: Head flange | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-450-5YMounting: Head flange | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-450-5YMounting: Head flange | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-450-5ZMounting: Head flange | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-450-5ZMounting: Head flange | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1GN40-500-5Mounting: Head flange | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1GN40-500-5Mounting: Head flange | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1GN40-500-5WMounting: Head flange | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1GN40-500-5WMounting: Head flange | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1GN40-500-5YMounting: Head flange | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1GN40-500-5YMounting: Head flange | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1GN40-500-5ZMounting: Head flange | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1GN40-500-5ZMounting: Head flange | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-25-5Mounting: Single clevis | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-25-5Mounting: Single clevis | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-25-5WMounting: Single clevis | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-25-5WMounting: Single clevis | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-25-5YMounting: Single clevis | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-25-5YMounting: Single clevis | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-25-5ZMounting: Single clevis | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-25-5ZMounting: Single clevis | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-50-5Mounting: Single clevis | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-50-5Mounting: Single clevis | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-50-5WMounting: Single clevis | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-50-5WMounting: Single clevis | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-50-5YMounting: Single clevis | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-50-5YMounting: Single clevis | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-50-5ZMounting: Single clevis | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-50-5ZMounting: Single clevis | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-75-5Mounting: Single clevis | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-75-5Mounting: Single clevis | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-75-5WMounting: Single clevis | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-75-5WMounting: Single clevis | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-75-5YMounting: Single clevis | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-75-5YMounting: Single clevis | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-75-5ZMounting: Single clevis | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-75-5ZMounting: Single clevis | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-100-5Mounting: Single clevis | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-100-5Mounting: Single clevis | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-100-5WMounting: Single clevis | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-100-5WMounting: Single clevis | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-100-5YMounting: Single clevis | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-100-5YMounting: Single clevis | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-100-5ZMounting: Single clevis | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-100-5ZMounting: Single clevis | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-125-5Mounting: Single clevis | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-125-5Mounting: Single clevis | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-125-5WMounting: Single clevis | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-125-5WMounting: Single clevis | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-125-5YMounting: Single clevis | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-125-5YMounting: Single clevis | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-125-5ZMounting: Single clevis | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-125-5ZMounting: Single clevis | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-150-5Mounting: Single clevis | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-150-5Mounting: Single clevis | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-150-5WMounting: Single clevis | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-150-5WMounting: Single clevis | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-150-5YMounting: Single clevis | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-150-5YMounting: Single clevis | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-150-5ZMounting: Single clevis | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-150-5ZMounting: Single clevis | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-200-5Mounting: Single clevis | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-200-5Mounting: Single clevis | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-200-5WMounting: Single clevis | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-200-5WMounting: Single clevis | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-200-5YMounting: Single clevis | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-200-5YMounting: Single clevis | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-200-5ZMounting: Single clevis | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-200-5ZMounting: Single clevis | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-250-5Mounting: Single clevis | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-250-5Mounting: Single clevis | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-250-5WMounting: Single clevis | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-250-5WMounting: Single clevis | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-250-5YMounting: Single clevis | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-250-5YMounting: Single clevis | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-250-5ZMounting: Single clevis | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-250-5ZMounting: Single clevis | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-300-5Mounting: Single clevis | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-300-5Mounting: Single clevis | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-300-5WMounting: Single clevis | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-300-5WMounting: Single clevis | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-300-5YMounting: Single clevis | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-300-5YMounting: Single clevis | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-300-5ZMounting: Single clevis | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-300-5ZMounting: Single clevis | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-350-5Mounting: Single clevis | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-350-5Mounting: Single clevis | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-350-5WMounting: Single clevis | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-350-5WMounting: Single clevis | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-350-5YMounting: Single clevis | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-350-5YMounting: Single clevis | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-350-5ZMounting: Single clevis | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-350-5ZMounting: Single clevis | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-400-5Mounting: Single clevis | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-400-5Mounting: Single clevis | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-400-5WMounting: Single clevis | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-400-5WMounting: Single clevis | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-400-5YMounting: Single clevis | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-400-5YMounting: Single clevis | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-400-5ZMounting: Single clevis | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-400-5ZMounting: Single clevis | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-450-5Mounting: Single clevis | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-450-5Mounting: Single clevis | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-450-5WMounting: Single clevis | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-450-5WMounting: Single clevis | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-450-5YMounting: Single clevis | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-450-5YMounting: Single clevis | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-450-5ZMounting: Single clevis | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-450-5ZMounting: Single clevis | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1CN40-500-5Mounting: Single clevis | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1CN40-500-5Mounting: Single clevis | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1CN40-500-5WMounting: Single clevis | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1CN40-500-5WMounting: Single clevis | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1CN40-500-5YMounting: Single clevis | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1CN40-500-5YMounting: Single clevis | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1CN40-500-5ZMounting: Single clevis | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1CN40-500-5ZMounting: Single clevis | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-25-5Mounting: Double clevis | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-25-5Mounting: Double clevis | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-25-5WMounting: Double clevis | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-25-5WMounting: Double clevis | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-25-5YMounting: Double clevis | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-25-5YMounting: Double clevis | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-25-5ZMounting: Double clevis | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-25-5ZMounting: Double clevis | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-50-5Mounting: Double clevis | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-50-5Mounting: Double clevis | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-50-5WMounting: Double clevis | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-50-5WMounting: Double clevis | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-50-5YMounting: Double clevis | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-50-5YMounting: Double clevis | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-50-5ZMounting: Double clevis | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-50-5ZMounting: Double clevis | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-75-5Mounting: Double clevis | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-75-5Mounting: Double clevis | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-75-5WMounting: Double clevis | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-75-5WMounting: Double clevis | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-75-5YMounting: Double clevis | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-75-5YMounting: Double clevis | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-75-5ZMounting: Double clevis | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-75-5ZMounting: Double clevis | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-100-5Mounting: Double clevis | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-100-5Mounting: Double clevis | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-100-5WMounting: Double clevis | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-100-5WMounting: Double clevis | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-100-5YMounting: Double clevis | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-100-5YMounting: Double clevis | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-100-5ZMounting: Double clevis | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-100-5ZMounting: Double clevis | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-125-5Mounting: Double clevis | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-125-5Mounting: Double clevis | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-125-5WMounting: Double clevis | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-125-5WMounting: Double clevis | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-125-5YMounting: Double clevis | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-125-5YMounting: Double clevis | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-125-5ZMounting: Double clevis | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-125-5ZMounting: Double clevis | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-150-5Mounting: Double clevis | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-150-5Mounting: Double clevis | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-150-5WMounting: Double clevis | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-150-5WMounting: Double clevis | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-150-5YMounting: Double clevis | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-150-5YMounting: Double clevis | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-150-5ZMounting: Double clevis | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-150-5ZMounting: Double clevis | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-200-5Mounting: Double clevis | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-200-5Mounting: Double clevis | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-200-5WMounting: Double clevis | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-200-5WMounting: Double clevis | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-200-5YMounting: Double clevis | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-200-5YMounting: Double clevis | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-200-5ZMounting: Double clevis | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-200-5ZMounting: Double clevis | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-250-5Mounting: Double clevis | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-250-5Mounting: Double clevis | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-250-5WMounting: Double clevis | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-250-5WMounting: Double clevis | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-250-5YMounting: Double clevis | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-250-5YMounting: Double clevis | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-250-5ZMounting: Double clevis | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-250-5ZMounting: Double clevis | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-300-5Mounting: Double clevis | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-300-5Mounting: Double clevis | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-300-5WMounting: Double clevis | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-300-5WMounting: Double clevis | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-300-5YMounting: Double clevis | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-300-5YMounting: Double clevis | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-300-5ZMounting: Double clevis | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-300-5ZMounting: Double clevis | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-350-5Mounting: Double clevis | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-350-5Mounting: Double clevis | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-350-5WMounting: Double clevis | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-350-5WMounting: Double clevis | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-350-5YMounting: Double clevis | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-350-5YMounting: Double clevis | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-350-5ZMounting: Double clevis | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-350-5ZMounting: Double clevis | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-400-5Mounting: Double clevis | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-400-5Mounting: Double clevis | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-400-5WMounting: Double clevis | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-400-5WMounting: Double clevis | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-400-5YMounting: Double clevis | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-400-5YMounting: Double clevis | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-400-5ZMounting: Double clevis | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-400-5ZMounting: Double clevis | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-450-5Mounting: Double clevis | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-450-5Mounting: Double clevis | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-450-5WMounting: Double clevis | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-450-5WMounting: Double clevis | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-450-5YMounting: Double clevis | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-450-5YMounting: Double clevis | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-450-5ZMounting: Double clevis | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-450-5ZMounting: Double clevis | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1DN40-500-5Mounting: Double clevis | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1DN40-500-5Mounting: Double clevis | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1DN40-500-5WMounting: Double clevis | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1DN40-500-5WMounting: Double clevis | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1DN40-500-5YMounting: Double clevis | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1DN40-500-5YMounting: Double clevis | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1DN40-500-5ZMounting: Double clevis | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1DN40-500-5ZMounting: Double clevis | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-25-5Mounting: Center trunnion | Stroke: 25 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-25-5Mounting: Center trunnion | Stroke: 25 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-25-5WMounting: Center trunnion | Stroke: 25 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-25-5WMounting: Center trunnion | Stroke: 25 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-25-5YMounting: Center trunnion | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-25-5YMounting: Center trunnion | Stroke: 25 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-25-5ZMounting: Center trunnion | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-25-5ZMounting: Center trunnion | Stroke: 25 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-50-5Mounting: Center trunnion | Stroke: 50 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-50-5Mounting: Center trunnion | Stroke: 50 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-50-5WMounting: Center trunnion | Stroke: 50 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-50-5WMounting: Center trunnion | Stroke: 50 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-50-5YMounting: Center trunnion | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-50-5YMounting: Center trunnion | Stroke: 50 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-50-5ZMounting: Center trunnion | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-50-5ZMounting: Center trunnion | Stroke: 50 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-75-5Mounting: Center trunnion | Stroke: 75 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-75-5Mounting: Center trunnion | Stroke: 75 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-75-5WMounting: Center trunnion | Stroke: 75 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-75-5WMounting: Center trunnion | Stroke: 75 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-75-5YMounting: Center trunnion | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-75-5YMounting: Center trunnion | Stroke: 75 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-75-5ZMounting: Center trunnion | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-75-5ZMounting: Center trunnion | Stroke: 75 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-100-5Mounting: Center trunnion | Stroke: 100 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-100-5Mounting: Center trunnion | Stroke: 100 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-100-5WMounting: Center trunnion | Stroke: 100 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-100-5WMounting: Center trunnion | Stroke: 100 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-100-5YMounting: Center trunnion | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-100-5YMounting: Center trunnion | Stroke: 100 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-100-5ZMounting: Center trunnion | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-100-5ZMounting: Center trunnion | Stroke: 100 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-125-5Mounting: Center trunnion | Stroke: 125 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-125-5Mounting: Center trunnion | Stroke: 125 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-125-5WMounting: Center trunnion | Stroke: 125 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-125-5WMounting: Center trunnion | Stroke: 125 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-125-5YMounting: Center trunnion | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-125-5YMounting: Center trunnion | Stroke: 125 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-125-5ZMounting: Center trunnion | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-125-5ZMounting: Center trunnion | Stroke: 125 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-150-5Mounting: Center trunnion | Stroke: 150 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-150-5Mounting: Center trunnion | Stroke: 150 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-150-5WMounting: Center trunnion | Stroke: 150 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-150-5WMounting: Center trunnion | Stroke: 150 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-150-5YMounting: Center trunnion | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-150-5YMounting: Center trunnion | Stroke: 150 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-150-5ZMounting: Center trunnion | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-150-5ZMounting: Center trunnion | Stroke: 150 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-200-5Mounting: Center trunnion | Stroke: 200 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-200-5Mounting: Center trunnion | Stroke: 200 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-200-5WMounting: Center trunnion | Stroke: 200 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-200-5WMounting: Center trunnion | Stroke: 200 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-200-5YMounting: Center trunnion | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-200-5YMounting: Center trunnion | Stroke: 200 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-200-5ZMounting: Center trunnion | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-200-5ZMounting: Center trunnion | Stroke: 200 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-250-5Mounting: Center trunnion | Stroke: 250 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-250-5Mounting: Center trunnion | Stroke: 250 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-250-5WMounting: Center trunnion | Stroke: 250 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-250-5WMounting: Center trunnion | Stroke: 250 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-250-5YMounting: Center trunnion | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-250-5YMounting: Center trunnion | Stroke: 250 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-250-5ZMounting: Center trunnion | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-250-5ZMounting: Center trunnion | Stroke: 250 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-300-5Mounting: Center trunnion | Stroke: 300 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-300-5Mounting: Center trunnion | Stroke: 300 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-300-5WMounting: Center trunnion | Stroke: 300 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-300-5WMounting: Center trunnion | Stroke: 300 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-300-5YMounting: Center trunnion | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-300-5YMounting: Center trunnion | Stroke: 300 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-300-5ZMounting: Center trunnion | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-300-5ZMounting: Center trunnion | Stroke: 300 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-350-5Mounting: Center trunnion | Stroke: 350 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-350-5Mounting: Center trunnion | Stroke: 350 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-350-5WMounting: Center trunnion | Stroke: 350 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-350-5WMounting: Center trunnion | Stroke: 350 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-350-5YMounting: Center trunnion | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-350-5YMounting: Center trunnion | Stroke: 350 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-350-5ZMounting: Center trunnion | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-350-5ZMounting: Center trunnion | Stroke: 350 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-400-5Mounting: Center trunnion | Stroke: 400 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-400-5Mounting: Center trunnion | Stroke: 400 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-400-5WMounting: Center trunnion | Stroke: 400 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-400-5WMounting: Center trunnion | Stroke: 400 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-400-5YMounting: Center trunnion | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-400-5YMounting: Center trunnion | Stroke: 400 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-400-5ZMounting: Center trunnion | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-400-5ZMounting: Center trunnion | Stroke: 400 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-450-5Mounting: Center trunnion | Stroke: 450 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-450-5Mounting: Center trunnion | Stroke: 450 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-450-5WMounting: Center trunnion | Stroke: 450 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-450-5WMounting: Center trunnion | Stroke: 450 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-450-5YMounting: Center trunnion | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-450-5YMounting: Center trunnion | Stroke: 450 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-450-5ZMounting: Center trunnion | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-450-5ZMounting: Center trunnion | Stroke: 450 mm | Valve: 3-pos exhaust center | Magnet: Yes
CVS1TN40-500-5Mounting: Center trunnion | Stroke: 500 mm | Valve: 2-pos single | Magnet: No
CDVS1TN40-500-5Mounting: Center trunnion | Stroke: 500 mm | Valve: 2-pos single | Magnet: Yes
CVS1TN40-500-5WMounting: Center trunnion | Stroke: 500 mm | Valve: 2-pos double | Magnet: No
CDVS1TN40-500-5WMounting: Center trunnion | Stroke: 500 mm | Valve: 2-pos double | Magnet: Yes
CVS1TN40-500-5YMounting: Center trunnion | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: No
CDVS1TN40-500-5YMounting: Center trunnion | Stroke: 500 mm | Valve: 3-pos closed center | Magnet: Yes
CVS1TN40-500-5ZMounting: Center trunnion | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: No
CDVS1TN40-500-5ZMounting: Center trunnion | Stroke: 500 mm | Valve: 3-pos exhaust center | Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
