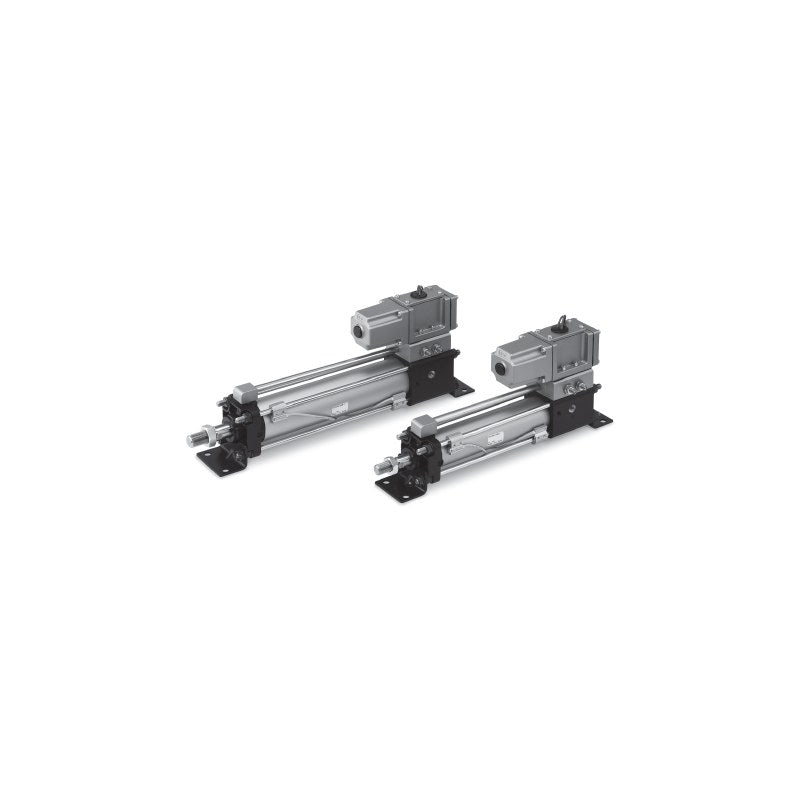

SMC CVS1 Valve Mounted Cylinder with Speed Controller (ø50, ø63)

SMC CVS1 series double acting tie-rod cylinder with integrated VS4000 solenoid valve and built-in speed controllers, ø50, ø63 mm bore.

Key features

Built-in speed controllers; rod extend/retract on energizing can be changed
Valve: 2-position single (VS4124), double (W, VS4224), 3-position closed center (Y) or exhaust center (Z)
Basic, foot, rod/head flange, single/double clevis and center trunnion mounting
CDVS1 built-in magnet for tie-rod or band mounted auto switches (switch ordered as suffix)
Options as code letters: steel tube (F), bellows J/K, cushion N/R/H, conduit/DIN terminal entry (T, D, DL, TZ)
DC coils 24/12/100/32/48/110V; made-to-order -XA, -XC4, -XC6, -XC14, -XC15

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	-10 to 60°C (no freezing)
Piston speed	50 to 500 mm/s
Cushion	Air cushion
Port size	Rc1/4
Solenoid valve	VS424, DC 13.2 W, B-class insulation
Coil voltage / entry (listed codes)	DC24V (5), grommet
Source	SMC Korea catalog CV series (SMCKR_CV__.pdf), p. 1238, 1239 (PDF p. 86, 87)

CVS1BN50-25-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-25-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-25-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-25-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-25-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-25-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-25-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-25-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-50-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-50-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-50-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-50-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-50-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-50-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-50-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-50-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-75-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-75-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-75-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-75-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-75-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-75-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-75-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-75-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-100-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-100-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-100-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-100-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-100-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-100-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-100-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-100-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-125-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-125-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-125-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-125-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-125-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-125-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-125-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-125-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-150-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-150-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-150-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-150-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-150-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-150-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-150-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-150-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-200-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-200-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-200-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-200-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-200-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-200-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-200-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-200-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-250-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-250-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-250-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-250-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-250-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-250-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-250-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-250-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-300-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-300-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-300-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-300-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-300-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-300-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-300-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-300-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-350-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-350-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-350-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-350-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-350-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-350-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-350-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-350-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-400-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-400-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-400-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-400-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-400-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-400-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-400-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-400-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-450-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-450-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-450-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-450-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-450-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-450-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-450-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-450-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-500-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-500-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-500-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-500-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-500-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-500-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-500-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-500-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN50-600-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN50-600-5		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN50-600-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN50-600-5W		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN50-600-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN50-600-5Y		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN50-600-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN50-600-5Z		Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-25-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-25-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-25-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-25-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-25-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-25-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-25-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-25-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-50-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-50-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-50-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-50-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-50-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-50-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-50-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-50-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-75-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-75-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-75-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-75-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-75-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-75-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-75-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-75-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-100-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-100-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-100-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-100-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-100-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-100-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-100-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-100-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-125-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-125-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-125-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-125-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-125-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-125-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-125-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-125-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-150-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-150-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-150-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-150-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-150-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-150-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-150-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-150-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-200-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-200-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-200-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-200-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-200-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-200-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-200-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-200-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-250-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-250-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-250-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-250-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-250-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-250-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-250-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-250-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-300-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-300-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-300-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-300-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-300-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-300-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-300-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-300-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-350-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-350-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-350-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-350-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-350-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-350-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-350-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-350-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-400-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-400-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-400-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-400-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-400-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-400-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-400-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-400-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-450-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-450-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-450-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-450-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-450-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-450-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-450-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-450-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-500-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-500-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-500-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-500-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-500-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-500-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-500-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-500-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1BN63-600-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1BN63-600-5		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1BN63-600-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1BN63-600-5W		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1BN63-600-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1BN63-600-5Y		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1BN63-600-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1BN63-600-5Z		Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-25-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-25-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-25-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-25-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-25-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-25-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-25-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-25-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-50-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-50-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-50-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-50-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-50-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-50-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-50-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-50-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-75-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-75-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-75-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-75-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-75-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-75-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-75-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-75-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-100-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-100-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-100-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-100-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-100-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-100-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-100-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-100-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-125-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-125-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-125-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-125-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-125-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-125-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-125-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-125-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-150-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-150-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-150-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-150-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-150-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-150-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-150-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-150-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-200-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-200-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-200-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-200-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-200-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-200-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-200-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-200-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-250-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-250-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-250-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-250-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-250-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-250-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-250-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-250-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-300-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-300-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-300-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-300-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-300-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-300-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-300-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-300-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-350-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-350-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-350-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-350-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-350-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-350-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-350-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-350-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-400-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-400-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-400-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-400-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-400-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-400-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-400-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-400-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-450-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-450-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-450-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-450-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-450-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-450-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-450-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-450-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-500-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-500-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-500-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-500-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-500-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-500-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-500-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-500-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN50-600-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN50-600-5		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN50-600-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN50-600-5W		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN50-600-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN50-600-5Y		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN50-600-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN50-600-5Z		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-25-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-25-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-25-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-25-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-25-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-25-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-25-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-25-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-50-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-50-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-50-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-50-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-50-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-50-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-50-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-50-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-75-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-75-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-75-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-75-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-75-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-75-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-75-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-75-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-100-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-100-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-100-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-100-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-100-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-100-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-100-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-100-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-125-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-125-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-125-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-125-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-125-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-125-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-125-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-125-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-150-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-150-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-150-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-150-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-150-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-150-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-150-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-150-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-200-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-200-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-200-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-200-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-200-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-200-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-200-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-200-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-250-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-250-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-250-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-250-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-250-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-250-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-250-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-250-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-300-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-300-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-300-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-300-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-300-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-300-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-300-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-300-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-350-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-350-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-350-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-350-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-350-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-350-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-350-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-350-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-400-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-400-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-400-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-400-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-400-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-400-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-400-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-400-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-450-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-450-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-450-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-450-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-450-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-450-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-450-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-450-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-500-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-500-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-500-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-500-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-500-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-500-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-500-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-500-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1LN63-600-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1LN63-600-5		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1LN63-600-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1LN63-600-5W		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1LN63-600-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1LN63-600-5Y		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1LN63-600-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1LN63-600-5Z		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-25-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-25-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-25-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-25-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-25-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-25-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-25-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-25-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-50-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-50-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-50-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-50-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-50-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-50-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-50-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-50-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-75-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-75-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-75-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-75-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-75-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-75-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-75-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-75-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-100-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-100-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-100-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-100-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-100-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-100-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-100-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-100-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-125-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-125-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-125-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-125-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-125-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-125-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-125-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-125-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-150-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-150-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-150-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-150-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-150-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-150-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-150-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-150-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-200-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-200-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-200-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-200-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-200-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-200-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-200-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-200-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-250-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-250-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-250-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-250-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-250-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-250-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-250-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-250-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-300-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-300-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-300-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-300-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-300-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-300-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-300-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-300-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-350-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-350-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-350-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-350-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-350-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-350-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-350-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-350-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-400-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-400-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-400-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-400-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-400-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-400-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-400-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-400-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-450-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-450-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-450-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-450-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-450-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-450-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-450-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-450-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-500-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-500-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-500-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-500-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-500-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-500-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-500-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-500-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN50-600-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN50-600-5		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN50-600-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN50-600-5W		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN50-600-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN50-600-5Y		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN50-600-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN50-600-5Z		Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-25-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-25-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-25-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-25-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-25-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-25-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-25-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-25-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-50-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-50-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-50-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-50-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-50-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-50-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-50-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-50-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-75-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-75-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-75-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-75-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-75-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-75-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-75-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-75-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-100-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-100-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-100-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-100-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-100-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-100-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-100-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-100-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-125-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-125-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-125-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-125-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-125-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-125-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-125-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-125-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-150-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-150-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-150-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-150-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-150-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-150-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-150-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-150-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-200-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-200-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-200-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-200-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-200-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-200-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-200-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-200-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-250-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-250-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-250-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-250-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-250-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-250-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-250-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-250-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-300-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-300-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-300-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-300-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-300-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-300-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-300-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-300-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-350-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-350-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-350-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-350-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-350-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-350-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-350-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-350-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-400-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-400-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-400-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-400-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-400-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-400-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-400-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-400-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-450-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-450-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-450-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-450-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-450-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-450-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-450-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-450-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-500-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-500-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-500-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-500-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-500-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-500-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-500-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-500-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1FN63-600-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1FN63-600-5		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1FN63-600-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1FN63-600-5W		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1FN63-600-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1FN63-600-5Y		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1FN63-600-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1FN63-600-5Z		Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-25-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-25-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-25-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-25-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-25-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-25-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-25-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-25-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-50-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-50-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-50-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-50-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-50-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-50-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-50-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-50-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-75-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-75-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-75-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-75-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-75-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-75-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-75-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-75-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-100-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-100-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-100-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-100-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-100-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-100-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-100-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-100-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-125-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-125-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-125-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-125-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-125-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-125-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-125-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-125-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-150-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-150-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-150-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-150-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-150-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-150-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-150-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-150-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-200-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-200-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-200-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-200-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-200-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-200-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-200-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-200-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-250-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-250-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-250-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-250-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-250-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-250-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-250-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-250-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-300-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-300-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-300-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-300-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-300-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-300-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-300-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-300-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-350-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-350-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-350-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-350-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-350-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-350-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-350-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-350-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-400-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-400-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-400-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-400-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-400-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-400-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-400-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-400-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-450-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-450-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-450-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-450-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-450-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-450-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-450-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-450-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-500-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-500-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-500-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-500-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-500-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-500-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-500-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-500-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN50-600-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN50-600-5		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN50-600-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN50-600-5W		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN50-600-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN50-600-5Y		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN50-600-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN50-600-5Z		Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes

Round Body CylindersSMC

784 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CVS1 Valve Mounted Cylinder with Speed Controller (ø50, ø63)

Brand SMC·Round Body Cylinders

Available part numbers (784)

CVS1BN50-25-5, CDVS1BN50-25-5, CVS1BN50-25-5W, CDVS1BN50-25-5W, CVS1BN50-25-5Y, CDVS1BN50-25-5Y, CVS1BN50-25-5Z, CDVS1BN50-25-5Z, CVS1BN50-50-5, CDVS1BN50-50-5 + 774 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CVS1BN50-25-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-25-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-25-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-25-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-25-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-25-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-25-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-25-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-50-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-50-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-50-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-50-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-50-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-50-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-50-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-50-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-75-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-75-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-75-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-75-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-75-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-75-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-75-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-75-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-100-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-100-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-100-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-100-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-100-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-100-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-100-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-100-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-125-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-125-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-125-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-125-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-125-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-125-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-125-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-125-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-150-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-150-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-150-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-150-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-150-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-150-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-150-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-150-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-200-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-200-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-200-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-200-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-200-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-200-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-200-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-200-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-250-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-250-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-250-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-250-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-250-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-250-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-250-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-250-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-300-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-300-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-300-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-300-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-300-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-300-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-300-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-300-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-350-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-350-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-350-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-350-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-350-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-350-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-350-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-350-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-400-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-400-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-400-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-400-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-400-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-400-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-400-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-400-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-450-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-450-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-450-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-450-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-450-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-450-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-450-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-450-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-500-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-500-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-500-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-500-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-500-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-500-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-500-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-500-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN50-600-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN50-600-5	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN50-600-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN50-600-5W	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN50-600-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN50-600-5Y	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN50-600-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN50-600-5Z	Mounting: Basic \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-25-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-25-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-25-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-25-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-25-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-25-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-25-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-25-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-50-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-50-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-50-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-50-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-50-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-50-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-50-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-50-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-75-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-75-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-75-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-75-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-75-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-75-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-75-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-75-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-100-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-100-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-100-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-100-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-100-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-100-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-100-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-100-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-125-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-125-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-125-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-125-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-125-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-125-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-125-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-125-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-150-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-150-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-150-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-150-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-150-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-150-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-150-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-150-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-200-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-200-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-200-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-200-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-200-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-200-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-200-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-200-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-250-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-250-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-250-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-250-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-250-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-250-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-250-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-250-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-300-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-300-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-300-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-300-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-300-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-300-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-300-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-300-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-350-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-350-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-350-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-350-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-350-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-350-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-350-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-350-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-400-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-400-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-400-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-400-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-400-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-400-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-400-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-400-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-450-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-450-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-450-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-450-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-450-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-450-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-450-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-450-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-500-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-500-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-500-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-500-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-500-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-500-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-500-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-500-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1BN63-600-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1BN63-600-5	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1BN63-600-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1BN63-600-5W	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1BN63-600-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1BN63-600-5Y	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1BN63-600-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1BN63-600-5Z	Mounting: Basic \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-25-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-25-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-25-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-25-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-25-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-25-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-25-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-25-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-50-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-50-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-50-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-50-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-50-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-50-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-50-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-50-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-75-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-75-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-75-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-75-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-75-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-75-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-75-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-75-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-100-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-100-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-100-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-100-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-100-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-100-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-100-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-100-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-125-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-125-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-125-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-125-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-125-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-125-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-125-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-125-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-150-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-150-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-150-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-150-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-150-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-150-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-150-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-150-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-200-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-200-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-200-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-200-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-200-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-200-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-200-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-200-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-250-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-250-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-250-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-250-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-250-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-250-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-250-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-250-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-300-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-300-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-300-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-300-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-300-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-300-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-300-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-300-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-350-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-350-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-350-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-350-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-350-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-350-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-350-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-350-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-400-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-400-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-400-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-400-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-400-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-400-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-400-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-400-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-450-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-450-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-450-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-450-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-450-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-450-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-450-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-450-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-500-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-500-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-500-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-500-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-500-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-500-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-500-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-500-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN50-600-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN50-600-5	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN50-600-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN50-600-5W	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN50-600-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN50-600-5Y	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN50-600-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN50-600-5Z	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-25-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-25-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-25-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-25-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-25-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-25-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-25-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-25-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-50-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-50-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-50-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-50-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-50-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-50-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-50-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-50-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-75-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-75-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-75-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-75-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-75-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-75-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-75-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-75-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-100-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-100-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-100-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-100-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-100-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-100-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-100-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-100-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-125-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-125-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-125-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-125-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-125-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-125-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-125-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-125-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-150-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-150-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-150-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-150-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-150-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-150-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-150-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-150-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-200-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-200-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-200-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-200-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-200-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-200-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-200-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-200-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-250-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-250-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-250-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-250-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-250-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-250-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-250-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-250-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-300-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-300-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-300-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-300-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-300-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-300-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-300-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-300-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-350-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-350-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-350-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-350-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-350-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-350-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-350-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-350-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-400-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-400-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-400-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-400-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-400-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-400-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-400-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-400-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-450-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-450-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-450-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-450-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-450-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-450-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-450-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-450-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-500-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-500-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-500-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-500-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-500-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-500-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-500-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-500-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1LN63-600-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1LN63-600-5	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1LN63-600-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1LN63-600-5W	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1LN63-600-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1LN63-600-5Y	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1LN63-600-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1LN63-600-5Z	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-25-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-25-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-25-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-25-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-25-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-25-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-25-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-25-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-50-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-50-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-50-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-50-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-50-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-50-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-50-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-50-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-75-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-75-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-75-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-75-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-75-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-75-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-75-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-75-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-100-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-100-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-100-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-100-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-100-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-100-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-100-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-100-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-125-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-125-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-125-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-125-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-125-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-125-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-125-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-125-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-150-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-150-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-150-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-150-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-150-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-150-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-150-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-150-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-200-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-200-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-200-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-200-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-200-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-200-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-200-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-200-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-250-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-250-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-250-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-250-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-250-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-250-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-250-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-250-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-300-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-300-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-300-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-300-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-300-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-300-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-300-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-300-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-350-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-350-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-350-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-350-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-350-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-350-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-350-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-350-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-400-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-400-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-400-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-400-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-400-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-400-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-400-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-400-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-450-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-450-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-450-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-450-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-450-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-450-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-450-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-450-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-500-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-500-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-500-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-500-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-500-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-500-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-500-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-500-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN50-600-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN50-600-5	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN50-600-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN50-600-5W	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN50-600-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN50-600-5Y	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN50-600-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN50-600-5Z	Mounting: Rod flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-25-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-25-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-25-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-25-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-25-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-25-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-25-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-25-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-50-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-50-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-50-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-50-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-50-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-50-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-50-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-50-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-75-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-75-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-75-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-75-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-75-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-75-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-75-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-75-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-100-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-100-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-100-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-100-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-100-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-100-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-100-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-100-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-125-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-125-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-125-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-125-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-125-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-125-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-125-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-125-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-150-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-150-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-150-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-150-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-150-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-150-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-150-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-150-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-200-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-200-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-200-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-200-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-200-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-200-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-200-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-200-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-250-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-250-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-250-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-250-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-250-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-250-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-250-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-250-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-300-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-300-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-300-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-300-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-300-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-300-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-300-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-300-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-350-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-350-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-350-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-350-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-350-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-350-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-350-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-350-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-400-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-400-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-400-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-400-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-400-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-400-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-400-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-400-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-450-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-450-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-450-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-450-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-450-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-450-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-450-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-450-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-500-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-500-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-500-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-500-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-500-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-500-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-500-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-500-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1FN63-600-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1FN63-600-5	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1FN63-600-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1FN63-600-5W	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1FN63-600-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1FN63-600-5Y	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1FN63-600-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1FN63-600-5Z	Mounting: Rod flange \| Bore: ø63 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-25-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-25-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-25-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-25-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-25-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-25-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-25-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-25-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-50-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-50-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-50-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-50-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-50-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-50-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-50-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-50-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-75-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-75-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-75-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-75-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-75-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-75-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-75-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-75-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-100-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-100-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-100-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-100-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-100-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-100-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-100-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-100-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-125-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-125-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-125-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-125-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-125-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-125-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-125-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-125-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-150-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-150-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-150-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-150-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-150-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-150-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-150-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-150-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-200-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-200-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-200-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-200-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-200-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-200-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-200-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-200-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-250-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-250-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-250-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-250-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-250-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-250-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-250-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-250-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-300-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-300-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-300-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-300-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-300-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-300-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-300-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-300-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-350-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-350-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-350-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-350-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-350-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-350-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-350-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-350-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-400-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-400-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-400-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-400-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-400-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-400-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-400-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-400-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-450-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-450-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-450-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-450-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-450-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-450-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-450-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-450-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-500-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-500-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-500-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-500-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-500-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-500-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-500-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-500-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN50-600-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN50-600-5	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN50-600-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN50-600-5W	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN50-600-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN50-600-5Y	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN50-600-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN50-600-5Z	Mounting: Head flange \| Bore: ø50 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CVS1 Valve Mounted Cylinder with Speed Controller (ø50, ø63)
