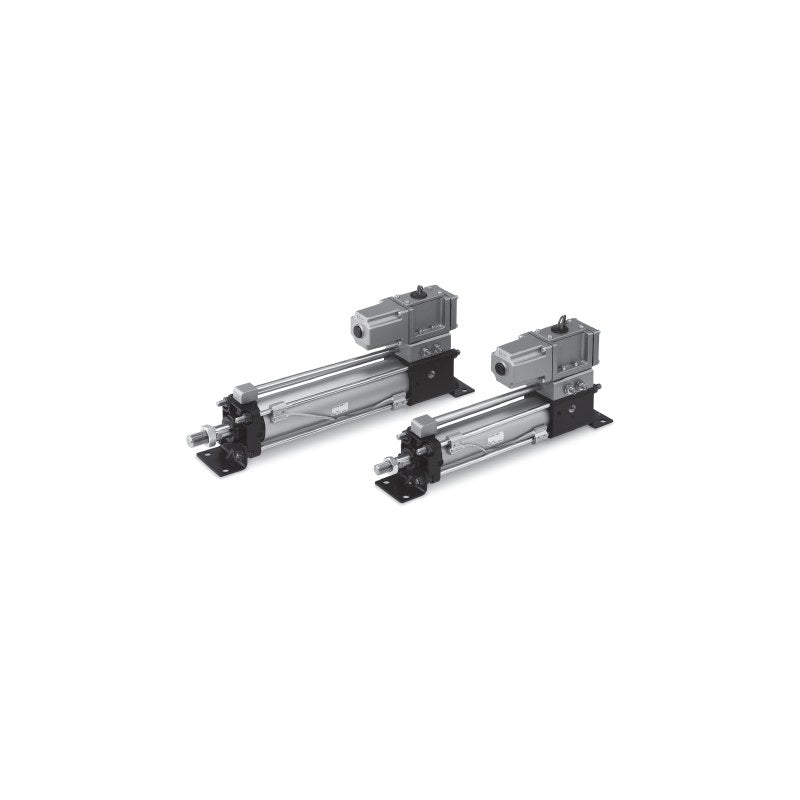

SMC CVS1 Valve Mounted Cylinder with Speed Controller (ø80, ø100) - Part 2

SMC CVS1 series double acting tie-rod cylinder with integrated VS4000 solenoid valve and built-in speed controllers, ø80, ø100 mm bore.

Key features

Built-in speed controllers; rod extend/retract on energizing can be changed
Valve: 2-position single (VS4124), double (W, VS4224), 3-position closed center (Y) or exhaust center (Z)
Basic, foot, rod/head flange, single/double clevis and center trunnion mounting
CDVS1 built-in magnet for tie-rod or band mounted auto switches (switch ordered as suffix)
Options as code letters: steel tube (F), bellows J/K, cushion N/R/H, conduit/DIN terminal entry (T, D, DL, TZ)
DC coils 24/12/100/32/48/110V; made-to-order -XA, -XC4, -XC6, -XC14, -XC15

Specifications

Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.05 MPa
Ambient and fluid temperature	-10 to 60°C (no freezing)
Piston speed	50 to 500 mm/s
Cushion	Air cushion
Port size	Rc1/4
Solenoid valve	VS424, DC 13.2 W, B-class insulation
Coil voltage / entry (listed codes)	DC24V (5), grommet
Source	SMC Korea catalog CV series (SMCKR_CV__.pdf), p. 1238, 1239 (PDF p. 86, 87)

CVS1GN100-25-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-25-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-25-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-25-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-25-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-25-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-25-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-25-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-50-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-50-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-50-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-50-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-50-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-50-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-50-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-50-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-75-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-75-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-75-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-75-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-75-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-75-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-75-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-75-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-100-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-100-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-100-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-100-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-100-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-100-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-100-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-100-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-125-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-125-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-125-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-125-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-125-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-125-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-125-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-125-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-150-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-150-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-150-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-150-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-150-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-150-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-150-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-150-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-200-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-200-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-200-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-200-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-200-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-200-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-200-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-200-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-250-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-250-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-250-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-250-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-250-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-250-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-250-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-250-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-300-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-300-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-300-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-300-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-300-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-300-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-300-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-300-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-350-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-350-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-350-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-350-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-350-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-350-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-350-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-350-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-400-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-400-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-400-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-400-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-400-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-400-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-400-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-400-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-450-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-450-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-450-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-450-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-450-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-450-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-450-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-450-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-500-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-500-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-500-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-500-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-500-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-500-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-500-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-500-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-600-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-600-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-600-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-600-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-600-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-600-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-600-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-600-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1GN100-700-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
CDVS1GN100-700-5		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1GN100-700-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
CDVS1GN100-700-5W		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1GN100-700-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1GN100-700-5Y		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1GN100-700-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1GN100-700-5Z		Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-25-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-25-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-25-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-25-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-25-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-25-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-25-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-25-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-50-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-50-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-50-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-50-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-50-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-50-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-50-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-50-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-75-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-75-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-75-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-75-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-75-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-75-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-75-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-75-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-100-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-100-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-100-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-100-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-100-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-100-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-100-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-100-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-125-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-125-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-125-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-125-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-125-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-125-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-125-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-125-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-150-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-150-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-150-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-150-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-150-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-150-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-150-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-150-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-200-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-200-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-200-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-200-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-200-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-200-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-200-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-200-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-250-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-250-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-250-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-250-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-250-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-250-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-250-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-250-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-300-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-300-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-300-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-300-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-300-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-300-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-300-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-300-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-350-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-350-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-350-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-350-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-350-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-350-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-350-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-350-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-400-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-400-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-400-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-400-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-400-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-400-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-400-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-400-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-450-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-450-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-450-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-450-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-450-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-450-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-450-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-450-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-500-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-500-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-500-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-500-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-500-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-500-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-500-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-500-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-600-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-600-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-600-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-600-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-600-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-600-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-600-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-600-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN80-700-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN80-700-5		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN80-700-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN80-700-5W		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN80-700-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN80-700-5Y		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN80-700-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN80-700-5Z		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-25-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-25-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-25-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-25-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-25-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-25-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-25-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-25-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-50-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-50-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-50-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-50-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-50-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-50-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-50-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-50-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-75-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-75-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-75-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-75-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-75-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-75-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-75-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-75-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-100-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-100-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-100-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-100-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-100-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-100-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-100-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-100-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-125-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-125-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-125-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-125-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-125-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-125-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-125-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-125-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-150-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-150-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-150-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-150-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-150-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-150-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-150-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-150-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-200-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-200-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-200-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-200-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-200-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-200-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-200-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-200-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-250-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-250-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-250-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-250-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-250-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-250-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-250-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-250-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-300-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-300-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-300-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-300-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-300-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-300-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-300-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-300-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-350-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-350-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-350-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-350-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-350-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-350-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-350-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-350-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-400-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-400-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-400-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-400-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-400-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-400-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-400-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-400-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-450-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-450-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-450-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-450-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-450-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-450-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-450-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-450-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-500-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-500-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-500-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-500-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-500-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-500-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-500-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-500-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-600-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-600-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-600-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-600-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-600-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-600-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-600-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-600-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1CN100-700-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
CDVS1CN100-700-5		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1CN100-700-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
CDVS1CN100-700-5W		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1CN100-700-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1CN100-700-5Y		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1CN100-700-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1CN100-700-5Z		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-25-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-25-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-25-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-25-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-25-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-25-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-25-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-25-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-50-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-50-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-50-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-50-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-50-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-50-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-50-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-50-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-75-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-75-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-75-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-75-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-75-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-75-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-75-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-75-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-100-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-100-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-100-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-100-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-100-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-100-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-100-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-100-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-125-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-125-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-125-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-125-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-125-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-125-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-125-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-125-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-150-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-150-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-150-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-150-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-150-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-150-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-150-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-150-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-200-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-200-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-200-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-200-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-200-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-200-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-200-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-200-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-250-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-250-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-250-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-250-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-250-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-250-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-250-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-250-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-300-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-300-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-300-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-300-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-300-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-300-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-300-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-300-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-350-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-350-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-350-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-350-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-350-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-350-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-350-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-350-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-400-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-400-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-400-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-400-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-400-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-400-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-400-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-400-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-450-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-450-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-450-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-450-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-450-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-450-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-450-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-450-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-500-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-500-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-500-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-500-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-500-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-500-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-500-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-500-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-600-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-600-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-600-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-600-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-600-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-600-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-600-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-600-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN80-700-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN80-700-5		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN80-700-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN80-700-5W		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN80-700-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN80-700-5Y		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN80-700-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN80-700-5Z		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-25-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-25-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-25-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-25-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-25-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-25-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-25-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-25-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-50-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-50-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-50-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-50-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-50-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-50-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-50-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-50-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-75-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-75-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-75-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-75-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-75-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-75-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-75-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-75-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-100-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-100-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-100-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-100-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-100-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-100-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-100-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-100-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-125-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-125-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-125-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-125-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-125-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-125-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-125-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-125-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-150-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-150-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-150-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-150-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-150-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-150-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-150-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-150-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-200-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-200-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-200-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-200-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-200-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-200-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-200-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-200-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-250-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-250-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-250-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-250-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-250-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-250-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-250-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-250-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-300-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-300-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-300-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-300-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-300-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-300-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-300-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-300-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-350-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-350-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-350-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-350-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-350-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-350-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-350-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-350-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-400-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-400-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-400-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-400-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-400-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-400-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-400-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-400-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-450-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-450-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-450-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-450-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-450-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-450-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-450-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-450-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-500-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-500-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-500-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-500-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-500-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-500-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-500-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-500-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-600-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-600-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-600-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-600-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-600-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-600-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-600-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-600-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1DN100-700-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
CDVS1DN100-700-5		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1DN100-700-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
CDVS1DN100-700-5W		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1DN100-700-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1DN100-700-5Y		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1DN100-700-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1DN100-700-5Z		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-25-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-25-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-25-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-25-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-25-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-25-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-25-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-25-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-50-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-50-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-50-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-50-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-50-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-50-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-50-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-50-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-75-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-75-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-75-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-75-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-75-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-75-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-75-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-75-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-100-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-100-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-100-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-100-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-100-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-100-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-100-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-100-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-125-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-125-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-125-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-125-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-125-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-125-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-125-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-125-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-150-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-150-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-150-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-150-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-150-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-150-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-150-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-150-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-200-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-200-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-200-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-200-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-200-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-200-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-200-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-200-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-250-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-250-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-250-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-250-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-250-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-250-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-250-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-250-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-300-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-300-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-300-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-300-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-300-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-300-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-300-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-300-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-350-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-350-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-350-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-350-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-350-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-350-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-350-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-350-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-400-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-400-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-400-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-400-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-400-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-400-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-400-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-400-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-450-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-450-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-450-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-450-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-450-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-450-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-450-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-450-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-500-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-500-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-500-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-500-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-500-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-500-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-500-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-500-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-600-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-600-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-600-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-600-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-600-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-600-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-600-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-600-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN80-700-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN80-700-5		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN80-700-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN80-700-5W		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN80-700-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN80-700-5Y		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN80-700-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN80-700-5Z		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-25-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-25-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-25-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-25-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-25-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-25-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-25-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-25-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-50-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-50-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-50-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-50-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-50-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-50-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-50-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-50-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-75-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-75-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-75-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-75-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-75-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-75-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-75-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-75-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-100-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-100-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-100-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-100-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-100-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-100-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-100-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-100-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-125-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-125-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-125-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-125-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-125-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-125-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-125-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-125-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-150-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-150-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-150-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-150-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-150-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-150-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-150-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-150-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-200-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-200-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-200-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-200-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-200-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-200-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-200-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-200-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-250-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-250-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-250-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-250-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-250-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-250-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-250-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-250-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-300-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-300-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-300-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-300-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-300-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-300-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-300-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-300-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-350-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-350-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-350-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-350-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-350-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-350-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-350-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-350-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-400-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-400-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-400-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-400-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-400-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-400-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-400-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-400-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-450-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-450-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-450-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-450-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-450-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-450-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-450-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-450-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-500-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-500-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-500-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-500-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-500-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-500-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-500-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-500-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-600-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-600-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-600-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-600-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-600-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-600-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-600-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-600-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
CVS1TN100-700-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
CDVS1TN100-700-5		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
CVS1TN100-700-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
CDVS1TN100-700-5W		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
CVS1TN100-700-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
CDVS1TN100-700-5Y		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
CVS1TN100-700-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
CDVS1TN100-700-5Z		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes

Round Body CylindersSMC

840 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CVS1 Valve Mounted Cylinder with Speed Controller (ø80, ø100) - Part 2

Brand SMC·Round Body Cylinders

Available part numbers (840)

CVS1GN100-25-5, CDVS1GN100-25-5, CVS1GN100-25-5W, CDVS1GN100-25-5W, CVS1GN100-25-5Y, CDVS1GN100-25-5Y, CVS1GN100-25-5Z, CDVS1GN100-25-5Z, CVS1GN100-50-5, CDVS1GN100-50-5 + 830 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CVS1GN100-25-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-25-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-25-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-25-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-25-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-25-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-25-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-25-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-50-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-50-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-50-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-50-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-50-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-50-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-50-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-50-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-75-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-75-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-75-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-75-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-75-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-75-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-75-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-75-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-100-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-100-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-100-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-100-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-100-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-100-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-100-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-100-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-125-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-125-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-125-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-125-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-125-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-125-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-125-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-125-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-150-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-150-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-150-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-150-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-150-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-150-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-150-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-150-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-200-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-200-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-200-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-200-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-200-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-200-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-200-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-200-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-250-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-250-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-250-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-250-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-250-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-250-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-250-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-250-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-300-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-300-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-300-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-300-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-300-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-300-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-300-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-300-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-350-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-350-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-350-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-350-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-350-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-350-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-350-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-350-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-400-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-400-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-400-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-400-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-400-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-400-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-400-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-400-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-450-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-450-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-450-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-450-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-450-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-450-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-450-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-450-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-500-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-500-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-500-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-500-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-500-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-500-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-500-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-500-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-600-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-600-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-600-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-600-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-600-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-600-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-600-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-600-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1GN100-700-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1GN100-700-5	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1GN100-700-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1GN100-700-5W	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1GN100-700-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1GN100-700-5Y	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1GN100-700-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1GN100-700-5Z	Mounting: Head flange \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-25-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-25-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-25-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-25-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-25-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-25-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-25-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-25-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-50-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-50-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-50-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-50-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-50-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-50-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-50-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-50-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-75-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-75-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-75-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-75-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-75-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-75-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-75-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-75-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-100-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-100-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-100-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-100-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-100-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-100-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-100-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-100-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-125-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-125-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-125-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-125-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-125-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-125-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-125-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-125-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-150-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-150-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-150-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-150-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-150-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-150-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-150-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-150-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-200-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-200-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-200-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-200-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-200-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-200-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-200-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-200-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-250-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-250-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-250-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-250-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-250-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-250-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-250-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-250-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-300-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-300-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-300-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-300-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-300-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-300-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-300-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-300-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-350-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-350-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-350-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-350-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-350-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-350-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-350-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-350-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-400-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-400-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-400-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-400-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-400-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-400-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-400-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-400-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-450-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-450-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-450-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-450-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-450-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-450-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-450-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-450-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-500-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-500-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-500-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-500-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-500-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-500-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-500-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-500-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-600-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-600-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-600-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-600-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-600-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-600-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-600-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-600-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN80-700-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN80-700-5	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN80-700-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN80-700-5W	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN80-700-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN80-700-5Y	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN80-700-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN80-700-5Z	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-25-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-25-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-25-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-25-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-25-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-25-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-25-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-25-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-50-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-50-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-50-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-50-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-50-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-50-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-50-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-50-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-75-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-75-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-75-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-75-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-75-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-75-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-75-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-75-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-100-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-100-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-100-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-100-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-100-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-100-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-100-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-100-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-125-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-125-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-125-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-125-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-125-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-125-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-125-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-125-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-150-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-150-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-150-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-150-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-150-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-150-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-150-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-150-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-200-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-200-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-200-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-200-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-200-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-200-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-200-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-200-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-250-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-250-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-250-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-250-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-250-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-250-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-250-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-250-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-300-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-300-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-300-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-300-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-300-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-300-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-300-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-300-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-350-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-350-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-350-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-350-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-350-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-350-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-350-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-350-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-400-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-400-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-400-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-400-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-400-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-400-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-400-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-400-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-450-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-450-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-450-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-450-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-450-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-450-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-450-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-450-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-500-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-500-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-500-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-500-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-500-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-500-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-500-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-500-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-600-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-600-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-600-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-600-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-600-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-600-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-600-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-600-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1CN100-700-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1CN100-700-5	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1CN100-700-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1CN100-700-5W	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1CN100-700-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1CN100-700-5Y	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1CN100-700-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1CN100-700-5Z	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-25-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-25-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-25-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-25-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-25-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-25-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-25-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-25-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-50-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-50-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-50-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-50-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-50-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-50-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-50-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-50-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-75-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-75-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-75-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-75-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-75-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-75-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-75-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-75-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-100-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-100-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-100-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-100-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-100-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-100-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-100-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-100-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-125-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-125-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-125-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-125-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-125-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-125-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-125-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-125-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-150-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-150-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-150-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-150-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-150-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-150-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-150-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-150-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-200-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-200-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-200-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-200-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-200-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-200-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-200-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-200-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-250-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-250-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-250-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-250-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-250-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-250-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-250-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-250-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-300-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-300-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-300-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-300-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-300-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-300-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-300-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-300-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-350-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-350-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-350-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-350-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-350-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-350-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-350-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-350-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-400-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-400-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-400-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-400-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-400-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-400-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-400-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-400-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-450-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-450-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-450-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-450-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-450-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-450-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-450-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-450-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-500-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-500-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-500-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-500-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-500-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-500-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-500-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-500-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-600-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-600-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-600-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-600-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-600-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-600-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-600-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-600-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN80-700-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN80-700-5	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN80-700-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN80-700-5W	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN80-700-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN80-700-5Y	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN80-700-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN80-700-5Z	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-25-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-25-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-25-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-25-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-25-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-25-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-25-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-25-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-50-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-50-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-50-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-50-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-50-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-50-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-50-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-50-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-75-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-75-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-75-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-75-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-75-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-75-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-75-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-75-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-100-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-100-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-100-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-100-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-100-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-100-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-100-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-100-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-125-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-125-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-125-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-125-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-125-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-125-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-125-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-125-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-150-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-150-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-150-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-150-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-150-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-150-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-150-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-150-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-200-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-200-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-200-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-200-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-200-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-200-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-200-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-200-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-250-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-250-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-250-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-250-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-250-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-250-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-250-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-250-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-300-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-300-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-300-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-300-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-300-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-300-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-300-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-300-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-350-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-350-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-350-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-350-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-350-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-350-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-350-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-350-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-400-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-400-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-400-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-400-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-400-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-400-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-400-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-400-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-450-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-450-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-450-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-450-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-450-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-450-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-450-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-450-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-500-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-500-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-500-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-500-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-500-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-500-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-500-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-500-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-600-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-600-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-600-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-600-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-600-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-600-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-600-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-600-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1DN100-700-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1DN100-700-5	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1DN100-700-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1DN100-700-5W	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1DN100-700-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1DN100-700-5Y	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1DN100-700-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1DN100-700-5Z	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-25-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-25-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-25-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-25-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-25-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-25-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-25-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-25-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-50-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-50-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-50-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-50-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-50-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-50-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-50-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-50-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-75-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-75-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-75-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-75-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-75-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-75-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-75-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-75-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-100-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-100-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-100-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-100-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-100-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-100-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-100-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-100-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-125-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-125-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-125-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-125-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-125-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-125-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-125-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-125-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-150-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-150-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-150-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-150-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-150-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-150-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-150-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-150-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-200-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-200-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-200-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-200-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-200-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-200-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-200-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-200-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-250-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-250-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-250-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-250-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-250-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-250-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-250-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-250-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-300-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-300-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-300-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-300-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-300-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-300-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-300-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-300-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-350-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-350-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-350-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-350-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-350-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-350-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-350-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-350-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-400-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-400-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-400-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-400-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-400-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-400-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-400-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-400-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-450-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-450-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-450-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-450-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-450-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-450-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-450-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-450-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-500-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-500-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-500-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-500-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-500-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-500-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-500-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-500-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-600-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-600-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-600-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-600-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-600-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-600-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-600-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-600-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN80-700-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN80-700-5	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN80-700-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN80-700-5W	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN80-700-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN80-700-5Y	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN80-700-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN80-700-5Z	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-25-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-25-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-25-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-25-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-25-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-25-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-25-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-25-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-50-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-50-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-50-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-50-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-50-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-50-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-50-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-50-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-75-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-75-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-75-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-75-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-75-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-75-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-75-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-75-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-100-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-100-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-100-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-100-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-100-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-100-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-100-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-100-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-125-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-125-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-125-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-125-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-125-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-125-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-125-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-125-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 125 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-150-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-150-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-150-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-150-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-150-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-150-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-150-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-150-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-200-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-200-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-200-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-200-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-200-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-200-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-200-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-200-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-250-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-250-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-250-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-250-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-250-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-250-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-250-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-250-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-300-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-300-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-300-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-300-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-300-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-300-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-300-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-300-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-350-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-350-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-350-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-350-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-350-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-350-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-350-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-350-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 350 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-400-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-400-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-400-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-400-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-400-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-400-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-400-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-400-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-450-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-450-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-450-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-450-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-450-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-450-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-450-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-450-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 450 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-500-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-500-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-500-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-500-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-500-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-500-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-500-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-500-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-600-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-600-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-600-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-600-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-600-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-600-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-600-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-600-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 600 mm \| Valve: 3-pos exhaust center \| Magnet: Yes
	CVS1TN100-700-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: No
	CDVS1TN100-700-5	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos single \| Magnet: Yes
	CVS1TN100-700-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: No
	CDVS1TN100-700-5W	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 2-pos double \| Magnet: Yes
	CVS1TN100-700-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: No
	CDVS1TN100-700-5Y	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos closed center \| Magnet: Yes
	CVS1TN100-700-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: No
	CDVS1TN100-700-5Z	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 700 mm \| Valve: 3-pos exhaust center \| Magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

SMC CVS1 Valve Mounted Cylinder with Speed Controller (ø80, ø100) - Part 2
