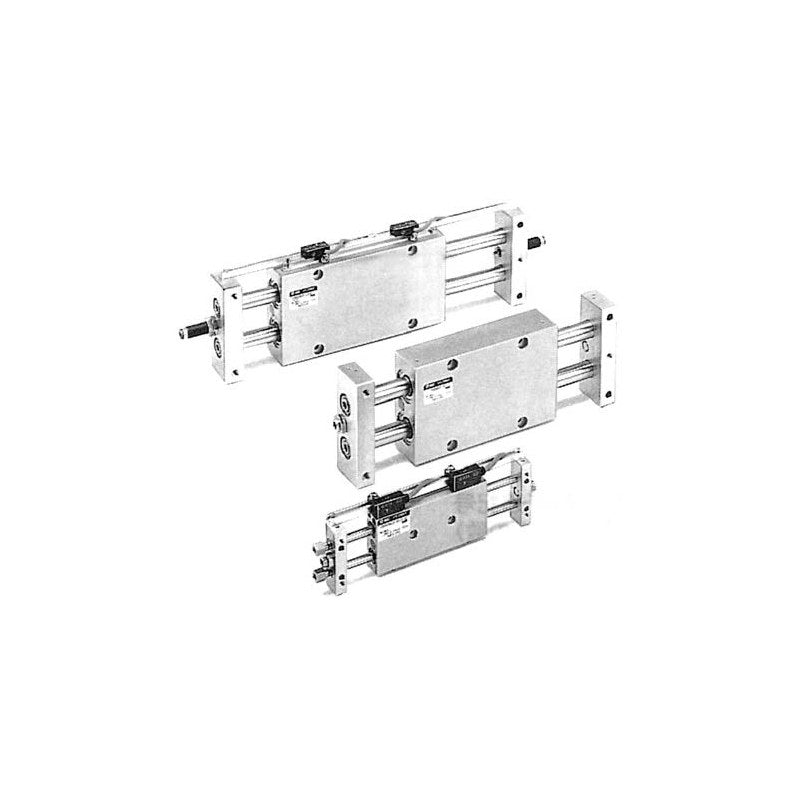

SMC CX2 Slide Unit (Double Rod, Slide Bearing, ø10-ø25)

SMC CX2 Slide Unit (Double Rod, Slide Bearing, ø10-ø25)

SMC CX2 series double rod slide unit on slide bearings, with high parallelism between mounting faces and piston rods; mountable on the housing or on the plates.

Key features

  • Double rod construction prevents rotation; non-rotating accuracy ±0.1° (ø10) to ±0.02° (ø25)
  • Non-lube (N) type or air-hydro (H) type for smooth low-speed travel (ø15, ø25)
  • Stroke end with adjusting bolts (standard), two shock absorbers (B) or one shock absorber (BS)
  • Switch-ready versions CDBX2 (housing mount) and CDPX2 (plate mount); D-F7/J79/A7/A8/E7 auto switches ordered as suffix
  • Mounting and piping possible from housing or plate side, top or bottom; port TN (NPT) / TF (G) for ø25

Specifications

Fluid Air (air-hydro type: hydraulic oil)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.15 MPa (ø10), 0.10 MPa (ø15/ø25)
Ambient and fluid temperature -10 to 60°C
Piston speed (non-lube) 30-200 mm/s (ø10), 30-500 mm/s (ø15/ø25)
Stroke adjustment Standard stroke ±2 mm
Max. load ø10 9.8 N, ø15 29.4 N, ø25 58.8 N
Shock absorber RB0805 (ø10/ø15), RB1006 (ø25)
Port thread M thread (ø10/ø15), Rc1/8 (ø25)
Source SMC Korea catalog CX2 (SMCKR_CX2.pdf), p. 872-873 (PDF p. 4-6)
CX2N10-25 Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CX2N10-25B Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CX2N10-25BS Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CX2N10-50 Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CX2N10-50B Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CX2N10-50BS Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CX2N10-75 Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CX2N10-75B Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CX2N10-75BS Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CX2N10-100 Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CX2N10-100B Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CX2N10-100BS Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CX2N15-25 Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CX2N15-25B Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CX2N15-25BS Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CX2N15-50 Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CX2N15-50B Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CX2N15-50BS Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CX2N15-75 Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CX2N15-75B Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CX2N15-75BS Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CX2N15-100 Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CX2N15-100B Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CX2N15-100BS Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CX2N15-125 Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CX2N15-125B Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CX2N15-125BS Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CX2N15-150 Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CX2N15-150B Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CX2N15-150BS Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CX2N15-175 Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CX2N15-175B Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CX2N15-175BS Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CX2N15-200 Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CX2N15-200B Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CX2N15-200BS Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CX2N25-25 Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CX2N25-25B Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CX2N25-25BS Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CX2N25-50 Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CX2N25-50B Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CX2N25-50BS Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CX2N25-75 Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CX2N25-75B Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CX2N25-75BS Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CX2N25-100 Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CX2N25-100B Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CX2N25-100BS Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CX2N25-125 Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CX2N25-125B Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CX2N25-125BS Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CX2N25-150 Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CX2N25-150B Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CX2N25-150BS Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CX2N25-175 Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CX2N25-175B Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CX2N25-175BS Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CX2N25-200 Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CX2N25-200B Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CX2N25-200BS Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CX2H15-25 Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CX2H15-25B Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CX2H15-25BS Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CX2H15-50 Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CX2H15-50B Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CX2H15-50BS Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CX2H15-75 Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CX2H15-75B Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CX2H15-75BS Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CX2H15-100 Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CX2H15-100B Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CX2H15-100BS Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CX2H15-125 Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CX2H15-125B Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CX2H15-125BS Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CX2H15-150 Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CX2H15-150B Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CX2H15-150BS Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CX2H15-175 Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CX2H15-175B Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CX2H15-175BS Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CX2H15-200 Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CX2H15-200B Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CX2H15-200BS Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CX2H25-25 Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CX2H25-25B Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CX2H25-25BS Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CX2H25-50 Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CX2H25-50B Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CX2H25-50BS Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CX2H25-75 Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CX2H25-75B Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CX2H25-75BS Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CX2H25-100 Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CX2H25-100B Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CX2H25-100BS Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CX2H25-125 Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CX2H25-125B Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CX2H25-125BS Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CX2H25-150 Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CX2H25-150B Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CX2H25-150BS Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CX2H25-175 Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CX2H25-175B Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CX2H25-175BS Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CX2H25-200 Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CX2H25-200B Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CX2H25-200BS Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDBX2N10-25 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDBX2N10-25B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDBX2N10-25BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDBX2N10-50 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDBX2N10-50B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDBX2N10-50BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDBX2N10-75 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDBX2N10-75B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDBX2N10-75BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDBX2N10-100 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDBX2N10-100B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDBX2N10-100BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDBX2N15-25 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDBX2N15-25B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDBX2N15-25BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDBX2N15-50 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDBX2N15-50B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDBX2N15-50BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDBX2N15-75 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDBX2N15-75B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDBX2N15-75BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDBX2N15-100 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDBX2N15-100B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDBX2N15-100BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDBX2N15-125 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDBX2N15-125B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDBX2N15-125BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDBX2N15-150 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDBX2N15-150B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDBX2N15-150BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDBX2N15-175 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDBX2N15-175B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDBX2N15-175BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDBX2N15-200 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDBX2N15-200B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDBX2N15-200BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDBX2N25-25 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDBX2N25-25B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDBX2N25-25BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDBX2N25-50 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDBX2N25-50B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDBX2N25-50BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDBX2N25-75 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDBX2N25-75B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDBX2N25-75BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDBX2N25-100 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDBX2N25-100B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDBX2N25-100BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDBX2N25-125 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDBX2N25-125B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDBX2N25-125BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDBX2N25-150 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDBX2N25-150B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDBX2N25-150BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDBX2N25-175 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDBX2N25-175B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDBX2N25-175BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDBX2N25-200 Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDBX2N25-200B Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDBX2N25-200BS Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDBX2H15-25 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDBX2H15-25B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDBX2H15-25BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDBX2H15-50 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDBX2H15-50B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDBX2H15-50BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDBX2H15-75 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDBX2H15-75B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDBX2H15-75BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDBX2H15-100 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDBX2H15-100B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDBX2H15-100BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDBX2H15-125 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDBX2H15-125B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDBX2H15-125BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDBX2H15-150 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDBX2H15-150B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDBX2H15-150BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDBX2H15-175 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDBX2H15-175B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDBX2H15-175BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDBX2H15-200 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDBX2H15-200B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDBX2H15-200BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDBX2H25-25 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDBX2H25-25B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDBX2H25-25BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDBX2H25-50 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDBX2H25-50B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDBX2H25-50BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDBX2H25-75 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDBX2H25-75B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDBX2H25-75BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDBX2H25-100 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDBX2H25-100B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDBX2H25-100BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDBX2H25-125 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDBX2H25-125B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDBX2H25-125BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDBX2H25-150 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDBX2H25-150B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDBX2H25-150BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDBX2H25-175 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDBX2H25-175B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDBX2H25-175BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDBX2H25-200 Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDBX2H25-200B Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDBX2H25-200BS Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDPX2N10-25 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDPX2N10-25B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDPX2N10-25BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDPX2N10-50 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDPX2N10-50B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDPX2N10-50BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDPX2N10-75 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDPX2N10-75B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDPX2N10-75BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDPX2N10-100 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDPX2N10-100B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDPX2N10-100BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDPX2N15-25 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDPX2N15-25B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDPX2N15-25BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDPX2N15-50 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDPX2N15-50B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDPX2N15-50BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDPX2N15-75 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDPX2N15-75B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDPX2N15-75BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDPX2N15-100 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDPX2N15-100B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDPX2N15-100BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDPX2N15-125 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDPX2N15-125B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDPX2N15-125BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDPX2N15-150 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDPX2N15-150B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDPX2N15-150BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDPX2N15-175 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDPX2N15-175B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDPX2N15-175BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDPX2N15-200 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDPX2N15-200B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDPX2N15-200BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDPX2N25-25 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDPX2N25-25B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDPX2N25-25BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDPX2N25-50 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDPX2N25-50B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDPX2N25-50BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDPX2N25-75 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDPX2N25-75B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDPX2N25-75BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDPX2N25-100 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDPX2N25-100B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDPX2N25-100BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDPX2N25-125 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDPX2N25-125B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDPX2N25-125BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDPX2N25-150 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDPX2N25-150B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDPX2N25-150BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDPX2N25-175 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDPX2N25-175B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDPX2N25-175BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDPX2N25-200 Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDPX2N25-200B Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDPX2N25-200BS Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDPX2H15-25 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDPX2H15-25B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDPX2H15-25BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDPX2H15-50 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDPX2H15-50B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDPX2H15-50BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDPX2H15-75 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDPX2H15-75B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDPX2H15-75BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDPX2H15-100 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDPX2H15-100B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDPX2H15-100BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDPX2H15-125 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDPX2H15-125B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDPX2H15-125BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDPX2H15-150 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDPX2H15-150B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDPX2H15-150BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDPX2H15-175 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDPX2H15-175B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDPX2H15-175BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDPX2H15-200 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDPX2H15-200B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDPX2H15-200BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDPX2H25-25 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDPX2H25-25B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDPX2H25-25BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDPX2H25-50 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDPX2H25-50B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDPX2H25-50BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDPX2H25-75 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDPX2H25-75B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDPX2H25-75BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDPX2H25-100 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDPX2H25-100B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDPX2H25-100BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDPX2H25-125 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDPX2H25-125B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDPX2H25-125BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDPX2H25-150 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDPX2H25-150B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDPX2H25-150BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDPX2H25-175 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDPX2H25-175B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDPX2H25-175BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDPX2H25-200 Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDPX2H25-200B Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDPX2H25-200BS Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
Slide TablesSMC
324 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CX2 Slide Unit (Double Rod, Slide Bearing, ø10-ø25)

Brand SMC·Slide Tables

Available part numbers (324)

CX2N10-25, CX2N10-25B, CX2N10-25BS, CX2N10-50, CX2N10-50B, CX2N10-50BS, CX2N10-75, CX2N10-75B, CX2N10-75BS, CX2N10-100 + 314 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CX2N10-25Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CX2N10-25BVersion: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CX2N10-25BSVersion: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CX2N10-50Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CX2N10-50BVersion: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CX2N10-50BSVersion: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CX2N10-75Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CX2N10-75BVersion: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CX2N10-75BSVersion: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CX2N10-100Version: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CX2N10-100BVersion: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CX2N10-100BSVersion: Without auto switch | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CX2N15-25Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CX2N15-25BVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CX2N15-25BSVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CX2N15-50Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CX2N15-50BVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CX2N15-50BSVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CX2N15-75Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CX2N15-75BVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CX2N15-75BSVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CX2N15-100Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CX2N15-100BVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CX2N15-100BSVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CX2N15-125Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CX2N15-125BVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CX2N15-125BSVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CX2N15-150Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CX2N15-150BVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CX2N15-150BSVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CX2N15-175Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CX2N15-175BVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CX2N15-175BSVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CX2N15-200Version: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CX2N15-200BVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CX2N15-200BSVersion: Without auto switch | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CX2N25-25Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CX2N25-25BVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CX2N25-25BSVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CX2N25-50Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CX2N25-50BVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CX2N25-50BSVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CX2N25-75Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CX2N25-75BVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CX2N25-75BSVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CX2N25-100Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CX2N25-100BVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CX2N25-100BSVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CX2N25-125Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CX2N25-125BVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CX2N25-125BSVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CX2N25-150Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CX2N25-150BVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CX2N25-150BSVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CX2N25-175Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CX2N25-175BVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CX2N25-175BSVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CX2N25-200Version: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CX2N25-200BVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CX2N25-200BSVersion: Without auto switch | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CX2H15-25Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CX2H15-25BVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CX2H15-25BSVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CX2H15-50Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CX2H15-50BVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CX2H15-50BSVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CX2H15-75Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CX2H15-75BVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CX2H15-75BSVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CX2H15-100Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CX2H15-100BVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CX2H15-100BSVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CX2H15-125Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CX2H15-125BVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CX2H15-125BSVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CX2H15-150Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CX2H15-150BVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CX2H15-150BSVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CX2H15-175Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CX2H15-175BVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CX2H15-175BSVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CX2H15-200Version: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CX2H15-200BVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CX2H15-200BSVersion: Without auto switch | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CX2H25-25Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CX2H25-25BVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CX2H25-25BSVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CX2H25-50Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CX2H25-50BVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CX2H25-50BSVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CX2H25-75Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CX2H25-75BVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CX2H25-75BSVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CX2H25-100Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CX2H25-100BVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CX2H25-100BSVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CX2H25-125Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CX2H25-125BVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CX2H25-125BSVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CX2H25-150Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CX2H25-150BVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CX2H25-150BSVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CX2H25-175Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CX2H25-175BVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CX2H25-175BSVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CX2H25-200Version: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CX2H25-200BVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CX2H25-200BSVersion: Without auto switch | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDBX2N10-25Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDBX2N10-25BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDBX2N10-25BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDBX2N10-50Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDBX2N10-50BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDBX2N10-50BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDBX2N10-75Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDBX2N10-75BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDBX2N10-75BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDBX2N10-100Version: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDBX2N10-100BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDBX2N10-100BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDBX2N15-25Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDBX2N15-25BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDBX2N15-25BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDBX2N15-50Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDBX2N15-50BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDBX2N15-50BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDBX2N15-75Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDBX2N15-75BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDBX2N15-75BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDBX2N15-100Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDBX2N15-100BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDBX2N15-100BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDBX2N15-125Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDBX2N15-125BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDBX2N15-125BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDBX2N15-150Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDBX2N15-150BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDBX2N15-150BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDBX2N15-175Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDBX2N15-175BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDBX2N15-175BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDBX2N15-200Version: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDBX2N15-200BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDBX2N15-200BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDBX2N25-25Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDBX2N25-25BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDBX2N25-25BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDBX2N25-50Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDBX2N25-50BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDBX2N25-50BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDBX2N25-75Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDBX2N25-75BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDBX2N25-75BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDBX2N25-100Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDBX2N25-100BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDBX2N25-100BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDBX2N25-125Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDBX2N25-125BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDBX2N25-125BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDBX2N25-150Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDBX2N25-150BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDBX2N25-150BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDBX2N25-175Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDBX2N25-175BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDBX2N25-175BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDBX2N25-200Version: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDBX2N25-200BVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDBX2N25-200BSVersion: Switch-ready, housing mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDBX2H15-25Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDBX2H15-25BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDBX2H15-25BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDBX2H15-50Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDBX2H15-50BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDBX2H15-50BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDBX2H15-75Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDBX2H15-75BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDBX2H15-75BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDBX2H15-100Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDBX2H15-100BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDBX2H15-100BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDBX2H15-125Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDBX2H15-125BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDBX2H15-125BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDBX2H15-150Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDBX2H15-150BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDBX2H15-150BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDBX2H15-175Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDBX2H15-175BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDBX2H15-175BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDBX2H15-200Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDBX2H15-200BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDBX2H15-200BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDBX2H25-25Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDBX2H25-25BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDBX2H25-25BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDBX2H25-50Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDBX2H25-50BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDBX2H25-50BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDBX2H25-75Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDBX2H25-75BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDBX2H25-75BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDBX2H25-100Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDBX2H25-100BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDBX2H25-100BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDBX2H25-125Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDBX2H25-125BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDBX2H25-125BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDBX2H25-150Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDBX2H25-150BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDBX2H25-150BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDBX2H25-175Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDBX2H25-175BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDBX2H25-175BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDBX2H25-200Version: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDBX2H25-200BVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDBX2H25-200BSVersion: Switch-ready, housing mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDPX2N10-25Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDPX2N10-25BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDPX2N10-25BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDPX2N10-50Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDPX2N10-50BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDPX2N10-50BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDPX2N10-75Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDPX2N10-75BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDPX2N10-75BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDPX2N10-100Version: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDPX2N10-100BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDPX2N10-100BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 10 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDPX2N15-25Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDPX2N15-25BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDPX2N15-25BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDPX2N15-50Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDPX2N15-50BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDPX2N15-50BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDPX2N15-75Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDPX2N15-75BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDPX2N15-75BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDPX2N15-100Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDPX2N15-100BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDPX2N15-100BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDPX2N15-125Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDPX2N15-125BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDPX2N15-125BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDPX2N15-150Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDPX2N15-150BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDPX2N15-150BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDPX2N15-175Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDPX2N15-175BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDPX2N15-175BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDPX2N15-200Version: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDPX2N15-200BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDPX2N15-200BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDPX2N25-25Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDPX2N25-25BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDPX2N25-25BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDPX2N25-50Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDPX2N25-50BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDPX2N25-50BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDPX2N25-75Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDPX2N25-75BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDPX2N25-75BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDPX2N25-100Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDPX2N25-100BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDPX2N25-100BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDPX2N25-125Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDPX2N25-125BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDPX2N25-125BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDPX2N25-150Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDPX2N25-150BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDPX2N25-150BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDPX2N25-175Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDPX2N25-175BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDPX2N25-175BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDPX2N25-200Version: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDPX2N25-200BVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDPX2N25-200BSVersion: Switch-ready, plate mount | Type: Non-lube | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDPX2H15-25Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDPX2H15-25BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDPX2H15-25BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDPX2H15-50Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDPX2H15-50BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDPX2H15-50BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDPX2H15-75Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDPX2H15-75BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDPX2H15-75BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDPX2H15-100Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDPX2H15-100BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDPX2H15-100BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDPX2H15-125Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDPX2H15-125BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDPX2H15-125BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDPX2H15-150Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDPX2H15-150BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDPX2H15-150BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDPX2H15-175Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDPX2H15-175BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDPX2H15-175BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDPX2H15-200Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDPX2H15-200BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDPX2H15-200BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 15 mm | Stroke: 200 mm | Stroke end: Shock absorber x1
CDPX2H25-25Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Adjusting bolt x2
CDPX2H25-25BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x2
CDPX2H25-25BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 25 mm | Stroke end: Shock absorber x1
CDPX2H25-50Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Adjusting bolt x2
CDPX2H25-50BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x2
CDPX2H25-50BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 50 mm | Stroke end: Shock absorber x1
CDPX2H25-75Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Adjusting bolt x2
CDPX2H25-75BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x2
CDPX2H25-75BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 75 mm | Stroke end: Shock absorber x1
CDPX2H25-100Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Adjusting bolt x2
CDPX2H25-100BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x2
CDPX2H25-100BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 100 mm | Stroke end: Shock absorber x1
CDPX2H25-125Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Adjusting bolt x2
CDPX2H25-125BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x2
CDPX2H25-125BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 125 mm | Stroke end: Shock absorber x1
CDPX2H25-150Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Adjusting bolt x2
CDPX2H25-150BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x2
CDPX2H25-150BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 150 mm | Stroke end: Shock absorber x1
CDPX2H25-175Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Adjusting bolt x2
CDPX2H25-175BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x2
CDPX2H25-175BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 175 mm | Stroke end: Shock absorber x1
CDPX2H25-200Version: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Adjusting bolt x2
CDPX2H25-200BVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x2
CDPX2H25-200BSVersion: Switch-ready, plate mount | Type: Air-hydro | Bore: 25 mm | Stroke: 200 mm | Stroke end: Shock absorber x1

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
