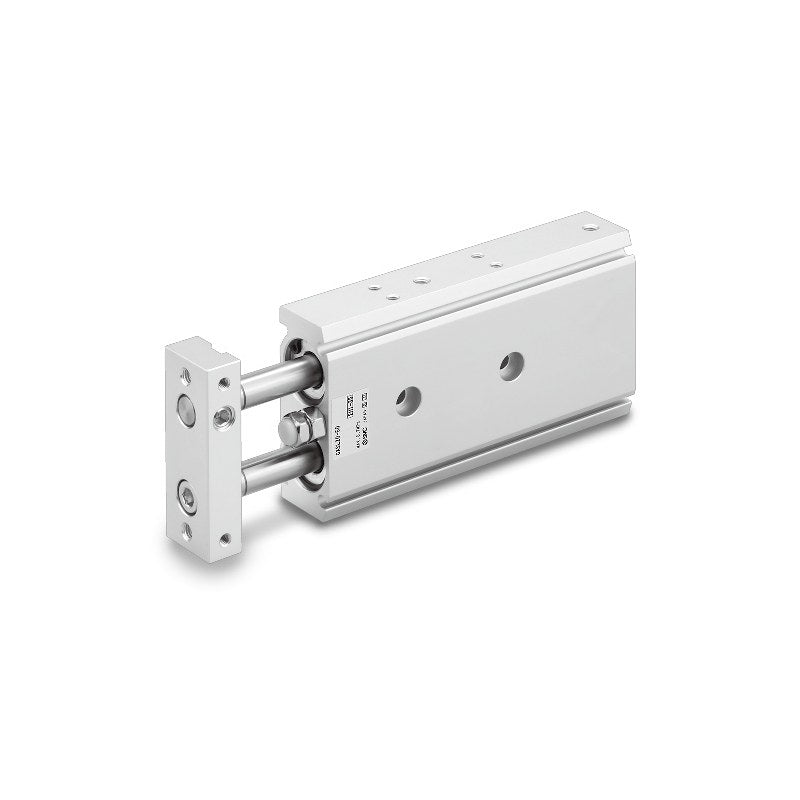

SMC CXS2 Dual Rod Cylinder (Basic Type, ø6-ø32)

SMC CXS2 Dual Rod Cylinder (Basic Type, ø6-ø32)

SMC CXS2 series dual rod cylinder with twin pistons for double thrust, slide or ball bushing bearing, mounting-compatible with the previous CXS series.

Key features

  • Double piston design gives twice the thrust of a single rod cylinder; non-rotating accuracy ±0.1°
  • Allowable kinetic energy 7 times and max. piston speed 2.6 times higher than the CXS (ø6 comparison), up to 800 mm/s
  • Longer max. standard strokes: ø6 100 mm, ø10 150 mm, ø16 to ø32 200 mm; stroke adjustable 0 to -5 mm
  • Slide bearing (M) and ball bushing bearing (L) with identical outside dimensions; new ø16 bore replaces ø15 in the same envelope with about 14% more thrust
  • Built-in magnet; compact auto switches D-M9 (solid state) and D-A9 (reed) mount in the body grooves, ordered as suffix (e.g. -M9BW)
  • Body mountable from 4 directions, workpiece from 3 directions; port thread options TN (NPT) and TF (G) for ø25/ø32

Specifications

Action Double acting, dual rod
Fluid Air (non-lube)
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure ø6 0.15 MPa, ø10 0.1 MPa, ø16-ø32 0.05 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed ø6/ø10 30-800, ø16/ø20 30-700, ø25/ø32 30-600 mm/s
Cushion Rubber bumper
Stroke adjustment 0 to -5 mm from standard stroke
Allowable kinetic energy ø6 0.016 J to ø32 0.32 J
Magnet Built-in
Source SMC Korea catalog CAT.KS20-275A (SMCKR_CXS2.pdf), p. 11-12 (PDF p. 12-13)
CXS2M6-10 Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5x0.8
CXS2M6-20 Bearing: Slide bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5x0.8
CXS2M6-30 Bearing: Slide bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5x0.8
CXS2M6-40 Bearing: Slide bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5x0.8
CXS2M6-50 Bearing: Slide bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5x0.8
CXS2M6-60 Bearing: Slide bearing | Bore: 6 mm | Stroke: 60 mm | Port: M5x0.8
CXS2M6-70 Bearing: Slide bearing | Bore: 6 mm | Stroke: 70 mm | Port: M5x0.8
CXS2M6-75 Bearing: Slide bearing | Bore: 6 mm | Stroke: 75 mm | Port: M5x0.8
CXS2M6-80 Bearing: Slide bearing | Bore: 6 mm | Stroke: 80 mm | Port: M5x0.8
CXS2M6-90 Bearing: Slide bearing | Bore: 6 mm | Stroke: 90 mm | Port: M5x0.8
CXS2M6-100 Bearing: Slide bearing | Bore: 6 mm | Stroke: 100 mm | Port: M5x0.8
CXS2M10-10 Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5x0.8
CXS2M10-15 Bearing: Slide bearing | Bore: 10 mm | Stroke: 15 mm | Port: M5x0.8
CXS2M10-20 Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5x0.8
CXS2M10-25 Bearing: Slide bearing | Bore: 10 mm | Stroke: 25 mm | Port: M5x0.8
CXS2M10-30 Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5x0.8
CXS2M10-35 Bearing: Slide bearing | Bore: 10 mm | Stroke: 35 mm | Port: M5x0.8
CXS2M10-40 Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5x0.8
CXS2M10-45 Bearing: Slide bearing | Bore: 10 mm | Stroke: 45 mm | Port: M5x0.8
CXS2M10-50 Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5x0.8
CXS2M10-60 Bearing: Slide bearing | Bore: 10 mm | Stroke: 60 mm | Port: M5x0.8
CXS2M10-70 Bearing: Slide bearing | Bore: 10 mm | Stroke: 70 mm | Port: M5x0.8
CXS2M10-75 Bearing: Slide bearing | Bore: 10 mm | Stroke: 75 mm | Port: M5x0.8
CXS2M10-80 Bearing: Slide bearing | Bore: 10 mm | Stroke: 80 mm | Port: M5x0.8
CXS2M10-90 Bearing: Slide bearing | Bore: 10 mm | Stroke: 90 mm | Port: M5x0.8
CXS2M10-100 Bearing: Slide bearing | Bore: 10 mm | Stroke: 100 mm | Port: M5x0.8
CXS2M10-110 Bearing: Slide bearing | Bore: 10 mm | Stroke: 110 mm | Port: M5x0.8
CXS2M10-120 Bearing: Slide bearing | Bore: 10 mm | Stroke: 120 mm | Port: M5x0.8
CXS2M10-125 Bearing: Slide bearing | Bore: 10 mm | Stroke: 125 mm | Port: M5x0.8
CXS2M10-150 Bearing: Slide bearing | Bore: 10 mm | Stroke: 150 mm | Port: M5x0.8
CXS2M16-10 Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
CXS2M16-15 Bearing: Slide bearing | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
CXS2M16-20 Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
CXS2M16-25 Bearing: Slide bearing | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
CXS2M16-30 Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
CXS2M16-35 Bearing: Slide bearing | Bore: 16 mm | Stroke: 35 mm | Port: M5x0.8
CXS2M16-40 Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5x0.8
CXS2M16-45 Bearing: Slide bearing | Bore: 16 mm | Stroke: 45 mm | Port: M5x0.8
CXS2M16-50 Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5x0.8
CXS2M16-60 Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5x0.8
CXS2M16-70 Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5x0.8
CXS2M16-75 Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5x0.8
CXS2M16-80 Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5x0.8
CXS2M16-90 Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5x0.8
CXS2M16-100 Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5x0.8
CXS2M16-110 Bearing: Slide bearing | Bore: 16 mm | Stroke: 110 mm | Port: M5x0.8
CXS2M16-120 Bearing: Slide bearing | Bore: 16 mm | Stroke: 120 mm | Port: M5x0.8
CXS2M16-125 Bearing: Slide bearing | Bore: 16 mm | Stroke: 125 mm | Port: M5x0.8
CXS2M16-150 Bearing: Slide bearing | Bore: 16 mm | Stroke: 150 mm | Port: M5x0.8
CXS2M16-175 Bearing: Slide bearing | Bore: 16 mm | Stroke: 175 mm | Port: M5x0.8
CXS2M16-200 Bearing: Slide bearing | Bore: 16 mm | Stroke: 200 mm | Port: M5x0.8
CXS2M20-10 Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
CXS2M20-15 Bearing: Slide bearing | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
CXS2M20-20 Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
CXS2M20-25 Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
CXS2M20-30 Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
CXS2M20-35 Bearing: Slide bearing | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
CXS2M20-40 Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
CXS2M20-45 Bearing: Slide bearing | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
CXS2M20-50 Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
CXS2M20-60 Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5x0.8
CXS2M20-70 Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5x0.8
CXS2M20-75 Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5x0.8
CXS2M20-80 Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5x0.8
CXS2M20-90 Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5x0.8
CXS2M20-100 Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5x0.8
CXS2M20-110 Bearing: Slide bearing | Bore: 20 mm | Stroke: 110 mm | Port: M5x0.8
CXS2M20-120 Bearing: Slide bearing | Bore: 20 mm | Stroke: 120 mm | Port: M5x0.8
CXS2M20-125 Bearing: Slide bearing | Bore: 20 mm | Stroke: 125 mm | Port: M5x0.8
CXS2M20-150 Bearing: Slide bearing | Bore: 20 mm | Stroke: 150 mm | Port: M5x0.8
CXS2M20-175 Bearing: Slide bearing | Bore: 20 mm | Stroke: 175 mm | Port: M5x0.8
CXS2M20-200 Bearing: Slide bearing | Bore: 20 mm | Stroke: 200 mm | Port: M5x0.8
CXS2M25-10 Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: Rc1/8
CXS2M25-15 Bearing: Slide bearing | Bore: 25 mm | Stroke: 15 mm | Port: Rc1/8
CXS2M25-20 Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
CXS2M25-25 Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
CXS2M25-30 Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
CXS2M25-35 Bearing: Slide bearing | Bore: 25 mm | Stroke: 35 mm | Port: Rc1/8
CXS2M25-40 Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
CXS2M25-45 Bearing: Slide bearing | Bore: 25 mm | Stroke: 45 mm | Port: Rc1/8
CXS2M25-50 Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
CXS2M25-60 Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: Rc1/8
CXS2M25-70 Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: Rc1/8
CXS2M25-75 Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
CXS2M25-80 Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: Rc1/8
CXS2M25-90 Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: Rc1/8
CXS2M25-100 Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
CXS2M25-110 Bearing: Slide bearing | Bore: 25 mm | Stroke: 110 mm | Port: Rc1/8
CXS2M25-120 Bearing: Slide bearing | Bore: 25 mm | Stroke: 120 mm | Port: Rc1/8
CXS2M25-125 Bearing: Slide bearing | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
CXS2M25-150 Bearing: Slide bearing | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
CXS2M25-175 Bearing: Slide bearing | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
CXS2M25-200 Bearing: Slide bearing | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
CXS2M32-10 Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
CXS2M32-15 Bearing: Slide bearing | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
CXS2M32-20 Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
CXS2M32-25 Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
CXS2M32-30 Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
CXS2M32-35 Bearing: Slide bearing | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
CXS2M32-40 Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
CXS2M32-45 Bearing: Slide bearing | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
CXS2M32-50 Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
CXS2M32-60 Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
CXS2M32-70 Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
CXS2M32-75 Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
CXS2M32-80 Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
CXS2M32-90 Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
CXS2M32-100 Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
CXS2M32-110 Bearing: Slide bearing | Bore: 32 mm | Stroke: 110 mm | Port: Rc1/8
CXS2M32-120 Bearing: Slide bearing | Bore: 32 mm | Stroke: 120 mm | Port: Rc1/8
CXS2M32-125 Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
CXS2M32-150 Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
CXS2M32-175 Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
CXS2M32-200 Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
CXS2L6-10 Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5x0.8
CXS2L6-20 Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5x0.8
CXS2L6-30 Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5x0.8
CXS2L6-40 Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5x0.8
CXS2L6-50 Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5x0.8
CXS2L6-60 Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 60 mm | Port: M5x0.8
CXS2L6-70 Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 70 mm | Port: M5x0.8
CXS2L6-75 Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 75 mm | Port: M5x0.8
CXS2L6-80 Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 80 mm | Port: M5x0.8
CXS2L6-90 Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 90 mm | Port: M5x0.8
CXS2L6-100 Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 100 mm | Port: M5x0.8
CXS2L10-10 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5x0.8
CXS2L10-15 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 15 mm | Port: M5x0.8
CXS2L10-20 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5x0.8
CXS2L10-25 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 25 mm | Port: M5x0.8
CXS2L10-30 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5x0.8
CXS2L10-35 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 35 mm | Port: M5x0.8
CXS2L10-40 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5x0.8
CXS2L10-45 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 45 mm | Port: M5x0.8
CXS2L10-50 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5x0.8
CXS2L10-60 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 60 mm | Port: M5x0.8
CXS2L10-70 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 70 mm | Port: M5x0.8
CXS2L10-75 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 75 mm | Port: M5x0.8
CXS2L10-80 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 80 mm | Port: M5x0.8
CXS2L10-90 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 90 mm | Port: M5x0.8
CXS2L10-100 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 100 mm | Port: M5x0.8
CXS2L10-110 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 110 mm | Port: M5x0.8
CXS2L10-120 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 120 mm | Port: M5x0.8
CXS2L10-125 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 125 mm | Port: M5x0.8
CXS2L10-150 Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 150 mm | Port: M5x0.8
CXS2L16-10 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
CXS2L16-15 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
CXS2L16-20 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
CXS2L16-25 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
CXS2L16-30 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
CXS2L16-35 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 35 mm | Port: M5x0.8
CXS2L16-40 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5x0.8
CXS2L16-45 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 45 mm | Port: M5x0.8
CXS2L16-50 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5x0.8
CXS2L16-60 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5x0.8
CXS2L16-70 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5x0.8
CXS2L16-75 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5x0.8
CXS2L16-80 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5x0.8
CXS2L16-90 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5x0.8
CXS2L16-100 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5x0.8
CXS2L16-110 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 110 mm | Port: M5x0.8
CXS2L16-120 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 120 mm | Port: M5x0.8
CXS2L16-125 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 125 mm | Port: M5x0.8
CXS2L16-150 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 150 mm | Port: M5x0.8
CXS2L16-175 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 175 mm | Port: M5x0.8
CXS2L16-200 Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 200 mm | Port: M5x0.8
CXS2L20-10 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
CXS2L20-15 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
CXS2L20-20 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
CXS2L20-25 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
CXS2L20-30 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
CXS2L20-35 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
CXS2L20-40 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
CXS2L20-45 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
CXS2L20-50 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
CXS2L20-60 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5x0.8
CXS2L20-70 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5x0.8
CXS2L20-75 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5x0.8
CXS2L20-80 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5x0.8
CXS2L20-90 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5x0.8
CXS2L20-100 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5x0.8
CXS2L20-110 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 110 mm | Port: M5x0.8
CXS2L20-120 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 120 mm | Port: M5x0.8
CXS2L20-125 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 125 mm | Port: M5x0.8
CXS2L20-150 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 150 mm | Port: M5x0.8
CXS2L20-175 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 175 mm | Port: M5x0.8
CXS2L20-200 Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 200 mm | Port: M5x0.8
CXS2L25-10 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 10 mm | Port: Rc1/8
CXS2L25-15 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 15 mm | Port: Rc1/8
CXS2L25-20 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
CXS2L25-25 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
CXS2L25-30 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
CXS2L25-35 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 35 mm | Port: Rc1/8
CXS2L25-40 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
CXS2L25-45 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 45 mm | Port: Rc1/8
CXS2L25-50 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
CXS2L25-60 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 60 mm | Port: Rc1/8
CXS2L25-70 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 70 mm | Port: Rc1/8
CXS2L25-75 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
CXS2L25-80 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 80 mm | Port: Rc1/8
CXS2L25-90 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 90 mm | Port: Rc1/8
CXS2L25-100 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
CXS2L25-110 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 110 mm | Port: Rc1/8
CXS2L25-120 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 120 mm | Port: Rc1/8
CXS2L25-125 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
CXS2L25-150 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
CXS2L25-175 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
CXS2L25-200 Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
CXS2L32-10 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
CXS2L32-15 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
CXS2L32-20 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
CXS2L32-25 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
CXS2L32-30 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
CXS2L32-35 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
CXS2L32-40 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
CXS2L32-45 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
CXS2L32-50 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
CXS2L32-60 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
CXS2L32-70 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
CXS2L32-75 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
CXS2L32-80 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
CXS2L32-90 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
CXS2L32-100 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
CXS2L32-110 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 110 mm | Port: Rc1/8
CXS2L32-120 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 120 mm | Port: Rc1/8
CXS2L32-125 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
CXS2L32-150 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
CXS2L32-175 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
CXS2L32-200 Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
Guided CylindersSMC
228 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CXS2 Dual Rod Cylinder (Basic Type, ø6-ø32)

Brand SMC·Guided Cylinders

Available part numbers (228)

CXS2M6-10, CXS2M6-20, CXS2M6-30, CXS2M6-40, CXS2M6-50, CXS2M6-60, CXS2M6-70, CXS2M6-75, CXS2M6-80, CXS2M6-90 + 218 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CXS2M6-10Bearing: Slide bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5x0.8
CXS2M6-20Bearing: Slide bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5x0.8
CXS2M6-30Bearing: Slide bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5x0.8
CXS2M6-40Bearing: Slide bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5x0.8
CXS2M6-50Bearing: Slide bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5x0.8
CXS2M6-60Bearing: Slide bearing | Bore: 6 mm | Stroke: 60 mm | Port: M5x0.8
CXS2M6-70Bearing: Slide bearing | Bore: 6 mm | Stroke: 70 mm | Port: M5x0.8
CXS2M6-75Bearing: Slide bearing | Bore: 6 mm | Stroke: 75 mm | Port: M5x0.8
CXS2M6-80Bearing: Slide bearing | Bore: 6 mm | Stroke: 80 mm | Port: M5x0.8
CXS2M6-90Bearing: Slide bearing | Bore: 6 mm | Stroke: 90 mm | Port: M5x0.8
CXS2M6-100Bearing: Slide bearing | Bore: 6 mm | Stroke: 100 mm | Port: M5x0.8
CXS2M10-10Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5x0.8
CXS2M10-15Bearing: Slide bearing | Bore: 10 mm | Stroke: 15 mm | Port: M5x0.8
CXS2M10-20Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5x0.8
CXS2M10-25Bearing: Slide bearing | Bore: 10 mm | Stroke: 25 mm | Port: M5x0.8
CXS2M10-30Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5x0.8
CXS2M10-35Bearing: Slide bearing | Bore: 10 mm | Stroke: 35 mm | Port: M5x0.8
CXS2M10-40Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5x0.8
CXS2M10-45Bearing: Slide bearing | Bore: 10 mm | Stroke: 45 mm | Port: M5x0.8
CXS2M10-50Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5x0.8
CXS2M10-60Bearing: Slide bearing | Bore: 10 mm | Stroke: 60 mm | Port: M5x0.8
CXS2M10-70Bearing: Slide bearing | Bore: 10 mm | Stroke: 70 mm | Port: M5x0.8
CXS2M10-75Bearing: Slide bearing | Bore: 10 mm | Stroke: 75 mm | Port: M5x0.8
CXS2M10-80Bearing: Slide bearing | Bore: 10 mm | Stroke: 80 mm | Port: M5x0.8
CXS2M10-90Bearing: Slide bearing | Bore: 10 mm | Stroke: 90 mm | Port: M5x0.8
CXS2M10-100Bearing: Slide bearing | Bore: 10 mm | Stroke: 100 mm | Port: M5x0.8
CXS2M10-110Bearing: Slide bearing | Bore: 10 mm | Stroke: 110 mm | Port: M5x0.8
CXS2M10-120Bearing: Slide bearing | Bore: 10 mm | Stroke: 120 mm | Port: M5x0.8
CXS2M10-125Bearing: Slide bearing | Bore: 10 mm | Stroke: 125 mm | Port: M5x0.8
CXS2M10-150Bearing: Slide bearing | Bore: 10 mm | Stroke: 150 mm | Port: M5x0.8
CXS2M16-10Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
CXS2M16-15Bearing: Slide bearing | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
CXS2M16-20Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
CXS2M16-25Bearing: Slide bearing | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
CXS2M16-30Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
CXS2M16-35Bearing: Slide bearing | Bore: 16 mm | Stroke: 35 mm | Port: M5x0.8
CXS2M16-40Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5x0.8
CXS2M16-45Bearing: Slide bearing | Bore: 16 mm | Stroke: 45 mm | Port: M5x0.8
CXS2M16-50Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5x0.8
CXS2M16-60Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5x0.8
CXS2M16-70Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5x0.8
CXS2M16-75Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5x0.8
CXS2M16-80Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5x0.8
CXS2M16-90Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5x0.8
CXS2M16-100Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5x0.8
CXS2M16-110Bearing: Slide bearing | Bore: 16 mm | Stroke: 110 mm | Port: M5x0.8
CXS2M16-120Bearing: Slide bearing | Bore: 16 mm | Stroke: 120 mm | Port: M5x0.8
CXS2M16-125Bearing: Slide bearing | Bore: 16 mm | Stroke: 125 mm | Port: M5x0.8
CXS2M16-150Bearing: Slide bearing | Bore: 16 mm | Stroke: 150 mm | Port: M5x0.8
CXS2M16-175Bearing: Slide bearing | Bore: 16 mm | Stroke: 175 mm | Port: M5x0.8
CXS2M16-200Bearing: Slide bearing | Bore: 16 mm | Stroke: 200 mm | Port: M5x0.8
CXS2M20-10Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
CXS2M20-15Bearing: Slide bearing | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
CXS2M20-20Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
CXS2M20-25Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
CXS2M20-30Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
CXS2M20-35Bearing: Slide bearing | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
CXS2M20-40Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
CXS2M20-45Bearing: Slide bearing | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
CXS2M20-50Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
CXS2M20-60Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5x0.8
CXS2M20-70Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5x0.8
CXS2M20-75Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5x0.8
CXS2M20-80Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5x0.8
CXS2M20-90Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5x0.8
CXS2M20-100Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5x0.8
CXS2M20-110Bearing: Slide bearing | Bore: 20 mm | Stroke: 110 mm | Port: M5x0.8
CXS2M20-120Bearing: Slide bearing | Bore: 20 mm | Stroke: 120 mm | Port: M5x0.8
CXS2M20-125Bearing: Slide bearing | Bore: 20 mm | Stroke: 125 mm | Port: M5x0.8
CXS2M20-150Bearing: Slide bearing | Bore: 20 mm | Stroke: 150 mm | Port: M5x0.8
CXS2M20-175Bearing: Slide bearing | Bore: 20 mm | Stroke: 175 mm | Port: M5x0.8
CXS2M20-200Bearing: Slide bearing | Bore: 20 mm | Stroke: 200 mm | Port: M5x0.8
CXS2M25-10Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: Rc1/8
CXS2M25-15Bearing: Slide bearing | Bore: 25 mm | Stroke: 15 mm | Port: Rc1/8
CXS2M25-20Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
CXS2M25-25Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
CXS2M25-30Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
CXS2M25-35Bearing: Slide bearing | Bore: 25 mm | Stroke: 35 mm | Port: Rc1/8
CXS2M25-40Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
CXS2M25-45Bearing: Slide bearing | Bore: 25 mm | Stroke: 45 mm | Port: Rc1/8
CXS2M25-50Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
CXS2M25-60Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: Rc1/8
CXS2M25-70Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: Rc1/8
CXS2M25-75Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
CXS2M25-80Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: Rc1/8
CXS2M25-90Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: Rc1/8
CXS2M25-100Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
CXS2M25-110Bearing: Slide bearing | Bore: 25 mm | Stroke: 110 mm | Port: Rc1/8
CXS2M25-120Bearing: Slide bearing | Bore: 25 mm | Stroke: 120 mm | Port: Rc1/8
CXS2M25-125Bearing: Slide bearing | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
CXS2M25-150Bearing: Slide bearing | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
CXS2M25-175Bearing: Slide bearing | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
CXS2M25-200Bearing: Slide bearing | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
CXS2M32-10Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
CXS2M32-15Bearing: Slide bearing | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
CXS2M32-20Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
CXS2M32-25Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
CXS2M32-30Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
CXS2M32-35Bearing: Slide bearing | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
CXS2M32-40Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
CXS2M32-45Bearing: Slide bearing | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
CXS2M32-50Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
CXS2M32-60Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
CXS2M32-70Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
CXS2M32-75Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
CXS2M32-80Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
CXS2M32-90Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
CXS2M32-100Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
CXS2M32-110Bearing: Slide bearing | Bore: 32 mm | Stroke: 110 mm | Port: Rc1/8
CXS2M32-120Bearing: Slide bearing | Bore: 32 mm | Stroke: 120 mm | Port: Rc1/8
CXS2M32-125Bearing: Slide bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
CXS2M32-150Bearing: Slide bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
CXS2M32-175Bearing: Slide bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
CXS2M32-200Bearing: Slide bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8
CXS2L6-10Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 10 mm | Port: M5x0.8
CXS2L6-20Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 20 mm | Port: M5x0.8
CXS2L6-30Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 30 mm | Port: M5x0.8
CXS2L6-40Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 40 mm | Port: M5x0.8
CXS2L6-50Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 50 mm | Port: M5x0.8
CXS2L6-60Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 60 mm | Port: M5x0.8
CXS2L6-70Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 70 mm | Port: M5x0.8
CXS2L6-75Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 75 mm | Port: M5x0.8
CXS2L6-80Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 80 mm | Port: M5x0.8
CXS2L6-90Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 90 mm | Port: M5x0.8
CXS2L6-100Bearing: Ball bushing bearing | Bore: 6 mm | Stroke: 100 mm | Port: M5x0.8
CXS2L10-10Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5x0.8
CXS2L10-15Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 15 mm | Port: M5x0.8
CXS2L10-20Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5x0.8
CXS2L10-25Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 25 mm | Port: M5x0.8
CXS2L10-30Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5x0.8
CXS2L10-35Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 35 mm | Port: M5x0.8
CXS2L10-40Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5x0.8
CXS2L10-45Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 45 mm | Port: M5x0.8
CXS2L10-50Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5x0.8
CXS2L10-60Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 60 mm | Port: M5x0.8
CXS2L10-70Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 70 mm | Port: M5x0.8
CXS2L10-75Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 75 mm | Port: M5x0.8
CXS2L10-80Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 80 mm | Port: M5x0.8
CXS2L10-90Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 90 mm | Port: M5x0.8
CXS2L10-100Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 100 mm | Port: M5x0.8
CXS2L10-110Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 110 mm | Port: M5x0.8
CXS2L10-120Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 120 mm | Port: M5x0.8
CXS2L10-125Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 125 mm | Port: M5x0.8
CXS2L10-150Bearing: Ball bushing bearing | Bore: 10 mm | Stroke: 150 mm | Port: M5x0.8
CXS2L16-10Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
CXS2L16-15Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
CXS2L16-20Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
CXS2L16-25Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
CXS2L16-30Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
CXS2L16-35Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 35 mm | Port: M5x0.8
CXS2L16-40Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5x0.8
CXS2L16-45Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 45 mm | Port: M5x0.8
CXS2L16-50Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5x0.8
CXS2L16-60Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5x0.8
CXS2L16-70Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5x0.8
CXS2L16-75Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5x0.8
CXS2L16-80Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5x0.8
CXS2L16-90Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5x0.8
CXS2L16-100Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5x0.8
CXS2L16-110Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 110 mm | Port: M5x0.8
CXS2L16-120Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 120 mm | Port: M5x0.8
CXS2L16-125Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 125 mm | Port: M5x0.8
CXS2L16-150Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 150 mm | Port: M5x0.8
CXS2L16-175Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 175 mm | Port: M5x0.8
CXS2L16-200Bearing: Ball bushing bearing | Bore: 16 mm | Stroke: 200 mm | Port: M5x0.8
CXS2L20-10Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
CXS2L20-15Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
CXS2L20-20Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
CXS2L20-25Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
CXS2L20-30Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
CXS2L20-35Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
CXS2L20-40Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
CXS2L20-45Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
CXS2L20-50Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
CXS2L20-60Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5x0.8
CXS2L20-70Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5x0.8
CXS2L20-75Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5x0.8
CXS2L20-80Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5x0.8
CXS2L20-90Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5x0.8
CXS2L20-100Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5x0.8
CXS2L20-110Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 110 mm | Port: M5x0.8
CXS2L20-120Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 120 mm | Port: M5x0.8
CXS2L20-125Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 125 mm | Port: M5x0.8
CXS2L20-150Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 150 mm | Port: M5x0.8
CXS2L20-175Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 175 mm | Port: M5x0.8
CXS2L20-200Bearing: Ball bushing bearing | Bore: 20 mm | Stroke: 200 mm | Port: M5x0.8
CXS2L25-10Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 10 mm | Port: Rc1/8
CXS2L25-15Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 15 mm | Port: Rc1/8
CXS2L25-20Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8
CXS2L25-25Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
CXS2L25-30Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8
CXS2L25-35Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 35 mm | Port: Rc1/8
CXS2L25-40Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8
CXS2L25-45Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 45 mm | Port: Rc1/8
CXS2L25-50Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
CXS2L25-60Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 60 mm | Port: Rc1/8
CXS2L25-70Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 70 mm | Port: Rc1/8
CXS2L25-75Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
CXS2L25-80Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 80 mm | Port: Rc1/8
CXS2L25-90Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 90 mm | Port: Rc1/8
CXS2L25-100Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
CXS2L25-110Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 110 mm | Port: Rc1/8
CXS2L25-120Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 120 mm | Port: Rc1/8
CXS2L25-125Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
CXS2L25-150Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
CXS2L25-175Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 175 mm | Port: Rc1/8
CXS2L25-200Bearing: Ball bushing bearing | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
CXS2L32-10Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
CXS2L32-15Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
CXS2L32-20Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
CXS2L32-25Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
CXS2L32-30Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
CXS2L32-35Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
CXS2L32-40Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
CXS2L32-45Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
CXS2L32-50Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
CXS2L32-60Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
CXS2L32-70Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
CXS2L32-75Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
CXS2L32-80Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
CXS2L32-90Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
CXS2L32-100Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
CXS2L32-110Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 110 mm | Port: Rc1/8
CXS2L32-120Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 120 mm | Port: Rc1/8
CXS2L32-125Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 125 mm | Port: Rc1/8
CXS2L32-150Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 150 mm | Port: Rc1/8
CXS2L32-175Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 175 mm | Port: Rc1/8
CXS2L32-200Bearing: Ball bushing bearing | Bore: 32 mm | Stroke: 200 mm | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
