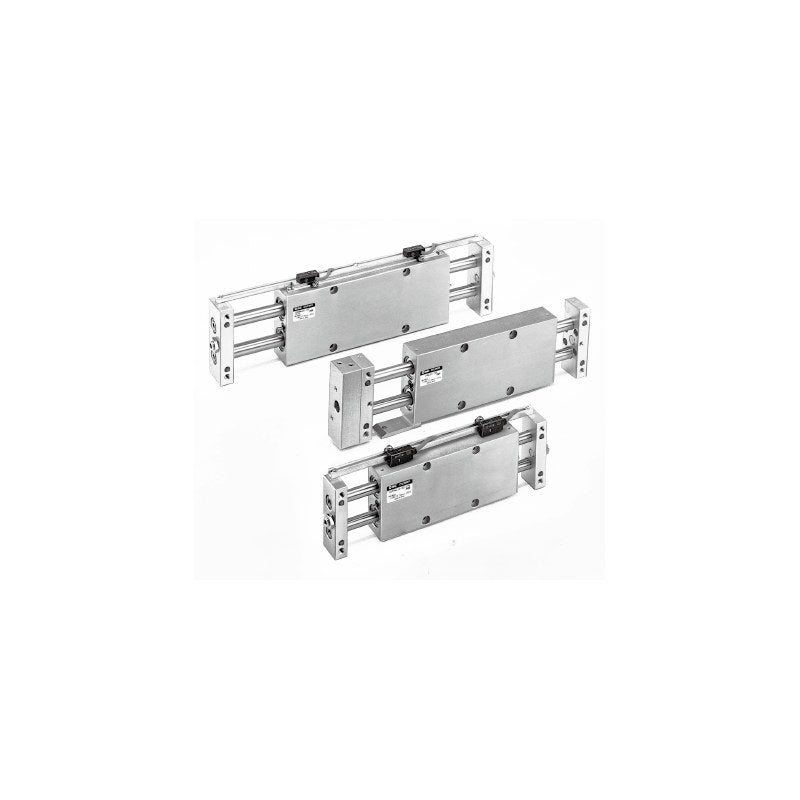

SMC CXWL Slide Unit (Shock Absorber Built-in, Ball Bushing)

SMC CXWL Slide Unit (Shock Absorber Built-in, Ball Bushing)

SMC CXWL series double rod slide unit on ball bushing bearings with dedicated shock absorbers built into the housing, ø10 to ø32.

Key features

  • Ball bushing bearings for smooth, low-friction travel; built-in shock absorbers at both ends
  • Housing or plate side mounting, max. load 1 kg (ø10) to 10 kg (ø32)
  • Optional end lock (R) keeps the original position when the air supply is cut
  • Switch-ready versions CDBXWL (housing mount) and CDPXWL (plate mount); D-F7/J79/A7/A8/E7 auto switches as suffix
  • Made to order: long stroke (-XB11), low speed (-XB13), FKM seals (-XC22), adjustable stroke (-X138)

Specifications

Fluid Air (non-lube)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure CXWL10/16 0.15 MPa, CXWL20/25/32 0.1 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 30-500 mm/s
Cushion Built-in shock absorber (RB0805/RB1006/RB1411 type)
Stroke adjustment Standard stroke ±2 mm
Non-rotating accuracy ±0.09° (ø10) to ±0.01° (ø32)
End lock holding force 39.2 N (ø10) to 392.3 N (ø32)
Source SMC Korea catalog CXWM/CXWL (SMCKR_CXWM_CXWL.pdf), p. 685-686 (PDF p. 28-29)
CXWL10-25 Version: Without auto switch | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWL10-25R Version: Without auto switch | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWL10-50 Version: Without auto switch | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWL10-50R Version: Without auto switch | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWL10-75 Version: Without auto switch | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWL10-75R Version: Without auto switch | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWL10-100 Version: Without auto switch | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWL10-100R Version: Without auto switch | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWL16-25 Version: Without auto switch | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWL16-25R Version: Without auto switch | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWL16-50 Version: Without auto switch | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWL16-50R Version: Without auto switch | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWL16-75 Version: Without auto switch | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWL16-75R Version: Without auto switch | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWL16-100 Version: Without auto switch | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWL16-100R Version: Without auto switch | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWL16-125 Version: Without auto switch | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CXWL16-125R Version: Without auto switch | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CXWL16-150 Version: Without auto switch | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CXWL16-150R Version: Without auto switch | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CXWL16-175 Version: Without auto switch | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CXWL16-175R Version: Without auto switch | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CXWL16-200 Version: Without auto switch | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CXWL16-200R Version: Without auto switch | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CXWL20-25 Version: Without auto switch | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWL20-25R Version: Without auto switch | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWL20-50 Version: Without auto switch | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWL20-50R Version: Without auto switch | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWL20-75 Version: Without auto switch | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWL20-75R Version: Without auto switch | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWL20-100 Version: Without auto switch | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWL20-100R Version: Without auto switch | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWL20-125 Version: Without auto switch | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CXWL20-125R Version: Without auto switch | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CXWL20-150 Version: Without auto switch | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CXWL20-150R Version: Without auto switch | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CXWL20-175 Version: Without auto switch | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CXWL20-175R Version: Without auto switch | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CXWL20-200 Version: Without auto switch | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CXWL20-200R Version: Without auto switch | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CXWL25-25 Version: Without auto switch | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CXWL25-25R Version: Without auto switch | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CXWL25-50 Version: Without auto switch | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CXWL25-50R Version: Without auto switch | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CXWL25-75 Version: Without auto switch | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CXWL25-75R Version: Without auto switch | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CXWL25-100 Version: Without auto switch | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CXWL25-100R Version: Without auto switch | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CXWL25-125 Version: Without auto switch | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CXWL25-125R Version: Without auto switch | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CXWL25-150 Version: Without auto switch | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CXWL25-150R Version: Without auto switch | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CXWL25-175 Version: Without auto switch | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CXWL25-175R Version: Without auto switch | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CXWL25-200 Version: Without auto switch | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CXWL25-200R Version: Without auto switch | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CXWL32-25 Version: Without auto switch | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CXWL32-25R Version: Without auto switch | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CXWL32-50 Version: Without auto switch | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CXWL32-50R Version: Without auto switch | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CXWL32-75 Version: Without auto switch | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CXWL32-75R Version: Without auto switch | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CXWL32-100 Version: Without auto switch | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CXWL32-100R Version: Without auto switch | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CXWL32-125 Version: Without auto switch | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CXWL32-125R Version: Without auto switch | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CXWL32-150 Version: Without auto switch | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CXWL32-150R Version: Without auto switch | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CXWL32-175 Version: Without auto switch | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CXWL32-175R Version: Without auto switch | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CXWL32-200 Version: Without auto switch | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CXWL32-200R Version: Without auto switch | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDBXWL10-25 Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWL10-25R Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWL10-50 Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWL10-50R Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWL10-75 Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWL10-75R Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWL10-100 Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWL10-100R Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWL16-25 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWL16-25R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWL16-50 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWL16-50R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWL16-75 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWL16-75R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWL16-100 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWL16-100R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWL16-125 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDBXWL16-125R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDBXWL16-150 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDBXWL16-150R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDBXWL16-175 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDBXWL16-175R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDBXWL16-200 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDBXWL16-200R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDBXWL20-25 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWL20-25R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWL20-50 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWL20-50R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWL20-75 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWL20-75R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWL20-100 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWL20-100R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWL20-125 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDBXWL20-125R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDBXWL20-150 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDBXWL20-150R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDBXWL20-175 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDBXWL20-175R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDBXWL20-200 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDBXWL20-200R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDBXWL25-25 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDBXWL25-25R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDBXWL25-50 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDBXWL25-50R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDBXWL25-75 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDBXWL25-75R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDBXWL25-100 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDBXWL25-100R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDBXWL25-125 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDBXWL25-125R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDBXWL25-150 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDBXWL25-150R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDBXWL25-175 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDBXWL25-175R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDBXWL25-200 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDBXWL25-200R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDBXWL32-25 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDBXWL32-25R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDBXWL32-50 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDBXWL32-50R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDBXWL32-75 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDBXWL32-75R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDBXWL32-100 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDBXWL32-100R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDBXWL32-125 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDBXWL32-125R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDBXWL32-150 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDBXWL32-150R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDBXWL32-175 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDBXWL32-175R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDBXWL32-200 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDBXWL32-200R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDPXWL10-25 Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWL10-25R Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWL10-50 Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWL10-50R Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWL10-75 Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWL10-75R Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWL10-100 Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWL10-100R Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWL16-25 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWL16-25R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWL16-50 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWL16-50R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWL16-75 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWL16-75R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWL16-100 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWL16-100R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWL16-125 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDPXWL16-125R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDPXWL16-150 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDPXWL16-150R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDPXWL16-175 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDPXWL16-175R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDPXWL16-200 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDPXWL16-200R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDPXWL20-25 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWL20-25R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWL20-50 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWL20-50R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWL20-75 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWL20-75R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWL20-100 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWL20-100R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWL20-125 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDPXWL20-125R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDPXWL20-150 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDPXWL20-150R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDPXWL20-175 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDPXWL20-175R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDPXWL20-200 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDPXWL20-200R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDPXWL25-25 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDPXWL25-25R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDPXWL25-50 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDPXWL25-50R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDPXWL25-75 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDPXWL25-75R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDPXWL25-100 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDPXWL25-100R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDPXWL25-125 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDPXWL25-125R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDPXWL25-150 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDPXWL25-150R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDPXWL25-175 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDPXWL25-175R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDPXWL25-200 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDPXWL25-200R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDPXWL32-25 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDPXWL32-25R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDPXWL32-50 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDPXWL32-50R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDPXWL32-75 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDPXWL32-75R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDPXWL32-100 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDPXWL32-100R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDPXWL32-125 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDPXWL32-125R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDPXWL32-150 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDPXWL32-150R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDPXWL32-175 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDPXWL32-175R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDPXWL32-200 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDPXWL32-200R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
Slide TablesSMC
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CXWL Slide Unit (Shock Absorber Built-in, Ball Bushing)

Brand SMC·Slide Tables

Available part numbers (216)

CXWL10-25, CXWL10-25R, CXWL10-50, CXWL10-50R, CXWL10-75, CXWL10-75R, CXWL10-100, CXWL10-100R, CXWL16-25, CXWL16-25R + 206 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CXWL10-25Version: Without auto switch | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWL10-25RVersion: Without auto switch | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWL10-50Version: Without auto switch | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWL10-50RVersion: Without auto switch | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWL10-75Version: Without auto switch | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWL10-75RVersion: Without auto switch | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWL10-100Version: Without auto switch | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWL10-100RVersion: Without auto switch | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWL16-25Version: Without auto switch | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWL16-25RVersion: Without auto switch | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWL16-50Version: Without auto switch | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWL16-50RVersion: Without auto switch | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWL16-75Version: Without auto switch | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWL16-75RVersion: Without auto switch | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWL16-100Version: Without auto switch | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWL16-100RVersion: Without auto switch | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWL16-125Version: Without auto switch | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CXWL16-125RVersion: Without auto switch | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CXWL16-150Version: Without auto switch | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CXWL16-150RVersion: Without auto switch | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CXWL16-175Version: Without auto switch | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CXWL16-175RVersion: Without auto switch | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CXWL16-200Version: Without auto switch | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CXWL16-200RVersion: Without auto switch | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CXWL20-25Version: Without auto switch | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWL20-25RVersion: Without auto switch | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWL20-50Version: Without auto switch | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWL20-50RVersion: Without auto switch | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWL20-75Version: Without auto switch | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWL20-75RVersion: Without auto switch | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWL20-100Version: Without auto switch | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWL20-100RVersion: Without auto switch | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWL20-125Version: Without auto switch | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CXWL20-125RVersion: Without auto switch | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CXWL20-150Version: Without auto switch | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CXWL20-150RVersion: Without auto switch | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CXWL20-175Version: Without auto switch | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CXWL20-175RVersion: Without auto switch | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CXWL20-200Version: Without auto switch | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CXWL20-200RVersion: Without auto switch | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CXWL25-25Version: Without auto switch | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CXWL25-25RVersion: Without auto switch | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CXWL25-50Version: Without auto switch | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CXWL25-50RVersion: Without auto switch | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CXWL25-75Version: Without auto switch | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CXWL25-75RVersion: Without auto switch | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CXWL25-100Version: Without auto switch | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CXWL25-100RVersion: Without auto switch | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CXWL25-125Version: Without auto switch | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CXWL25-125RVersion: Without auto switch | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CXWL25-150Version: Without auto switch | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CXWL25-150RVersion: Without auto switch | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CXWL25-175Version: Without auto switch | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CXWL25-175RVersion: Without auto switch | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CXWL25-200Version: Without auto switch | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CXWL25-200RVersion: Without auto switch | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CXWL32-25Version: Without auto switch | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CXWL32-25RVersion: Without auto switch | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CXWL32-50Version: Without auto switch | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CXWL32-50RVersion: Without auto switch | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CXWL32-75Version: Without auto switch | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CXWL32-75RVersion: Without auto switch | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CXWL32-100Version: Without auto switch | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CXWL32-100RVersion: Without auto switch | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CXWL32-125Version: Without auto switch | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CXWL32-125RVersion: Without auto switch | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CXWL32-150Version: Without auto switch | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CXWL32-150RVersion: Without auto switch | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CXWL32-175Version: Without auto switch | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CXWL32-175RVersion: Without auto switch | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CXWL32-200Version: Without auto switch | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CXWL32-200RVersion: Without auto switch | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDBXWL10-25Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWL10-25RVersion: Switch-ready, housing mount | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWL10-50Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWL10-50RVersion: Switch-ready, housing mount | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWL10-75Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWL10-75RVersion: Switch-ready, housing mount | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWL10-100Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWL10-100RVersion: Switch-ready, housing mount | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWL16-25Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWL16-25RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWL16-50Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWL16-50RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWL16-75Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWL16-75RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWL16-100Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWL16-100RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWL16-125Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDBXWL16-125RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDBXWL16-150Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDBXWL16-150RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDBXWL16-175Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDBXWL16-175RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDBXWL16-200Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDBXWL16-200RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDBXWL20-25Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWL20-25RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWL20-50Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWL20-50RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWL20-75Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWL20-75RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWL20-100Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWL20-100RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWL20-125Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDBXWL20-125RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDBXWL20-150Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDBXWL20-150RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDBXWL20-175Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDBXWL20-175RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDBXWL20-200Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDBXWL20-200RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDBXWL25-25Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDBXWL25-25RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDBXWL25-50Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDBXWL25-50RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDBXWL25-75Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDBXWL25-75RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDBXWL25-100Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDBXWL25-100RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDBXWL25-125Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDBXWL25-125RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDBXWL25-150Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDBXWL25-150RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDBXWL25-175Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDBXWL25-175RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDBXWL25-200Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDBXWL25-200RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDBXWL32-25Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDBXWL32-25RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDBXWL32-50Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDBXWL32-50RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDBXWL32-75Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDBXWL32-75RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDBXWL32-100Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDBXWL32-100RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDBXWL32-125Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDBXWL32-125RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDBXWL32-150Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDBXWL32-150RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDBXWL32-175Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDBXWL32-175RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDBXWL32-200Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDBXWL32-200RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDPXWL10-25Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWL10-25RVersion: Switch-ready, plate mount | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWL10-50Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWL10-50RVersion: Switch-ready, plate mount | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWL10-75Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWL10-75RVersion: Switch-ready, plate mount | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWL10-100Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWL10-100RVersion: Switch-ready, plate mount | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWL16-25Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWL16-25RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWL16-50Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWL16-50RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWL16-75Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWL16-75RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWL16-100Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWL16-100RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWL16-125Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDPXWL16-125RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDPXWL16-150Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDPXWL16-150RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDPXWL16-175Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDPXWL16-175RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDPXWL16-200Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDPXWL16-200RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDPXWL20-25Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWL20-25RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWL20-50Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWL20-50RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWL20-75Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWL20-75RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWL20-100Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWL20-100RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWL20-125Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDPXWL20-125RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDPXWL20-150Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDPXWL20-150RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDPXWL20-175Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDPXWL20-175RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDPXWL20-200Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDPXWL20-200RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDPXWL25-25Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDPXWL25-25RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDPXWL25-50Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDPXWL25-50RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDPXWL25-75Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDPXWL25-75RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDPXWL25-100Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDPXWL25-100RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDPXWL25-125Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDPXWL25-125RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDPXWL25-150Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDPXWL25-150RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDPXWL25-175Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDPXWL25-175RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDPXWL25-200Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDPXWL25-200RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDPXWL32-25Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDPXWL32-25RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDPXWL32-50Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDPXWL32-50RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDPXWL32-75Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDPXWL32-75RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDPXWL32-100Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDPXWL32-100RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDPXWL32-125Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDPXWL32-125RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDPXWL32-150Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDPXWL32-150RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDPXWL32-175Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDPXWL32-175RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDPXWL32-200Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDPXWL32-200RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
