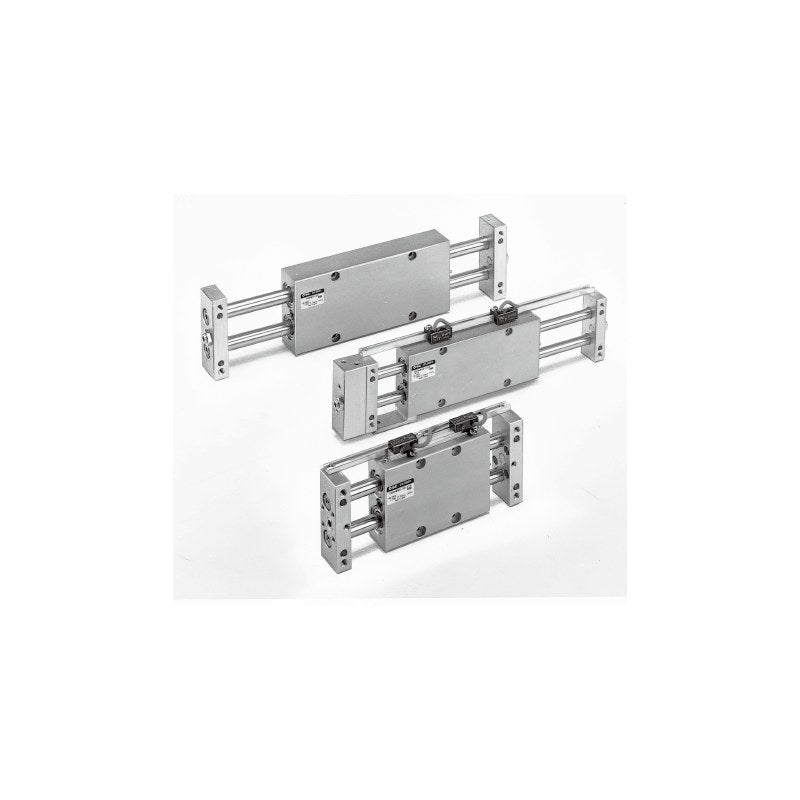

SMC CXWM Slide Unit (Shock Absorber Built-in, Slide Bearing)

SMC CXWM Slide Unit (Shock Absorber Built-in, Slide Bearing)

SMC CXWM series double rod slide unit on slide bearings with dedicated shock absorbers built into the housing, ø10 to ø32.

Key features

  • Dedicated shock absorbers built into the housing absorb impact at both stroke ends
  • Slide bearing guide; housing or plate side mounting, max. load 1 kg (ø10) to 10 kg (ø32)
  • Optional end lock (R) keeps the original position when the air supply is cut
  • Switch-ready versions CDBXWM (housing mount) and CDPXWM (plate mount); D-F7/J79/A7/A8/E7 auto switches as suffix
  • Made to order: long stroke (-XB11), low speed (-XB13), FKM seals (-XC22), adjustable stroke (-X138)

Specifications

Fluid Air (non-lube)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure CXWM10/16 0.15 MPa, CXWM20/25/32 0.1 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 30-500 mm/s
Cushion Built-in shock absorber (RB0805/RB1006/RB1411 type)
Stroke adjustment Standard stroke ±2 mm
Non-rotating accuracy ±0.09° (ø10) to ±0.01° (ø32)
End lock holding force 39.2 N (ø10) to 392.3 N (ø32)
Source SMC Korea catalog CXWM/CXWL (SMCKR_CXWM_CXWL.pdf), p. 659-660 (PDF p. 2-3)
CXWM10-25 Version: Without auto switch | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWM10-25R Version: Without auto switch | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWM10-50 Version: Without auto switch | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWM10-50R Version: Without auto switch | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWM10-75 Version: Without auto switch | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWM10-75R Version: Without auto switch | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWM10-100 Version: Without auto switch | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWM10-100R Version: Without auto switch | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWM16-25 Version: Without auto switch | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWM16-25R Version: Without auto switch | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWM16-50 Version: Without auto switch | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWM16-50R Version: Without auto switch | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWM16-75 Version: Without auto switch | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWM16-75R Version: Without auto switch | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWM16-100 Version: Without auto switch | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWM16-100R Version: Without auto switch | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWM16-125 Version: Without auto switch | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CXWM16-125R Version: Without auto switch | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CXWM16-150 Version: Without auto switch | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CXWM16-150R Version: Without auto switch | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CXWM16-175 Version: Without auto switch | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CXWM16-175R Version: Without auto switch | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CXWM16-200 Version: Without auto switch | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CXWM16-200R Version: Without auto switch | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CXWM20-25 Version: Without auto switch | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWM20-25R Version: Without auto switch | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWM20-50 Version: Without auto switch | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWM20-50R Version: Without auto switch | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWM20-75 Version: Without auto switch | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWM20-75R Version: Without auto switch | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWM20-100 Version: Without auto switch | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWM20-100R Version: Without auto switch | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWM20-125 Version: Without auto switch | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CXWM20-125R Version: Without auto switch | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CXWM20-150 Version: Without auto switch | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CXWM20-150R Version: Without auto switch | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CXWM20-175 Version: Without auto switch | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CXWM20-175R Version: Without auto switch | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CXWM20-200 Version: Without auto switch | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CXWM20-200R Version: Without auto switch | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CXWM25-25 Version: Without auto switch | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CXWM25-25R Version: Without auto switch | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CXWM25-50 Version: Without auto switch | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CXWM25-50R Version: Without auto switch | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CXWM25-75 Version: Without auto switch | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CXWM25-75R Version: Without auto switch | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CXWM25-100 Version: Without auto switch | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CXWM25-100R Version: Without auto switch | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CXWM25-125 Version: Without auto switch | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CXWM25-125R Version: Without auto switch | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CXWM25-150 Version: Without auto switch | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CXWM25-150R Version: Without auto switch | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CXWM25-175 Version: Without auto switch | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CXWM25-175R Version: Without auto switch | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CXWM25-200 Version: Without auto switch | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CXWM25-200R Version: Without auto switch | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CXWM32-25 Version: Without auto switch | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CXWM32-25R Version: Without auto switch | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CXWM32-50 Version: Without auto switch | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CXWM32-50R Version: Without auto switch | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CXWM32-75 Version: Without auto switch | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CXWM32-75R Version: Without auto switch | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CXWM32-100 Version: Without auto switch | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CXWM32-100R Version: Without auto switch | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CXWM32-125 Version: Without auto switch | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CXWM32-125R Version: Without auto switch | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CXWM32-150 Version: Without auto switch | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CXWM32-150R Version: Without auto switch | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CXWM32-175 Version: Without auto switch | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CXWM32-175R Version: Without auto switch | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CXWM32-200 Version: Without auto switch | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CXWM32-200R Version: Without auto switch | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDBXWM10-25 Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWM10-25R Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWM10-50 Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWM10-50R Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWM10-75 Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWM10-75R Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWM10-100 Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWM10-100R Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWM16-25 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWM16-25R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWM16-50 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWM16-50R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWM16-75 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWM16-75R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWM16-100 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWM16-100R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWM16-125 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDBXWM16-125R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDBXWM16-150 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDBXWM16-150R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDBXWM16-175 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDBXWM16-175R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDBXWM16-200 Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDBXWM16-200R Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDBXWM20-25 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWM20-25R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWM20-50 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWM20-50R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWM20-75 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWM20-75R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWM20-100 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWM20-100R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWM20-125 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDBXWM20-125R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDBXWM20-150 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDBXWM20-150R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDBXWM20-175 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDBXWM20-175R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDBXWM20-200 Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDBXWM20-200R Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDBXWM25-25 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDBXWM25-25R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDBXWM25-50 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDBXWM25-50R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDBXWM25-75 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDBXWM25-75R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDBXWM25-100 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDBXWM25-100R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDBXWM25-125 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDBXWM25-125R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDBXWM25-150 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDBXWM25-150R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDBXWM25-175 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDBXWM25-175R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDBXWM25-200 Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDBXWM25-200R Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDBXWM32-25 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDBXWM32-25R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDBXWM32-50 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDBXWM32-50R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDBXWM32-75 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDBXWM32-75R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDBXWM32-100 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDBXWM32-100R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDBXWM32-125 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDBXWM32-125R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDBXWM32-150 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDBXWM32-150R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDBXWM32-175 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDBXWM32-175R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDBXWM32-200 Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDBXWM32-200R Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDPXWM10-25 Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWM10-25R Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWM10-50 Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWM10-50R Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWM10-75 Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWM10-75R Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWM10-100 Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWM10-100R Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWM16-25 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWM16-25R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWM16-50 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWM16-50R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWM16-75 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWM16-75R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWM16-100 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWM16-100R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWM16-125 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDPXWM16-125R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDPXWM16-150 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDPXWM16-150R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDPXWM16-175 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDPXWM16-175R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDPXWM16-200 Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDPXWM16-200R Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDPXWM20-25 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWM20-25R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWM20-50 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWM20-50R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWM20-75 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWM20-75R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWM20-100 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWM20-100R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWM20-125 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDPXWM20-125R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDPXWM20-150 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDPXWM20-150R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDPXWM20-175 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDPXWM20-175R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDPXWM20-200 Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDPXWM20-200R Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDPXWM25-25 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDPXWM25-25R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDPXWM25-50 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDPXWM25-50R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDPXWM25-75 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDPXWM25-75R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDPXWM25-100 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDPXWM25-100R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDPXWM25-125 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDPXWM25-125R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDPXWM25-150 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDPXWM25-150R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDPXWM25-175 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDPXWM25-175R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDPXWM25-200 Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDPXWM25-200R Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDPXWM32-25 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDPXWM32-25R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDPXWM32-50 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDPXWM32-50R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDPXWM32-75 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDPXWM32-75R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDPXWM32-100 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDPXWM32-100R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDPXWM32-125 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDPXWM32-125R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDPXWM32-150 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDPXWM32-150R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDPXWM32-175 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDPXWM32-175R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDPXWM32-200 Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDPXWM32-200R Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
Slide TablesSMC
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CXWM Slide Unit (Shock Absorber Built-in, Slide Bearing)

Brand SMC·Slide Tables

Available part numbers (216)

CXWM10-25, CXWM10-25R, CXWM10-50, CXWM10-50R, CXWM10-75, CXWM10-75R, CXWM10-100, CXWM10-100R, CXWM16-25, CXWM16-25R + 206 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CXWM10-25Version: Without auto switch | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWM10-25RVersion: Without auto switch | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWM10-50Version: Without auto switch | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWM10-50RVersion: Without auto switch | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWM10-75Version: Without auto switch | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWM10-75RVersion: Without auto switch | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWM10-100Version: Without auto switch | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWM10-100RVersion: Without auto switch | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWM16-25Version: Without auto switch | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWM16-25RVersion: Without auto switch | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWM16-50Version: Without auto switch | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWM16-50RVersion: Without auto switch | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWM16-75Version: Without auto switch | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWM16-75RVersion: Without auto switch | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWM16-100Version: Without auto switch | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWM16-100RVersion: Without auto switch | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWM16-125Version: Without auto switch | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CXWM16-125RVersion: Without auto switch | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CXWM16-150Version: Without auto switch | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CXWM16-150RVersion: Without auto switch | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CXWM16-175Version: Without auto switch | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CXWM16-175RVersion: Without auto switch | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CXWM16-200Version: Without auto switch | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CXWM16-200RVersion: Without auto switch | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CXWM20-25Version: Without auto switch | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CXWM20-25RVersion: Without auto switch | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CXWM20-50Version: Without auto switch | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CXWM20-50RVersion: Without auto switch | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CXWM20-75Version: Without auto switch | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CXWM20-75RVersion: Without auto switch | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CXWM20-100Version: Without auto switch | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CXWM20-100RVersion: Without auto switch | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CXWM20-125Version: Without auto switch | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CXWM20-125RVersion: Without auto switch | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CXWM20-150Version: Without auto switch | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CXWM20-150RVersion: Without auto switch | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CXWM20-175Version: Without auto switch | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CXWM20-175RVersion: Without auto switch | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CXWM20-200Version: Without auto switch | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CXWM20-200RVersion: Without auto switch | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CXWM25-25Version: Without auto switch | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CXWM25-25RVersion: Without auto switch | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CXWM25-50Version: Without auto switch | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CXWM25-50RVersion: Without auto switch | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CXWM25-75Version: Without auto switch | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CXWM25-75RVersion: Without auto switch | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CXWM25-100Version: Without auto switch | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CXWM25-100RVersion: Without auto switch | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CXWM25-125Version: Without auto switch | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CXWM25-125RVersion: Without auto switch | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CXWM25-150Version: Without auto switch | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CXWM25-150RVersion: Without auto switch | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CXWM25-175Version: Without auto switch | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CXWM25-175RVersion: Without auto switch | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CXWM25-200Version: Without auto switch | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CXWM25-200RVersion: Without auto switch | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CXWM32-25Version: Without auto switch | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CXWM32-25RVersion: Without auto switch | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CXWM32-50Version: Without auto switch | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CXWM32-50RVersion: Without auto switch | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CXWM32-75Version: Without auto switch | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CXWM32-75RVersion: Without auto switch | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CXWM32-100Version: Without auto switch | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CXWM32-100RVersion: Without auto switch | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CXWM32-125Version: Without auto switch | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CXWM32-125RVersion: Without auto switch | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CXWM32-150Version: Without auto switch | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CXWM32-150RVersion: Without auto switch | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CXWM32-175Version: Without auto switch | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CXWM32-175RVersion: Without auto switch | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CXWM32-200Version: Without auto switch | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CXWM32-200RVersion: Without auto switch | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDBXWM10-25Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWM10-25RVersion: Switch-ready, housing mount | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWM10-50Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWM10-50RVersion: Switch-ready, housing mount | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWM10-75Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWM10-75RVersion: Switch-ready, housing mount | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWM10-100Version: Switch-ready, housing mount | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWM10-100RVersion: Switch-ready, housing mount | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWM16-25Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWM16-25RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWM16-50Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWM16-50RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWM16-75Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWM16-75RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWM16-100Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWM16-100RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWM16-125Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDBXWM16-125RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDBXWM16-150Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDBXWM16-150RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDBXWM16-175Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDBXWM16-175RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDBXWM16-200Version: Switch-ready, housing mount | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDBXWM16-200RVersion: Switch-ready, housing mount | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDBXWM20-25Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDBXWM20-25RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDBXWM20-50Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDBXWM20-50RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDBXWM20-75Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDBXWM20-75RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDBXWM20-100Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDBXWM20-100RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDBXWM20-125Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDBXWM20-125RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDBXWM20-150Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDBXWM20-150RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDBXWM20-175Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDBXWM20-175RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDBXWM20-200Version: Switch-ready, housing mount | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDBXWM20-200RVersion: Switch-ready, housing mount | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDBXWM25-25Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDBXWM25-25RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDBXWM25-50Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDBXWM25-50RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDBXWM25-75Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDBXWM25-75RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDBXWM25-100Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDBXWM25-100RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDBXWM25-125Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDBXWM25-125RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDBXWM25-150Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDBXWM25-150RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDBXWM25-175Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDBXWM25-175RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDBXWM25-200Version: Switch-ready, housing mount | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDBXWM25-200RVersion: Switch-ready, housing mount | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDBXWM32-25Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDBXWM32-25RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDBXWM32-50Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDBXWM32-50RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDBXWM32-75Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDBXWM32-75RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDBXWM32-100Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDBXWM32-100RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDBXWM32-125Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDBXWM32-125RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDBXWM32-150Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDBXWM32-150RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDBXWM32-175Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDBXWM32-175RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDBXWM32-200Version: Switch-ready, housing mount | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDBXWM32-200RVersion: Switch-ready, housing mount | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDPXWM10-25Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWM10-25RVersion: Switch-ready, plate mount | Bore: 10 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWM10-50Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWM10-50RVersion: Switch-ready, plate mount | Bore: 10 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWM10-75Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWM10-75RVersion: Switch-ready, plate mount | Bore: 10 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWM10-100Version: Switch-ready, plate mount | Bore: 10 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWM10-100RVersion: Switch-ready, plate mount | Bore: 10 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWM16-25Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWM16-25RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWM16-50Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWM16-50RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWM16-75Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWM16-75RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWM16-100Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWM16-100RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWM16-125Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDPXWM16-125RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDPXWM16-150Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDPXWM16-150RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDPXWM16-175Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDPXWM16-175RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDPXWM16-200Version: Switch-ready, plate mount | Bore: 16 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDPXWM16-200RVersion: Switch-ready, plate mount | Bore: 16 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDPXWM20-25Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 25 mm | End lock: Without | Port: M thread
CDPXWM20-25RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 25 mm | End lock: With | Port: M thread
CDPXWM20-50Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 50 mm | End lock: Without | Port: M thread
CDPXWM20-50RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 50 mm | End lock: With | Port: M thread
CDPXWM20-75Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 75 mm | End lock: Without | Port: M thread
CDPXWM20-75RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 75 mm | End lock: With | Port: M thread
CDPXWM20-100Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 100 mm | End lock: Without | Port: M thread
CDPXWM20-100RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 100 mm | End lock: With | Port: M thread
CDPXWM20-125Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 125 mm | End lock: Without | Port: M thread
CDPXWM20-125RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 125 mm | End lock: With | Port: M thread
CDPXWM20-150Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 150 mm | End lock: Without | Port: M thread
CDPXWM20-150RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 150 mm | End lock: With | Port: M thread
CDPXWM20-175Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 175 mm | End lock: Without | Port: M thread
CDPXWM20-175RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 175 mm | End lock: With | Port: M thread
CDPXWM20-200Version: Switch-ready, plate mount | Bore: 20 mm | Stroke: 200 mm | End lock: Without | Port: M thread
CDPXWM20-200RVersion: Switch-ready, plate mount | Bore: 20 mm | Stroke: 200 mm | End lock: With | Port: M thread
CDPXWM25-25Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDPXWM25-25RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDPXWM25-50Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDPXWM25-50RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDPXWM25-75Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDPXWM25-75RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDPXWM25-100Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDPXWM25-100RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDPXWM25-125Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDPXWM25-125RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDPXWM25-150Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDPXWM25-150RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDPXWM25-175Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDPXWM25-175RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDPXWM25-200Version: Switch-ready, plate mount | Bore: 25 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDPXWM25-200RVersion: Switch-ready, plate mount | Bore: 25 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8
CDPXWM32-25Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 25 mm | End lock: Without | Port: Rc1/8
CDPXWM32-25RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 25 mm | End lock: With | Port: Rc1/8
CDPXWM32-50Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 50 mm | End lock: Without | Port: Rc1/8
CDPXWM32-50RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 50 mm | End lock: With | Port: Rc1/8
CDPXWM32-75Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 75 mm | End lock: Without | Port: Rc1/8
CDPXWM32-75RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 75 mm | End lock: With | Port: Rc1/8
CDPXWM32-100Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 100 mm | End lock: Without | Port: Rc1/8
CDPXWM32-100RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 100 mm | End lock: With | Port: Rc1/8
CDPXWM32-125Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 125 mm | End lock: Without | Port: Rc1/8
CDPXWM32-125RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 125 mm | End lock: With | Port: Rc1/8
CDPXWM32-150Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 150 mm | End lock: Without | Port: Rc1/8
CDPXWM32-150RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 150 mm | End lock: With | Port: Rc1/8
CDPXWM32-175Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 175 mm | End lock: Without | Port: Rc1/8
CDPXWM32-175RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 175 mm | End lock: With | Port: Rc1/8
CDPXWM32-200Version: Switch-ready, plate mount | Bore: 32 mm | Stroke: 200 mm | End lock: Without | Port: Rc1/8
CDPXWM32-200RVersion: Switch-ready, plate mount | Bore: 32 mm | Stroke: 200 mm | End lock: With | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
