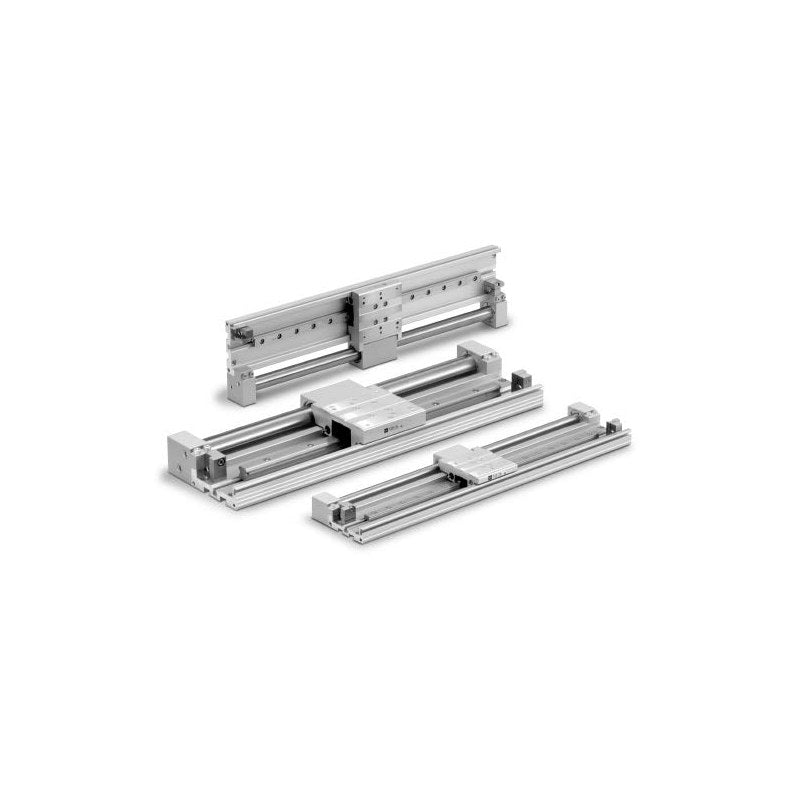

SMC CY1F Magnetic Rodless Cylinder (Low Profile Guide, ø10-ø25)

SMC CY1F Magnetic Rodless Cylinder (Low Profile Guide, ø10-ø25)

SMC CY1F series low-profile, guide-integrated magnetically coupled rodless cylinder in bores ø10, ø15 and ø25, with right or left centralized piping.

Key features

  • Low center of gravity, short and lightweight body (up to 50% lighter than CY1H)
  • Drive (cylinder) section and guide section are separable: the cylinder can be replaced with the work still mounted
  • Centralized piping selectable on the right (R) or left (L) side
  • Four stroke adjustment variants: standard bolts both sides, AL, AR or A with 25 mm adjusting bolts
  • Shock absorbers built in; magnet built in for D-M9 and D-A9 auto switches (ordered separately)
  • Port thread M5 (ø10, ø15) or Rc1/8 (ø25); NPT (TN) and G (TF) for ø25; -XB10/-XB11 strokes on order

Specifications

Fluid Air
Action Double acting, magnetic coupling
Max. operating pressure 0.7 MPa
Min. operating pressure 0.2 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50 to 500 mm/s
Cushion Built-in shock absorbers
Lubrication Not required (non-lube)
Magnetic holding force ø10 53.9 N, ø15 137 N, ø25 363 N
Source SMC Korea catalog CY1F (SMCKR_CY1F.pdf), p. 1265-1266 (PDF p. 11-12)
CY1F10R-50 Bore: ø10 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-50AL Bore: ø10 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-50AR Bore: ø10 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-50A Bore: ø10 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10R-100 Bore: ø10 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-100AL Bore: ø10 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-100AR Bore: ø10 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-100A Bore: ø10 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10R-150 Bore: ø10 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-150AL Bore: ø10 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-150AR Bore: ø10 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-150A Bore: ø10 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10R-200 Bore: ø10 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-200AL Bore: ø10 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-200AR Bore: ø10 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-200A Bore: ø10 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10R-250 Bore: ø10 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-250AL Bore: ø10 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-250AR Bore: ø10 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-250A Bore: ø10 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10R-300 Bore: ø10 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-300AL Bore: ø10 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-300AR Bore: ø10 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-300A Bore: ø10 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-50 Bore: ø10 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-50AL Bore: ø10 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-50AR Bore: ø10 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-50A Bore: ø10 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-100 Bore: ø10 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-100AL Bore: ø10 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-100AR Bore: ø10 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-100A Bore: ø10 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-150 Bore: ø10 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-150AL Bore: ø10 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-150AR Bore: ø10 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-150A Bore: ø10 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-200 Bore: ø10 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-200AL Bore: ø10 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-200AR Bore: ø10 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-200A Bore: ø10 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-250 Bore: ø10 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-250AL Bore: ø10 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-250AR Bore: ø10 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-250A Bore: ø10 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-300 Bore: ø10 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-300AL Bore: ø10 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-300AR Bore: ø10 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-300A Bore: ø10 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-50 Bore: ø15 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-50AL Bore: ø15 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-50AR Bore: ø15 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-50A Bore: ø15 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-100 Bore: ø15 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-100AL Bore: ø15 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-100AR Bore: ø15 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-100A Bore: ø15 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-150 Bore: ø15 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-150AL Bore: ø15 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-150AR Bore: ø15 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-150A Bore: ø15 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-200 Bore: ø15 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-200AL Bore: ø15 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-200AR Bore: ø15 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-200A Bore: ø15 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-250 Bore: ø15 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-250AL Bore: ø15 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-250AR Bore: ø15 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-250A Bore: ø15 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-300 Bore: ø15 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-300AL Bore: ø15 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-300AR Bore: ø15 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-300A Bore: ø15 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-350 Bore: ø15 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-350AL Bore: ø15 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-350AR Bore: ø15 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-350A Bore: ø15 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-400 Bore: ø15 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-400AL Bore: ø15 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-400AR Bore: ø15 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-400A Bore: ø15 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-450 Bore: ø15 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-450AL Bore: ø15 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-450AR Bore: ø15 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-450A Bore: ø15 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-500 Bore: ø15 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-500AL Bore: ø15 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-500AR Bore: ø15 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-500A Bore: ø15 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-50 Bore: ø15 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-50AL Bore: ø15 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-50AR Bore: ø15 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-50A Bore: ø15 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-100 Bore: ø15 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-100AL Bore: ø15 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-100AR Bore: ø15 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-100A Bore: ø15 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-150 Bore: ø15 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-150AL Bore: ø15 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-150AR Bore: ø15 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-150A Bore: ø15 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-200 Bore: ø15 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-200AL Bore: ø15 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-200AR Bore: ø15 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-200A Bore: ø15 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-250 Bore: ø15 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-250AL Bore: ø15 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-250AR Bore: ø15 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-250A Bore: ø15 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-300 Bore: ø15 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-300AL Bore: ø15 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-300AR Bore: ø15 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-300A Bore: ø15 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-350 Bore: ø15 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-350AL Bore: ø15 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-350AR Bore: ø15 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-350A Bore: ø15 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-400 Bore: ø15 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-400AL Bore: ø15 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-400AR Bore: ø15 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-400A Bore: ø15 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-450 Bore: ø15 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-450AL Bore: ø15 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-450AR Bore: ø15 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-450A Bore: ø15 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-500 Bore: ø15 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-500AL Bore: ø15 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-500AR Bore: ø15 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-500A Bore: ø15 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F25R-100 Bore: ø25 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-100AL Bore: ø25 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-100AR Bore: ø25 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-100A Bore: ø25 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-150 Bore: ø25 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-150AL Bore: ø25 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-150AR Bore: ø25 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-150A Bore: ø25 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-200 Bore: ø25 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-200AL Bore: ø25 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-200AR Bore: ø25 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-200A Bore: ø25 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-250 Bore: ø25 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-250AL Bore: ø25 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-250AR Bore: ø25 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-250A Bore: ø25 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-300 Bore: ø25 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-300AL Bore: ø25 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-300AR Bore: ø25 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-300A Bore: ø25 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-350 Bore: ø25 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-350AL Bore: ø25 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-350AR Bore: ø25 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-350A Bore: ø25 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-400 Bore: ø25 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-400AL Bore: ø25 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-400AR Bore: ø25 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-400A Bore: ø25 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-450 Bore: ø25 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-450AL Bore: ø25 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-450AR Bore: ø25 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-450A Bore: ø25 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-500 Bore: ø25 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-500AL Bore: ø25 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-500AR Bore: ø25 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-500A Bore: ø25 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-550 Bore: ø25 mm | Piping: Right side centralized | Stroke: 550 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-550AL Bore: ø25 mm | Piping: Right side centralized | Stroke: 550 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-550AR Bore: ø25 mm | Piping: Right side centralized | Stroke: 550 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-550A Bore: ø25 mm | Piping: Right side centralized | Stroke: 550 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-600 Bore: ø25 mm | Piping: Right side centralized | Stroke: 600 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-600AL Bore: ø25 mm | Piping: Right side centralized | Stroke: 600 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-600AR Bore: ø25 mm | Piping: Right side centralized | Stroke: 600 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-600A Bore: ø25 mm | Piping: Right side centralized | Stroke: 600 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-100 Bore: ø25 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-100AL Bore: ø25 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-100AR Bore: ø25 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-100A Bore: ø25 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-150 Bore: ø25 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-150AL Bore: ø25 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-150AR Bore: ø25 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-150A Bore: ø25 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-200 Bore: ø25 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-200AL Bore: ø25 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-200AR Bore: ø25 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-200A Bore: ø25 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-250 Bore: ø25 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-250AL Bore: ø25 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-250AR Bore: ø25 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-250A Bore: ø25 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-300 Bore: ø25 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-300AL Bore: ø25 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-300AR Bore: ø25 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-300A Bore: ø25 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-350 Bore: ø25 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-350AL Bore: ø25 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-350AR Bore: ø25 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-350A Bore: ø25 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-400 Bore: ø25 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-400AL Bore: ø25 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-400AR Bore: ø25 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-400A Bore: ø25 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-450 Bore: ø25 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-450AL Bore: ø25 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-450AR Bore: ø25 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-450A Bore: ø25 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-500 Bore: ø25 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-500AL Bore: ø25 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-500AR Bore: ø25 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-500A Bore: ø25 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-550 Bore: ø25 mm | Piping: Left side centralized | Stroke: 550 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-550AL Bore: ø25 mm | Piping: Left side centralized | Stroke: 550 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-550AR Bore: ø25 mm | Piping: Left side centralized | Stroke: 550 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-550A Bore: ø25 mm | Piping: Left side centralized | Stroke: 550 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-600 Bore: ø25 mm | Piping: Left side centralized | Stroke: 600 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-600AL Bore: ø25 mm | Piping: Left side centralized | Stroke: 600 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-600AR Bore: ø25 mm | Piping: Left side centralized | Stroke: 600 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-600A Bore: ø25 mm | Piping: Left side centralized | Stroke: 600 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
Rodless CylindersSMC
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CY1F Magnetic Rodless Cylinder (Low Profile Guide, ø10-ø25)

Brand SMC·Rodless Cylinders

Available part numbers (216)

CY1F10R-50, CY1F10R-50AL, CY1F10R-50AR, CY1F10R-50A, CY1F10R-100, CY1F10R-100AL, CY1F10R-100AR, CY1F10R-100A, CY1F10R-150, CY1F10R-150AL + 206 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CY1F10R-50Bore: ø10 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-50ALBore: ø10 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-50ARBore: ø10 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-50ABore: ø10 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10R-100Bore: ø10 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-100ALBore: ø10 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-100ARBore: ø10 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-100ABore: ø10 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10R-150Bore: ø10 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-150ALBore: ø10 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-150ARBore: ø10 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-150ABore: ø10 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10R-200Bore: ø10 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-200ALBore: ø10 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-200ARBore: ø10 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-200ABore: ø10 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10R-250Bore: ø10 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-250ALBore: ø10 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-250ARBore: ø10 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-250ABore: ø10 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10R-300Bore: ø10 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10R-300ALBore: ø10 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10R-300ARBore: ø10 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10R-300ABore: ø10 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-50Bore: ø10 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-50ALBore: ø10 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-50ARBore: ø10 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-50ABore: ø10 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-100Bore: ø10 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-100ALBore: ø10 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-100ARBore: ø10 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-100ABore: ø10 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-150Bore: ø10 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-150ALBore: ø10 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-150ARBore: ø10 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-150ABore: ø10 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-200Bore: ø10 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-200ALBore: ø10 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-200ARBore: ø10 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-200ABore: ø10 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-250Bore: ø10 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-250ALBore: ø10 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-250ARBore: ø10 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-250ABore: ø10 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F10L-300Bore: ø10 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F10L-300ALBore: ø10 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F10L-300ARBore: ø10 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F10L-300ABore: ø10 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-50Bore: ø15 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-50ALBore: ø15 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-50ARBore: ø15 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-50ABore: ø15 mm | Piping: Right side centralized | Stroke: 50 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-100Bore: ø15 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-100ALBore: ø15 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-100ARBore: ø15 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-100ABore: ø15 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-150Bore: ø15 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-150ALBore: ø15 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-150ARBore: ø15 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-150ABore: ø15 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-200Bore: ø15 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-200ALBore: ø15 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-200ARBore: ø15 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-200ABore: ø15 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-250Bore: ø15 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-250ALBore: ø15 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-250ARBore: ø15 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-250ABore: ø15 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-300Bore: ø15 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-300ALBore: ø15 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-300ARBore: ø15 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-300ABore: ø15 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-350Bore: ø15 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-350ALBore: ø15 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-350ARBore: ø15 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-350ABore: ø15 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-400Bore: ø15 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-400ALBore: ø15 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-400ARBore: ø15 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-400ABore: ø15 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-450Bore: ø15 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-450ALBore: ø15 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-450ARBore: ø15 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-450ABore: ø15 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15R-500Bore: ø15 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15R-500ALBore: ø15 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15R-500ARBore: ø15 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15R-500ABore: ø15 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-50Bore: ø15 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-50ALBore: ø15 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-50ARBore: ø15 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-50ABore: ø15 mm | Piping: Left side centralized | Stroke: 50 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-100Bore: ø15 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-100ALBore: ø15 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-100ARBore: ø15 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-100ABore: ø15 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-150Bore: ø15 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-150ALBore: ø15 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-150ARBore: ø15 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-150ABore: ø15 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-200Bore: ø15 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-200ALBore: ø15 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-200ARBore: ø15 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-200ABore: ø15 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-250Bore: ø15 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-250ALBore: ø15 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-250ARBore: ø15 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-250ABore: ø15 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-300Bore: ø15 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-300ALBore: ø15 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-300ARBore: ø15 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-300ABore: ø15 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-350Bore: ø15 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-350ALBore: ø15 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-350ARBore: ø15 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-350ABore: ø15 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-400Bore: ø15 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-400ALBore: ø15 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-400ARBore: ø15 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-400ABore: ø15 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-450Bore: ø15 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-450ALBore: ø15 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-450ARBore: ø15 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-450ABore: ø15 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F15L-500Bore: ø15 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Standard both sides | Port: M5x0.8
CY1F15L-500ALBore: ø15 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Right std / left 25 mm | Port: M5x0.8
CY1F15L-500ARBore: ø15 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Right 25 mm / left std | Port: M5x0.8
CY1F15L-500ABore: ø15 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: 25 mm both sides | Port: M5x0.8
CY1F25R-100Bore: ø25 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-100ALBore: ø25 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-100ARBore: ø25 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-100ABore: ø25 mm | Piping: Right side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-150Bore: ø25 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-150ALBore: ø25 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-150ARBore: ø25 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-150ABore: ø25 mm | Piping: Right side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-200Bore: ø25 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-200ALBore: ø25 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-200ARBore: ø25 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-200ABore: ø25 mm | Piping: Right side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-250Bore: ø25 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-250ALBore: ø25 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-250ARBore: ø25 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-250ABore: ø25 mm | Piping: Right side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-300Bore: ø25 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-300ALBore: ø25 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-300ARBore: ø25 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-300ABore: ø25 mm | Piping: Right side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-350Bore: ø25 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-350ALBore: ø25 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-350ARBore: ø25 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-350ABore: ø25 mm | Piping: Right side centralized | Stroke: 350 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-400Bore: ø25 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-400ALBore: ø25 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-400ARBore: ø25 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-400ABore: ø25 mm | Piping: Right side centralized | Stroke: 400 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-450Bore: ø25 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-450ALBore: ø25 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-450ARBore: ø25 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-450ABore: ø25 mm | Piping: Right side centralized | Stroke: 450 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-500Bore: ø25 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-500ALBore: ø25 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-500ARBore: ø25 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-500ABore: ø25 mm | Piping: Right side centralized | Stroke: 500 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-550Bore: ø25 mm | Piping: Right side centralized | Stroke: 550 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-550ALBore: ø25 mm | Piping: Right side centralized | Stroke: 550 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-550ARBore: ø25 mm | Piping: Right side centralized | Stroke: 550 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-550ABore: ø25 mm | Piping: Right side centralized | Stroke: 550 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25R-600Bore: ø25 mm | Piping: Right side centralized | Stroke: 600 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25R-600ALBore: ø25 mm | Piping: Right side centralized | Stroke: 600 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25R-600ARBore: ø25 mm | Piping: Right side centralized | Stroke: 600 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25R-600ABore: ø25 mm | Piping: Right side centralized | Stroke: 600 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-100Bore: ø25 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-100ALBore: ø25 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-100ARBore: ø25 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-100ABore: ø25 mm | Piping: Left side centralized | Stroke: 100 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-150Bore: ø25 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-150ALBore: ø25 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-150ARBore: ø25 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-150ABore: ø25 mm | Piping: Left side centralized | Stroke: 150 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-200Bore: ø25 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-200ALBore: ø25 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-200ARBore: ø25 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-200ABore: ø25 mm | Piping: Left side centralized | Stroke: 200 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-250Bore: ø25 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-250ALBore: ø25 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-250ARBore: ø25 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-250ABore: ø25 mm | Piping: Left side centralized | Stroke: 250 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-300Bore: ø25 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-300ALBore: ø25 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-300ARBore: ø25 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-300ABore: ø25 mm | Piping: Left side centralized | Stroke: 300 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-350Bore: ø25 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-350ALBore: ø25 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-350ARBore: ø25 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-350ABore: ø25 mm | Piping: Left side centralized | Stroke: 350 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-400Bore: ø25 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-400ALBore: ø25 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-400ARBore: ø25 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-400ABore: ø25 mm | Piping: Left side centralized | Stroke: 400 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-450Bore: ø25 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-450ALBore: ø25 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-450ARBore: ø25 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-450ABore: ø25 mm | Piping: Left side centralized | Stroke: 450 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-500Bore: ø25 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-500ALBore: ø25 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-500ARBore: ø25 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-500ABore: ø25 mm | Piping: Left side centralized | Stroke: 500 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-550Bore: ø25 mm | Piping: Left side centralized | Stroke: 550 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-550ALBore: ø25 mm | Piping: Left side centralized | Stroke: 550 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-550ARBore: ø25 mm | Piping: Left side centralized | Stroke: 550 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-550ABore: ø25 mm | Piping: Left side centralized | Stroke: 550 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8
CY1F25L-600Bore: ø25 mm | Piping: Left side centralized | Stroke: 600 mm | Adjusting bolt: Standard both sides | Port: Rc1/8
CY1F25L-600ALBore: ø25 mm | Piping: Left side centralized | Stroke: 600 mm | Adjusting bolt: Right std / left 25 mm | Port: Rc1/8
CY1F25L-600ARBore: ø25 mm | Piping: Left side centralized | Stroke: 600 mm | Adjusting bolt: Right 25 mm / left std | Port: Rc1/8
CY1F25L-600ABore: ø25 mm | Piping: Left side centralized | Stroke: 600 mm | Adjusting bolt: 25 mm both sides | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
